AirTAC Silencers & Accessories

Exhaust Mufflers | Plugs & Caps | Visual Pressure Indicators
  • Product Features
  • Silencers & Plugs Specs
  • Visual Indicator (VIS)

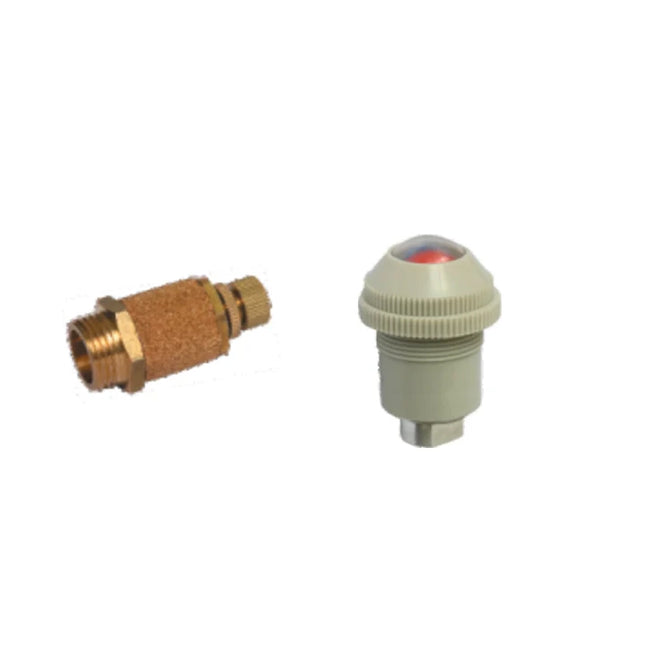

Product Features

  • Exhaust Noise Reduction: A comprehensive range of silencers (including sintered bronze, plastic foam, and plastic granule types) effectively reduces pneumatic exhaust noise to meet safety standards.
  • Speed Control (BESL Series): Features an integrated exhaust throttle valve, allowing for precise speed regulation of pneumatic cylinders while simultaneously silencing exhaust noise.
  • Compact Design: Specific models like the BSLM and PSU offer extremely low-profile and space-saving solutions for applications where clearance is restricted.
  • Visual Indication (VIS Series): The VIS series provides immediate, clear visual feedback (Red/Green transition) representing the pressure status in the air line.
  • Tube Accessories: High-quality plugs (APP) and caps (APF) are available for quickly and securely sealing unused tube ends or pneumatic ports.

Specifications & Models

1. Metal Silencers (Sintered Bronze)

Series Description Model & Thread Size (PT)
BESL Silencer Exhaust Throttle Valve (Adjustable) BESL01: 1/8"  |  BESL02: 1/4"  |  BESL03: 3/8"
BESL04: 1/2"  |  BESL06: 3/4"
BSL Universal Sintered Bronze Silencer BSLM5: M5      |  BSL01: 1/8"  |  BSL02: 1/4"
BSL03: 3/8"    |  BSL04: 1/2"  |  BSL06: 3/4"
BSL08: 1"      |  BSL10: G 1 1/4"  |  BSL12: G 1 1/2"
BSLM Compact Bronze Silencer BSLM01: 1/8"  |  BSLM02: 1/4"  |  BSLM3: 3/8"
BSLM04: 1/2"  |  BSLM06: 3/4"

2. Plastic Silencers

Series Description Model & Thread Size (PT)
PAL Plastic Foam Silencer PAL01: 1/8"  |  PAL02: 1/4"  |  PAL3: 3/8"
PAL04: 1/2"  |  PAL06: 3/4"
PSL Plastic Granule Silencer PSL01: 1/8"  |  PSL02: 1/4"  |  PSL3: 3/8"
PSL04: 1/2"  |  PSL06: 3/4"
PSU Compact Plastic Silencer PSU01: 1/8"  |  PSU02: 1/4"
PSU3: 3/8"   |  PSU04: 1/2"

3. Tube Plugs & Caps

Series Description Model & Tube O.D. (mm)
APP Pneumatic Tube Plug (Male) APP4: Φ4   |  APP6: Φ6   |  APP8: Φ8
APP10: Φ10  |  APP12: Φ12  |  APP16: Φ16
APF Pneumatic Tube Cap (Female) APF4: Φ4   |  APF6: Φ6   |  APF8: Φ8
APF10: Φ10  |  APF12: Φ12  |  APF16: Φ16

Visual Pressure Indicator (VIS Series)

Example Code: VIS001 - 04 A
Model Series Port Size Operating Pressure Range (Open / Closed) Indicator Color Transition
VIS001
(Pressure Indicator) 		04: M5 x 0.8 Full Open: 0.05 ~ 0.7 MPa (7 ~ 100 psi)
Full Closed: 0 ~ 0.015 MPa (0 ~ 2 psi) 		A: Red → Green
B: Green → Red
06: PT 1/8"
Mounting Requirement: Panel mounting hole diameter Φ31mm, Panel thickness should be less than 9mm.
Operating Medium: Clean Compressed Air.

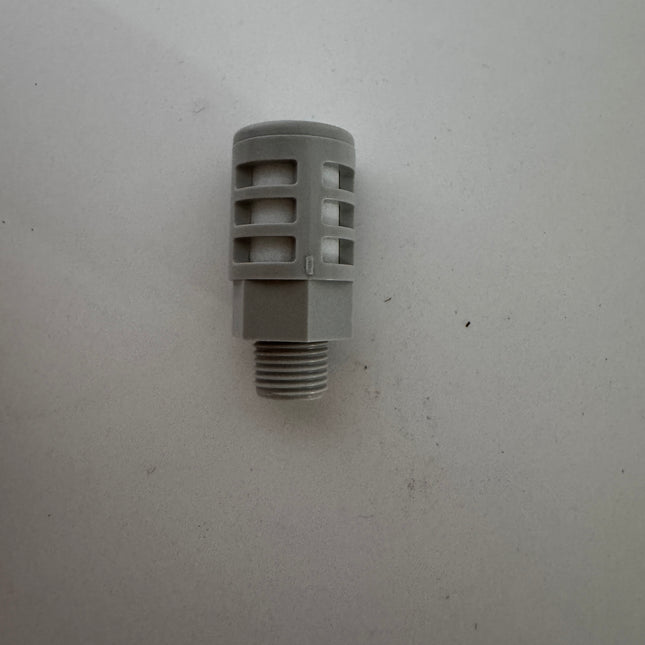

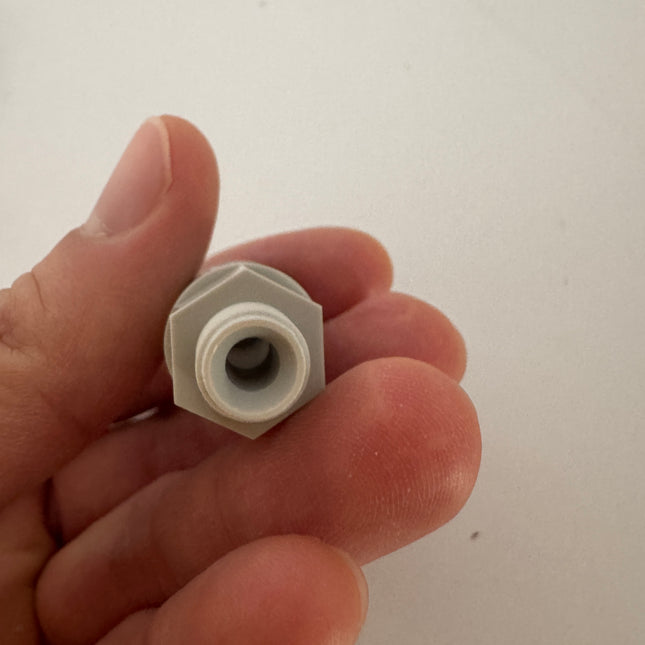

  • Airtac PSU plastic muffler - PSU01 Airtac PSU plastic muffler - PSU01 - 2

    View options

    Airtac PSU series: plastic silencer - PSU01

    Specifications: PSU01 — plastic silencer, PT 1/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSU plastic silencer 01 Connection: PT 1/8 Technical Specifications Parameter Details Current model PSU01 Type plastic silencer Connection PT 1/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSU01 at a compatible exhaust port with a mating PT 1/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies PSU as a plastic exhaust silencer. It is separate from the PAL foam and PSL particle styles. External and Mounting Dimensions Parameter Details Published connection PT 1/8 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 4.2 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $0.55

    View options

  • Airtac PSU plastic muffler - PSU02 Airtac PSU plastic muffler - PSU02 - 2

    View options

    Airtac PSU series: plastic silencer - PSU02

    Specifications: PSU02 — plastic silencer, PT 1/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PSU plastic silencer 02 Connection: PT 1/4 Technical Specifications Parameter Details Current model PSU02 Type plastic silencer Connection PT 1/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PSU02 at a compatible exhaust port with a mating PT 1/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies PSU as a plastic exhaust silencer. It is separate from the PAL foam and PSL particle styles. External and Mounting Dimensions Parameter Details Published connection PT 1/4 Source coverage The legacy product page does not publish numeric body dimensions, mounting torque, pressure/temperature ratings or a mass table for this particular designation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 10.7 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $0.55

    View options

  • View options

    Airtac PAL series: plastic foam silencer - PAL04

    Specifications: PAL04 — plastic foam silencer, PT 1/2 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PAL plastic foam silencer 04 Connection: PT 1/2 Technical Specifications Parameter Details Current model PAL04 Type plastic foam silencer Connection PT 1/2 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PAL04 at a compatible exhaust port with a mating PT 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this family as a plastic foam silencer. Its exhaust accessory function and connection are independent of the adjacent PSL and PSU families. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 25 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/2 P 28 mm L 12 mm C 73 mm H 24 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Cap POM 2 — Filter element Polyethylene fiber 3 — Body POM Flow Characteristics — 2022 Reference PAL/PALM chart: inlet pressure 0–8 bar versus exhaust flow in L/min, with the largest plotted scale value 8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes PAL04 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 100 mm cylinder bore, 500 mm/s theoretical reference speed, required effective area 20.4 mm² Valve choices shown in the same block 5V31010 or 5V41015 / 5V32010 or 5V42015; 4V31010 or 4V41015 / 4V32010 or 4V42015; 4A31010 or 4A41015 / 4A32010 or 4A42015 Tubing in the reference block 16 × 11 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 23.1 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, PAL04 row; nominal catalog mass.

    Read more

    $2.88

    View options

  • View options

    Airtac PAL series: plastic foam silencer - PAL02

    Specifications: PAL02 — plastic foam silencer, PT 1/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PAL plastic foam silencer 02 Connection: PT 1/4 Technical Specifications Parameter Details Current model PAL02 Type plastic foam silencer Connection PT 1/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PAL02 at a compatible exhaust port with a mating PT 1/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this family as a plastic foam silencer. Its exhaust accessory function and connection are independent of the adjacent PSL and PSU families. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 25 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/4 P 20 mm L 10 mm C 62.5 mm H 17 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Cap POM 2 — Filter element Polyethylene fiber 3 — Body POM Flow Characteristics — 2022 Reference PAL/PALM chart: inlet pressure 0–8 bar versus exhaust flow in L/min, with the largest plotted scale value 8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes PAL02 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 50 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 3.1 mm² Valve choices shown in the same block 5V21008 / 5V22008; 4V21008 / 4V22008; 4M21008 / 4M22008; 4A21008 / 4A22008 Tubing at this example point 8 × 5 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 10.7 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, PAL02 row; nominal catalog mass.

    Read more

    $2.33

    View options

  • View options

    Airtac PAL series: plastic foam silencer - PAL01

    Specifications: PAL01 — plastic foam silencer, PT 1/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning PAL plastic foam silencer 01 Connection: PT 1/8 Technical Specifications Parameter Details Current model PAL01 Type plastic foam silencer Connection PT 1/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install PAL01 at a compatible exhaust port with a mating PT 1/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The original page identifies this family as a plastic foam silencer. Its exhaust accessory function and connection are independent of the adjacent PSL and PSU families. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 25 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/8 P 16 mm L 7 mm C 33 mm H 14 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Cap POM 2 — Filter element Polyethylene fiber 3 — Body POM Flow Characteristics — 2022 Reference PAL/PALM chart: inlet pressure 0–8 bar versus exhaust flow in L/min, with the largest plotted scale value 8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes PAL01 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 20 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 0.5 mm² Valve choices shown in the same block 5V110M5 / 5V120M5; 4V110M5 or 4V11006 / 4V120M5 or 4V12006; 4M110M5 or 4M11006 / 4M120M5 or 4M12006; 4A110M5 or 4A11006 / 4A120M5 or 4A12006 Tubing at this example point 6 × 4 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 4.2 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, PAL01 row; nominal catalog mass.

    Read more

    $1.64

    View options

  • Airtac BSLM series: miniature silencer - BSLM04

    View options

    Airtac BSLM series: miniature silencer - BSLM04

    Specifications: BSLM04 — miniature silencer, PT 1/2 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSLM miniature silencer 04 Connection: PT 1/2 Technical Specifications Parameter Details Current model BSLM04 Type miniature silencer Connection PT 1/2 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSLM04 at a compatible exhaust port with a mating PT 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The miniature silencer provides a compact threaded exhaust accessory. It is a distinct low-profile family; do not confuse BSLM01 with the longer BSL01. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/2 L 10.5 mm C 19 mm H 22 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Construction — Source Coverage The cited page does not provide a separate BSLM internal-parts material table. The BSL exploded view must not be treated as a BSLM bill of materials. Flow Characteristics — 2022 Reference BSLM: inlet pressure 0–6 bar and exhaust flow 0–1600 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSLM04 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 100 mm cylinder bore, 500 mm/s theoretical reference speed, required effective area 20.4 mm² Valve choices shown in the same block 5V31010 or 5V41015 / 5V32010 or 5V42015; 4V31010 or 4V41015 / 4V32010 or 4V42015; 4A31010 or 4A41015 / 4A32010 or 4A42015 Tubing in the reference block 16 × 11 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 25.9 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSLM04 row; nominal catalog mass.

    Read more

    $3.43

    View options

  • View options

    Airtac BSLM series: miniature silencer - BSLM01

    Specifications: BSLM01 — miniature silencer, PT 1/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSLM miniature silencer 01 Connection: PT 1/8 Technical Specifications Parameter Details Current model BSLM01 Type miniature silencer Connection PT 1/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSLM01 at a compatible exhaust port with a mating PT 1/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The miniature silencer provides a compact threaded exhaust accessory. It is a distinct low-profile family; do not confuse BSLM01 with the longer BSL01. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/8 L 6 mm C 11 mm H 12 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Construction — Source Coverage The cited page does not provide a separate BSLM internal-parts material table. The BSL exploded view must not be treated as a BSLM bill of materials. Flow Characteristics — 2022 Reference BSLM: inlet pressure 0–6 bar and exhaust flow 0–1600 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSLM01 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 20 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 0.5 mm² Valve choices shown in the same block 5V110M5 / 5V120M5; 4V110M5 or 4V11006 / 4V120M5 or 4V12006; 4M110M5 or 4M11006 / 4M120M5 or 4M12006; 4A110M5 or 4A11006 / 4A120M5 or 4A12006 Tubing at this example point 6 × 4 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 4.3 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSLM01 row; nominal catalog mass.

    Read more

    $1.10

    View options

  • Airtac BSLM series: miniature silencer - BSLM02

    View options

    Airtac BSLM series: miniature silencer - BSLM02

    Specifications: BSLM02 — miniature silencer, PT 1/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSLM miniature silencer 02 Connection: PT 1/4 Technical Specifications Parameter Details Current model BSLM02 Type miniature silencer Connection PT 1/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSLM02 at a compatible exhaust port with a mating PT 1/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The miniature silencer provides a compact threaded exhaust accessory. It is a distinct low-profile family; do not confuse BSLM01 with the longer BSL01. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/4 L 8 mm C 13.5 mm H 15 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Construction — Source Coverage The cited page does not provide a separate BSLM internal-parts material table. The BSL exploded view must not be treated as a BSLM bill of materials. Flow Characteristics — 2022 Reference BSLM: inlet pressure 0–6 bar and exhaust flow 0–1600 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSLM02 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 50 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 3.1 mm² Valve choices shown in the same block 5V21008 / 5V22008; 4V21008 / 4V22008; 4M21008 / 4M22008; 4A21008 / 4A22008 Tubing at this example point 8 × 5 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 8.4 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSLM02 row; nominal catalog mass.

    Read more

    $1.64

    View options

  • Airtac BSL series: general-purpose silencer - BSL04

    View options

    Airtac BSL series: general-purpose silencer - BSL04

    Specifications: BSL04 — general-purpose silencer, PT 1/2 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 04 Connection: PT 1/2 Technical Specifications Parameter Details Current model BSL04 Type general-purpose silencer Connection PT 1/2 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL04 at a compatible exhaust port with a mating PT 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 12 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/2 L 10.5 mm C 46 mm H 22 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Silencing element Sintered particles 2 — Threaded body HPb59-1 brass Flow Characteristics — 2022 Reference BSL: inlet pressure 0–6 bar and exhaust flow 0–8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSL04 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 100 mm cylinder bore, 500 mm/s theoretical reference speed, required effective area 20.4 mm² Valve choices shown in the same block 5V31010 or 5V41015 / 5V32010 or 5V42015; 4V31010 or 4V41015 / 4V32010 or 4V42015; 4A31010 or 4A41015 / 4A32010 or 4A42015 Tubing in the reference block 16 × 11 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 35 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSL04 row; nominal catalog mass.

    Read more

    $4.66

    View options

  • Airtac BSL series: general-purpose silencer - BSL02 Airtac BSL series: general-purpose silencer - BSL02

    View options

    Airtac BSL series: general-purpose silencer - BSL02

    Specifications: BSL02 — general-purpose silencer, PT 1/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 02 Connection: PT 1/4 Technical Specifications Parameter Details Current model BSL02 Type general-purpose silencer Connection PT 1/4 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL02 at a compatible exhaust port with a mating PT 1/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/4 L 8 mm C 30 mm H 15 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Silencing element Sintered particles 2 — Threaded body HPb59-1 brass Flow Characteristics — 2022 Reference BSL: inlet pressure 0–6 bar and exhaust flow 0–8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSL02 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 50 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 3.1 mm² Valve choices shown in the same block 5V21008 / 5V22008; 4V21008 / 4V22008; 4M21008 / 4M22008; 4A21008 / 4A22008 Tubing at this example point 8 × 5 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 11.6 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSL02 row; nominal catalog mass.

    Read more

    $2.33

    View options

  • Airtac BSL series: general-purpose silencer - BSL03

    View options

    Airtac BSL series: general-purpose silencer - BSL03

    Specifications: BSL03 — general-purpose silencer, PT 3/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 03 Connection: PT 3/8 Technical Specifications Parameter Details Current model BSL03 Type general-purpose silencer Connection PT 3/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL03 at a compatible exhaust port with a mating PT 3/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 3/8 L 9 mm C 38.5 mm H 19 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Silencing element Sintered particles 2 — Threaded body HPb59-1 brass Flow Characteristics — 2022 Reference BSL: inlet pressure 0–6 bar and exhaust flow 0–8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSL03 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 80 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 7.9 mm² Valve choices shown in the same block 5V31010 / 5V32010; 4V31010 / 4V32010; 4M31010 / 4M32010; 4A31010 / 4A32010 Tubing at this example point 10 × 6.5 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 22 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSL03 row; nominal catalog mass.

    Read more

    $3.43

    View options

  • Airtac BSL series: general-purpose silencer - BSL01

    View options

    Airtac BSL series: general-purpose silencer - BSL01

    Specifications: BSL01 — general-purpose silencer, PT 1/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer 01 Connection: PT 1/8 Technical Specifications Parameter Details Current model BSL01 Type general-purpose silencer Connection PT 1/8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSL01 at a compatible exhaust port with a mating PT 1/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/8 L 6 mm C 24 mm H 12 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Silencing element Sintered particles 2 — Threaded body HPb59-1 brass Flow Characteristics — 2022 Reference BSL: inlet pressure 0–6 bar and exhaust flow 0–8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSL01 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 20 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 0.5 mm² Valve choices shown in the same block 5V110M5 / 5V120M5; 4V110M5 or 4V11006 / 4V120M5 or 4V12006; 4M110M5 or 4M11006 / 4M120M5 or 4M12006; 4A110M5 or 4A11006 / 4A120M5 or 4A12006 Tubing at this example point 6 × 4 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 6.7 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSL01 row; nominal catalog mass.

    Read more

    $1.64

    View options

  • Airtac BSL series: general-purpose silencer - BSLM5

    View options

    Airtac BSL series: general-purpose silencer - BSLM5

    Specifications: BSLM5 — general-purpose silencer, M5 × 0.8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BSL general-purpose silencer M5 Connection: M5 × 0.8 Technical Specifications Parameter Details Current model BSLM5 Type general-purpose silencer Connection M5 × 0.8 Use Pneumatic exhaust noise reduction Compatible Valve Series and Port Conditions Install BSLM5 at a compatible exhaust port with a mating M5 × 0.8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The catalog identifies this as the general copper-alloy silencer style. It attaches by the specified male thread and vents air through a porous silencing element. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 15 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread M5 × 0.8 L 3.5 mm C 19.5 mm H 8 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Silencing element Sintered particles 2 — Threaded body HPb59-1 brass Flow Characteristics — 2022 Reference BSL: inlet pressure 0–6 bar and exhaust flow 0–8000 L/min. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BSLM5 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Cylinder / speed reference 6, 10, 12 and 16 mm bores at 500 mm/s theoretical reference speed Required effective areas 0.1, 0.2, 0.3 and 0.5 mm² respectively Valve examples in the same block 5V110M5 / 5V120M5; 4V110M5 / 4V120M5; 4M110M5 / 4M120M5; 4A110M5 / 4A120M5 Tubing in the reference block 4 × 2.5 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 2.9 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BSLM5 row; nominal catalog mass.

    Read more

    $1.10

    View options

  • Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL04

    View options

    Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL04

    Specifications: BESL04 — adjustable exhaust silencer / throttle valve, PT 1/2 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BESL adjustable exhaust silencer / throttle valve 04 Connection: PT 1/2 Technical Specifications Parameter Details Current model BESL04 Type adjustable exhaust silencer / throttle valve Connection PT 1/2 Use Pneumatic exhaust noise reduction; adjustable exhaust restriction Compatible Valve Series and Port Conditions Install BESL04 at a compatible exhaust port with a mating PT 1/2 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The adjustable restrictor and silencing element combine exhaust-flow adjustment with noise reduction. Adjusting exhaust restriction affects the connected pneumatic circuit; this is an exhaust accessory, not a directional solenoid valve. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/2 L 10.5 mm C max 59.5 mm C min 52 mm H 24 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Adjustment cap Aluminum alloy 2 — Throttle rod Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencing element Sintered particles 6 — Threaded body Brass Flow Characteristics — 2022 Reference BESL fully-open flow chart: inlet pressure 0–6 bar and exhaust flow 0–2500 L/min. The adjustment chart shows 0–15 turns versus 0–2000 L/min; refer to its individual thread-size curves. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BESL04 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 100 mm cylinder bore, 500 mm/s theoretical reference speed, required effective area 20.4 mm² Valve choices shown in the same block 5V31010 or 5V41015 / 5V32010 or 5V42015; 4V31010 or 4V41015 / 4V32010 or 4V42015; 4A31010 or 4A41015 / 4A32010 or 4A42015 Tubing in the reference block 16 × 11 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 69.8 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BESL04 row; nominal catalog mass.

    Read more

    $8.22

    View options

  • Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL03

    View options

    Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL03

    Specifications: BESL03 — adjustable exhaust silencer / throttle valve, PT 3/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BESL adjustable exhaust silencer / throttle valve 03 Connection: PT 3/8 Technical Specifications Parameter Details Current model BESL03 Type adjustable exhaust silencer / throttle valve Connection PT 3/8 Use Pneumatic exhaust noise reduction; adjustable exhaust restriction Compatible Valve Series and Port Conditions Install BESL03 at a compatible exhaust port with a mating PT 3/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The adjustable restrictor and silencing element combine exhaust-flow adjustment with noise reduction. Adjusting exhaust restriction affects the connected pneumatic circuit; this is an exhaust accessory, not a directional solenoid valve. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 3/8 L 9 mm C max 49 mm C min 41.5 mm H 17 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Adjustment cap Aluminum alloy 2 — Throttle rod Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencing element Sintered particles 6 — Threaded body Brass Flow Characteristics — 2022 Reference BESL fully-open flow chart: inlet pressure 0–6 bar and exhaust flow 0–2500 L/min. The adjustment chart shows 0–15 turns versus 0–2000 L/min; refer to its individual thread-size curves. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BESL03 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 80 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 7.9 mm² Valve choices shown in the same block 5V31010 / 5V32010; 4V31010 / 4V32010; 4M31010 / 4M32010; 4A31010 / 4A32010 Tubing at this example point 10 × 6.5 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 31.1 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BESL03 row; nominal catalog mass.

    Read more

    $5.75

    View options

  • Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL02

    View options

    Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL02

    Specifications: BESL02 — adjustable exhaust silencer / throttle valve, PT 1/4 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BESL adjustable exhaust silencer / throttle valve 02 Connection: PT 1/4 Technical Specifications Parameter Details Current model BESL02 Type adjustable exhaust silencer / throttle valve Connection PT 1/4 Use Pneumatic exhaust noise reduction; adjustable exhaust restriction Compatible Valve Series and Port Conditions Install BESL02 at a compatible exhaust port with a mating PT 1/4 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The adjustable restrictor and silencing element combine exhaust-flow adjustment with noise reduction. Adjusting exhaust restriction affects the connected pneumatic circuit; this is an exhaust accessory, not a directional solenoid valve. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/4 L 8 mm C max 42.5 mm C min 35 mm H 14 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Adjustment cap Aluminum alloy 2 — Throttle rod Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencing element Sintered particles 6 — Threaded body Brass Flow Characteristics — 2022 Reference BESL fully-open flow chart: inlet pressure 0–6 bar and exhaust flow 0–2500 L/min. The adjustment chart shows 0–15 turns versus 0–2000 L/min; refer to its individual thread-size curves. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BESL02 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 50 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 3.1 mm² Valve choices shown in the same block 5V21008 / 5V22008; 4V21008 / 4V22008; 4M21008 / 4M22008; 4A21008 / 4A22008 Tubing at this example point 8 × 5 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 18.1 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BESL02 row; nominal catalog mass.

    Read more

    $4.11

    View options

  • Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL01

    View options

    Airtac BESL series: adjustable exhaust silencer / throttle valve - BESL01

    Specifications: BESL01 — adjustable exhaust silencer / throttle valve, PT 1/8 connection for a matching pneumatic exhaust port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning BESL adjustable exhaust silencer / throttle valve 01 Connection: PT 1/8 Technical Specifications Parameter Details Current model BESL01 Type adjustable exhaust silencer / throttle valve Connection PT 1/8 Use Pneumatic exhaust noise reduction; adjustable exhaust restriction Compatible Valve Series and Port Conditions Install BESL01 at a compatible exhaust port with a mating PT 1/8 thread. The original catalog identifies this item by exhaust-port size rather than by one exclusive cylinder or valve series. Do not select it from the cylinder bore alone, and do not substitute a G or NPT thread for a PT thread. Check available exhaust capacity, back pressure and installation clearance. Features and Operation The adjustable restrictor and silencing element combine exhaust-flow adjustment with noise reduction. Adjusting exhaust restriction affects the connected pneumatic circuit; this is an exhaust accessory, not a directional solenoid valve. 2022 Reference Specifications The following supplementary values are from the same model designation in the 2022 Chinese catalog, pages 273–274. The original legacy page publishes the connection only; confirm the supplied catalog edition if the physical construction differs. Parameter Details Working medium Air Working pressure 0–1.0 MPa (0–10 kgf/cm² as printed) Vacuum reference −750 mmHg (10 Torr as printed) Proof pressure 1.5 MPa Temperature −20–70 °C Noise attenuation at 0.5 MPa 20 dB; catalog test reference, not a guarantee of system noise level External and Mounting Dimensions — 2022 Reference Parameter Details R / thread PT 1/8 L 6 mm C max 40.5 mm C min 33 mm H 12 mm L is the axial thread length, C is the catalog axial body dimension and H is the across-flats dimension. For BESL, C max/C min refer to the two adjustment positions. These labels refer to the corresponding catalog drawing, not an inferred overall length × width × height. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components — 2022 Reference Parameter Details 1 — Adjustment cap Aluminum alloy 2 — Throttle rod Aluminum alloy 3 — Locking cap Aluminum alloy 4 — Locking ring Aluminum alloy 5 — Silencing element Sintered particles 6 — Threaded body Brass Flow Characteristics — 2022 Reference BESL fully-open flow chart: inlet pressure 0–6 bar and exhaust flow 0–2500 L/min. The adjustment chart shows 0–15 turns versus 0–2000 L/min; refer to its individual thread-size curves. The axes define the plotted reference range, not the rated flow of this particular item. The graph must be consulted for the selected size and operating pressure; no curve value is estimated here. Cylinder and Valve Selection Reference — 2022 Catalog, Page 299 The selection chart includes BESL01 among the auxiliary silencer choices for the example below. This is circuit-selection guidance, not a guarantee that it screws directly into every listed valve. Match the actual exhaust-port thread and required exhaust capacity before selection. Parameter Details Example operating point 20 mm cylinder bore, 300 mm/s theoretical reference speed, required effective area 0.5 mm² Valve choices shown in the same block 5V110M5 / 5V120M5; 4V110M5 or 4V11006 / 4V120M5 or 4V12006; 4M110M5 or 4M11006 / 4M120M5 or 4M12006; 4A110M5 or 4A11006 / 4A120M5 or 4A12006 Tubing at this example point 6 × 4 mm (outside × inside diameter) The speed is a theoretical selection reference. Required effective area is a circuit requirement, not a rated silencer flow. The cylinders, valves and tubing in this reference are not included with this item; consult the full selection chart for other operating points. 2022 Chinese Catalog Supplement The following unchanged Chinese catalog pages provide the separately identified 2022 reference data. The original product PDF above remains available. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 10 g. Catalog reference only. Actual weight is subject to the physical product; packaging excluded. 2022 Chinese catalog, printed page 274, BESL01 row; nominal catalog mass.

    Read more

    $2.88

    View options

  • Airtac Pressure indicator lamp - VIS001-06B

    View options

    Airtac VIS series: pneumatic pressure indicator - VIS001-06B

    Specifications: VIS001-06B — pneumatic pressure indicator, PT 1/8 port, green to red indication. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning VIS001 Pneumatic pressure indicator 06 Air connection: PT 1/8 B Indication change: green to red Technical Specifications Parameter Details Model VIS001-06B Working medium Compressed air Connection PT 1/8 Indication direction green to red Fully-on pressure range 0.05–0.7 MPa (7–100 psi as printed) Fully-off pressure range 0–0.015 MPa (0–2 psi as printed) Mounting Panel mounting Compatible Circuit and Operation This indicator connects to a pneumatic pressure signal through a mating PT 1/8 port. It is a visual pressure-status accessory; the source specifies no voltage, electrical contacts or electronic switching output. It is not a replacement for an EMS/DMS/CMS cylinder-position sensor. The catalog does not identify one exclusive valve family, so the actual signal port, pressure range and panel fit must be checked. External and Mounting Dimensions Parameter Details Panel cutout Φ31 mm Panel thickness Less than 9 mm Connection PT 1/8 Other dimensions Overall length and body envelope are not published on the supplied page. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options 04 denotes M5 × 0.8 and 06 denotes PT 1/8. A changes red to green; B changes green to red. These are separate order variants; this item has only the connection and indication specified above. Weight Reference 35 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $38.09

    View options

  • Airtac Pressure indicator lamp - VIS001-04B

    View options

    Airtac VIS series: pneumatic pressure indicator - VIS001-04B

    Specifications: VIS001-04B — pneumatic pressure indicator, M5 × 0.8 port, green to red indication. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning VIS001 Pneumatic pressure indicator 04 Air connection: M5 × 0.8 B Indication change: green to red Technical Specifications Parameter Details Model VIS001-04B Working medium Compressed air Connection M5 × 0.8 Indication direction green to red Fully-on pressure range 0.05–0.7 MPa (7–100 psi as printed) Fully-off pressure range 0–0.015 MPa (0–2 psi as printed) Mounting Panel mounting Compatible Circuit and Operation This indicator connects to a pneumatic pressure signal through a mating M5 × 0.8 port. It is a visual pressure-status accessory; the source specifies no voltage, electrical contacts or electronic switching output. It is not a replacement for an EMS/DMS/CMS cylinder-position sensor. The catalog does not identify one exclusive valve family, so the actual signal port, pressure range and panel fit must be checked. External and Mounting Dimensions Parameter Details Panel cutout Φ31 mm Panel thickness Less than 9 mm Connection M5 × 0.8 Other dimensions Overall length and body envelope are not published on the supplied page. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options 04 denotes M5 × 0.8 and 06 denotes PT 1/8. A changes red to green; B changes green to red. These are separate order variants; this item has only the connection and indication specified above. Weight Reference 35 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $38.09

    View options

  • Airtac Pressure indicator lamp - VIS001-06A

    View options

    Airtac VIS series: pneumatic pressure indicator - VIS001-06A

    Specifications: VIS001-06A — pneumatic pressure indicator, PT 1/8 port, red to green indication. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning VIS001 Pneumatic pressure indicator 06 Air connection: PT 1/8 A Indication change: red to green Technical Specifications Parameter Details Model VIS001-06A Working medium Compressed air Connection PT 1/8 Indication direction red to green Fully-on pressure range 0.05–0.7 MPa (7–100 psi as printed) Fully-off pressure range 0–0.015 MPa (0–2 psi as printed) Mounting Panel mounting Compatible Circuit and Operation This indicator connects to a pneumatic pressure signal through a mating PT 1/8 port. It is a visual pressure-status accessory; the source specifies no voltage, electrical contacts or electronic switching output. It is not a replacement for an EMS/DMS/CMS cylinder-position sensor. The catalog does not identify one exclusive valve family, so the actual signal port, pressure range and panel fit must be checked. External and Mounting Dimensions Parameter Details Panel cutout Φ31 mm Panel thickness Less than 9 mm Connection PT 1/8 Other dimensions Overall length and body envelope are not published on the supplied page. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options 04 denotes M5 × 0.8 and 06 denotes PT 1/8. A changes red to green; B changes green to red. These are separate order variants; this item has only the connection and indication specified above. Weight Reference 35 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $38.09

    View options

  • Airtac Pressure indicator lamp - VIS001-04A

    View options

    Airtac VIS series: pneumatic pressure indicator - VIS001-04A

    Specifications: VIS001-04A — pneumatic pressure indicator, M5 × 0.8 port, red to green indication. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning VIS001 Pneumatic pressure indicator 04 Air connection: M5 × 0.8 A Indication change: red to green Technical Specifications Parameter Details Model VIS001-04A Working medium Compressed air Connection M5 × 0.8 Indication direction red to green Fully-on pressure range 0.05–0.7 MPa (7–100 psi as printed) Fully-off pressure range 0–0.015 MPa (0–2 psi as printed) Mounting Panel mounting Compatible Circuit and Operation This indicator connects to a pneumatic pressure signal through a mating M5 × 0.8 port. It is a visual pressure-status accessory; the source specifies no voltage, electrical contacts or electronic switching output. It is not a replacement for an EMS/DMS/CMS cylinder-position sensor. The catalog does not identify one exclusive valve family, so the actual signal port, pressure range and panel fit must be checked. External and Mounting Dimensions Parameter Details Panel cutout Φ31 mm Panel thickness Less than 9 mm Connection M5 × 0.8 Other dimensions Overall length and body envelope are not published on the supplied page. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options 04 denotes M5 × 0.8 and 06 denotes PT 1/8. A changes red to green; B changes green to red. These are separate order variants; this item has only the connection and indication specified above. Weight Reference 35 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $38.09

    View options

  • Airtac APF Pipe Cap - APF16

    View options

    Airtac APF series: tube-end cap - APF16

    Specifications: APF16 — tube-end cap, 16 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APF tube-end cap 16 16 mm nominal tube/socket size Technical Specifications Parameter Details Model APF16 Connection size 16 mm Component type tube-end cap Compatible Fittings and Tubing Caps the end of 16 mm outside-diameter tube using the cap connection. It is not a threaded port plug. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 16 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APF16. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 8.9 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $5.75

    View options

  • Airtac APF Pipe Cap - APF12

    View options

    Airtac APF series: tube-end cap - APF12

    Specifications: APF12 — tube-end cap, 12 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APF tube-end cap 12 12 mm nominal tube/socket size Technical Specifications Parameter Details Model APF12 Connection size 12 mm Component type tube-end cap Compatible Fittings and Tubing Caps the end of 12 mm outside-diameter tube using the cap connection. It is not a threaded port plug. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 12 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APF12. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 6.1 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $2.88

    View options

  • Airtac APF Pipe Cap - APF10

    View options

    Airtac APF series: tube-end cap - APF10

    Specifications: APF10 — tube-end cap, 10 mm connection size. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning APF tube-end cap 10 10 mm nominal tube/socket size Technical Specifications Parameter Details Model APF10 Connection size 10 mm Component type tube-end cap Compatible Fittings and Tubing Caps the end of 10 mm outside-diameter tube using the cap connection. It is not a threaded port plug. The catalog specifies the mating diameter, not an exclusive valve or cylinder family. Match the actual socket/tube size and verify its material, retention and pressure rating with the supplier. No specific cylinder model or universal fitting interchangeability is stated. External and Mounting Dimensions The drawing labels the mating diameter as ΦD = 10 mm. The source does not give overall length, head diameter, insertion depth, pressure rating, material grade or installation torque for APF10. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference 4.9 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.

    Read more

    $2.33

    View options

You have seen 24 out of 49 products

Show more products
