6TA Series Valve Product Information

Valve

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  • The main body is formed by aluminum alloy extrusion, with a special internal bore processing to effectively increase the flow rate.
  • Can be integrated with a base to form a valve bank, saving installation space.

Specifications

Model 6TA0510 6TA0520 6TA110 6TA120
Port Size Inlet=Outlet=Exhaust=M5 Inlet=Exhaust=Outlet=PT1/8 or M5
Effective Area (Cv) M5: 3.4mm² (0.2) 06: 8.9mm² (0.52)
Model 6TA210 6TA220 6TA310 6TA320
Port Size 06: Inlet/Outlet/Exhaust=PT1/8
08: Inlet/Outlet=PT1/4; Exhaust=PT1/8		 Inlet/Outlet=PT3/8; Exhaust=PT1/4
Effective Area (Cv) 08: 15.4mm² (0.91) 10: 38.4mm² (2.26)
Working Medium Air (filtered by 40μm or larger)
Actuation Mode Externally air piloted
Operating Pressure 0.15~0.8MPa (21~114psi)
Proof Pressure 1.2MPa (175psi)
Operating Temperature -20~70℃
Max. Operating Frequency 5 cycles/sec
Note:
• PT, NPT, and G threads are available.
• If lubricated, do not stop midway. Use turbine oil ISO VG32 or equivalent.

Product Ordering Code

Example: 6TA 2 10 08 NC □

Item Code Description
Series Code 05 / 1 / 2 / 3 0500 / 100 / 200 / 300 Series
Control Type 10 / 20 Single Air Control / Double Air Control
Port Size M5 / 06 / 08 / 10 M5 / PT1/8 / PT1/4 / PT3/8
Initial State NC / NO Normally Closed / Normally Open
Thread Type Blank / G / T PT / G / NPT Thread
Note: No initial state option is available for the double air control model.
  • 6TV200M12FG

    View options

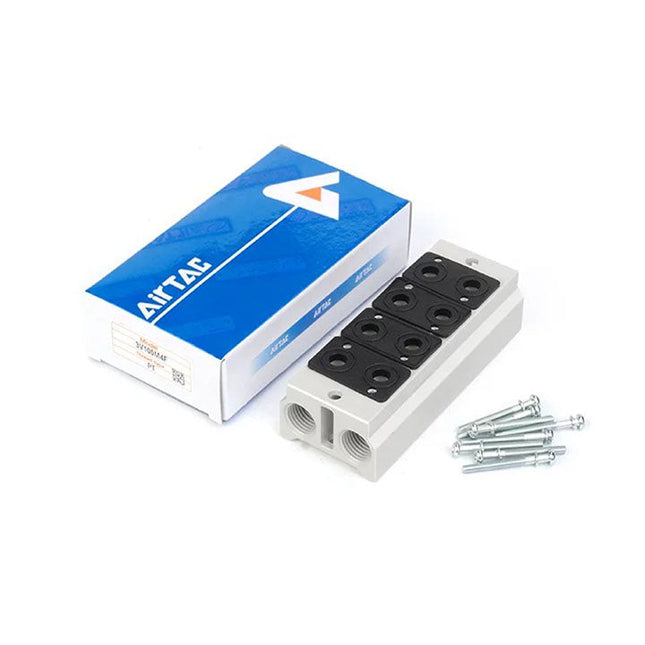

    Airtac 6TV200M series: pneumatic valve manifold base - 6TV200M12FG

    Specifications: 6TV200M12FG is a 12-station 6TV200M manifold base assembly for 6TA200 series air-operated valves, with G 1/4 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV200M Manifold family for 6TA200 series air-operated valves 12F 12 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV200M manifold / 6TA200 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 12 Common supply / exhaust ports G 1/4 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 12F 246 / 236 mm Drawing label Dimension A / B 48 / 44 mm E / F / G 4.5 / 19 / 18.5 mm H / I / J 5 / 9 / 34.5 mm K / R / V 85.5 / 24 / 12 mm W / X 57 / 23.5 mm Drawing thread label Current model port Q G 1/4 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV200M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 956 g. The same size-family, station count and thread arrangement of 6V200M12FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $35.21

    View options

  • 6TV300M13FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M13FT

    Specifications: 6TV300M13FT is a 13-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 13F 13 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 13 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 13F 336 / 326 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2082 g. The same size-family, station count and thread arrangement of 6V300M13FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $65.76

    View options

  • 6TV300M1FG

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M1FG

    Specifications: 6TV300M1FG is a 1-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with G 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 1F 1 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 1 Common supply / exhaust ports G 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 1F 48 / 38 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q G 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 297 g. The same size-family, station count and thread arrangement of 6V300M1FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $11.65

    View options

  • 6TV300M17F

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M17F

    Specifications: 6TV300M17F is a 17-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with PT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 17F 17 stations Thread code: blank PT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 17 Common supply / exhaust ports PT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 17F 432 / 422 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q PT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2677 g. The same size-family, station count and thread arrangement of 6V300M17F is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $83.84

    View options

  • 6TV300M14F

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M14F

    Specifications: 6TV300M14F is a 14-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with PT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 14F 14 stations Thread code: blank PT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 14 Common supply / exhaust ports PT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 14F 360 / 350 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q PT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2231 g. The same size-family, station count and thread arrangement of 6V300M14F is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $70.42

    View options

  • 6TV300M7F

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M7F

    Specifications: 6TV300M7F is a 7-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with PT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 7F 7 stations Thread code: blank PT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 7 Common supply / exhaust ports PT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 7F 192 / 182 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q PT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1190 g. The same size-family, station count and thread arrangement of 6V300M7F is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $38.63

    View options

  • 6TV300M1F

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M1F

    Specifications: 6TV300M1F is a 1-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with PT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 1F 1 stations Thread code: blank PT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 1 Common supply / exhaust ports PT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 1F 48 / 38 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q PT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 297 g. The same size-family, station count and thread arrangement of 6V300M1F is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $11.65

    View options

  • 6TV200M14FG

    View options

    Airtac 6TV200M series: pneumatic valve manifold base - 6TV200M14FG

    Specifications: 6TV200M14FG is a 14-station 6TV200M manifold base assembly for 6TA200 series air-operated valves, with G 1/4 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV200M Manifold family for 6TA200 series air-operated valves 14F 14 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV200M manifold / 6TA200 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 14 Common supply / exhaust ports G 1/4 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 14F 284 / 274 mm Drawing label Dimension A / B 48 / 44 mm E / F / G 4.5 / 19 / 18.5 mm H / I / J 5 / 9 / 34.5 mm K / R / V 85.5 / 24 / 12 mm W / X 57 / 23.5 mm Drawing thread label Current model port Q G 1/4 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV200M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1104 g. The same size-family, station count and thread arrangement of 6V200M14FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $41.10

    View options

  • 6TV100M14FG

    View options

    Airtac 6TV100M series: pneumatic valve manifold base - 6TV100M14FG

    Specifications: 6TV100M14FG is a 14-station 6TV100M manifold base assembly for 6TA100 series air-operated valves, with G 1/4 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV100M Manifold family for 6TA100 series air-operated valves 14F 14 stations Thread code: G G thread Technical Specifications Item Specification Application 6TV100M manifold / 6TA100 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 14 Common supply / exhaust ports G 1/4 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 14F 242 / 232 mm Drawing label Dimension A / B 40 / 35 mm E / F / G 4.5 / 16 / 17 mm H / I / J 5 / 9 / 27.5 mm K / R / V 64.5 / 20 / 10 mm W / X 47 / 22 mm Drawing thread label Current model port Q G 1/4 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV100M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 827 g. The same size-family, station count and thread arrangement of 6V100M14FG is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $30.41

    View options

  • 6TV0500M8F

    View options

    Airtac 6TV0500M series: pneumatic valve manifold base - 6TV0500M8F

    Specifications: 6TV0500M8F is a 8-station 6TV0500M manifold base assembly for 6TA0500 series air-operated valves, with PT 1/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV0500M Manifold family for 6TA0500 series air-operated valves 8F 8 stations Thread code: blank PT thread Technical Specifications Item Specification Application 6TV0500M manifold / 6TA0500 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 8 Common supply / exhaust ports PT 1/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 8F 107 / 97 mm Drawing label Dimension A / B 33 / 26 mm E / F / G 4.5 / 11 / 15 mm H / I / J 5 / 9.5 / 18.5 mm K / R / V 47 / 16.5 / 8.5 mm W / X 38.5 / 17 mm Drawing thread label Current model port Q PT 1/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV0500M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 226 g. The same size-family, station count and thread arrangement of 6V0500M8F is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $16.44

    View options

  • P-6TV300M-R2

    View options

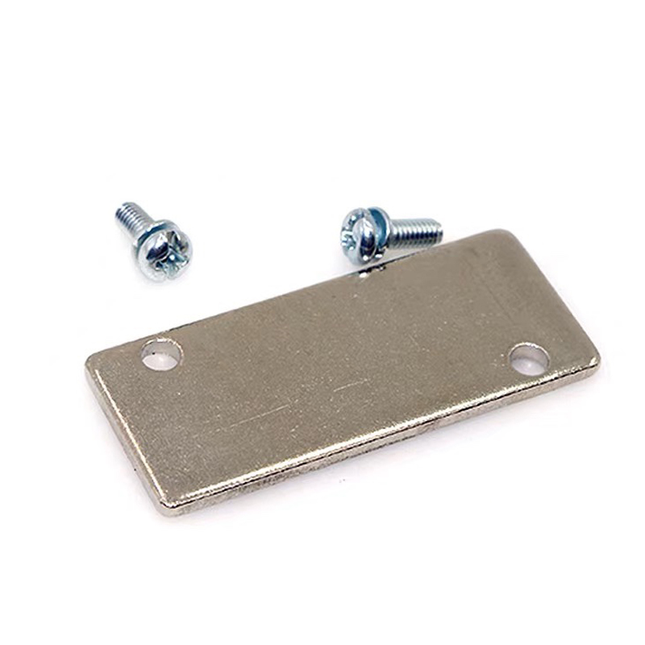

    Airtac P-6TV300M series: manifold blanking plate kit - P-6TV300M-R2

    Specifications: P-6TV300M-R2 is a blanking-plate assembly for the 6TV300M manifold base used with 6TA300 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Assembly Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6TV300M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group.

    Read more

    $1.64

    View options

  • P-6TV200M-R2

    View options

    Airtac P-6TV200M series: manifold blanking plate kit - P-6TV200M-R2

    Specifications: P-6TV200M-R2 is a blanking-plate assembly for the 6TV200M manifold base used with 6TA200 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV200M Manifold family for 6TA200 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6TV200M manifold / 6TA200 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Assembly Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6TV200M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group.

    Read more

    $1.10

    View options

  • P-6TV100M-R2

    View options

    Airtac P-6TV100M series: manifold blanking plate kit - P-6TV100M-R2

    Specifications: P-6TV100M-R2 is a blanking-plate assembly for the 6TV100M manifold base used with 6TA100 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV100M Manifold family for 6TA100 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6TV100M manifold / 6TA100 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Assembly Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6TV100M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group.

    Read more

    $1.10

    View options

  • P-6TV0500M-R2

    View options

    Airtac P-6TV0500M series: manifold blanking plate kit - P-6TV0500M-R2

    Specifications: P-6TV0500M-R2 is a blanking-plate assembly for the 6TV0500M manifold base used with 6TA0500 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV0500M Manifold family for 6TA0500 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6TV0500M manifold / 6TA0500 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Assembly Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6TV0500M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group.

    Read more

    $1.10

    View options

  • 6TV300M20FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M20FT

    Specifications: 6TV300M20FT is a 20-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 20F 20 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 20 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 20F 504 / 494 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 3123 g. The same size-family, station count and thread arrangement of 6V300M20FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $97.41

    View options

  • 6TV300M19FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M19FT

    Specifications: 6TV300M19FT is a 19-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 19F 19 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 19 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 19F 480 / 470 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2974 g. The same size-family, station count and thread arrangement of 6V300M19FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $92.75

    View options

  • 6TV300M18FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M18FT

    Specifications: 6TV300M18FT is a 18-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 18F 18 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 18 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 18F 456 / 446 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2826 g. The same size-family, station count and thread arrangement of 6V300M18FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $87.95

    View options

  • 6TV300M17FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M17FT

    Specifications: 6TV300M17FT is a 17-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 17F 17 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 17 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 17F 432 / 422 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2677 g. The same size-family, station count and thread arrangement of 6V300M17FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $83.84

    View options

  • 6TV300M16FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M16FT

    Specifications: 6TV300M16FT is a 16-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 16F 16 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 16 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 16F 408 / 398 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2528 g. The same size-family, station count and thread arrangement of 6V300M16FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $79.19

    View options

  • 6TV300M15FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M15FT

    Specifications: 6TV300M15FT is a 15-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 15F 15 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 15 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 15F 384 / 374 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2379 g. The same size-family, station count and thread arrangement of 6V300M15FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $74.53

    View options

  • 6TV300M14FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M14FT

    Specifications: 6TV300M14FT is a 14-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 14F 14 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 14 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 14F 360 / 350 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2231 g. The same size-family, station count and thread arrangement of 6V300M14FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $70.42

    View options

  • 6TV300M12FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M12FT

    Specifications: 6TV300M12FT is a 12-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 12F 12 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 12 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 12F 312 / 302 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1933 g. The same size-family, station count and thread arrangement of 6V300M12FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $60.97

    View options

  • 6TV300M11FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M11FT

    Specifications: 6TV300M11FT is a 11-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 11F 11 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 11 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 11F 288 / 278 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1785 g. The same size-family, station count and thread arrangement of 6V300M11FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $56.86

    View options

  • 6TV300M10FT

    View options

    Airtac 6TV300M series: pneumatic valve manifold base - 6TV300M10FT

    Specifications: 6TV300M10FT is a 10-station 6TV300M manifold base assembly for 6TA300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6TV300M Manifold family for 6TA300 series air-operated valves 10F 10 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6TV300M manifold / 6TA300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 10 Common supply / exhaust ports NPT 3/8 Features and Operation Integrates directional control valves of the same series into a valve group to save space and cost. Unified air intake, exhaust and wiring make faults easier to locate. Flexible combinations and expansion of the number of connected directional control valves. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted 6TA valves. Read the installed assembly envelope and mounting locations using the drawing orientation. Drawing label Dimension L / P for 10F 264 / 254 mm Drawing label Dimension A / B 60 / 54 mm E / F / G 4.5 / 24 / 24 mm H / I / J 5 / 12.5 / 43.5 mm K / R / V 103 / 32 / 14 mm W / X 74 / 27 mm Drawing thread label Current model port Q NPT 3/8 E denotes the mounting-hole diameter ØE; the drawing identifies 2-Q common supply/exhaust ports. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Assembly Components Manifold base, manifold gasket and screws. Matching Blanking Plate Order code Assembly contents P-6TV300M-R2 Blanking plate and screws Series Ordering Options Base families: 6TV0500M, 6TV100M, 6TV200M and 6TV300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6TA and 6STA Replacement Guide AirTAC 6TA vs 6STA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1636 g. The same size-family, station count and thread arrangement of 6V300M10FT is used as the mass reference. Its mass is itself an envelope estimate. 6V and 6TV/6STV manifold dimensions and mounting compatibility are not asserted to be identical. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

    Read more

    $51.65

    View options

You have seen 24 out of 286 products
