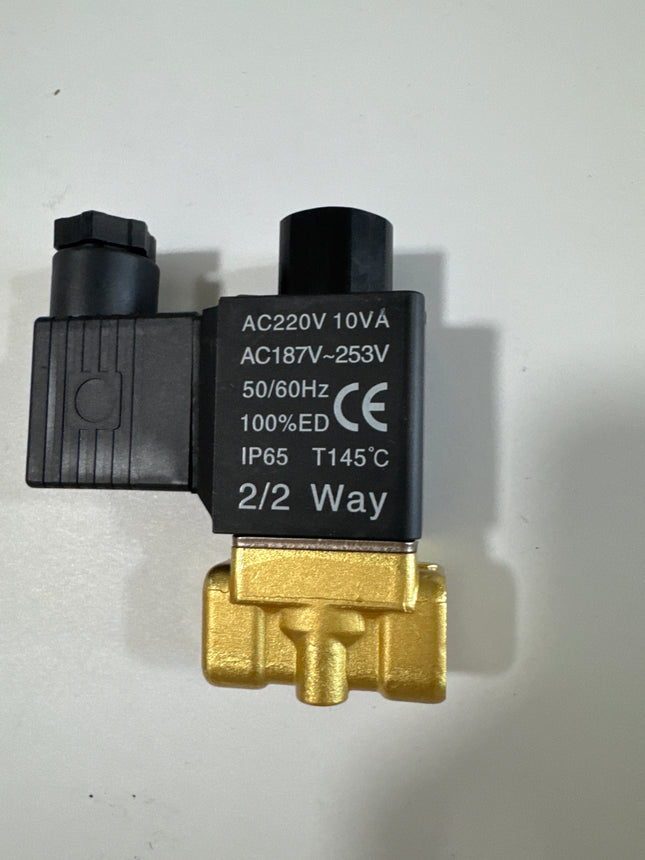

  Airtac 2KW series: two-way fluid solenoid valve - 2KWH03006A

  Specifications: 2KWH03006A is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/8 ports, a 2 mm orifice and a 220 V AC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KWH03006A will be supplied as 2KWAH03006A under our store's replacement policy. The technical information below documents the legacy 2KWH03006A; use the new 2KWA catalog for the supplied 2KWAH03006A. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: PT1/8. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/8 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 1.5 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $65.76

  View options

•

  View options

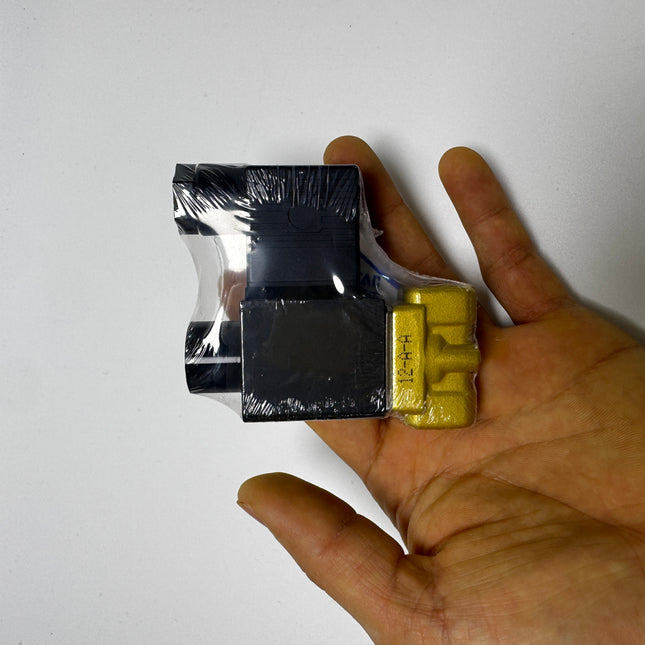

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03008B

  Specifications: 2KW03008B is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/4 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03008B will be supplied as 2KWA03008B under our store's replacement policy. The technical information below documents the legacy 2KW03008B; use the new 2KWA catalog for the supplied 2KWA03008B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: PT1/4. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/4 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

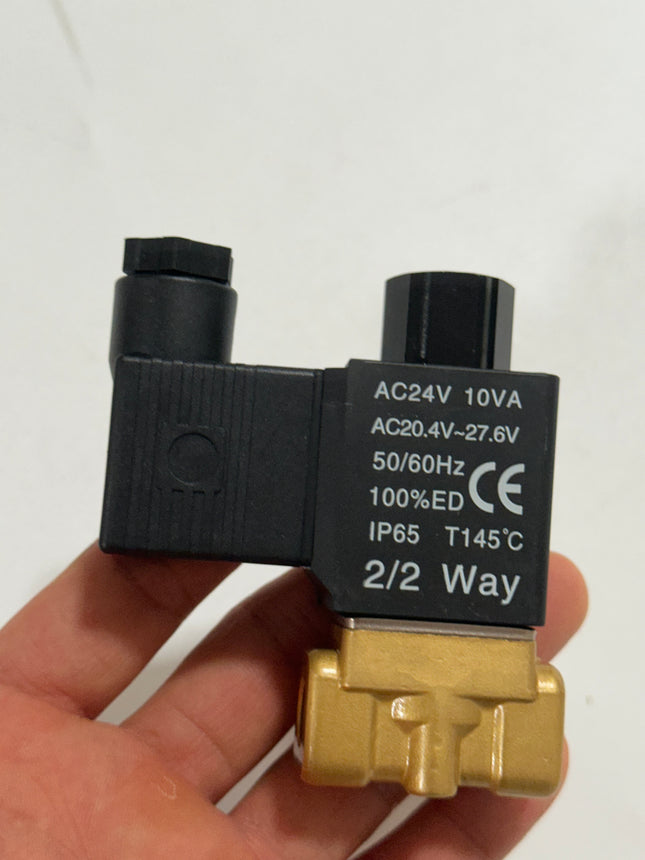

  Airtac 2KW series: two-way fluid solenoid valve - 2KWH03006E

  Specifications: 2KWH03006E is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/8 ports, a 2 mm orifice and a 24 V AC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KWH03006E will be supplied as 2KWAH03006E under our store's replacement policy. The technical information below documents the legacy 2KWH03006E; use the new 2KWA catalog for the supplied 2KWAH03006E. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: PT1/8. E Coil supply: 24 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/8 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 1.5 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $65.76

  View options

•

  View options

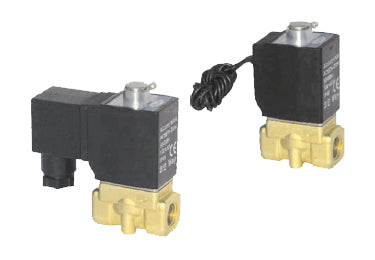

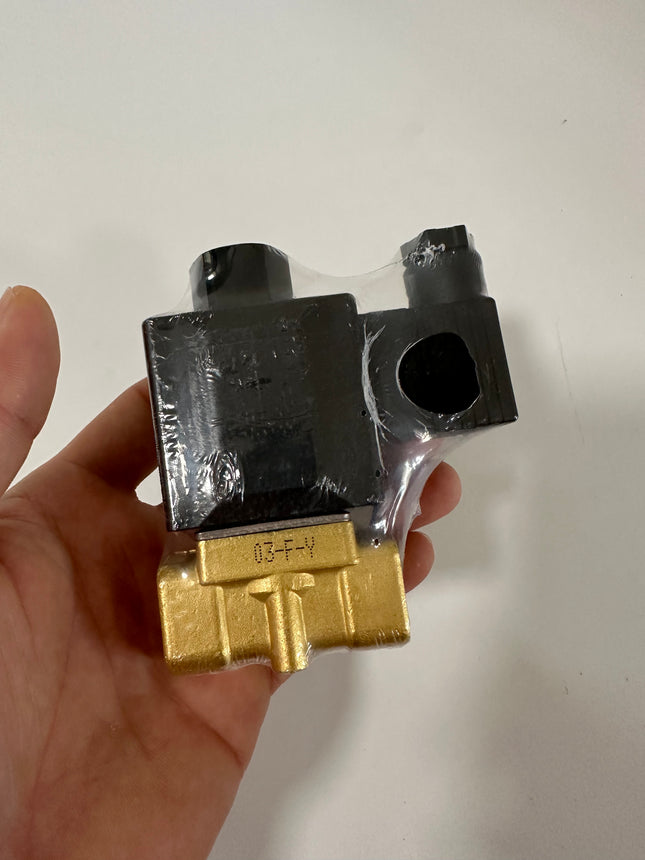

  Airtac 2KW series: two-way fluid solenoid valve - 2KW05015F

  Specifications: 2KW05015F is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/2 ports, a 5 mm orifice and a 12 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW05015F will be supplied as 2KWA05015F under our store's replacement policy. The technical information below documents the legacy 2KW05015F; use the new 2KWA catalog for the supplied 2KWA05015F. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 15 1/2 in port size; selected thread: PT1/2. F Coil supply: 12 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/2 Orifice diameter 5 mm Flow coefficient Cv 0.83 Effective area / section 15 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 615 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 12 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 12 W Temperature rise on DC 40°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 92 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT1/2 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø5 mm: Q in L/min (ANR); marked values 200-1800, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $78.09

  View options

•

  View options

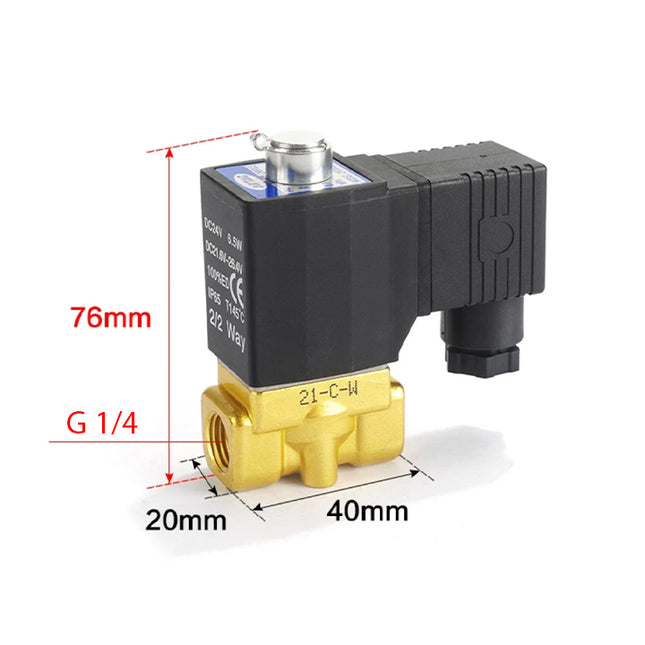

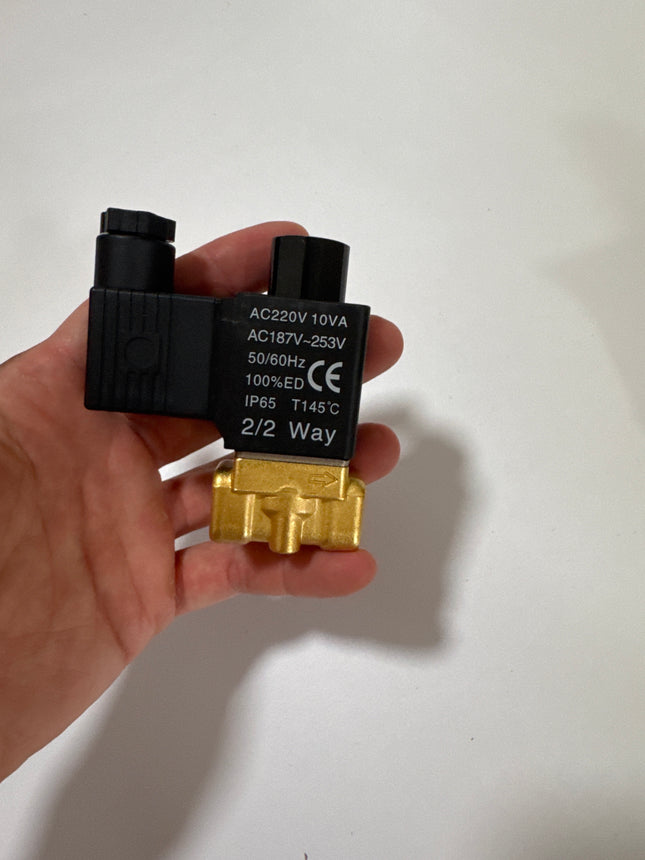

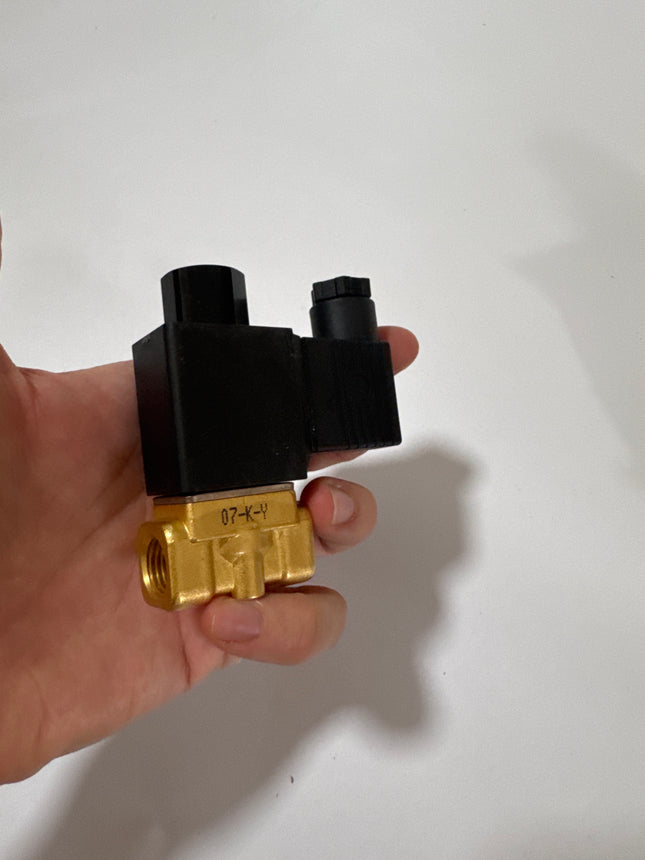

  Airtac 2KW series: two-way fluid solenoid valve - 2KWH03008AG

  Specifications: 2KWH03008AG is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has G1/4 ports, a 2 mm orifice and a 220 V AC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KWH03008AG will be supplied as 2KWAH03008AG under our store's replacement policy. The technical information below documents the legacy 2KWH03008AG; use the new 2KWA catalog for the supplied 2KWAH03008AG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: G1/4. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. G G thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/4 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 1.5 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P G1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $65.76

  View options

•

  View options

  Airtac F-2KW series: valve mounting bracket - F-2KW250LB

  Specifications: F-2KW250LB is this listing's LB-type mounting-accessory code for the 2KW250 valve-size family. F- identifies a mounting accessory, 2KW250 identifies the listing's valve family and size, and LB identifies the mounting-accessory type. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this listing F- Mounting-accessory prefix 2KW250 Valve family and size named by this listing LB LB-type mounting accessory Application and Source Ordering Code This item is a mounting accessory, not a fluid-control valve. The catalog source ordering code is F-2S250LB. The listing code is retained as supplied in the product table. The PDF uses a shared accessory ordering table and does not explicitly print this exact listing code; confirm the source ordering designation before ordering. Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S250LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Legacy and New Valve Families 2KW valves are supplied as the corresponding 2KWA valves under our store's valve replacement policy. That valve policy does not automatically establish the supply code or mounting compatibility of a separate bracket. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Mounting Dimensions The valve dimension drawings show the bracket as optional and include related holes or mounting spans. They do not provide a separate, complete bracket fabrication drawing or a standalone accessory dimensional table. Use the correct valve-family, size and electrical-entry drawing in the PDFs; do not treat a complete valve height or port dimension as a bracket dimension. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Supplied Information and Limitations Parameter Details Product type Separate LB-type mounting accessory Accessory weight Not specified in the supplied catalogs Individual package quantities Not specified in the supplied catalogs Pressure, media, voltage and coil power Valve specifications do not apply to this standalone mounting accessory Reference Weight Estimated reference weight: 60 g. The mass reference is the DOLD listing for F-2WA250LB, which lists an item weight of 60 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. A later 2WA mounting bracket for the same nominal valve size is used only as a mass analogy; old/new bracket dimensions and interchangeability are not asserted. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $5.21

  View options

•

  View options

  Airtac F-2KW series: valve mounting bracket - F-2KW200LB

  Specifications: F-2KW200LB is this listing's LB-type mounting-accessory code for the 2KW200 valve-size family. F- identifies a mounting accessory, 2KW200 identifies the listing's valve family and size, and LB identifies the mounting-accessory type. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this listing F- Mounting-accessory prefix 2KW200 Valve family and size named by this listing LB LB-type mounting accessory Application and Source Ordering Code This item is a mounting accessory, not a fluid-control valve. The catalog source ordering code is F-2S200LB. The listing code is retained as supplied in the product table. The PDF uses a shared accessory ordering table and does not explicitly print this exact listing code; confirm the source ordering designation before ordering. Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S200LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Legacy and New Valve Families 2KW valves are supplied as the corresponding 2KWA valves under our store's valve replacement policy. That valve policy does not automatically establish the supply code or mounting compatibility of a separate bracket. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Mounting Dimensions The valve dimension drawings show the bracket as optional and include related holes or mounting spans. They do not provide a separate, complete bracket fabrication drawing or a standalone accessory dimensional table. Use the correct valve-family, size and electrical-entry drawing in the PDFs; do not treat a complete valve height or port dimension as a bracket dimension. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Supplied Information and Limitations Parameter Details Product type Separate LB-type mounting accessory Accessory weight Not specified in the supplied catalogs Individual package quantities Not specified in the supplied catalogs Pressure, media, voltage and coil power Valve specifications do not apply to this standalone mounting accessory Reference Weight Estimated reference weight: 60 g. The mass reference is the DOLD listing for F-2S200LB, which lists an item weight of 60 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $4.66

  View options

•

  View options

  Airtac F-2KW series: valve mounting bracket - F-2KW150LB

  Specifications: F-2KW150LB is this listing's LB-type mounting-accessory code for the 2KW150 valve-size family. F- identifies a mounting accessory, 2KW150 identifies the listing's valve family and size, and LB identifies the mounting-accessory type. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this listing F- Mounting-accessory prefix 2KW150 Valve family and size named by this listing LB LB-type mounting accessory Application and Source Ordering Code This item is a mounting accessory, not a fluid-control valve. The catalog source ordering code is F-2S150LB. The listing code is retained as supplied in the product table. The PDF uses a shared accessory ordering table and does not explicitly print this exact listing code; confirm the source ordering designation before ordering. Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S150LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Legacy and New Valve Families 2KW valves are supplied as the corresponding 2KWA valves under our store's valve replacement policy. That valve policy does not automatically establish the supply code or mounting compatibility of a separate bracket. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Mounting Dimensions The valve dimension drawings show the bracket as optional and include related holes or mounting spans. They do not provide a separate, complete bracket fabrication drawing or a standalone accessory dimensional table. Use the correct valve-family, size and electrical-entry drawing in the PDFs; do not treat a complete valve height or port dimension as a bracket dimension. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Supplied Information and Limitations Parameter Details Product type Separate LB-type mounting accessory Accessory weight Not specified in the supplied catalogs Individual package quantities Not specified in the supplied catalogs Pressure, media, voltage and coil power Valve specifications do not apply to this standalone mounting accessory Reference Weight Estimated reference weight: 50 g. The mass reference is the DOLD listing for F-2S150LB, which lists an item weight of 50 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $4.11

  View options

•

  View options

  Airtac F-2KW series: valve mounting bracket - F-2KW050LB

  Specifications: F-2KW050LB is this listing's LB-type mounting-accessory code for the 2KW050 valve-size family. F- identifies a mounting accessory, 2KW050 identifies the listing's valve family and size, and LB identifies the mounting-accessory type. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this listing F- Mounting-accessory prefix 2KW050 Valve family and size named by this listing LB LB-type mounting accessory Application and Source Ordering Code This item is a mounting accessory, not a fluid-control valve. The catalog source ordering code is F-2S050LB. The listing code is retained as supplied in the product table. The PDF uses a shared accessory ordering table and does not explicitly print this exact listing code; confirm the source ordering designation before ordering. Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Legacy and New Valve Families 2KW valves are supplied as the corresponding 2KWA valves under our store's valve replacement policy. That valve policy does not automatically establish the supply code or mounting compatibility of a separate bracket. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Mounting Dimensions The valve dimension drawings show the bracket as optional and include related holes or mounting spans. They do not provide a separate, complete bracket fabrication drawing or a standalone accessory dimensional table. Use the correct valve-family, size and electrical-entry drawing in the PDFs; do not treat a complete valve height or port dimension as a bracket dimension. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Supplied Information and Limitations Parameter Details Product type Separate LB-type mounting accessory Accessory weight Not specified in the supplied catalogs Individual package quantities Not specified in the supplied catalogs Pressure, media, voltage and coil power Valve specifications do not apply to this standalone mounting accessory Reference Weight Estimated reference weight: 20 g. The mass reference is the DOLD listing for F-2S050LB, which lists an item weight of 20 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $3.43

  View options

•

  View options

  Airtac F-2KW series: valve mounting bracket - F-2KW030LB

  Specifications: F-2KW030LB is this listing's LB-type mounting-accessory code for the 2KW030 valve-size family. F- identifies a mounting accessory, 2KW030 identifies the listing's valve family and size, and LB identifies the mounting-accessory type. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for this listing F- Mounting-accessory prefix 2KW030 Valve family and size named by this listing LB LB-type mounting accessory Application and Source Ordering Code This item is a mounting accessory, not a fluid-control valve. The catalog source ordering code is F-2S030LB. The listing code is retained as supplied in the product table. The PDF uses a shared accessory ordering table and does not explicitly print this exact listing code; confirm the source ordering designation before ordering. Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Legacy and New Valve Families 2KW valves are supplied as the corresponding 2KWA valves under our store's valve replacement policy. That valve policy does not automatically establish the supply code or mounting compatibility of a separate bracket. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Mounting Dimensions The valve dimension drawings show the bracket as optional and include related holes or mounting spans. They do not provide a separate, complete bracket fabrication drawing or a standalone accessory dimensional table. Use the correct valve-family, size and electrical-entry drawing in the PDFs; do not treat a complete valve height or port dimension as a bracket dimension. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Supplied Information and Limitations Parameter Details Product type Separate LB-type mounting accessory Accessory weight Not specified in the supplied catalogs Individual package quantities Not specified in the supplied catalogs Pressure, media, voltage and coil power Valve specifications do not apply to this standalone mounting accessory Reference Weight Estimated reference weight: 20 g. The mass reference is the DOLD listing for F-2S030LB, which lists an item weight of 20 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $2.88

  View options

•

  View options

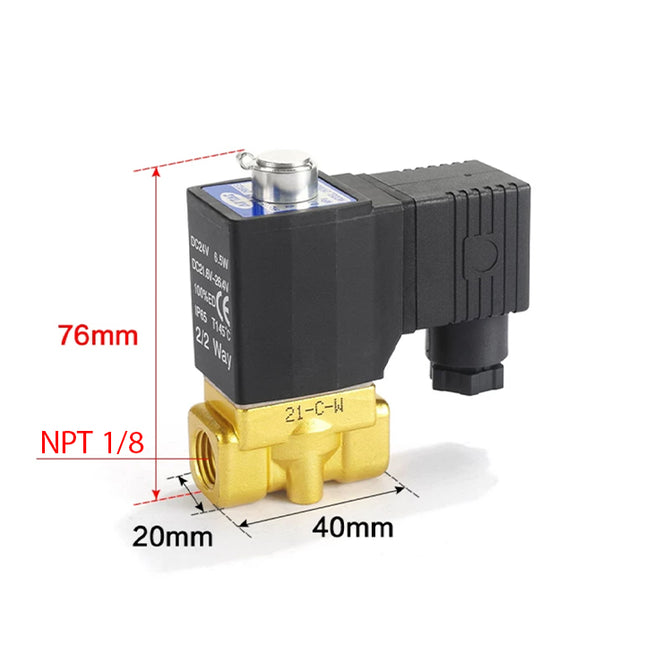

  Airtac 2KW series: two-way fluid solenoid valve - 2KWH03006AT

  Specifications: 2KWH03006AT is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has NPT1/8 ports, a 2 mm orifice and a 220 V AC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KWH03006AT will be supplied as 2KWAH03006AT under our store's replacement policy. The technical information below documents the legacy 2KWH03006AT; use the new 2KWA catalog for the supplied 2KWAH03006AT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: NPT1/8. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/8 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 1.5 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P NPT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $65.76

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW05010B

  Specifications: 2KW05010B is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT3/8 ports, a 5 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW05010B will be supplied as 2KWA05010B under our store's replacement policy. The technical information below documents the legacy 2KW05010B; use the new 2KWA catalog for the supplied 2KWA05010B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 10 3/8 in port size; selected thread: PT3/8. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT3/8 Orifice diameter 5 mm Flow coefficient Cv 0.83 Effective area / section 15 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 635 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 12 W Temperature rise on DC 40°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 92 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT3/8 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø5 mm: Q in L/min (ANR); marked values 200-1800, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $75.08

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW05015CT

  Specifications: 2KW05015CT is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has NPT1/2 ports, a 5 mm orifice and a 110 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW05015CT will be supplied as 2KWA05015CT under our store's replacement policy. The technical information below documents the legacy 2KW05015CT; use the new 2KWA catalog for the supplied 2KWA05015CT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 15 1/2 in port size; selected thread: NPT1/2. C Coil supply: 110 V AC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/2 Orifice diameter 5 mm Flow coefficient Cv 0.83 Effective area / section 15 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 615 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 110 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 35 VA 60 Hz power consumption 30 VA Temperature rise at 50 Hz 65°C Temperature rise at 60 Hz 60°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 92 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P NPT1/2 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø5 mm: Q in L/min (ANR); marked values 200-1800, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $78.09

  View options

•

  View options

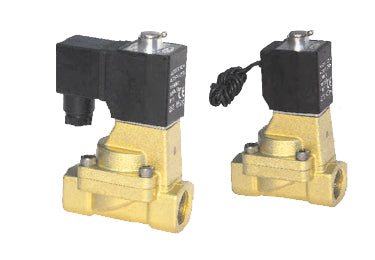

  Airtac 2KW series: two-way fluid solenoid valve - 2KW20020BT

  Specifications: 2KW20020BT is an AirTAC 2KW series internally piloted, normally open 2/2-way fluid-control valve. It has NPT3/4 ports, a 20 mm orifice and a 24 V DC coil. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW20020BT will be supplied as 2KWA20020BT under our store's replacement policy. The technical information below documents the legacy 2KW20020BT; use the new 2KWA catalog for the supplied 2KWA20020BT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. 200 20 mm orifice; internally piloted configuration. 20 3/4 in port size; selected thread: NPT3/4. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 3 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Internally piloted Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT3/4 Orifice diameter 20 mm Flow coefficient Cv 9.5 Effective area / section 170 mm² Pressure differential 0.05-0.7 MPa operating pressure differential Proof pressure 1.5 MPa Catalog reference weight 960 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 150, 200 and 250 branches use internal pilot operation and specify a minimum operating pressure differential of 0.05 MPa. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 4. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 78.5 mm AB 82 mm B 53 mm BA 33.5 mm C 121 mm D 90 mm E 6.4 mm EA 8 mm EB 75 mm EC 40 mm F 34 mm P NPT3/4 The terminal drawing includes both A and AB; the grommet drawing uses A and does not tabulate AB. D is a different span that includes the illustrated optional bracket arrangement. EB and EC are separate drawing dimensions. The two fluid ports are marked 2-P. Match the relevant drawing and connector orientation before installation. Catalog consistency note: The terminal drawing depicts A as a span that includes AB, but its table lists A = 78.5 mm and AB = 82 mm. These are the printed values and have not been altered. Because A is smaller than AB, do not use A as a verified overall length; obtain a confirmed manufacturer drawing for the supplied model before setting installation clearance. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2; the curves identify upstream pressure P1, with marked pressure values up to .7 MPa and the minimum working-pressure boundary Air chart flow axis Orifice Ø20 mm: Q in L/min (ANR); marked values 5000-20000, in steps of 5000 Water chart vertical axis Flow Q in L/min; logarithmic labels 30-500 Water chart horizontal axis Pressure differential ΔP = P1 - P2, 0.02-0.5 MPa The original flow charts are on 2KW PDF page 4. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW150 (terminal), on PDF page 3. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Filter 3 O-ring 4 Spring 5 Screw 6 Bead flange 7 O-ring 8 Screw 9 Connector 10 Washer 11 Coil assembly 12 E-clip 13 Position ring 14 Mandril 15 Movable core 16 Spring 17 Fixed plate 18 Fixed cap 19 Airtight bushing 20 Airtight ring 21 Spring 22 Cover 23 Plug 24 Bonnet spring 25 Wear ring 26 Spacer 27 Piston Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S200LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Orifice / port combinations 150: 15 mm / 15 (1/2 in); 200: 20 mm / 20 (3/4 in); 250: 25 mm / 25 (1 in) Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $144.95

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KWH03006BG

  Specifications: 2KWH03006BG is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has G1/8 ports, a 2 mm orifice and a 24 V DC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KWH03006BG will be supplied as 2KWAH03006BG under our store's replacement policy. The technical information below documents the legacy 2KWH03006BG; use the new 2KWA catalog for the supplied 2KWAH03006BG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: G1/8. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. G G thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/8 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 1.5 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P G1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $65.76

  View options

•

  View options

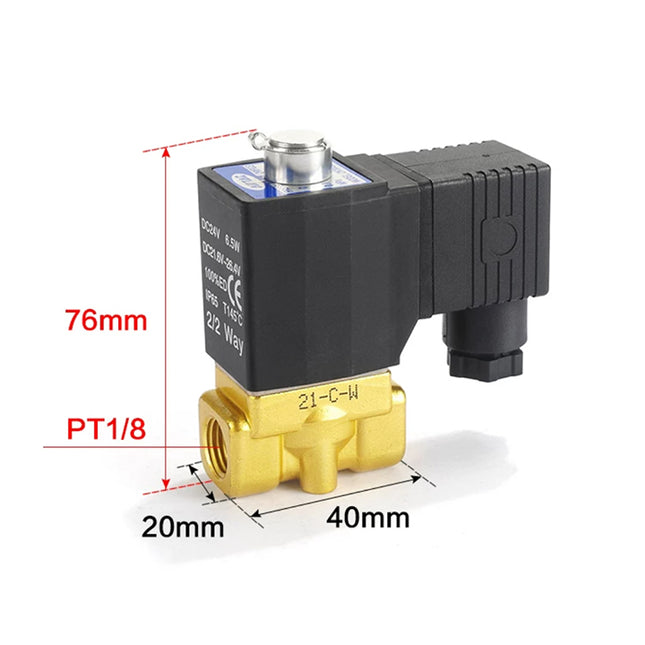

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006A

  Specifications: 2KW03006A is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/8 ports, a 3 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006A will be supplied as 2KWA03006A under our store's replacement policy. The technical information below documents the legacy 2KW03006A; use the new 2KWA catalog for the supplied 2KWA03006A. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: PT1/8. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

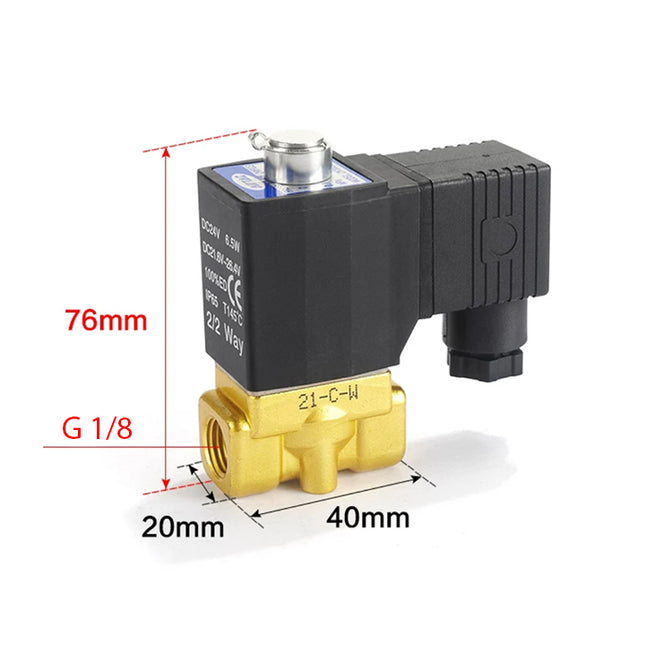

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006AG

  Specifications: 2KW03006AG is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has G1/8 ports, a 3 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006AG will be supplied as 2KWA03006AG under our store's replacement policy. The technical information below documents the legacy 2KW03006AG; use the new 2KWA catalog for the supplied 2KWA03006AG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: G1/8. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. G G thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P G1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006AI

  Specifications: 2KW03006AI is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/8 ports, a 3 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The I code selects grommet electrical entry with a 0.5 m wire. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006AI will be supplied as 2KWA03006AI under our store's replacement policy. The technical information below documents the legacy 2KW03006AI; use the new 2KWA catalog for the supplied 2KWA03006AI. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: PT1/8. A Coil supply: 220 V AC. I Grommet electrical entry with a 0.5 m wire. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight column describes terminal-entry valves. Its explicit grommet-entry footnote reduces that value by 10 g for this size, giving the 305 g reference above. Catalog weights are reference values, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CLA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Grommet; 0.5 m wire Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the grommet-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 41 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm G 10 mm K 5.3 mm KA 40 mm P PT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006AIG

  Specifications: 2KW03006AIG is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has G1/8 ports, a 3 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The I code selects grommet electrical entry with a 0.5 m wire. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006AIG will be supplied as 2KWA03006AIG under our store's replacement policy. The technical information below documents the legacy 2KW03006AIG; use the new 2KWA catalog for the supplied 2KWA03006AIG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: G1/8. A Coil supply: 220 V AC. I Grommet electrical entry with a 0.5 m wire. G G thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight column describes terminal-entry valves. Its explicit grommet-entry footnote reduces that value by 10 g for this size, giving the 305 g reference above. Catalog weights are reference values, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CLA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Grommet; 0.5 m wire Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the grommet-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 41 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm G 10 mm K 5.3 mm KA 40 mm P G1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006AIT

  Specifications: 2KW03006AIT is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has NPT1/8 ports, a 3 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The I code selects grommet electrical entry with a 0.5 m wire. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006AIT will be supplied as 2KWA03006AIT under our store's replacement policy. The technical information below documents the legacy 2KW03006AIT; use the new 2KWA catalog for the supplied 2KWA03006AIT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: NPT1/8. A Coil supply: 220 V AC. I Grommet electrical entry with a 0.5 m wire. T NPT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight column describes terminal-entry valves. Its explicit grommet-entry footnote reduces that value by 10 g for this size, giving the 305 g reference above. Catalog weights are reference values, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CLA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Grommet; 0.5 m wire Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the grommet-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 41 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm G 10 mm K 5.3 mm KA 40 mm P NPT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006AT

  Specifications: 2KW03006AT is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has NPT1/8 ports, a 3 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006AT will be supplied as 2KWA03006AT under our store's replacement policy. The technical information below documents the legacy 2KW03006AT; use the new 2KWA catalog for the supplied 2KWA03006AT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: NPT1/8. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 15 VA 60 Hz power consumption 11 VA Temperature rise at 50 Hz 50°C Temperature rise at 60 Hz 40°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P NPT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006B

  Specifications: 2KW03006B is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/8 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006B will be supplied as 2KWA03006B under our store's replacement policy. The technical information below documents the legacy 2KW03006B; use the new 2KWA catalog for the supplied 2KWA03006B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: PT1/8. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006BG

  Specifications: 2KW03006BG is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has G1/8 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006BG will be supplied as 2KWA03006BG under our store's replacement policy. The technical information below documents the legacy 2KW03006BG; use the new 2KWA catalog for the supplied 2KWA03006BG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: G1/8. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. G G thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 315 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P G1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options

•

  View options

  Airtac 2KW series: two-way fluid solenoid valve - 2KW03006BI

  Specifications: 2KW03006BI is an AirTAC 2KW series direct-acting, normally open 2/2-way fluid-control valve. It has PT1/8 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The I code selects grommet electrical entry with a 0.5 m wire. Product Catalogs Download Legacy 2KW Catalog (PDF) Download New 2KWA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2KW03006BI will be supplied as 2KWA03006BI under our store's replacement policy. The technical information below documents the legacy 2KW03006BI; use the new 2KWA catalog for the supplied 2KWA03006BI. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2KW vs 2KWA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2KW 2KW series 2/2-way fluid-control valve; normally open. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: PT1/8. B Coil supply: 24 V DC. I Grommet electrical entry with a 0.5 m wire. (blank thread suffix) PT thread standard. Technical Specifications - 2KW The following values are from 2KW PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally open Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 0.7 MPa maximum operating pressure differential Proof pressure 3.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight column describes terminal-entry valves. Its explicit grommet-entry footnote reduces that value by 10 g for this size, giving the 305 g reference above. Catalog weights are reference values, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CLA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Grommet; 0.5 m wire Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally open when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the grommet-entry drawing values in the 2KW PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 41 mm AB 40 mm B 29.5 mm C 76 mm D 20 mm E 49 mm G 10 mm K 5.3 mm KA 40 mm P PT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2KW PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2KW030 (grommet), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 O-ring 6 Fixed plate 7 Fixed cap 8 Electromagnet 9 Mandrel 10 Coil assembly 11 E-clip 12 Position ring 13 Washer 14 Spring 15 Screw 16 Airtight bush 17 Filter Mounting Accessory Reference The 2KW catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $62.20

  View options
