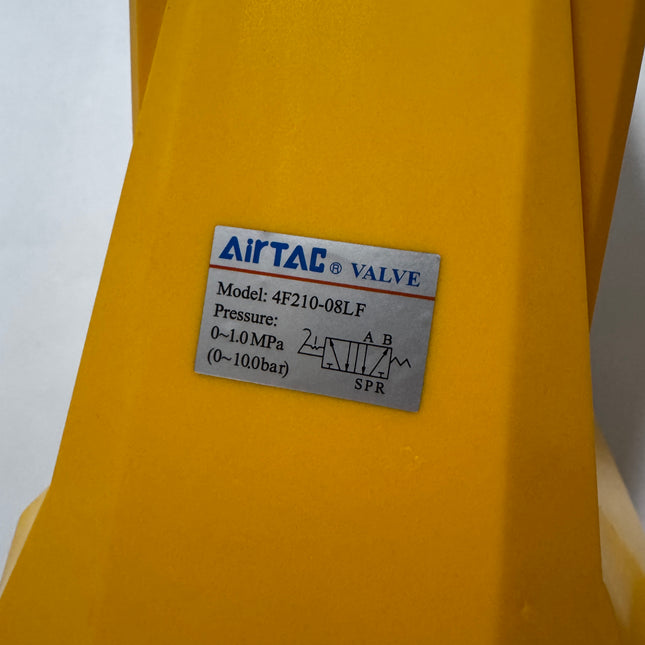

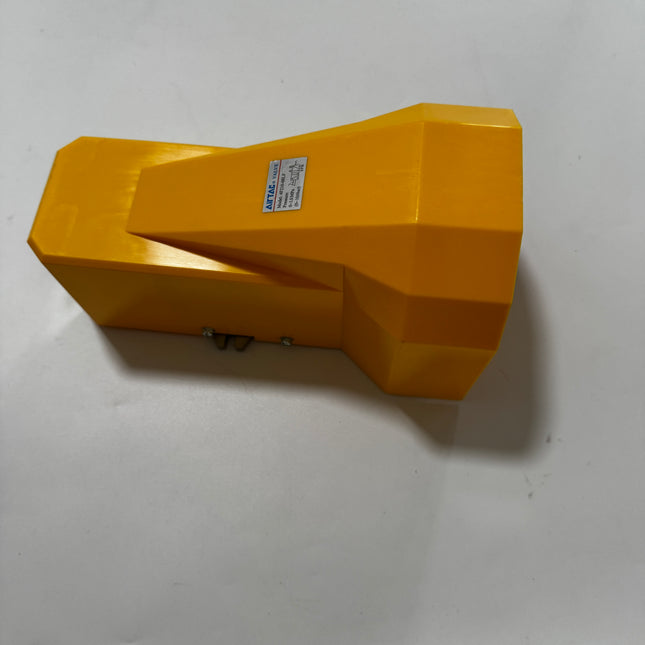

  Airtac 4F series: foot pedal valve - 4F21008LF

  Specifications: 4F21008LF is a 5-port, 2-position direct-acting foot pedal valve with a PT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the omitted thread suffix selects PT thread. This configuration is with a locking mechanism and with a protective guard. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection PT 1/4 LF With lock and guard Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection PT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 930 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. The selected F option includes the high-strength plastic guard shown in the catalog. External and Mounting Dimensions Drawing reference Value for this model Front-view upper vertical reference 42 mm Front-view lower port-center height 21 mm Front-view base reference 6 mm Front-view port spacing 25 mm Side-view guard height 135 mm Side-view upper vertical reference 35 mm Side-view rear horizontal reference 53 mm Side-view rear vertical reference 87 mm Side-view lower rear vertical reference 41 mm Side-view lower horizontal reference 137 mm Side-view rear offset 10.5 mm Top-view guard width 135 mm Top-view pedal width 73 mm Top-view rear mounting span 85 mm Top-view rear base width 99 mm Top-view slot width 6 mm Top-view local span 24 mm Top-view longitudinal reference 75.7 mm Top-view rear offset 3 mm Top-view inner longitudinal span 170 mm Top-view middle longitudinal span 200 mm Top-view overall length 245 mm Threaded port callout 3 × PT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $72.88

  View options

•

  View options

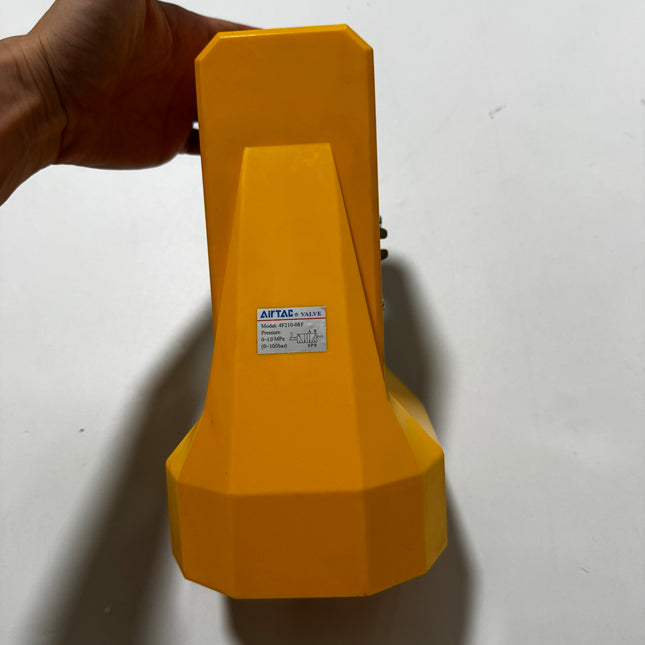

  Airtac 4F series: foot pedal valve - 4F21008F

  Specifications: 4F21008F is a 5-port, 2-position direct-acting foot pedal valve with a PT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the omitted thread suffix selects PT thread. This configuration is without a locking mechanism and with a protective guard. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection PT 1/4 F With guard; without lock Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection PT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 920 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. The selected F option includes the high-strength plastic guard shown in the catalog. External and Mounting Dimensions Drawing reference Value for this model Front-view upper vertical reference 42 mm Front-view lower port-center height 21 mm Front-view base reference 6 mm Front-view port spacing 25 mm Side-view guard height 135 mm Side-view upper vertical reference 35 mm Side-view rear horizontal reference 53 mm Side-view rear vertical reference 87 mm Side-view lower rear vertical reference 41 mm Side-view lower horizontal reference 137 mm Side-view rear offset 10.5 mm Top-view guard width 135 mm Top-view pedal width 73 mm Top-view rear mounting span 85 mm Top-view rear base width 99 mm Top-view slot width 6 mm Top-view local span 24 mm Top-view longitudinal reference 75.7 mm Top-view rear offset 3 mm Top-view inner longitudinal span 170 mm Top-view middle longitudinal span 200 mm Top-view overall length 245 mm Threaded port callout 3 × PT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $65.35

  View options

•

  View options

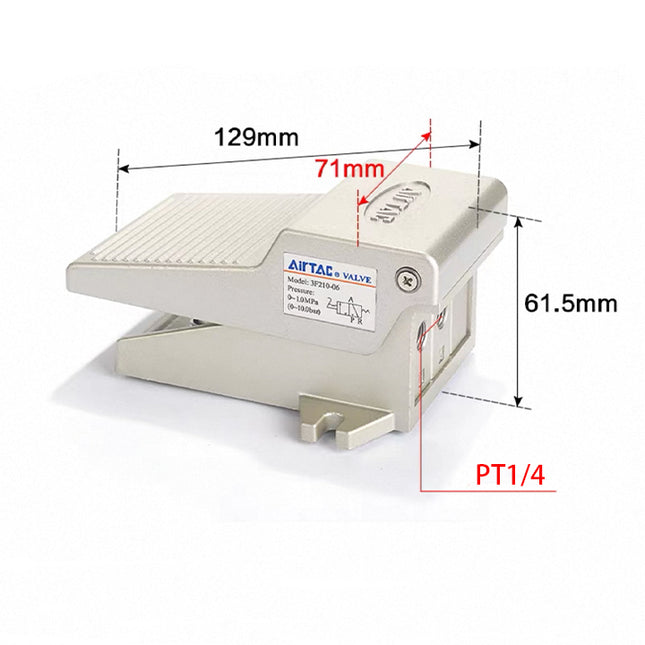

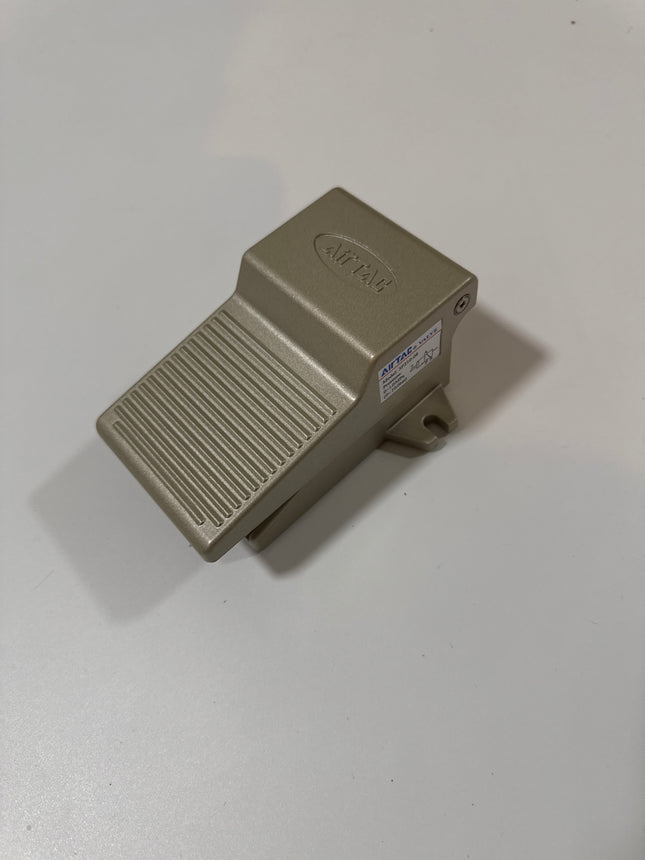

  Airtac 3F series: foot pedal valve - 3F21008

  Specifications: 3F21008 is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a PT 1/4 connection. The 3F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the omitted thread suffix selects PT thread. This configuration is without a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 08 Connection PT 1/4 Lock suffix omitted Without lock Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection PT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 395 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × PT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply.

  Read more less

  $29.87

  View options

•

  View options

  Airtac 4F series: foot pedal valve - 4F21008LFT

  Specifications: 4F21008LFT is a 5-port, 2-position direct-acting foot pedal valve with a NPT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the T thread suffix selects NPT thread. This configuration is with a locking mechanism and with a protective guard. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection NPT 1/4 LF With lock and guard T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection NPT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 930 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. The selected F option includes the high-strength plastic guard shown in the catalog. External and Mounting Dimensions Drawing reference Value for this model Front-view upper vertical reference 42 mm Front-view lower port-center height 21 mm Front-view base reference 6 mm Front-view port spacing 25 mm Side-view guard height 135 mm Side-view upper vertical reference 35 mm Side-view rear horizontal reference 53 mm Side-view rear vertical reference 87 mm Side-view lower rear vertical reference 41 mm Side-view lower horizontal reference 137 mm Side-view rear offset 10.5 mm Top-view guard width 135 mm Top-view pedal width 73 mm Top-view rear mounting span 85 mm Top-view rear base width 99 mm Top-view slot width 6 mm Top-view local span 24 mm Top-view longitudinal reference 75.7 mm Top-view rear offset 3 mm Top-view inner longitudinal span 170 mm Top-view middle longitudinal span 200 mm Top-view overall length 245 mm Threaded port callout 3 × NPT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $72.88

  View options

•

  View options

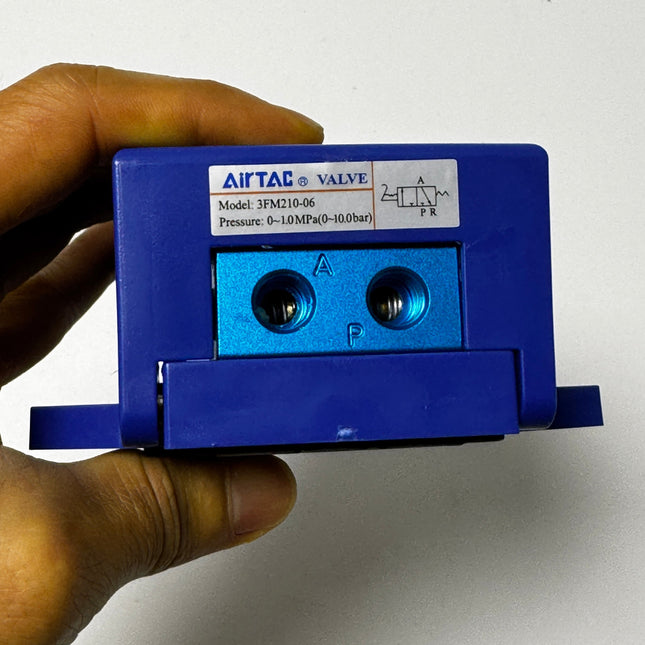

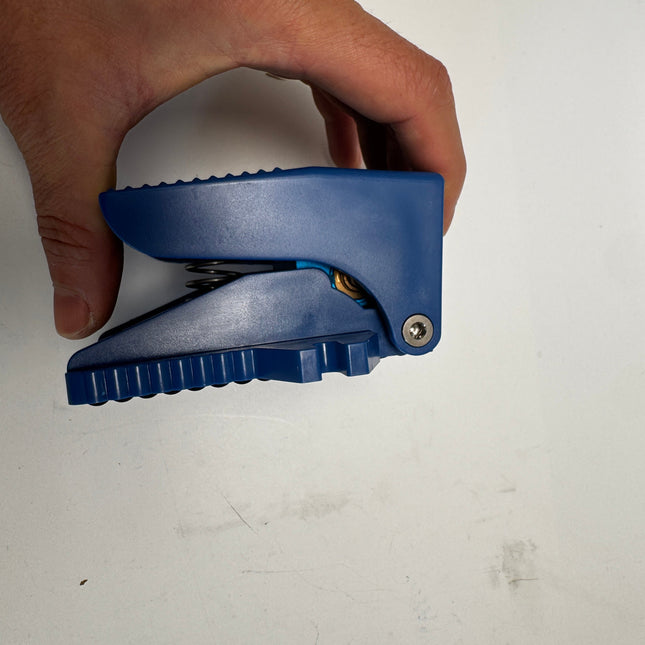

  Airtac 3FM series: foot pedal valve - 3FM21008

  Specifications: 3FM21008 is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a PT 1/4 connection. The 3FM210 code identifies the miniature plastic foot pedal model, 08 identifies the connection size, and the omitted thread suffix selects PT thread. This is the miniature, non-locking configuration. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3FM210 3-port, 2-position, normally closed foot pedal valve; miniature plastic foot pedal 08 Connection PT 1/4 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection PT 1/4 Body material Plastic Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 250 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. External and Mounting Dimensions Drawing reference Value for this model Side-view length 95 mm Side-view height callout 49.5 mm Side-view second height callout 48 mm Front-view pedal width 70 mm Base span 90 mm Overall base span 104 mm Port callout 2 × PT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The miniature 3FM210 series offers M5, 1/8 and 1/4 connections. PT, G and NPT alternatives apply to the pipe-thread models. The M5 model retains its metric connection; an L lock option is not shown for 3FM in the ordering chart.

  Read more less

  $19.87

  View options

•

  View options

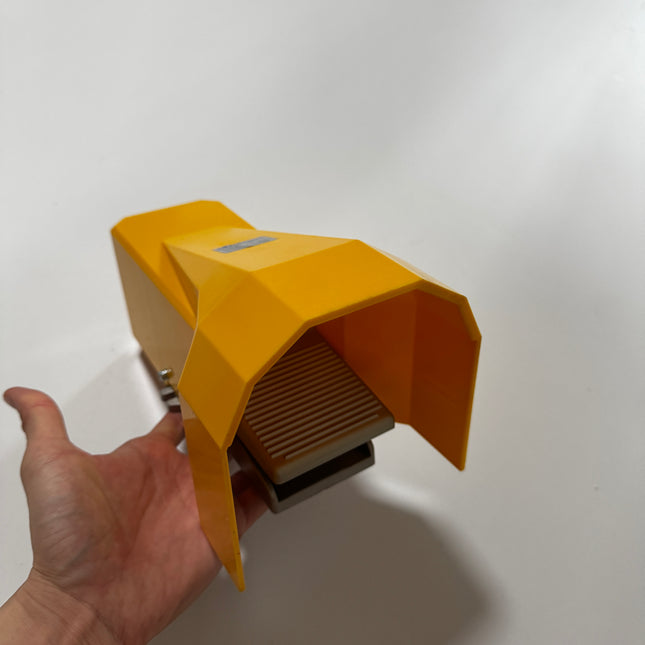

  Airtac 4F series: foot pedal valve - 4F21008FT

  Specifications: 4F21008FT is a 5-port, 2-position direct-acting foot pedal valve with a NPT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the T thread suffix selects NPT thread. This configuration is without a locking mechanism and with a protective guard. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection NPT 1/4 F With guard; without lock T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection NPT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 920 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. The selected F option includes the high-strength plastic guard shown in the catalog. External and Mounting Dimensions Drawing reference Value for this model Front-view upper vertical reference 42 mm Front-view lower port-center height 21 mm Front-view base reference 6 mm Front-view port spacing 25 mm Side-view guard height 135 mm Side-view upper vertical reference 35 mm Side-view rear horizontal reference 53 mm Side-view rear vertical reference 87 mm Side-view lower rear vertical reference 41 mm Side-view lower horizontal reference 137 mm Side-view rear offset 10.5 mm Top-view guard width 135 mm Top-view pedal width 73 mm Top-view rear mounting span 85 mm Top-view rear base width 99 mm Top-view slot width 6 mm Top-view local span 24 mm Top-view longitudinal reference 75.7 mm Top-view rear offset 3 mm Top-view inner longitudinal span 170 mm Top-view middle longitudinal span 200 mm Top-view overall length 245 mm Threaded port callout 3 × NPT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $65.35

  View options

•

  View options

  Airtac 4F series: foot pedal valve - 4F21008

  Specifications: 4F21008 is a 5-port, 2-position direct-acting foot pedal valve with a PT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the omitted thread suffix selects PT thread. This configuration is without a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection PT 1/4 Option suffix omitted Without lock or guard Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection PT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 648 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. External and Mounting Dimensions Drawing reference Value for this model Side-view length 157 mm Side-view overall height 84.4 mm Base vertical callout 2.2 mm Pedal-end vertical callout 30.4 mm Front-view pedal width 73 mm Port spacing 25 mm Front-view upper vertical reference 42 mm Lower port-center height 21 mm Base width 99 mm Threaded port callout 3 × PT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $42.74

  View options

•

  View options

  Airtac 3F series: foot pedal valve - 3F21008LG

  Specifications: 3F21008LG is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/4 connection. The 3F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the G thread suffix selects G thread. This configuration is with a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 08 Connection G 1/4 L With lock G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection G 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × G 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply. Reference Weight Estimated reference weight: 395 g. The reference is 3F21008, published at 395 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $35.76

  View options

•

  View options

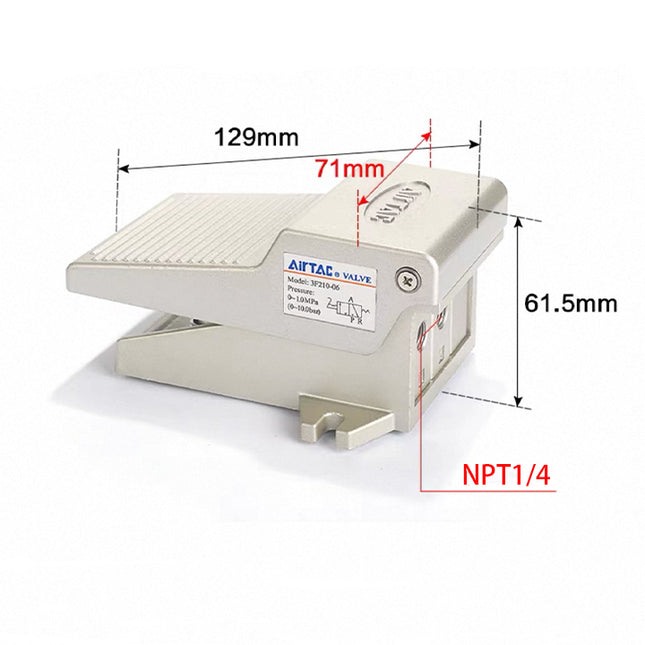

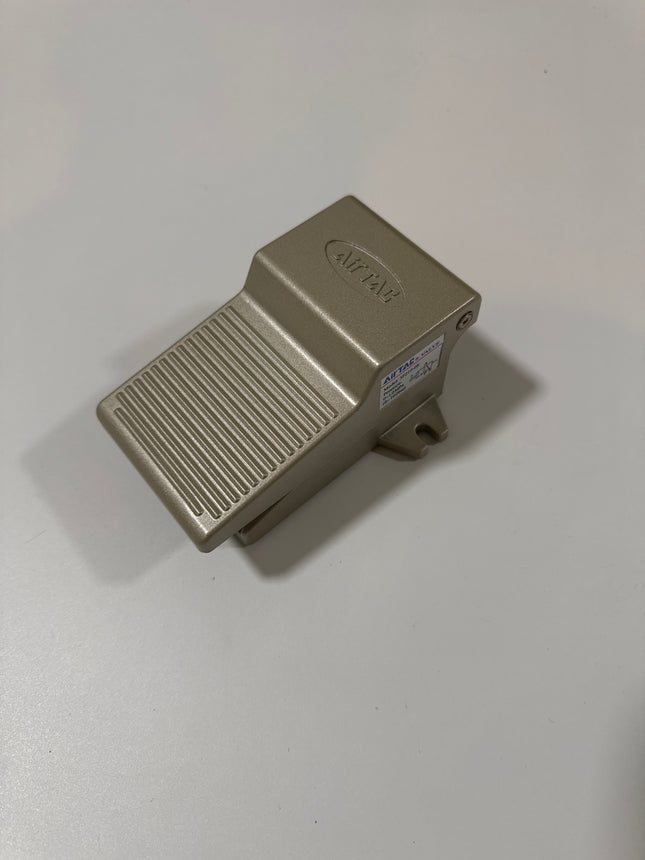

  Airtac 3F series: foot pedal valve - 3F21008T

  Specifications: 3F21008T is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a NPT 1/4 connection. The 3F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the T thread suffix selects NPT thread. This configuration is without a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 08 Connection NPT 1/4 Lock suffix omitted Without lock T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection NPT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 395 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × NPT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply.

  Read more less

  $29.87

  View options

•

  View options

  Airtac 3F series: foot pedal valve - 3F21008G

  Specifications: 3F21008G is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/4 connection. The 3F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the G thread suffix selects G thread. This configuration is without a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 08 Connection G 1/4 Lock suffix omitted Without lock G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection G 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 395 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × G 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply.

  Read more less

  $29.87

  View options

•

  View options

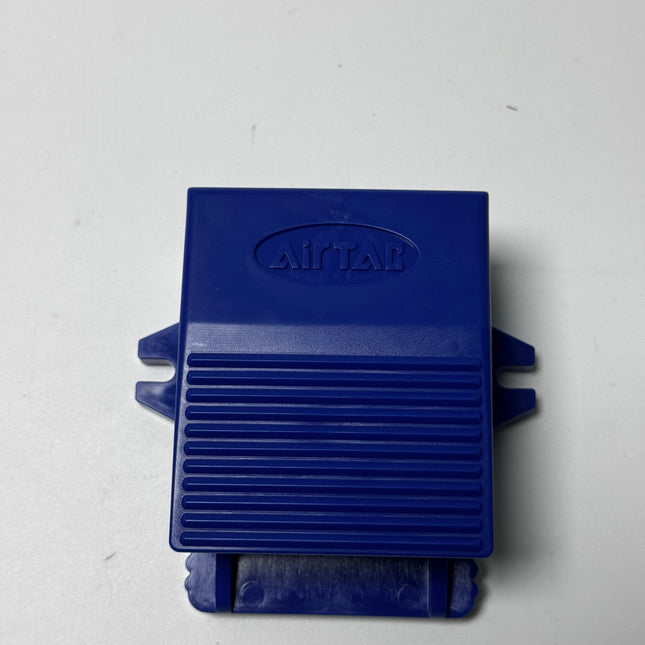

  Airtac 3FM series: foot pedal valve - 3FM21006

  Specifications: 3FM21006 is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a PT 1/8 connection. The 3FM210 code identifies the miniature plastic foot pedal model, 06 identifies the connection size, and the omitted thread suffix selects PT thread. This is the miniature, non-locking configuration. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3FM210 3-port, 2-position, normally closed foot pedal valve; miniature plastic foot pedal 06 Connection PT 1/8 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection PT 1/8 Body material Plastic Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. External and Mounting Dimensions Drawing reference Value for this model Side-view length 95 mm Side-view height callout 49.5 mm Side-view second height callout 48 mm Front-view pedal width 70 mm Base span 90 mm Overall base span 104 mm Port callout 2 × PT 1/8 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The miniature 3FM210 series offers M5, 1/8 and 1/4 connections. PT, G and NPT alternatives apply to the pipe-thread models. The M5 model retains its metric connection; an L lock option is not shown for 3FM in the ordering chart. Reference Weight Estimated reference weight: 250 g. The reference is 3FM21008, published at 250 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $19.87

  View options

•

  View options

  Airtac 4F series: foot pedal valve - 4F21008T

  Specifications: 4F21008T is a 5-port, 2-position direct-acting foot pedal valve with a NPT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the T thread suffix selects NPT thread. This configuration is without a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection NPT 1/4 Option suffix omitted Without lock or guard T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection NPT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 648 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. External and Mounting Dimensions Drawing reference Value for this model Side-view length 157 mm Side-view overall height 84.4 mm Base vertical callout 2.2 mm Pedal-end vertical callout 30.4 mm Front-view pedal width 73 mm Port spacing 25 mm Front-view upper vertical reference 42 mm Lower port-center height 21 mm Base width 99 mm Threaded port callout 3 × NPT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $42.74

  View options

•

  View options

  Airtac 3FM series: foot pedal valve - 3FM21008G

  Specifications: 3FM21008G is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/4 connection. The 3FM210 code identifies the miniature plastic foot pedal model, 08 identifies the connection size, and the G thread suffix selects G thread. This is the miniature, non-locking configuration. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3FM210 3-port, 2-position, normally closed foot pedal valve; miniature plastic foot pedal 08 Connection G 1/4 G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection G 1/4 Body material Plastic Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 250 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. External and Mounting Dimensions Drawing reference Value for this model Side-view length 95 mm Side-view height callout 49.5 mm Side-view second height callout 48 mm Front-view pedal width 70 mm Base span 90 mm Overall base span 104 mm Port callout 2 × G 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The miniature 3FM210 series offers M5, 1/8 and 1/4 connections. PT, G and NPT alternatives apply to the pipe-thread models. The M5 model retains its metric connection; an L lock option is not shown for 3FM in the ordering chart.

  Read more less

  $19.87

  View options

•

  View options

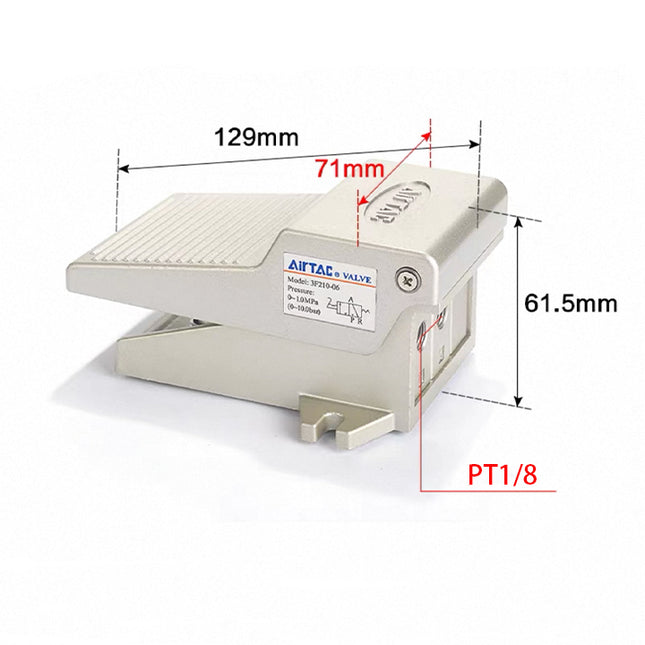

  Airtac 3F series: foot pedal valve - 3F21006

  Specifications: 3F21006 is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a PT 1/8 connection. The 3F210 code identifies the aluminum foot pedal model, 06 identifies the connection size, and the omitted thread suffix selects PT thread. This configuration is without a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 06 Connection PT 1/8 Lock suffix omitted Without lock Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection PT 1/8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × PT 1/8 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply. Reference Weight Estimated reference weight: 395 g. The reference is 3F21008, published at 395 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $29.87

  View options

•

  View options

  Airtac 4F series: foot pedal valve - 4F21008L

  Specifications: 4F21008L is a 5-port, 2-position direct-acting foot pedal valve with a PT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the omitted thread suffix selects PT thread. This configuration is with a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection PT 1/4 L With lock; without guard Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection PT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 669 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. External and Mounting Dimensions Drawing reference Value for this model Side-view length 157 mm Side-view overall height 84.4 mm Base vertical callout 2.2 mm Pedal-end vertical callout 30.4 mm Front-view pedal width 73 mm Port spacing 25 mm Front-view upper vertical reference 42 mm Lower port-center height 21 mm Base width 99 mm Threaded port callout 3 × PT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $49.87

  View options

•

  View options

  Airtac 4F series: foot pedal valve - 4F21008LG

  Specifications: 4F21008LG is a 5-port, 2-position direct-acting foot pedal valve with a G 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the G thread suffix selects G thread. This configuration is with a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection G 1/4 L With lock; without guard G G thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection G 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 669 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. External and Mounting Dimensions Drawing reference Value for this model Side-view length 157 mm Side-view overall height 84.4 mm Base vertical callout 2.2 mm Pedal-end vertical callout 30.4 mm Front-view pedal width 73 mm Port spacing 25 mm Front-view upper vertical reference 42 mm Lower port-center height 21 mm Base width 99 mm Threaded port callout 3 × G 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $49.87

  View options

•

  View options

  Airtac 4F series: foot pedal valve - 4F21008LT

  Specifications: 4F21008LT is a 5-port, 2-position direct-acting foot pedal valve with a NPT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the T thread suffix selects NPT thread. This configuration is with a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 4F210 5-port, 2-position foot pedal valve; aluminum foot pedal 08 Connection NPT 1/4 L With lock; without guard T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; foot controlled Connection NPT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 669 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The direct-acting aluminum foot pedal operates the 5/2 valve. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. External and Mounting Dimensions Drawing reference Value for this model Side-view length 157 mm Side-view overall height 84.4 mm Base vertical callout 2.2 mm Pedal-end vertical callout 30.4 mm Front-view pedal width 73 mm Port spacing 25 mm Front-view upper vertical reference 42 mm Lower port-center height 21 mm Base width 99 mm Threaded port callout 3 × NPT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Spring 4 E-clip 5 Pedal 6 Spool 7 O-ring 8 O-ring 9 Front cover 10 Piston 11 Bottom cover 12 C-clip 13 Silencer 14 Base 15 Pedal spring 16 Washer 17 Round-head screw 18 Small foot pad 19 Round-head screw 20 Large foot pad Series Ordering Options The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.

  Read more less

  $49.87

  View options

•

  View options

  Airtac 3FM series: foot pedal valve - 3FM21008T

  Specifications: 3FM21008T is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a NPT 1/4 connection. The 3FM210 code identifies the miniature plastic foot pedal model, 08 identifies the connection size, and the T thread suffix selects NPT thread. This is the miniature, non-locking configuration. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3FM210 3-port, 2-position, normally closed foot pedal valve; miniature plastic foot pedal 08 Connection NPT 1/4 T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection NPT 1/4 Body material Plastic Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 250 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. External and Mounting Dimensions Drawing reference Value for this model Side-view length 95 mm Side-view height callout 49.5 mm Side-view second height callout 48 mm Front-view pedal width 70 mm Base span 90 mm Overall base span 104 mm Port callout 2 × NPT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The miniature 3FM210 series offers M5, 1/8 and 1/4 connections. PT, G and NPT alternatives apply to the pipe-thread models. The M5 model retains its metric connection; an L lock option is not shown for 3FM in the ordering chart.

  Read more less

  $19.87

  View options

•

  View options

  Airtac 3F series: foot pedal valve - 3F21008LT

  Specifications: 3F21008LT is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a NPT 1/4 connection. The 3F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the T thread suffix selects NPT thread. This configuration is with a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 08 Connection NPT 1/4 L With lock T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection NPT 1/4 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × NPT 1/4 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply. Reference Weight Estimated reference weight: 395 g. The reference is 3F21008, published at 395 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $35.76

  View options

•

  View options

  Airtac 3F series: foot pedal valve - 3F21006G

  Specifications: 3F21006G is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/8 connection. The 3F210 code identifies the aluminum foot pedal model, 06 identifies the connection size, and the G thread suffix selects G thread. This configuration is without a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 06 Connection G 1/8 Lock suffix omitted Without lock G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection G 1/8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × G 1/8 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply. Reference Weight Estimated reference weight: 395 g. The reference is 3F21008, published at 395 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $29.87

  View options

•

  View options

  Airtac 3F series: foot pedal valve - 3F21006LG

  Specifications: 3F21006LG is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/8 connection. The 3F210 code identifies the aluminum foot pedal model, 06 identifies the connection size, and the G thread suffix selects G thread. This configuration is with a locking mechanism. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal 06 Connection G 1/8 L With lock G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection G 1/8 Body material Aluminum alloy Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts. Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification. External and Mounting Dimensions Drawing reference Value for this model Side-view overall length 129 mm Side-view height 61.5 mm Side-view inner height 54.5 mm Front-view pedal width 71 mm Base width callout 83 mm Overall base width 97 mm Port spacing 18 mm Port-center height 26.5 mm Port callout 2 × G 1/8 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply. Reference Weight Estimated reference weight: 395 g. The reference is 3F21008, published at 395 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $35.76

  View options

•

  View options

  Airtac 3FM series: foot pedal valve - 3FM21006G

  Specifications: 3FM21006G is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/8 connection. The 3FM210 code identifies the miniature plastic foot pedal model, 06 identifies the connection size, and the G thread suffix selects G thread. This is the miniature, non-locking configuration. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3FM210 3-port, 2-position, normally closed foot pedal valve; miniature plastic foot pedal 06 Connection G 1/8 G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection G 1/8 Body material Plastic Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. External and Mounting Dimensions Drawing reference Value for this model Side-view length 95 mm Side-view height callout 49.5 mm Side-view second height callout 48 mm Front-view pedal width 70 mm Base span 90 mm Overall base span 104 mm Port callout 2 × G 1/8 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The miniature 3FM210 series offers M5, 1/8 and 1/4 connections. PT, G and NPT alternatives apply to the pipe-thread models. The M5 model retains its metric connection; an L lock option is not shown for 3FM in the ordering chart. Reference Weight Estimated reference weight: 250 g. The reference is 3FM21008, published at 250 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $19.87

  View options

•

  View options

  Airtac 3FM series: foot pedal valve - 3FM21006T

  Specifications: 3FM21006T is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a NPT 1/8 connection. The 3FM210 code identifies the miniature plastic foot pedal model, 06 identifies the connection size, and the T thread suffix selects NPT thread. This is the miniature, non-locking configuration. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3FM210 3-port, 2-position, normally closed foot pedal valve; miniature plastic foot pedal 06 Connection NPT 1/8 T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection NPT 1/8 Body material Plastic Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Weight The 2022 catalog weight table does not list an exact weight for this configuration Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. External and Mounting Dimensions Drawing reference Value for this model Side-view length 95 mm Side-view height callout 49.5 mm Side-view second height callout 48 mm Front-view pedal width 70 mm Base span 90 mm Overall base span 104 mm Port callout 2 × NPT 1/8 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The miniature 3FM210 series offers M5, 1/8 and 1/4 connections. PT, G and NPT alternatives apply to the pipe-thread models. The M5 model retains its metric connection; an L lock option is not shown for 3FM in the ordering chart. Reference Weight Estimated reference weight: 250 g. The reference is 3FM21008, published at 250 g. The 06 port and, where selected, latching configuration are not separately tabulated by mass. The current option differences are not individually weighed; this weight analogy does not establish technical or mounting interchangeability. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $19.87

  View options

•

  View options

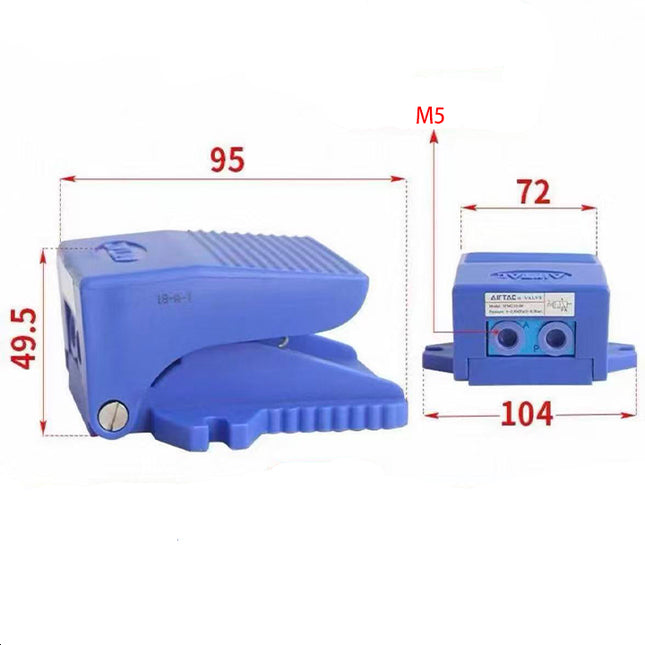

  Airtac 3FM series: foot pedal valve - 3FM210M5

  Specifications: 3FM210M5 is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a M5 connection. The 3FM210 code identifies the miniature plastic foot pedal model, M5 identifies the connection size. The M5 version uses its stated metric connection. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series. Model Code Explained Code Meaning for this model 3FM210 3-port, 2-position, normally closed foot pedal valve; miniature plastic foot pedal M5 Connection M5 Technical Specifications Parameter Details Valve function 3-port, 2-position, normally closed Actuation Direct acting; foot controlled Connection M5 Body material Plastic Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 261 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation The horizontally arranged direct-acting mechanism has a compact structure. External and Mounting Dimensions Drawing reference Value for this model Side-view length 95 mm Side-view height callout 49.5 mm Side-view second height callout 48 mm Front-view pedal width 70 mm Base span 90 mm Overall base span 104 mm Port callout 2 × M5 Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration. Catalog item number Component name 1 Pin 2 Countersunk screw 3 Retaining plate 4 Spool 5 Pedal 6 O-ring 7 Body 8 Spring 9 E-clip 10 Spring holder 11 Override spring 12 Round-head screw 13 Base 14 Base pad 15 Round-head screw 16 Retaining clip Series Ordering Options The miniature 3FM210 series offers M5, 1/8 and 1/4 connections. PT, G and NPT alternatives apply to the pipe-thread models. The M5 model retains its metric connection; an L lock option is not shown for 3FM in the ordering chart.

  Read more less

  $19.32
