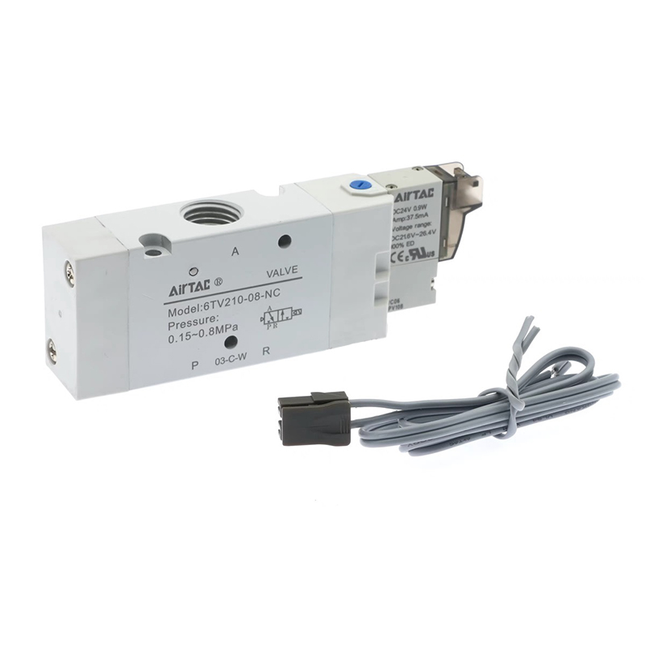

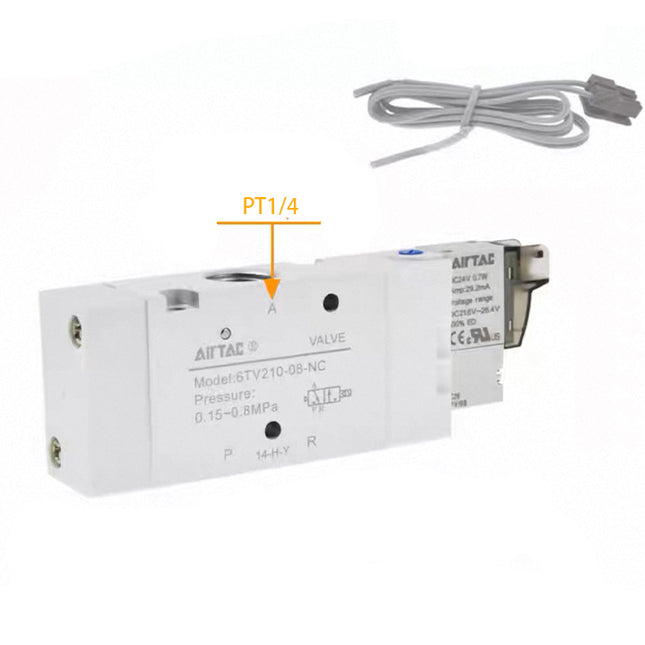

AIRTAC 6TV Series Solenoid Valve
Product Features
- Plug-in wiring method allows the terminal to be freely interchanged between horizontal and vertical mounting.
- Internal integrated structure allows the pilot exhaust air to be collected and centrally discharged from the R port.
- The body is made of extruded aluminum alloy, and the internal hole adopts special processing technology, which effectively increases the flow area and improves the valve's flow rate.
- Threaded port type is optional; the valve can be integrated and assembled with the base, saving installation space.
Specifications
| Item | 6TV0 | 6TV1 | 6TV2 | 6TV3 |
|---|---|---|---|---|
| Working Medium | Air (filtered through 40µm filter or finer) | |||
| Port Size [Note 1] | Inlet/Outlet = M5 | Inlet/Outlet = PT1/8 or M5 | Inlet=PT1/8 or PT=1/4; Exhaust=PT1/8 | Inlet=PT3/8; Exhaust=PT1/4 |
| Effective Orifice (Cv) [Note 4] | 3.4mm² (0.2) | 8.9mm² (0.52) | 15.4mm² (0.91) | 38.4mm² (2.26) |
| Weight (g) (Single/Double Solenoid) | 28g / 43g | 52g / 67g | 90g / 105g | 180g / 215g |
| Operating Pressure Range | 0.15~0.8MPa (21~114psi) | |||
| Proof Pressure | 1.2MPa (175psi) | |||
| Working Temperature | -20~70°C | |||
| Body Material | Aluminum Alloy | |||
| Lubrication [Note 2] | No need | |||
| Pilot Exhaust Mode | Main line and pilot exhaust use centralized exhaust | |||
| Maximum Operating Frequency [Note 3] | 5 times/second | |||
[Note 1] Port thread PT, G, and NPT thread are optional.
[Note 2] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 3] Maximum operating frequency is for the air condition.
[Note 4] Effective orifice and Cv value are calculated based on tested flow data.
[Note 2] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 3] Maximum operating frequency is for the air condition.
[Note 4] Effective orifice and Cv value are calculated based on tested flow data.
Electrical Specifications
| Item | AC220V | AC110V | DC24V | DC12V | |
|---|---|---|---|---|---|
| Operating Voltage Range | AC:+15%～-10% | DC: ±10% | |||
| Power Consumption | 1.1VA | 0.9W | |||
| Protection Degree | Dustproof | ||||
| Insulation Class | F Class | ||||
| Wiring Form | Plug-in Type | ||||
| Excitation Time | Below 0.05 seconds | ||||
Product Ordering Code
Example Code: 6TV 1 10 06 NC B 050
| 1. Model Code | 2. Series Code | 3. Electrical Control Type | 4. Port Size | 5. Initial State | 6. Standard Voltage | 7. Wire Length Code | 8. Thread Type Code |
|---|---|---|---|---|---|---|---|
| 6TV: Five-way Two-position Solenoid Valve | 05: 0500 Series | 10: Single Solenoid, Two Position | M5: M5 | NC: Normally Closed Type | A: AC220V | ||
| 1: 100 Series | 20: Double Solenoid, Two Position | 06: PT1/8 | NO: Normally Open Type | B: DC24V | 050: 0.5m (Lead Wire) | Blank: PT Thread | |
| 2: 200 Series | 08: PT1/4 | Double Solenoid (No Initial State) | C: AC110V | 200: 2.0m (Lead Wire) | G: G Thread | ||
| 3: 300 Series | 10: PT3/8 | Double Solenoid (No Initial State Opt.) | F: DC12V | T: NPT Thread |
