AIRTAC 3V1 Series Solenoid Valve

•

  View options

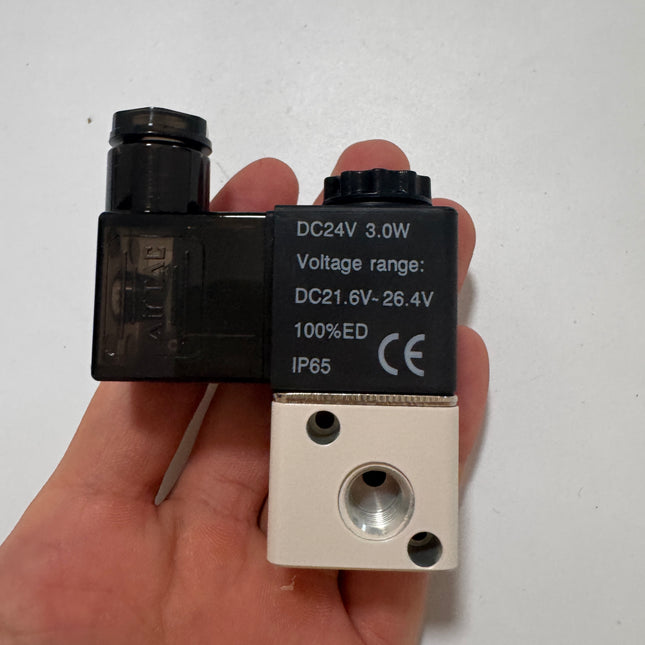

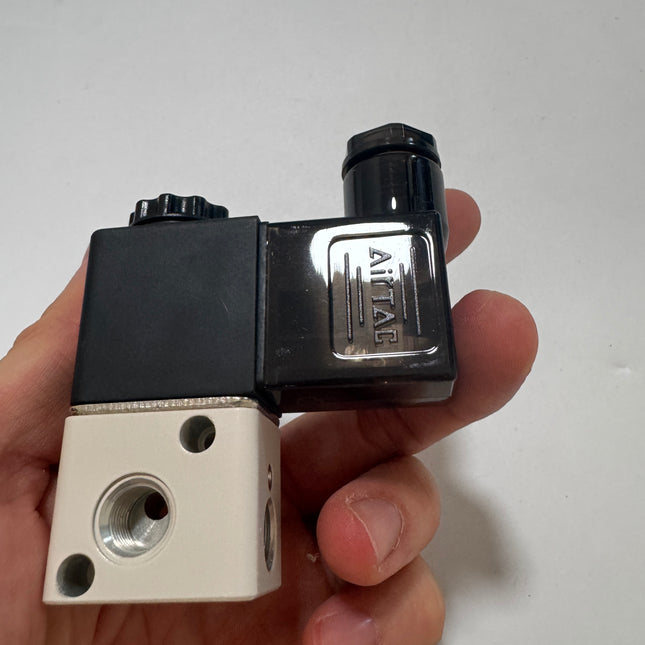

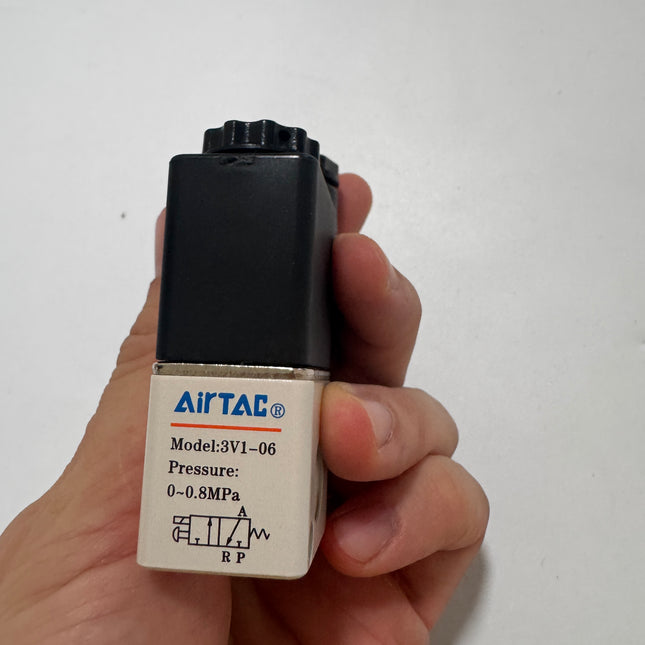

  Airtac 3V1 series: pneumatic solenoid valve - 3V106B

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC24V; Electrical connection: DIN connector; Port thread: PT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106B Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size B DC24V Blank electrical connection code DIN connector Blank thread code PT thread Technical Specifications Parameter Specifications for this model Model 3V106B Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread PT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC24V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 3.0 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × PT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

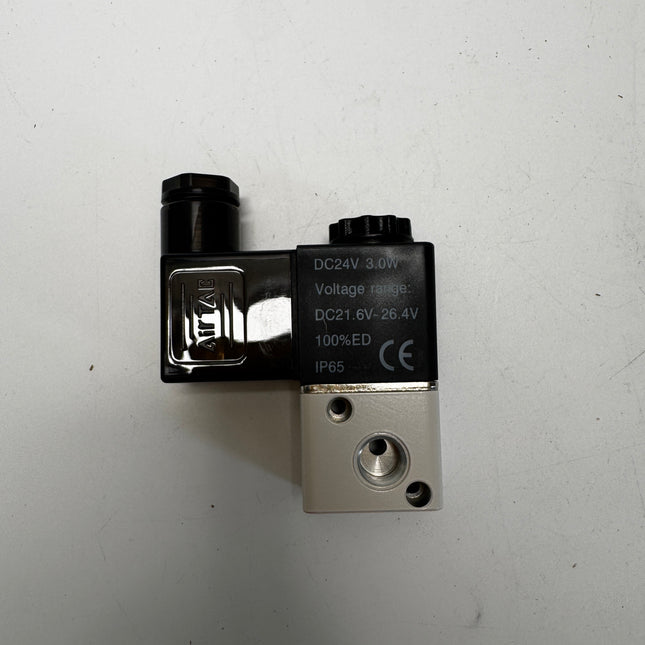

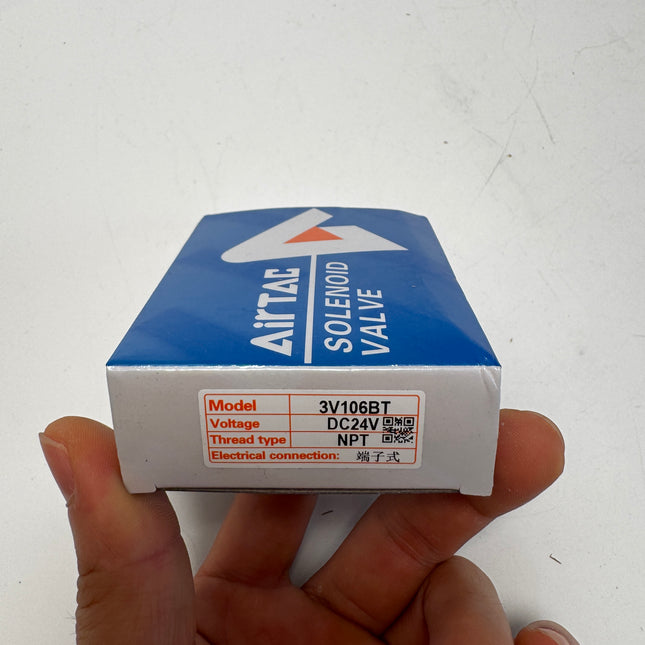

  Airtac 3V1 series: pneumatic solenoid valve - 3V106BT

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC24V; Electrical connection: DIN connector; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106BT Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size B DC24V Blank electrical connection code DIN connector T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106BT Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC24V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 3.0 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: pneumatic solenoid valve - 3V106A

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: AC220V; Electrical connection: DIN connector; Port thread: PT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106A Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size A AC220V Blank electrical connection code DIN connector Blank thread code PT thread Technical Specifications Parameter Specifications for this model Model 3V106A Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread PT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage AC220V Operating voltage range AC ±15% of rated voltage Power consumption per valve coil 4.5 VA Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × PT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

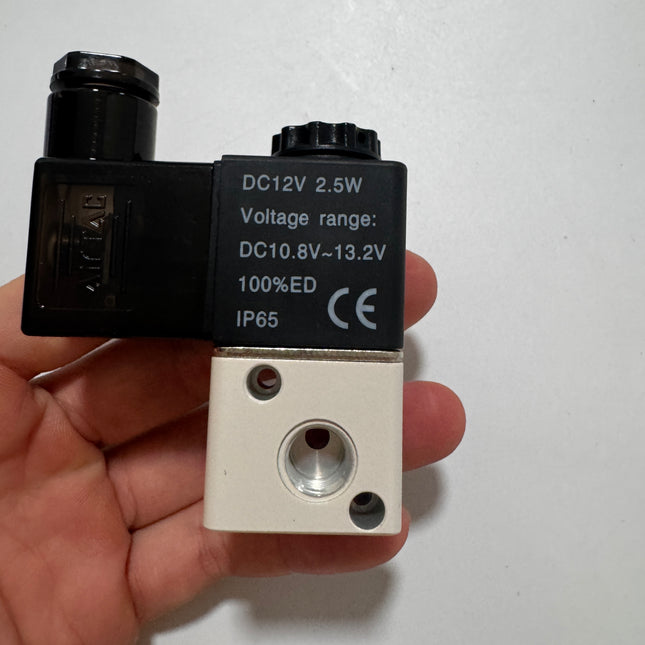

  Airtac 3V1 series: pneumatic solenoid valve - 3V106FG

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: DIN connector; Port thread: G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FG Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V Blank electrical connection code DIN connector G G thread Technical Specifications Parameter Specifications for this model Model 3V106FG Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread G1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × G1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

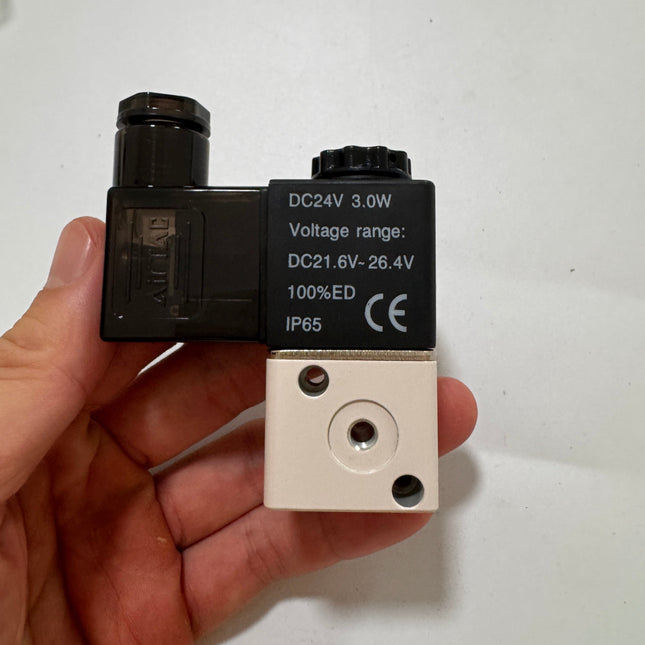

  Airtac 3V1 series: pneumatic solenoid valve - 3V1M5B

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: M5; Rated voltage: DC24V; Electrical connection: DIN connector; Port thread: M5 (M5×0.8). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V1M5B Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 M5 M5 port size B DC24V Blank electrical connection code DIN connector Thread code not applicable M5 ports do not use PT/G/NPT thread suffixes Technical Specifications Parameter Specifications for this model Model 3V1M5B Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread M5 (M5×0.8) Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC24V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 3.0 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3-M5×0.8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This M5 model: 12.5; 06 reference dimension: 10.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: pneumatic solenoid valve - 3V106AG

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: AC220V; Electrical connection: DIN connector; Port thread: G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106AG Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size A AC220V Blank electrical connection code DIN connector G G thread Technical Specifications Parameter Specifications for this model Model 3V106AG Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread G1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage AC220V Operating voltage range AC ±15% of rated voltage Power consumption per valve coil 4.5 VA Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × G1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

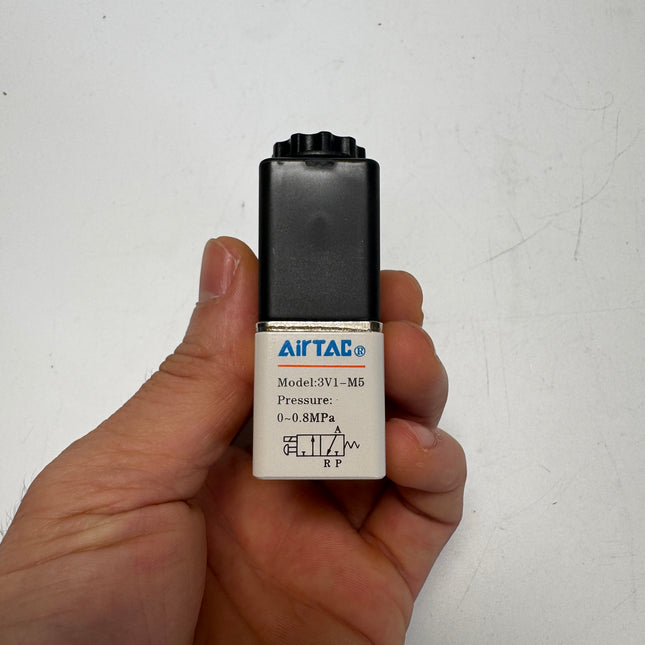

  Airtac 3V1 series: pneumatic solenoid valve - 3V1M5F

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: M5; Rated voltage: DC12V; Electrical connection: DIN connector; Port thread: M5 (M5×0.8). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V1M5F Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 M5 M5 port size F DC12V Blank electrical connection code DIN connector Thread code not applicable M5 ports do not use PT/G/NPT thread suffixes Technical Specifications Parameter Specifications for this model Model 3V1M5F Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread M5 (M5×0.8) Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3-M5×0.8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This M5 model: 12.5; 06 reference dimension: 10.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 141 g. Calculated valve-only reference: 1 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $22.88

  View options

•

  View options

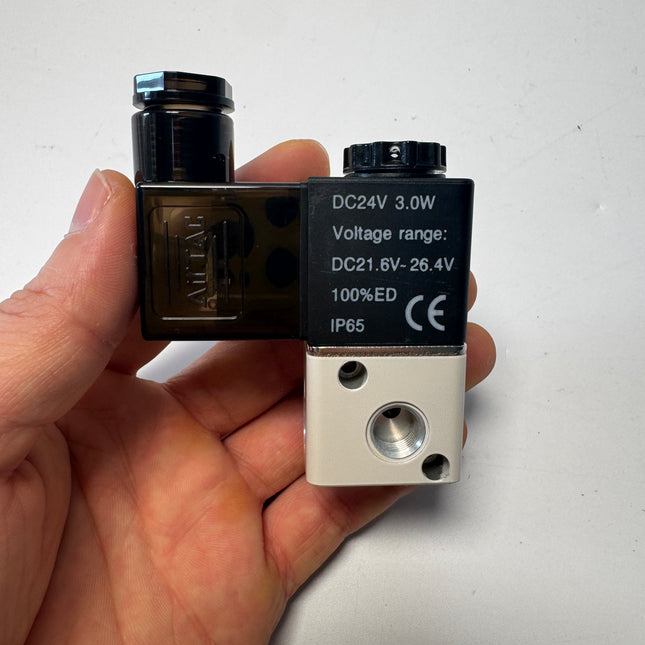

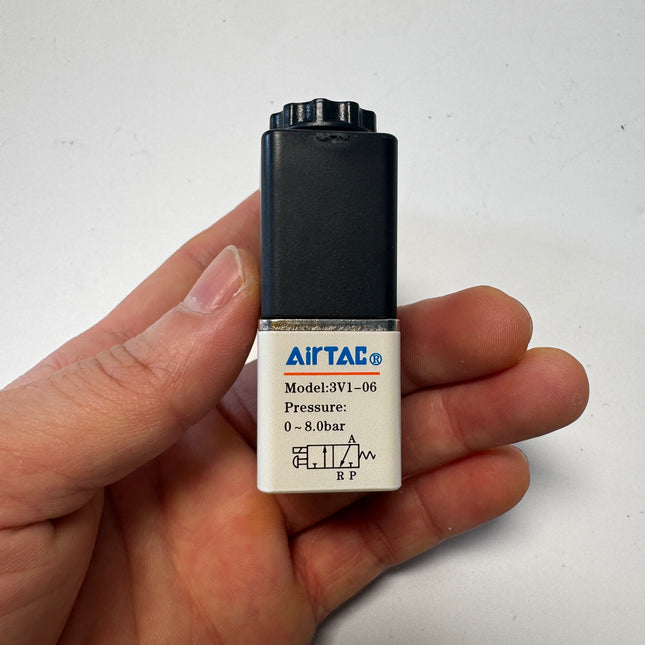

  Airtac 3V1 series: pneumatic solenoid valve - 3V106BG

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC24V; Electrical connection: DIN connector; Port thread: G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106BG Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size B DC24V Blank electrical connection code DIN connector G G thread Technical Specifications Parameter Specifications for this model Model 3V106BG Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread G1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC24V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 3.0 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × G1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

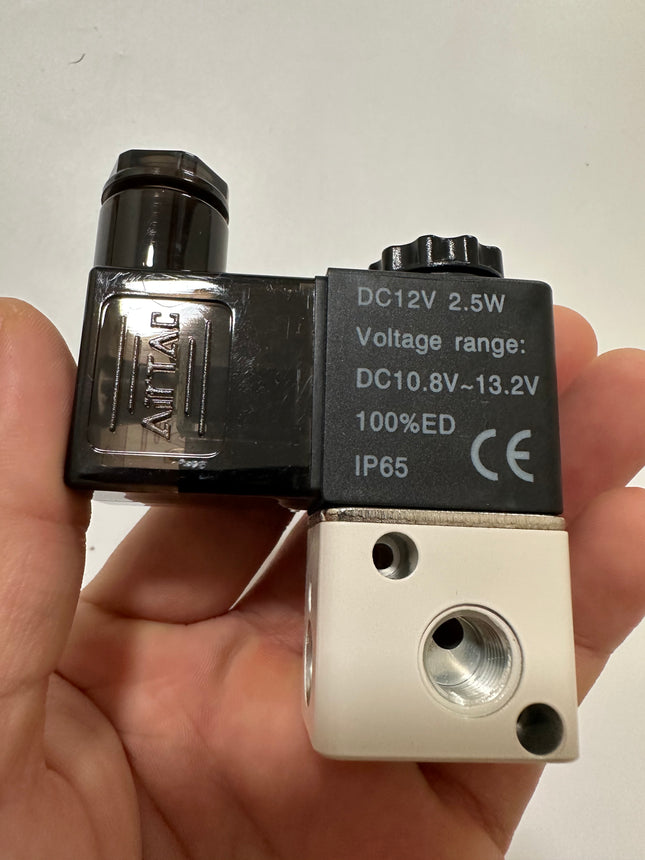

  Airtac 3V1 series: pneumatic solenoid valve - 3V106FT

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: DIN connector; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FT Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V Blank electrical connection code DIN connector T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106FT Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106F8FT

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: DIN connector; Stations: 8; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106F8FT Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V Blank electrical connection code DIN connector 8F 8-station assembly T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106F8FT Product configuration 8-station assembly (includes 8 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 8 × 141 g = 1128 g (1.128 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 8F (8-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 8 valves 3V1-P30 1 kit 3V1-P31 7 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 1128 g. Calculated valve-only reference: 8 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $192.49

  View options

•

  View options

  Airtac 3V1 series: pneumatic solenoid valve - 3V106CIG

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: AC110V; Electrical connection: Flying leads, 0.5 m lead length; Port thread: G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106CIG Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size C AC110V I Flying lead, lead length 0.5 m G G thread Technical Specifications Parameter Specifications for this model Model 3V106CIG Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread G1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage AC110V Operating voltage range AC ±15% of rated voltage Power consumption per valve coil 4.5 VA Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × G1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: pneumatic solenoid valve - 3V1M5BI

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: M5; Rated voltage: DC24V; Electrical connection: Flying leads, 0.5 m lead length; Port thread: M5 (M5×0.8). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V1M5BI Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 M5 M5 port size B DC24V I Flying lead, lead length 0.5 m Thread code not applicable M5 ports do not use PT/G/NPT thread suffixes Technical Specifications Parameter Specifications for this model Model 3V1M5BI Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread M5 (M5×0.8) Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC24V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 3.0 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3-M5×0.8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This M5 model: 12.5; 06 reference dimension: 10.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: pneumatic solenoid valve - 3V106ET

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: AC24V; Electrical connection: DIN connector; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106ET Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size E AC24V Blank electrical connection code DIN connector T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106ET Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage AC24V Operating voltage range AC ±15% of rated voltage Power consumption per valve coil 5.0 VA Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: pneumatic solenoid valve - 3V106C

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: AC110V; Electrical connection: DIN connector; Port thread: PT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106C Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size C AC110V Blank electrical connection code DIN connector Blank thread code PT thread Technical Specifications Parameter Specifications for this model Model 3V106C Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread PT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage AC110V Operating voltage range AC ±15% of rated voltage Power consumption per valve coil 4.5 VA Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × PT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: pneumatic solenoid valve - 3V106CT

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: AC110V; Electrical connection: DIN connector; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106CT Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size C AC110V Blank electrical connection code DIN connector T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106CT Product configuration Single valve (ordering code does not include an assembly code from 1F to 20F) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Catalog reference weight 141 g for the 3V1 series. Reference only; actual weight is based on the physical product. Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage AC110V Operating voltage range AC ±15% of rated voltage Power consumption per valve coil 4.5 VA Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection DIN connector Lead length Not applicable (this model uses a DIN connector) Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses a DIN connector. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 62, 40, 13 (each refers to its own dimension line in the drawing) Front view: valve body width 23 Front view: height dimension 76 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the flying lead reference drawing 32, 13 (electrical connection comparison only; these are not the overall dimensions of this DIN connector model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a single valve. The assembly information below is a series selection reference and does not mean that assembly accessories are included with this single valve. To order an assembly with the specified accessories, use the applicable ordering code containing 1F to 20F. Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $22.88

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI20FT

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 20; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI20FT Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 20F 20-station assembly T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106FI20FT Product configuration 20-station assembly (includes 20 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 20 × 141 g = 2820 g (2.82 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 20F (20-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 20 valves 3V1-P30 1 kit 3V1-P31 19 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 2820 g. Calculated valve-only reference: 20 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $486.08

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI20FG

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 20; Port thread: G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI20FG Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 20F 20-station assembly G G thread Technical Specifications Parameter Specifications for this model Model 3V106FI20FG Product configuration 20-station assembly (includes 20 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread G1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 20 × 141 g = 2820 g (2.82 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × G1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 20F (20-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 20 valves 3V1-P30 1 kit 3V1-P31 19 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 2820 g. Calculated valve-only reference: 20 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $486.08

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI20F

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 20; Port thread: PT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI20F Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 20F 20-station assembly Blank thread code PT thread Technical Specifications Parameter Specifications for this model Model 3V106FI20F Product configuration 20-station assembly (includes 20 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread PT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 20 × 141 g = 2820 g (2.82 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × PT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 20F (20-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 20 valves 3V1-P30 1 kit 3V1-P31 19 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $486.08

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI19FT

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 19; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI19FT Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 19F 19-station assembly T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106FI19FT Product configuration 19-station assembly (includes 19 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 19 × 141 g = 2679 g (2.679 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 19F (19-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 19 valves 3V1-P30 1 kit 3V1-P31 18 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 2679 g. Calculated valve-only reference: 19 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $461.42

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI19FG

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 19; Port thread: G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI19FG Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 19F 19-station assembly G G thread Technical Specifications Parameter Specifications for this model Model 3V106FI19FG Product configuration 19-station assembly (includes 19 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread G1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 19 × 141 g = 2679 g (2.679 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × G1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 19F (19-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 19 valves 3V1-P30 1 kit 3V1-P31 18 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 2679 g. Calculated valve-only reference: 19 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $461.42

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI19F

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 19; Port thread: PT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI19F Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 19F 19-station assembly Blank thread code PT thread Technical Specifications Parameter Specifications for this model Model 3V106FI19F Product configuration 19-station assembly (includes 19 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread PT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 19 × 141 g = 2679 g (2.679 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × PT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 19F (19-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 19 valves 3V1-P30 1 kit 3V1-P31 18 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $461.42

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI18FT

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 18; Port thread: NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI18FT Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 18F 18-station assembly T NPT thread Technical Specifications Parameter Specifications for this model Model 3V106FI18FT Product configuration 18-station assembly (includes 18 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread NPT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 18 × 141 g = 2538 g (2.538 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × NPT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 18F (18-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 18 valves 3V1-P30 1 kit 3V1-P31 17 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 2538 g. Calculated valve-only reference: 18 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $436.21

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI18FG

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 18; Port thread: G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI18FG Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 18F 18-station assembly G G thread Technical Specifications Parameter Specifications for this model Model 3V106FI18FG Product configuration 18-station assembly (includes 18 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread G1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 18 × 141 g = 2538 g (2.538 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × G1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 18F (18-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 18 valves 3V1-P30 1 kit 3V1-P31 17 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10% Reference Weight Catalog reference weight: 2538 g. Calculated valve-only reference: 18 × 141 g. Manifold accessories and packaging are excluded. Actual weight is subject to the physical product; this is not a measured packed shipping weight.

  Read more less

  $436.21

  View options

•

  View options

  Airtac 3V1 series: solenoid valve manifold assembly - 3V106FI18F

  Specifications: Three-port, two-position solenoid valve; Series: 1; Port size: 1/8 inch; Rated voltage: DC12V; Electrical connection: Flying leads, 0.5 m lead length; Stations: 18; Port thread: PT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V1 series valves are functional alternatives to SMC VX31 series valves. Model Code Explained This model: 3V106FI18F Model code Meaning 3V Three-port, two-position solenoid valve 1 Series 1 06 1/8-inch port size F DC12V I Flying lead, lead length 0.5 m 18F 18-station assembly Blank thread code PT thread Technical Specifications Parameter Specifications for this model Model 3V106FI18F Product configuration 18-station assembly (includes 18 valves and the specified assembly accessories) Ports and positions Three-port, two-position (3/2-way) Operation Direct acting, normally closed Port size and thread PT1/8 Working medium Air (filtered through a 40 μm or larger filter screen, as worded in the supplied catalog) Lubrication Not required Operating pressure range 0–0.8 MPa (0–114 psi, as stated in the catalog) Proof pressure 1.2 MPa (175 psi) Operating temperature −20–70°C Orifice diameter Φ1.2 mm Body material Aluminum alloy Proof pressure is the withstand limit, not the normal operating pressure. Electrical Specifications Item Specifications for this model Rated voltage DC12V Operating voltage range DC ±10% of rated voltage Power consumption per valve coil 2.5 W Protection rating IP65 (DIN40050) Insulation class Class B Electrical connection Flying lead Lead length 0.5 m Energization time 0.05 s or less Maximum operating frequency 10 cycles/s (no-load condition) Power consumption is per valve coil. Calculated valve-only reference weight: 18 × 141 g = 2538 g (2.538 kg), excluding accessories. Features and Operation Direct acting, normally closed operation with responsive switching. No additional oil lubrication is required. Multiple valves can be assembled together to save installation space. A manual override assists with installation and commissioning. Several standard voltages are available. The voltage for this model is specified above. Symbol ports: P is the air inlet, A is the working port and R is the exhaust. In the catalog’s normally closed symbol, P to A is closed and A is connected to R when de-energized. When energized, P connects to A. The spring returns the valve to its normal position. External and Mounting Dimensions For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This model uses flying leads. Lengths, hole spacings and depths below are in mm, following the catalog drawing; threads are specified separately. Local dimensions refer to their own dimension lines. Do not combine dimensions from different views into an overall length × width × height. Dimension location Catalog dimension Top view: threaded mounting holes 2-M4×0.7, depth 6 Top view: center distance between the two threaded holes 15 Top view: outline dimension 25 Side view: upper horizontal dimensions 32; local dimension 13 Front view: valve body width 23 Front view: lower position dimension 8 Threads of the three ports on this model 3 × PT1/8 Side view: height dimension 63.5 Side view: mounting through holes 2-Φ3.3 through holes Side view: mounting counterbores 2-Φ5.3 counterbores Side view: bottom dimension chain 5.5, 16, 30 (each refers to its own dimension line in the drawing) Side view: local vertical dimensions 3.5, 18 (each refers to its own dimension line in the drawing) Side view: port position by port size This 06 model: 10.5; M5 reference dimension: 12.5 Additional dimensions in the DIN connector reference drawing 62, 40, 13; front-view height 76 (electrical connection comparison only; these are not the overall dimensions of this flying lead model) The catalog port drawings are marked M5: 3-M5×0.8 and 06: 3-PT1/8. For G and NPT versions, use the port specification of the current model. Use the product catalog button at the top for the exact locations of mounting holes and dimension lines. Valve Assemblies and Kit Quantities This model is a 18F (18-station) assembly. According to the catalog, this assembly ordering code includes the specified assembly accessories, which do not need to be ordered separately. The accessories are also available individually. Components in this assembly Quantity 3V1 valve 18 valves 3V1-P30 1 kit 3V1-P31 17 kits 3V1-P32 2 kits Assembly configuration Valve and kit quantities 1F (1-station assembly) Valves: 1; P30: 0; P31: 0; P32: 1 2F (2-station assembly) Valves: 2; P30: 1; P31: 1; P32: 1 nF (n stations, n≥3) Valves: n; P30: 1; P31: n−1; P32: 2 The assembly illustration identifies 3V1-1F, the 3V1 valve, 3V1-P30, 3V1-P31 and 3V1-P32. Refer to the catalog assembly illustration for each component’s position. Assembly mounting view Catalog dimensions (mm) 3F (3-station assembly): top view 6-M4×0.7, depth 6; hole spacing 15; outline dimension 25 3F (3-station assembly): front view Total valve body width 69＝3×23; individual valve width 23; height 76; lower position dimension 8 1F (1-station assembly): bracket top view 2-Φ4.5; horizontal dimensions 15, 34.5, 43; vertical dimensions 15, 25, 30 1F (1-station assembly): bracket side view Valve width 23; local vertical dimensions 8 and 7; bracket thickness 1.5; mounting bracket shown. The assembly drawings above are the catalog examples for 1F and 3F. The 76 mm height applies to the DIN connector version shown. These overall dimensions must not be applied directly to other station counts or flying lead assemblies. Accessory Kit Contents Accessory ordering code Part code: name × quantity per kit 3V1-P30 basic connecting screw kit F-3V1002B: Connecting screw (short) × 2 3V1-P30 basic connecting screw kit F-3V1003B: Connecting screw (medium) × 2 3V1-P31 connecting screw kit GOR20008N75: O-ring × 1 3V1-P31 connecting screw kit F-3V1004B: Connecting screw (long) × 2 3V1-P32 mounting bracket kit F-3V1001B: Mounting bracket × 1 3V1-P32 mounting bracket kit GSDA04008ZA: Cross-recessed round-head screw × 2 Flow Characteristics At the selected inlet pressure P1, read flow rate Q against operating pressure P2 on the corresponding catalog curve. Graph element Information in the original drawing Horizontal axis Flow rate Q in L/min; scale marks: 0, 25, 50, 75, 100, 125, 150 Vertical axis Operating pressure P2 in MPa; scale marks: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7 Curve parameter Inlet pressure P1; the original graph shows curves for different inlet pressures Refer to the PDF for the original flow curves. The 150 L/min horizontal-axis limit is not the rated flow. No point-by-point data table is provided; estimated curve values are not guaranteed specifications. Internal Components Drawing item Component 1 Electrical terminal 2 Terminal washer 3 Retaining nut 4 Coil 5 Moving armature assembly 6 O-ring 7 Return spring 8 Body Item numbers match the internal structure drawing. Individual ordering codes for these parts are not provided. Series Ordering Codes Single-valve ordering sequence: 3V + 1 + port size + rated voltage + electrical connection + thread code. For an assembled bank, insert the station code nF after the electrical connection code and before the thread code. Code position Available codes and meanings Valve type code 3V: Three-port, two-position solenoid valve Series code 1: Series 1 Port size M5: M5; 06: 1/8 inch Rated voltage A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical connection Blank: DIN connector; I: flying lead, lead length 0.5 m Number of stations (assembled bank) 1F: 1 station; 2F: 2 stations; 3F: 3 stations; continuing up to 20F: 20 stations Thread code Not applicable to M5; for 06 ports, blank: PT thread; G: G thread; T: NPT thread Voltage code F means DC12V. The assembly codes 1F to 20F indicate the number of stations; distinguish these codes by their position in the model number. The catalog single-valve example is 3V106A, and the assembly example is 3V106A3F. Standard series voltage Coil consumption; voltage tolerance AC220V 4.5 VA; AC ±15% AC110V 4.5 VA; AC ±15% AC24V 5.0 VA; AC ±15% DC24V 3.0 W; DC ±10% DC12V 2.5 W; DC ±10%

  Read more less

  $436.21

  View options
