5A Series Valve Information

5A Series Valve

  • Product Features
  • Specifications
  • Electrical Specifications
  • Product Ordering Code

Product Features

  • Spool-type structure, good sealing performance, and sensitive response.
  • The three-position pneumatic valve is available in three central functional types.
  • The double-head two-position pneumatic valve has a memory function.
  • The inner hole is processed with special technology, featuring low friction resistance, low starting air pressure, and a long service life.
  • No lubrication is required.
  • Can be integrated with a base to form a valve group, saving installation space.

Specifications

Model Port Size [Note 1] Effective Sectional Area (Cv) [Note 4] Weight (g) Max. Operating Frequency [Note 2]
100 Series
5A110-M5 / 5A120-M5 / 5A130□-M5 Inlet=Outlet=M5, Exhaust=M5 5A110-06, 5A120-06: 10.2mm² (Cv=0.6)
5A130C-06: 8.6mm² (Cv=0.51)
85 / 140 / 165 5 cycles/sec
3 cycles/sec
5A110-06 / 5A120-06 / 5A130□-06 Inlet=Outlet=PT1/8, Exhaust=PT1/8 85 / 140 / 165
200 Series
5A210-06 / 5A220-06 / 5A230□-06 Inlet=Outlet=PT1/8, Exhaust=PT1/8 5A210-08, 5A220-08: 17.0mm² (Cv=1.0)
5A230C-08: 13.6mm² (Cv=0.8)
185 / 285 / 365 5 cycles/sec
3 cycles/sec
5A210-08 / 5A220-08 / 5A230□-08 Inlet=Outlet=PT1/4, Exhaust=PT1/8 185 / 285 / 365
300 Series
5A310-08 / 5A320-08 / 5A330□-08 Inlet=Outlet=PT1/4, Exhaust=PT1/4 5A310-10, 5A320-10: 31.8mm² (Cv=1.88)
5A330C-10: 23.0mm² (Cv=1.35)
275 / 505 / 365 5 cycles/sec
3 cycles/sec
5A310-10 / 5A320-10 / 5A330□-10 Inlet=Outlet=PT3/8, Exhaust=PT1/4 275 / 505 / 365
400 Series
5A410-15 / 5A420-15 / 5A430□-15 Inlet=Outlet=PT1/2, Exhaust=PT1/2 5A410-15: 48.0mm² (Cv=2.82)
5A420-15: 48.0mm² (Cv=2.82)
5A430C-15: 40.0mm² (Cv=2.35)
555 / 685 / 735 5 cycles/sec
3 cycles/sec
Common Specifications
Position Two-position Five-way / Three-position Five-way
Actuation Method External air control
Operating Pressure Range 0.15~0.8MPa (21~114psi)
Proof Pressure 1.2MPa (175psi)
Operating Temperature -20~70℃
Lubrication [Note 3] Not required
Notes:
[1] G and NPT thread types are available.
[2] The maximum operating frequency is at the no-load state.
[3] If lubrication is used, do not stop. It is recommended to use ISO VG32 or equivalent oil.
[4] Effective area and Cv value are calculated based on test flow data.

Electrical Specifications

This is a pneumatically actuated valve series and does not have electrical specifications.

Product Ordering Code

1. Model Code 2. Series Code 3. Control Type 4. Port Size 5. Thread Type
5A: Five-port Two-position, Five-port Three-position Pneumatic Control Valve 1: 100 Series 10: Two-position Single Air Control M5: M5 Blank: PT Thread
2: 200 Series 20: Two-position Double Air Control 06: 1/8"
3: 300 Series 30C: Three-position, Closed Center 08: 1/4"
4: 400 Series 30E: Three-position, Exhaust Center
30P: Three-position, Pressure Center
10: 3/8"
15: 1/2"
  • 5A41015

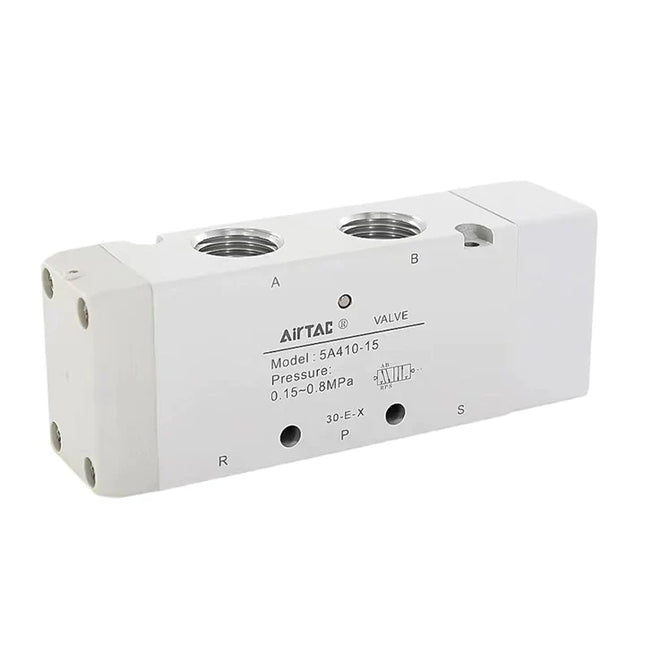

    Airtac 5A series: air-piloted directional valve - 5A41015

    Specifications 5A41015 is an AirTAC 5A400 series, 5-port, 2-position air-operated directional valve with two-position single air pilot and 1/2 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 4 400 size series 10 two-position single air pilot 15 Main port nominal size: 1/2 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position single air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/2 in PT thread Exhaust connection nominal size 1/2 in Pilot connection nominal size 1/8 in Reference weight 555 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The single pilot operates the spool between two positions, with spring return shown in the catalog pneumatic symbol. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A410-15 / 5A420-15 Effective area 48 mm²; Cv 2.82 5A430C-15 Effective area 40 mm²; Cv 2.35 The flow curve is labeled 5A410-15. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–6000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 132.5 mm B 50 mm C 34 mm P PT1/2 PA 61.5 mm PB 36 mm PC 43.5 mm PD 4 mm Q PT1/2 QA 63 mm QB 30 mm R 4.3 mm RA 72 mm RB 25.5 mm RC 27 mm S 5.5 mm SA 28 mm SB 47.5 mm SC 17.5 mm Pilot ports 1 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A430E15

    Airtac 5A series: air-piloted directional valve - 5A430E15

    Specifications 5A430E15 is an AirTAC 5A400 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, exhaust center and 1/2 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 4 400 size series 30E three-position double air pilot, exhaust center 15 Main port nominal size: 1/2 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, exhaust center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/2 in PT thread Exhaust connection nominal size 1/2 in Pilot connection nominal size 1/8 in Reference weight 735 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, the supply is blocked and both working ports connect to exhaust. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A410-15 / 5A420-15 Effective area 48 mm²; Cv 2.82 5A430C-15 Effective area 40 mm²; Cv 2.35 The flow curve is labeled 5A410-15. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–6000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 163 mm B 50 mm C 34 mm P PT1/2 PA 92 mm PB 36 mm PC 74 mm PD 4 mm Q PT1/2 QA 63 mm QB 60.5 mm R 4.3 mm RA 72 mm RB 56 mm RC 27 mm S 5.5 mm SA 28 mm SB 78 mm SC 17.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

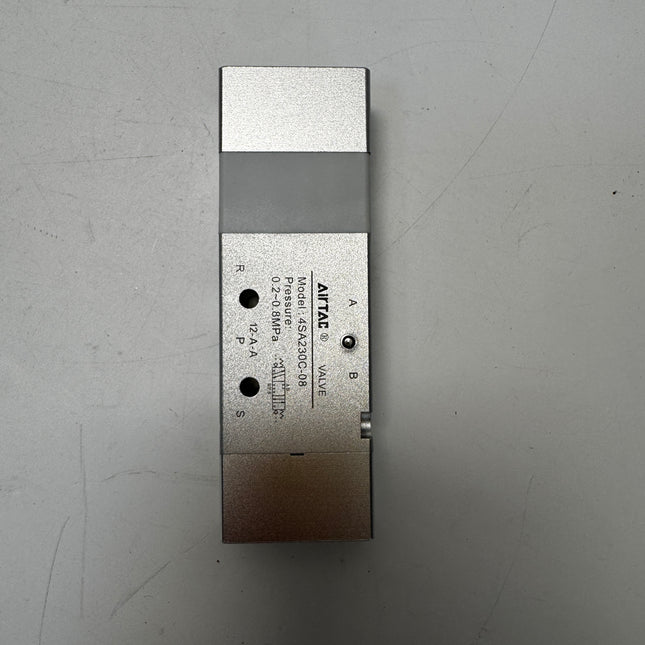

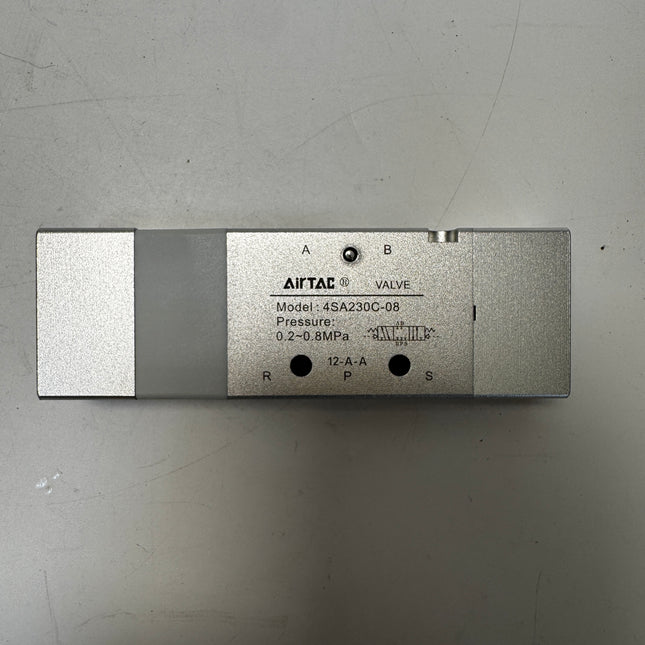

  • Airtac 5A230C-08: Air valve(5/2,5/3 way) - 5A230C08 Airtac 5A230C-08: Air valve(5/2,5/3 way) - 5A230C08 - 2

    Airtac 5A series: air-piloted directional valve - 5A230C08

    Specifications 5A230C08 is an AirTAC 5A200 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, closed center and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 30C three-position double air pilot, closed center 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, closed center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, all main ports are closed. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 109 mm B 35 mm C 22 mm P PT1/4 PA 64 mm PB 21 mm PC 53.5 mm PD 3 mm Q PT1/8 QA 36 mm QB 46 mm R 3.3 mm RA 38 mm RB 45 mm RC 17 mm S 4.3 mm SA 20 mm SB 54 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A430P15

    Airtac 5A series: air-piloted directional valve - 5A430P15

    Specifications 5A430P15 is an AirTAC 5A400 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, pressure center and 1/2 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 4 400 size series 30P three-position double air pilot, pressure center 15 Main port nominal size: 1/2 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, pressure center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/2 in PT thread Exhaust connection nominal size 1/2 in Pilot connection nominal size 1/8 in Reference weight 735 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, supply connects to both working ports and exhaust is blocked. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A410-15 / 5A420-15 Effective area 48 mm²; Cv 2.82 5A430C-15 Effective area 40 mm²; Cv 2.35 The flow curve is labeled 5A410-15. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–6000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 163 mm B 50 mm C 34 mm P PT1/2 PA 92 mm PB 36 mm PC 74 mm PD 4 mm Q PT1/2 QA 63 mm QB 60.5 mm R 4.3 mm RA 72 mm RB 56 mm RC 27 mm S 5.5 mm SA 28 mm SB 78 mm SC 17.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A430C15

    Airtac 5A series: air-piloted directional valve - 5A430C15

    Specifications 5A430C15 is an AirTAC 5A400 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, closed center and 1/2 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 4 400 size series 30C three-position double air pilot, closed center 15 Main port nominal size: 1/2 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, closed center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/2 in PT thread Exhaust connection nominal size 1/2 in Pilot connection nominal size 1/8 in Reference weight 735 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, all main ports are closed. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A410-15 / 5A420-15 Effective area 48 mm²; Cv 2.82 5A430C-15 Effective area 40 mm²; Cv 2.35 The flow curve is labeled 5A410-15. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–6000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 163 mm B 50 mm C 34 mm P PT1/2 PA 92 mm PB 36 mm PC 74 mm PD 4 mm Q PT1/2 QA 63 mm QB 60.5 mm R 4.3 mm RA 72 mm RB 56 mm RC 27 mm S 5.5 mm SA 28 mm SB 78 mm SC 17.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A42015

    Airtac 5A series: air-piloted directional valve - 5A42015

    Specifications 5A42015 is an AirTAC 5A400 series, 5-port, 2-position air-operated directional valve with two-position double air pilot and 1/2 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 4 400 size series 20 two-position double air pilot 15 Main port nominal size: 1/2 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position double air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/2 in PT thread Exhaust connection nominal size 1/2 in Pilot connection nominal size 1/8 in Reference weight 685 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The two pilot signals select the two spool positions. The catalog describes the double-air-control arrangement as having a memory function. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A410-15 / 5A420-15 Effective area 48 mm²; Cv 2.82 5A430C-15 Effective area 40 mm²; Cv 2.35 The flow curve is labeled 5A410-15. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–6000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 142 mm B 50 mm C 34 mm P PT1/2 PA 71 mm PB 36 mm PC 53 mm PD 4 mm Q PT1/2 QA 63 mm QB 39.5 mm R 4.3 mm RA 72 mm RB 35 mm RC 27 mm S 5.5 mm SA 28 mm SB 57 mm SC 17.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A330P10

    Airtac 5A series: air-piloted directional valve - 5A330P10

    Specifications 5A330P10 is an AirTAC 5A300 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, pressure center and 3/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 30P three-position double air pilot, pressure center 10 Main port nominal size: 3/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, pressure center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 3/8 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 505 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, supply connects to both working ports and exhaust is blocked. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 130 mm B 40 mm C 27 mm P PT3/8 PA 74.5 mm PB 24 mm PC 62.5 mm PD 4 mm Q PT1/4 QA 45 mm QB 52 mm R 4.3 mm RA 50 mm RB 49.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 62.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A330E10

    Airtac 5A series: air-piloted directional valve - 5A330E10

    Specifications 5A330E10 is an AirTAC 5A300 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, exhaust center and 3/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 30E three-position double air pilot, exhaust center 10 Main port nominal size: 3/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, exhaust center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 3/8 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 505 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, the supply is blocked and both working ports connect to exhaust. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 130 mm B 40 mm C 27 mm P PT3/8 PA 74.5 mm PB 24 mm PC 62.5 mm PD 4 mm Q PT1/4 QA 45 mm QB 52 mm R 4.3 mm RA 50 mm RB 49.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 62.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A330C10

    Airtac 5A series: air-piloted directional valve - 5A330C10

    Specifications 5A330C10 is an AirTAC 5A300 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, closed center and 3/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 30C three-position double air pilot, closed center 10 Main port nominal size: 3/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, closed center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 3/8 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 505 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, all main ports are closed. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 130 mm B 40 mm C 27 mm P PT3/8 PA 74.5 mm PB 24 mm PC 62.5 mm PD 4 mm Q PT1/4 QA 45 mm QB 52 mm R 4.3 mm RA 50 mm RB 49.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 62.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A32010

    Airtac 5A series: air-piloted directional valve - 5A32010

    Specifications 5A32010 is an AirTAC 5A300 series, 5-port, 2-position air-operated directional valve with two-position double air pilot and 3/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 20 two-position double air pilot 10 Main port nominal size: 3/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position double air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 5 cycles/s, no-load condition Supply and outlet ports 3/8 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The two pilot signals select the two spool positions. The catalog describes the double-air-control arrangement as having a memory function. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 111 mm B 40 mm C 27 mm P PT3/8 PA 55.5 mm PB 24 mm PC 43.5 mm PD 4 mm Q PT1/4 QA 45 mm QB 33 mm R 4.3 mm RA 50 mm RB 30.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 43.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A31010

    Airtac 5A series: air-piloted directional valve - 5A31010

    Specifications 5A31010 is an AirTAC 5A300 series, 5-port, 2-position air-operated directional valve with two-position single air pilot and 3/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 10 two-position single air pilot 10 Main port nominal size: 3/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position single air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 5 cycles/s, no-load condition Supply and outlet ports 3/8 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 275 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The single pilot operates the spool between two positions, with spring return shown in the catalog pneumatic symbol. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 102 mm B 40 mm C 27 mm P PT3/8 PA 46.5 mm PB 24 mm PC 34.5 mm PD 4 mm Q PT1/4 QA 45 mm QB 24 mm R 4.3 mm RA 50 mm RB 21.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 34.5 mm SC 13.5 mm Pilot ports 1 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A330P08

    Airtac 5A series: air-piloted directional valve - 5A330P08

    Specifications 5A330P08 is an AirTAC 5A300 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, pressure center and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 30P three-position double air pilot, pressure center 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, pressure center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 505 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, supply connects to both working ports and exhaust is blocked. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 130 mm B 40 mm C 27 mm P PT1/4 PA 74.5 mm PB 22 mm PC 63.5 mm PD 0 mm Q PT1/4 QA 45 mm QB 52 mm R 4.3 mm RA 50 mm RB 49.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 62.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A330E08

    Airtac 5A series: air-piloted directional valve - 5A330E08

    Specifications 5A330E08 is an AirTAC 5A300 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, exhaust center and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 30E three-position double air pilot, exhaust center 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, exhaust center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 505 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, the supply is blocked and both working ports connect to exhaust. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 130 mm B 40 mm C 27 mm P PT1/4 PA 74.5 mm PB 22 mm PC 63.5 mm PD 0 mm Q PT1/4 QA 45 mm QB 52 mm R 4.3 mm RA 50 mm RB 49.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 62.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A330C08

    Airtac 5A series: air-piloted directional valve - 5A330C08

    Specifications 5A330C08 is an AirTAC 5A300 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, closed center and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 30C three-position double air pilot, closed center 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, closed center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 505 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, all main ports are closed. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 130 mm B 40 mm C 27 mm P PT1/4 PA 74.5 mm PB 22 mm PC 63.5 mm PD 0 mm Q PT1/4 QA 45 mm QB 52 mm R 4.3 mm RA 50 mm RB 49.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 62.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A32008

    Airtac 5A series: air-piloted directional valve - 5A32008

    Specifications 5A32008 is an AirTAC 5A300 series, 5-port, 2-position air-operated directional valve with two-position double air pilot and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 20 two-position double air pilot 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position double air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 5 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The two pilot signals select the two spool positions. The catalog describes the double-air-control arrangement as having a memory function. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 111 mm B 40 mm C 27 mm P PT1/4 PA 55.5 mm PB 22 mm PC 44.5 mm PD 0 mm Q PT1/4 QA 45 mm QB 33 mm R 4.3 mm RA 50 mm RB 30.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 43.5 mm SC 13.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A31008

    Airtac 5A series: air-piloted directional valve - 5A31008

    Specifications 5A31008 is an AirTAC 5A300 series, 5-port, 2-position air-operated directional valve with two-position single air pilot and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 3 300 size series 10 two-position single air pilot 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position single air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 5 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/4 in Pilot connection nominal size 1/8 in Reference weight 275 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The single pilot operates the spool between two positions, with spring return shown in the catalog pneumatic symbol. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A310-10 / 5A320-10 Effective area 31.5 mm²; Cv 1.85 5A330C-10 Effective area 23 mm²; Cv 1.35 The flow curve is labeled 5A310-10. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–3200 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 102 mm B 40 mm C 27 mm P PT1/4 PA 46.5 mm PB 22 mm PC 35.5 mm PD 0 mm Q PT1/4 QA 45 mm QB 24 mm R 4.3 mm RA 50 mm RB 21.5 mm RC 20 mm S 4.3 mm SA 24 mm SB 34.5 mm SC 13.5 mm Pilot ports 1 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A230P08

    Airtac 5A series: air-piloted directional valve - 5A230P08

    Specifications 5A230P08 is an AirTAC 5A200 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, pressure center and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 30P three-position double air pilot, pressure center 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, pressure center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, supply connects to both working ports and exhaust is blocked. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 109 mm B 35 mm C 22 mm P PT1/4 PA 64 mm PB 21 mm PC 53.5 mm PD 3 mm Q PT1/8 QA 36 mm QB 46 mm R 3.3 mm RA 38 mm RB 45 mm RC 17 mm S 4.3 mm SA 20 mm SB 54 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A230E08

    Airtac 5A series: air-piloted directional valve - 5A230E08

    Specifications 5A230E08 is an AirTAC 5A200 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, exhaust center and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 30E three-position double air pilot, exhaust center 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, exhaust center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, the supply is blocked and both working ports connect to exhaust. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 109 mm B 35 mm C 22 mm P PT1/4 PA 64 mm PB 21 mm PC 53.5 mm PD 3 mm Q PT1/8 QA 36 mm QB 46 mm R 3.3 mm RA 38 mm RB 45 mm RC 17 mm S 4.3 mm SA 20 mm SB 54 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A22008

    Airtac 5A series: air-piloted directional valve - 5A22008

    Specifications 5A22008 is an AirTAC 5A200 series, 5-port, 2-position air-operated directional valve with two-position double air pilot and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 20 two-position double air pilot 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position double air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 5 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 285 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The two pilot signals select the two spool positions. The catalog describes the double-air-control arrangement as having a memory function. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 90 mm B 35 mm C 22 mm P PT1/4 PA 45 mm PB 21 mm PC 34.5 mm PD 3 mm Q PT1/8 QA 36 mm QB 27 mm R 3.3 mm RA 38 mm RB 26 mm RC 17 mm S 4.3 mm SA 20 mm SB 35 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A21008

    Airtac 5A series: air-piloted directional valve - 5A21008

    Specifications 5A21008 is an AirTAC 5A200 series, 5-port, 2-position air-operated directional valve with two-position single air pilot and 1/4 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 10 two-position single air pilot 08 Main port nominal size: 1/4 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position single air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 5 cycles/s, no-load condition Supply and outlet ports 1/4 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 185 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The single pilot operates the spool between two positions, with spring return shown in the catalog pneumatic symbol. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 81 mm B 35 mm C 22 mm P PT1/4 PA 36 mm PB 21 mm PC 25.5 mm PD 3 mm Q PT1/8 QA 36 mm QB 18 mm R 3.3 mm RA 38 mm RB 17 mm RC 17 mm S 4.3 mm SA 20 mm SB 26 mm SC 10.5 mm Pilot ports 1 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A230P06

    Airtac 5A series: air-piloted directional valve - 5A230P06

    Specifications 5A230P06 is an AirTAC 5A200 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, pressure center and 1/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 30P three-position double air pilot, pressure center 06 Main port nominal size: 1/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, pressure center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/8 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, supply connects to both working ports and exhaust is blocked. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 109 mm B 35 mm C 22 mm P PT1/8 PA 64 mm PB 18 mm PC 55 mm PD 0 mm Q PT1/8 QA 36 mm QB 46 mm R 3.3 mm RA 38 mm RB 45 mm RC 17 mm S 4.3 mm SA 20 mm SB 54 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A230E06

    Airtac 5A series: air-piloted directional valve - 5A230E06

    Specifications 5A230E06 is an AirTAC 5A200 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, exhaust center and 1/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 30E three-position double air pilot, exhaust center 06 Main port nominal size: 1/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, exhaust center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/8 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, the supply is blocked and both working ports connect to exhaust. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 109 mm B 35 mm C 22 mm P PT1/8 PA 64 mm PB 18 mm PC 55 mm PD 0 mm Q PT1/8 QA 36 mm QB 46 mm R 3.3 mm RA 38 mm RB 45 mm RC 17 mm S 4.3 mm SA 20 mm SB 54 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A230C06

    Airtac 5A series: air-piloted directional valve - 5A230C06

    Specifications 5A230C06 is an AirTAC 5A200 series, 5-port, 3-position air-operated directional valve with three-position double air pilot, closed center and 1/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 30C three-position double air pilot, closed center 06 Main port nominal size: 1/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 3 positions Actuation three-position double air pilot, closed center Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 3 cycles/s, no-load condition Supply and outlet ports 1/8 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 365 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes At center, all main ports are closed. The two pilot signals select the working positions; use the exact pneumatic symbol when designing the circuit. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 109 mm B 35 mm C 22 mm P PT1/8 PA 64 mm PB 18 mm PC 55 mm PD 0 mm Q PT1/8 QA 36 mm QB 46 mm R 3.3 mm RA 38 mm RB 45 mm RC 17 mm S 4.3 mm SA 20 mm SB 54 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.

  • 5A22006

    Airtac 5A series: air-piloted directional valve - 5A22006

    Specifications 5A22006 is an AirTAC 5A200 series, 5-port, 2-position air-operated directional valve with two-position double air pilot and 1/8 in PT thread main connections. It uses external pneumatic pilot control. Model Code Explained Code Meaning for this model 5A 5-port directional air valve family 2 200 size series 20 two-position double air pilot 06 Main port nominal size: 1/8 in (blank thread code) PT thread Product Catalog Download AirTAC Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Technical Data Parameter Details Valve function 5 ports / 2 positions Actuation two-position double air pilot Working medium Air filtered through a 40 µm filter element Operating pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70 °C Body material Aluminum alloy Lubrication Not required Maximum actuation frequency 5 cycles/s, no-load condition Supply and outlet ports 1/8 in PT thread Exhaust connection nominal size 1/8 in Pilot connection nominal size 1/8 in Reference weight 285 g Weight source: 2022 printed page 111, exact size and actuation weight table. This is a catalog reference weight, not a measured packed shipping weight. Operation and Catalog Notes The two pilot signals select the two spool positions. The catalog describes the double-air-control arrangement as having a memory function. Sliding-spool construction is designed for sealing and sensitive response. The internal bore uses special processing to reduce friction and starting pressure and support service life. Oil lubrication is not required. If lubricated air is introduced, lubrication must be continued; the catalog recommends ISO VG32 oil or equivalent. Maximum actuation frequency is specified under no-load conditions. Effective area and Cv values are calculated from flow-test data. The series supports manifold integration to save mounting space; select the matching size and catalog mounting arrangement. Flow Characteristics Catalog model reference Published effective area / Cv 5A210-08 / 5A220-08 Effective area 17 mm²; Cv 1 5A230C-08 Effective area 13.6 mm²; Cv 0.8 The flow curve is labeled 5A210-08. Its axes show operating pressure from 0 to 0.7 MPa and flow in L/min; values are AirTAC laboratory test data. The printed chart range is 0–2000 L/min, which is an axis range rather than a guaranteed operating flow. The figures above retain the exact model labels printed in the table; no unprinted flow rating is assigned to another port size or center function. Dimensions and Mounting Dimensions follow the applicable drawing in the 2022 catalog, printed page 113. Numerical linear dimensions are in millimeters. Lettered references retain the catalog labels; unlabeled callouts are identified by the view and feature. Threaded connections are shown separately. The drawing uses the standard PT version; the selected thread option is stated in the model code table. Parameter Details A 90 mm B 35 mm C 22 mm P PT1/8 PA 45 mm PB 18 mm PC 36 mm PD 0 mm Q PT1/8 QA 36 mm QB 27 mm R 3.3 mm RA 38 mm RB 26 mm RC 17 mm S 4.3 mm SA 20 mm SB 35 mm SC 10.5 mm Pilot ports 2 x PT1/8 Main port count 3 x P and 2 x Q Mounting hole count 2 x diameter R and 2 x diameter S, as drawn For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessories and Ordering Options The 5A family notes allow manifold integration, but the reviewed pages do not give an exact separately orderable manifold or blank-plate code. Confirm the mounting accessory against the 5A drawing before ordering; no accessory quantity is specified as supplied. The reviewed 5A ordering table specifies M5 without a thread suffix, and blank = PT for inch ports. Actuation options are 10 single pilot, 20 double pilot, and 30C / 30E / 30P for closed / exhaust / pressure center. These are separate model choices, not adjustable modes of one ordered valve.
