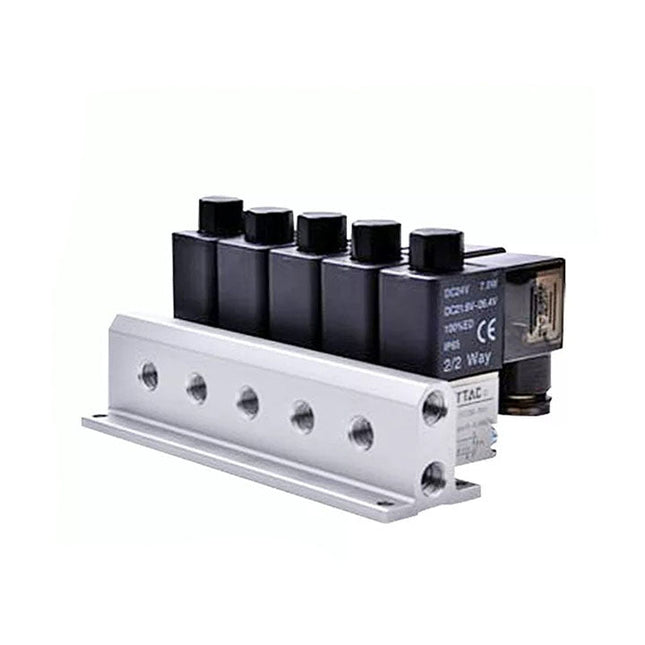

3V2M Series Solenoid Valve

  • Product Features
  • Specifications
  • Electrical Specifications
  • Product Ordering Code

Product Features

  • Vibration-proof structure, coaxial inner chamber, optional sliding spool or lifting guide rail type.
  • Coaxial coil solenoid, excellent sealing, large flow, no need for oil lubrication.
  • Equipped with a manual override device, simplifying installation and debugging.
  • Designed for use with a manifold base, allowing for centralized use and space saving.
  • Features uniform air supply and wiring, making troubleshooting easier.
  • Offers flexible combination and strong expandability, allowing for arbitrary expansion of connected valves.
  • Dedicated base comes with a gasket and pin seal, and does not support switching between Normally Closed (NC) and Normally Open (NO).

Specifications

Item Value
Model 3V2M
Working Medium Air (Filtered through 40μm filter screen or above)
Action Type Direct Acting
Max Pressure Differential PT1/8
Number of Positions Two-way Two-position
Effective Cross Section Area 1.7mm2(Cv=0.1)
Exhaust Method Centralized Exhaust Type, Independent Exhaust Type
Operating Pressure Range 0～0.8MPa (0~114psi)
Guaranteed Pressure Resistance 1.2MPa(175psi)
Operating Temperature -20～70°C
Body Material Aluminum Alloy
[Note 1] Available pipe thread types are G thread and NPT thread.

Electrical Specifications

Item Specific Parameters
Standard Voltage AC220V, AC110V, AC24V, DC24V, DC12V
Operating Voltage Range AC: ±15%, DC: ±10%
Power Consumption AC: 7VA, DC: 7.0W
Protection Class IP65 (DIN40050)
Vibration Resistance Level Level 8
Connection Type DIN Socket Type, Lead Wire Type
Energizing Time Below 0.05 seconds
Max Operating Frequency 10Hz
[Note 1] The maximum operating frequency is under no-load condition.

Product Ordering Code

A. Single Valve Ordering Code (3V2M NC A -)

No. 1 2 3 4
Spec Code Specification Code Initial State Standard Voltage Electrical Connection
Options 3V2M: 3-way 2-position Valve with Base Type NC: Normally Closed
NO: Normally Open		 A: AC220V
B: DC24V
C:AC110V
E:AC24V
F: DC12V		 Blank: DIN Socket
I: Lead Wire Type

B. Base Ordering Code (3V2M 5F D -)

No. 1 2 3 4
Spec Code Specification Code No. of Stations Code Exhaust Type Thread Type Code
Options 3V2M: 3-way 2-position Valve with Base Type 1F to 20F: 1 to 20 Stations Blank: Centralized Exhaust
D: Independent Exhaust		 Blank: PT Thread
G: G Thread
T: NPT Thread

C. Assembly Ordering Code (Valve + Base: 3V2M NC A D 5F D)

No. 1 2 3 4 5 6 7
Spec Code Specification Code Initial State Standard Voltage Connection Stations Exhaust Type Thread Type
Options 3V2M NC/NO A/B/.../F Blank/I [Note] 1F...20F Blank/D Blank/G/T

D. Panel Mounting Ordering Code (P-3V2M-R2)

No. 1 2 3
Spec Code Component Code Specification Code Accessory Info
Options P: Assembly 3V2M: 3-way 2-position Valve with Base Type R2: Base plate blanking cover
General Notes:
• For lead-wire type valves, the standard wire length is 0.5m.
• The base assembly includes the base, sealant, and screws. The port diameter is only 1/8".

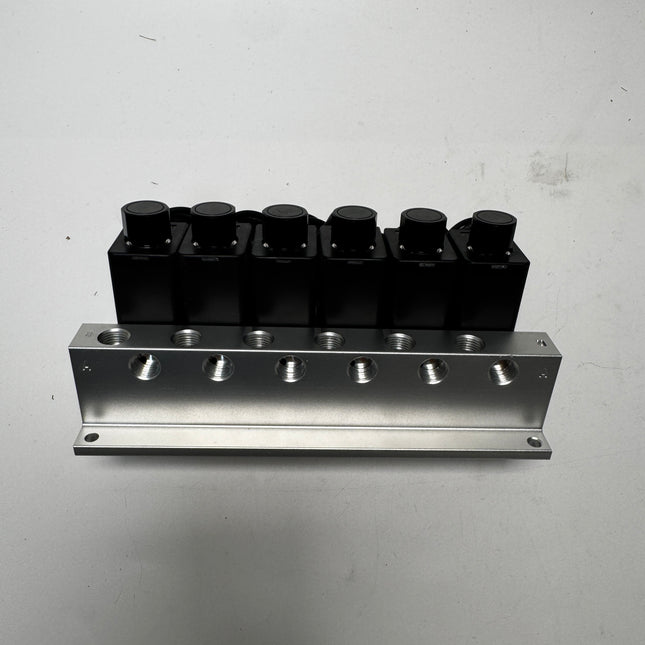

  • Airtac 3V2M-NC: Solenoid valve(3/2 way) - 3V2MNCBI-6FDT Airtac 3V2M-NC: Solenoid valve(3/2 way) - 3V2MNCBI-6FDT - 2

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNCBI-6FDT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally closed; DC24V; lead wire (0.5 m). 6-station valve/manifold assembly; individual exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNCBI-6FDT: 3V2M=base-mounted three-port, two-position valve; NC=normally closed; B=DC24V; I=lead wire, 0.5 m. 6F=6 stations; D=individual exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally closed Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 900 g (0.9 kg); 6 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC24V; voltage tolerance ±10%; 7.0 W per coil; lead wire (0.5 m). IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P blocked, A→R; energized: P→A, R blocked. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 33, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=6 stations: L1=24n+19=163; L2=24n+9=153. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 60, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Independent exhaust: side callouts 19, 16, 1; front port height 29.5, pitch 24, end offset 19; top port row offset 19, pitch 24, end offset 13. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 6 × 3V2MNCBI valve bodies and 1 × 3V2M6FDT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $345.24

    View options

  • Airtac 3V2M series: base-mounted solenoid valve - 3V2MNCA Airtac 3V2M series: base-mounted solenoid valve - 3V2MNCA - 2

    View options

    Airtac 3V2M series: base-mounted solenoid valve - 3V2MNCA

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally closed; AC220V; DIN connector. Valve body only; requires a matching base. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNCA: 3V2M=base-mounted three-port, two-position valve; NC=normally closed; A=AC220V; blank electrical code=DIN connector. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally closed Air / ports 40 μm filtered air; Requires separate 1/8-inch base; thread/exhaust type follows that base. Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 150 g (0.15 kg); catalog reference. Actual weight governs. Electrical Specifications AC220V; voltage tolerance ±15%; 7 VA per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P blocked, A→R; energized: P→A, R blocked. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories This code supplies one valve body. Order a matching 3V2M base separately; base kits include base, gaskets and screws. The valve-body code does not select base thread or exhaust type. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $43.98

    View options

  • 3V2MNOE-14FG

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOE-14FG

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; AC24V; DIN connector. 14-station valve/manifold assembly; common exhaust; G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Linked catalog: NPT option. This model: G1/8. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOE-14FG: 3V2M=base-mounted three-port, two-position valve; NO=normally open; E=AC24V; blank electrical code=DIN connector. 14F=14 stations; blank exhaust code=common exhaust; G=G1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; G1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 2100 g (2.1 kg); 14 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications AC24V; voltage tolerance ±15%; 7 VA per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=14 stations: L1=24n+19=355; L2=24n+9=345. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 14 × 3V2MNOE valve bodies and 1 × 3V2M14FG base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $805.56

    View options

  • 3V2MNOF-20FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-20FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 20-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-20FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 20F=20 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 3000 g (3 kg); 20 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=20 stations: L1=24n+19=499; L2=24n+9=489. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 20 × 3V2MNOF valve bodies and 1 × 3V2M20FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $1,150.80

    View options

  • 3V2MNOF-19FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-19FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 19-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-19FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 19F=19 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 2850 g (2.85 kg); 19 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=19 stations: L1=24n+19=475; L2=24n+9=465. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 19 × 3V2MNOF valve bodies and 1 × 3V2M19FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $1,093.26

    View options

  • 3V2MNOF-18FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-18FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 18-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-18FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 18F=18 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 2700 g (2.7 kg); 18 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=18 stations: L1=24n+19=451; L2=24n+9=441. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 18 × 3V2MNOF valve bodies and 1 × 3V2M18FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $1,035.72

    View options

  • 3V2MNOF-17FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-17FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 17-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-17FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 17F=17 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 2550 g (2.55 kg); 17 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=17 stations: L1=24n+19=427; L2=24n+9=417. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 17 × 3V2MNOF valve bodies and 1 × 3V2M17FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $978.18

    View options

  • 3V2MNOF-16FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-16FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 16-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-16FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 16F=16 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 2400 g (2.4 kg); 16 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=16 stations: L1=24n+19=403; L2=24n+9=393. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 16 × 3V2MNOF valve bodies and 1 × 3V2M16FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $920.64

    View options

  • 3V2MNOF-15FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-15FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 15-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-15FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 15F=15 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 2250 g (2.25 kg); 15 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=15 stations: L1=24n+19=379; L2=24n+9=369. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 15 × 3V2MNOF valve bodies and 1 × 3V2M15FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $863.10

    View options

  • 3V2MNOF-14FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-14FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 14-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-14FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 14F=14 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 2100 g (2.1 kg); 14 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=14 stations: L1=24n+19=355; L2=24n+9=345. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 14 × 3V2MNOF valve bodies and 1 × 3V2M14FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $805.56

    View options

  • 3V2MNOF-13FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-13FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 13-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-13FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 13F=13 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 1950 g (1.95 kg); 13 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=13 stations: L1=24n+19=331; L2=24n+9=321. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 13 × 3V2MNOF valve bodies and 1 × 3V2M13FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $748.02

    View options

  • 3V2MNOF-12FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-12FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 12-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-12FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 12F=12 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 1800 g (1.8 kg); 12 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=12 stations: L1=24n+19=307; L2=24n+9=297. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 12 × 3V2MNOF valve bodies and 1 × 3V2M12FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $690.48

    View options

  • 3V2MNOF-11FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-11FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 11-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-11FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 11F=11 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 1650 g (1.65 kg); 11 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=11 stations: L1=24n+19=283; L2=24n+9=273. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 11 × 3V2MNOF valve bodies and 1 × 3V2M11FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $632.94

    View options

  • 3V2MNOF-10FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-10FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 10-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-10FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 10F=10 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 1500 g (1.5 kg); 10 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=10 stations: L1=24n+19=259; L2=24n+9=249. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 10 × 3V2MNOF valve bodies and 1 × 3V2M10FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $575.40

    View options

  • 3V2MNOF-9FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-9FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 9-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-9FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 9F=9 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 1350 g (1.35 kg); 9 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=9 stations: L1=24n+19=235; L2=24n+9=225. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 9 × 3V2MNOF valve bodies and 1 × 3V2M9FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $517.86

    View options

  • 3V2MNOF-8FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-8FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 8-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-8FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 8F=8 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 1200 g (1.2 kg); 8 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=8 stations: L1=24n+19=211; L2=24n+9=201. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 8 × 3V2MNOF valve bodies and 1 × 3V2M8FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $460.32

    View options

  • 3V2MNOF-7FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-7FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 7-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-7FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 7F=7 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 1050 g (1.05 kg); 7 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=7 stations: L1=24n+19=187; L2=24n+9=177. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 7 × 3V2MNOF valve bodies and 1 × 3V2M7FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $402.78

    View options

  • 3V2MNOF-6FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-6FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 6-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-6FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 6F=6 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 900 g (0.9 kg); 6 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=6 stations: L1=24n+19=163; L2=24n+9=153. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 6 × 3V2MNOF valve bodies and 1 × 3V2M6FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $345.24

    View options

  • 3V2MNOF-5FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-5FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 5-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-5FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 5F=5 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 750 g (0.75 kg); 5 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=5 stations: L1=24n+19=139; L2=24n+9=129. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 5 × 3V2MNOF valve bodies and 1 × 3V2M5FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $287.70

    View options

  • 3V2MNOF-4FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-4FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 4-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-4FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 4F=4 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 600 g (0.6 kg); 4 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=4 stations: L1=24n+19=115; L2=24n+9=105. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 4 × 3V2MNOF valve bodies and 1 × 3V2M4FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $230.16

    View options

  • 3V2MNOF-3FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-3FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 3-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-3FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 3F=3 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 450 g (0.45 kg); 3 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=3 stations: L1=24n+19=91; L2=24n+9=81. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 3 × 3V2MNOF valve bodies and 1 × 3V2M3FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $172.62

    View options

  • 3V2MNOF-2FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-2FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 2-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-2FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 2F=2 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 300 g (0.3 kg); 2 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=2 stations: L1=24n+19=67; L2=24n+9=57. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 2 × 3V2MNOF valve bodies and 1 × 3V2M2FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $115.08

    View options

  • 3V2MNOF-1FT

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-1FT

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 1-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-1FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 1F=1 stations; blank exhaust code=common exhaust; T=NPT1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; NPT1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 150 g (0.15 kg); 1 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=1 stations: L1=24n+19=43; L2=24n+9=33. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 1 × 3V2MNOF valve bodies and 1 × 3V2M1FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $57.54

    View options

  • 3V2MNOF-20FG

    View options

    Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-20FG

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 20-station valve/manifold assembly; common exhaust; G1/8. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Linked catalog: NPT option. This model: G1/8. Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves. Model Code Explained 3V2MNOF-20FG: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 20F=20 stations; blank exhaust code=common exhaust; G=G1/8. Technical Specifications Parameter This model Valve 3/2-way, direct acting; normally open Air / ports 40 μm filtered air; G1/8 Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Flow area 1.7 mm²; Cv=0.1 Reference weight 3000 g (3 kg); 20 × 150 g, valves only; base/accessories excluded. Actual weight governs. Electrical Specifications DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load. Features and Operation Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols. External and Mounting Dimensions mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=20 stations: L1=24n+19=499; L2=24n+9=489. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessories Includes 20 × 3V2MNOF valve bodies and 1 × 3V2M20FG base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated. Flow Characteristics 3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection. Internal Components Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities. Series Ordering Options Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

    Read more

    $1,150.80

    View options
