Specifications: 6SV230P08CT is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6SV series. This configuration uses NPT1/4 threaded working ports and a 110 V AC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is NPT.
Product Catalog
Download New 6SV Catalog (PDF)
Old 6V Catalog (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Ordering and Delivery
We supply 6SV230P08CT (new 6SV), replacing legacy 6V230P08C050T. Data below: new 6SV. Compare PDF dimensions, mounting and electrical data.
6V vs 6SV: Dimensions and Replacement Guide
Model Code Explained
The following entries decode the actual order code 6SV230P08CT. Optional configurations for the series are listed separately at the end of this description.
Code
Meaning for this model
6SV
6SV series five-port pneumatic solenoid valve.
2
200 body-size series.
30P
5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered.
08
Working-port size: NPT1/4.
C
Rated coil supply: 110 V AC.
(blank connection code)
Electrical connection: plug-in terminal.
(blank cable-length code)
0.5 m terminal cable.
T
NPT pipe-thread selection.
Technical Specifications (6SV)
These specifications come from the new 6SV catalog and apply within the configuration limits stated for this model.
Parameter
Details
Series and body size
6SV / 200
Valve function
5/3-way, double-solenoid, pressure center
Actuation
Internally piloted pneumatic solenoid valve.
Working medium
Air filtered to 40 μm.
Working pressure
0.2–0.8 MPa
Proof pressure
1.2 MPa
Operating temperature
−20 to 70°C
Body material
Aluminum alloy
Lubrication
Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption.
Maximum operating frequency
3 cycles/s, tested without load.
Reference mass
143 g; series catalog reference mass.
Supply port P
NPT1/4
Working ports A and B
NPT1/4 threaded working ports
Exhaust ports R and S
NPT1/8
Pilot exhaust
Collected through exhaust ports R and S.
Electrical Specifications
Parameter
Details
Catalog pilot / coil specification
CPSV15
Rated voltage
110 V AC (code C)
Electrical connection
Plug-in terminal (standard connection)
Cable length
0.5 m terminal cable
Power consumption
2.0 VA per coil
Voltage tolerance
+15% / −10% of the AC rating
Protection
IP65, as stated in the 6SV catalog.
Insulation class
Class F
Activating time
≤0.05 s
Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options.
Features and Operation
This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked.
The aluminum-alloy body is extruded and machined. The revised series design provides a larger effective flow area; the relevant flow data are listed below.
Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate.
External and Mounting Dimensions
The dimensions below follow the 6SV23008 drawing in the new 6SV PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height.
Drawing reference
Dimension / specification
A
155.5 mm
B
42 mm
BC
32.5 mm
C
18.5 mm
P
NPT1/4
PA
84.5 mm
PB
3 mm
Q
NPT1/8
QA
36 mm
QB
66.5 mm
T
NPT1/4
TA
74.5 mm
TB
20 mm
R
3.2 mm
RA
41 mm
RB
64 mm
RC
13.5 mm
RD
2 mm
S
4.3 mm
SA
20 mm
SB
74.5 mm
SC
7 mm
Drawing note
How to read it
A
Axial dimension shown in the drawing.
P
Supply-port thread. Do not confuse dimension P with the manifold length-table reference P.
Q
Two exhaust ports; each port uses the thread listed under Q.
T
Two working outlets; the listed thread or tube size applies to each.
R holes
2 × Ø3.2 mm, at the positions shown in the catalog drawing.
S holes
2 × Ø4.3 mm, at the positions shown in the catalog drawing.
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Installation and Manual Operation
Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually.
If the pilot mounting screws become loose, the catalog specifies M2.5×17 screws tightened to 0.4–0.45 N·m.
Before using the manual override, confirm that any resulting actuator movement can occur safely.
Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions.
Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m.
The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog.
Accessory Kit Contents
Parameter
Details
Matching manifold family
6SV200M
Manifold station range
1F–30F; 30 is the maximum station count in the applicable ordering range.
Manifold order examples
6SV200M1F; 6SV200M30F. Add G or T only when selecting that manifold thread standard.
Manifold thread selection
Blank suffix = PT; G = G thread; T = NPT.
Matching blanking plate
P-6SV200M-R2

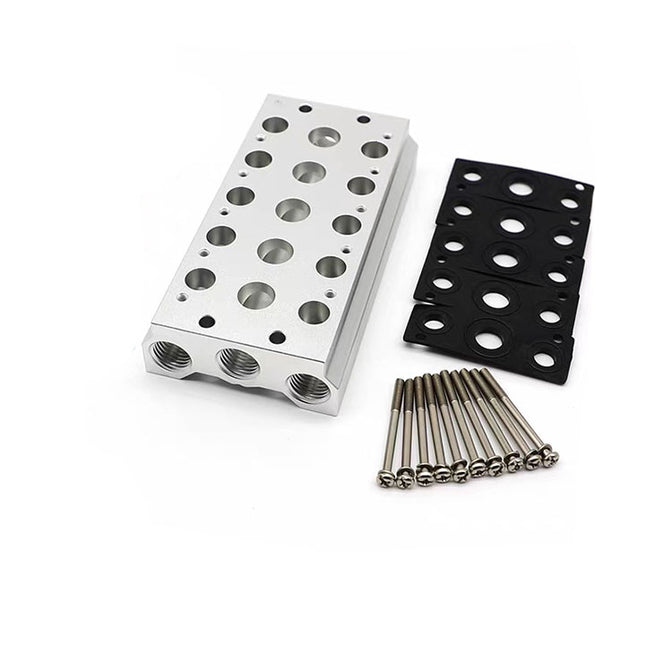

Manifold kit contents
Base, base seals and screws. The source does not specify the individual component quantities.
Blanking-plate kit contents
Blanking plate and screws. The source does not specify the individual component quantities.
Included with this valve
The manifold and blanking plate are separate accessories and are not included with this valve order.
Select accessories for the 6SV family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. The new 6SV accessory ordering information is on PDF page 6. That page lists L/P dimensions for 1F–20F only; do not extrapolate dimensions for 21F–30F.
Flow / Performance Characteristics
Current configuration:
Parameter
Details
Effective area
Not separately specified for this exact port / center configuration.
Flow coefficient Cv
Not separately specified for this exact port / center configuration.
Applicability
Do not substitute the reference values of another port size or center function for this model.
Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code.
Catalog configuration
Published reference
6SV210-08 / 6SV220-08
17.9 mm² effective area; Cv 1.05
6SV230C-08
16.2 mm² effective area; Cv 0.9
Performance graph
Reference information
Reference curve
6SV210-08
Pressure axis
0–0.7 MPa, marked in 0.1 MPa increments.
Flow axis
0–2200 L/min, marked in 200 L/min increments.
Test basis
Laboratory flow curve; effective area and Cv are derived from measured flow.
Reading the graph
Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions.
Internal Components
The 6SV catalog provides an internal-structure key for the 6SV110 / 6SV120 / 6SV130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration.
Drawing item
Component name
1
Pilot valve
2
Manual pin
3
Pilot body
4
Large piston
5
Body
6
Spool
7
Small piston
8
Shaped O-ring
9
Bottom cover
10
Screw
11
Steel ball
12
Spring
13
Return seat
14
Side cover
Series Ordering Options
These are series ordering choices, not additional features supplied with 6SV230P08CT. Use the model-code table above for the selected configuration.
Ordering category
Series options and restrictions
Body-size / port combinations
0500: M5; 100: M5, 06; 200: 06, 08; 300: 10; 400: 15
Control codes
10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3.
Voltage codes
A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC.
Threaded port codes
M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in; 15 = 1/2 in.
Pipe-thread suffixes
Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 ports.
Connection codes
Blank = plug-in terminal; I = flying lead; D = DIN connector; M = M8 connector.
0500 restrictions
The 0500 series does not list voltage E (24 V AC) or connection D (DIN).
Cable-length rules
Plug-in: blank = 0.5 m, 200 = 2 m. I and M: fixed 0.5 m lead. D: no cable-length code.
J quick-connect option
No J quick-connect equivalent is listed in this new 6SV catalog.
