AIRTAC 3V100 Series Solenoid Valve

•

  View options

  Airtac 3V100 series: pneumatic solenoid valve - 3V11006NCBIG-W

  Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; G1/8 ports; normally closed; DC24V; lead wire, 0.5 m; external pilot (-W). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF depicts internal-pilot versions; the -W external-pilot option is documented in the 2022 catalog. The linked PDF lists NPT threads; this model uses G1/8, as listed in the 2022 catalog. Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves. Model Code Explained Code / field Meaning for this model Model 3V11006NCBIG-W 3V Three-port, two-position solenoid valve 1 100 series 10 Two-position, single solenoid 06 1/8-inch nominal ports NC normally closed B DC24V I lead wire, 0.5 m G G1/8 -W external pilot (-W) Technical Specifications Parameter Specification Model / construction 3V11006NCBIG-W; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; external pilot (-W) Main connections 3 × G1/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 10.2 mm²; Cv=0.6. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 110 g (0.11 kg), catalog reference for 3V110; actual product weight governs. External pilot supply M5 × 0.8 pilot port. The supplied table does not state a separate external-pilot supply-pressure range; confirm that requirement for the installation. Do not infer zero-pressure operation. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 2.8 W per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V110, lead-wire configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 88.4; body width 27; upper horizontal span 28.5. Side fixing / manual pin 2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5. Two-port face Port spacing 16; lower offset 14.7; lateral offset 2. Opposite face Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1. Main port callouts 3 × G1/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection -W: external pilot port M5 × 0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V100M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323 KA, stations 1F to 16F 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313 Flow Characteristics Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes M5=M5, 06=1/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V200 series: pneumatic solenoid valve - 3V21008NCBIG

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; G1/4 ports; normally closed; DC24V; lead wire, 0.5 m; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses G1/4, as listed in the 2022 catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21008NCBIG 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NC normally closed B DC24V I lead wire, 0.5 m G G1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21008NCBIG; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × G1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, lead-wire configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal span 34.5. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=28.7; B=1.5; C=22.5; D=16.5, for 3V210-08. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × G1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V300 series: pneumatic solenoid valve - 3V31008NCB

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; PT1/4 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT1/4, as listed in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31008NCB 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector Blank thread code PT1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31008NCB; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × PT1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv No separate effective-area/Cv value is specified for this port size in the supplied catalogs. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, DIN configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal spans 69 and 40. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 0. Main port callouts 3 × PT1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is a different port-size group and is not assigned to the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

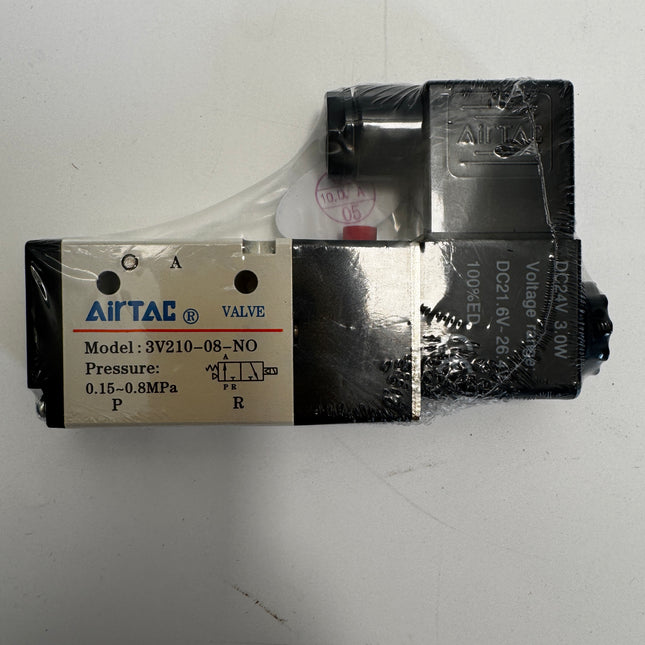

  Airtac 3V200 series: pneumatic solenoid valve - 3V21008NOB

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; PT1/4 ports; normally open; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT1/4, as listed in the 2022 catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21008NOB 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NO normally open B DC24V Blank electrical code DIN connector Blank thread code PT1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21008NOB; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally open; internal pilot Main connections 3 × PT1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NO: de-energized P connected to A and R blocked; energized P blocked and A connected to R. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, DIN configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal spans 67 and 40. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=28.7; B=1.5; C=22.5; D=16.5, for 3V210-08. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × PT1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

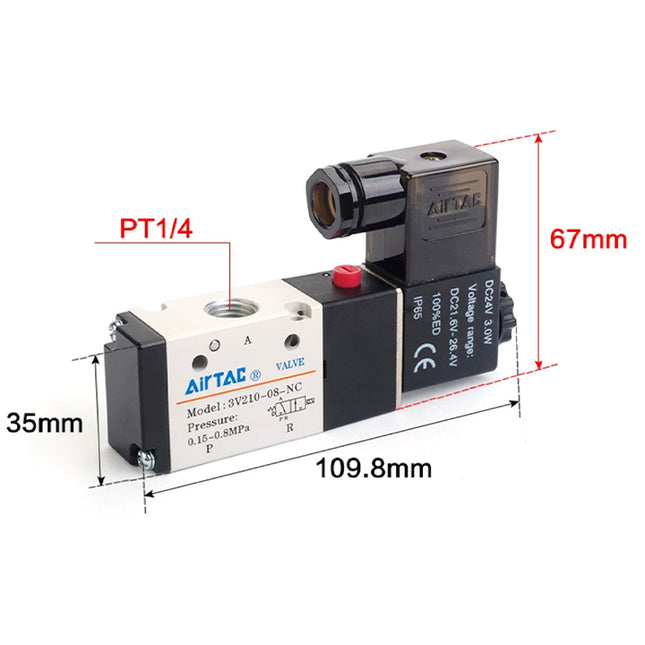

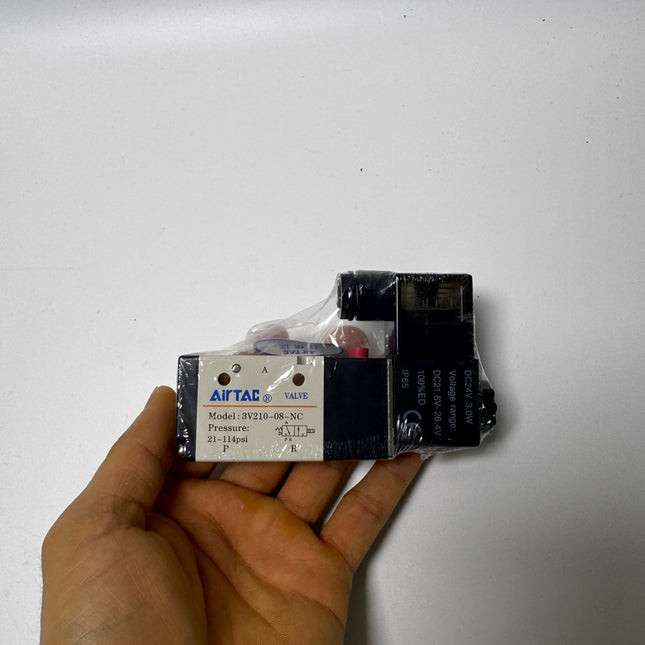

  Airtac 3V200 series: pneumatic solenoid valve - 3V21008NCB

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; PT1/4 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT1/4, as listed in the 2022 catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21008NCB 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector Blank thread code PT1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21008NCB; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × PT1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, DIN configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal spans 67 and 40. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=28.7; B=1.5; C=22.5; D=16.5, for 3V210-08. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × PT1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V100 series: pneumatic solenoid valve - 3V11006NOFI

  Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; PT1/8 ports; normally open; DC12V; lead wire, 0.5 m; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT1/8, as listed in the 2022 catalog. Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves. Model Code Explained Code / field Meaning for this model Model 3V11006NOFI 3V Three-port, two-position solenoid valve 1 100 series 10 Two-position, single solenoid 06 1/8-inch nominal ports NO normally open F DC12V I lead wire, 0.5 m Blank thread code PT1/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V11006NOFI; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally open; internal pilot Main connections 3 × PT1/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 10.2 mm²; Cv=0.6. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 110 g (0.11 kg), catalog reference for 3V110; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC12V Voltage tolerance DC ±10% Power consumption 2.5 W per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NO: de-energized P connected to A and R blocked; energized P blocked and A connected to R. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V110, lead-wire configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 88.4; body width 27; upper horizontal span 28.5. Side fixing / manual pin 2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5. Two-port face Port spacing 16; lower offset 14.7; lateral offset 2. Opposite face Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1. Main port callouts 3 × PT1/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V100M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323 KA, stations 1F to 16F 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313 Flow Characteristics Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes M5=M5, 06=1/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V100 series: pneumatic solenoid valve - 3V11006NCCIT

  Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; NPT1/8 ports; normally closed; AC110V; lead wire, 0.5 m; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves. Model Code Explained Code / field Meaning for this model Model 3V11006NCCIT 3V Three-port, two-position solenoid valve 1 100 series 10 Two-position, single solenoid 06 1/8-inch nominal ports NC normally closed C AC110V I lead wire, 0.5 m T NPT1/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V11006NCCIT; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × NPT1/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 10.2 mm²; Cv=0.6. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 110 g (0.11 kg), catalog reference for 3V110; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage AC110V Voltage tolerance AC ±15% Power consumption 3.5 VA per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V110, lead-wire configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 88.4; body width 27; upper horizontal span 28.5. Side fixing / manual pin 2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5. Two-port face Port spacing 16; lower offset 14.7; lateral offset 2. Opposite face Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1. Main port callouts 3 × NPT1/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V100M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323 KA, stations 1F to 16F 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313 Flow Characteristics Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes M5=M5, 06=1/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V200 series: pneumatic solenoid valve - 3V21008NCA

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; PT1/4 ports; normally closed; AC220V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT1/4, as listed in the 2022 catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21008NCA 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NC normally closed A AC220V Blank electrical code DIN connector Blank thread code PT1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21008NCA; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × PT1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage AC220V Voltage tolerance AC ±15% Power consumption 4.5 VA per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, DIN configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal spans 67 and 40. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=28.7; B=1.5; C=22.5; D=16.5, for 3V210-08. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × PT1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

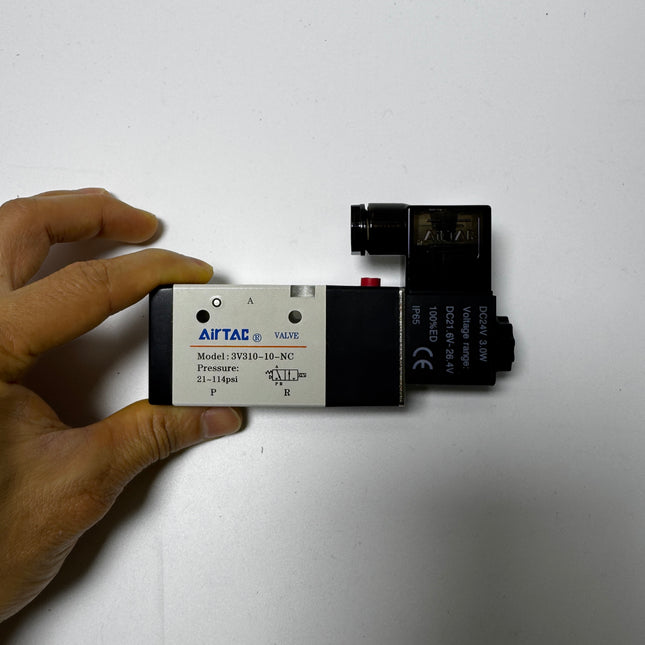

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NCB

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; PT3/8 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT3/8, as listed in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NCB 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector Blank thread code PT3/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31010NCB; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × PT3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, DIN configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal spans 69 and 40. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × PT3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

  Airtac 3V200 series: pneumatic solenoid valve - 3V21008NCBT

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; NPT1/4 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21008NCBT 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector T NPT1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21008NCBT; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × NPT1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, DIN configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal spans 67 and 40. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=28.7; B=1.5; C=22.5; D=16.5, for 3V210-08. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × NPT1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

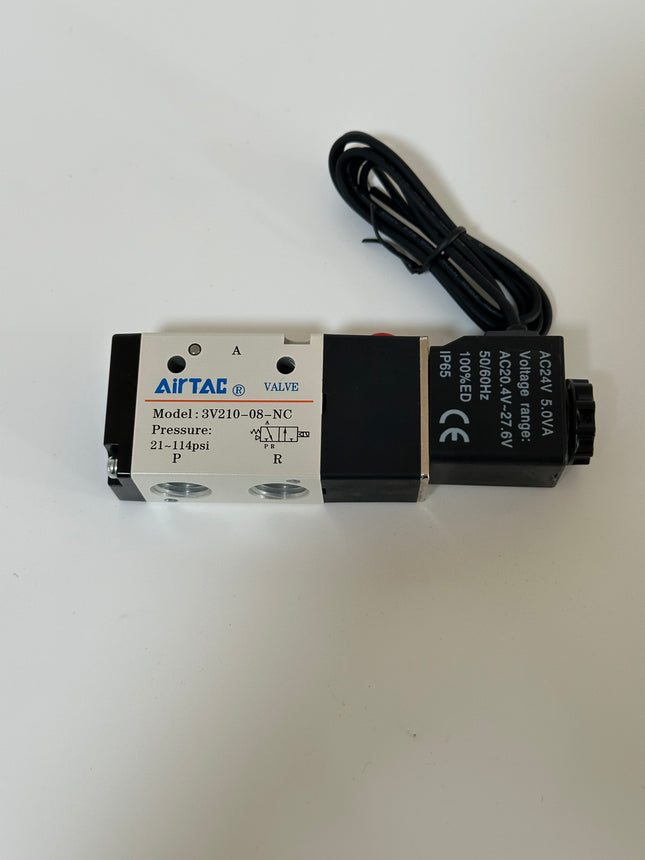

  Airtac 3V200 series: pneumatic solenoid valve - 3V21008NCEIT

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; NPT1/4 ports; normally closed; AC24V; lead wire, 0.5 m; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21008NCEIT 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NC normally closed E AC24V I lead wire, 0.5 m T NPT1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21008NCEIT; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × NPT1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage AC24V Voltage tolerance AC ±15% Power consumption 5.0 VA per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, lead-wire configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal span 34.5. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=28.7; B=1.5; C=22.5; D=16.5, for 3V210-08. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × NPT1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

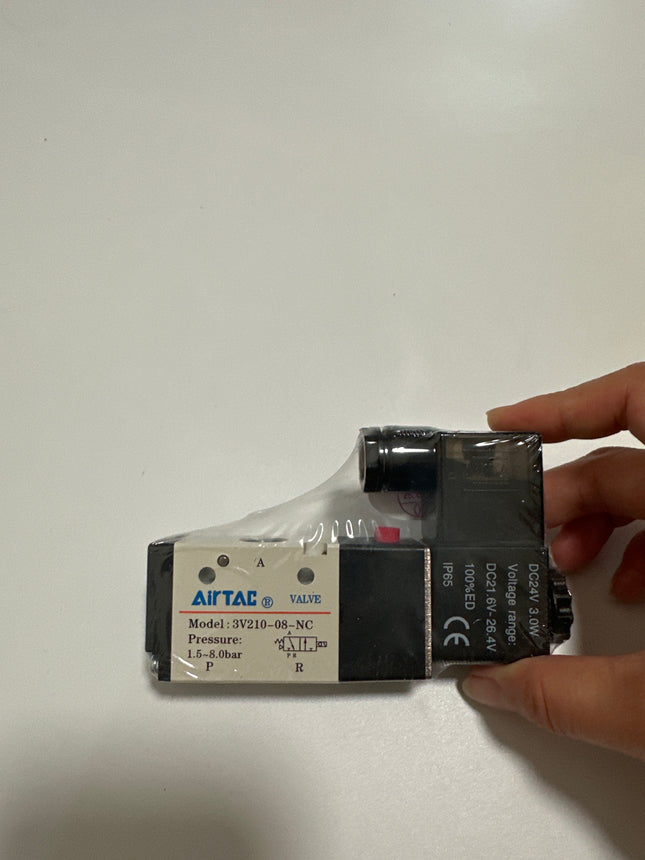

  Airtac 3V200 series: pneumatic solenoid valve - 3V21008NCBG

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; G1/4 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses G1/4, as listed in the 2022 catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21008NCBG 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 08 1/4-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector G G1/4 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21008NCBG; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × G1/4 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, DIN configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal spans 67 and 40. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=28.7; B=1.5; C=22.5; D=16.5, for 3V210-08. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × G1/4; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V200 series: pneumatic solenoid valve - 3V21006NCBT

  Specifications: Three-port, two-position solenoid valve; 200 series; single solenoid; NPT1/8 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V200 series valves are functional alternatives to SMC SYJ500 series valves. Model Code Explained Code / field Meaning for this model Model 3V21006NCBT 3V Three-port, two-position solenoid valve 2 200 series 10 Two-position, single solenoid 06 1/8-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector T NPT1/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V21006NCBT; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × NPT1/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv No separate effective-area/Cv value is specified for this port size in the supplied catalogs. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 213 g (0.213 kg), catalog reference for 3V210; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V210, DIN configuration. Linked PDF: third page, printed p.47. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 109; body width 35; upper horizontal spans 67 and 40. Side fixing / manual pin 2 × Ø4.2 holes; pitch 25; horizontal offset 8.2; lower offset 15.2; manual pin projection 3. Opposite face Width 22; fixing centres across width 17; 2 × Ø3.3 holes, vertical pitch 30; lower fixing offset 12.7. Drawing A / B / C / D A=27.7; B=0; C=22; D=16.7, for 3V210-06. Refer to the dimension-line origins; letters are drawing dimensions, not voltage codes. Main port callouts 3 × NPT1/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V200M, for the 3V200 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V200M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V200M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=162.5; BA=109; BC=27.5; C=92.5; CA=26; CB=35; D=45; E=40; F=23; G=23; H=35; K=4.5; KB=6; PA=11.5; PB=25. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 46, 69, 92, 115, 138, 161, 184, 207, 230, 253, 276, 299, 322, 345, 368, 391 KA, stations 1F to 16F 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379 Flow Characteristics Series reference: the plotted test model is 3V210-08-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–2000 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 17.0 mm² (Cv=1.0) for 3V210-08 and 3V220-08; these values are calculated from flow-test data. This is a different port-size group and is not assigned to the current model. Internal Components Series diagram key for 3V210 / 3V220; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 06=1/8 inch, 08=1/4 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

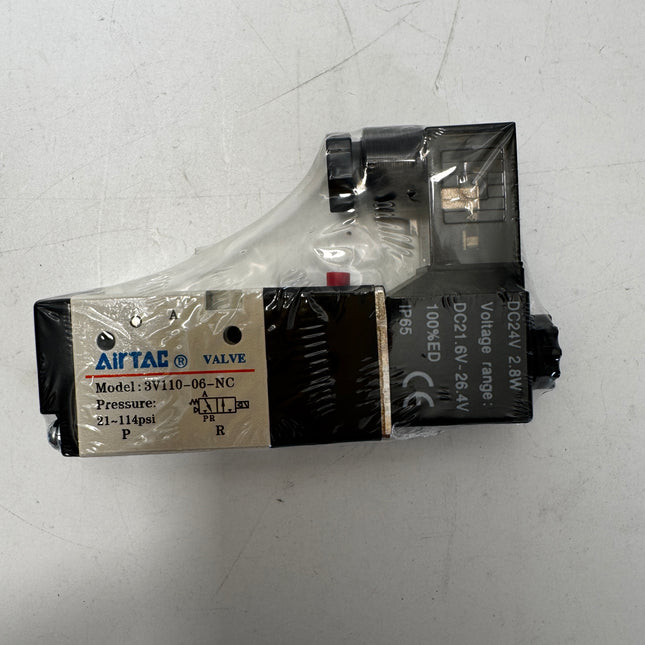

  Airtac 3V100 series: pneumatic solenoid valve - 3V11006NCBT

  Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; NPT1/8 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves. Model Code Explained Code / field Meaning for this model Model 3V11006NCBT 3V Three-port, two-position solenoid valve 1 100 series 10 Two-position, single solenoid 06 1/8-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector T NPT1/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V11006NCBT; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × NPT1/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 10.2 mm²; Cv=0.6. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 110 g (0.11 kg), catalog reference for 3V110; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 2.8 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V110, DIN configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 88.4; body width 27; upper horizontal spans 55 and 34. Side fixing / manual pin 2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5. Two-port face Port spacing 16; lower offset 14.7; lateral offset 2. Opposite face Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1. Main port callouts 3 × NPT1/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V100M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323 KA, stations 1F to 16F 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313 Flow Characteristics Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes M5=M5, 06=1/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NOBIG

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; G3/8 ports; normally open; DC24V; lead wire, 0.5 m; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses G3/8, as listed in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NOBIG 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NO normally open B DC24V I lead wire, 0.5 m G G3/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31010NOBIG; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally open; internal pilot Main connections 3 × G3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NO: de-energized P connected to A and R blocked; energized P blocked and A connected to R. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, lead-wire configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal span 37. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × G3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

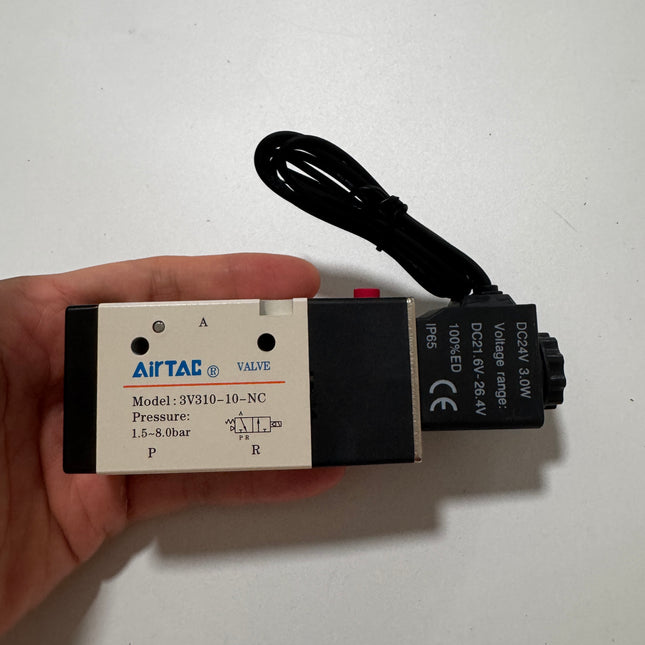

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NCBIG

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; G3/8 ports; normally closed; DC24V; lead wire, 0.5 m; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses G3/8, as listed in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NCBIG 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NC normally closed B DC24V I lead wire, 0.5 m G G3/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31010NCBIG; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × G3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, lead-wire configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal span 37. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × G3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NCBI

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; PT3/8 ports; normally closed; DC24V; lead wire, 0.5 m; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT3/8, as listed in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NCBI 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NC normally closed B DC24V I lead wire, 0.5 m Blank thread code PT3/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31010NCBI; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × PT3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, lead-wire configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal span 37. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × PT3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

  Airtac 3V100 series: pneumatic solenoid valve - 3V11006NOC

  Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; PT1/8 ports; normally open; AC110V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT1/8, as listed in the 2022 catalog. Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves. Model Code Explained Code / field Meaning for this model Model 3V11006NOC 3V Three-port, two-position solenoid valve 1 100 series 10 Two-position, single solenoid 06 1/8-inch nominal ports NO normally open C AC110V Blank electrical code DIN connector Blank thread code PT1/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V11006NOC; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally open; internal pilot Main connections 3 × PT1/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 10.2 mm²; Cv=0.6. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 110 g (0.11 kg), catalog reference for 3V110; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage AC110V Voltage tolerance AC ±15% Power consumption 3.5 VA per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NO: de-energized P connected to A and R blocked; energized P blocked and A connected to R. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V110, DIN configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 88.4; body width 27; upper horizontal spans 55 and 34. Side fixing / manual pin 2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5. Two-port face Port spacing 16; lower offset 14.7; lateral offset 2. Opposite face Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1. Main port callouts 3 × PT1/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V100M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323 KA, stations 1F to 16F 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313 Flow Characteristics Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes M5=M5, 06=1/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NCA

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; PT3/8 ports; normally closed; AC220V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT3/8, as listed in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NCA 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NC normally closed A AC220V Blank electrical code DIN connector Blank thread code PT3/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31010NCA; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × PT3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage AC220V Voltage tolerance AC ±15% Power consumption 4.5 VA per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, DIN configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal spans 69 and 40. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × PT3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NOA

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; PT3/8 ports; normally open; AC220V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT3/8, as listed in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NOA 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NO normally open A AC220V Blank electrical code DIN connector Blank thread code PT3/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31010NOA; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally open; internal pilot Main connections 3 × PT3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage AC220V Voltage tolerance AC ±15% Power consumption 4.5 VA per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NO: de-energized P connected to A and R blocked; energized P blocked and A connected to R. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, DIN configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal spans 69 and 40. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × PT3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

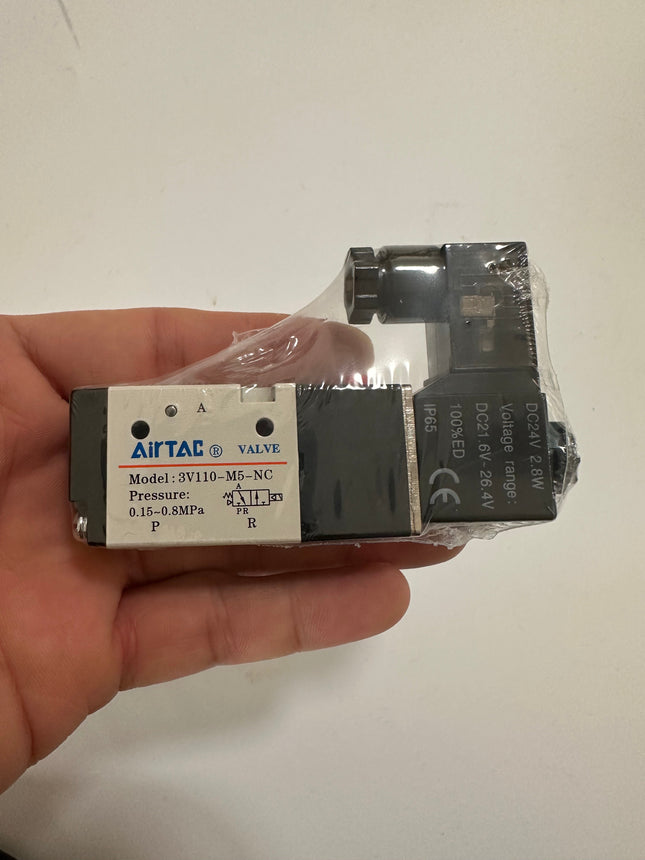

  Airtac 3V100 series: pneumatic solenoid valve - 3V110M5NCB

  Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; M5 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves. Model Code Explained Code / field Meaning for this model Model 3V110M5NCB 3V Three-port, two-position solenoid valve 1 100 series 10 Two-position, single solenoid M5 M5 metric ports NC normally closed B DC24V Blank electrical code DIN connector Thread code not applicable M5 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V110M5NCB; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × M5 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv No separate effective-area/Cv value is specified for this port size in the supplied catalogs. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 110 g (0.11 kg), catalog reference for 3V110; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 2.8 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V110, DIN configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 88.4; body width 27; upper horizontal spans 55 and 34. Side fixing / manual pin 2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5. Two-port face Port spacing 14.2; lower offset 15.6; lateral offset 0. Opposite face Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 22.7; lateral port offset 0. Main port callouts 3 × M5; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V100M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323 KA, stations 1F to 16F 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313 Flow Characteristics Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is a different port-size group and is not assigned to the current model. Internal Components Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes M5=M5, 06=1/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

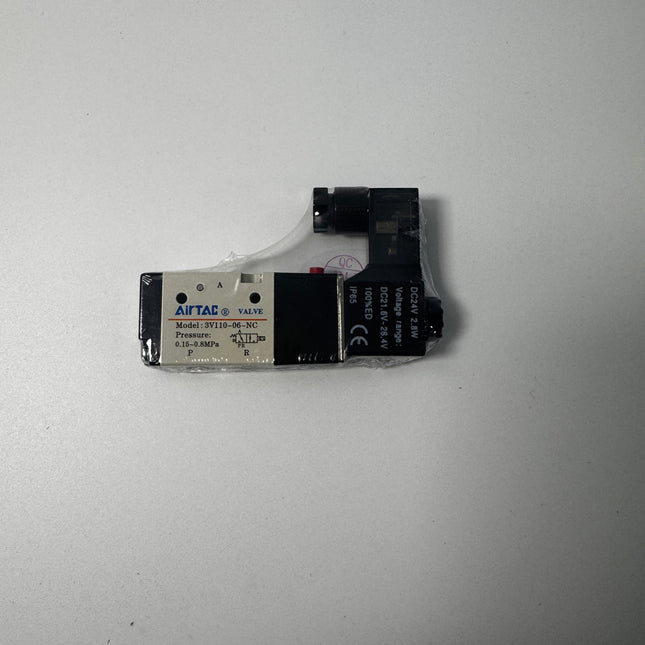

  Airtac 3V100 series: pneumatic solenoid valve - 3V11006NCB

  Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; PT1/8 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF lists NPT threads; this model uses PT1/8, as listed in the 2022 catalog. Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves. Model Code Explained Code / field Meaning for this model Model 3V11006NCB 3V Three-port, two-position solenoid valve 1 100 series 10 Two-position, single solenoid 06 1/8-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector Blank thread code PT1/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V11006NCB; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × PT1/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 10.2 mm²; Cv=0.6. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 110 g (0.11 kg), catalog reference for 3V110; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 2.8 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V110, DIN configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 88.4; body width 27; upper horizontal spans 55 and 34. Side fixing / manual pin 2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5. Two-port face Port spacing 16; lower offset 14.7; lateral offset 2. Opposite face Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1. Main port callouts 3 × PT1/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V100M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK. P: manifold port PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323 KA, stations 1F to 16F 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313 Flow Characteristics Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes M5=M5, 06=1/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NCBT

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; NPT3/8 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NCBT 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NC normally closed B DC24V Blank electrical code DIN connector T NPT3/8 No -W suffix internal pilot Technical Specifications Parameter Specification Model / construction 3V31010NCBT; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; internal pilot Main connections 3 × NPT3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection DIN connector Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, DIN configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal spans 69 and 40. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × NPT3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options

•

  View options

  Airtac 3V300 series: pneumatic solenoid valve - 3V31010NCBIT-W

  Specifications: Three-port, two-position solenoid valve; 300 series; single solenoid; NPT3/8 ports; normally closed; DC24V; lead wire, 0.5 m; external pilot (-W). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The linked PDF depicts internal-pilot versions; the -W external-pilot option is documented in the 2022 catalog. Airtac 3V300 series valves are functional alternatives to SMC SYJ700 series valves. Model Code Explained Code / field Meaning for this model Model 3V31010NCBIT-W 3V Three-port, two-position solenoid valve 3 300 series 10 Two-position, single solenoid 10 3/8-inch nominal ports NC normally closed B DC24V I lead wire, 0.5 m T NPT3/8 -W external pilot (-W) Technical Specifications Parameter Specification Model / construction 3V31010NCBIT-W; sliding-spool, pilot-operated valve Ports / positions 3 ports, 2 positions (3/2-way) Control / pilot normally closed; external pilot (-W) Main connections 3 × NPT3/8 Working medium Air filtered through a 40 μm filter element Operating pressure 0.15–0.8 MPa (21–114 psi), catalog working-pressure range Proof pressure 1.2 MPa (175 psi) Operating temperature −20 to 70°C Body material Aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65. Lubrication Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent. Reference weight 276 g (0.276 kg), catalog reference for 3V310; actual product weight governs. External pilot supply M5 × 0.8 pilot port. The supplied table does not state a separate external-pilot supply-pressure range; confirm that requirement for the installation. Do not infer zero-pressure operation. Electrical Specifications Parameter Specification Rated voltage DC24V Voltage tolerance DC ±10% Power consumption 3.0 W per coil Electrical connection lead wire, 0.5 m Protection / insulation IP65 (DIN40050); class B Energizing time ≤0.05 s Maximum frequency 5 cycles/s at no load Features and Operation Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol. External and Mounting Dimensions All dimensions below are in mm for 3V310, lead-wire configuration. Linked PDF: third page, printed p.50. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height. View / feature Applicable dimensions (mm) Side-view main dimensions Overall axial span 120; body width 40; upper horizontal span 37. Side fixing / manual pin 2 × Ø4.3 holes; pitch 30; horizontal offset 10.5; lower offset 17.5; manual pin projection 2.4. Two-port face Port spacing 24; lower offset 20.5. Opposite face Width 27; fixing centres across width 20; 2 × Ø4.3 holes, vertical pitch 35; lower fixing offset 15; port height 32.5; lateral port offset 2. Main port callouts 3 × NPT3/8; these are valve ports, not manifold supply/exhaust port sizes. Pilot connection -W: external pilot port M5 × 0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Assembly and Accessory Kit Contents This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves. Parameter Specification Matching manifold 3V300M, for the 3V300 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads. Manifold kit contents Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified. Blanking-plate kit P-3V300M-R2; blanking plate and screws. Screw quantity is not specified. Accessory conditions 40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions. Assembly features Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded. Optional Manifold Dimensions Series reference only: 3V300M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm. Parameter Specification Drawing symbols B=175; BA=120; BC=32.5; C=99; CA=30; CB=40; D=52; E=47; F=28; G=27; H=42; K=4.5; KB=6; PA=13.5; PB=28. Mounting holes are marked ØK. P: manifold port PT3/8 in the PT drawing; G/NPT versions follow their own manifold ordering code. A, stations 1F to 16F 54, 82, 110, 138, 166, 194, 222, 250, 278, 306, 334, 362, 390, 418, 446, 474 KA, stations 1F to 16F 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350, 378, 406, 434, 462 Flow Characteristics Series reference: the plotted test model is 3V310-10-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–3200 L/min in 400 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection. The catalog states 28.0 mm² (Cv=1.65) for 3V310-10 and 3V320-10; these values are calculated from flow-test data. This is the listed port-size group for the current model. Internal Components Series diagram key for 3V310 / 3V320; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction. No. Part name 1 Fixed plate 2 Manual override pin 3 Spring 4 Shaped O-ring 5 Pilot body 6 Shaped O-ring 7 Spool 8 O-ring 9 Body 10 Spring 11 Sealing gasket 12 Bottom cover 13 Round-head screw 14 Wear ring 15 Piston 16 Countersunk screw 17 O-ring 18 Movable armature 19 Coil 20 Retaining nut 21 Terminal Series Ordering Options The following are series choices, not simultaneous features of this product. Selection Available codes Control 10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code Port codes 08=1/4 inch, 10=3/8 inch Voltage codes A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V Electrical entry Blank=DIN connector; I=lead wire, 0.5 m Thread codes For inch ports: blank=PT, G=G, T=NPT. Pilot option Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

  Read more less

  $41.10

  View options
