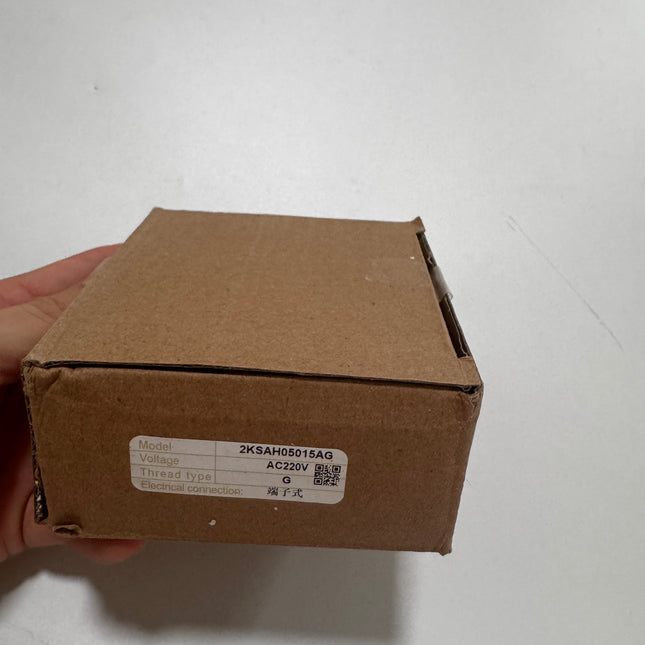

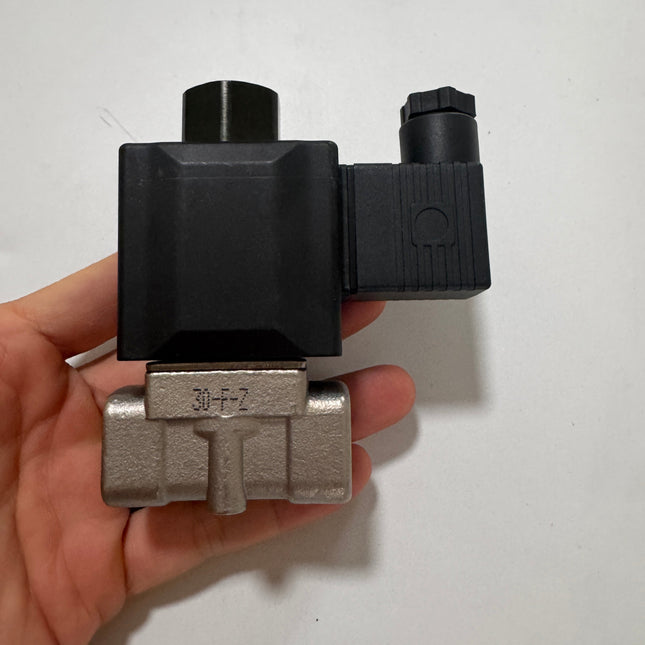

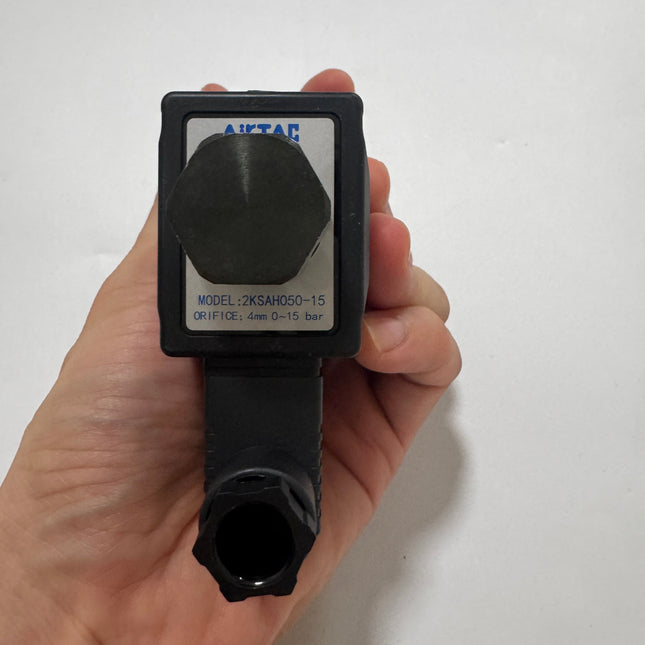

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH05015AG

  Specifications: 2KSH05015AG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 050 size series. The port is G1/2, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH05015AG will be supplied as 2KSAH05015AG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 050 050 size series 15 1/2 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/2 Orifice diameter 4 mm Cv 0.55 Effective flow area 10 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 600 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA170 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 35.0 VA Power consumption at 60 Hz 30.0 VA Catalog temperature rise at 50 Hz 65°C Catalog temperature rise at 60 Hz 60°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 050 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 89.5 mm AB — drawing dimension 52 mm B — drawing dimension 39 mm C — drawing dimension 92 mm D — drawing dimension 26 mm E — drawing dimension 56 mm F — drawing dimension 51 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 48 mm P — two main ports G1/2 PA — drawing dimension 13 mm Q — two threaded holes M5 QA — drawing dimension 23 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S050LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 4 mm orifice, Cv 0.55 and effective area 10 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $83.30

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSL03008AG

  Specifications: 2KSL03008AG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. Large volume condition; 030 size series. The port is G1/4, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSL03008AG will be supplied as 2KSAL03008AG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve L Large volume 030 030 size series 08 1/4 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/4 Orifice diameter 4 mm Cv 0.55 Effective flow area 10 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 0.4 MPa (60 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 4 mm orifice, Cv 0.55 and effective area 10 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac F-2KS series: valve mounting bracket - F-2KS250LB

  Specifications: F-2KS250LB is the listed LB-type mounting accessory for the 2KS250 valve-size family. F- identifies a mounting accessory, the middle series and size identify the listing application, and LB identifies the bracket type. This product is a mounting accessory, not a complete fluid-control valve. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details Listed product code F-2KS250LB F- Mounting accessory 2KS250 Valve family and size used by this listing LB LB-type mounting bracket Code explicitly provided by the shared catalog reference F-2S250LB Catalog Reference and Ordering The exact listing code is not separately printed in the supplied catalog; it must not be treated as an independently verified manufacturer ordering code. The applicable accessory-ordering reference is F-2S250LB. The legacy 2S PDF lists its accessory codes on printed pages 194 and 196; the 2KS catalog refers to the same ordering scheme. Confirm the actual supplied accessory and its mounting fit before ordering. The old-to-new valve supply policy does not automatically substitute this bracket, and no old/new bracket interchangeability is established by these PDFs. Application and Supply Scope The LB accessory provides a mounting arrangement for the applicable valve size shown in the catalog. The valve is a separately described product. The source does not specify a package quantity, included fastener list, accessory material or accessory weight; none of those has been inferred from the photograph or valve specifications. Parameter Details Product type LB mounting accessory Intended size in this listing 250 valve family Electrical function None specified for this accessory; valve coil ratings do not apply Weight Not specified for the separate mounting accessory Mounting Drawing Reference The applicable valve drawing shows an optional bracket, but does not tabulate independent bracket dimensions. The following values are valve-and-mounting drawing references for the matching size, not a claimed length, width or height of the loose bracket. Terminal and grommet valve outlines can differ. Terminal Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 81 mm AB — drawing dimension 92 mm B — drawing dimension 59 mm BA — drawing dimension 40.5 mm C — drawing dimension 129.5 mm D — drawing dimension 95 mm E — drawing dimension 6.4 mm EA — drawing dimension 8 mm EB — drawing dimension 80 mm EC — drawing dimension 44.5 mm F — drawing dimension 36 mm P — two main ports PT1 Catalog dimensional caution: the table prints A = 81 mm and AB = 92 mm. A is numerically smaller than AB even though the drawing appears to show the opposite span relationship. Both values are reproduced as printed; they have not been swapped or corrected. Confirm these two installation dimensions before relying on the drawing for fit or interchangeability. Grommet Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 92 mm B — drawing dimension 59 mm BA — drawing dimension 40.5 mm C — drawing dimension 129.5 mm D — drawing dimension 95 mm E — drawing dimension 6.4 mm EA — drawing dimension 8 mm EB — drawing dimension 80 mm EC — drawing dimension 44.5 mm F — drawing dimension 36 mm P — two main ports PT1 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessory Range The shared ordering tables provide LB accessories for 030, 050, 150, 200 and 250 sizes. They do not provide mounting accessories for the 320, 400 or 500 valve sizes. Select by the actual mounting drawing and confirmed accessory code. Reference Weight Estimated reference weight: 60 g. The mass reference is the DOLD listing for F-2WA250LB, which lists an item weight of 60 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. A later 2WA mounting bracket for the same nominal valve size is used only as a mass analogy; old/new bracket dimensions and interchangeability are not asserted. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $5.21

  View options

•

  View options

  Airtac F-2KS series: valve mounting bracket - F-2KS200LB

  Specifications: F-2KS200LB is the listed LB-type mounting accessory for the 2KS200 valve-size family. F- identifies a mounting accessory, the middle series and size identify the listing application, and LB identifies the bracket type. This product is a mounting accessory, not a complete fluid-control valve. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details Listed product code F-2KS200LB F- Mounting accessory 2KS200 Valve family and size used by this listing LB LB-type mounting bracket Code explicitly provided by the shared catalog reference F-2S200LB Catalog Reference and Ordering The exact listing code is not separately printed in the supplied catalog; it must not be treated as an independently verified manufacturer ordering code. The applicable accessory-ordering reference is F-2S200LB. The legacy 2S PDF lists its accessory codes on printed pages 194 and 196; the 2KS catalog refers to the same ordering scheme. Confirm the actual supplied accessory and its mounting fit before ordering. The old-to-new valve supply policy does not automatically substitute this bracket, and no old/new bracket interchangeability is established by these PDFs. Application and Supply Scope The LB accessory provides a mounting arrangement for the applicable valve size shown in the catalog. The valve is a separately described product. The source does not specify a package quantity, included fastener list, accessory material or accessory weight; none of those has been inferred from the photograph or valve specifications. Parameter Details Product type LB mounting accessory Intended size in this listing 200 valve family Electrical function None specified for this accessory; valve coil ratings do not apply Weight Not specified for the separate mounting accessory Mounting Drawing Reference The applicable valve drawing shows an optional bracket, but does not tabulate independent bracket dimensions. The following values are valve-and-mounting drawing references for the matching size, not a claimed length, width or height of the loose bracket. Terminal and grommet valve outlines can differ. Terminal Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 78.5 mm AB — drawing dimension 82 mm B — drawing dimension 53 mm BA — drawing dimension 33.5 mm C — drawing dimension 121 mm D — drawing dimension 90 mm E — drawing dimension 6.4 mm EA — drawing dimension 8 mm EB — drawing dimension 75 mm EC — drawing dimension 40 mm F — drawing dimension 34 mm P — two main ports PT3/4 Catalog dimensional caution: the table prints A = 78.5 mm and AB = 82 mm. A is numerically smaller than AB even though the drawing appears to show the opposite span relationship. Both values are reproduced as printed; they have not been swapped or corrected. Confirm these two installation dimensions before relying on the drawing for fit or interchangeability. Grommet Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 82 mm B — drawing dimension 53 mm BA — drawing dimension 33.5 mm C — drawing dimension 121 mm D — drawing dimension 90 mm E — drawing dimension 6.4 mm EA — drawing dimension 8 mm EB — drawing dimension 75 mm EC — drawing dimension 40 mm F — drawing dimension 34 mm P — two main ports PT3/4 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessory Range The shared ordering tables provide LB accessories for 030, 050, 150, 200 and 250 sizes. They do not provide mounting accessories for the 320, 400 or 500 valve sizes. Select by the actual mounting drawing and confirmed accessory code. Reference Weight Estimated reference weight: 60 g. The mass reference is the DOLD listing for F-2S200LB, which lists an item weight of 60 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $4.66

  View options

•

  View options

  Airtac F-2KS series: valve mounting bracket - F-2KS150LB

  Specifications: F-2KS150LB is the listed LB-type mounting accessory for the 2KS150 valve-size family. F- identifies a mounting accessory, the middle series and size identify the listing application, and LB identifies the bracket type. This product is a mounting accessory, not a complete fluid-control valve. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details Listed product code F-2KS150LB F- Mounting accessory 2KS150 Valve family and size used by this listing LB LB-type mounting bracket Code explicitly provided by the shared catalog reference F-2S150LB Catalog Reference and Ordering The exact listing code is not separately printed in the supplied catalog; it must not be treated as an independently verified manufacturer ordering code. The applicable accessory-ordering reference is F-2S150LB. The legacy 2S PDF lists its accessory codes on printed pages 194 and 196; the 2KS catalog refers to the same ordering scheme. Confirm the actual supplied accessory and its mounting fit before ordering. The old-to-new valve supply policy does not automatically substitute this bracket, and no old/new bracket interchangeability is established by these PDFs. Application and Supply Scope The LB accessory provides a mounting arrangement for the applicable valve size shown in the catalog. The valve is a separately described product. The source does not specify a package quantity, included fastener list, accessory material or accessory weight; none of those has been inferred from the photograph or valve specifications. Parameter Details Product type LB mounting accessory Intended size in this listing 150 valve family Electrical function None specified for this accessory; valve coil ratings do not apply Weight Not specified for the separate mounting accessory Mounting Drawing Reference The applicable valve drawing shows an optional bracket, but does not tabulate independent bracket dimensions. The following values are valve-and-mounting drawing references for the matching size, not a claimed length, width or height of the loose bracket. Terminal and grommet valve outlines can differ. Terminal Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 77 mm AB — drawing dimension 70 mm B — drawing dimension 46 mm BA — drawing dimension 27.5 mm C — drawing dimension 112.5 mm D — drawing dimension 80 mm E — drawing dimension 6.4 mm EA — drawing dimension 8 mm EB — drawing dimension 65 mm EC — drawing dimension 36.5 mm F — drawing dimension 30.5 mm P — two main ports PT1/2 Grommet Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 70 mm B — drawing dimension 46 mm BA — drawing dimension 27.5 mm C — drawing dimension 112.5 mm D — drawing dimension 80 mm E — drawing dimension 6.4 mm EA — drawing dimension 8 mm EB — drawing dimension 65 mm EC — drawing dimension 36.5 mm F — drawing dimension 30.5 mm P — two main ports PT1/2 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessory Range The shared ordering tables provide LB accessories for 030, 050, 150, 200 and 250 sizes. They do not provide mounting accessories for the 320, 400 or 500 valve sizes. Select by the actual mounting drawing and confirmed accessory code. Reference Weight Estimated reference weight: 50 g. The mass reference is the DOLD listing for F-2S150LB, which lists an item weight of 50 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $4.11

  View options

•

  View options

  Airtac F-2KS series: valve mounting bracket - F-2KS050LB

  Specifications: F-2KS050LB is the listed LB-type mounting accessory for the 2KS050 valve-size family. F- identifies a mounting accessory, the middle series and size identify the listing application, and LB identifies the bracket type. This product is a mounting accessory, not a complete fluid-control valve. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details Listed product code F-2KS050LB F- Mounting accessory 2KS050 Valve family and size used by this listing LB LB-type mounting bracket Code explicitly provided by the shared catalog reference F-2S050LB Catalog Reference and Ordering The exact listing code is not separately printed in the supplied catalog; it must not be treated as an independently verified manufacturer ordering code. The applicable accessory-ordering reference is F-2S050LB. The legacy 2S PDF lists its accessory codes on printed pages 194 and 196; the 2KS catalog refers to the same ordering scheme. Confirm the actual supplied accessory and its mounting fit before ordering. The old-to-new valve supply policy does not automatically substitute this bracket, and no old/new bracket interchangeability is established by these PDFs. Application and Supply Scope The LB accessory provides a mounting arrangement for the applicable valve size shown in the catalog. The valve is a separately described product. The source does not specify a package quantity, included fastener list, accessory material or accessory weight; none of those has been inferred from the photograph or valve specifications. Parameter Details Product type LB mounting accessory Intended size in this listing 050 valve family Electrical function None specified for this accessory; valve coil ratings do not apply Weight Not specified for the separate mounting accessory Mounting Drawing Reference The applicable valve drawing shows an optional bracket, but does not tabulate independent bracket dimensions. The following values are valve-and-mounting drawing references for the matching size, not a claimed length, width or height of the loose bracket. Terminal and grommet valve outlines can differ. Terminal Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 89.5 mm AB — drawing dimension 52 mm B — drawing dimension 39 mm C — drawing dimension 92 mm D — drawing dimension 26 mm E — drawing dimension 56 mm F — drawing dimension 51 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 48 mm P — two main ports PT3/8 PA — drawing dimension 13 mm Q — two threaded holes M5 QA — drawing dimension 23 mm Grommet Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 60 mm AB — drawing dimension 52 mm B — drawing dimension 39 mm C — drawing dimension 92 mm D — drawing dimension 26 mm E — drawing dimension 56 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 48 mm P — two main ports PT3/8 PA — drawing dimension 13 mm Q — two threaded holes M5 QA — drawing dimension 23 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessory Range The shared ordering tables provide LB accessories for 030, 050, 150, 200 and 250 sizes. They do not provide mounting accessories for the 320, 400 or 500 valve sizes. Select by the actual mounting drawing and confirmed accessory code. Reference Weight Estimated reference weight: 20 g. The mass reference is the DOLD listing for F-2S050LB, which lists an item weight of 20 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $3.43

  View options

•

  View options

  Airtac F-2KS series: valve mounting bracket - F-2KS030LB

  Specifications: F-2KS030LB is the listed LB-type mounting accessory for the 2KS030 valve-size family. F- identifies a mounting accessory, the middle series and size identify the listing application, and LB identifies the bracket type. This product is a mounting accessory, not a complete fluid-control valve. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details Listed product code F-2KS030LB F- Mounting accessory 2KS030 Valve family and size used by this listing LB LB-type mounting bracket Code explicitly provided by the shared catalog reference F-2S030LB Catalog Reference and Ordering The exact listing code is not separately printed in the supplied catalog; it must not be treated as an independently verified manufacturer ordering code. The applicable accessory-ordering reference is F-2S030LB. The legacy 2S PDF lists its accessory codes on printed pages 194 and 196; the 2KS catalog refers to the same ordering scheme. Confirm the actual supplied accessory and its mounting fit before ordering. The old-to-new valve supply policy does not automatically substitute this bracket, and no old/new bracket interchangeability is established by these PDFs. Application and Supply Scope The LB accessory provides a mounting arrangement for the applicable valve size shown in the catalog. The valve is a separately described product. The source does not specify a package quantity, included fastener list, accessory material or accessory weight; none of those has been inferred from the photograph or valve specifications. Parameter Details Product type LB mounting accessory Intended size in this listing 030 valve family Electrical function None specified for this accessory; valve coil ratings do not apply Weight Not specified for the separate mounting accessory Mounting Drawing Reference The applicable valve drawing shows an optional bracket, but does not tabulate independent bracket dimensions. The following values are valve-and-mounting drawing references for the matching size, not a claimed length, width or height of the loose bracket. Terminal and grommet valve outlines can differ. Terminal Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm Grommet Valve Drawing Reference Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Accessory Range The shared ordering tables provide LB accessories for 030, 050, 150, 200 and 250 sizes. They do not provide mounting accessories for the 320, 400 or 500 valve sizes. Select by the actual mounting drawing and confirmed accessory code. Reference Weight Estimated reference weight: 20 g. The mass reference is the DOLD listing for F-2S030LB, which lists an item weight of 20 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $2.88

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006A

  Specifications: 2KSH03006A is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006A will be supplied as 2KSAH03006A from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006AG

  Specifications: 2KSH03006AG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006AG will be supplied as 2KSAH03006AG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006AI

  Specifications: 2KSH03006AI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated AC 220 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006AI will be supplied as 2KSAH03006AI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size A AC 220 V I Grommet; 0.5 m lead No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006AIG

  Specifications: 2KSH03006AIG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated AC 220 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006AIG will be supplied as 2KSAH03006AIG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size A AC 220 V I Grommet; 0.5 m lead G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006AIT

  Specifications: 2KSH03006AIT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated AC 220 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006AIT will be supplied as 2KSAH03006AIT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size A AC 220 V I Grommet; 0.5 m lead T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006AT

  Specifications: 2KSH03006AT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006AT will be supplied as 2KSAH03006AT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006B

  Specifications: 2KSH03006B is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated DC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006B will be supplied as 2KSAH03006B from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size B DC 24 V No electrical-entry suffix Terminal connector No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006BG

  Specifications: 2KSH03006BG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated DC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006BG will be supplied as 2KSAH03006BG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size B DC 24 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

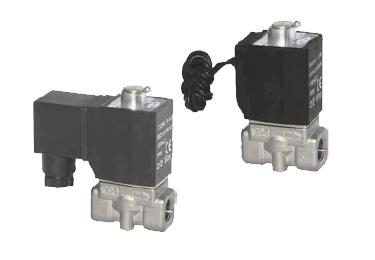

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006BI

  Specifications: 2KSH03006BI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006BI will be supplied as 2KSAH03006BI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size B DC 24 V I Grommet; 0.5 m lead No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006BIG

  Specifications: 2KSH03006BIG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006BIG will be supplied as 2KSAH03006BIG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size B DC 24 V I Grommet; 0.5 m lead G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006BIT

  Specifications: 2KSH03006BIT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006BIT will be supplied as 2KSAH03006BIT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size B DC 24 V I Grommet; 0.5 m lead T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006BT

  Specifications: 2KSH03006BT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated DC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006BT will be supplied as 2KSAH03006BT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size B DC 24 V No electrical-entry suffix Terminal connector T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006C

  Specifications: 2KSH03006C is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated AC 110 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006C will be supplied as 2KSAH03006C from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size C AC 110 V No electrical-entry suffix Terminal connector No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 110 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006CG

  Specifications: 2KSH03006CG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated AC 110 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006CG will be supplied as 2KSAH03006CG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size C AC 110 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 110 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006CI

  Specifications: 2KSH03006CI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated AC 110 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006CI will be supplied as 2KSAH03006CI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size C AC 110 V I Grommet; 0.5 m lead No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 110 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006CIG

  Specifications: 2KSH03006CIG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated AC 110 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006CIG will be supplied as 2KSAH03006CIG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size C AC 110 V I Grommet; 0.5 m lead G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 110 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006CIT

  Specifications: 2KSH03006CIT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated AC 110 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006CIT will be supplied as 2KSAH03006CIT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size C AC 110 V I Grommet; 0.5 m lead T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 110 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options
