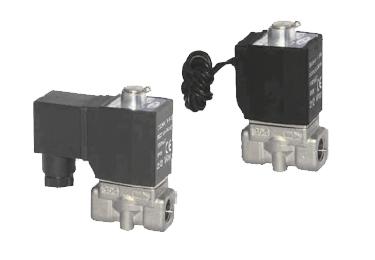

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006CT

  Specifications: 2KSH03006CT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated AC 110 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006CT will be supplied as 2KSAH03006CT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size C AC 110 V No electrical-entry suffix Terminal connector T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 110 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006E

  Specifications: 2KSH03006E is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated AC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006E will be supplied as 2KSAH03006E from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size E AC 24 V No electrical-entry suffix Terminal connector No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006EG

  Specifications: 2KSH03006EG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated AC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006EG will be supplied as 2KSAH03006EG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size E AC 24 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006EI

  Specifications: 2KSH03006EI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated AC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006EI will be supplied as 2KSAH03006EI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size E AC 24 V I Grommet; 0.5 m lead No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006EIG

  Specifications: 2KSH03006EIG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated AC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006EIG will be supplied as 2KSAH03006EIG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size E AC 24 V I Grommet; 0.5 m lead G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006EIT

  Specifications: 2KSH03006EIT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated AC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006EIT will be supplied as 2KSAH03006EIT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size E AC 24 V I Grommet; 0.5 m lead T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006ET

  Specifications: 2KSH03006ET is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated AC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006ET will be supplied as 2KSAH03006ET from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size E AC 24 V No electrical-entry suffix Terminal connector T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006F

  Specifications: 2KSH03006F is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated DC 12 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006F will be supplied as 2KSAH03006F from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size F DC 12 V No electrical-entry suffix Terminal connector No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 12 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006FG

  Specifications: 2KSH03006FG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated DC 12 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006FG will be supplied as 2KSAH03006FG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size F DC 12 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 12 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006FI

  Specifications: 2KSH03006FI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated DC 12 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006FI will be supplied as 2KSAH03006FI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size F DC 12 V I Grommet; 0.5 m lead No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 12 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006FIG

  Specifications: 2KSH03006FIG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/8, the coil is rated DC 12 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006FIG will be supplied as 2KSAH03006FIG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size F DC 12 V I Grommet; 0.5 m lead G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 12 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006FIT

  Specifications: 2KSH03006FIT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated DC 12 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006FIT will be supplied as 2KSAH03006FIT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size F DC 12 V I Grommet; 0.5 m lead T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 12 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006FT

  Specifications: 2KSH03006FT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/8, the coil is rated DC 12 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03006FT will be supplied as 2KSAH03006FT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 06 1/8 in nominal port size F DC 12 V No electrical-entry suffix Terminal connector T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/8 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 305 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 12 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/8 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008A

  Specifications: 2KSH03008A is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/4, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008A will be supplied as 2KSAH03008A from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008AG

  Specifications: 2KSH03008AG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/4, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008AG will be supplied as 2KSAH03008AG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008AI

  Specifications: 2KSH03008AI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/4, the coil is rated AC 220 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008AI will be supplied as 2KSAH03008AI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size A AC 220 V I Grommet; 0.5 m lead No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 285 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008AIG

  Specifications: 2KSH03008AIG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/4, the coil is rated AC 220 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008AIG will be supplied as 2KSAH03008AIG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size A AC 220 V I Grommet; 0.5 m lead G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 285 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008AIT

  Specifications: 2KSH03008AIT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/4, the coil is rated AC 220 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008AIT will be supplied as 2KSAH03008AIT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size A AC 220 V I Grommet; 0.5 m lead T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 285 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008AT

  Specifications: 2KSH03008AT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/4, the coil is rated AC 220 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008AT will be supplied as 2KSAH03008AT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size A AC 220 V No electrical-entry suffix Terminal connector T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage AC 220 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±15% Coil insulation class Class B Coil protection class IP65 Power consumption at 50 Hz 15.0 VA Power consumption at 60 Hz 11.0 VA Catalog temperature rise at 50 Hz 50°C Catalog temperature rise at 60 Hz 40°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008B

  Specifications: 2KSH03008B is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/4, the coil is rated DC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008B will be supplied as 2KSAH03008B from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size B DC 24 V No electrical-entry suffix Terminal connector No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008BG

  Specifications: 2KSH03008BG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/4, the coil is rated DC 24 V, and the electrical entry is a terminal connector. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008BG will be supplied as 2KSAH03008BG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size B DC 24 V No electrical-entry suffix Terminal connector G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 295 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value as listed. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Terminal connector Catalog coil type CDA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the terminal entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 72.5 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm F — drawing dimension 43.5 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $59.87

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008BI

  Specifications: 2KSH03008BI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/4, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008BI will be supplied as 2KSAH03008BI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size B DC 24 V I Grommet; 0.5 m lead No thread suffix PT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection PT1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 285 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports PT1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008BIG

  Specifications: 2KSH03008BIG is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is G1/4, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008BIG will be supplied as 2KSAH03008BIG from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size B DC 24 V I Grommet; 0.5 m lead G G thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection G1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 285 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports G1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options

•

  View options

  Airtac 2KS series: two-way fluid solenoid valve - 2KSH03008BIT

  Specifications: 2KSH03008BIT is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is NPT1/4, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead. Product Catalogs Download Old 2KS Product Catalog (PDF) Download New 2KSA Product Catalog (PDF) 2KS vs 2KSA: Length, Dimensions and Replacement Guide For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders placed for 2KSH03008BIT will be supplied as 2KSAH03008BIT from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions. Model Code Explained Code in this model Meaning 2KS 2-port, 2-position direct-acting, normally open fluid-control valve H High pressure 030 030 size series 08 1/4 in nominal port size B DC 24 V I Grommet; 0.5 m lead T NPT thread Technical Specifications Parameter Details Operating principle Direct acting Initial, de-energized state Normally open Function 2 ports, 2 positions (2/2-way) Main port connection NPT1/4 Orifice diameter 2 mm Cv 0.18 Effective flow area 3 mm² Body material SUS304 stainless steel Standard seal material FPM-F Suitable media listed Air, water and oil Maximum operating pressure differential 1.5 MPa (220 psi as printed) Proof pressure 3.0 MPa (450 psi) Water temperature 1 to 80°C Air temperature −20 to 90°C Oil temperature −10 to 80°C Ambient temperature −20 to 70°C General viscosity specification Under 20 cSt Air dew-point note −20°C or lower Oil footnote 50 cSt or less, as printed; see the viscosity clarification below Catalog reference weight 285 g The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F. The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit. Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item. Electrical Specifications Parameter Details Rated voltage DC 24 V Electrical entry Grommet, 0.5 m lead Catalog coil type CLA116 Permitted voltage variation ±10% Coil insulation class Class B Coil protection class IP65 Power consumption 6.5 W Frequency DC; no AC frequency applies Catalog temperature rise 30°C Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version. Features and Operation The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports. The direct-acting design operates the sealing element by the solenoid mechanism. The catalog describes a compact, lightweight construction that is convenient to install and dismantle. The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation. IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code. External and Mounting Dimensions These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them. Drawing letter Value for this configuration A — drawing dimension 41 mm AB — drawing dimension 40 mm B — drawing dimension 29.5 mm C — drawing dimension 76 mm D — drawing dimension 20 mm E — drawing dimension 49 mm G — drawing dimension 10 mm ØK — two holes 5.3 mm KA — drawing dimension 40 mm P — two main ports NPT1/4 PA — drawing dimension 10 mm Q — two threaded holes M5 QA — drawing dimension 16 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Mounting Accessories The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system. The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability. Flow and Performance Characteristics The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters. The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow. This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale. Internal Components The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly. Reference number Component in the illustrated structure 1 Body 2 Airtight ring 3 Spring 4 Bead flange 5 Fixed plate 6 O-ring 7 Fixed cap 8 Electromagnet 9 Mandril 10 Coil assembly 11 Position ring 12 E clip 13 Connector 14 Washer 15 Screw 16 Spring 17 Airtight bush Series Ordering Options These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described. Parameter Details 030 port options 06: 1/8 in; 08: 1/4 in 050 port options 10: 3/8 in; 15: 1/2 in Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead Thread options No suffix: PT; G: G; T: NPT

  Read more less

  $60.97

  View options
