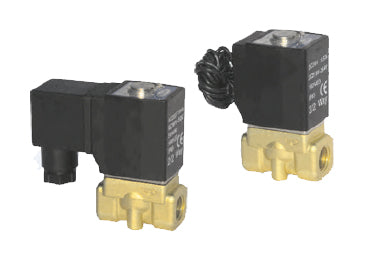

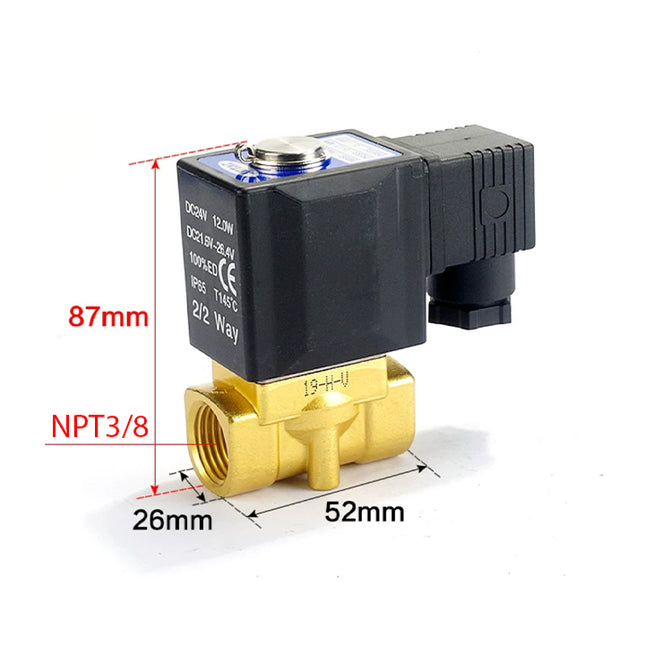

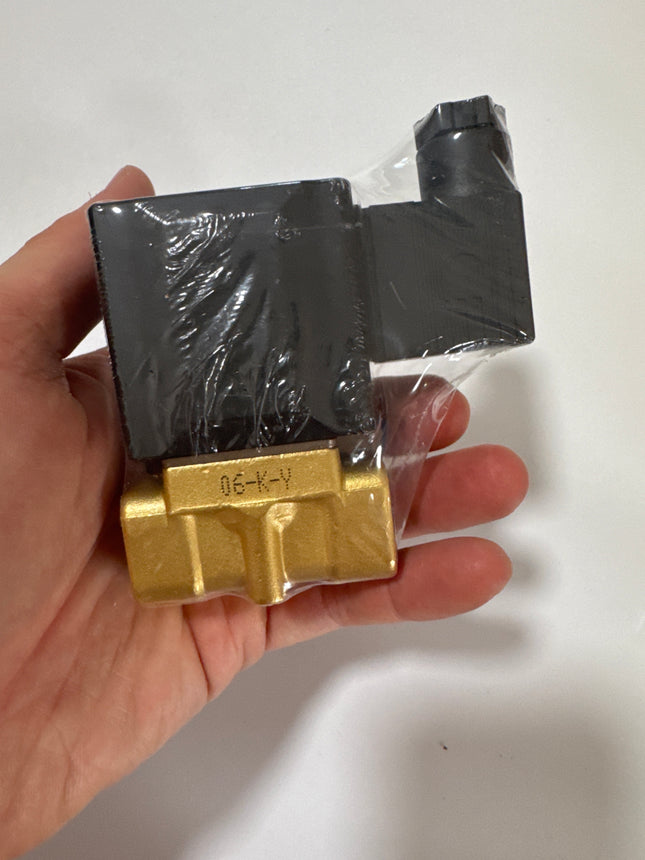

  Airtac 2W series: two-way fluid solenoid valve - 2W05010BT

  Specifications: 2W05010BT is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has NPT3/8 ports, a 5 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W05010BT will be supplied as 2WA05010BT under our store's replacement policy. The technical information below documents the legacy 2W05010BT; use the new 2WA catalog for the supplied 2WA05010BT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 10 3/8 in port size; selected thread: NPT3/8. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT3/8 Orifice diameter 5 mm Flow coefficient Cv 0.83 Effective area / section 15 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 620 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 12 W Temperature rise on DC 40°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 87 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P NPT3/8 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø5 mm: Q in L/min (ANR); marked values 200-1800, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $61.65

  View options

•

  View options

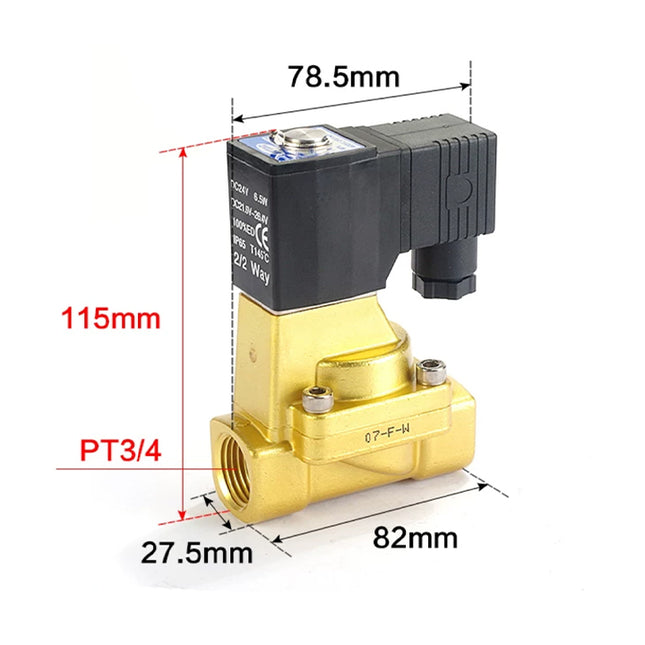

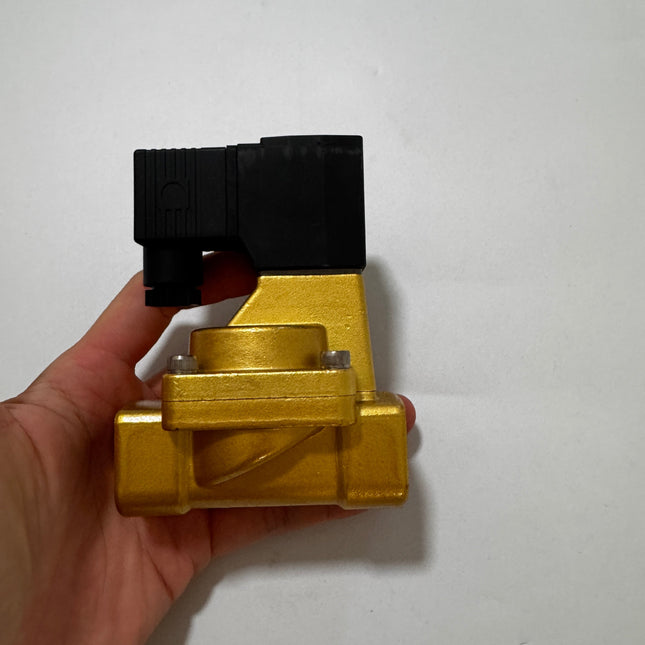

  Airtac 2W series: two-way fluid solenoid valve - 2W20020B

  Specifications: 2W20020B is an AirTAC 2W series internally piloted, normally closed 2/2-way fluid-control valve. It has PT3/4 ports, a 20 mm orifice and a 24 V DC coil. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W20020B will be supplied as 2WA20020B under our store's replacement policy. The technical information below documents the legacy 2W20020B; use the new 2WA catalog for the supplied 2WA20020B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. 200 20 mm orifice; internally piloted configuration. 20 3/4 in port size; selected thread: PT3/4. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 3 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Internally piloted Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT3/4 Orifice diameter 20 mm Flow coefficient Cv 9.5 Effective area / section 170 mm² Pressure differential 0.05-1.0 MPa operating pressure differential Proof pressure 1.5 MPa Catalog reference weight 950 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 150, 200 and 250 branches use internal pilot operation and specify a minimum operating pressure differential of 0.05 MPa. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 4. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 78.5 mm AB 82 mm B 53 mm BA 33.5 mm C 115.5 mm D 90 mm E 6.4 mm EA 8 mm EB 75 mm EC 40 mm F 34 mm P PT3/4 The terminal drawing includes both A and AB; the grommet drawing uses A and does not tabulate AB. D is a different span that includes the illustrated optional bracket arrangement. EB and EC are separate drawing dimensions. The two fluid ports are marked 2-P. Match the relevant drawing and connector orientation before installation. Catalog consistency note: The terminal drawing depicts A as a span that includes AB, but its table lists A = 78.5 mm and AB = 82 mm. These are the printed values and have not been altered. Because A is smaller than AB, do not use A as a verified overall length; obtain a confirmed manufacturer drawing for the supplied model before setting installation clearance. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2; the curves identify upstream pressure P1, with marked pressure values up to 1.0 MPa and the minimum working-pressure boundary Air chart flow axis Orifice Ø20 mm: Q in L/min (ANR); marked values 5000-20000, in steps of 5000 Water chart vertical axis Flow Q in L/min; logarithmic labels 30-500 Water chart horizontal axis Pressure differential ΔP = P1 - P2, 0.02-0.5 MPa The original flow charts are on 2W PDF page 4. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W150 (grommet), on PDF page 3. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Filter 3 Piston 4 Wear ring 5 O-ring 6 Cover 7 Screw 8 Spring 9 Spring 10 Screw 11 Fixed cap 12 Washer 13 Coil assembly 14 Washer 15 E-clip 16 Movable core 17 Fixed plate 18 O-ring 19 Airtight ring 20 Plug 21 Spring 22 Spacer Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S200LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Orifice / port combinations 150: 15 mm / 15 (1/2 in); 200: 20 mm / 20 (3/4 in); 250: 25 mm / 25 (1 in) Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $115.08

  View options

•

  View options

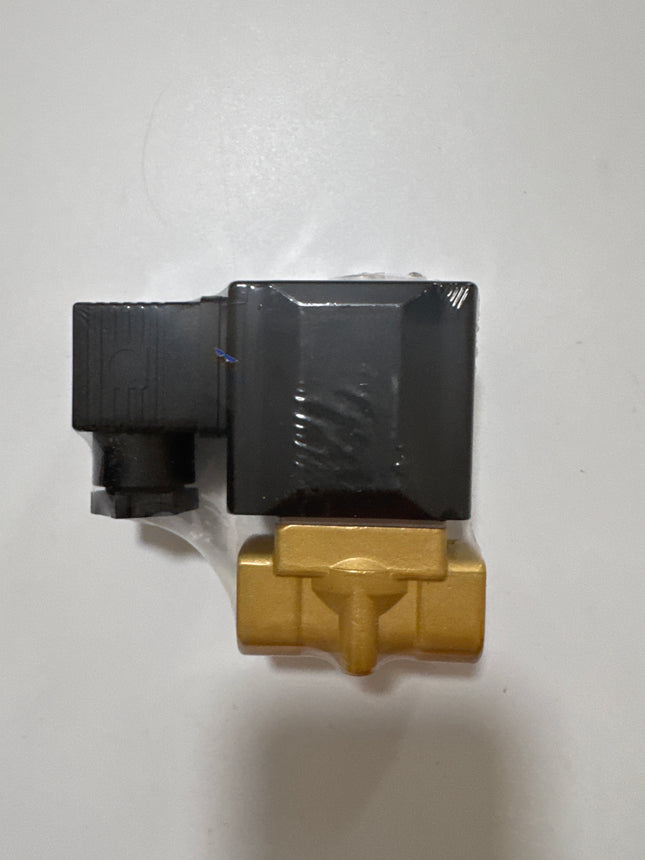

  Airtac 2W series: two-way fluid solenoid valve - 2WX05015B

  Specifications: 2WX05015B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the extra-high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WX05015B will be supplied as 2WAX05015B under our store's replacement policy. The technical information below documents the legacy 2WX05015B; use the new 2WA catalog for the supplied 2WAX05015B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. X Extra-high-pressure option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 15 1/2 in port size; selected thread: PT1/2. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/2 Orifice diameter 3 mm Flow coefficient Cv 0.34 Effective area / section 6.1 mm² Pressure differential 3 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 600 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 12 W Temperature rise on DC 40°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 87 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT1/2 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $70.97

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2W03008B

  Specifications: 2W03008B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/4 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W03008B will be supplied as 2WA03008B under our store's replacement policy. The technical information below documents the legacy 2W03008B; use the new 2WA catalog for the supplied 2WA03008B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: PT1/4. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/4 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 295 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $41.10

  View options

•

  View options

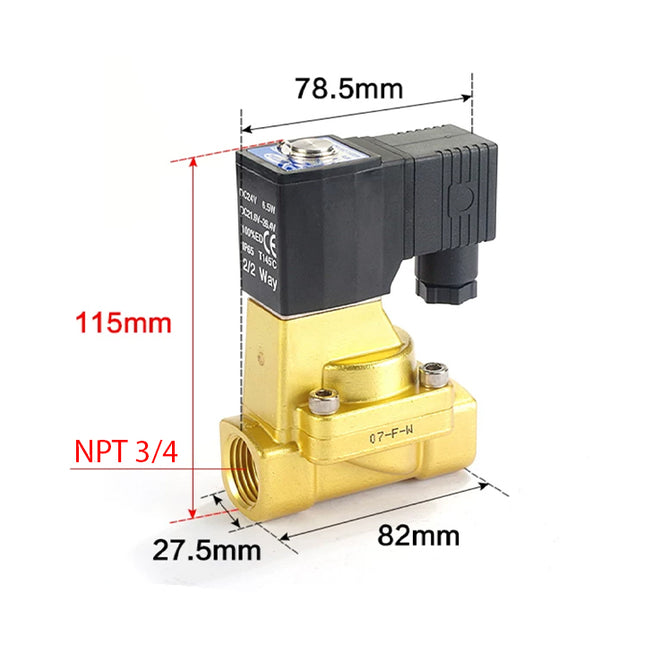

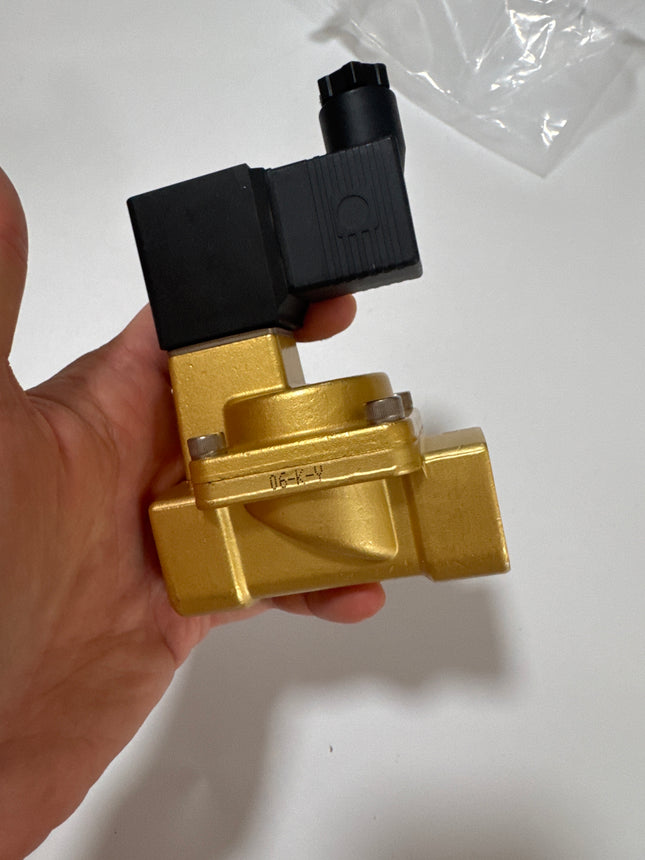

  Airtac 2W series: two-way fluid solenoid valve - 2W20020AT

  Specifications: 2W20020AT is an AirTAC 2W series internally piloted, normally closed 2/2-way fluid-control valve. It has NPT3/4 ports, a 20 mm orifice and a 220 V AC coil. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W20020AT will be supplied as 2WA20020AT under our store's replacement policy. The technical information below documents the legacy 2W20020AT; use the new 2WA catalog for the supplied 2WA20020AT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. 200 20 mm orifice; internally piloted configuration. 20 3/4 in port size; selected thread: NPT3/4. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 3 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Internally piloted Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT3/4 Orifice diameter 20 mm Flow coefficient Cv 9.5 Effective area / section 170 mm² Pressure differential 0.05-1.0 MPa operating pressure differential Proof pressure 1.5 MPa Catalog reference weight 950 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 150, 200 and 250 branches use internal pilot operation and specify a minimum operating pressure differential of 0.05 MPa. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 4. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 78.5 mm AB 82 mm B 53 mm BA 33.5 mm C 115.5 mm D 90 mm E 6.4 mm EA 8 mm EB 75 mm EC 40 mm F 34 mm P NPT3/4 The terminal drawing includes both A and AB; the grommet drawing uses A and does not tabulate AB. D is a different span that includes the illustrated optional bracket arrangement. EB and EC are separate drawing dimensions. The two fluid ports are marked 2-P. Match the relevant drawing and connector orientation before installation. Catalog consistency note: The terminal drawing depicts A as a span that includes AB, but its table lists A = 78.5 mm and AB = 82 mm. These are the printed values and have not been altered. Because A is smaller than AB, do not use A as a verified overall length; obtain a confirmed manufacturer drawing for the supplied model before setting installation clearance. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2; the curves identify upstream pressure P1, with marked pressure values up to 1.0 MPa and the minimum working-pressure boundary Air chart flow axis Orifice Ø20 mm: Q in L/min (ANR); marked values 5000-20000, in steps of 5000 Water chart vertical axis Flow Q in L/min; logarithmic labels 30-500 Water chart horizontal axis Pressure differential ΔP = P1 - P2, 0.02-0.5 MPa The original flow charts are on 2W PDF page 4. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W150 (grommet), on PDF page 3. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Filter 3 Piston 4 Wear ring 5 O-ring 6 Cover 7 Screw 8 Spring 9 Spring 10 Screw 11 Fixed cap 12 Washer 13 Coil assembly 14 Washer 15 E-clip 16 Movable core 17 Fixed plate 18 O-ring 19 Airtight ring 20 Plug 21 Spring 22 Spacer Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S200LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Orifice / port combinations 150: 15 mm / 15 (1/2 in); 200: 20 mm / 20 (3/4 in); 250: 25 mm / 25 (1 in) Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $115.08

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2W05015C

  Specifications: 2W05015C is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 5 mm orifice and a 110 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W05015C will be supplied as 2WA05015C under our store's replacement policy. The technical information below documents the legacy 2W05015C; use the new 2WA catalog for the supplied 2WA05015C. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 15 1/2 in port size; selected thread: PT1/2. C Coil supply: 110 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/2 Orifice diameter 5 mm Flow coefficient Cv 0.83 Effective area / section 15 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 600 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 110 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 25 VA 60 Hz power consumption 22 VA Temperature rise at 50 Hz 60°C Temperature rise at 60 Hz 55°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 87 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT1/2 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø5 mm: Q in L/min (ANR); marked values 200-1800, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $61.65

  View options

•

  View options

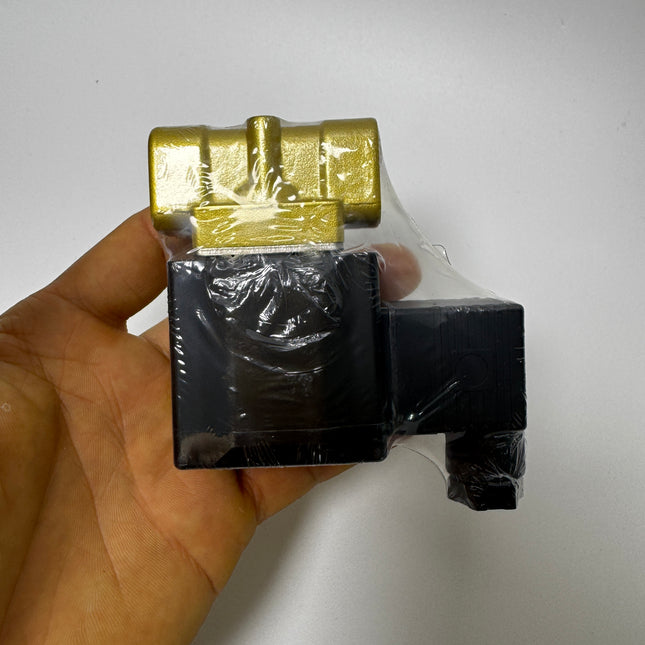

  Airtac 2W series: two-way fluid solenoid valve - 2WH05015B

  Specifications: 2WH05015B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 4 mm orifice and a 24 V DC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WH05015B will be supplied as 2WAH05015B under our store's replacement policy. The technical information below documents the legacy 2WH05015B; use the new 2WA catalog for the supplied 2WAH05015B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. H High-pressure option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 15 1/2 in port size; selected thread: PT1/2. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/2 Orifice diameter 4 mm Flow coefficient Cv 0.55 Effective area / section 10 mm² Pressure differential 2 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 600 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 12 W Temperature rise on DC 40°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 87 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT1/2 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø4 mm: Q in L/min (ANR); marked values 150-950, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $66.31

  View options

•

  View options

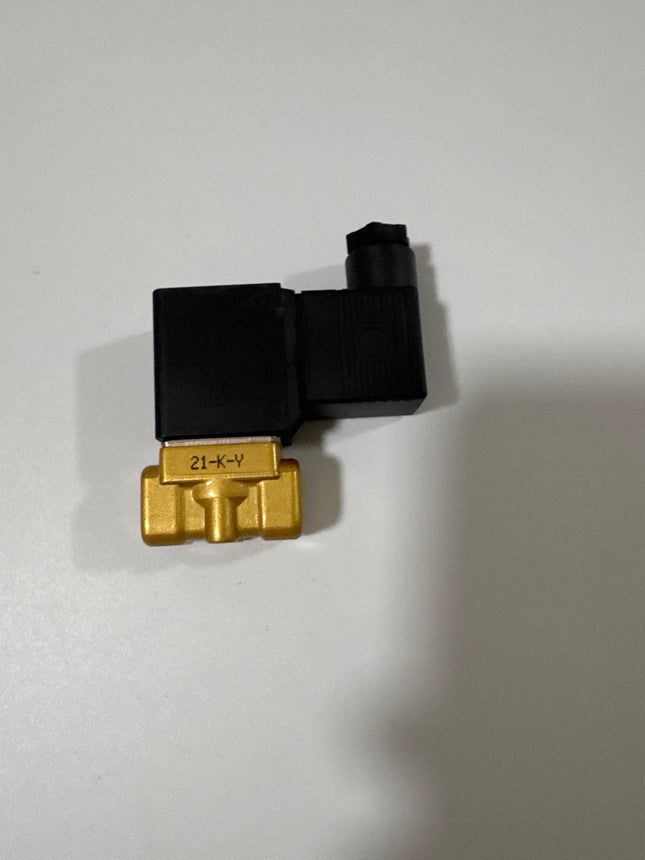

  Airtac 2W series: two-way fluid solenoid valve - 2W03006E

  Specifications: 2W03006E is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/8 ports, a 3 mm orifice and a 24 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W03006E will be supplied as 2WA03006E under our store's replacement policy. The technical information below documents the legacy 2W03006E; use the new 2WA catalog for the supplied 2WA03006E. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: PT1/8. E Coil supply: 24 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $41.10

  View options

•

  View options

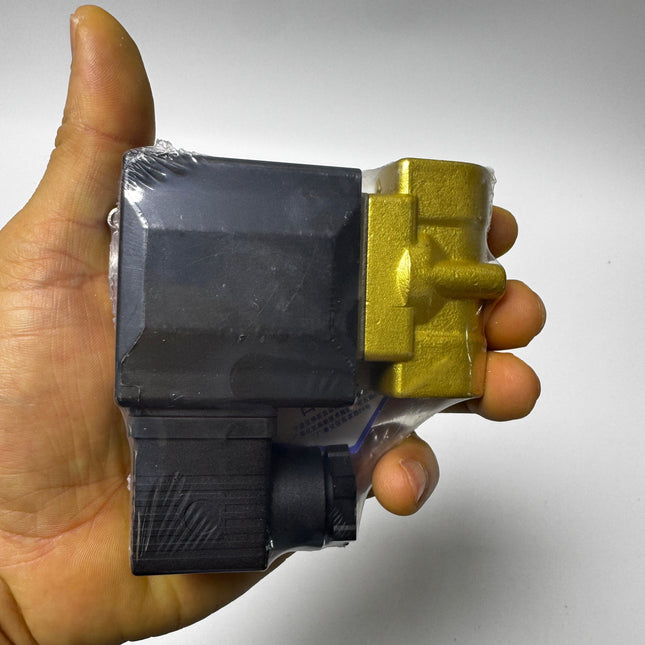

  Airtac 2W series: two-way fluid solenoid valve - 2W05010A

  Specifications: 2W05010A is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT3/8 ports, a 5 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W05010A will be supplied as 2WA05010A under our store's replacement policy. The technical information below documents the legacy 2W05010A; use the new 2WA catalog for the supplied 2WA05010A. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 10 3/8 in port size; selected thread: PT3/8. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT3/8 Orifice diameter 5 mm Flow coefficient Cv 0.83 Effective area / section 15 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 620 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 25 VA 60 Hz power consumption 22 VA Temperature rise at 50 Hz 60°C Temperature rise at 60 Hz 55°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 87 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT3/8 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø5 mm: Q in L/min (ANR); marked values 200-1800, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $61.65

  View options

•

  View options

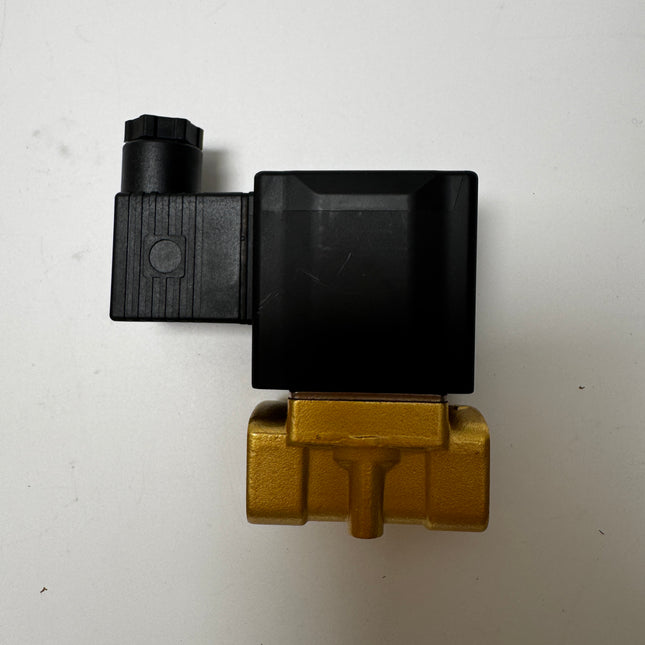

  Airtac 2W series: two-way fluid solenoid valve - 2WH05015C

  Specifications: 2WH05015C is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 4 mm orifice and a 110 V AC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WH05015C will be supplied as 2WAH05015C under our store's replacement policy. The technical information below documents the legacy 2WH05015C; use the new 2WA catalog for the supplied 2WAH05015C. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. H High-pressure option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 15 1/2 in port size; selected thread: PT1/2. C Coil supply: 110 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/2 Orifice diameter 4 mm Flow coefficient Cv 0.55 Effective area / section 10 mm² Pressure differential 2 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 600 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 110 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 25 VA 60 Hz power consumption 22 VA Temperature rise at 50 Hz 60°C Temperature rise at 60 Hz 55°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 87 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT1/2 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø4 mm: Q in L/min (ANR); marked values 150-950, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $66.31

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2W20020A

  Specifications: 2W20020A is an AirTAC 2W series internally piloted, normally closed 2/2-way fluid-control valve. It has PT3/4 ports, a 20 mm orifice and a 220 V AC coil. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W20020A will be supplied as 2WA20020A under our store's replacement policy. The technical information below documents the legacy 2W20020A; use the new 2WA catalog for the supplied 2WA20020A. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. 200 20 mm orifice; internally piloted configuration. 20 3/4 in port size; selected thread: PT3/4. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 3 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Internally piloted Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT3/4 Orifice diameter 20 mm Flow coefficient Cv 9.5 Effective area / section 170 mm² Pressure differential 0.05-1.0 MPa operating pressure differential Proof pressure 1.5 MPa Catalog reference weight 950 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 150, 200 and 250 branches use internal pilot operation and specify a minimum operating pressure differential of 0.05 MPa. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 4. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 78.5 mm AB 82 mm B 53 mm BA 33.5 mm C 115.5 mm D 90 mm E 6.4 mm EA 8 mm EB 75 mm EC 40 mm F 34 mm P PT3/4 The terminal drawing includes both A and AB; the grommet drawing uses A and does not tabulate AB. D is a different span that includes the illustrated optional bracket arrangement. EB and EC are separate drawing dimensions. The two fluid ports are marked 2-P. Match the relevant drawing and connector orientation before installation. Catalog consistency note: The terminal drawing depicts A as a span that includes AB, but its table lists A = 78.5 mm and AB = 82 mm. These are the printed values and have not been altered. Because A is smaller than AB, do not use A as a verified overall length; obtain a confirmed manufacturer drawing for the supplied model before setting installation clearance. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2; the curves identify upstream pressure P1, with marked pressure values up to 1.0 MPa and the minimum working-pressure boundary Air chart flow axis Orifice Ø20 mm: Q in L/min (ANR); marked values 5000-20000, in steps of 5000 Water chart vertical axis Flow Q in L/min; logarithmic labels 30-500 Water chart horizontal axis Pressure differential ΔP = P1 - P2, 0.02-0.5 MPa The original flow charts are on 2W PDF page 4. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W150 (grommet), on PDF page 3. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Filter 3 Piston 4 Wear ring 5 O-ring 6 Cover 7 Screw 8 Spring 9 Spring 10 Screw 11 Fixed cap 12 Washer 13 Coil assembly 14 Washer 15 E-clip 16 Movable core 17 Fixed plate 18 O-ring 19 Airtight ring 20 Plug 21 Spring 22 Spacer Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S200LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Orifice / port combinations 150: 15 mm / 15 (1/2 in); 200: 20 mm / 20 (3/4 in); 250: 25 mm / 25 (1 in) Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $115.08

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2W03008A

  Specifications: 2W03008A is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/4 ports, a 3 mm orifice and a 220 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W03008A will be supplied as 2WA03008A under our store's replacement policy. The technical information below documents the legacy 2W03008A; use the new 2WA catalog for the supplied 2WA03008A. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: PT1/4. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/4 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 295 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $41.10

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2W03008BIG

  Specifications: 2W03008BIG is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has G1/4 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The I code selects grommet electrical entry with a 0.5 m wire. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W03008BIG will be supplied as 2WA03008BIG under our store's replacement policy. The technical information below documents the legacy 2W03008BIG; use the new 2WA catalog for the supplied 2WA03008BIG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: G1/4. B Coil supply: 24 V DC. I Grommet electrical entry with a 0.5 m wire. G G thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/4 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 285 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight column describes terminal-entry valves. Its explicit grommet-entry footnote reduces that value by 10 g for this size, giving the 285 g reference above. Catalog weights are reference values, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CLA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Grommet; 0.5 m wire Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the grommet-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 41 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm G 10 mm K 5.3 mm KA 40 mm P G1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $42.20

  View options

•

  View options

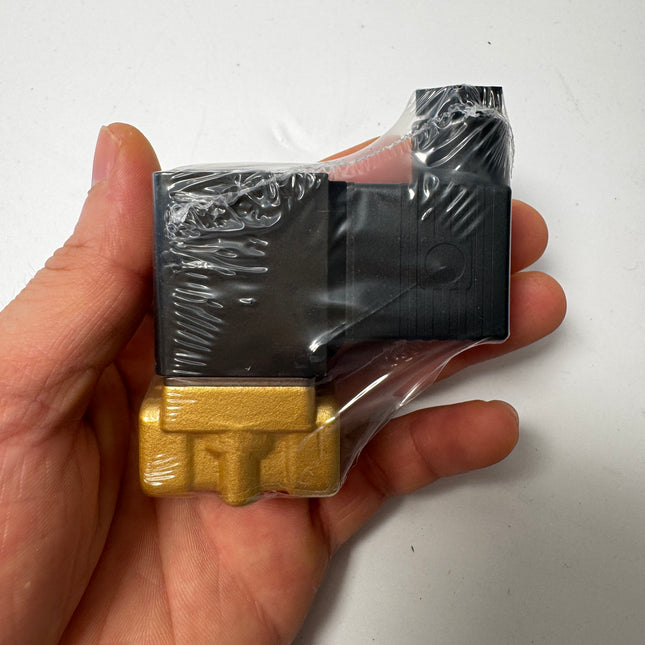

  Airtac 2W series: two-way fluid solenoid valve - 2WL03008A

  Specifications: 2WL03008A is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/4 ports, a 4 mm orifice and a 220 V AC coil. The pressure-condition code selects the large-flow configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WL03008A will be supplied as 2WAL03008A under our store's replacement policy. The technical information below documents the legacy 2WL03008A; use the new 2WA catalog for the supplied 2WAL03008A. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. L Large-flow option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: PT1/4. A Coil supply: 220 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/4 Orifice diameter 4 mm Flow coefficient Cv 0.55 Effective area / section 10 mm² Pressure differential 0.5 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 295 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø4 mm: Q in L/min (ANR); marked values 150-950, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $45.76

  View options

•

  View options

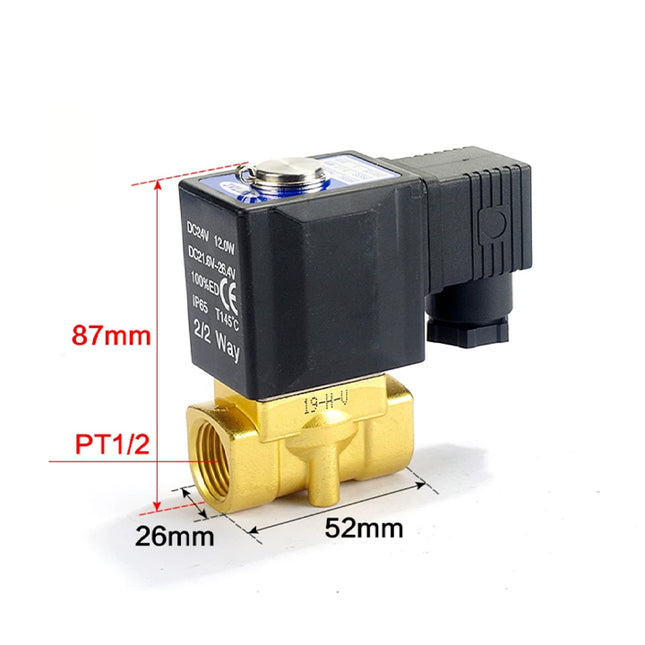

  Airtac 2W series: two-way fluid solenoid valve - 2W05015B

  Specifications: 2W05015B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 5 mm orifice and a 24 V DC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W05015B will be supplied as 2WA05015B under our store's replacement policy. The technical information below documents the legacy 2W05015B; use the new 2WA catalog for the supplied 2WA05015B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 050 050 size series; the pressure-condition code determines its orifice and flow data. 15 1/2 in port size; selected thread: PT1/2. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/2 Orifice diameter 5 mm Flow coefficient Cv 0.83 Effective area / section 15 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 600 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA170 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 12 W Temperature rise on DC 40°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 89.5 mm AB 52 mm B 39 mm C 87 mm D 26 mm E 56 mm F 51 mm G 10 mm K 5.3 mm KA 48 mm P PT1/2 PA 13 mm Q M5 QA 23 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø5 mm: Q in L/min (ANR); marked values 200-1800, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $61.65

  View options

•

  View options

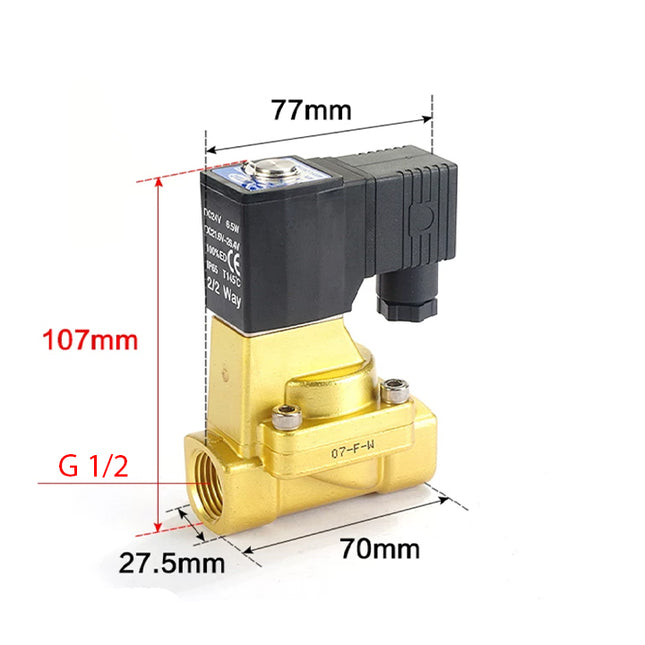

  Airtac 2W series: two-way fluid solenoid valve - 2W15015BG

  Specifications: 2W15015BG is an AirTAC 2W series internally piloted, normally closed 2/2-way fluid-control valve. It has G1/2 ports, a 15 mm orifice and a 24 V DC coil. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W15015BG will be supplied as 2WA15015BG under our store's replacement policy. The technical information below documents the legacy 2W15015BG; use the new 2WA catalog for the supplied 2WA15015BG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. 150 15 mm orifice; internally piloted configuration. 15 1/2 in port size; selected thread: G1/2. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. G G thread standard. Technical Specifications - 2W The following values are from 2W PDF page 3 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Internally piloted Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/2 Orifice diameter 15 mm Flow coefficient Cv 5.5 Effective area / section 100 mm² Pressure differential 0.05-1.0 MPa operating pressure differential Proof pressure 1.5 MPa Catalog reference weight 720 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 150, 200 and 250 branches use internal pilot operation and specify a minimum operating pressure differential of 0.05 MPa. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 4. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 77 mm AB 70 mm B 46 mm BA 27.5 mm C 107 mm D 80 mm E 6.4 mm EA 8 mm EB 65 mm EC 36.5 mm F 30.5 mm P G1/2 The terminal drawing includes both A and AB; the grommet drawing uses A and does not tabulate AB. D is a different span that includes the illustrated optional bracket arrangement. EB and EC are separate drawing dimensions. The two fluid ports are marked 2-P. Match the relevant drawing and connector orientation before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2; the curves identify upstream pressure P1, with marked pressure values up to 1.0 MPa and the minimum working-pressure boundary Air chart flow axis Orifice Ø15 mm: Q in L/min (ANR); marked values 2000-10000, in steps of 2000 Water chart vertical axis Flow Q in L/min; logarithmic labels 30-500 Water chart horizontal axis Pressure differential ΔP = P1 - P2, 0.02-0.5 MPa The original flow charts are on 2W PDF page 4. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W150 (grommet), on PDF page 3. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Filter 3 Piston 4 Wear ring 5 O-ring 6 Cover 7 Screw 8 Spring 9 Spring 10 Screw 11 Fixed cap 12 Washer 13 Coil assembly 14 Washer 15 E-clip 16 Movable core 17 Fixed plate 18 O-ring 19 Airtight ring 20 Plug 21 Spring 22 Spacer Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 196). That shared ordering table identifies F-2S150LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Orifice / port combinations 150: 15 mm / 15 (1/2 in); 200: 20 mm / 20 (3/4 in); 250: 25 mm / 25 (1 in) Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $91.52

  View options

•

  View options

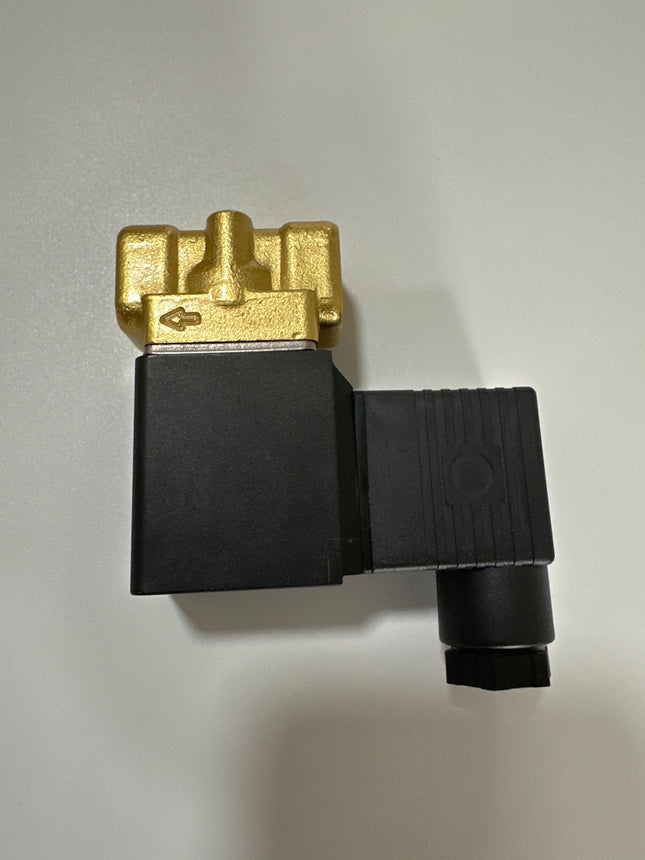

  Airtac 2W series: two-way fluid solenoid valve - 2W03006CT

  Specifications: 2W03006CT is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has NPT1/8 ports, a 3 mm orifice and a 110 V AC coil. The pressure-condition code selects the standard configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W03006CT will be supplied as 2WA03006CT under our store's replacement policy. The technical information below documents the legacy 2W03006CT; use the new 2WA catalog for the supplied 2WA03006CT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: NPT1/8. C Coil supply: 110 V AC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/8 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 110 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P NPT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $41.10

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2W03008EIG

  Specifications: 2W03008EIG is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has G1/4 ports, a 3 mm orifice and a 24 V AC coil. The pressure-condition code selects the standard configuration. The I code selects grommet electrical entry with a 0.5 m wire. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2W03008EIG will be supplied as 2WA03008EIG under our store's replacement policy. The technical information below documents the legacy 2W03008EIG; use the new 2WA catalog for the supplied 2WA03008EIG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. (blank pressure code) Standard option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: G1/4. E Coil supply: 24 V AC. I Grommet electrical entry with a 0.5 m wire. G G thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/4 Orifice diameter 3 mm Flow coefficient Cv 0.33 Effective area / section 6 mm² Pressure differential 1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 285 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight column describes terminal-entry valves. Its explicit grommet-entry footnote reduces that value by 10 g for this size, giving the 285 g reference above. Catalog weights are reference values, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CLA116 Rated voltage 24 V AC Voltage tolerance ±15% for AC Electrical entry Grommet; 0.5 m wire Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the grommet-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 41 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm G 10 mm K 5.3 mm KA 40 mm P G1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $42.20

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2WH03006BG

  Specifications: 2WH03006BG is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has G1/8 ports, a 2 mm orifice and a 24 V DC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WH03006BG will be supplied as 2WAH03006BG under our store's replacement policy. The technical information below documents the legacy 2WH03006BG; use the new 2WA catalog for the supplied 2WAH03006BG. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: G1/8. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. G G thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread G1/8 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 2 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P G1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $45.76

  View options

•

  View options

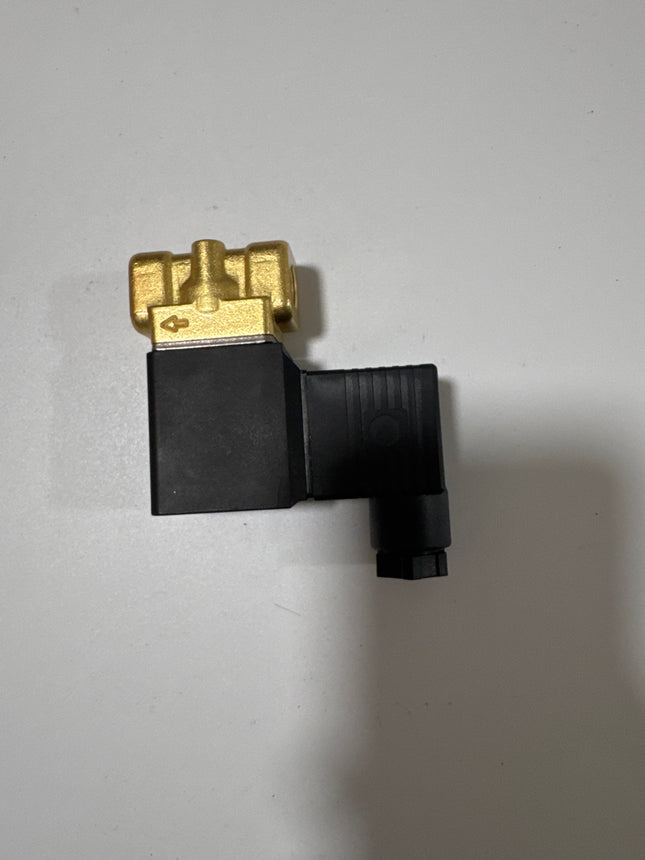

  Airtac 2W series: two-way fluid solenoid valve - 2WH03006FT

  Specifications: 2WH03006FT is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has NPT1/8 ports, a 2 mm orifice and a 12 V DC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WH03006FT will be supplied as 2WAH03006FT under our store's replacement policy. The technical information below documents the legacy 2WH03006FT; use the new 2WA catalog for the supplied 2WAH03006FT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: NPT1/8. F Coil supply: 12 V DC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/8 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 2 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 12 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P NPT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $45.76

  View options

•

  View options

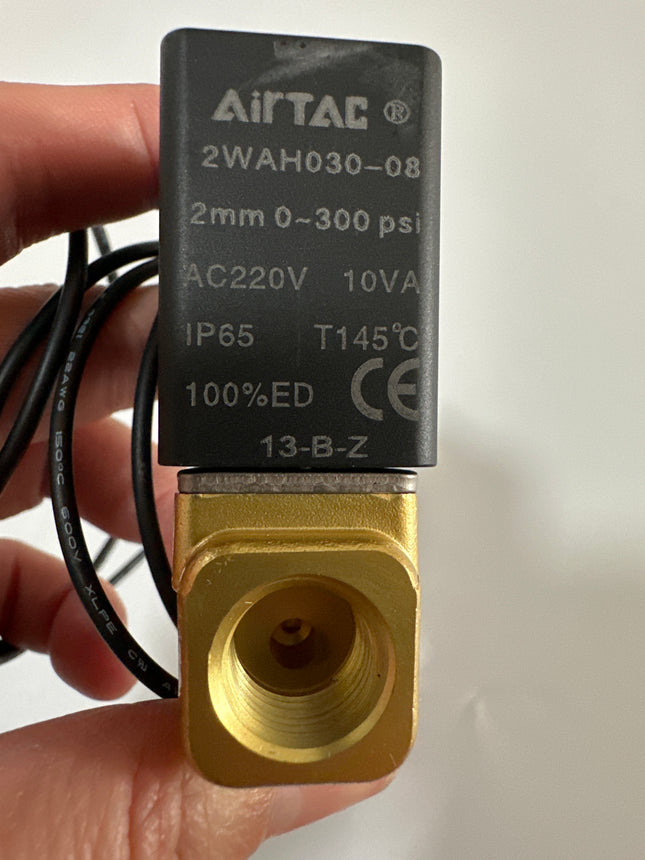

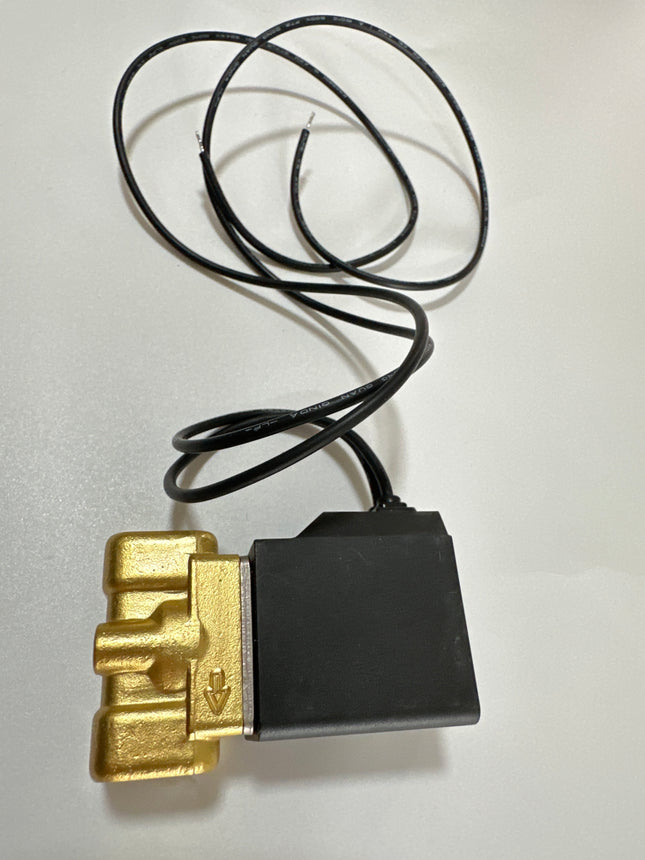

  Airtac 2W series: two-way fluid solenoid valve - 2WH03008AIT

  Specifications: 2WH03008AIT is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has NPT1/4 ports, a 2 mm orifice and a 220 V AC coil. The pressure-condition code selects the high-pressure configuration. The I code selects grommet electrical entry with a 0.5 m wire. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WH03008AIT will be supplied as 2WAH03008AIT under our store's replacement policy. The technical information below documents the legacy 2WH03008AIT; use the new 2WA catalog for the supplied 2WAH03008AIT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: NPT1/4. A Coil supply: 220 V AC. I Grommet electrical entry with a 0.5 m wire. T NPT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/4 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 2 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 285 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight column describes terminal-entry valves. Its explicit grommet-entry footnote reduces that value by 10 g for this size, giving the 285 g reference above. Catalog weights are reference values, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CLA116 Rated voltage 220 V AC Voltage tolerance ±15% for AC Electrical entry Grommet; 0.5 m wire Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the grommet-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 41 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm G 10 mm K 5.3 mm KA 40 mm P NPT1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $45.76

  View options

•

  View options

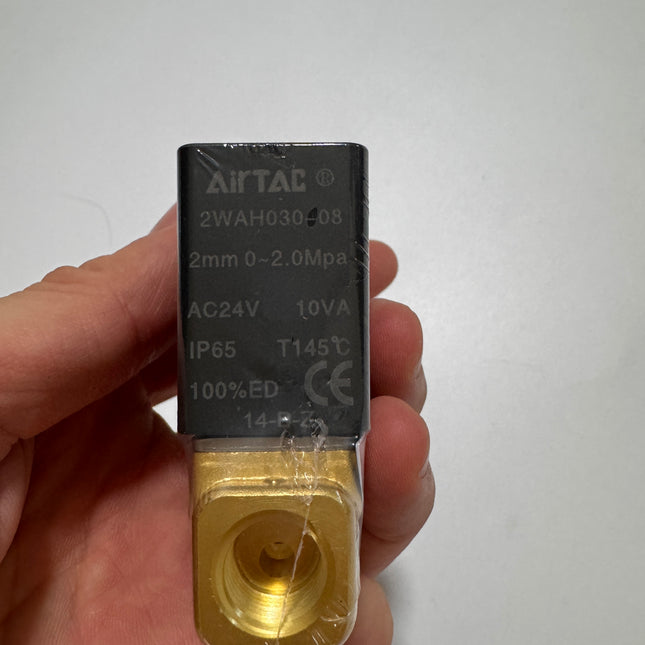

  Airtac 2W series: two-way fluid solenoid valve - 2WH03008E

  Specifications: 2WH03008E is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/4 ports, a 2 mm orifice and a 24 V AC coil. The pressure-condition code selects the high-pressure configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WH03008E will be supplied as 2WAH03008E under our store's replacement policy. The technical information below documents the legacy 2WH03008E; use the new 2WA catalog for the supplied 2WAH03008E. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. H High-pressure option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: PT1/4. E Coil supply: 24 V AC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/4 Orifice diameter 2 mm Flow coefficient Cv 0.18 Effective area / section 3 mm² Pressure differential 2 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 295 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V AC Voltage tolerance ±15% for AC Electrical entry Terminal Protection class IP65 50 Hz power consumption 10 VA 60 Hz power consumption 8 VA Temperature rise at 50 Hz 35°C Temperature rise at 60 Hz 30°C Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø2 mm: Q in L/min (ANR); marked values 40-300 (marked 40, 80, 120, 160, 200, 250, 300) Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $45.76

  View options

•

  View options

  Airtac 2W series: two-way fluid solenoid valve - 2WL03008B

  Specifications: 2WL03008B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/4 ports, a 4 mm orifice and a 24 V DC coil. The pressure-condition code selects the large-flow configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WL03008B will be supplied as 2WAL03008B under our store's replacement policy. The technical information below documents the legacy 2WL03008B; use the new 2WA catalog for the supplied 2WAL03008B. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. L Large-flow option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 08 1/4 in port size; selected thread: PT1/4. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. (blank thread suffix) PT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread PT1/4 Orifice diameter 4 mm Flow coefficient Cv 0.55 Effective area / section 10 mm² Pressure differential 0.5 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 295 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P PT1/4 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø4 mm: Q in L/min (ANR); marked values 150-950, in steps of 200 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $45.76

  View options

•

  View options

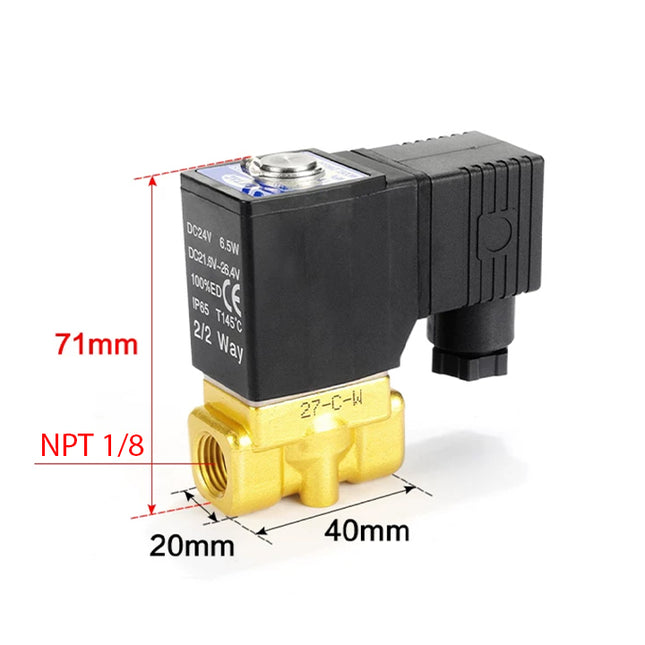

  Airtac 2W series: two-way fluid solenoid valve - 2WT03006BT

  Specifications: 2WT03006BT is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has NPT1/8 ports, a 6 mm orifice and a 24 V DC coil. The pressure-condition code selects the extra-large-flow configuration. The blank electrical-entry code selects the terminal version. Product Catalogs Download Legacy 2W Catalog (PDF) Download New 2WA Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Legacy-to-New Model and Ordering Information Orders placed for legacy 2WT03006BT will be supplied as 2WAT03006BT under our store's replacement policy. The technical information below documents the legacy 2WT03006BT; use the new 2WA catalog for the supplied 2WAT03006BT. Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils. 2W vs 2WA: Length, Dimensions and Replacement Guide Model Code Explained Code Meaning for this model 2W 2W series 2/2-way fluid-control valve; normally closed. T Extra-large-flow option. 030 030 size series; the pressure-condition code determines its orifice and flow data. 06 1/8 in port size; selected thread: NPT1/8. B Coil supply: 24 V DC. (blank entry code) Terminal electrical entry. T NPT thread standard. Technical Specifications - 2W The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value. Parameter Details Valve function 2/2-way: two ports and two operating positions Actuation Direct acting Initial state Normally closed Media Air, water and oil Body material Brass Standard seal material FPM-F; contact the supplier if another seal material is required Viscosity limit Below 20 cSt Port thread NPT1/8 Orifice diameter 6 mm Flow coefficient Cv 1.1 Effective area / section 12 mm² Pressure differential 0.1 MPa maximum operating pressure differential Proof pressure 5.0 MPa Catalog reference weight 305 g Water temperature 1 to 80°C Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition Ambient temperature -20 to 70°C The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item. The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection. Electrical Specifications Parameter Details Coil designation for this entry CDA116 Rated voltage 24 V DC Voltage tolerance ±10% for DC Electrical entry Terminal Protection class IP65 DC power consumption 6.5 W Temperature rise on DC 30°C Supply frequency Not applicable to DC Insulation class Class B Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply. Features and Operation This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction. The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling. Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire. The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing. External and Mounting Dimensions These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height. Drawing letter Dimension / specification A 72.5 mm AB 40 mm B 29.5 mm C 71 mm D 20 mm E 49 mm F 43.5 mm G 10 mm K 5.3 mm KA 40 mm P NPT1/8 PA 10 mm Q M5 QA 16 mm The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions Air chart flow axis Orifice Ø6 mm: Q in L/min (ANR); marked values 250, 500 and 750 Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50 Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6 The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area. Internal Components - Catalog Reference The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly. Drawing number Component 1 Body 2 Airtight ring 3 Spring 4 Fixed cap 5 O-ring 6 Fixed plate 7 Movable core 8 Coil assembly 9 E-clip 10 Gasket 11 Connector 12 Washer 13 Screw 14 Filter Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration. Mounting Accessory Reference The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S030LB for this size. The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name. Series Ordering Options These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection. Ordering category Available catalog options Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in) Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire Thread suffix Blank = PT; G = G thread; T = NPT

  Read more less

  $45.76

  View options
