Valve Product Information

Valve

Product Features
Specifications
Product Ordering Code

Product Features

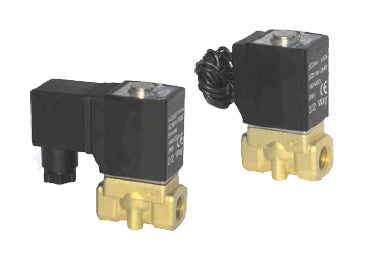

Direct-acting two-position, two-way solenoid valve with fast and sensitive action.
Wide operating pressure range, with options for ultra-high pressure (X), high pressure (H), standard, large flow (L), and extra large flow (T).
Compact, small, lightweight, and easy to assemble and disassemble.
The valve body is made of brass; the coil has a heat resistance classification of Grade B. The standard seal material is FPM-F (Viton), suitable for various working media. For other seal materials, please consult our company's technical department.
The coil protection class is IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	Max. Operating Pressure		Max. Proof Pressure
Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	MPa	psi	MPa	psi

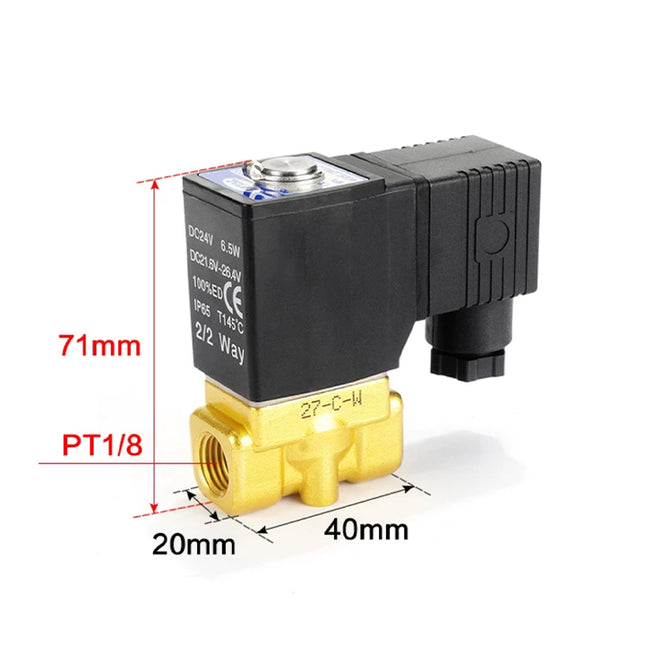

2WX030	-06 PT1/8	1.5	0.10	1.8	305	3.0	450	5.0	750
2WX030	-08 PT1/4	1.5	0.10	1.8	295	3.0	450
2WH030	-06 PT1/8	2.0	0.18	3.0	305	2.0	300
2WH030	-08 PT1/4	2.0	0.18	3.0	295	2.0	300
2W030	-06 PT1/8	3.0	0.33	6.0	305	1.0	150
2W030	-08 PT1/4	3.0	0.33	6.0	295	1.0	150
2WL030	-06 PT1/8	4.0	0.55	10.0	305	0.5	75
2WL030	-08 PT1/4	4.0	0.55	10.0	295	0.5	75
2WT030	-06 PT1/8	6.0	1.10	12.0	305	0.1	15
2WT030	-08 PT1/4	6.0	1.10	12.0	295	0.1	15
2WX050	-10 PT3/8	3.0	0.34	6.1	620	3.0	450
2WX050	-15 PT1/2	3.0	0.34	6.1	600	3.0	450
2WH050	-10 PT3/8	4.0	0.55	10.0	620	2.0	300
2WH050	-15 PT1/2	4.0	0.55	10.0	600	2.0	300
2W050	-10 PT3/8	5.0	0.83	15.0	620	1.0	150
2W050	-15 PT1/2	5.0	0.83	15.0	600	1.0	150
2WL050	-10 PT3/8	7.0	1.40	25.0	620	0.5	75
2WL050	-15 PT1/2	7.0	1.40	25.0	600	0.5	75
2WT050	-10 PT3/8	10.0	2.20	40.0	620	0.1	15
2WT050	-15 PT1/2	10.0	2.20	40.0	600	0.1	15

Note 1: G and NPT thread types are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2W030 series is 10g lighter, and for the 2W050 series, it is 20g lighter.

Product Ordering Code

Position	Description	Options & Values
1	Model Code	2W: 2/2 Way Solenoid Valve
2	Pressure Type	X: Ultra-high Pressure H: High Pressure Blank: Standard Type L: Large Flow T: Extra Large Flow
3	Series Code	030: 030 Series 050: 050 Series
4	Port Size	06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2"
5	Coil Voltage	A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V
6	Connection Type	Blank: DIN connector type I: Lead wire type [Note 1]
7	Thread Code	Blank: PT thread G: G thread T: NPT thread

Note 1: The standard length for the lead wire type is 0.5m.

Show previous products

View options

Airtac 2W050-10: 2 Way Solenoid Valve - 2W05010FT

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: Standard Series: 050 series Nozzle caliber: 3/8" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$60.75

View options
View options

Airtac 2W050-15: 2 Way Solenoid Valve - 2W05015B

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: Standard Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$60.75

View options
View options

Airtac 2W050-15: 2 Way Solenoid Valve - 2W05015BG

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: Standard Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$60.75

View options
View options

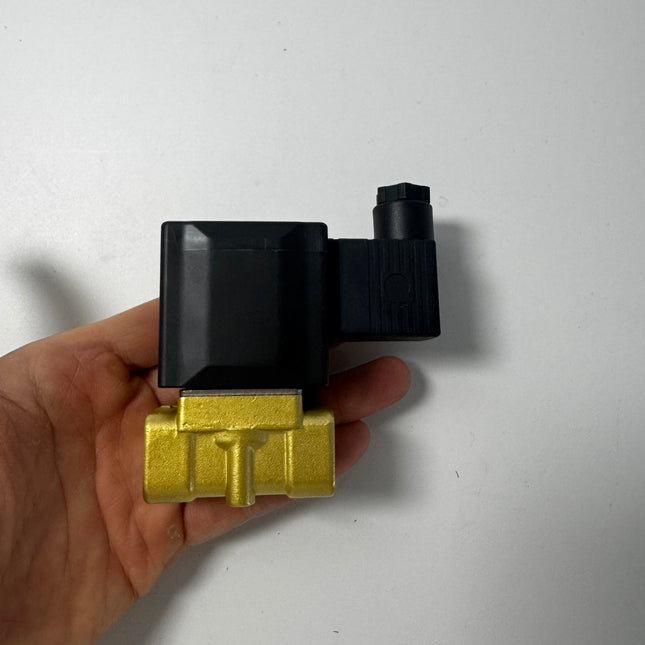

Airtac 2W050-15: 2 Way Solenoid Valve - 2W05015FT

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: Standard Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$60.75

View options
View options

Airtac 2WH050-15: 2 Way Solenoid Valve - 2WH05015CT

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$65.34

View options
View options

Airtac 2WL050-15: 2 Way Solenoid Valve - 2WL05015A

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: large flow type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$65.34

View options
View options

Airtac 2WT050-15: 2 Way Solenoid Valve - 2WT05015A

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: extra large flow type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$65.34

View options
View options

Airtac 2WT050-15: 2 Way Solenoid Valve - 2WT05015AG

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: extra large flow type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$65.34

View options
View options

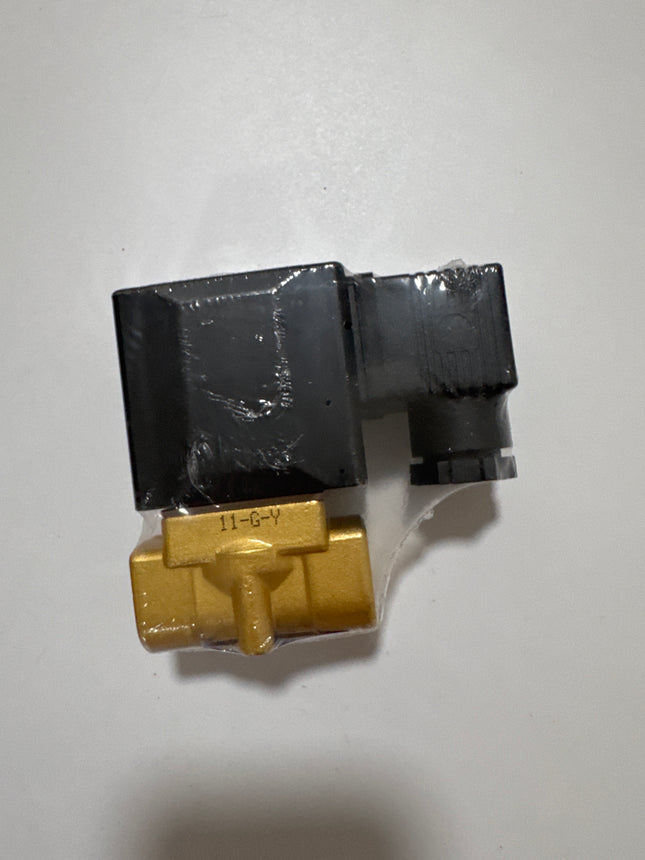

Airtac 2WX050-10: 2 Way Solenoid Valve - 2WX05010B

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: ultra-high pressure type Series: 050 series Nozzle caliber: 3/8" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$65.34

View options
View options

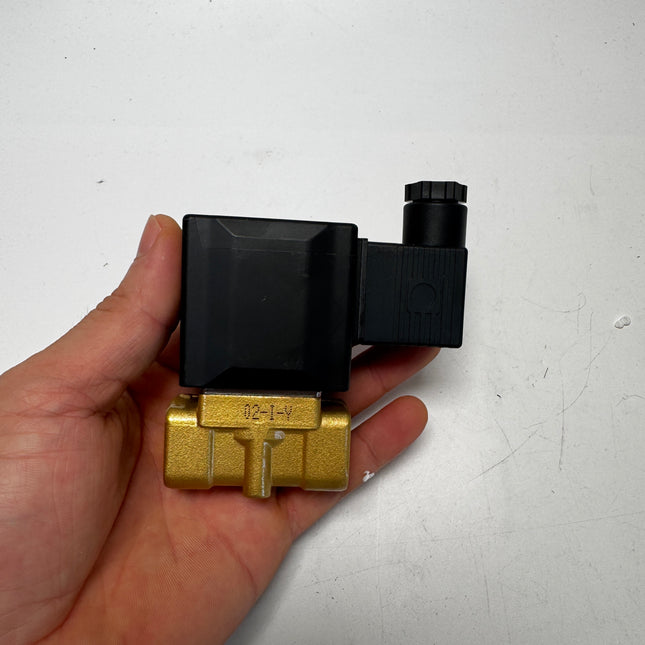

Airtac 2WX050-15: 2 Way Solenoid Valve - 2WX05015AG

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: ultra-high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$69.93

View options
View options

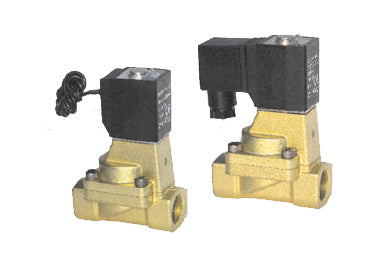

Airtac 2W150: 2 Way Solenoid Valve - 2W15015A

Specifications: 2 port two pilot normally closed solenoid valve Nominal diameter: ø15mm Nozzle caliber: 1/2" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$90.18

View options
View options

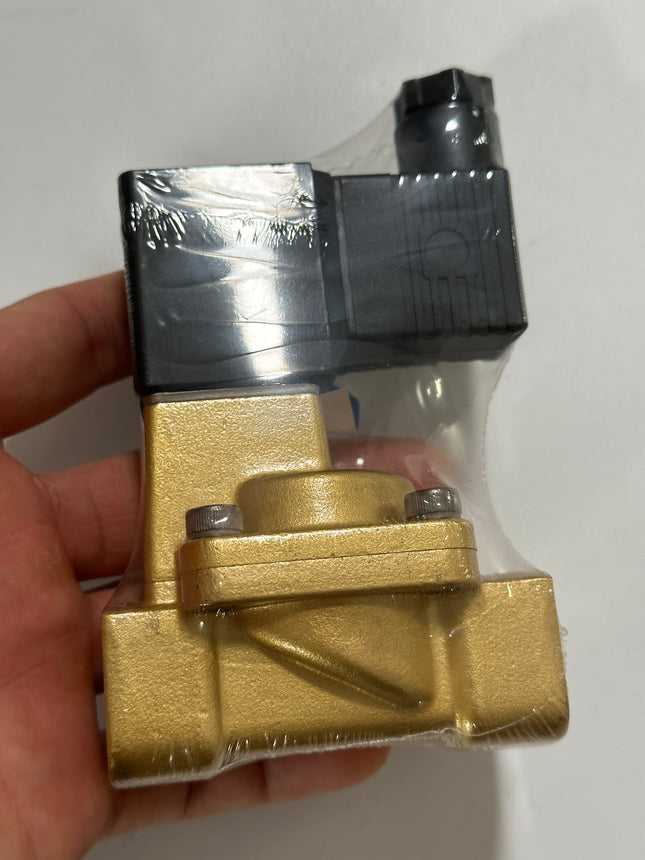

Airtac 2W150: 2 Way Solenoid Valve - 2W15015E

Specifications: 2 port two pilot normally closed solenoid valve Nominal diameter: ø15mm Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$90.18

View options
View options

Airtac 2W200-20: 2 Way Solenoid Valve - 2W20020AI

Specifications: 2 port two pilot normally closed solenoid valve Nominal diameter: ø20mm Nozzle caliber: 3/4" Coil voltage: AC220V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$113.40

View options
View options

Airtac 2W250-25: 2 Way Solenoid Valve - 2W25025BIG

Specifications: 2 port two pilot normally closed solenoid valve Nominal diameter: ø25mm Nozzle caliber: 1" Coil voltage: DC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$140.54

View options
View options

Airtac 2W250-25: 2 Way Solenoid Valve - 2W25025B

Specifications: 2 port two pilot normally closed solenoid valve Nominal diameter: ø25mm Nozzle caliber: 1" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$140.54

View options
View options

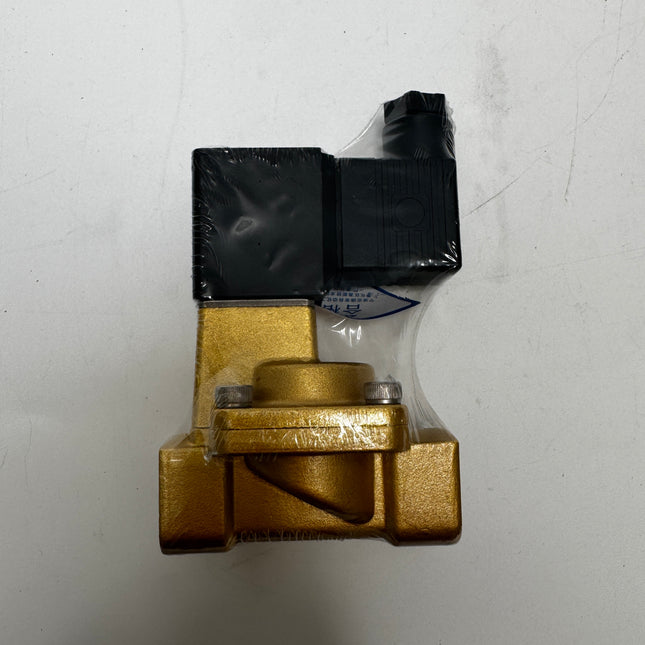

Airtac 2W150: 2 Way Solenoid Valve - 2W15015B

Specifications: 2 port two pilot normally closed solenoid valve Nominal diameter: ø15mm Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$90.18

View options
View options

Airtac Mounting Accessory - F-2W250LB

Accessories: installation accessories Valve body series: 250 series valve body Accessory category: LB type mounting frame Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$5.13

View options
View options

Airtac Mounting Accessory - F-2W200LB

Accessories: installation accessories Valve body series: 200 series valve body Accessory category: LB type mounting frame Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$4.59

View options
View options

Airtac Mounting Accessory - F-2W150LB

Accessories: installation accessories Valve body series: 150 series valve body Accessory category: LB type mounting frame Click to download Airtac product catalog Product Features 1. Indirect action (internal pilot) normally closed two-position two-way solenoid valve. Fast reversing, large flow. 2. Compact structure. Small size. Light weight, installation. Easy to disassemble; 3. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 4. The protection grade is IP65, and the grommet or terminal electrical entrance can be selected. The Airtac 2W150-250 valve series is a functional replacement for the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$4.05

View options
View options

Airtac Mounting Accessory - F-2W050LB

Accessories: installation accessories Valve body series: 050 series valve body Accessory category: LB type mounting frame Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$3.38

View options
View options

Airtac Mounting Accessory - F-2W030LB

Accessories: installation accessories Valve body series: 030 series valve body Accessory category: LB type mounting frame Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$2.84

View options
View options

Airtac 2W030-06: 2 Way Solenoid Valve - 2W03006A

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: Standard Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$40.50

View options
View options

Airtac 2W030-06: 2 Way Solenoid Valve - 2W03006AG

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: Standard Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$40.50

View options
View options

Airtac 2W030-06: 2 Way Solenoid Valve - 2W03006AI

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: Standard Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2W valve series is a functional alternative to the SMC VXE2 series. The Airtac 2W series has been updated to the Airtac 2WA series.

Read more less

$41.58

View options
