AirTAC Compact Cylinder Series

ACQ (Standard / Long / Large) & TACQ (Guide Rod)
  • Product Introduction
  • ACQ Standard
  • ACQ Long Stroke
  • ACQ Large Bore
  • TACQ Guide Rod
  • Ordering Codes

Series Overview

The AirTAC ACQ/TACQ Series represents a comprehensive line of compact pneumatic cylinders meticulously designed for space-saving applications without compromising on output force or performance. Conforming to JIS standards, this versatile family of cylinders is engineered to meet diverse automation needs.

  • Space Efficiency: The ultra-compact body utilizes a C-clip fastening mechanism and a riveted piston structure, significantly reducing the overall length compared to standard cylinders.
  • Exceptional Durability: The internal cylinder bore undergoes a hard anodizing process, providing excellent wear resistance and extending the product's operational lifespan.
  • Versatile Configurations: The series spans from standard compact units (12-100mm bores) to long stroke variants, heavy-duty large bore versions (125-160mm), and the specialized TACQ series which integrates double guide rods for superior anti-rotation accuracy.
  • Convenience: Built-in sensor mounting slots on the periphery of the cylinder body allow for quick and seamless installation of magnetic switches.

Whether your application requires precise guiding, high-force pushing, or integration into a severely space-restricted environment, the ACQ/TACQ series offers a reliable and efficient solution.

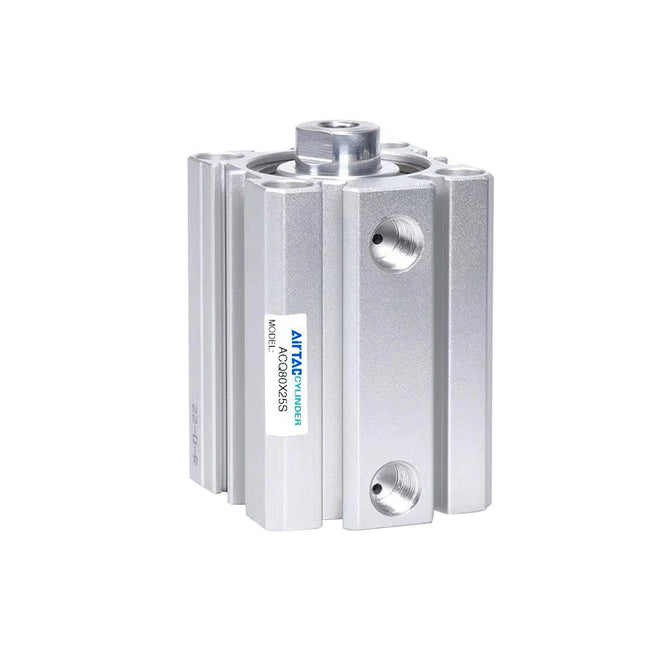

1. ACQ Standard Series (Bore 12-100)

The standard compact cylinder series conforming to JIS standards.

Product Features

  • Compact & Reliable: Cylinder body and covers fixed with C-clips; riveted piston structure saves space.
  • Durability: Hard anodized internal bore for exceptional wear resistance.
  • Easy Installation: Sensor slots on the body periphery for convenient mounting.

Specifications

Item Parameters
Bore Size (mm) 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Action Type Double Acting, Single Acting (Push/Pull)
Fluid Air (Filtered 40μm)
Pressure Double: 0.15~1.0 MPa | Single: 0.2~1.0 MPa
Speed 30 ~ 500 mm/s
Cushion Bumper (Rubber Cushion)
Port Size M5 (12-25), PT1/8 (32-40), PT1/4 (50-63), PT3/8 (80-100)

Standard Stroke Table

Bore (mm) Standard Strokes (mm) Max Stroke
12, 16 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 50
20, 25 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 60
32~100 5, 10, 15... 75, 80, 90, 100 100

2. ACQ Long Stroke Series

Designed for applications requiring longer travel distances than the standard series.

Product Features

  • Extended Reach: Supports strokes up to 300mm while maintaining the compact C-clip structure.
  • Structure: Similar to standard ACQ but optimized for longer travel stability.

Specifications & Strokes

Item Parameters
Bore Size (mm) 32, 40, 50, 63, 80, 100
Action Type Double Acting Only
Pressure 0.15 ~ 1.0 MPa (22 ~ 145 psi)
Speed 30 ~ 500 mm/s
Long Strokes (mm) 125, 150, 175, 200, 250, 300 (Max: 300)

3. ACQ Large Bore Series (125-160)

Heavy-duty compact cylinders for high force applications.

Product Features

  • High Output: Large diameters (125-160mm) provide significant pushing/pulling force.
  • Robust: Uses C-clip fixing for secure assembly under high loads.
  • Sealing: Heterogeneous two-way piston seal with oil storage function for longevity.

Specifications & Strokes

Item Parameters
Bore Size (mm) 125, 140, 160
Action Type Double Acting
Pressure 0.15 ~ 1.0 MPa
Port Size PT3/8
Standard Strokes 10, 20, 30... 100, 125, 150, 175, 200, 250, 300

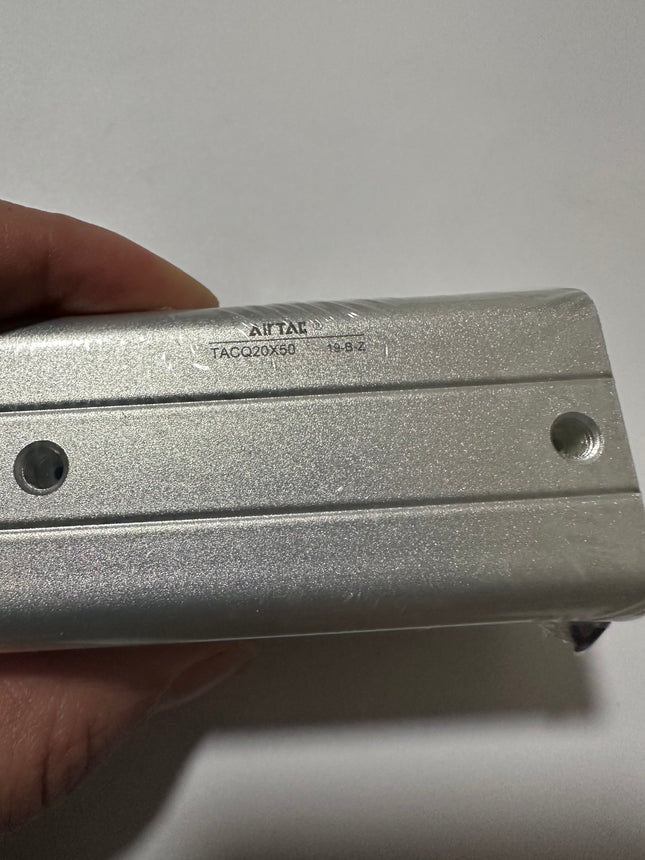

4. TACQ Guide Rod Series

Anti-rotation compact cylinder with integrated guide rods.

Product Features

  • Double Guide Rods: Provides excellent anti-rotation accuracy and lateral load resistance.
  • High Accuracy: Non-rotation tolerance ±0.2° (Bore 12-16) to ±0.15° (Bore 20-100).
  • Space Saving: Integrates guiding function directly into the cylinder body, eliminating the need for external guide rails.

Specifications

Item Parameters
Bore Size (mm) 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Action Type Double Acting
Non-rotation ±0.2° (12-16mm), ±0.15° (20-100mm)
Pressure 0.15 ~ 1.0 MPa

Stroke Table

Bore (mm) Intermediate Strokes Max Stroke (mm)
12, 16 5, 10, 15, 20, 25, 30 30
20, 25 5, 10... 45, 50 50
32 ~ 100 5, 10... 75, 100 100

Product Ordering Codes

1. ACQ Series Ordering (Standard / Long / Large)

Example: ACQ 50 x 30 S B
No. Item Options / Description
1 Model ACQ: Double Acting
ASQ: Single Acting (Push)
ATQ: Single Acting (Pull)
ACQD: Double Shaft
ACQJ: Adjustable Stroke
2 Bore Size 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
125, 140, 160 (Large Bore)
3 Stroke Refer to respective Stroke Tables
4 Adjustable Range Blank: Standard
10, 20...: Adjustable Range (For ACQJ only)
5 Magnet Blank: No Magnet
S: With Magnet
6 Rod Thread Blank: Female Thread (Standard)
B: Male Thread
7 Mounting Blank: None
FA/FB: Flange
CB: Double Ear
LB: Axial Foot
8 Thread Type Blank: PT
G: G Thread
T: NPT

2. TACQ Series Ordering (Guide Rod)

Example: TACQ 50 x 30 S
No. Item Options / Description
1 Model TACQ: Guide Rod Compact Cylinder
2 Bore Size 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
3 Stroke Refer to TACQ Stroke Table
4 Magnet Blank: No Magnet
S: With Magnet
5 Thread Type Blank: PT
G: G Thread
T: NPT
  • Airtac ACQ series: double acting cylinder - ACQ160X125S Airtac ACQ series: double acting cylinder - ACQ160X125S - 2

    View options

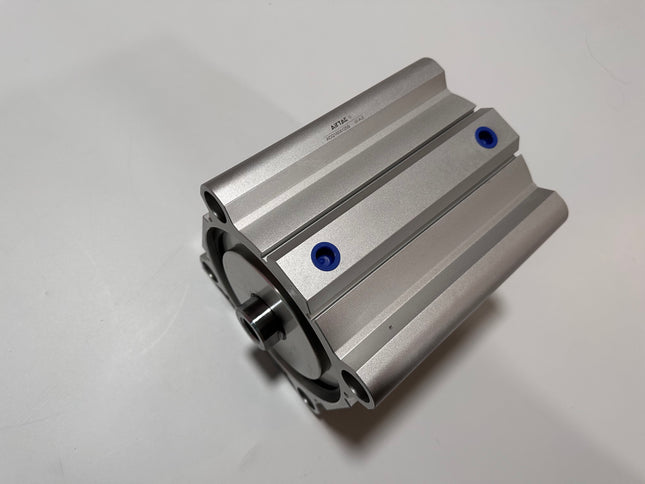

    Airtac ACQ series: double-acting compact cylinder - ACQ160X125S

    Specifications: ACQ160X125S is an AirTAC double-acting cylinder with a 160 mm bore, 125 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X125 125 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 125 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 10262.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $843.40

    View options

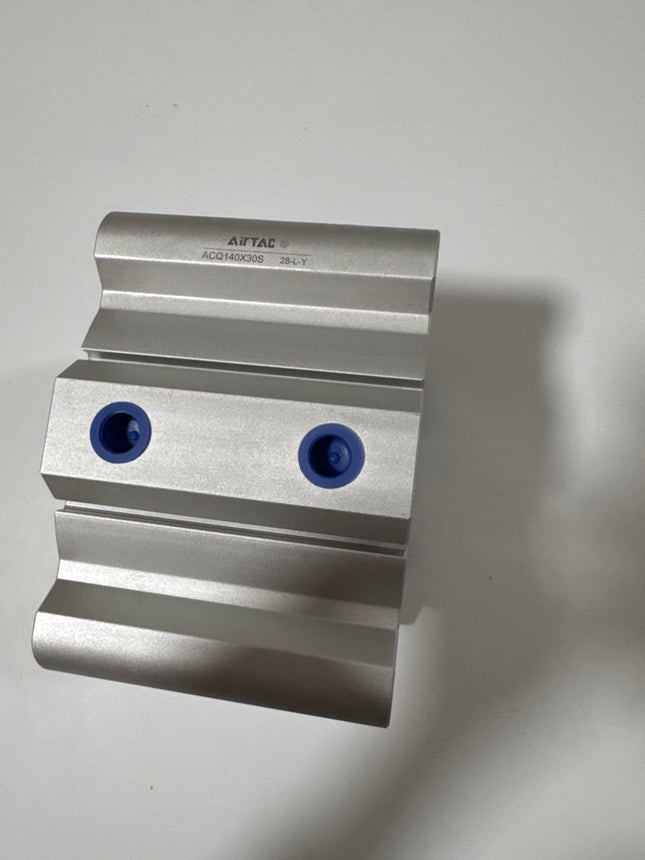

  • Airtac ACQ series: double acting cylinder - ACQ140X30S Airtac ACQ series: double acting cylinder - ACQ140X30S - 2

    View options

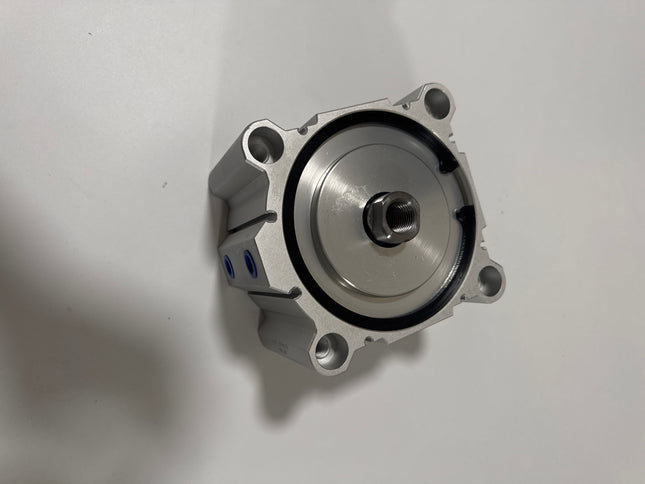

    Airtac ACQ series: double-acting compact cylinder - ACQ140X30S

    Specifications: ACQ140X30S is an AirTAC double-acting cylinder with a 140 mm bore, 30 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 140 140 mm bore X30 30 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 99 mm AB 16 mm AC 83 mm B 158 mm BA 168 mm D 32 mm E M22 × 2.5 EA 30 mm H 27 mm J 21.5 mm JA 18.4 mm K M14 × 2.0 KA 43.5 mm KB 128 mm P PT3/8 PA 24.5 mm Through-hole diameter 12.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 30 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 140 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 140 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 5578 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $497.09

    View options

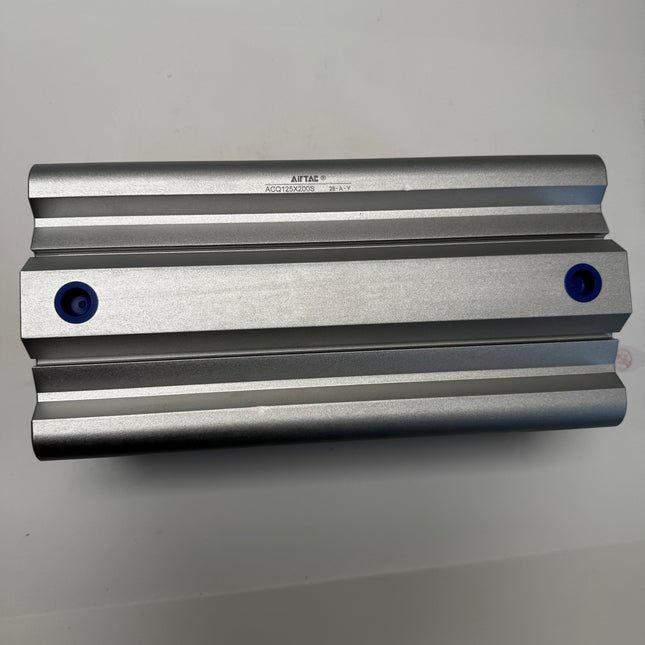

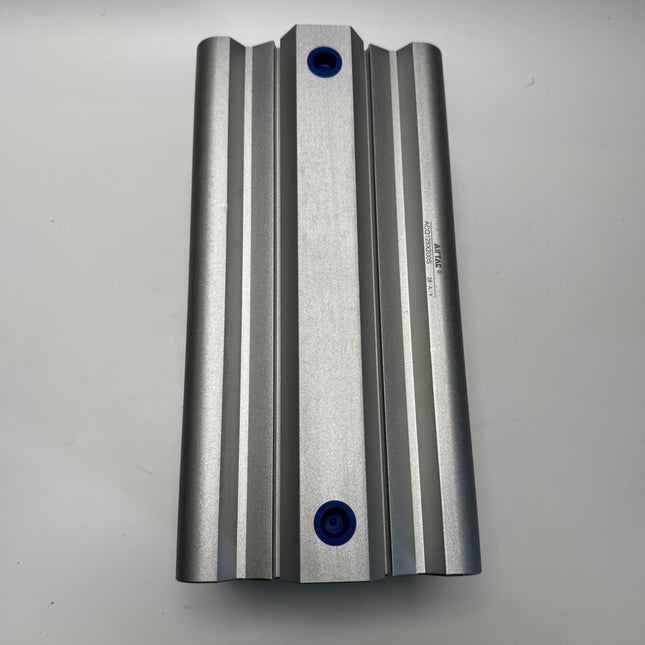

  • Airtac ACQ series: double acting cylinder - ACQ125X200S Airtac ACQ series: double acting cylinder - ACQ125X200S - 2

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ125X200S

    Specifications: ACQ125X200S is an AirTAC double-acting cylinder with a 125 mm bore, 200 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 125 125 mm bore X200 200 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 99 mm AB 16 mm AC 83 mm B 142 mm BA 153 mm D 32 mm E M22 × 2.5 EA 30 mm H 27 mm J 21.5 mm JA 18.4 mm K M14 × 2.0 KA 43.5 mm KB 114 mm P PT3/8 PA 24.5 mm Through-hole diameter 12.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 200 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 125 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 125 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 8001 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $649.79

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X300ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X300ST

    Specifications: ACQ160X300ST is an AirTAC double-acting cylinder with a 160 mm bore, 300 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X300 300 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 300 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 15810 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $1,217.19

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X250ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X250ST

    Specifications: ACQ160X250ST is an AirTAC double-acting cylinder with a 160 mm bore, 250 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X250 250 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 250 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 14225 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $1,110.33

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X200ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X200ST

    Specifications: ACQ160X200ST is an AirTAC double-acting cylinder with a 160 mm bore, 200 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X200 200 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 200 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 12640 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $1,027.31

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X175ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X175ST

    Specifications: ACQ160X175ST is an AirTAC double-acting cylinder with a 160 mm bore, 175 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X175 175 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 175 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 11847.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $950.26

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X150ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X150ST

    Specifications: ACQ160X150ST is an AirTAC double-acting cylinder with a 160 mm bore, 150 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X150 150 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 150 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 11055 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $896.77

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X125ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X125ST

    Specifications: ACQ160X125ST is an AirTAC double-acting cylinder with a 160 mm bore, 125 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X125 125 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 125 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 10262.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $843.40

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X100ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X100ST

    Specifications: ACQ160X100ST is an AirTAC double-acting cylinder with a 160 mm bore, 100 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X100 100 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 100 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 9470 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $790.05

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X75ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X75ST

    Specifications: ACQ160X75ST is an AirTAC double-acting cylinder with a 160 mm bore, 75 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X75 75 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 75 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 8677.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $736.54

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X50ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X50ST

    Specifications: ACQ160X50ST is an AirTAC double-acting cylinder with a 160 mm bore, 50 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X50 50 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 50 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 7885 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $683.19

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X40ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X40ST

    Specifications: ACQ160X40ST is an AirTAC double-acting cylinder with a 160 mm bore, 40 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X40 40 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 40 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 7568 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $659.74

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X30ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X30ST

    Specifications: ACQ160X30ST is an AirTAC double-acting cylinder with a 160 mm bore, 30 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X30 30 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 30 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 7251 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $636.28

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X20ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X20ST

    Specifications: ACQ160X20ST is an AirTAC double-acting cylinder with a 160 mm bore, 20 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X20 20 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 20 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 6934 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $612.83

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X10ST

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X10ST

    Specifications: ACQ160X10ST is an AirTAC double-acting cylinder with a 160 mm bore, 10 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X10 10 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected T NPT pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection NPT 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 26.5 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 10 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 6617 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $589.37

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X300SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X300SG

    Specifications: ACQ160X300SG is an AirTAC double-acting cylinder with a 160 mm bore, 300 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X300 300 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 300 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 15810 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $1,217.19

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X250SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X250SG

    Specifications: ACQ160X250SG is an AirTAC double-acting cylinder with a 160 mm bore, 250 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X250 250 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 250 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 14225 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $1,110.33

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X200SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X200SG

    Specifications: ACQ160X200SG is an AirTAC double-acting cylinder with a 160 mm bore, 200 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X200 200 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 200 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 12640 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $1,027.31

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X175SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X175SG

    Specifications: ACQ160X175SG is an AirTAC double-acting cylinder with a 160 mm bore, 175 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X175 175 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 175 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 11847.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $950.26

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X150SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X150SG

    Specifications: ACQ160X150SG is an AirTAC double-acting cylinder with a 160 mm bore, 150 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X150 150 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 150 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 11055 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $896.77

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X125SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X125SG

    Specifications: ACQ160X125SG is an AirTAC double-acting cylinder with a 160 mm bore, 125 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X125 125 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 125 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 10262.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $843.40

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X100SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X100SG

    Specifications: ACQ160X100SG is an AirTAC double-acting cylinder with a 160 mm bore, 100 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X100 100 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 100 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 9470 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $790.05

    View options

  • Airtac ACQ series: double acting cylinder - ACQ160X75SG

    View options

    Airtac ACQ series: double-acting compact cylinder - ACQ160X75SG

    Specifications: ACQ160X75SG is an AirTAC double-acting cylinder with a 160 mm bore, 75 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACQ double-acting cylinder 160 160 mm bore X75 75 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 3/8 Design standard JIS Product Features C-shaped retaining rings secure the covers; the piston and rod use a compact riveted connection. The finished bore and extended front-cover guidance improve wear resistance and rod support. The compact body saves mounting space and provides magnetic-switch grooves around its perimeter. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 134–147 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 108 mm AB 17 mm AC 91 mm B 178 mm BA 188 mm D 40 mm E M24 × 3.0 EA 33 mm H 36 mm J 24.5 mm JA 21.2 mm K M16 × 2.0 KA 49 mm KB 144 mm P PT3/8 PA 27.5 mm Through-hole diameter 14.4 mm Stroke-dependent Drawing Relationships Parameter Details Reference A outline A + stroke Reference AC outline AC + stroke Stroke used in the order code 75 mm Use four 2.5 mm flat washers when fastening through the cylinder mounting holes, as specified for the large-bore drawing. Construction and Materials Parameter Details 1 Rear cover Aluminum alloy 2 Countersunk hex-socket screw Carbon steel 3 C-ring Spring steel 4 O-ring NBR 5 Piston Aluminum alloy 6 Wear ring Wear-resistant material 7 Piston seal NBR 8 Bumper NBR 9 Body Aluminum alloy 10 O-ring NBR 11 Front cover Aluminum alloy 12 Self-lubricating bearing Wear-resistant material 13 Rod seal NBR 14 Piston rod Hard-chrome-plated S45C steel 15 Magnet Rubber magnet Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Installation and rod-end accessories No matching installation bracket or rod-end joint is listed for 125–160 mm bores in this chapter. Use the documented body mounting holes; do not substitute a smaller-bore kit. DMSG / CMSG / EMSG G-profile magnetic switches, catalog bore match 160 mm; order separately DMSH / CMSH / EMSH H-profile magnetic switches, catalog bore match 160 mm; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Weight Reference Catalog reference weight: 8677.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Read more

    $736.54

    View options
