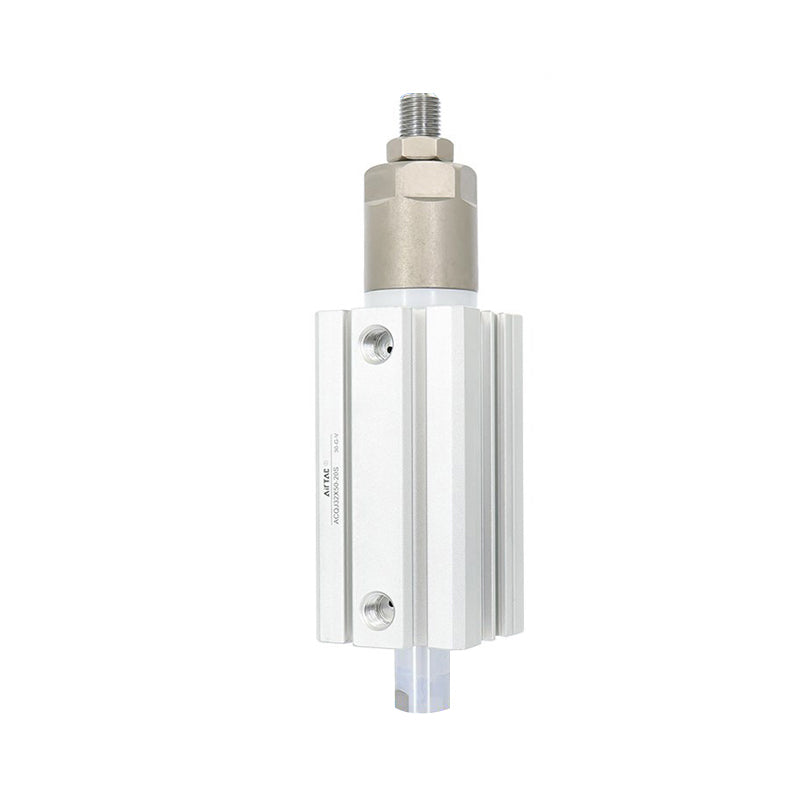

Airtac ACQ Series: Double-axis Compound Stroke Adjustable Cylinder - ACQJ32X50-20SB

Description

Specifications: ultra-thin cylinder (double-axis compound stroke adjustable type) Bore: 32mm Travel: 50mm Adjusting stroke: 20mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: no installation accessories Tooth type: M8X1.25

Click to download Airtac product catalog

Product Features

1. Implement JIS standard.

2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable.

3. The inner diameter of the cylinder body is honed, with good wear resistance and durability.

4. The guiding distance of the front cover is lengthened, and the guiding performance is good.

5. Compact structure, can effectively save installation space.

6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.

7. A variety of specifications for installation accessories to choose from.

Product form

Specifications: ultra-thin cylinder (double-axis compound stroke adjustable type) Bore: 32mm Travel: 50mm Adjusting stroke: 20mm Magnet: with magnet Tooth type... Read more

SKU: ACQJ32X50-20SB

$37.00

    • Guaranteed secure & safe checkout.

      paypal
    • Image may not be representative of actual product.
    • Airtac ACQ cylinders are a functional replacement for the SMC CQ2 series cylinders.

    Description

    Specifications: ultra-thin cylinder (double-axis compound stroke adjustable type) Bore: 32mm Travel: 50mm Adjusting stroke: 20mm Magnet: with magnet Tooth type of piston rod: external tooth type Fixed type: no installation accessories Tooth type: M8X1.25

    Click to download Airtac product catalog

    Product Features

    1. Implement JIS standard.

    2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable.

    3. The inner diameter of the cylinder body is honed, with good wear resistance and durability.

    4. The guiding distance of the front cover is lengthened, and the guiding performance is good.

    5. Compact structure, can effectively save installation space.

    6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.

    7. A variety of specifications for installation accessories to choose from.
