Filter
Product Features

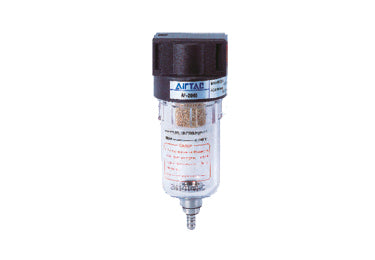

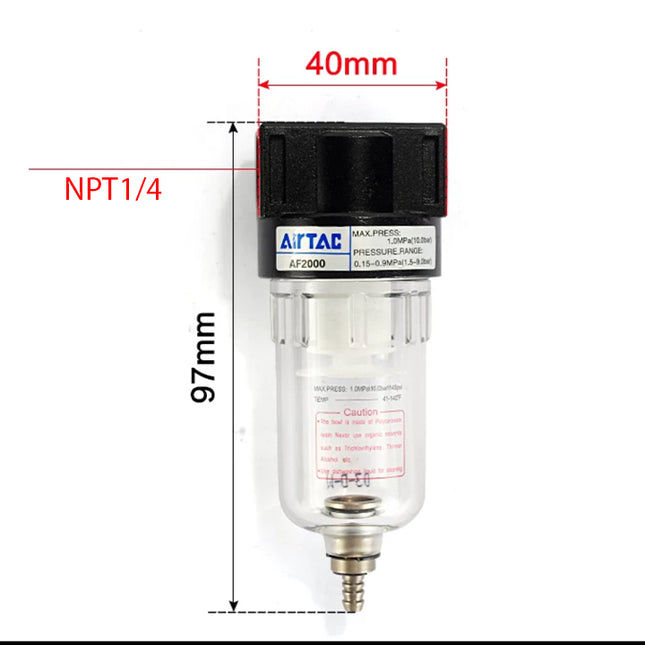

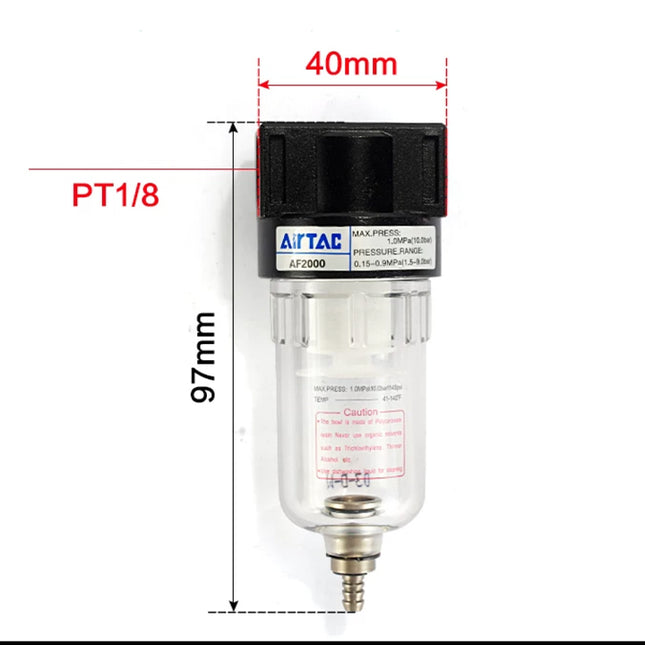

AF Series
- Compact and lightweight structure.
- Low pressure loss, high water separation efficiency.
- Filtering precision of 5μm and 40μm are optional.

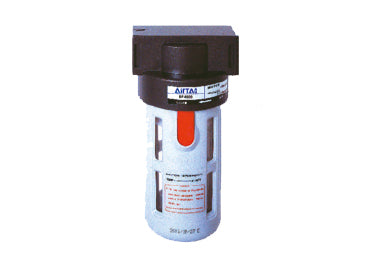

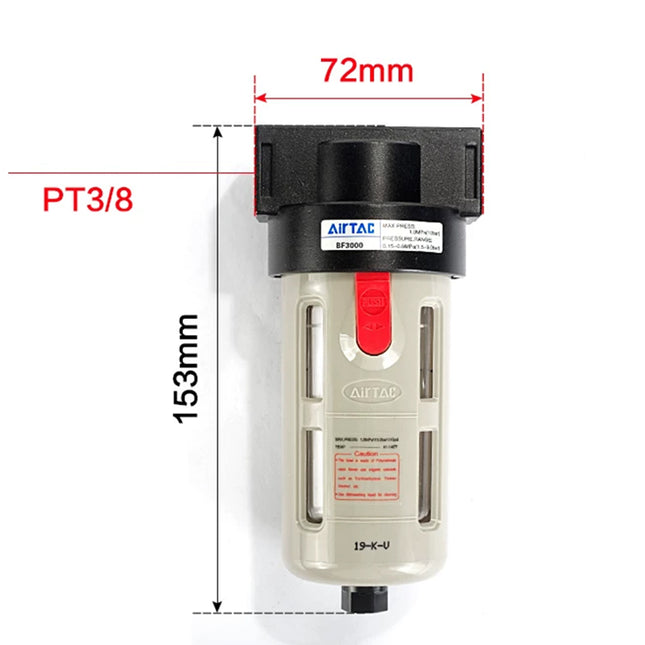

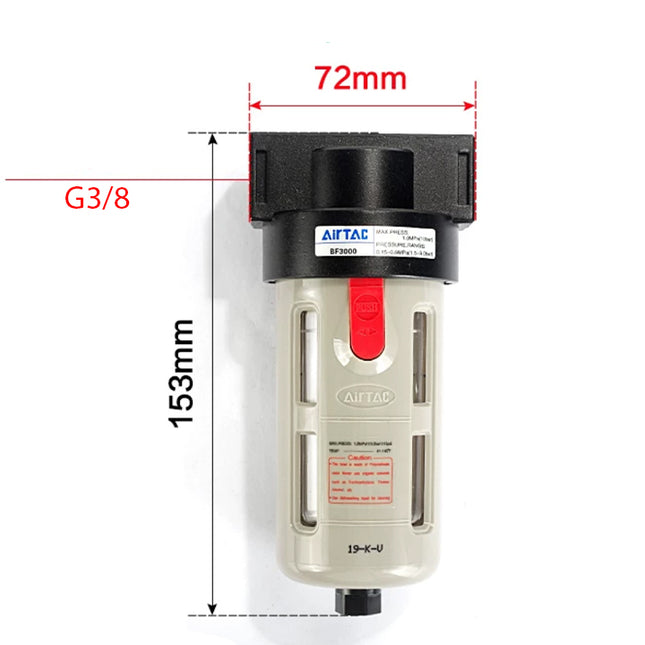

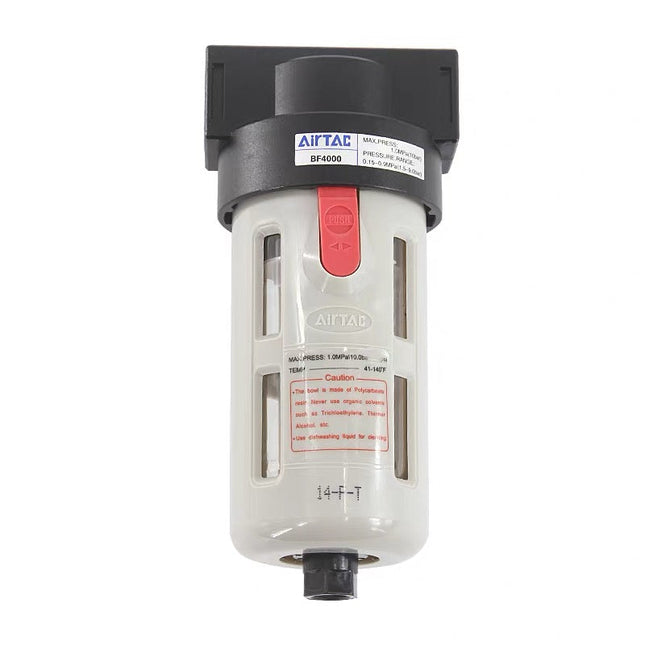

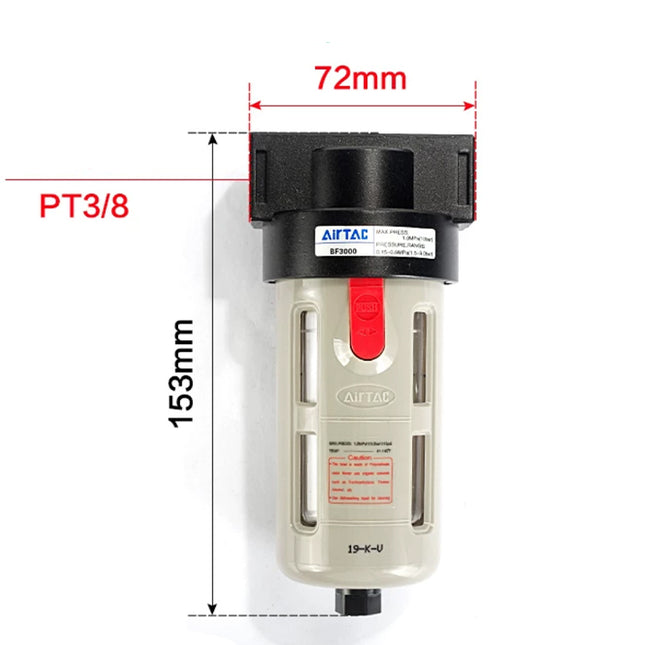

BF Series
- Low pressure loss, high water separation efficiency.
- High-strength plastic guard outside the bowl, ensuring safe and reliable use.
- Filtering precision of 5μm and 40μm are optional.
Specifications
| Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
|---|---|---|---|---|---|
| Working Medium | Air | ||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 |
| Filter Precision | 40μm and 5μm type | ||||
| Operating Pressure Range | Automatic & Semi-automatic Drain: 0.15–1.0MPa (20–145Psi) / Manual Drain: 0–1.0MPa (0–145Psi) | ||||
| Proof Pressure | 1.5MPa (215Psi) | ||||
| Operating Temperature Range | -5–70°C (No freezing) | ||||
| Water Bowl Capacity | 15CC | 60CC | |||
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Series Code |
|
| 2 | Port Size |
|
| 3 | Drain Type [Note 1] |
|
| 4 | Filter Precision |
|
| 5 | Thread Code |
|
Note 1: Drain types vary for different series, please refer to P227 for details.
