AIRTAC 6A Series Air Piloted Valve

•

  View options

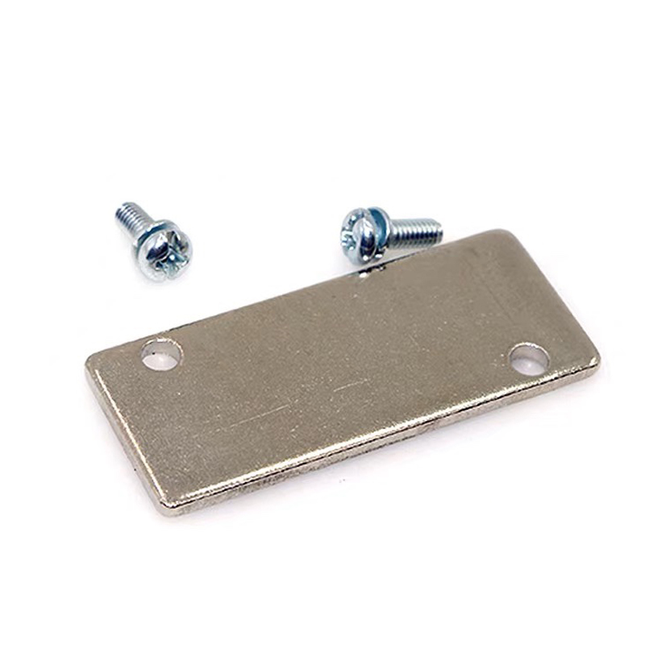

  Airtac P-6V300M series: manifold blanking plate kit - P-6V300M-R2

  Specifications: P-6V300M-R2 is a blanking-plate kit for the 6V300M manifold base used with 6A300 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Kit Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6V300M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group.

  Read more less

  $1.64

  View options

•

  View options

  Airtac P-6V200M series: manifold blanking plate kit - P-6V200M-R2

  Specifications: P-6V200M-R2 is a blanking-plate kit for the 6V200M manifold base used with 6A200 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V200M Manifold family for 6A200 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6V200M manifold / 6A200 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Kit Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6V200M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 10 g. The mass reference is the DOLD listing for P-6V200M-R2, which lists an item weight of 10 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The mass reference is for the independently listed accessory, not for its valve or manifold. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $1.10

  View options

•

  View options

  Airtac P-6V100M series: manifold blanking plate kit - P-6V100M-R2

  Specifications: P-6V100M-R2 is a blanking-plate kit for the 6V100M manifold base used with 6A100 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V100M Manifold family for 6A100 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6V100M manifold / 6A100 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Kit Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6V100M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 10 g. The mass reference is the DOLD listing for P-6V100M-R2, which lists an item weight of 10 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The mass reference is for the independently listed accessory, not for its valve or manifold. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $1.10

  View options

•

  View options

  Airtac P-6V0500M series: manifold blanking plate kit - P-6V0500M-R2

  Specifications: P-6V0500M-R2 is a blanking-plate kit for the 6V0500M manifold base used with 6A0500 series air-operated valves. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V0500M Manifold family for 6A0500 series air-operated valves R2 Blanking plate for the manifold base Technical Specifications Item Specification Application 6V0500M manifold / 6A0500 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Included Kit Components Blanking plate and screws. Application and Mounting The catalog assembly drawing shows the blanking plate fitted at an unused station of the 6V0500M base. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 20 g. The mass reference is the DOLD listing for P-6V0500M-R2, which lists an item weight of 20 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The mass reference is for the independently listed accessory, not for its valve or manifold. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $1.10

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M20FT

  Specifications: 6V300M20FT is a 20-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 20F 20 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 20 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 20F 504 / 494 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 3123 g. This estimate uses the published bare-base envelope of 6V300M20FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $97.41

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M19FT

  Specifications: 6V300M19FT is a 19-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 19F 19 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 19 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 19F 480 / 470 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2974 g. This estimate uses the published bare-base envelope of 6V300M19FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $92.75

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M18FT

  Specifications: 6V300M18FT is a 18-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 18F 18 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 18 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 18F 456 / 446 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2826 g. This estimate uses the published bare-base envelope of 6V300M18FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $87.95

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M17FT

  Specifications: 6V300M17FT is a 17-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 17F 17 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 17 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 17F 432 / 422 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2677 g. This estimate uses the published bare-base envelope of 6V300M17FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $83.84

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M16FT

  Specifications: 6V300M16FT is a 16-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 16F 16 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 16 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 16F 408 / 398 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2528 g. This estimate uses the published bare-base envelope of 6V300M16FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $79.19

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M15FT

  Specifications: 6V300M15FT is a 15-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 15F 15 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 15 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 15F 384 / 374 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2379 g. This estimate uses the published bare-base envelope of 6V300M15FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $74.53

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M14FT

  Specifications: 6V300M14FT is a 14-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 14F 14 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 14 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 14F 360 / 350 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2231 g. This estimate uses the published bare-base envelope of 6V300M14FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $70.42

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M13FT

  Specifications: 6V300M13FT is a 13-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 13F 13 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 13 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 13F 336 / 326 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 2082 g. This estimate uses the published bare-base envelope of 6V300M13FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $65.76

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M12FT

  Specifications: 6V300M12FT is a 12-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 12F 12 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 12 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 12F 312 / 302 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1933 g. This estimate uses the published bare-base envelope of 6V300M12FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $61.65

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M11FT

  Specifications: 6V300M11FT is a 11-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 11F 11 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 11 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 11F 288 / 278 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1785 g. This estimate uses the published bare-base envelope of 6V300M11FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $56.86

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M10FT

  Specifications: 6V300M10FT is a 10-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 10F 10 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 10 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 10F 264 / 254 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1636 g. This estimate uses the published bare-base envelope of 6V300M10FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $52.20

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M9FT

  Specifications: 6V300M9FT is a 9-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 9F 9 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 9 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 9F 240 / 230 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1487 g. This estimate uses the published bare-base envelope of 6V300M9FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $47.54

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M8FT

  Specifications: 6V300M8FT is a 8-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 8F 8 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 8 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 8F 216 / 206 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1338 g. This estimate uses the published bare-base envelope of 6V300M8FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $43.43

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M7FT

  Specifications: 6V300M7FT is a 7-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 7F 7 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 7 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 7F 192 / 182 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1190 g. This estimate uses the published bare-base envelope of 6V300M7FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $38.63

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M6FT

  Specifications: 6V300M6FT is a 6-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 6F 6 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 6 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 6F 168 / 158 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 1041 g. This estimate uses the published bare-base envelope of 6V300M6FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $34.52

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M5FT

  Specifications: 6V300M5FT is a 5-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 5F 5 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 5 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 5F 144 / 134 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 892 g. This estimate uses the published bare-base envelope of 6V300M5FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $29.87

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M4FT

  Specifications: 6V300M4FT is a 4-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 4F 4 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 4 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 4F 120 / 110 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 744 g. This estimate uses the published bare-base envelope of 6V300M4FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $25.21

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M3FT

  Specifications: 6V300M3FT is a 3-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 3F 3 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 3 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 3F 96 / 86 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 595 g. This estimate uses the published bare-base envelope of 6V300M3FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $21.10

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M2FT

  Specifications: 6V300M2FT is a 2-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 2F 2 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 2 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 2F 72 / 62 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 446 g. This estimate uses the published bare-base envelope of 6V300M2FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $16.44

  View options

•

  View options

  Airtac 6V300M series: pneumatic valve manifold base - 6V300M1FT

  Specifications: 6V300M1FT is a 1-station 6V300M manifold base kit for 6A300 series air-operated valves, with NPT 3/8 common supply and exhaust ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning 6V300M Manifold family for 6A300 series air-operated valves 1F 1 stations Thread code: T NPT thread Technical Specifications Item Specification Application 6V300M manifold / 6A300 series air-operated valves Medium — manifold application Air filtered through a 40 μm filter element Temperature — manifold application −20 to 70 °C Station count 1 Common supply / exhaust ports NPT 3/8 Features and Operation Combines directional control valves of the same series into a valve group to save space and cost. Common supply and exhaust and an organized connection layout assist fault finding. The number of connected valves can be combined or expanded as needed. External and Mounting Dimensions The following labels refer to the catalog manifold assembly drawing with mounted valves. K and M identify the installed valve lengths in the illustrated assembly. They are not dimensions of a bare blanking plate. Drawing label Dimension L / P for 1F 48 / 38 mm Drawing label Dimension A / B / C 85 / 75 / 26 mm E / F / G 4.5 / 23.5 / 24 mm H / I / J 5 / 12 / 54 mm K / M 124 / 142 mm R / S / V 57 / 58 / 14 mm W / X 74 / 27 mm E denotes the mounting-hole diameter ØE; Q denotes the common supply/exhaust port size, NPT 3/8. Match the drawing orientation for hole and port spacings. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Included Kit Components Manifold base, seal and screws. Matching Blanking Plate Order code Kit contents P-6V300M-R2 Blanking plate and screws Series Ordering Options Base families: 6V0500M, 6V100M, 6V200M and 6V300M. Station codes: 1F–20F. Base thread suffix: blank = PT; G = G; T = NPT. Blanking-plate order codes use P-[base family]-R2. 6A and 6SA Replacement Guide AirTAC 6A vs 6SA Air-Operated Valves: Length, Dimensions and Replacement Guide Use the guide to compare the valve series and their corresponding manifold families before changing an installed valve group. Reference Weight Estimated reference weight: 297 g. This estimate uses the published bare-base envelope of 6V300M1FT and an assumed aluminum density. It is not a manufacturer-published or measured weight, confirmed net weight or accurate packed shipping weight. The aluminum assumption is used only for estimation; the catalog does not state a manifold material grade. Internal passages, recesses, seals and screws are not modeled separately, so actual supplied mass can differ. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $11.65

  View options
