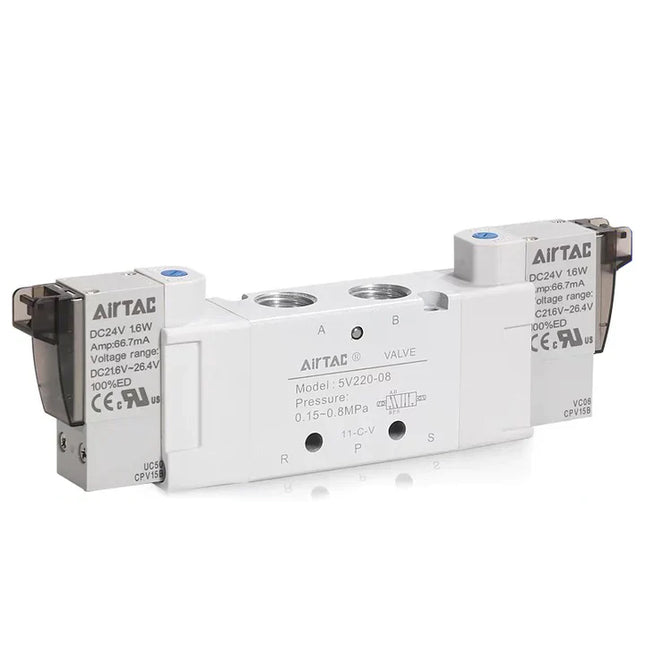

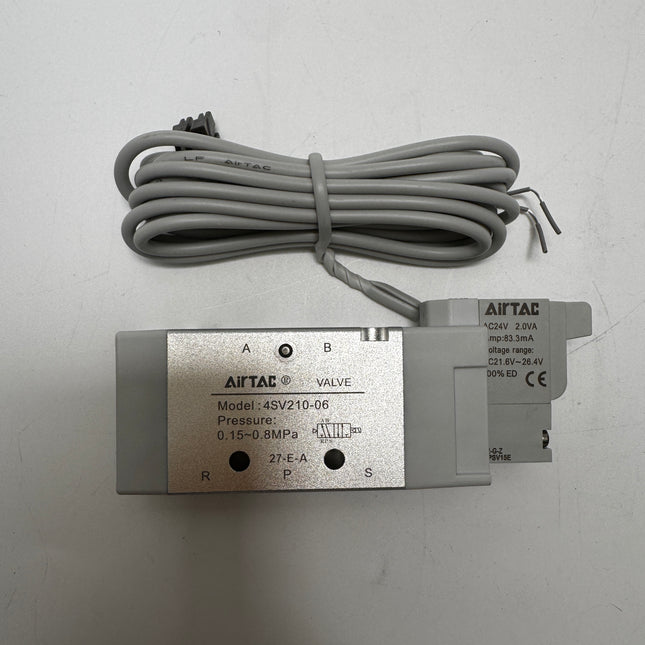

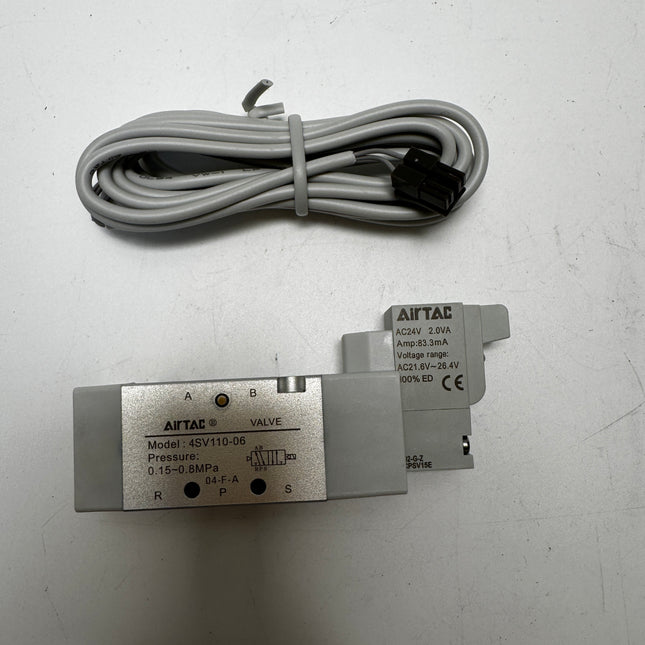

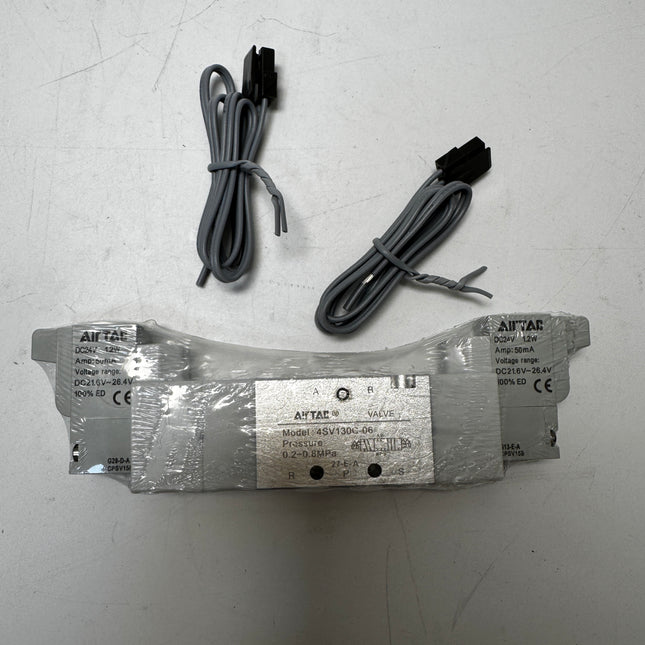

AIRTAC 5V Series Solenoid Valve
5/2 Way & 5/3 Way Directional Control Valve
Product Features
- Flexible Installation: The plug-in wiring method allows the terminal to be freely interchanged between horizontal and vertical mounting.
- Safety Switching: Double solenoid valves feature priority air supply switching during commutation, suitable for critical conditions like pollution-free environments.
- High Performance: Spool structure offers excellent sealing performance, fast response times, high operating frequency, and requires no lubrication.
- Multiple Configurations: Double solenoid valves offer three center functions (Center Closed, Center Exhaust, Center Pressure). Double solenoid 2-position valves have a built-in memory function.
- Durability: The internal bore adopts special processing technology, featuring extremely small friction resistance, low starting pressure, and a long service life.
- Space Saving: Can be integrated and assembled with a manifold base, saving installation space. Equipped with a manual override for convenient installation and debugging.
General Specifications
| Working Medium | Air (filtered through 40µm filter element or finer) |
| Positions / Ways | Five-way Two-position (5/2) or Five-way Three-position (5/3) |
| Operating Pressure Range | 0.15 ~ 0.8 MPa (21 ~ 114 psi) |
| Proof Pressure | 1.2 MPa (175 psi) |
| Working Temperature | -20 ~ 70°C (No freezing) |
| Max Operating Frequency | 5 Hz (2-Position) or 3 Hz (3-Position) [Note 2] |
| Lubrication [Note 3] | Not required |
| Pilot Exhaust Mode | Main line and pilot exhaust use centralized exhaust |
Model Specific Parameters
| Series | Port Size / Type [Note 1] | Effective Orifice (Cv) [Note 4] | Weight (g) (10 / 20 / 30 Type) |
|---|---|---|---|

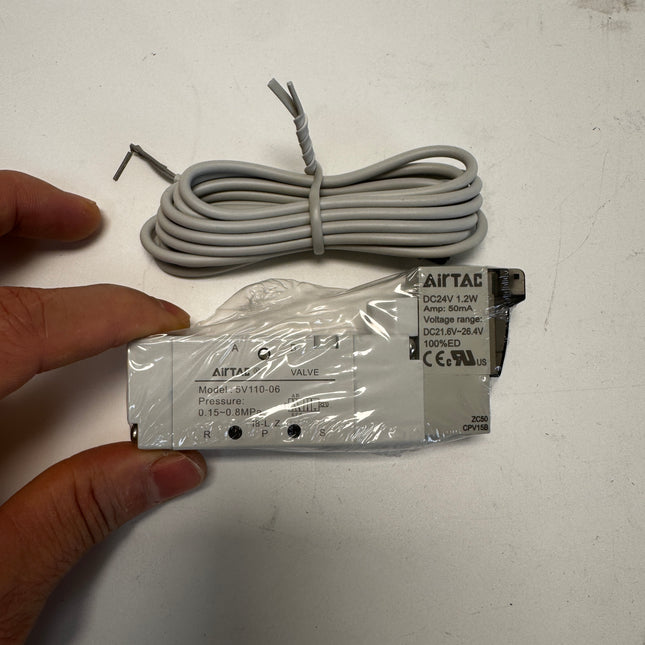

| 5V1 | Threaded: M5 or PT1/8 | 06: 10.2mm² (Cv=0.60) 5V130C-06: 8.6mm² (Cv=0.51) |
120g / 175g / 200g |

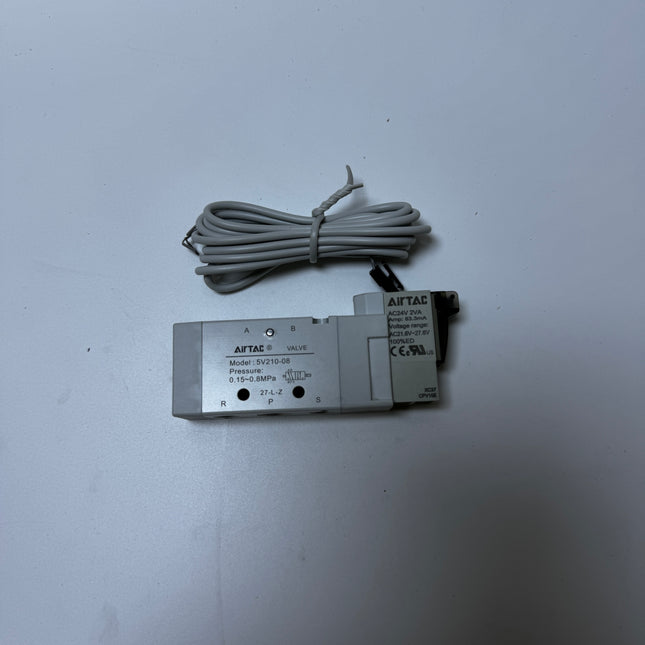

| 5V2 | Threaded: PT1/8 or PT1/4 | 08: 17.0mm² (Cv=1.00) 5V230C-08: 13.6mm² (Cv=0.80) |
220g / 175g / 360g |

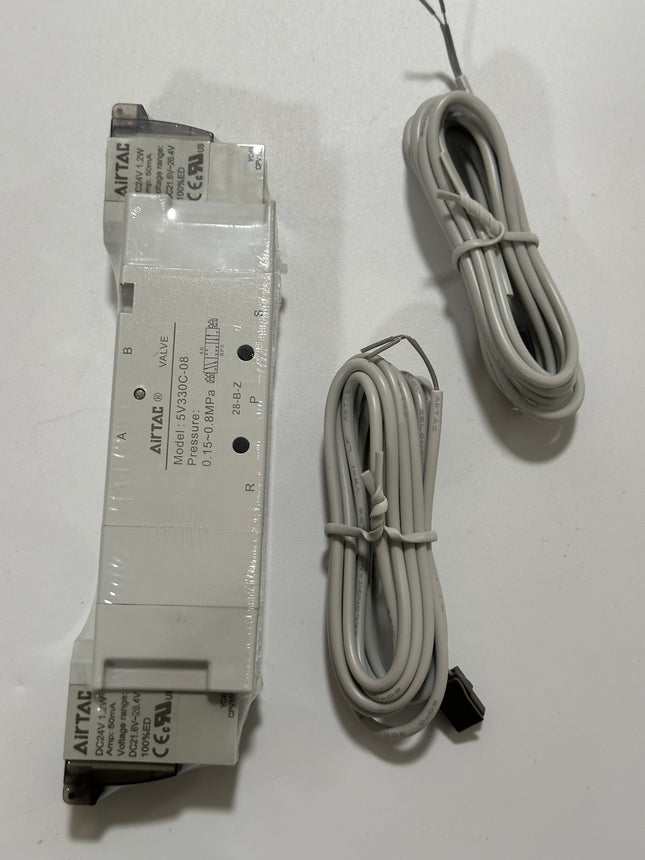

| 5V3 | Threaded: PT1/4 or PT3/8 | 10: 31.5mm² (Cv=1.85) 5V330C-10: 23.0mm² (Cv=1.35) |
310g / 175g / 450g |

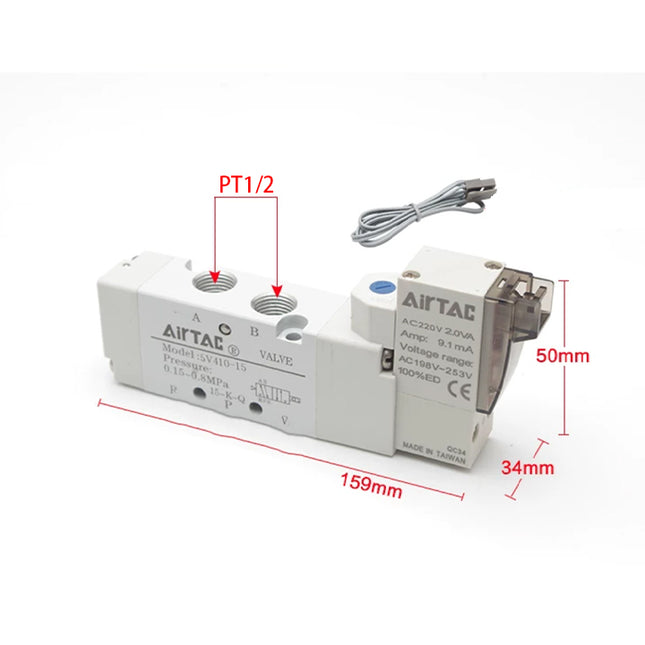

| 5V4 | Threaded: PT1/2 | 15: 48.0mm² (Cv=2.82) 5V430C-15: 40.0mm² (Cv=2.35) |
590g / 720g / 770g |
[Note 1] PT, G, and NPT threads are available for the threaded port type.
[Note 2] Maximum operating frequency is tested under no-load air condition.
[Note 3] If lubrication is added, it must be maintained continuously. ISO VG32 or equivalent is recommended.
[Note 4] Effective orifice and Cv values are calculated based on tested flow data.
[Note 2] Maximum operating frequency is tested under no-load air condition.
[Note 3] If lubrication is added, it must be maintained continuously. ISO VG32 or equivalent is recommended.
[Note 4] Effective orifice and Cv values are calculated based on tested flow data.
Electrical Specifications
| Standard Voltage |
AC: 220V, 110V, 24V DC: 24V, 12V |
| Voltage Tolerance |
AC: +15% ~ -10% DC: ±10% |
| Power Consumption |
AC: 2.0 VA DC: 1.6 W |
| Protection Degree | Dustproof |
| Insulation Class | F Class |
| Wiring Form | Socket Type (Plug-in) |
| Excitation Time | Below 0.05 seconds |
Product Ordering Code
Example: 5V 2 10 08 B 050 G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | 5V: 5/2 Way or 5/3 Way Solenoid Valve |
| 2 | Series Code |
1: 100 Series | 2: 200 Series 3: 300 Series | 4: 400 Series |
| 3 | Control Type |
10: Single Solenoid, 2-Position 20: Double Solenoid, 2-Position 30C: Double Solenoid, 3-Position (Center Closed) 30E: Double Solenoid, 3-Position (Center Exhaust) 30P: Double Solenoid, 3-Position (Center Pressure) |
| 4 | Port Size |
M5: M5 | 06: PT1/8" 08: PT1/4" | 10: PT3/8" 15: PT1/2" |
| 5 | Standard Voltage |
A: AC 220V | C: AC 110V | E: AC 24V B: DC 24V | F: DC 12V |
| 6 | Wire Length Code |
050: 0.5m Lead Wire 200: 2.0m Lead Wire |
| 7 | Thread Type Code |
Blank: PT Thread G: G Thread T: NPT Thread |
