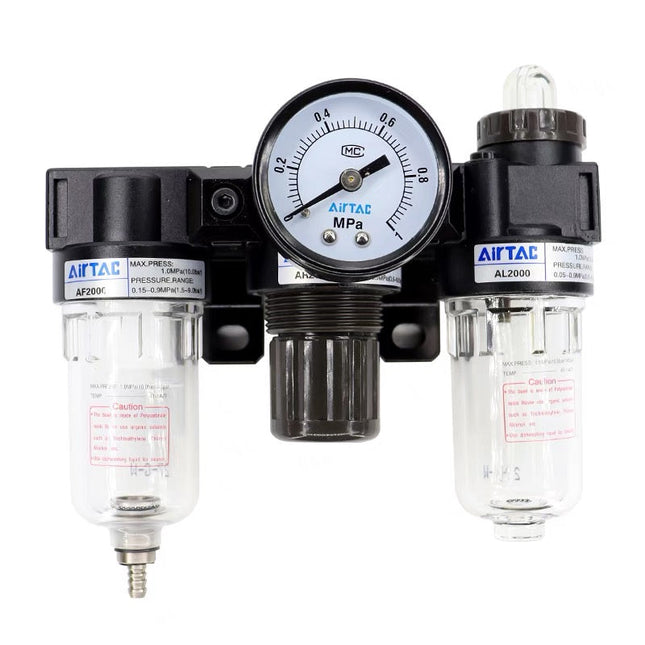

AF / BF Series Pneumatic Air Filter

Product Features
Specifications
Ordering Code

Product Features

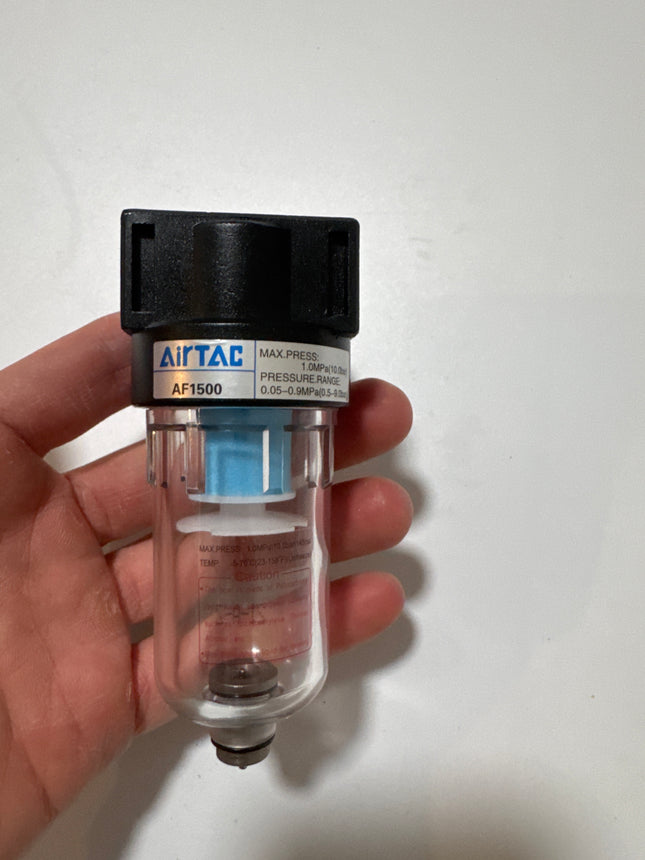

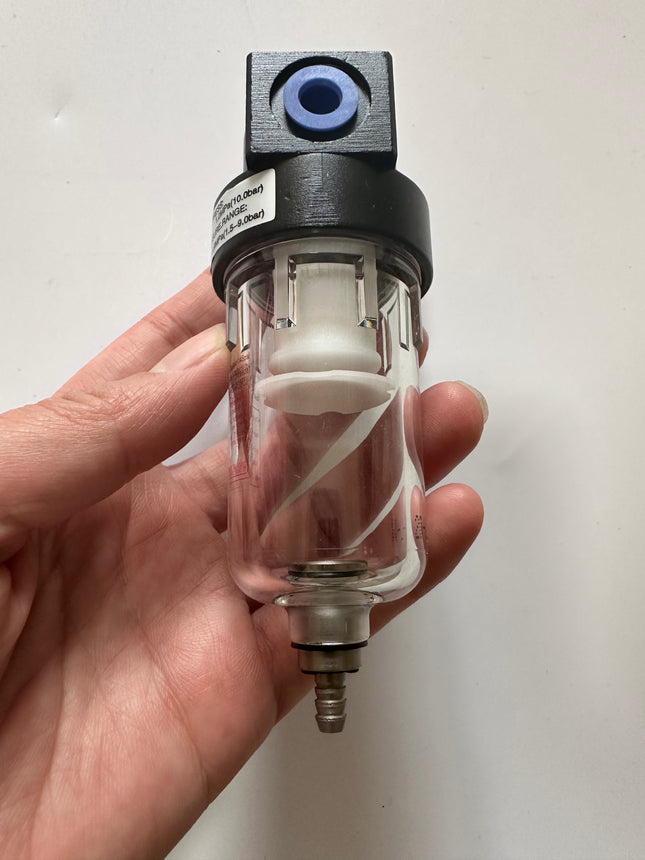

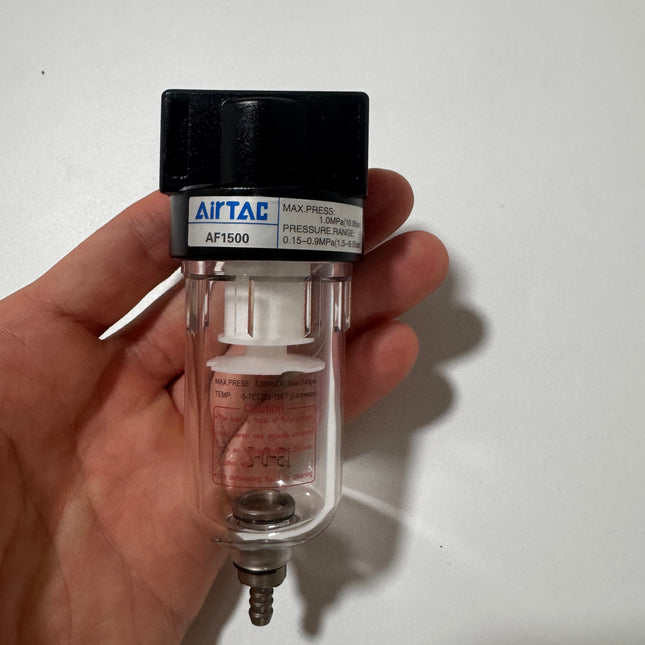

AF Series (Miniature Type)

Compact Structure: Designed for space-saving installations, offering a lightweight and small footprint.
High Efficiency: Delivers low pressure loss while maintaining exceptional water separation efficiency.
Multiple Filtration: Available in 5μm (Fine) and 40μm (Standard) grades to suit various pneumatic requirements.

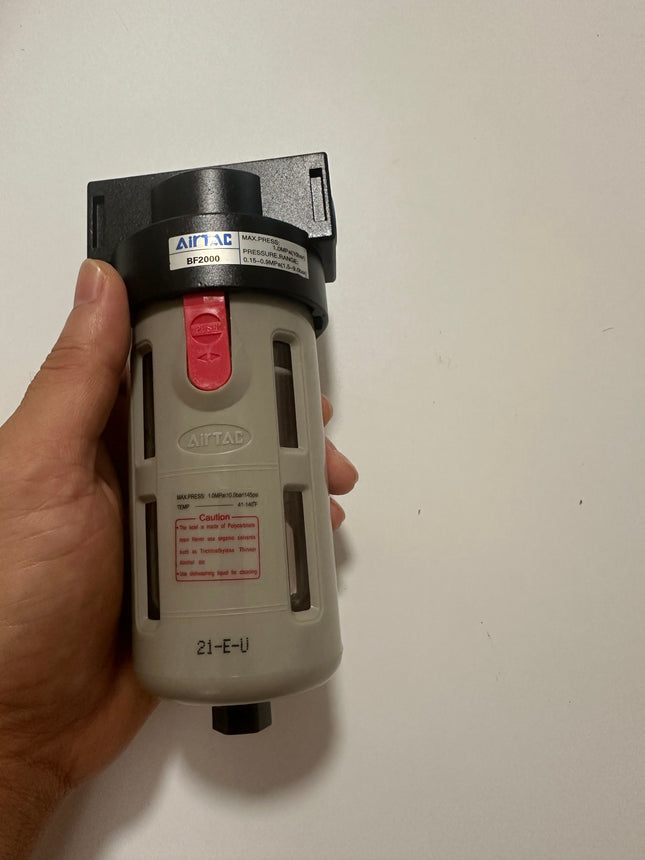

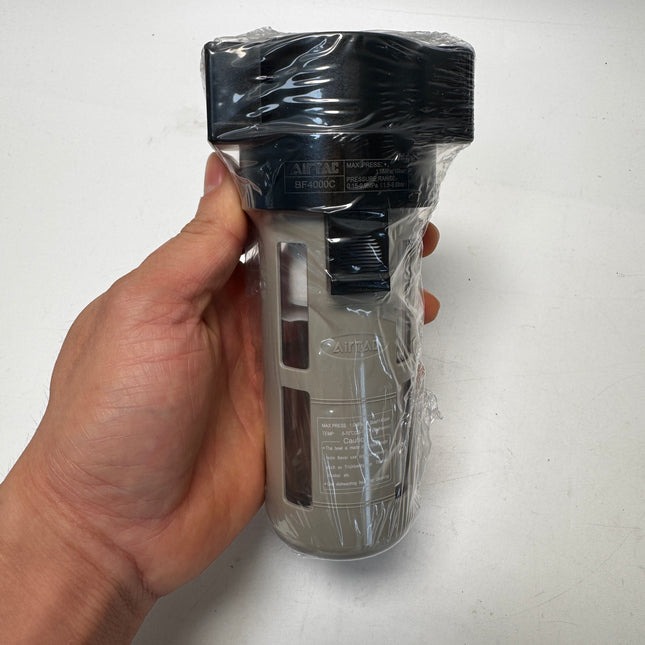

BF Series (Industrial Type)

Robust Design: Optimized for high-flow applications with superior moisture and contaminant removal.
Enhanced Safety: The filter bowl is equipped with a high-strength metal or plastic guard, ensuring reliability under industrial pressure.
Ease of Maintenance: Transparent bowl allows for 360° visibility of condensate levels.

Technical Specifications

Model	AF1500	AF2000	BF2000	BF3000	BF4000
Fluid	Compressed Air
Port Size	1/8"	1/4"	1/4"	3/8"	1/2"
Filtration Grade	Standard: 40μm (Optional: 5μm)
Operating Pressure	Semi-auto/Differential: 0.15 ~ 1.0 MPa (20 ~ 145 psi) Manual Drain: 0.0 ~ 1.0 MPa (0 ~ 145 psi)
Proof Pressure	1.5 MPa (215 psi)
Temperature Range	-5 ~ 70°C (No freezing)
Bowl Capacity	15 CC		60 CC

Product Ordering Code

Example Model: AF 2000 - M - W - G

No.	Item	Options / Description
1	Series Code	AF: Miniature Series Filter BF: Industrial Series Filter (with Guard)
2	Port Size	1500: 1/8" 2000: 1/4" 3000: 3/8" 4000: 1/2"
3	Drain Type	Blank: Semi-auto / Differential Drain M: Manual Drain A: Automatic Drain
4	Filtration Grade	Blank: 40μm (Standard) W: 5μm (Fine Filtration)
5	Thread Type	Blank: PT (Standard) G: G Thread T: NPT

View options

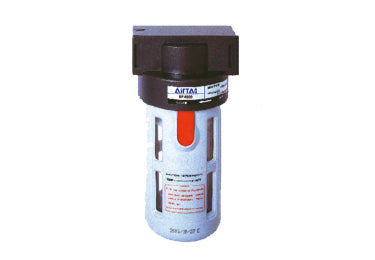

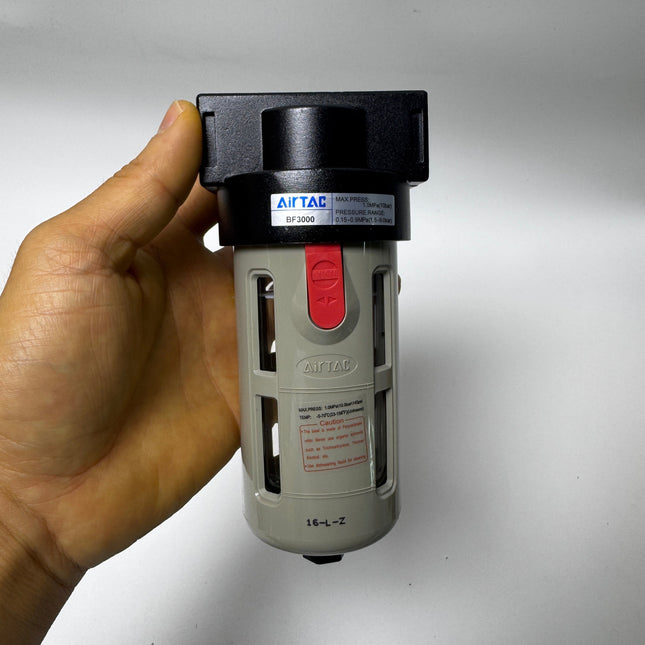

Airtac BF series: air filter - BF3000

Specifications: BF3000 is an AirTAC BF air filter with PT 3/8 ports, a 40 µm filter and semi-automatic drain with manual drainage. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BF B Series air filter 3000 3/8-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The B Series bowl is protected by a strong plastic bowl guard. Technical Specifications Parameter Details Current model BF3000 Working medium Air Main ports PT 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Operating pressure 0.15–1.0 MPa (20–145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Catalog reference weight 330 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Drain bowl O-ring NBR 2. Body Aluminum alloy 3. Filter element HDPE; 40 µm in this model 4. Umbrella baffle POM 5. Drain bowl PC 6. Drain kit Steel/POM 7. Drain seat Steel/POM 8. Drain pillar POM 9. Return spring Stainless steel 10. Gasket POM 11. Air guider POM 12. Bowl guard switch POM 13. Bowl guard PA66 14. Drain seat O-ring NBR Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BF family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 3/8 at both flow ports Front width 72 mm Height in main illustration 154 mm Front local callout 14 mm Side diameter callouts Ø64; Ø44 mm Side linear callouts 30; 22; 42; 47; 11 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 273 g. The 2022 comprehensive catalog, printed page 300, lists BF4000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 330 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

Read more less

$23.98

View options
View options

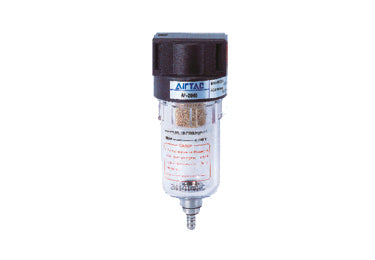

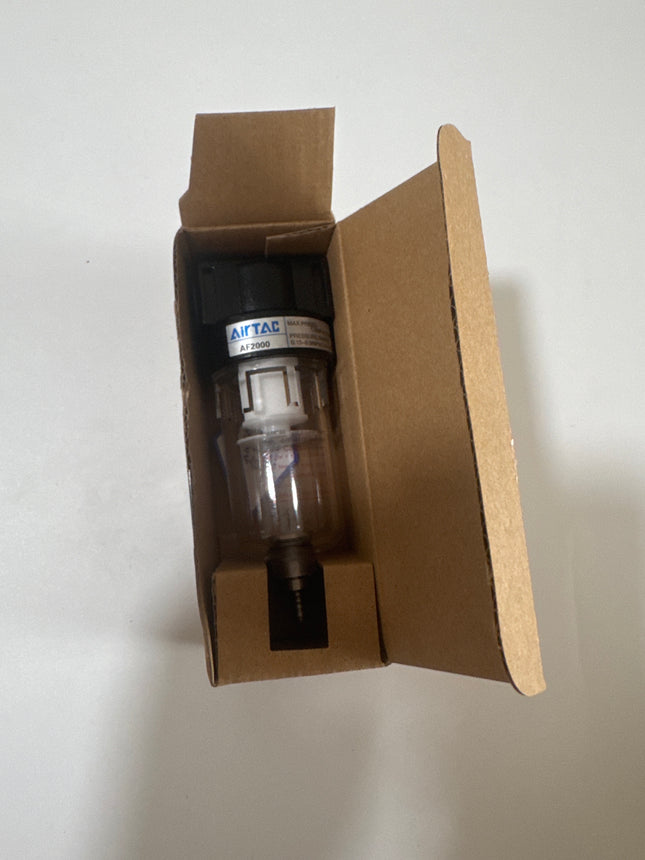

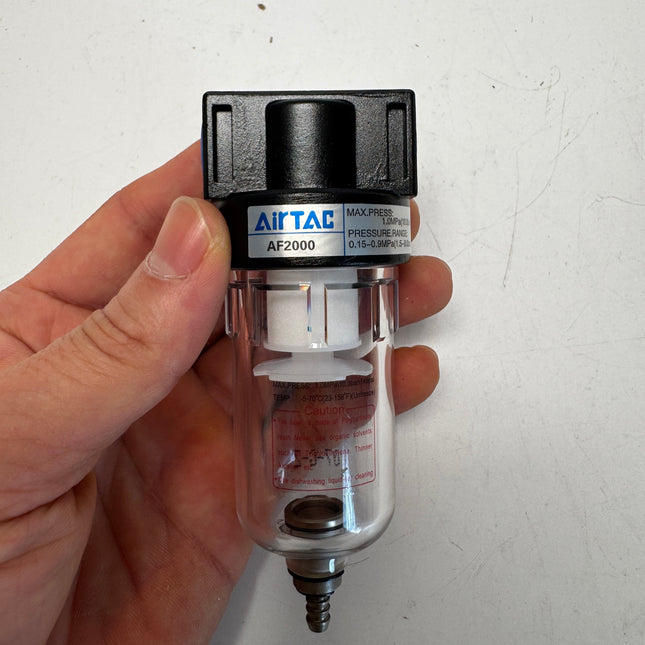

Airtac AF series: air filter - AF2000
