Airtac AF series: air filter - AF1500W

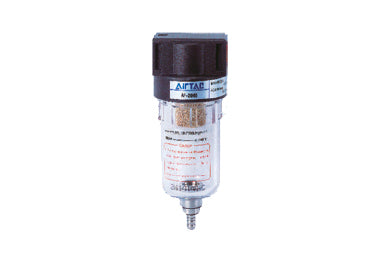

Photos are for reference only. Not all models have pictures.
Description
Specifications: AF1500W is an AirTAC AF air filter with PT 1/8 ports, a 5 µm filter and semi-automatic drain with manual drainage.
Product Catalog
Download Airtac Product Catalog (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model Code Explained
Code
Meaning for This Product
AF
A Series air filter
1500
1/8-inch nominal port size
Blank drain code
semi-automatic drain with manual drainage
W
5 µm filter element
Blank thread code
PT connection thread
Product Features
The compact construction is designed for pneumatic air preparation.
The filter separates condensed water and solid particles with low pressure loss and efficient water separation.
Technical Specifications
Parameter
Details
Current model
AF1500W
Working medium
Air
Main ports
PT 1/8; inlet and outlet as indicated by the flow direction
Proof pressure
1.5 MPa (215 psi)
Operating pressure
0.15–1.0 MPa (20–145 psi)
Temperature range
−5 to 70 °C, non-freezing
Filtration
5 µm
Drain type
semi-automatic drain with manual drainage
Drain bowl capacity
15 cc
Catalog reference weight
140 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight.
Series Ordering Options
The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product.
Parameter
Details
Port-size choices in this family
1500: 1/8; 2000: 1/4
Thread choices
Blank: PT; G: G; T: NPT
Drain choices
Blank: semi-automatic; M: manual
Filter choices
Blank: 40 µm; W: 5 µm
Internal Construction
The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above.
Drawing Item
Material / Details
1. Drain bowl O-ring
NBR
2. Body
Aluminum alloy
3. Filter element
HDPE; 5 µm in this model
4. Umbrella baffle
POM
5. Drain bowl
PC
6. Drain kit
Steel/POM
8. Drain pillar
POM
9. Return spring
Stainless steel
10. Gasket
POM
11. Air guider
POM
15. Clip
Spring steel
Drain and Service Notes
The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter.
Performance Curves
Parameter
Details
Flow-characteristic plot
The AF family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa.
How to use the curves
Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure.
Dimensions and Mounting
Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline.
Parameter
Details
Main connection
PT 1/8 at both flow ports
Front width
40 mm
Height in main illustration
97 mm
Front local callouts
10; 3.5 mm
Bowl diameter
Ø40 mm
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Weight Reference and Catalog Edition
Approximate reference weight: 85 g. The 2022 comprehensive catalog, printed page 300, lists AF2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 1500 differs from the reference; filter option W. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 140 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.
Product form
Specifications: AF1500W is an AirTAC AF air filter with PT 1/8 ports, a 5 µm filter and semi-automatic drain with...
Read more
$19.87
Incl. VAT
Guaranteed secure & safe checkout.
Ach Direct Debit Amazon
American Express
Apple Pay
Bizum Diners Club Discover Google Pay
Mastercard
MB WAY
PayPal Satispay Shop Pay
USDC
Visa
Bank transfer also available. Payment options may vary by location and device.
Shipping, returns & order help
✓ Free shipping on orders US$30+ under 2 kg
✓ Import duties & taxes included on all orders
Download: 3D model selection. ↗ Shipping & delivery times In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.
Standard international delivery typically takes 7–13 business days after dispatch , depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.
Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.
Read our shipping policy
Shipping costs & import taxes Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.
If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.
Shipping charges and tax details
Model selection & custom orders Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.
Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.
Read the refund policy before ordering
Tracking & delivery support Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.
Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.
If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.
Delivery issue policy
Returns & product issues Eligible returns are accepted within 7 days of delivery . Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.
Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.
Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.
Read the full refund policy
Bank transfers & invoices Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.
Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.
For payment or invoice questions, email airtacs@airtacs.com with your order number.
