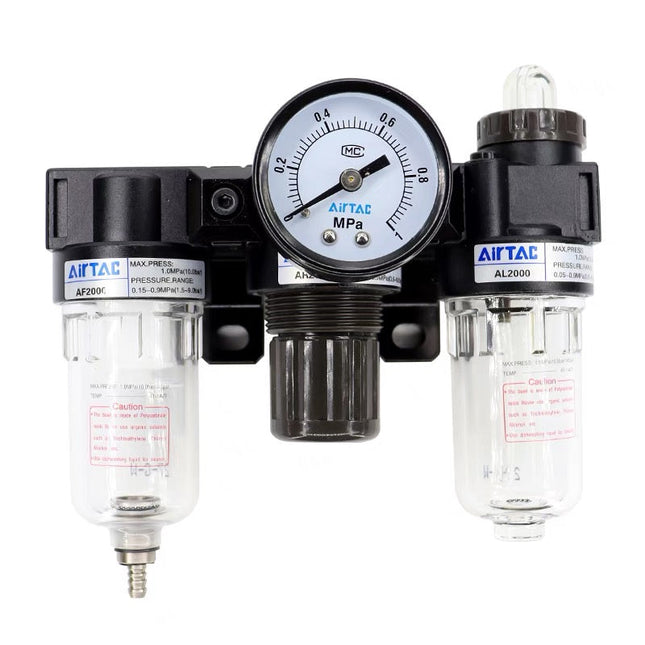

AF / BF Series Pneumatic Air Filter
Product Features
AF Series (Miniature Type)
- Compact Structure: Designed for space-saving installations, offering a lightweight and small footprint.
- High Efficiency: Delivers low pressure loss while maintaining exceptional water separation efficiency.
- Multiple Filtration: Available in 5μm (Fine) and 40μm (Standard) grades to suit various pneumatic requirements.
BF Series (Industrial Type)
- Robust Design: Optimized for high-flow applications with superior moisture and contaminant removal.
- Enhanced Safety: The filter bowl is equipped with a high-strength metal or plastic guard, ensuring reliability under industrial pressure.
- Ease of Maintenance: Transparent bowl allows for 360° visibility of condensate levels.
Technical Specifications
| Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
|---|---|---|---|---|---|
| Fluid | Compressed Air | ||||
| Port Size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtration Grade | Standard: 40μm (Optional: 5μm) | ||||
| Operating Pressure |
Semi-auto/Differential: 0.15 ~ 1.0 MPa (20 ~ 145 psi) Manual Drain: 0.0 ~ 1.0 MPa (0 ~ 145 psi) |
||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature Range | -5 ~ 70°C (No freezing) | ||||
| Bowl Capacity | 15 CC | 60 CC | |||
Product Ordering Code
Example Model: AF 2000 - M - W - G
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code |
AF: Miniature Series Filter BF: Industrial Series Filter (with Guard) |
| 2 | Port Size |
1500: 1/8" 2000: 1/4" 3000: 3/8" 4000: 1/2" |
| 3 | Drain Type |
Blank: Semi-auto / Differential Drain M: Manual Drain A: Automatic Drain |
| 4 | Filtration Grade |
Blank: 40μm (Standard) W: 5μm (Fine Filtration) |
| 5 | Thread Type |
Blank: PT (Standard) G: G Thread T: NPT |
