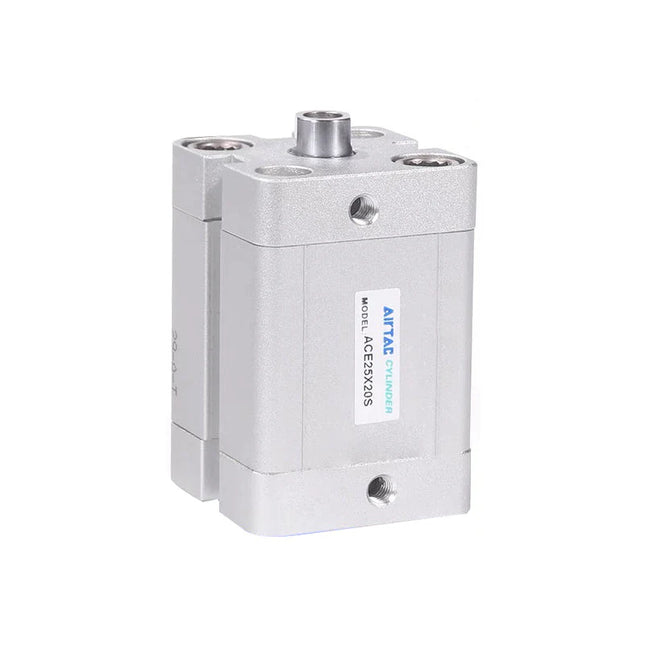

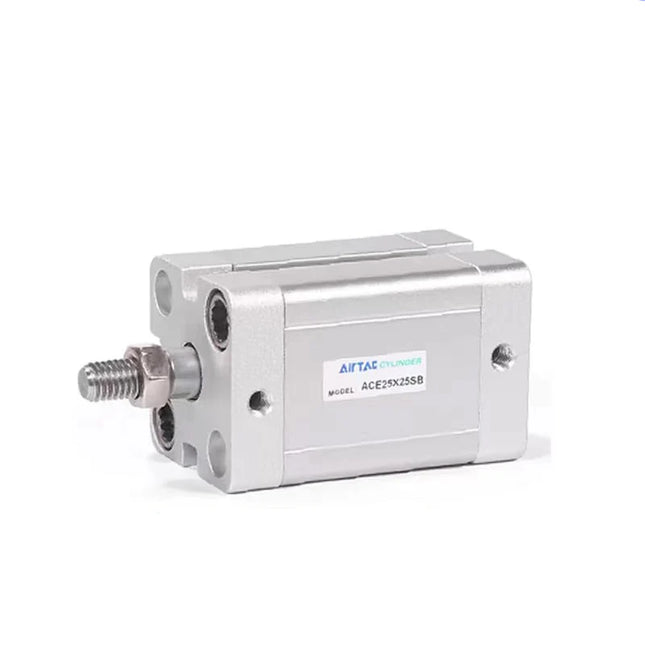

ACE Series Compact Cylinder

Product Features
Specifications
Stroke
Ordering Code

Product Features

1. Executing ISO21287 standard, with versatile mounting dimensions.
2. The cylinder body connects with the front and rear covers using threads, providing good strength and easy maintenance.
3. The cylinder inner diameter is precision processed and then hard anodized, ensuring wear resistance and durability.
4. The piston seal adopts a heterogeneous two-way seal structure, which is compact in size and has an oil storage function.
5. Compact structure effectively saves installation space; compared to ISO15552 standard cylinders of the same bore, it saves 50% of the space.
6. The cylinder body has sensor grooves on three sides, making sensor installation convenient.
7. Built-in anti-collision pads (bumpers) effectively absorb residual energy generated by high-speed operation and machine reversal.
8. A variety of mounting accessories are available for selection.

Specifications

Bore Size (mm)	12	32	125
Acting Type	Double Acting Single Acting Push / Single Acting Pull
Fluid	Air (filtered to 40μm or better)
Operating Pressure	Double Acting: 0.15~1.0MPa (22~145psi) Single Acting: 0.2~1.0MPa (28~145psi)
Proof Pressure	1.5MPa (215psi)
Temperature	-20 ~ 70 °C
Speed Range	Double Acting: 30~500 mm/s \| Single Acting: 50~500 mm/s
Stroke Tolerance	Stroke ≤ 100: ^+1.0₀ \| Stroke > 100: ^+1.5₀
Cushion Type	Bumper (Anti-collision pad)
Port Size [Note 1]	M5 × 0.8	G1/8	G1/4

[Note 1] PT thread and G thread are available.

Stroke Table

Type	Bore (mm)	Standard Stroke (mm)	Max. Stroke
ACE (Standard)	12	5, 10, 15, 20, 25, 30, 35, 40, 45, 50	50
	16	5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75	75
	20	5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100	100
	25	5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150	150
	32, 40	5... 100, 110, 120, 125, 150, 160, 175, 200	200
	50, 63	5... 200, 225, 250	250
	80, 100, 125	5... 250, 275, 300	300
ASE / ATE (Single Acting)	12	5, 10	10
ASE / ATE (Single Acting)	16 ~ 100	5, 10, 15, 20, 25	25

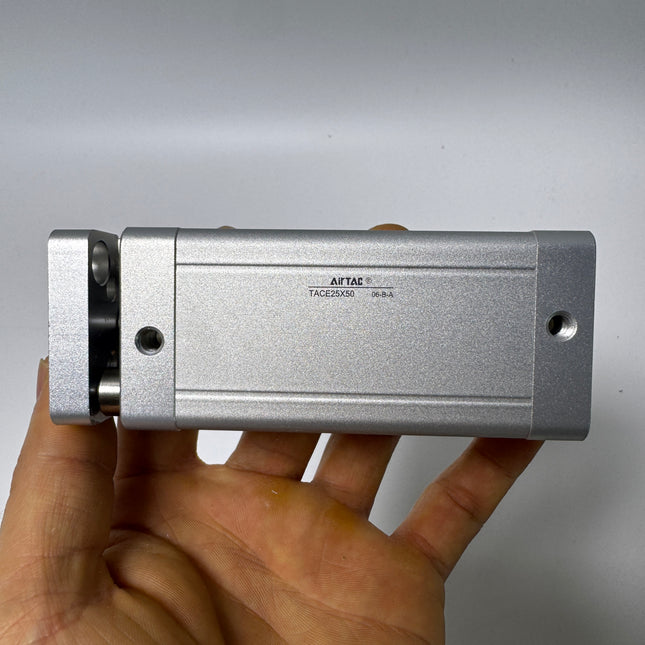

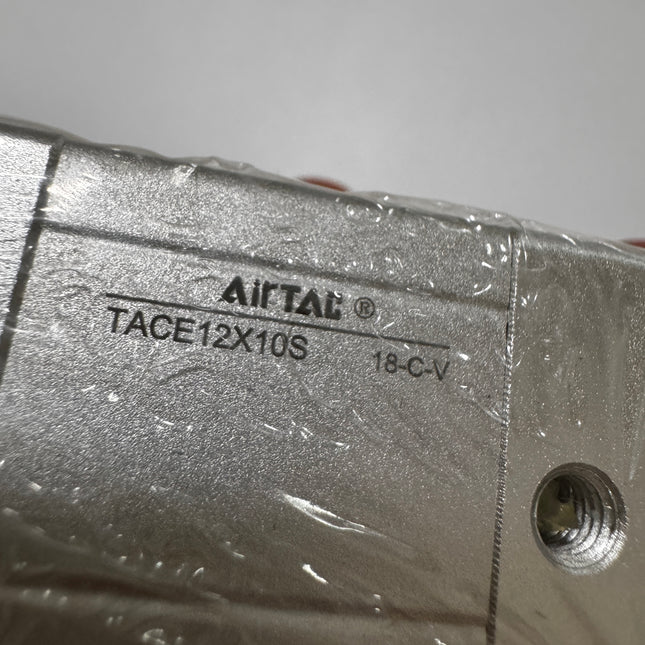

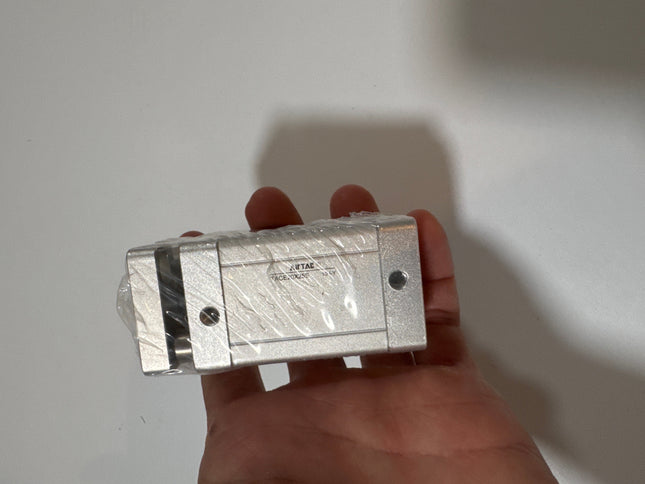

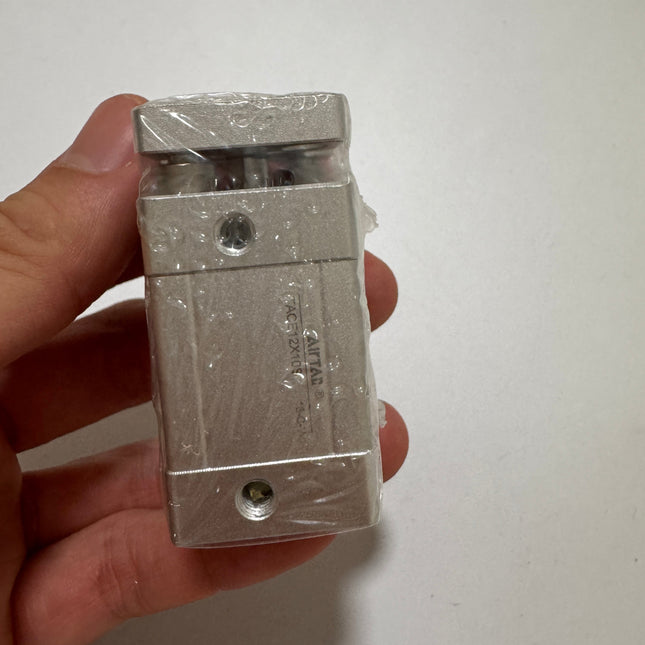

TACE (Guide Rod)	12	5, 10, 15, 20, 25, 30, 35, 40, 45, 50	50
	16	5... 50, 55, 60, 70, 75	75
	20, 25	5... 75, 80, 90, 100	100
	32, 40	5... 100	100
	50, 63	5... 100	100
	80, 100	5... 100	100

Note: Non-standard strokes are available upon request. For strokes > Max Stroke, it is treated as non-standard.

Ordering Code Guide

ACE 20 x 30 S B - □

No.	Item	Applicable Model	Description
1	Model	All	ACE: Compact Cylinder (Double Acting) ASE: Single Acting (Push) [Note 1] ATE: Single Acting (Pull) TACE: Double Acting with Guide Rod TACED: Double Shaft with Guide Rod ACED: Double Shaft Double Acting ACEJ: Double Shaft Adj. Stroke
2	Bore Size	ACE (Standard) ASE/ATE (Single Acting) TACE/TACED (Guide Rod) ACED/ACEJ (Double Shaft)	12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125
3	Stroke	All	Refer to Stroke Table
4	Adj. Stroke	ACEJ Only	Standard: No Code ACEJ: 10, 20, 30, 40, 50, 75, 100
5	Magnet	All	Blank: No Magnet S: With Magnet
6	Rod Thread	ACE, ASE, ATE, ACED, ACEJ TACE, TACED	Blank: Internal Thread (Female) B: External Thread (Male) No Code
7	Mounting [Note 2]	ACE, ASE, ATE TACE, TACED ACED ACEJ	Blank: None \| FA/FB: Front/Rear Flange CA/CB: Single/Double Clevis CR: Single Ear (use w/ CB) \| LB: Axial Foot SDB: Rear Hinge (use w/ CA) \| FTC: Trunnion Blank: None \| FB: Rear Flange CA: Single Clevis \| CB: Double Clevis CR: Single Ear \| FTC: Trunnion Blank: None \| FB: Rear Flange Blank: None \| FA: Front Flange FTC: Trunnion \| LB: Axial Foot
8	Thread Type [Note 3]	All	Blank: PT Thread G: G Thread

[Note 1] Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] CR must be used with CB; SDB must be used with CA; FTC must be used with TCM2.
[Note 3] When port size is M5, this code is blank.

View options

Airtac ACE series: double-acting compact cylinder - ACE63X30SB

Specifications: ACE63X30SB is an AirTAC double-acting cylinder with a 63 mm bore, 30 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACE double-acting cylinder 63 63 mm bore X30 30 mm nominal stroke S after stroke Magnetic piston selected B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Design standard ISO 21287 Product Features The cylinder body and covers use threaded connections for strength and maintenance access. The precision-finished bore is hard anodized for wear resistance. The compact double-lip piston seal has an oil-retaining design; the cylinder is prelubricated. The compact construction saves installation space compared with the ISO 15552 design cited in the catalog. Three body sides have magnetic-switch grooves. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 118–125 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 57 mm AB 8 mm AC 49 mm AD 15 mm B 75.5 mm D 16 mm E M10 × 1.5 EA 20 mm H 13 mm J 11 mm JA 4.5 mm JB 56.5 mm K M8 × 1.25 KA 30.5 mm P G1/8 PA 7.5 mm PB 4 mm R 10.5 mm RA 4.5 mm T 12 mm TA 2.6 mm Male rod AB 30 mm Male rod D 16 mm Male rod E M12 × 1.25 Male rod EA 20 mm Male rod EB 22 mm Male rod F 17 mm Male rod FA 7 mm Male rod H 13 mm Stroke-dependent Drawing Relationships Parameter Details Reference drawing overall A + stroke AC outline AC + stroke Stroke used in the order code 30 mm P is the thread label printed in the dimensional reference drawing. The connection selected by this order code is PT 1/8. PT, G and NPT threads must not be treated as interchangeable merely because they share a nominal fraction. A, AB and the body outline are the catalog reference drawing values. The selected male rod uses the separate male-rod dimensions; do not substitute the female rod projection AB for it. Construction and Materials Parameter Details 1 Screw Carbon steel 2 Rear cover Aluminum alloy 3 Bumper TPU 4 O-ring NBR 5 Wear ring Wear-resistant material 6 Magnet Plastic magnet 7 Piston seal NBR 8 Piston Aluminum alloy 9 Piston rod S45C steel 10 Body Aluminum alloy 11 Front cover Aluminum alloy 12 Bushing Wear-resistant material 13 Rod seal NBR Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details F-ACE63LB (LB) foot bracket for ACE 63 mm bore F-SI63FA (FA) front flange for ACE 63 mm bore F-SI63FA (FB) rear flange for ACE 63 mm bore F-SE63CA (CA) single rear clevis for ACE 63 mm bore F-SE63CB (CB) double rear clevis for ACE 63 mm bore; catalog states the matching pin is included F-SI63CR (CR) rear hinge bracket for ACE 63 mm bore; must be paired with F-SE63CB double clevis F-SI63FTC (FTC) trunnion mounting for ACE 63 mm bore; requires F-SI63TCM2 support F-SI63TCM2 (TCM2) trunnion support for ACE 63 mm bore; pair with F-SI63FTC; mounting position is not freely adjustable F-M12X125I I-type rod joint; matches the selected male rod thread only F-M12X125Y Y clevis; matches the selected male rod thread only F-M12X125F floating joint; matches the selected male rod thread only F-M12X125U spherical rod-end joint; matches the selected male rod thread only CMSE / DMSE E-profile magnetic switches for this magnetic cylinder; order separately and select the electrical variant for the control system Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150, 160, 175, 200, 225, 250 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 63 mm Effective flow area at the reference speed 8.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Weight Reference Catalog reference weight: 962 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Read more less

$108.42

View options
View options

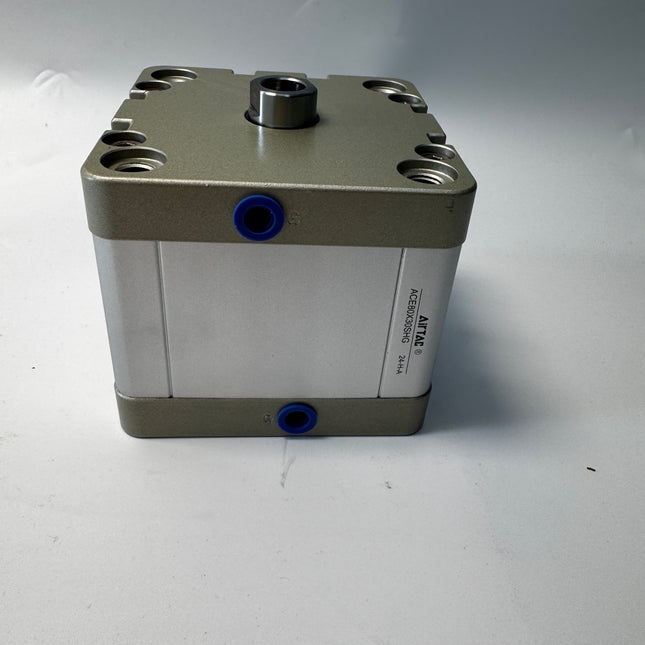

Airtac ACE series: double action cylinder - ACE80X30SHG

Specifications: Compact cylinder (compound type) Bore: 80mm Travel: 30mm Magnet: with magnet Tooth type of piston rod: inner tooth type Fixed type: no installation accessories Seal material: fluorine rubberTooth type: G tooth Specifications 1. Model: ACE80X30SHG 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel Tolerance Range: Travel ≤100+0/1.0, Travel ＞100+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: G1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE Internal structure and main parts material: 1. screw: carbon steel/2. Back cover: Aluminum alloy/3. Crash cushion (ring):TPU/4.O-ring: NBR/5. Wear-resistant ring: none (ø12~20), wear-resistant material (other)/6. Magnet: sintered rubidium iron boron (ø12~20), plastic (other)/7. Piston O: NBR/8. Piston: Aluminum alloy/9. Piston rod: S45C/10. Body: aluminum alloy/11. Front cover: Aluminum alloy/12. Bushing: none (ø12~25), wear-resistant material (other)/13. Axis core Oream: NBR/14. Panel: aluminum alloy/15. Screw: carbon steel/16. Bushing: wear-resistant material/17. Guide rod: stainless steel (ø12~40),S45C (other) Type of sealing ring :P-ACE80-R1 NBR material P-ACE80-R2 Fluorine rubber material ， Installation accessories :F-ACE80LB Axial mounting F-SI80FA Flange connecting plate F-SE80CA Single-ear fixing seat F-SE80CB Binaural mount F-SI80CR Single-ear connection seat F-SI80FTC Front cover trunnion bracket F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint Click to download Airtac product catalog Product Features 1. The implementation of ISO21287 standards, installation size versatility; 2. The cylinder body and the front and rear cover are connected with threads, with good strength and convenient maintenance; 3. The inner diameter of the cylinder body after finishing hard oxidation treatment, wear resistance, good durability; 4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function; 5. Compact structure, compared with ISO15552 standard cylinders, it can effectively save 50% of the installation space; 6. The three sides of the cylinder body are provided with sensor grooves, which is convenient to install the sensor; 7. Built-in anti-collision pad, effectively absorb the residual energy generated by high-speed operation and mechanical rotation; 8. A variety of installation accessories to choose from.

Read more less

$158.04

View options
View options

Airtac ACE series: double-acting compact cylinder - ACE63X75SB

Specifications: ACE63X75SB is an AirTAC double-acting cylinder with a 63 mm bore, 75 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACE double-acting cylinder 63 63 mm bore X75 75 mm nominal stroke S after stroke Magnetic piston selected B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Design standard ISO 21287 Product Features The cylinder body and covers use threaded connections for strength and maintenance access. The precision-finished bore is hard anodized for wear resistance. The compact double-lip piston seal has an oil-retaining design; the cylinder is prelubricated. The compact construction saves installation space compared with the ISO 15552 design cited in the catalog. Three body sides have magnetic-switch grooves. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 118–125 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 57 mm AB 8 mm AC 49 mm AD 15 mm B 75.5 mm D 16 mm E M10 × 1.5 EA 20 mm H 13 mm J 11 mm JA 4.5 mm JB 56.5 mm K M8 × 1.25 KA 30.5 mm P G1/8 PA 7.5 mm PB 4 mm R 10.5 mm RA 4.5 mm T 12 mm TA 2.6 mm Male rod AB 30 mm Male rod D 16 mm Male rod E M12 × 1.25 Male rod EA 20 mm Male rod EB 22 mm Male rod F 17 mm Male rod FA 7 mm Male rod H 13 mm Stroke-dependent Drawing Relationships Parameter Details Reference drawing overall A + stroke AC outline AC + stroke Stroke used in the order code 75 mm P is the thread label printed in the dimensional reference drawing. The connection selected by this order code is PT 1/8. PT, G and NPT threads must not be treated as interchangeable merely because they share a nominal fraction. A, AB and the body outline are the catalog reference drawing values. The selected male rod uses the separate male-rod dimensions; do not substitute the female rod projection AB for it. Construction and Materials Parameter Details 1 Screw Carbon steel 2 Rear cover Aluminum alloy 3 Bumper TPU 4 O-ring NBR 5 Wear ring Wear-resistant material 6 Magnet Plastic magnet 7 Piston seal NBR 8 Piston Aluminum alloy 9 Piston rod S45C steel 10 Body Aluminum alloy 11 Front cover Aluminum alloy 12 Bushing Wear-resistant material 13 Rod seal NBR Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details F-ACE63LB (LB) foot bracket for ACE 63 mm bore F-SI63FA (FA) front flange for ACE 63 mm bore F-SI63FA (FB) rear flange for ACE 63 mm bore F-SE63CA (CA) single rear clevis for ACE 63 mm bore F-SE63CB (CB) double rear clevis for ACE 63 mm bore; catalog states the matching pin is included F-SI63CR (CR) rear hinge bracket for ACE 63 mm bore; must be paired with F-SE63CB double clevis F-SI63FTC (FTC) trunnion mounting for ACE 63 mm bore; requires F-SI63TCM2 support F-SI63TCM2 (TCM2) trunnion support for ACE 63 mm bore; pair with F-SI63FTC; mounting position is not freely adjustable F-M12X125I I-type rod joint; matches the selected male rod thread only F-M12X125Y Y clevis; matches the selected male rod thread only F-M12X125F floating joint; matches the selected male rod thread only F-M12X125U spherical rod-end joint; matches the selected male rod thread only CMSE / DMSE E-profile magnetic switches for this magnetic cylinder; order separately and select the electrical variant for the control system Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150, 160, 175, 200, 225, 250 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 63 mm Effective flow area at the reference speed 8.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Weight Reference Catalog reference weight: 1256.75 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Read more less

$129.19

View options
View options

Airtac ACE series: double-acting compact cylinder - ACE32X90SBG

Specifications: ACE32X90SBG is an AirTAC double-acting cylinder with a 32 mm bore, 90 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACE double-acting cylinder 32 32 mm bore X90 90 mm nominal stroke S after stroke Magnetic piston selected B male-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 1/8 Design standard ISO 21287 Product Features The cylinder body and covers use threaded connections for strength and maintenance access. The precision-finished bore is hard anodized for wear resistance. The compact double-lip piston seal has an oil-retaining design; the cylinder is prelubricated. The compact construction saves installation space compared with the ISO 15552 design cited in the catalog. Three body sides have magnetic-switch grooves. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 118–125 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 51 mm AB 7 mm AC 44 mm AD 14 mm B 49.5 mm D 12 mm E M8 × 1.25 EA 16 mm H 10 mm J 9 mm JA 4.5 mm JB 32.5 mm K M6 × 1.0 KA 28.5 mm P G1/8 PA 7.5 mm PB 3 mm R 8.5 mm RA 3.5 mm T 9 mm TA 2.1 mm Male rod AB 26 mm Male rod D 12 mm Male rod E M10 × 1.25 Male rod EA 17 mm Male rod EB 19 mm Male rod F 17 mm Male rod FA 6 mm Male rod H 10 mm Stroke-dependent Drawing Relationships Parameter Details Reference drawing overall A + stroke AC outline AC + stroke Stroke used in the order code 90 mm P is the thread label printed in the dimensional reference drawing. The connection selected by this order code is G 1/8. PT, G and NPT threads must not be treated as interchangeable merely because they share a nominal fraction. A, AB and the body outline are the catalog reference drawing values. The selected male rod uses the separate male-rod dimensions; do not substitute the female rod projection AB for it. Construction and Materials Parameter Details 1 Screw Carbon steel 2 Rear cover Aluminum alloy 3 Bumper TPU 4 O-ring NBR 5 Wear ring Wear-resistant material 6 Magnet Plastic magnet 7 Piston seal NBR 8 Piston Aluminum alloy 9 Piston rod S45C steel 10 Body Aluminum alloy 11 Front cover Aluminum alloy 12 Bushing Wear-resistant material 13 Rod seal NBR Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details F-ACE32LB (LB) foot bracket for ACE 32 mm bore F-SI32FA (FA) front flange for ACE 32 mm bore F-SI32FA (FB) rear flange for ACE 32 mm bore F-SE32CA (CA) single rear clevis for ACE 32 mm bore F-SE32CB (CB) double rear clevis for ACE 32 mm bore; catalog states the matching pin is included F-SI32CR (CR) rear hinge bracket for ACE 32 mm bore; must be paired with F-SE32CB double clevis F-SI32FTC (FTC) trunnion mounting for ACE 32 mm bore; requires F-SI32TCM2 support F-SI32TCM2 (TCM2) trunnion support for ACE 32 mm bore; pair with F-SI32FTC; mounting position is not freely adjustable F-M10X125I I-type rod joint; matches the selected male rod thread only F-M10X125Y Y clevis; matches the selected male rod thread only F-M10X125F floating joint; matches the selected male rod thread only F-M10X125U spherical rod-end joint; matches the selected male rod thread only CMSE / DMSE E-profile magnetic switches for this magnetic cylinder; order separately and select the electrical variant for the control system Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150, 160, 175, 200 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Weight Reference Catalog reference weight: 610.5 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Read more less

$72.77

View options
View options

Airtac ACE series: double-acting compact cylinder - ACE40X10SG

Specifications: ACE40X10SG is an AirTAC double-acting cylinder with a 40 mm bore, 10 mm stroke, a magnetic piston, and female-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACE double-acting cylinder 40 40 mm bore X10 10 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position female-threaded rod end Blank mounting suffix No optional mounting bracket selected G G parallel pipe thread Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection G 1/8 Design standard ISO 21287 Product Features The cylinder body and covers use threaded connections for strength and maintenance access. The precision-finished bore is hard anodized for wear resistance. The compact double-lip piston seal has an oil-retaining design; the cylinder is prelubricated. The compact construction saves installation space compared with the ISO 15552 design cited in the catalog. Three body sides have magnetic-switch grooves. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 118–125 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 52.5 mm AB 7 mm AC 45.5 mm AD 14.5 mm B 55 mm D 12 mm E M8 × 1.25 EA 16 mm H 10 mm J 9 mm JA 4.5 mm JB 38 mm K M6 × 1.0 KA 28.5 mm P G1/8 PA 7.5 mm PB 3 mm R 8.5 mm RA 3.5 mm T 9 mm TA 2.1 mm Stroke-dependent Drawing Relationships Parameter Details Reference drawing overall A + stroke AC outline AC + stroke Stroke used in the order code 10 mm P is the thread label printed in the dimensional reference drawing. The connection selected by this order code is G 1/8. PT, G and NPT threads must not be treated as interchangeable merely because they share a nominal fraction. Construction and Materials Parameter Details 1 Screw Carbon steel 2 Rear cover Aluminum alloy 3 Bumper TPU 4 O-ring NBR 5 Wear ring Wear-resistant material 6 Magnet Plastic magnet 7 Piston seal NBR 8 Piston Aluminum alloy 9 Piston rod S45C steel 10 Body Aluminum alloy 11 Front cover Aluminum alloy 12 Bushing Wear-resistant material 13 Rod seal NBR Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details F-ACE40LB (LB) foot bracket for ACE 40 mm bore F-SI40FA (FA) front flange for ACE 40 mm bore F-SI40FA (FB) rear flange for ACE 40 mm bore F-SE40CA (CA) single rear clevis for ACE 40 mm bore F-SE40CB (CB) double rear clevis for ACE 40 mm bore; catalog states the matching pin is included F-SI40CR (CR) rear hinge bracket for ACE 40 mm bore; must be paired with F-SE40CB double clevis F-SI40FTC (FTC) trunnion mounting for ACE 40 mm bore; requires F-SI40TCM2 support F-SI40TCM2 (TCM2) trunnion support for ACE 40 mm bore; pair with F-SI40FTC; mounting position is not freely adjustable CMSE / DMSE E-profile magnetic switches for this magnetic cylinder; order separately and select the electrical variant for the control system Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150, 160, 175, 200 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 40 mm Effective flow area at the reference speed 3.3 mm² Tube outside / inside diameter 8 / 5 mm Example speed controller PTL01 Example silencer BSL01 Example solenoid valves 5V11006 / 5V12006 Example air-piloted valves 4A11006 / 4A12006 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Weight Reference Catalog reference weight: 367.1 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Read more less

$58.94

View options
View options

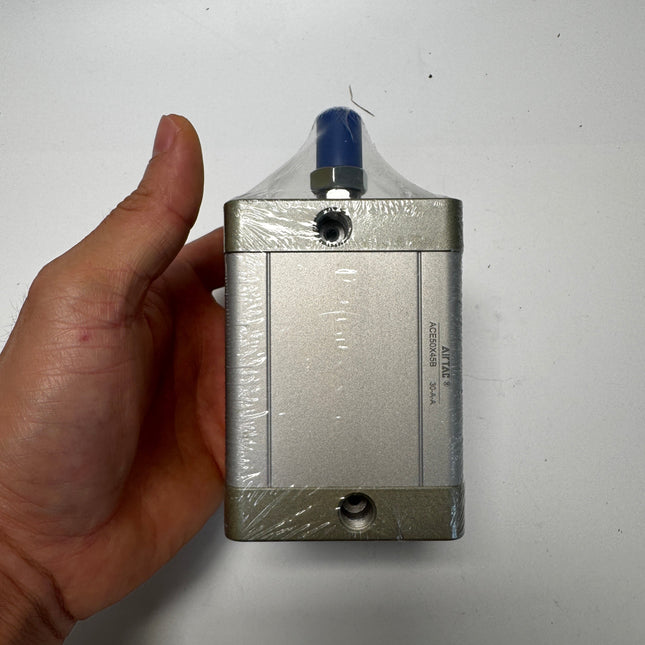

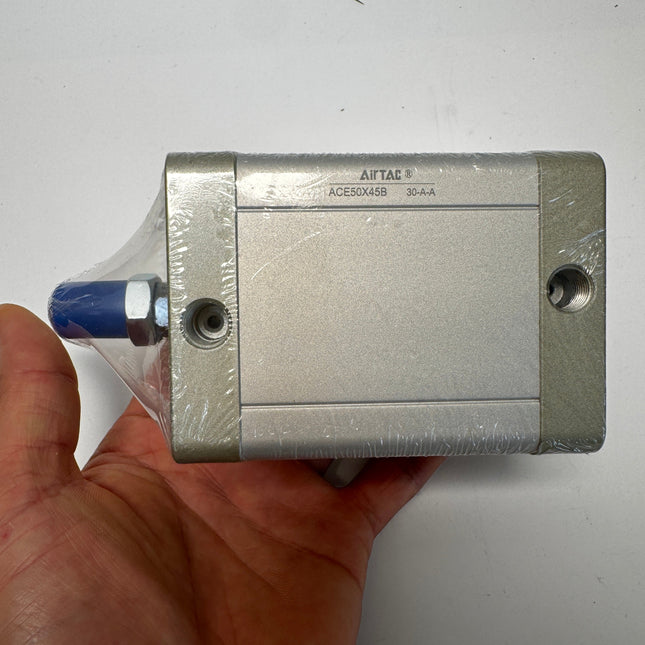

Airtac ACE series: double-acting compact cylinder - ACE50X45B

Specifications: ACE50X45B is an AirTAC double-acting cylinder with a 50 mm bore, 45 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model ACE double-acting cylinder 50 50 mm bore X45 45 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position B male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm up to 100 mm stroke; +1.5 / 0 mm above 100 mm Cushioning Bumper Air connection PT 1/8 Design standard ISO 21287 Product Features The cylinder body and covers use threaded connections for strength and maintenance access. The precision-finished bore is hard anodized for wear resistance. The compact double-lip piston seal has an oil-retaining design; the cylinder is prelubricated. The compact construction saves installation space compared with the ISO 15552 design cited in the catalog. Three body sides have magnetic-switch grooves. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 118–125 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 53.5 mm AB 8 mm AC 45.5 mm AD 14.5 mm B 65.5 mm D 16 mm E M10 × 1.5 EA 20 mm H 13 mm J 11 mm JA 4.5 mm JB 46.5 mm K M8 × 1.25 KA 30.5 mm P G1/8 PA 7.5 mm PB 3 mm R 10.5 mm RA 4.5 mm T 12 mm TA 2.6 mm Male rod AB 30 mm Male rod D 16 mm Male rod E M12 × 1.25 Male rod EA 20 mm Male rod EB 22 mm Male rod F 17 mm Male rod FA 7 mm Male rod H 13 mm Stroke-dependent Drawing Relationships Parameter Details Reference drawing overall A + stroke AC outline AC + stroke Stroke used in the order code 45 mm P is the thread label printed in the dimensional reference drawing. The connection selected by this order code is PT 1/8. PT, G and NPT threads must not be treated as interchangeable merely because they share a nominal fraction. A, AB and the body outline are the catalog reference drawing values. The selected male rod uses the separate male-rod dimensions; do not substitute the female rod projection AB for it. Construction and Materials Parameter Details 1 Screw Carbon steel 2 Rear cover Aluminum alloy 3 Bumper TPU 4 O-ring NBR 5 Wear ring Wear-resistant material 6 Magnet Magnetic-option component; not fitted in a non-magnetic configuration 7 Piston seal NBR 8 Piston Aluminum alloy 9 Piston rod S45C steel 10 Body Aluminum alloy 11 Front cover Aluminum alloy 12 Bushing Wear-resistant material 13 Rod seal NBR Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details F-ACE50LB (LB) foot bracket for ACE 50 mm bore F-SI50FA (FA) front flange for ACE 50 mm bore F-SI50FA (FB) rear flange for ACE 50 mm bore F-SE50CA (CA) single rear clevis for ACE 50 mm bore F-SE50CB (CB) double rear clevis for ACE 50 mm bore; catalog states the matching pin is included F-SI50CR (CR) rear hinge bracket for ACE 50 mm bore; must be paired with F-SE50CB double clevis F-SI50FTC (FTC) trunnion mounting for ACE 50 mm bore; requires F-SI40TCM2 support F-SI40TCM2 (TCM2) trunnion support for ACE 50 mm bore; pair with F-SI50FTC; mounting position is not freely adjustable F-M12X125I I-type rod joint; matches the selected male rod thread only F-M12X125Y Y clevis; matches the selected male rod thread only F-M12X125F floating joint; matches the selected male rod thread only F-M12X125U spherical rod-end joint; matches the selected male rod thread only Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150, 160, 175, 200, 225, 250 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 50 mm Effective flow area at the reference speed 5.1 mm² Tube outside / inside diameter 10 / 6.5 mm Example speed controller PTL02 Example silencer BSL02 Example solenoid valves 5V21008 / 5V22008 Example air-piloted valves 4A21008 / 4A22008 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Weight Reference Catalog reference weight: 737 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Read more less

$84.31

View options
View options

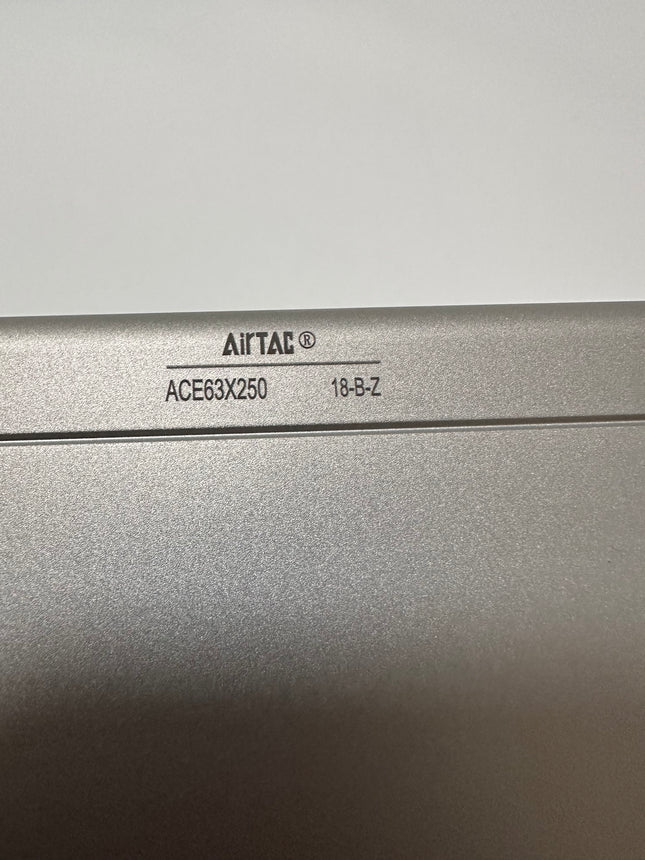

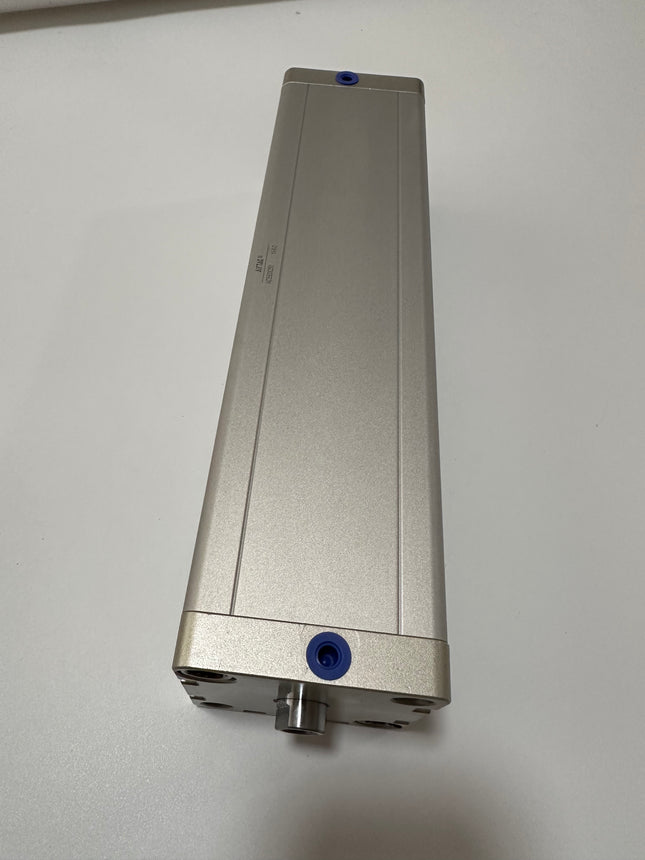

Airtac ACE series: double-acting compact cylinder - ACE63X250
