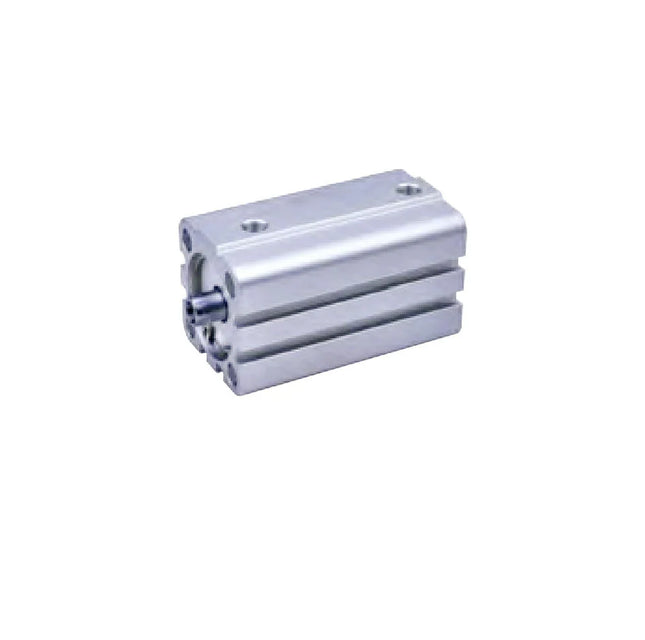

ACF Series Compact Cylinder

ACF Series Compact Cylinder

  • Product Features
  • Specifications
  • Stroke
  • Ordering Code

Product Features

  • 1. Executing ISO21287 standard, with versatile mounting dimensions.
  • 2. The cylinder body connects with the front and rear covers using C-type snap rings, with riveted piston/rod structure, ensuring reliability.
  • 3. The cylinder inner diameter is precision processed and hard anodized for wear resistance and durability.
  • 4. The piston seal adopts a heterogeneous two-way seal structure, compact size with oil storage function.
  • 5. Compact structure saves 50% installation space compared to ISO15552 standard cylinders.
  • 6. The cylinder body has sensor grooves on three sides for convenient sensor installation.
  • 7. Built-in anti-collision pads (bumpers) absorb residual energy from high-speed operation.
  • 8. A variety of mounting accessories are available.

Specifications

Bore Size (mm) 12 16 20 25 32 40 50 63
Acting Type Double Acting
Single Acting Push / Single Acting Pull
Fluid Air (filtered to 40μm or better)
Operating Pressure Double Acting: 0.15~1.0MPa (22~145psi)
Single Acting: 0.2~1.0MPa (28~145psi)
Proof Pressure 1.5MPa (215psi)
Temperature -20 ~ 70 °C
Speed Range Double Acting: 30~500 mm/s | Single Acting: 50~500 mm/s
Stroke Tolerance Stroke ≤ 100: +1.00 | Stroke > 100: +1.50
Cushion Type Bumper (Anti-collision pad)
Port Size [Note 1] M5 × 0.8 G1/8
[Note 1] PT thread and G thread are available.

Stroke Table

Type Bore (mm) Standard Stroke (mm) Max. Stroke
Standard
(Double Acting)		 12 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 50
16 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75 75
20 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100 100
25 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 75, 80, 90, 100, 110, 120, 125, 150 150
32, 40 5... 100, 110, 120, 125, 150, 160, 175, 200 200
50, 63 5... 200, 225, 250 250
Single Acting 12 5, 10 10
16 ~ 63 5, 10, 15, 20, 25 25
Guide Rod Type
(TACF)		 12 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 50
16 5... 50, 55, 60, 70, 75 75
20, 25 5... 75, 80, 90, 100 100
32, 40 5... 100 100
50, 63 5... 100 100
Note: Non-standard strokes are available upon request. Strokes within allowable range but exceeding max stroke are treated as non-standard.

Ordering Code Guide

ACF 20 x 30 S B - □
No. Item Applicable Model Description
1 Model All ACF: Compact Cylinder (Double Acting)
ASF: Single Acting (Push) [Note 1]
ATF: Single Acting (Pull)
TACF: Double Acting with Guide Rod
TACFD: Double Shaft with Guide Rod
ACFD: Double Shaft Double Acting
ACFJ: Double Shaft Adj. Stroke
2 Bore Size All Models 12, 16, 20, 25, 32, 40, 50, 63
3 Stroke All Refer to Stroke Table
4 Adj. Stroke ACFJ Only Standard: No Code
ACFJ: 10, 20, 30, 40, 50, 75, 100
5 Magnet All Blank: No Magnet
S: With Magnet
6 Rod Thread ACF, ASF, ATF, ACFD, ACFJ
TACF, TACFD 		Blank: Internal Thread (Female)
B: External Thread (Male)
No Code (Not Applicable)
7 Mounting [Note 2] ACF, ASF, ATF
TACF, TACFD
ACFD
ACFJ 		Blank: None | FA/FB: Front/Rear Flange
CA/CB: Single/Double Clevis
CR: Single Ear (use w/ CB) | LB: Axial Foot
SDB: Rear Hinge | FTC: Front Trunnion
Blank: None | FB: Rear Flange
CA: Single Clevis | CB: Double Clevis
CR: Single Ear | FTC: Trunnion
Blank: None | FB: Rear Flange
Blank: None | FA: Front Flange
FTC: Trunnion | LB: Axial Foot
8 Thread Type [Note 3] All Blank: PT Thread
G: G Thread
[Note 1] Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] CR used with CB; SDB used with CA; FTC used with TCM2.
[Note 3] When port size is M5, this code is blank.
