Valve

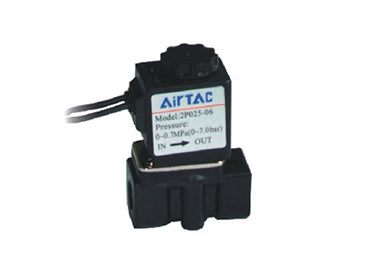

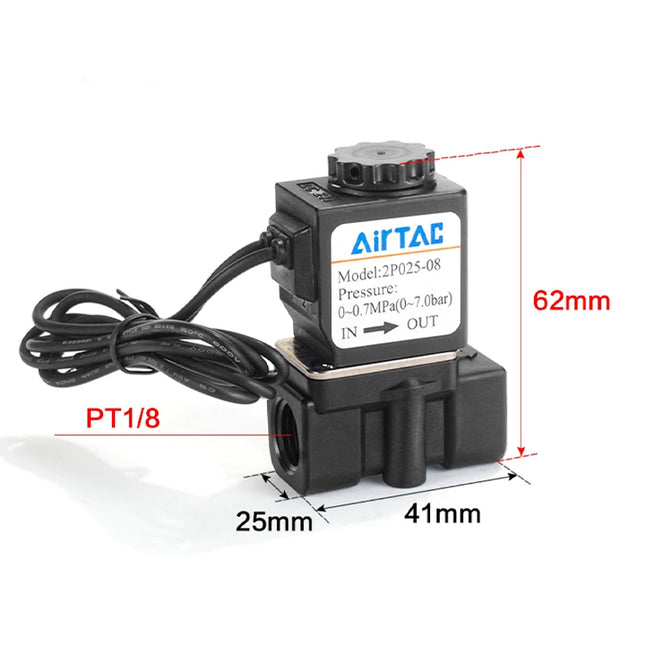

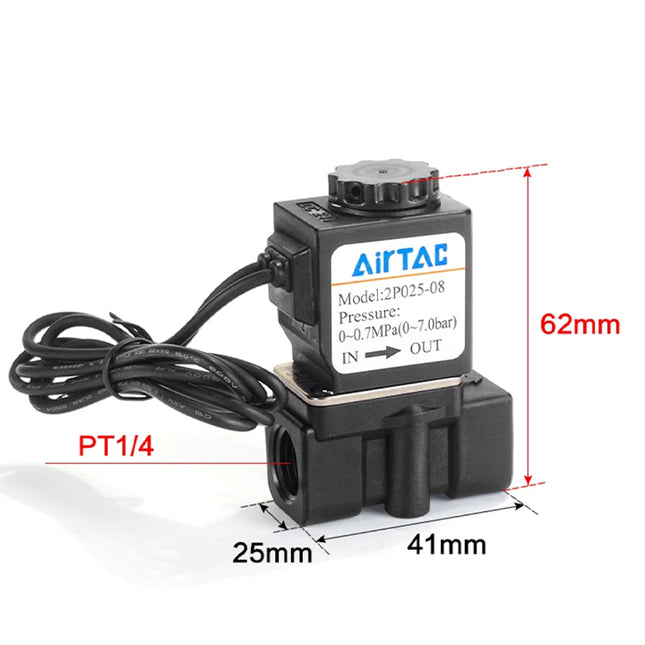

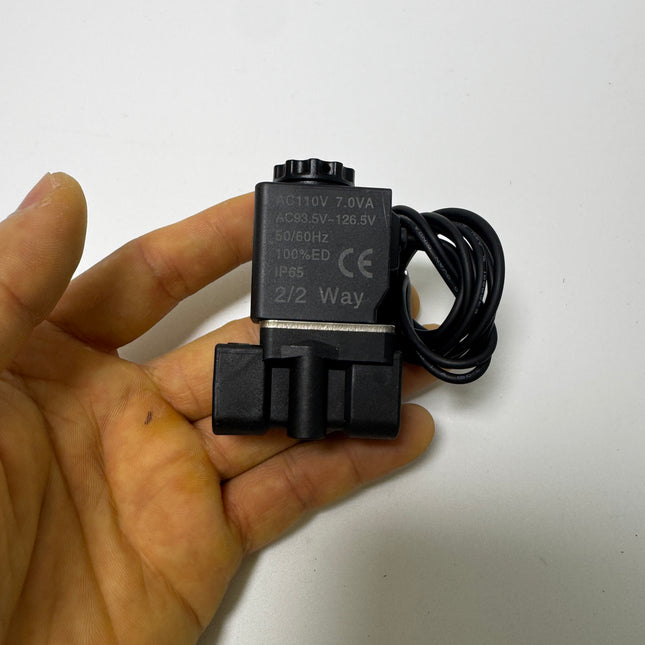

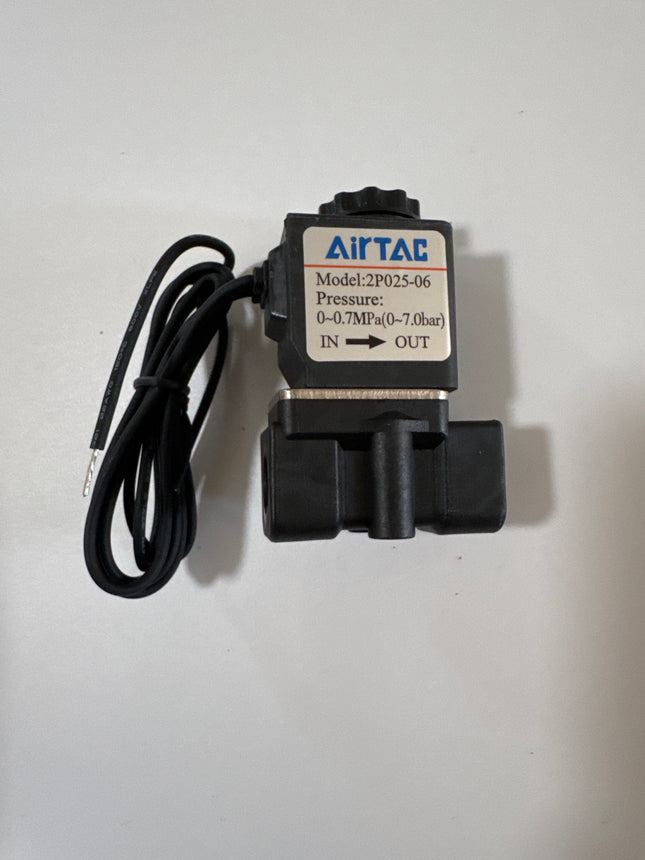

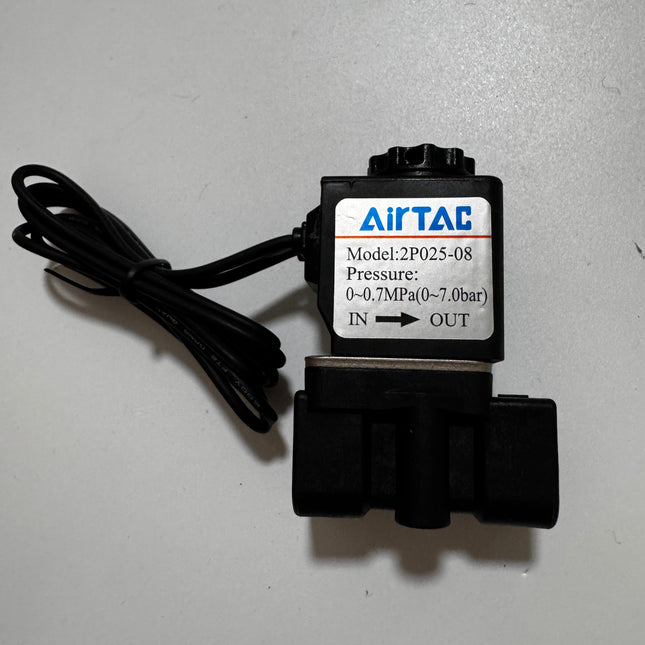

Specifications: 2P02508EIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/4 in ports, a AC 24 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 08 1/4 in E AC 24 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/4 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage AC 24 V Supply type AC Supply frequency 50 / 60 Hz Permitted voltage variation ±15% Power consumption 7.0 VA Insulation class Class B Catalog coil temperature rise 35 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/4 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02508CIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/4 in ports, a AC 110 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 08 1/4 in C AC 110 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/4 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage AC 110 V Supply type AC Supply frequency 50 / 60 Hz Permitted voltage variation ±15% Power consumption 7.0 VA Insulation class Class B Catalog coil temperature rise 35 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/4 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02506BIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/8 in ports, a DC 24 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 06 1/8 in B DC 24 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/8 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage DC 24 V Supply type DC Supply frequency Not applicable to DC Permitted voltage variation ±10% Power consumption 7.0 W Insulation class Class B Catalog coil temperature rise 45 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/8 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02506AIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/8 in ports, a AC 220 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 06 1/8 in A AC 220 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/8 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage AC 220 V Supply type AC Supply frequency 50 / 60 Hz Permitted voltage variation ±15% Power consumption 7.0 VA Insulation class Class B Catalog coil temperature rise 35 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/8 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02506CIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/8 in ports, a AC 110 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 06 1/8 in C AC 110 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/8 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage AC 110 V Supply type AC Supply frequency 50 / 60 Hz Permitted voltage variation ±15% Power consumption 7.0 VA Insulation class Class B Catalog coil temperature rise 35 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/8 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02506EIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/8 in ports, a AC 24 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 06 1/8 in E AC 24 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/8 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage AC 24 V Supply type AC Supply frequency 50 / 60 Hz Permitted voltage variation ±15% Power consumption 7.0 VA Insulation class Class B Catalog coil temperature rise 35 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/8 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

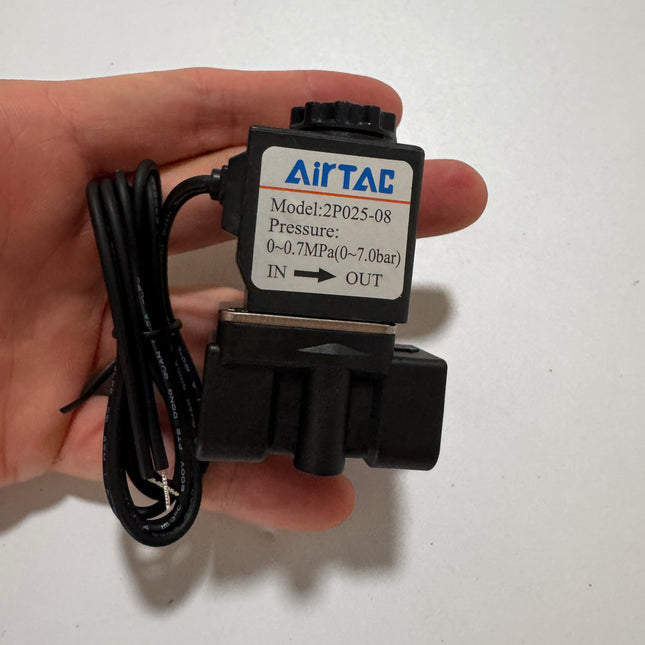

Specifications: 2P02508AIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/4 in ports, a AC 220 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 08 1/4 in A AC 220 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/4 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage AC 220 V Supply type AC Supply frequency 50 / 60 Hz Permitted voltage variation ±15% Power consumption 7.0 VA Insulation class Class B Catalog coil temperature rise 35 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/4 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02508BIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/4 in ports, a DC 24 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 08 1/4 in B DC 24 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/4 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage DC 24 V Supply type DC Supply frequency Not applicable to DC Permitted voltage variation ±10% Power consumption 7.0 W Insulation class Class B Catalog coil temperature rise 45 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/4 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02508FIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/4 in ports, a DC 12 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 08 1/4 in F DC 12 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/4 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage DC 12 V Supply type DC Supply frequency Not applicable to DC Permitted voltage variation ±10% Power consumption 7.0 W Insulation class Class B Catalog coil temperature rise 45 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/4 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less

Specifications: 2P02506FIG is an AirTAC 2P025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, G 1/8 in ports, a DC 12 V coil and flying leads / grommet entry. The valve is direct acting, with a nylon 66 body and VITON (fluoroelastomer) seals. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Original Product Statement Airtac 2P025 series valves are functional alternatives to SMC VDW series valves. Model Code Explained Code Meaning for this model 2P 2-port, 2-position fluid-control solenoid valve; plastic body 025 2.5 mm orifice 06 1/8 in F DC 12 V I flying leads / grommet entry G G thread Technical Specifications Parameter Details Working medium Air, water and oil; check seal compatibility for the actual medium Actuation direct acting Normal state Normally closed Orifice diameter 2.5 mm Cv 0.23 Port size G 1/8 in Fluid viscosity Below 20 cSt Operating pressure 0–0.7 MPa (catalog: 0–100 psi) Proof pressure 1.05 MPa (catalog: 150 psi) Body material Nylon 66 Seal material VITON (fluoroelastomer) Activating time 0.05 s or less Catalog reference weight 115 g Weight reference: 2022 catalog, printed page 300, 2P025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2P pages do not specify an operating-temperature range. Electrical Specifications Parameter Details Selected coil voltage DC 12 V Supply type DC Supply frequency Not applicable to DC Permitted voltage variation ±10% Power consumption 7.0 W Insulation class Class B Catalog coil temperature rise 45 °C Electrical entry flying leads / grommet entry Coil protection rating IP65 The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit. Features and Operation The direct-acting, normally closed mechanism is intended for sensitive and rapid switching. Compact nylon-66 construction reduces size and weight and allows convenient installation and removal. The catalog specifies Class B coil insulation, VITON seals and direct flying-lead entry with IP65 coil protection. The 2P ordering code offers I lead entry and G threads; a lead length is not stated on the reviewed 2P page. External and Mounting Dimensions The following values follow the applicable flying leads / grommet entry drawing in 2022 printed page 190; linked PDF page 3. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model. Parameter Details Overall drawing height 62 mm Upper side-view horizontal dimension 42.5 mm Body length across ports 41 mm Body transverse width 25 mm Port-center height above base 10 mm Bottom mounting holes 2 × M4 × 0.7 Mounting-hole center distance 16 mm Process connections 2 × G 1/8 in For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics The 2P catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit. Internal Components The 2P section view identifies these components. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities. Drawing callout Component 1 Body 2 Retaining washer 3 O-ring 4 Countersunk screw 5 Moving armature 6 Coil 7 Coil retaining nut 8 Fixed armature 9 Spring Series Ordering Options The 2P025 series offers 06 = 1/8 in and 08 = 1/4 in ports, I flying leads and G threads. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Read more less
