AIRTAC 4M Series NAMUR Specification Solenoid Valve

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31008B

  Specifications: 4M31008B — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply PT1/4, exhaust PT1/4; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31008B 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size B DC24V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M31008B Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT1/4; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: PT1/4; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

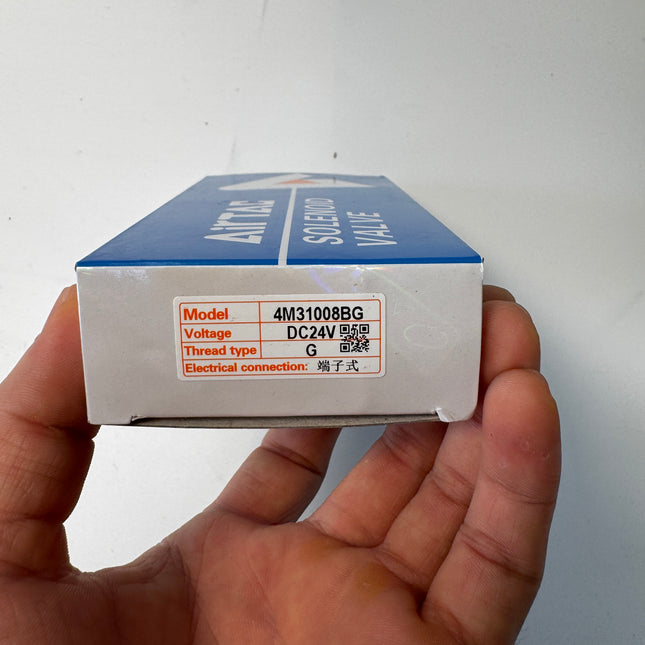

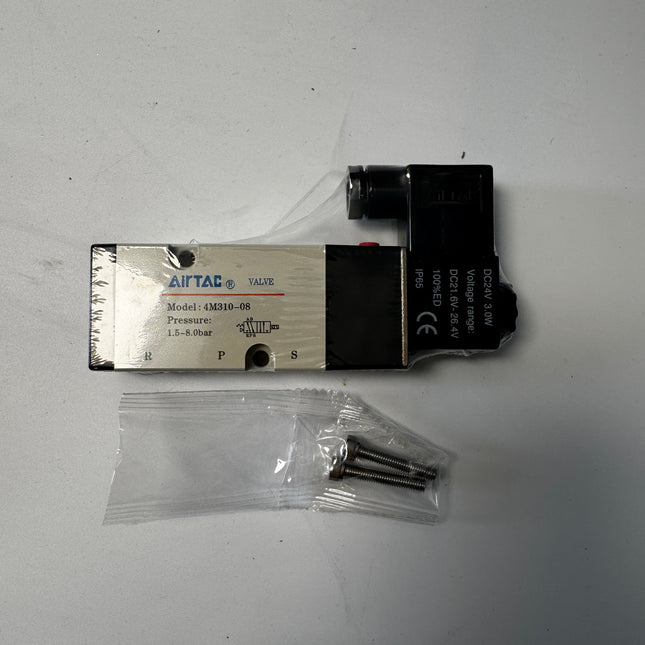

  Airtac 4M series: namur solenoid valve - 4M31008BG

  Specifications: 4M31008BG — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply G1/4, exhaust G1/4; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31008BG 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size B DC24V Blank electrical code DIN connector G G thread Technical Specifications Parameter This model Model 4M31008BG Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: G1/4; exhaust R/S: G1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: G1/4; exhaust: G1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31008E

  Specifications: 4M31008E — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply PT1/4, exhaust PT1/4; AC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31008E 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size E AC24V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M31008E Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT1/4; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC24V Voltage tolerance ±15% (AC) Power consumption 5.0 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: PT1/4; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

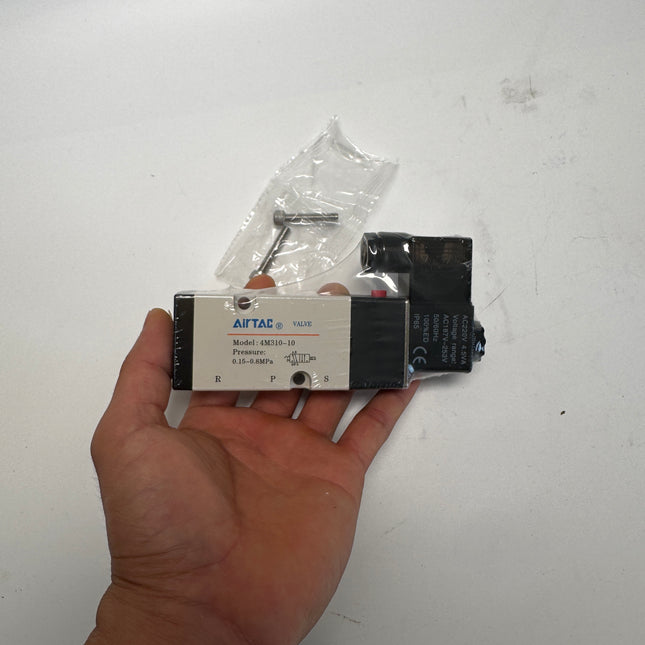

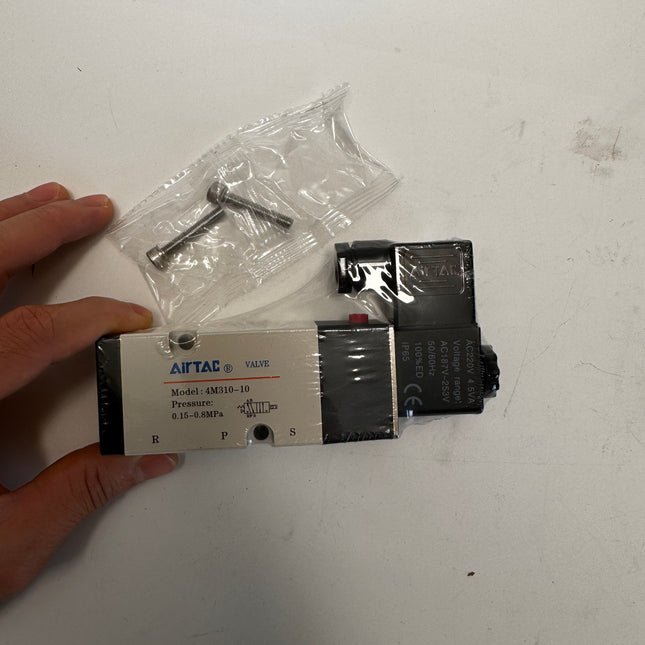

  Airtac 4M series: namur solenoid valve - 4M31010A

  Specifications: 4M31010A — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply PT3/8, exhaust PT1/4; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31010A 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 10 3/8-inch supply port size A AC220V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M31010A Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT3/8; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 4.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: PT3/8; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31008CT

  Specifications: 4M31008CT — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply NPT1/4, exhaust NPT1/4; AC110V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31008CT 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size C AC110V Blank electrical code DIN connector T NPT thread Technical Specifications Parameter This model Model 4M31008CT Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: NPT1/4; exhaust R/S: NPT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC110V Voltage tolerance ±15% (AC) Power consumption 4.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: NPT1/4; exhaust: NPT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31008B-KCZ020B

  Specifications: 4M31008B — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply PT1/4, exhaust PT1/4; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31008B 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size B DC24V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M31008B Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT1/4; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: PT1/4; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M21008FG

  Specifications: 4M21008FG — NAMUR 5/2-way solenoid valve, 200 series; single solenoid, two-position, spring return; supply G1/4, exhaust G1/8; DC12V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M21008FG 4M Five-port, two-position solenoid valve with NAMUR interface 2 200 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size F DC12V Blank electrical code DIN connector G G thread Technical Specifications Parameter This model Model 4M21008FG Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: G1/4; exhaust R/S: G1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 17.0 mm²; Cv = 1.00. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 220 g (0.220 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC12V Voltage tolerance ±10% (DC) Power consumption 2.5 W per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 117 in the main side view. Main side-view height 67 as dimensioned in the main side view. Narrow port-view width 22 Narrow port view: longitudinal dimensions 36 between the two outer port centre-lines; 13.7 from the right outer port centre-line to the right end; 31.7 from the middle port centre-line to the right end. Mounting holes 2 × Ø4.3. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 20 and 21.7, at the locations indicated above the face. NAMUR face: lower horizontal callouts 23 and 20.2, at the locations indicated below the face. NAMUR face: vertical callouts 29 between the indicated mounting-hole levels; 35 overall face height. Local feature callout 3, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: G1/4; exhaust: G1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V210-08 graph is a series reference: flow axis 0–2000 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M21008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Cylinder bore Ø50 mm Speed (mm/s) → required effective area (mm²): 300 → 3.1; 400 → 4.1; 500 → 5.1; 600 → 6.1; 700 → 7.2; 800 → 8.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500/600/700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008.Silencers: BSL02, BSLM02, BESL02, PAL02, PALM02. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31008AG

  Specifications: 4M31008AG — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply G1/4, exhaust G1/4; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31008AG 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size A AC220V Blank electrical code DIN connector G G thread Technical Specifications Parameter This model Model 4M31008AG Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: G1/4; exhaust R/S: G1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 4.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: G1/4; exhaust: G1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31010C

  Specifications: 4M31010C — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply PT3/8, exhaust PT1/4; AC110V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31010C 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 10 3/8-inch supply port size C AC110V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M31010C Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT3/8; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC110V Voltage tolerance ±15% (AC) Power consumption 4.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: PT3/8; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

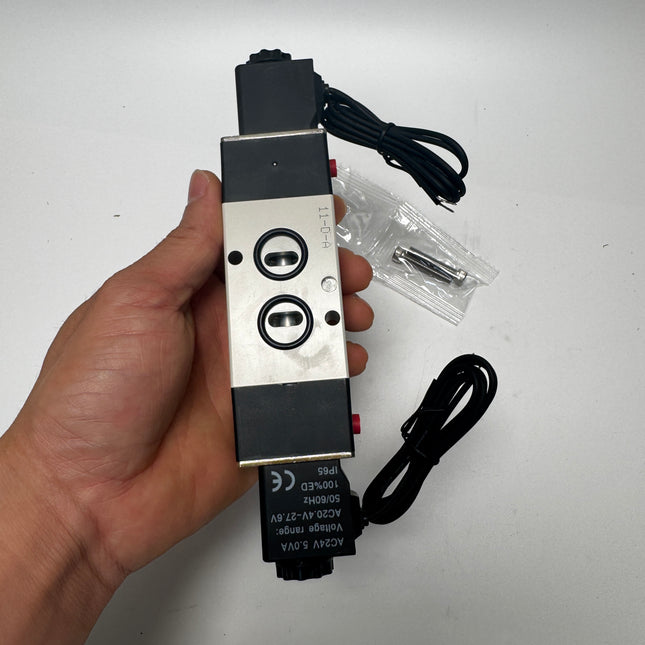

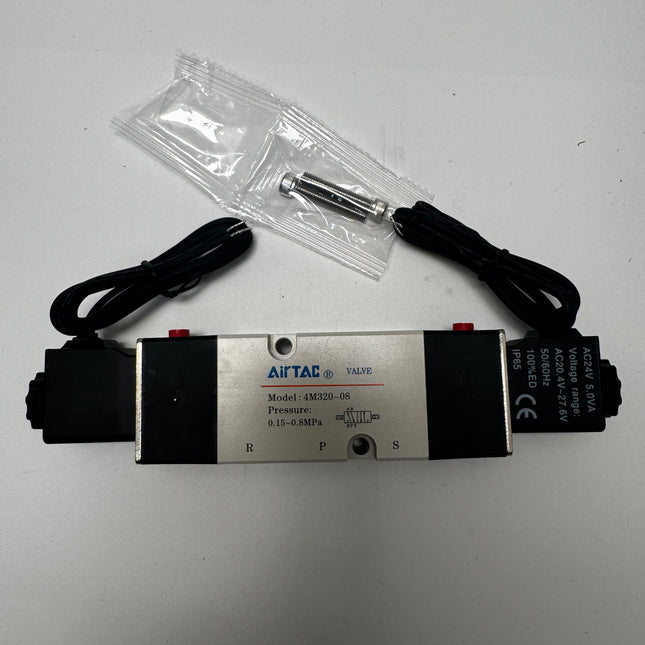

  Airtac 4M series: namur solenoid valve - 4M32008EI

  Specifications: 4M32008EI — NAMUR 5/2-way solenoid valve, 300 series; double solenoid, two-position; supply PT1/4, exhaust PT1/4; AC24V; lead wire (0.5 m). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M32008EI 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 20 Double solenoid, two-position 08 1/4-inch supply port size E AC24V I lead wire (0.5 m) Blank thread code PT thread Technical Specifications Parameter This model Model 4M32008EI Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT1/4; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 400 g (0.400 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC24V Voltage tolerance ±15% (AC) Power consumption 5.0 VA per coil Coil arrangement Two solenoids Connection lead wire (0.5 m) Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. Lead-wire version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 190 in the vertical main view. Main transverse profile dimension 39 across the indicated main-view profile. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 72.4 from the lower end to the lower outer port centre-line; 95 from the lower end to the middle port centre-line. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: transverse dimensions 32 between the indicated mounting-hole centre-lines; 40 overall face width. NAMUR face: longitudinal callouts 21.5 and 24 between the indicated reference levels. NAMUR face: lower-end reference dimension 83 from the lower end to the indicated level. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. Supply and exhaust threads Supply: PT1/4; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M32008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $64.53

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31010B

  Specifications: 4M31010B — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply PT3/8, exhaust PT1/4; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31010B 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 10 3/8-inch supply port size B DC24V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M31010B Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT3/8; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: PT3/8; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M21008B

  Specifications: 4M21008B — NAMUR 5/2-way solenoid valve, 200 series; single solenoid, two-position, spring return; supply PT1/4, exhaust PT1/8; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M21008B 4M Five-port, two-position solenoid valve with NAMUR interface 2 200 series 10 Single solenoid, two-position, spring return 08 1/4-inch supply port size B DC24V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M21008B Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT1/4; exhaust R/S: PT1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 17.0 mm²; Cv = 1.00. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 220 g (0.220 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 117 in the main side view. Main side-view height 67 as dimensioned in the main side view. Narrow port-view width 22 Narrow port view: longitudinal dimensions 36 between the two outer port centre-lines; 13.7 from the right outer port centre-line to the right end; 31.7 from the middle port centre-line to the right end. Mounting holes 2 × Ø4.3. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 20 and 21.7, at the locations indicated above the face. NAMUR face: lower horizontal callouts 23 and 20.2, at the locations indicated below the face. NAMUR face: vertical callouts 29 between the indicated mounting-hole levels; 35 overall face height. Local feature callout 3, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: PT1/4; exhaust: PT1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V210-08 graph is a series reference: flow axis 0–2000 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M21008 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Cylinder bore Ø50 mm Speed (mm/s) → required effective area (mm²): 300 → 3.1; 400 → 4.1; 500 → 5.1; 600 → 6.1; 700 → 7.2; 800 → 8.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500/600/700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008.Silencers: BSL02, BSLM02, BESL02, PAL02, PALM02. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M31010CT

  Specifications: 4M31010CT — NAMUR 5/2-way solenoid valve, 300 series; single solenoid, two-position, spring return; supply NPT3/8, exhaust NPT1/4; AC110V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M31010CT 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 10 Single solenoid, two-position, spring return 10 3/8-inch supply port size C AC110V Blank electrical code DIN connector T NPT thread Technical Specifications Parameter This model Model 4M31010CT Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: NPT3/8; exhaust R/S: NPT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 310 g (0.310 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC110V Voltage tolerance ±15% (AC) Power consumption 4.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 135 in the main side view. Main side-view height 69 as dimensioned in the main side view. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 17.5 from the right outer port centre-line to the right end; 40 from the middle port centre-line to the right end. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: upper horizontal callouts 21.5 and 29.3, at the locations indicated above the face. NAMUR face: lower horizontal callouts 24 and 28, at the locations indicated below the face. NAMUR face: vertical callouts 32 between the indicated mounting-hole levels; 40 overall face height. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference levels. Supply and exhaust threads Supply: NPT3/8; exhaust: NPT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M31010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $38.09

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M32010BT

  Specifications: 4M32010BT — NAMUR 5/2-way solenoid valve, 300 series; double solenoid, two-position; supply NPT3/8, exhaust NPT1/4; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M32010BT 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 20 Double solenoid, two-position 10 3/8-inch supply port size B DC24V Blank electrical code DIN connector T NPT thread Technical Specifications Parameter This model Model 4M32010BT Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: NPT3/8; exhaust R/S: NPT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 400 g (0.400 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement Two solenoids Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 190 in the vertical main view. Main transverse profile dimension 69 across the indicated main-view profile. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 72.4 from the lower end to the lower outer port centre-line; 95 from the lower end to the middle port centre-line. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: transverse dimensions 32 between the indicated mounting-hole centre-lines; 40 overall face width. NAMUR face: longitudinal callouts 21.5 and 24 between the indicated reference levels. NAMUR face: lower-end reference dimension 83 from the lower end to the indicated level. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference lines. Supply and exhaust threads Supply: NPT3/8; exhaust: NPT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M32010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $64.53

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M32010BG

  Specifications: 4M32010BG — NAMUR 5/2-way solenoid valve, 300 series; double solenoid, two-position; supply G3/8, exhaust G1/4; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M32010BG 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 20 Double solenoid, two-position 10 3/8-inch supply port size B DC24V Blank electrical code DIN connector G G thread Technical Specifications Parameter This model Model 4M32010BG Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: G3/8; exhaust R/S: G1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 400 g (0.400 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement Two solenoids Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 190 in the vertical main view. Main transverse profile dimension 69 across the indicated main-view profile. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 72.4 from the lower end to the lower outer port centre-line; 95 from the lower end to the middle port centre-line. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: transverse dimensions 32 between the indicated mounting-hole centre-lines; 40 overall face width. NAMUR face: longitudinal callouts 21.5 and 24 between the indicated reference levels. NAMUR face: lower-end reference dimension 83 from the lower end to the indicated level. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference lines. Supply and exhaust threads Supply: G3/8; exhaust: G1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M32010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $64.53

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M32010B

  Specifications: 4M32010B — NAMUR 5/2-way solenoid valve, 300 series; double solenoid, two-position; supply PT3/8, exhaust PT1/4; DC24V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M32010B 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 20 Double solenoid, two-position 10 3/8-inch supply port size B DC24V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M32010B Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT3/8; exhaust R/S: PT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 400 g (0.400 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement Two solenoids Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 190 in the vertical main view. Main transverse profile dimension 69 across the indicated main-view profile. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 72.4 from the lower end to the lower outer port centre-line; 95 from the lower end to the middle port centre-line. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: transverse dimensions 32 between the indicated mounting-hole centre-lines; 40 overall face width. NAMUR face: longitudinal callouts 21.5 and 24 between the indicated reference levels. NAMUR face: lower-end reference dimension 83 from the lower end to the indicated level. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 40, between the indicated connector reference lines. Supply and exhaust threads Supply: PT3/8; exhaust: PT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M32010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $64.53

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M12006AT

  Specifications: 4M12006AT — NAMUR 5/2-way solenoid valve, 100 series; double solenoid, two-position; supply NPT1/8, exhaust NPT1/8; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M12006AT 4M Five-port, two-position solenoid valve with NAMUR interface 1 100 series 20 Double solenoid, two-position 06 1/8-inch supply port size A AC220V Blank electrical code DIN connector T NPT thread Technical Specifications Parameter This model Model 4M12006AT Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: NPT1/8; exhaust R/S: NPT1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 10.2 mm²; Cv = 0.60. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 175 g (0.175 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 3.5 VA per coil Coil arrangement Two solenoids Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 146.4 in the vertical main view. Main transverse profile dimension 55 across the indicated main-view profile. Narrow port-view width 18 Narrow port view: longitudinal dimensions 30 between the two outer port centre-lines; 58.2 from the lower end to the lower outer port centre-line; 73.2 from the lower end to the middle port centre-line. Port-face local offset 2 for the 06 port version. Mounting holes 3 × Ø3.3 through holes. Face recesses 2 × Ø16, depth 1.4. NAMUR face: transverse dimensions 21 between the indicated mounting-hole centre-lines; 27 overall face width. NAMUR face: longitudinal callouts 21.5 and 16 between the indicated reference levels. NAMUR face: lower-end reference dimensions 62.45 and 65.2 from the lower end to the respective indicated levels. Local feature callout 2.5, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 34, between the indicated connector reference lines. Supply and exhaust threads Supply: NPT1/8; exhaust: NPT1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V110-06 graph is a series reference: flow axis 0–1200 L/min in 200 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M12006 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø20 mm Speed (mm/s) → required effective area (mm²): 300 → 0.5; 400 → 0.7; 500 → 0.8; 600 → 1.0; 700 → 1.2; 800 → 1.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø25 mm Speed (mm/s) → required effective area (mm²): 300 → 0.8; 400 → 1.0; 500 → 1.3; 600 → 1.5; 700 → 1.8; 800 → 2.0.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4; 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 300 → 1.3; 400 → 1.7; 500 → 2.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 600 → 2.5; 700 → 2.9; 800 → 3.4.Valve-to-cylinder tubing (OD × ID, mm): 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTL01, PSL01, PSS01, ASC10006.Silencers: BSL(M)01, BESL01, PAL(M)01. Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $42.20

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M11006AT

  Specifications: 4M11006AT — NAMUR 5/2-way solenoid valve, 100 series; single solenoid, two-position, spring return; supply NPT1/8, exhaust NPT1/8; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M11006AT 4M Five-port, two-position solenoid valve with NAMUR interface 1 100 series 10 Single solenoid, two-position, spring return 06 1/8-inch supply port size A AC220V Blank electrical code DIN connector T NPT thread Technical Specifications Parameter This model Model 4M11006AT Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: NPT1/8; exhaust R/S: NPT1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 10.2 mm²; Cv = 0.60. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 120 g (0.120 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 3.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 103.4 in the main side view. Main side-view height 55 as dimensioned in the main side view. Narrow port-view width 18 Narrow port view: longitudinal dimensions 30 between the two outer port centre-lines; 15.2 from the right outer port centre-line to the right end; 30.2 from the middle port centre-line to the right end. Port-face local offset 2 for the 06 port version. Mounting holes 3 × Ø3.3 through holes. Face recesses 2 × Ø16, depth 1.4. NAMUR face: upper horizontal callouts 21.5 and 19.5, at the locations indicated above the face. NAMUR face: lower horizontal callouts 16 and 22.2, at the locations indicated below the face. NAMUR face: vertical callouts 21 between the indicated mounting-hole levels; 27 overall face height. Local feature callout 2.5, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 34, between the indicated connector reference levels. Supply and exhaust threads Supply: NPT1/8; exhaust: NPT1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V110-06 graph is a series reference: flow axis 0–1200 L/min in 200 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M11006 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø20 mm Speed (mm/s) → required effective area (mm²): 300 → 0.5; 400 → 0.7; 500 → 0.8; 600 → 1.0; 700 → 1.2; 800 → 1.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø25 mm Speed (mm/s) → required effective area (mm²): 300 → 0.8; 400 → 1.0; 500 → 1.3; 600 → 1.5; 700 → 1.8; 800 → 2.0.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4; 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 300 → 1.3; 400 → 1.7; 500 → 2.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 600 → 2.5; 700 → 2.9; 800 → 3.4.Valve-to-cylinder tubing (OD × ID, mm): 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTL01, PSL01, PSS01, ASC10006.Silencers: BSL(M)01, BESL01, PAL(M)01. Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M12006AG

  Specifications: 4M12006AG — NAMUR 5/2-way solenoid valve, 100 series; double solenoid, two-position; supply G1/8, exhaust G1/8; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M12006AG 4M Five-port, two-position solenoid valve with NAMUR interface 1 100 series 20 Double solenoid, two-position 06 1/8-inch supply port size A AC220V Blank electrical code DIN connector G G thread Technical Specifications Parameter This model Model 4M12006AG Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: G1/8; exhaust R/S: G1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 10.2 mm²; Cv = 0.60. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 175 g (0.175 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 3.5 VA per coil Coil arrangement Two solenoids Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 146.4 in the vertical main view. Main transverse profile dimension 55 across the indicated main-view profile. Narrow port-view width 18 Narrow port view: longitudinal dimensions 30 between the two outer port centre-lines; 58.2 from the lower end to the lower outer port centre-line; 73.2 from the lower end to the middle port centre-line. Port-face local offset 2 for the 06 port version. Mounting holes 3 × Ø3.3 through holes. Face recesses 2 × Ø16, depth 1.4. NAMUR face: transverse dimensions 21 between the indicated mounting-hole centre-lines; 27 overall face width. NAMUR face: longitudinal callouts 21.5 and 16 between the indicated reference levels. NAMUR face: lower-end reference dimensions 62.45 and 65.2 from the lower end to the respective indicated levels. Local feature callout 2.5, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 34, between the indicated connector reference lines. Supply and exhaust threads Supply: G1/8; exhaust: G1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V110-06 graph is a series reference: flow axis 0–1200 L/min in 200 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M12006 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø20 mm Speed (mm/s) → required effective area (mm²): 300 → 0.5; 400 → 0.7; 500 → 0.8; 600 → 1.0; 700 → 1.2; 800 → 1.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø25 mm Speed (mm/s) → required effective area (mm²): 300 → 0.8; 400 → 1.0; 500 → 1.3; 600 → 1.5; 700 → 1.8; 800 → 2.0.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4; 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 300 → 1.3; 400 → 1.7; 500 → 2.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 600 → 2.5; 700 → 2.9; 800 → 3.4.Valve-to-cylinder tubing (OD × ID, mm): 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTL01, PSL01, PSS01, ASC10006.Silencers: BSL(M)01, BESL01, PAL(M)01. Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $42.20

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M11006AG

  Specifications: 4M11006AG — NAMUR 5/2-way solenoid valve, 100 series; single solenoid, two-position, spring return; supply G1/8, exhaust G1/8; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M11006AG 4M Five-port, two-position solenoid valve with NAMUR interface 1 100 series 10 Single solenoid, two-position, spring return 06 1/8-inch supply port size A AC220V Blank electrical code DIN connector G G thread Technical Specifications Parameter This model Model 4M11006AG Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: G1/8; exhaust R/S: G1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 10.2 mm²; Cv = 0.60. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 120 g (0.120 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 3.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 103.4 in the main side view. Main side-view height 55 as dimensioned in the main side view. Narrow port-view width 18 Narrow port view: longitudinal dimensions 30 between the two outer port centre-lines; 15.2 from the right outer port centre-line to the right end; 30.2 from the middle port centre-line to the right end. Port-face local offset 2 for the 06 port version. Mounting holes 3 × Ø3.3 through holes. Face recesses 2 × Ø16, depth 1.4. NAMUR face: upper horizontal callouts 21.5 and 19.5, at the locations indicated above the face. NAMUR face: lower horizontal callouts 16 and 22.2, at the locations indicated below the face. NAMUR face: vertical callouts 21 between the indicated mounting-hole levels; 27 overall face height. Local feature callout 2.5, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 34, between the indicated connector reference levels. Supply and exhaust threads Supply: G1/8; exhaust: G1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V110-06 graph is a series reference: flow axis 0–1200 L/min in 200 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M11006 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø20 mm Speed (mm/s) → required effective area (mm²): 300 → 0.5; 400 → 0.7; 500 → 0.8; 600 → 1.0; 700 → 1.2; 800 → 1.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø25 mm Speed (mm/s) → required effective area (mm²): 300 → 0.8; 400 → 1.0; 500 → 1.3; 600 → 1.5; 700 → 1.8; 800 → 2.0.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4; 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 300 → 1.3; 400 → 1.7; 500 → 2.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 600 → 2.5; 700 → 2.9; 800 → 3.4.Valve-to-cylinder tubing (OD × ID, mm): 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTL01, PSL01, PSS01, ASC10006.Silencers: BSL(M)01, BESL01, PAL(M)01. Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M12006A

  Specifications: 4M12006A — NAMUR 5/2-way solenoid valve, 100 series; double solenoid, two-position; supply PT1/8, exhaust PT1/8; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M12006A 4M Five-port, two-position solenoid valve with NAMUR interface 1 100 series 20 Double solenoid, two-position 06 1/8-inch supply port size A AC220V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M12006A Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT1/8; exhaust R/S: PT1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 10.2 mm²; Cv = 0.60. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 175 g (0.175 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 3.5 VA per coil Coil arrangement Two solenoids Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 146.4 in the vertical main view. Main transverse profile dimension 55 across the indicated main-view profile. Narrow port-view width 18 Narrow port view: longitudinal dimensions 30 between the two outer port centre-lines; 58.2 from the lower end to the lower outer port centre-line; 73.2 from the lower end to the middle port centre-line. Port-face local offset 2 for the 06 port version. Mounting holes 3 × Ø3.3 through holes. Face recesses 2 × Ø16, depth 1.4. NAMUR face: transverse dimensions 21 between the indicated mounting-hole centre-lines; 27 overall face width. NAMUR face: longitudinal callouts 21.5 and 16 between the indicated reference levels. NAMUR face: lower-end reference dimensions 62.45 and 65.2 from the lower end to the respective indicated levels. Local feature callout 2.5, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 34, between the indicated connector reference lines. Supply and exhaust threads Supply: PT1/8; exhaust: PT1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V110-06 graph is a series reference: flow axis 0–1200 L/min in 200 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M12006 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø20 mm Speed (mm/s) → required effective area (mm²): 300 → 0.5; 400 → 0.7; 500 → 0.8; 600 → 1.0; 700 → 1.2; 800 → 1.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø25 mm Speed (mm/s) → required effective area (mm²): 300 → 0.8; 400 → 1.0; 500 → 1.3; 600 → 1.5; 700 → 1.8; 800 → 2.0.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4; 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 300 → 1.3; 400 → 1.7; 500 → 2.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 600 → 2.5; 700 → 2.9; 800 → 3.4.Valve-to-cylinder tubing (OD × ID, mm): 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTL01, PSL01, PSS01, ASC10006.Silencers: BSL(M)01, BESL01, PAL(M)01. Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $42.20

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M11006A

  Specifications: 4M11006A — NAMUR 5/2-way solenoid valve, 100 series; single solenoid, two-position, spring return; supply PT1/8, exhaust PT1/8; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M11006A 4M Five-port, two-position solenoid valve with NAMUR interface 1 100 series 10 Single solenoid, two-position, spring return 06 1/8-inch supply port size A AC220V Blank electrical code DIN connector Blank thread code PT thread Technical Specifications Parameter This model Model 4M11006A Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: PT1/8; exhaust R/S: PT1/8. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 10.2 mm²; Cv = 0.60. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 120 g (0.120 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 3.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 103.4 in the main side view. Main side-view height 55 as dimensioned in the main side view. Narrow port-view width 18 Narrow port view: longitudinal dimensions 30 between the two outer port centre-lines; 15.2 from the right outer port centre-line to the right end; 30.2 from the middle port centre-line to the right end. Port-face local offset 2 for the 06 port version. Mounting holes 3 × Ø3.3 through holes. Face recesses 2 × Ø16, depth 1.4. NAMUR face: upper horizontal callouts 21.5 and 19.5, at the locations indicated above the face. NAMUR face: lower horizontal callouts 16 and 22.2, at the locations indicated below the face. NAMUR face: vertical callouts 21 between the indicated mounting-hole levels; 27 overall face height. Local feature callout 2.5, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 34, between the indicated connector reference levels. Supply and exhaust threads Supply: PT1/8; exhaust: PT1/8. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V110-06 graph is a series reference: flow axis 0–1200 L/min in 200 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M11006 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø20 mm Speed (mm/s) → required effective area (mm²): 300 → 0.5; 400 → 0.7; 500 → 0.8; 600 → 1.0; 700 → 1.2; 800 → 1.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø25 mm Speed (mm/s) → required effective area (mm²): 300 → 0.8; 400 → 1.0; 500 → 1.3; 600 → 1.5; 700 → 1.8; 800 → 2.0.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4; 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 300 → 1.3; 400 → 1.7; 500 → 2.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 600 → 2.5; 700 → 2.9; 800 → 3.4.Valve-to-cylinder tubing (OD × ID, mm): 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTL01, PSL01, PSS01, ASC10006.Silencers: BSL(M)01, BESL01, PAL(M)01. Cylinder bore Ø40 mm Speed (mm/s) → required effective area (mm²): 300 → 2.0; 400 → 2.6; 500 → 3.3; 600 → 3.9; 700 → 4.6; 800 → 5.2.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø6 × Ø4; 500/600 mm/s: Ø8 × Ø5; 700/800 mm/s: Ø10 × Ø6.5.Flow controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008.Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M110M5A

  Specifications: 4M110M5A — NAMUR 5/2-way solenoid valve, 100 series; single solenoid, two-position, spring return; supply M5, exhaust M5; AC220V; DIN connector. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M110M5A 4M Five-port, two-position solenoid valve with NAMUR interface 1 100 series 10 Single solenoid, two-position, spring return M5 M5 port size A AC220V Blank electrical code DIN connector Technical Specifications Parameter This model Model 4M110M5A Valve function Five ports, two positions (5/2-way); single solenoid, two-position, spring return Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: M5; exhaust R/S: M5. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 5 cycles/s, under no-load conditions. Catalog weight 120 g (0.120 kg) per valve. Electrical Specifications Parameter This model Rated voltage AC220V Voltage tolerance ±15% (AC) Power consumption 3.5 VA per coil Coil arrangement One solenoid Connection DIN connector Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This single-solenoid valve uses spring return when the solenoid is de-energized. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. DIN-connector version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 103.4 in the main side view. Main side-view height 55 as dimensioned in the main side view. Narrow port-view width 18 Narrow port view: longitudinal dimensions 30 between the two outer port centre-lines; 15.2 from the right outer port centre-line to the right end; 30.2 from the middle port centre-line to the right end. Port-face local offset 0 for the M5 port version. Mounting holes 3 × Ø3.3 through holes. Face recesses 2 × Ø16, depth 1.4. NAMUR face: upper horizontal callouts 21.5 and 19.5, at the locations indicated above the face. NAMUR face: lower horizontal callouts 16 and 22.2, at the locations indicated below the face. NAMUR face: vertical callouts 21 between the indicated mounting-hole levels; 27 overall face height. Local feature callout 2.5, at the indicated body feature; follow the drawing dimension line. DIN connector local dimension 34, between the indicated connector reference levels. Supply and exhaust threads Supply: M5; exhaust: M5. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Selection Select operating flow using the 4V-series flow characteristics corresponding to the valve size and configuration. Check the working pressure, cylinder demand and complete circuit restriction when sizing the application. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M110M5 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø6 mm Speed (mm/s) → required effective area (mm²): 500 → 0.1.Valve-to-cylinder tubing (OD × ID, mm): 500 mm/s: Ø4 × Ø2.5.Flow controls: PTLM5, PSLM5, PSSM5.Silencers: BSLM5, BSLMM5. Cylinder bore Ø10 mm Speed (mm/s) → required effective area (mm²): 500 → 0.2.Valve-to-cylinder tubing (OD × ID, mm): 500 mm/s: Ø4 × Ø2.5.Flow controls: PTLM5, PSLM5, PSSM5.Silencers: BSLM5, BSLMM5. Cylinder bore Ø12 mm Speed (mm/s) → required effective area (mm²): 500 → 0.3.Valve-to-cylinder tubing (OD × ID, mm): 500 mm/s: Ø4 × Ø2.5.Flow controls: PTLM5, PSLM5, PSSM5.Silencers: BSLM5, BSLMM5. Cylinder bore Ø16 mm Speed (mm/s) → required effective area (mm²): 500 → 0.5.Valve-to-cylinder tubing (OD × ID, mm): 500 mm/s: Ø4 × Ø2.5.Flow controls: PTLM5, PSLM5, PSSM5.Silencers: BSLM5, BSLMM5. Cylinder bore Ø20 mm Speed (mm/s) → required effective area (mm²): 300 → 0.5; 400 → 0.7; 500 → 0.8; 600 → 1.0; 700 → 1.2; 800 → 1.3.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø25 mm Speed (mm/s) → required effective area (mm²): 300 → 0.8; 400 → 1.0; 500 → 1.3; 600 → 1.5; 700 → 1.8; 800 → 2.0.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4; 600/700/800 mm/s: Ø8 × Ø5.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Cylinder bore Ø32 mm Speed (mm/s) → required effective area (mm²): 300 → 1.3; 400 → 1.7; 500 → 2.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500 mm/s: Ø6 × Ø4.Flow controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006.Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the single-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 10 Bottom cover 11 Fixed screw 12 Spool spring 13 Bottom cover gasket 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4M series: namur solenoid valve - 4M32010BIT

  Specifications: 4M32010BIT — NAMUR 5/2-way solenoid valve, 300 series; double solenoid, two-position; supply NPT3/8, exhaust NPT1/4; DC24V; lead wire (0.5 m). Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Meaning in 4M32010BIT 4M Five-port, two-position solenoid valve with NAMUR interface 3 300 series 20 Double solenoid, two-position 10 3/8-inch supply port size B DC24V I lead wire (0.5 m) T NPT thread Technical Specifications Parameter This model Model 4M32010BIT Valve function Five ports, two positions (5/2-way); double solenoid, two-position Actuation Internally piloted Working medium Air, filtered through a 40 μm filter element. Supply and exhaust Supply P: NPT3/8; exhaust R/S: NPT1/4. A/B connect through the NAMUR actuator interface. Operating pressure 0.15–0.8 MPa (21–114 psi) Effective flow area / Cv 28.0 mm²; Cv = 1.65. Calculated from tested flow data. Proof pressure 1.2 MPa (175 psi) Working temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, continue lubrication without interruption; use ISO VG32 oil or equivalent. Maximum frequency 4 cycles/s, under no-load conditions. Catalog weight 400 g (0.400 kg) per valve. Electrical Specifications Parameter This model Rated voltage DC24V Voltage tolerance ±10% (DC) Power consumption 3.0 W per coil Coil arrangement Two solenoids Connection lead wire (0.5 m) Protection rating IP65 (DIN40050) Insulation class Class B Energizing time 0.05 s or less Features and Operation Internally piloted spool construction provides effective sealing and responsive switching. Specially processed bores reduce sliding friction and starting pressure, supporting long service life. No added lubrication is required. NAMUR side mounting allows direct connection to compatible actuators. Manual overrides assist installation and commissioning. Multiple standard coil voltages are available. This double-solenoid valve provides a bistable memory function: the two solenoids select the two spool positions. P is the pressure supply, A/B are the actuator connections, and R/S are exhausts. The two switching positions alternate supply and exhaust to operate the actuator; refer to the pneumatic symbol in the PDF. External and Mounting Dimensions Parameter Dimension / drawing location Dimensions and applicable view All dimensions are in mm. Lead-wire version; refer to the matching drawing in the PDF catalog. Overall longitudinal dimension 190 in the vertical main view. Main transverse profile dimension 39 across the indicated main-view profile. Narrow port-view width 27 Narrow port view: longitudinal dimensions 45 between the two outer port centre-lines; 72.4 from the lower end to the lower outer port centre-line; 95 from the lower end to the middle port centre-line. Mounting holes 2 × Ø5.2. Face recesses 2 × Ø19.2, depth 1.7. NAMUR face: transverse dimensions 32 between the indicated mounting-hole centre-lines; 40 overall face width. NAMUR face: longitudinal callouts 21.5 and 24 between the indicated reference levels. NAMUR face: lower-end reference dimension 83 from the lower end to the indicated level. Local feature callout 2.4, at the indicated body feature; follow the drawing dimension line. Supply and exhaust threads Supply: NPT3/8; exhaust: NPT1/4. Match the valve’s selected thread type. Check the NAMUR interface, mounting-hole positions and connector or wire clearance against the drawing before installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow Characteristics For flow selection, the 4M series refers to the corresponding 4V series. The 4V310-10 graph is a series reference: flow axis 0–3200 L/min in 400 L/min divisions; operating-pressure axis 0–0.7 MPa in 0.1 MPa divisions. The curves represent AirTAC laboratory test results. Read the curves for the required pressure and operating point; the maximum axis value is a plotting scale, not a rated-flow guarantee. Cylinder and Circuit Selection Reference The following theoretical cylinder-speed references apply to the 4M32010 valve configuration. Use them as starting points for circuit sizing; verify the complete air circuit, load, working pressure and actuator interface. The required effective area describes the circuit requirement, not this valve’s rated area. Parameter Theoretical selection reference Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 300 → 4.9; 400 → 6.5; 500 → 8.1.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø8 × Ø5; 500 mm/s: Ø10 × Ø6.5.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø63 mm Speed (mm/s) → required effective area (mm²): 600 → 9.7; 700 → 11.4; 800 → 13.0.Valve-to-cylinder tubing (OD × ID, mm): 600/700 mm/s: Ø10 × Ø6.5; 800 mm/s: Ø16 × Ø11.Flow controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010.Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Cylinder bore Ø80 mm Speed (mm/s) → required effective area (mm²): 300 → 7.9; 400 → 10.5; 500 → 13.1; 600 → 15.7; 700 → 18.3; 800 → 20.9.Valve-to-cylinder tubing (OD × ID, mm): 300/400 mm/s: Ø10 × Ø6.5; 500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010.Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Cylinder bore Ø100 mm Speed (mm/s) → required effective area (mm²): 300 → 12.3; 400 → 16.4; 500 → 20.4; 600 → 24.5; 700 → 28.6; 800 → 32.7.Valve-to-cylinder tubing (OD × ID, mm): 300/400/500/600/700/800 mm/s: Ø16 × Ø11.Flow controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015.Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Choose flow controls and silencers to suit the complete circuit, connection sizes and thread standards. Internal Components Numbered components in the double-solenoid cross-section: Drawing number Component 1 Connector 2 Coil nut 3 Coil 4 Armature 5 Fixed plate 6 Piston 7 Pilot kit 8 Body 9 Wear ring 14 Spool O-ring 15 Spool 16 Piston O-ring 17 Override spring 18 Manual override Series Ordering Options The following are alternative series configurations. This product is supplied in the configuration shown in Specifications above. Parameter Available options Series and supply size 100 series: M5 or 06 (1/8 inch); 200 series: 06 (1/8 inch) or 08 (1/4 inch); 300 series: 08 (1/4 inch) or 10 (3/8 inch). Control 10 = two-position single solenoid; 20 = two-position double solenoid with memory function. Voltage A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical connection Blank = DIN connector; I = lead wire, 0.5 m. Thread M5 versions use the M5 metric connection. For inch-size versions: blank = PT; G = G; T = NPT.

  Read more less

  $64.53

  View options

Show more products
