AIRTAC 6V Series Solenoid Valve

•

  View options

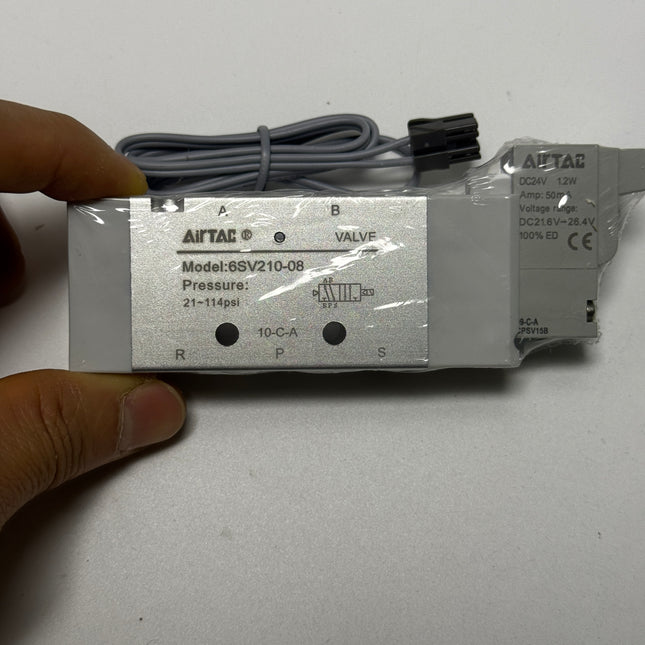

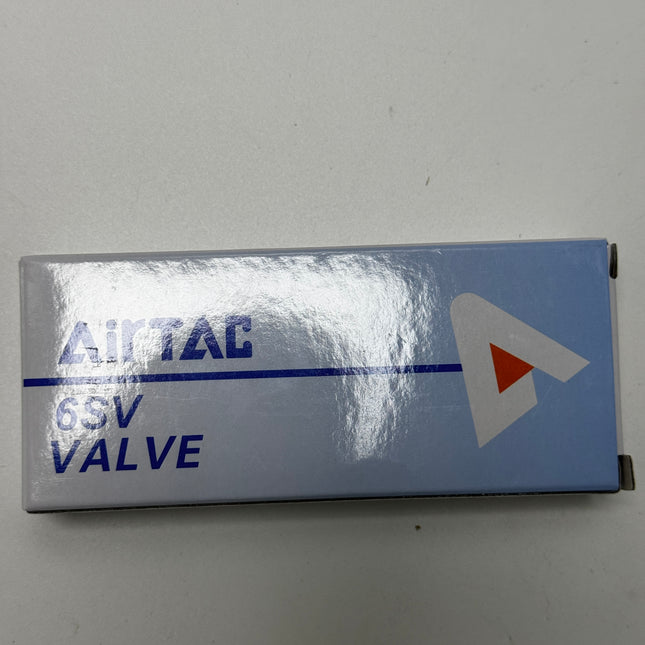

  Airtac 6V series: pneumatic solenoid valve - 6V21008B200T

  Specifications: 6V21008B200T is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses NPT1/4 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 2 m terminal cable. The selected thread standard is NPT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21008B200T will be supplied as 6SV21008B200T (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21008B200T. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 08 Working-port size: NPT1/4. B Rated coil supply: 24 V DC. 200 2 m terminal cable. T NPT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P NPT1/4 Working ports A and B NPT1/4 threaded working ports Exhaust ports R and S NPT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P NPT1/4 PA 39 mm PB 3.2 mm Q NPT1/8 QA 36 mm QB 21 mm T NPT1/4 TA 29 mm TB 20 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD 2 mm S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 15.4 mm² Flow coefficient Cv 0.91 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21008B200T. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $32.88

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V11006B050T

  Specifications: 6V11006B050T is an AirTAC 100-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses NPT1/8 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is NPT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V11006B050T will be supplied as 6SV11006BT (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V11006B050T. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 1 100 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 06 Working-port size: NPT1/8. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. T NPT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 100 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 60 g; series catalog reference mass. Supply port P NPT1/8 Working ports A and B NPT1/8 threaded working ports Exhaust ports R and S NPT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V11006 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 93.5 mm B 32 mm BC 24 mm C 15.5 mm P NPT1/8 PA 33 mm PB 2.6 mm Q NPT1/8 QA 28 mm QB 19 mm T NPT1/8 TA 24.5 mm TB 16.5 mm R 2.6 mm RA 34 mm RB 16 mm RC 11 mm RD 0 mm S 3.2 mm SA 14 mm SB 26 mm SC 4 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø2.6 mm, at the positions shown in the catalog drawing. S holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V100M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V100M1F; 6V100M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V100M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 8.9 mm² Flow coefficient Cv 0.52 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V110-06 / 6V120-06 8.9 mm² effective area; Cv 0.52 6V130C-06 8.0 mm² effective area; Cv 0.47 Performance graph Reference information Reference curve 6V110-06 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1000 L/min, marked in 200 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V11006B050T. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

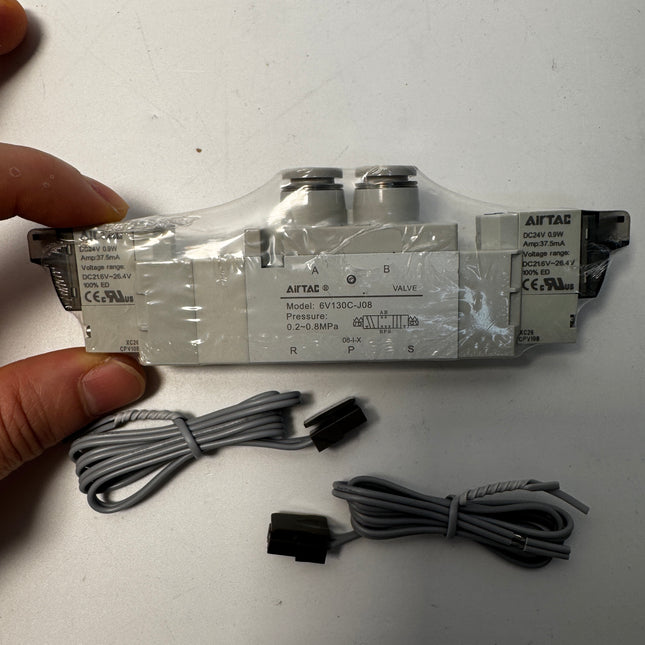

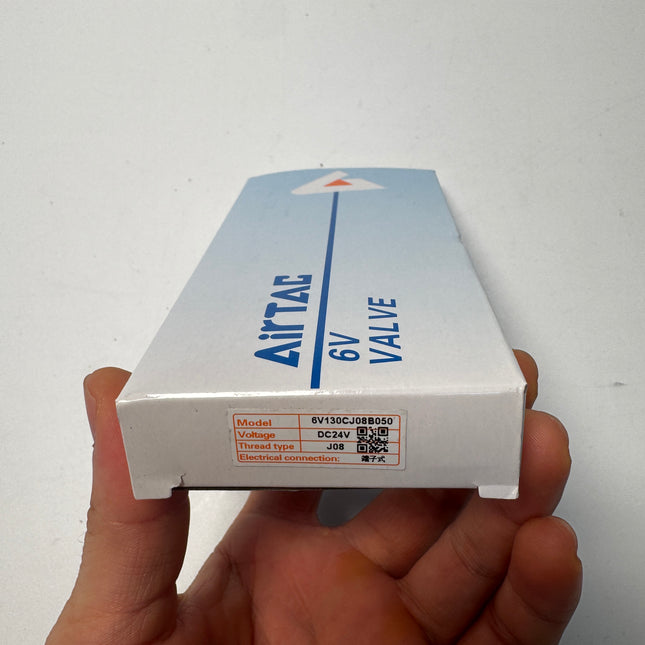

  Airtac 6V series: pneumatic solenoid valve - 6V130CJ08B050

  Specifications: 6V130CJ08B050 is an AirTAC 100-size, 5/3-way, double-solenoid, closed center pneumatic solenoid valve in the 6V series. This configuration uses 8 mm outside-diameter tubing with J-type quick connections and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V130CJ08B050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V130CJ08B050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 1 100 body-size series. 30C 5/3-way, double-solenoid, closed center. Five ports and three switching positions; the spool is spring-centered. J08 J-type quick connection for 8 mm tube outside diameter. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 100 Valve function 5/3-way, double-solenoid, closed center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 90 g; series catalog reference mass. Supply port P PT1/8 Working ports A and B 8 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a closed-center position. In the center position, P, A, B, R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V130J08 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 133 mm B 32 mm BC 42.5 mm C 15.5 mm P PT1/8 PA 72.5 mm PB 2.6 mm Q PT1/8 QA 28 mm QB 59 mm T Ø8 mm tube outside diameter TA 64 mm TB 16.5 mm R 2.6 mm RA 34 mm RB 55.5 mm RC 11 mm RD 0 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø2.6 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V100M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V100M1F; 6V100M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V100M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V110-06 / 6V120-06 8.9 mm² effective area; Cv 0.52 6V130C-06 8.0 mm² effective area; Cv 0.47 Performance graph Reference information Reference curve 6V110-06 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1000 L/min, marked in 200 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V130CJ08B050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $56.86

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V0510J04B050

  Specifications: 6V0510J04B050 is an AirTAC 0500-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses 4 mm outside-diameter tubing with J-type quick connections and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V0510J04B050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V0510J04B050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 05 0500 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. J04 J-type quick connection for 4 mm tube outside diameter. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 0500 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 35 g; series catalog reference mass. Supply port P M5×0.8 Working ports A and B 4 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S M5×0.8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V0510J04 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 73 mm B 31 mm BC 32.5 mm C 10.6 mm P M5×0.8 PA 22.5 mm PB 1 mm Q M5×0.8 QA 19 mm QB 13 mm T Ø4 mm tube outside diameter TA 17.5 mm TB 10 mm R 2.1 mm RA 22.5 mm RB 11 mm RC 7.5 mm RD 0 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø2.1 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V0500M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V0500M1F; 6V0500M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V0500M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V0510-M5 / 6V0520-M5 3.4 mm² effective area; Cv 0.2 6V0530C-M5 2.2 mm² effective area; Cv 0.13 Performance graph Reference information Reference curve 6V0510-M5 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–350 L/min, marked in 50 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V0510J04B050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V21008C200T

  Specifications: 6V21008C200T is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses NPT1/4 threaded working ports and a 110 V AC coil supply. The plug-in terminal connection has a 2 m terminal cable. The selected thread standard is NPT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21008C200T will be supplied as 6SV21008C200T (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21008C200T. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 08 Working-port size: NPT1/4. C Rated coil supply: 110 V AC. 200 2 m terminal cable. T NPT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P NPT1/4 Working ports A and B NPT1/4 threaded working ports Exhaust ports R and S NPT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 110 V AC (code C) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 1.1 VA per coil Voltage tolerance +15% / −10% of the AC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P NPT1/4 PA 39 mm PB 3.2 mm Q NPT1/8 QA 36 mm QB 21 mm T NPT1/4 TA 29 mm TB 20 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD 2 mm S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 15.4 mm² Flow coefficient Cv 0.91 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21008C200T. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $32.88

  View options

•

  View options

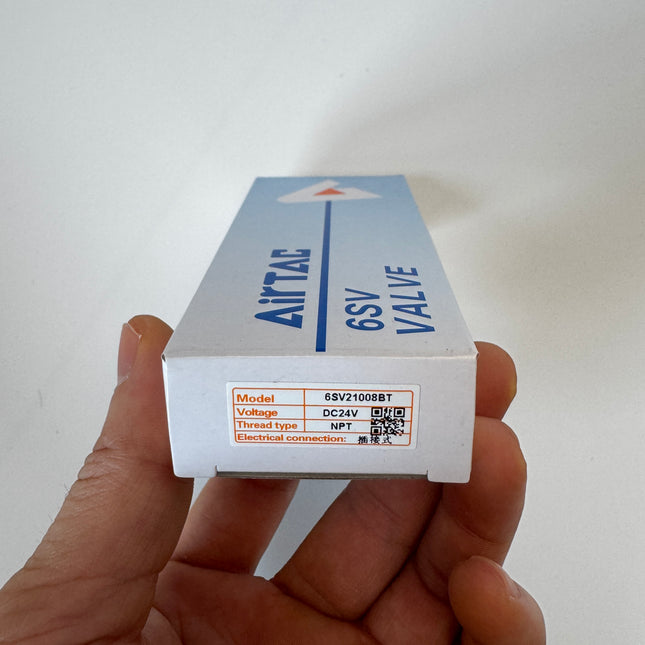

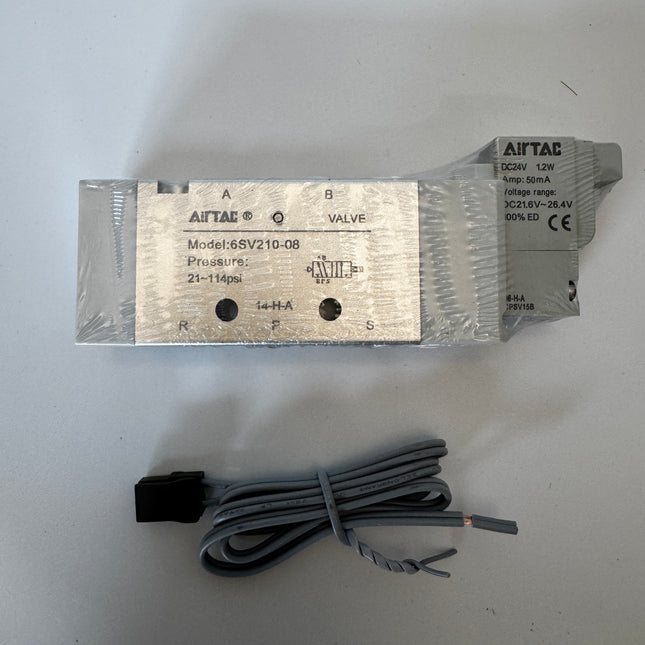

  Airtac 6V series: pneumatic solenoid valve - 6V21008B050T

  Specifications: 6V21008B050T is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses NPT1/4 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is NPT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21008B050T will be supplied as 6SV21008BT (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21008B050T. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 08 Working-port size: NPT1/4. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. T NPT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P NPT1/4 Working ports A and B NPT1/4 threaded working ports Exhaust ports R and S NPT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P NPT1/4 PA 39 mm PB 3.2 mm Q NPT1/8 QA 36 mm QB 21 mm T NPT1/4 TA 29 mm TB 20 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD 2 mm S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 15.4 mm² Flow coefficient Cv 0.91 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21008B050T. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V21008A050T

  Specifications: 6V21008A050T is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses NPT1/4 threaded working ports and a 220 V AC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is NPT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21008A050T will be supplied as 6SV21008AT (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21008A050T. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 08 Working-port size: NPT1/4. A Rated coil supply: 220 V AC. 050 0.5 m terminal cable. T NPT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P NPT1/4 Working ports A and B NPT1/4 threaded working ports Exhaust ports R and S NPT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 220 V AC (code A) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 1.1 VA per coil Voltage tolerance +15% / −10% of the AC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P NPT1/4 PA 39 mm PB 3.2 mm Q NPT1/8 QA 36 mm QB 21 mm T NPT1/4 TA 29 mm TB 20 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD 2 mm S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 15.4 mm² Flow coefficient Cv 0.91 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21008A050T. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V21008B050G

  Specifications: 6V21008B050G is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses G1/4 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is G. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21008B050G will be supplied as 6SV21008BG (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21008B050G. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 08 Working-port size: G1/4. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. G G pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P G1/4 Working ports A and B G1/4 threaded working ports Exhaust ports R and S G1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P G1/4 PA 39 mm PB 3.2 mm Q G1/8 QA 36 mm QB 21 mm T G1/4 TA 29 mm TB 20 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD 2 mm S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 15.4 mm² Flow coefficient Cv 0.91 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21008B050G. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

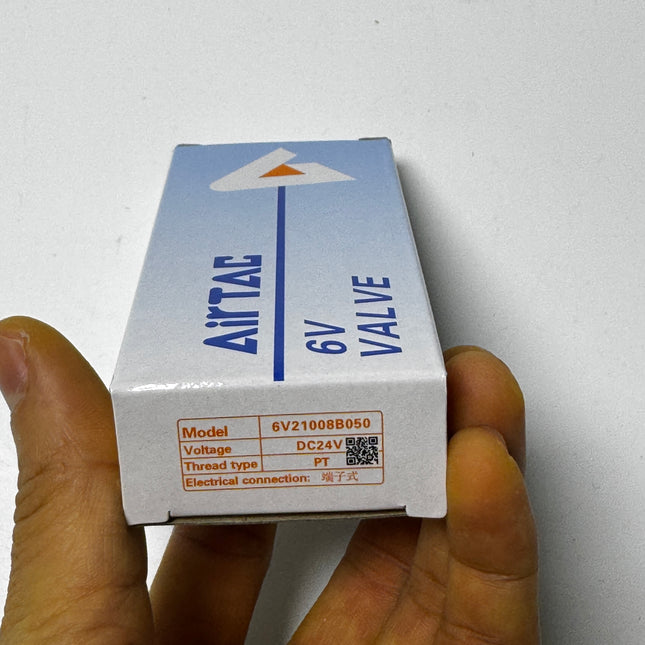

  Airtac 6V series: pneumatic solenoid valve - 6V21008B050

  Specifications: 6V21008B050 is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses PT1/4 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is PT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21008B050 will be supplied as 6SV21008B (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21008B050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 08 Working-port size: PT1/4. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. (no thread suffix) PT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B PT1/4 threaded working ports Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P PT1/4 PA 39 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 21 mm T PT1/4 TA 29 mm TB 20 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD 2 mm S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 15.4 mm² Flow coefficient Cv 0.91 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21008B050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V21008A050

  Specifications: 6V21008A050 is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses PT1/4 threaded working ports and a 220 V AC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is PT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21008A050 will be supplied as 6SV21008A (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21008A050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 08 Working-port size: PT1/4. A Rated coil supply: 220 V AC. 050 0.5 m terminal cable. (no thread suffix) PT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B PT1/4 threaded working ports Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 220 V AC (code A) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 1.1 VA per coil Voltage tolerance +15% / −10% of the AC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P PT1/4 PA 39 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 21 mm T PT1/4 TA 29 mm TB 20 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD 2 mm S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 15.4 mm² Flow coefficient Cv 0.91 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21008A050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V21006B200

  Specifications: 6V21006B200 is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses PT1/8 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 2 m terminal cable. The selected thread standard is PT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V21006B200 will be supplied as 6SV21006B200 (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V21006B200. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. 06 Working-port size: PT1/8. B Rated coil supply: 24 V DC. 200 2 m terminal cable. (no thread suffix) PT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 100 g; series catalog reference mass. Supply port P PT1/8 Working ports A and B PT1/8 threaded working ports Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V21006 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 106 mm B 33.5 mm BC 32.5 mm C 18.5 mm P PT1/8 PA 39 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 21 mm T PT1/8 TA 30 mm TB 18 mm R 3.2 mm RA 41 mm RB 18.5 mm RC 13.5 mm RD — (not indicated in this drawing) S 4.3 mm SA 20 mm SB 29 mm SC 7 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes 2 × Ø4.3 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V21006B200. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $32.88

  View options

•

  View options

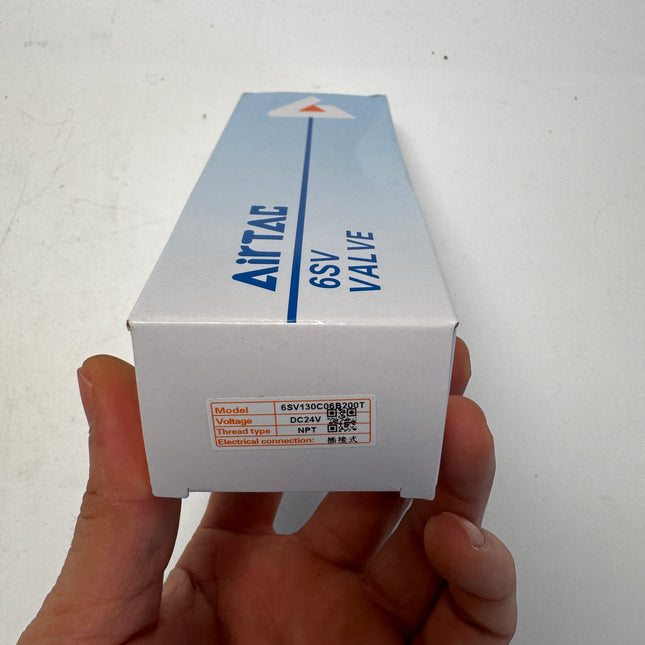

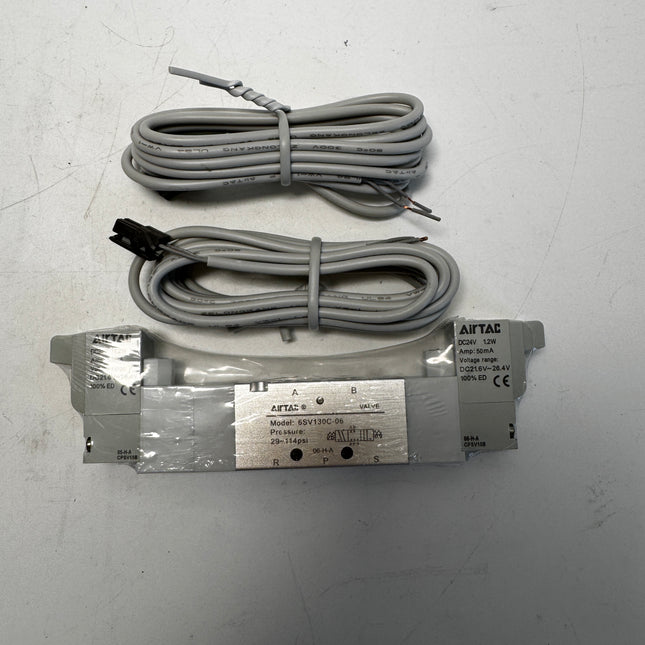

  Airtac 6V series: pneumatic solenoid valve - 6V130C06B200T

  Specifications: 6V130C06B200T is an AirTAC 100-size, 5/3-way, double-solenoid, closed center pneumatic solenoid valve in the 6V series. This configuration uses NPT1/8 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 2 m terminal cable. The selected thread standard is NPT. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery Orders for 6V130C06B200T will be supplied as 6SV130C06B200T (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V130C06B200T. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 1 100 body-size series. 30C 5/3-way, double-solenoid, closed center. Five ports and three switching positions; the spool is spring-centered. 06 Working-port size: NPT1/8. B Rated coil supply: 24 V DC. 200 2 m terminal cable. T NPT pipe-thread selection. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 100 Valve function 5/3-way, double-solenoid, closed center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 90 g; series catalog reference mass. Supply port P NPT1/8 Working ports A and B NPT1/8 threaded working ports Exhaust ports R and S NPT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a closed-center position. In the center position, P, A, B, R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. External and Mounting Dimensions The dimensions below follow the 6V13006 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 133 mm B 32 mm BC 24 mm C 15.5 mm P NPT1/8 PA 72.5 mm PB 2.6 mm Q NPT1/8 QA 28 mm QB 59 mm T NPT1/8 TA 64 mm TB 16.5 mm R 2.6 mm RA 34 mm RB 55.5 mm RC 11 mm RD 0 mm S 3.2 mm SA 14 mm SB 65.5 mm SC 4 mm Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø2.6 mm, at the positions shown in the catalog drawing. S holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Accessory Kit Contents Parameter Details Matching manifold family 6V100M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V100M1F; 6V100M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V100M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area 8.0 mm² Flow coefficient Cv 0.47 Applicability Catalog flow reference for this valve-function and port-size configuration. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V110-06 / 6V120-06 8.9 mm² effective area; Cv 0.52 6V130C-06 8.0 mm² effective area; Cv 0.47 Performance graph Reference information Reference curve 6V110-06 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1000 L/min, marked in 200 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V130C06B200T. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $59.87

  View options

•

  View options

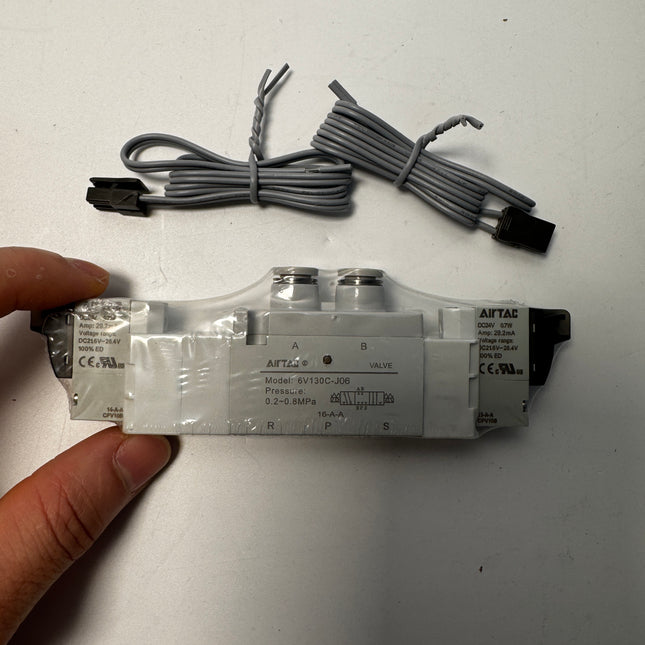

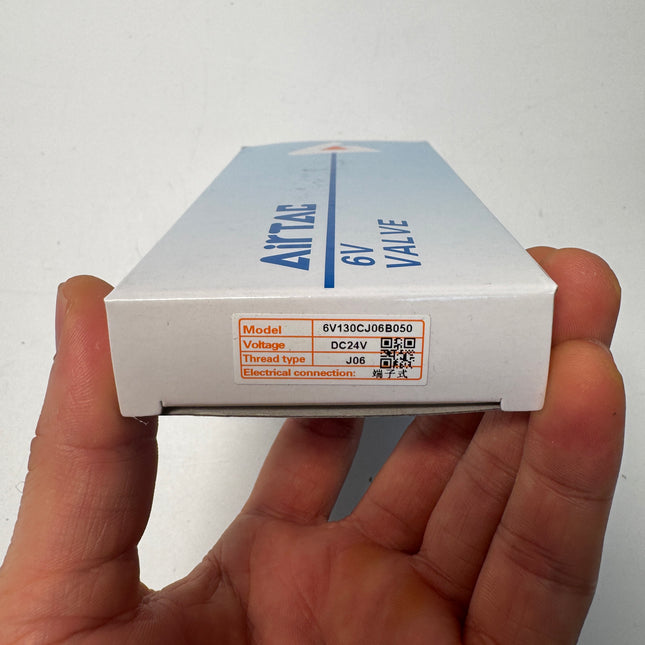

  Airtac 6V series: pneumatic solenoid valve - 6V130CJ06B050

  Specifications: 6V130CJ06B050 is an AirTAC 100-size, 5/3-way, double-solenoid, closed center pneumatic solenoid valve in the 6V series. This configuration uses 6 mm outside-diameter tubing with J-type quick connections and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V130CJ06B050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V130CJ06B050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 1 100 body-size series. 30C 5/3-way, double-solenoid, closed center. Five ports and three switching positions; the spool is spring-centered. J06 J-type quick connection for 6 mm tube outside diameter. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 100 Valve function 5/3-way, double-solenoid, closed center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 90 g; series catalog reference mass. Supply port P PT1/8 Working ports A and B 6 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a closed-center position. In the center position, P, A, B, R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V130J06 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 133 mm B 32 mm BC 41 mm C 15.5 mm P PT1/8 PA 72.5 mm PB 2.6 mm Q PT1/8 QA 28 mm QB 59 mm T Ø6 mm tube outside diameter TA 64 mm TB 16.5 mm R 2.6 mm RA 34 mm RB 55.5 mm RC 11 mm RD 0 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø2.6 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V100M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V100M1F; 6V100M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V100M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V110-06 / 6V120-06 8.9 mm² effective area; Cv 0.52 6V130C-06 8.0 mm² effective area; Cv 0.47 Performance graph Reference information Reference curve 6V110-06 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1000 L/min, marked in 200 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V130CJ06B050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $56.86

  View options

•

  View options

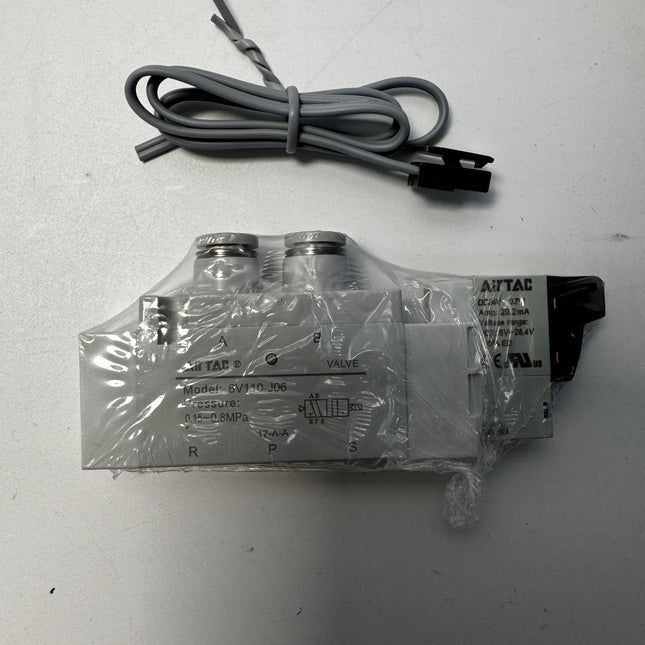

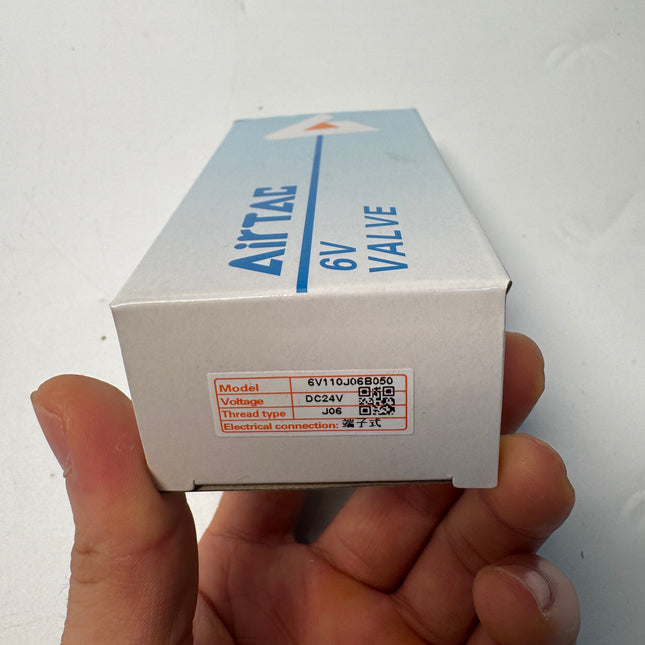

  Airtac 6V series: pneumatic solenoid valve - 6V110J06B050

  Specifications: 6V110J06B050 is an AirTAC 100-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses 6 mm outside-diameter tubing with J-type quick connections and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V110J06B050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V110J06B050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 1 100 body-size series. 10 5/2-way, single-solenoid. Five ports and two switching positions. J06 J-type quick connection for 6 mm tube outside diameter. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 100 Valve function 5/2-way, single-solenoid Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.15–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 5 cycles/s, tested without load. Reference mass 60 g; series catalog reference mass. Supply port P PT1/8 Working ports A and B 6 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V110J06 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 93.5 mm B 32 mm BC 41 mm C 15.5 mm P PT1/8 PA 33 mm PB 2.6 mm Q PT1/8 QA 28 mm QB 19 mm T Ø6 mm tube outside diameter TA 24.5 mm TB 16.5 mm R 2.6 mm RA 34 mm RB 16 mm RC 11 mm RD 0 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø2.6 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V100M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V100M1F; 6V100M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V100M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V110-06 / 6V120-06 8.9 mm² effective area; Cv 0.52 6V130C-06 8.0 mm² effective area; Cv 0.47 Performance graph Reference information Reference curve 6V110-06 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1000 L/min, marked in 200 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V110J06B050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $31.65

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10F200

  Specifications: 6V230PJ10F200 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 12 V DC coil supply. The plug-in terminal connection has a 2 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10F200 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10F200. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. F Rated coil supply: 12 V DC. 200 2 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 12 V DC (code F) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10F200. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $59.87

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10F050

  Specifications: 6V230PJ10F050 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 12 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10F050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10F050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. F Rated coil supply: 12 V DC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 12 V DC (code F) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10F050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $56.86

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10C200

  Specifications: 6V230PJ10C200 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 110 V AC coil supply. The plug-in terminal connection has a 2 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10C200 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10C200. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. C Rated coil supply: 110 V AC. 200 2 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 110 V AC (code C) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 1.1 VA per coil Voltage tolerance +15% / −10% of the AC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10C200. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $59.87

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10C050

  Specifications: 6V230PJ10C050 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 110 V AC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10C050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10C050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. C Rated coil supply: 110 V AC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 110 V AC (code C) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 1.1 VA per coil Voltage tolerance +15% / −10% of the AC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10C050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $56.86

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10B200

  Specifications: 6V230PJ10B200 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 24 V DC coil supply. The plug-in terminal connection has a 2 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10B200 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10B200. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. B Rated coil supply: 24 V DC. 200 2 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10B200. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $59.87

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10B050

  Specifications: 6V230PJ10B050 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10B050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10B050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. B Rated coil supply: 24 V DC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 24 V DC (code B) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10B050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $56.86

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10A200

  Specifications: 6V230PJ10A200 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 220 V AC coil supply. The plug-in terminal connection has a 2 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10A200 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10A200. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. A Rated coil supply: 220 V AC. 200 2 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 220 V AC (code A) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 1.1 VA per coil Voltage tolerance +15% / −10% of the AC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10A200. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $59.87

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230PJ10A050

  Specifications: 6V230PJ10A050 is an AirTAC 200-size, 5/3-way, double-solenoid, pressure center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 220 V AC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230PJ10A050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230PJ10A050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30P 5/3-way, double-solenoid, pressure center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. A Rated coil supply: 220 V AC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, pressure center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 220 V AC (code A) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 1.1 VA per coil Voltage tolerance +15% / −10% of the AC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has a pressure-center position. In the center position, P supplies A and B while R and S are blocked. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230PJ10A050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $56.86

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230EJ10F200

  Specifications: 6V230EJ10F200 is an AirTAC 200-size, 5/3-way, double-solenoid, exhaust center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 12 V DC coil supply. The plug-in terminal connection has a 2 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230EJ10F200 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230EJ10F200. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30E 5/3-way, double-solenoid, exhaust center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. F Rated coil supply: 12 V DC. 200 2 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, exhaust center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 12 V DC (code F) Electrical connection Plug-in terminal (standard connection) Cable length 2 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has an exhaust-center position. In the center position, P is blocked and A and B connect to exhaust. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230EJ10F200. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $59.87

  View options

•

  View options

  Airtac 6V series: pneumatic solenoid valve - 6V230EJ10F050

  Specifications: 6V230EJ10F050 is an AirTAC 200-size, 5/3-way, double-solenoid, exhaust center pneumatic solenoid valve in the 6V series. This configuration uses 10 mm outside-diameter tubing with J-type quick connections and a 12 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The J port code specifies tube size, not a PT/G/NPT thread option. Product Catalog Download Old 6V Catalog (PDF) New 6SV Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Ordering and Delivery We now supply 6SV. Legacy 6V230EJ10F050 has no J quick-connect equivalent in the 6SV PDF. Confirm the supplied model and connections with us before ordering. Compare PDF dimensions, mounting and electrical data. 6V vs 6SV: Dimensions and Replacement Guide Model Code Explained The following entries decode the actual order code 6V230EJ10F050. Optional configurations for the series are listed separately at the end of this description. Code Meaning for this model 6V 6V series five-port pneumatic solenoid valve. 2 200 body-size series. 30E 5/3-way, double-solenoid, exhaust center. Five ports and three switching positions; the spool is spring-centered. J10 J-type quick connection for 10 mm tube outside diameter. F Rated coil supply: 12 V DC. 050 0.5 m terminal cable. (no thread suffix) No thread-selection suffix applies to this J quick-connect port configuration. Technical Specifications (6V) These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model. Parameter Details Series and body size 6V / 200 Valve function 5/3-way, double-solenoid, exhaust center Actuation Internally piloted pneumatic solenoid valve. Working medium Air filtered to 40 μm. Working pressure 0.2–0.8 MPa Proof pressure 1.2 MPa Operating temperature −20 to 70°C Body material Aluminum alloy Lubrication Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption. Maximum operating frequency 3 cycles/s, tested without load. Reference mass 130 g; series catalog reference mass. Supply port P PT1/4 Working ports A and B 10 mm outside-diameter tubing with J-type quick connections Exhaust ports R and S PT1/8 Pilot exhaust Collected through exhaust ports R and S. Electrical Specifications Parameter Details Rated voltage 12 V DC (code F) Electrical connection Plug-in terminal (standard connection) Cable length 0.5 m terminal cable Power consumption 0.9 W per coil Voltage tolerance ±10% of the DC rating Protection Dustproof, as stated in the legacy 6V catalog. Insulation class Class F Activating time ≤0.05 s Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options. Features and Operation This double-solenoid, spring-centered valve has an exhaust-center position. In the center position, P is blocked and A and B connect to exhaust. The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features. Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate. This J-type valve requires a matching manifold. It does not have the side mounting holes identified as S in the threaded-valve drawing. External and Mounting Dimensions The dimensions below follow the 6V230J10 drawing in the old 6V PDF, page 5. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height. Drawing reference Dimension / specification A 148 mm B 33.5 mm BC 53.5 mm C 18.5 mm P PT1/4 PA 81 mm PB 3.2 mm Q PT1/8 QA 36 mm QB 63 mm T Ø10 mm tube outside diameter TA 71 mm TB 20 mm R 3.2 mm RA 41 mm RB 60.2 mm RC 13.5 mm RD 2 mm S — (not indicated in this drawing) SA — (not indicated in this drawing) SB — (not indicated in this drawing) SC — (not indicated in this drawing) Drawing note How to read it A Axial dimension shown in the drawing. P Supply-port thread. Do not confuse dimension P with the manifold length-table reference P. Q Two exhaust ports; each port uses the thread listed under Q. T Two working outlets; the listed thread or tube size applies to each. R holes 2 × Ø3.2 mm, at the positions shown in the catalog drawing. S holes Not provided on this J-type quick-connect body; use the specified manifold mounting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Installation and Manual Operation Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually. If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m. Before using the manual override, confirm that any resulting actuator movement can occur safely. Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions. Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m. The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog. Install this J-type valve on a matching manifold; do not assume that the side mounting holes of a threaded valve are present. Accessory Kit Contents Parameter Details Matching manifold family 6V200M Manifold station range 1F–20F; 20 is the maximum station count in the applicable ordering range. Manifold order examples 6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard. Manifold thread selection Blank suffix = PT; G = G thread; T = NPT. Matching blanking plate P-6V200M-R2 Manifold kit contents Base, base seals and screws. The source does not specify the individual component quantities. Blanking-plate kit contents Blanking plate and screws. The source does not specify the individual component quantities. Included with this valve The manifold and blanking plate are separate accessories and are not included with this valve order. Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions. Flow / Performance Characteristics Current configuration: Parameter Details Effective area Not separately specified for this exact port / center configuration. Flow coefficient Cv Not separately specified for this exact port / center configuration. Applicability Do not substitute the reference values of another port size or center function for this model. Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code. Catalog configuration Published reference 6V210-08 / 6V220-08 15.4 mm² effective area; Cv 0.91 6V230C-08 14.2 mm² effective area; Cv 0.84 Performance graph Reference information Reference curve 6V210-08 Pressure axis 0–0.7 MPa, marked in 0.1 MPa increments. Flow axis 0–1800 L/min, marked in 300 L/min increments. Test basis Laboratory flow curve; effective area and Cv are derived from measured flow. Reading the graph Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions. Internal Components The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration. Drawing item Component name 1 Pilot valve 2 Manual override 3 Pilot kit 4 Big piston 5 Body 6 Spool 7 Connecting block 8 Little piston 9 Gasket 10 Bottom cover 11 Bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options These are series ordering choices, not additional features supplied with 6V230EJ10F050. Use the model-code table above for the selected configuration. Ordering category Series options and restrictions Body-size / port combinations 0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10 Control codes 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3. Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC. Threaded port codes M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in. Pipe-thread suffixes Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports. J quick-connect ports J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold. Electrical connection Plug-in terminal connection. Cable-length codes 050 = 0.5 m; 200 = 2 m.

  Read more less

  $56.86

  View options

Show more products
