AIRTAC 7V Series Solenoid Valve

•

  View options

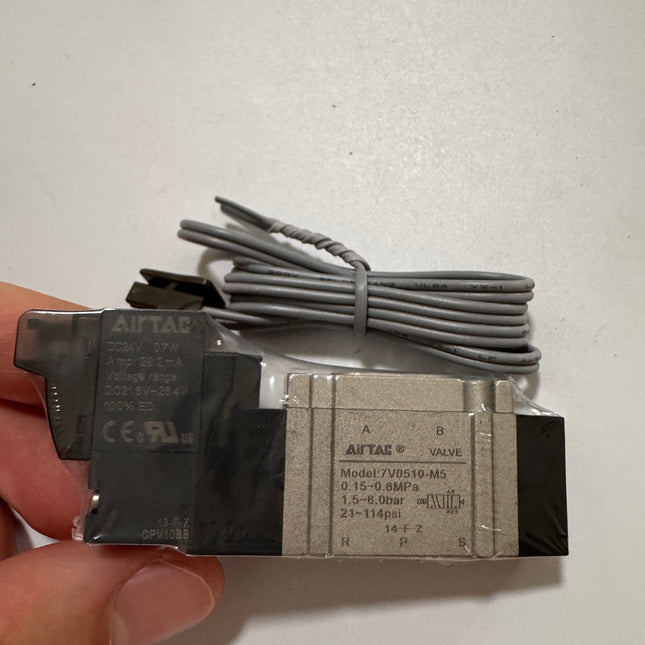

  Airtac 7V series: pneumatic solenoid valve - 7V0510M5B050

  Specifications: 7V0510M5B050 is a 7V0500 pilot-operated solenoid valve: 5/2-way, single solenoid; M5 × 0.8; DC24V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 05 7V0500 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code M5 M5 × 0.8 Voltage code B DC24V Lead-length code 050 0.5 m Thread position Not used for M5 Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 30 g; catalog reference, actual product prevails Supply / working ports P, A, B M5 × 0.8 Exhaust ports R, S M5 × 0.8 Catalog effective-area / Cv reference 7V0510M5: 3.4 mm²; Cv 0.2. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 73 B 30.5 BA 18.5 BB 23 BC 23.5 C 10 P M5 × 0.8 PA 22.5 PB 1 Q M5 × 0.8 QA 19 QB 13 T M5 × 0.8 TA 17.5 TB 10.5 R 2.1 RA 21.4 RB 12 RC 8.6 S M3 × 0.5, depth 3 SA 9.5 SB 17.8 SC 4 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V0500M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V0500M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V0500LB for side mounting and F-7V0500LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V0510-M5 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 350 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $32.88

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V0530EJ04B050

  Specifications: 7V0530EJ04B050 is a 7V0500 pilot-operated solenoid valve: 5/3-way, double solenoid, exhaust center; Ø4 mm push-in tube ports A/B; DC24V; plug-in electrical terminal with a 0.5 m terminal lead. The J connection code selects the manifold-only push-in version with oval bottom passages. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 05 7V0500 series Valve action 30E 5/3-way, double solenoid, exhaust center Connection code J = push-in tube type Port code 04 Ø4 mm push-in tube ports A/B Voltage code B DC24V Lead-length code 050 0.5 m Thread position Not used: bottom passages are oval Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/3-way, double solenoid, exhaust center Working pressure 0.2–0.8 MPa (29–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 3 cycles/s, no-load condition Reference valve weight 50 g; catalog reference, actual product prevails Working ports A and B Ø4 mm tube Bottom supply and exhaust passages Oval, without a separate thread option; use the matching 7V0500 manifold Catalog effective-area / Cv reference 7V0530CM5: 2.2 mm²; Cv 0.13. These values are calculated from catalog flow measurements. The effective-area/Cv entry above is the catalog's named 7V0530CM5 reference. A separate value for this full push-in or center-function configuration is not printed; it is not presented as an independently measured value for 7V0530EJ04B050. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is exhaust center. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected three-position drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 110 B 30.5 BA 18.5 BB 23 BC 32.5 C 10 P Oval bottom passage PA 50.5 PB 1 Q Oval bottom passage QA 19 QB 41 T Ø4 mm tube connection TA 45.5 TB 10.5 R 2.1 RA 21.4 RB 12 RC 8.6 S Not provided for push-in version (no side installation hole S) SA Not provided for push-in version (no side installation hole S) SB Not provided for push-in version (no side installation hole S) SC Not provided for push-in version (no side installation hole S) The push-in version has oval bottom ports and no side installation hole S. It is installed only with a matching manifold; do not apply the threaded-valve side-bracket drawing to it. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V0500M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V0500M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V0500LB for side mounting and F-7V0500LBD for bottom mounting. Each bracket is supplied with four mounting screws. This push-in valve requires manifold installation; the bracket listing does not establish standalone bracket use for this J version. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V0510-M5 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 350 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $59.18

  View options

•

  View options

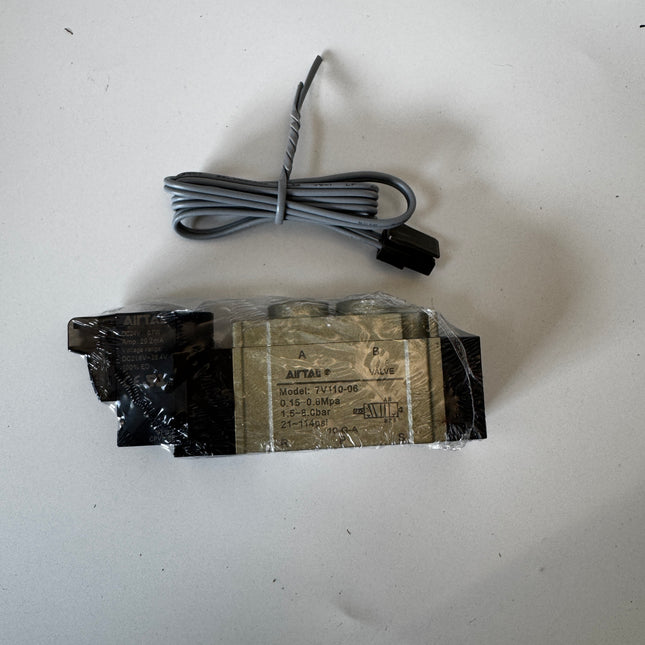

  Airtac 7V series: pneumatic solenoid valve - 7V11006B050

  Specifications: 7V11006B050 is a 7V100 pilot-operated solenoid valve: 5/2-way, single solenoid; PT1/8; DC24V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 1 7V100 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code 06 PT1/8 Voltage code B DC24V Lead-length code 050 0.5 m Thread position Omitted = PT Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 80 g; catalog reference, actual product prevails Supply / working ports P, A, B PT1/8 Exhaust ports R, S PT1/8 Catalog effective-area / Cv reference 7V11006: 8 mm²; Cv 0.47. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 92.5 B 32 BA 23 BB 29 BC 32.5 C 15 P PT1/8 PA 32.5 PB 1.6 Q PT1/8 QA 27.2 QB 18.5 T PT1/8 TA 24 TB 16.2 R 3.2 RA 36 RB 14.5 RC 11.6 S M3 × 0.5, depth 3 SA 23.5 SB 20.5 SC 16.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V100M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V100M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V100LB for side mounting and F-7V100LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V110-06 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $32.88

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V11006B200T

  Specifications: 7V11006B200T is a 7V100 pilot-operated solenoid valve: 5/2-way, single solenoid; NPT1/8; DC24V; plug-in electrical terminal with a 2.0 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 1 7V100 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code 06 NPT1/8 Voltage code B DC24V Lead-length code 200 2.0 m Thread position T = NPT thread Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 80 g; catalog reference, actual product prevails Supply / working ports P, A, B NPT1/8 Exhaust ports R, S NPT1/8 Catalog effective-area / Cv reference 7V11006: 8 mm²; Cv 0.47. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 2.0 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 92.5 B 32 BA 23 BB 29 BC 32.5 C 15 P NPT1/8 PA 32.5 PB 1.6 Q NPT1/8 QA 27.2 QB 18.5 T NPT1/8 TA 24 TB 16.2 R 3.2 RA 36 RB 14.5 RC 11.6 S M3 × 0.5, depth 3 SA 23.5 SB 20.5 SC 16.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V100M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V100M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V100LB for side mounting and F-7V100LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V110-06 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $34.52

  View options

•

  View options

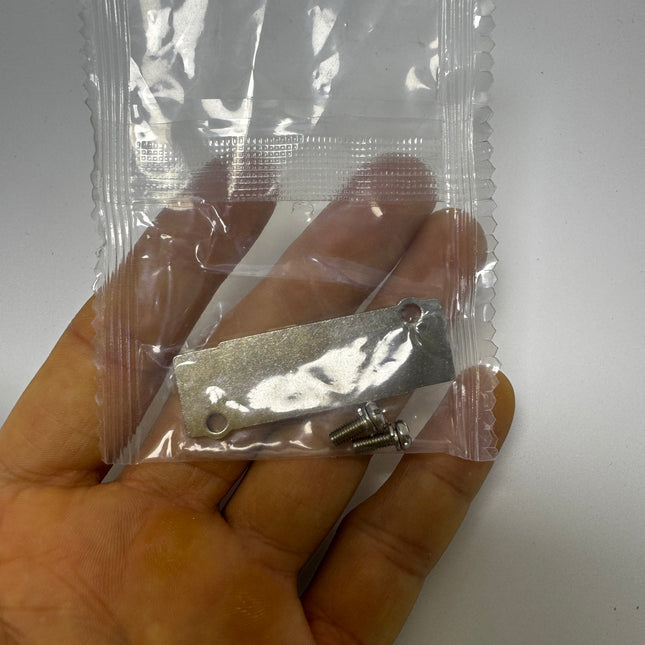

  Airtac P-7V100M series: manifold blanking plate kit - P-7V100M-R2

  Specifications: P-7V100M-R2 is the R2 blank-plate kit for the 7V100M manifold. The 7V100M portion identifies the matching manifold family; R2 identifies a manifold blank plate, not the number of plates in a package. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Applicable Manifold and Valve Series Parameter Details Applicable manifold 7V100M, matching 1F–20F manifold family Associated valve series 7V100 Associated valve action groups 7V110, 7V120, 7V130C, 7V130E, 7V130P Purpose Covers an unused valve station on the matching manifold Fit boundary Match the exact manifold size. No cross-fit with another 7V size or another valve series is established. Kit Contents and Quantity Basis Parameter Details Blank plate Included in this R2 blank-plate kit Screws Included; the page does not provide a screw count or independent screw order code Manifold and valves Separately identified products; not listed as contents of this R2 kit The general manifold-kit note lists manifold seals and screws for the manifold itself. The separate R2 note lists a blank plate and screws. Do not copy the manifold seal inclusion or infer that R2 means two covers. Select the cover quantity from the actual unused-station arrangement. Dimensions and Installation Reference The PDF shows the blank plate installed in a manifold station. It does not supply a separate dimensioned drawing or hole-pitch table for the loose R2 plate. Full manifold/valve-assembly dimensions are not the plate dimensions. Confirm the 7V100M mating surface and the source assembly view before fitting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight and Ordering Order P-7V100M-R2 for the corresponding 7V100M manifold. Neither the supplied dedicated page nor the 2022 printed-page-300 table lists an independent blank-plate weight. No valve or manifold mass is copied to this accessory. Reference Weight Estimated reference weight: 10 g. The mass reference is the DOLD listing for P-7V100M-R2, which lists an item weight of 10 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The mass reference is for the independently listed accessory, not for its valve or manifold. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $1.10

  View options

•

  View options

  Airtac 7V100M series: pneumatic valve manifold base - 7V100M4FG

  Specifications: 7V100M4FG is a 4-station manifold for the 7V100 valve series. 7V100M identifies the matching manifold family; 4F is the number of valve stations; G selects G threads. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Applicable Valve Series and Assembly Scope Parameter Details Manifold order 7V100M4FG Applicable valve family 7V100 only Applicable action groups 7V110, 7V120, 7V130C, 7V130E, 7V130P Number of valve stations 4 Thread standard G Supply/exhaust connection Q G1/4 Matching blank-plate order P-7V100M-R2 This ordering code identifies the manifold, not a complete set of solenoid valves. Select valves from the matching size family and their own complete voltage, action and connection codes. The catalog lists threaded and push-in valves where offered; a J push-in valve uses the matching manifold because its bottom passages are oval. Different size families are not made compatible merely by choosing the same station count. Technical Specifications and Function Parameter Details Working medium Air filtered to 40 μm or finer Working temperature — 2025 Chinese catalog −10 to 50°C Function Integrates direction-control valves of the same series; provides common air intake/exhaust and an organized wiring arrangement Combination range 1F through 20F, selected by ordering code The catalog describes flexible grouping and expansion, with faults easier to locate through the unified air supply, exhaust and wiring layout. It does not assign a coil voltage, valve switching function or independent valve flow rating to this manifold. Included Components and Unused Stations Component / item Catalog scope Manifold kit Manifold body, manifold seals and screws Seal and screw quantities Not quantified on the supplied page; do not infer a per-station count Blank-plate kit P-7V100M-R2 Blank plate and screws; separately identified ordering item Valve inclusion The manifold code does not select or identify supplied valve models Use the matching R2 blank-plate kit to cover a station left without a valve. R2 is the accessory code, not a statement that two blank plates are supplied. The required number of covers depends on the number of unused stations. Dimensions for This Station Count The values below follow the 2022 catalog, printed page 67. L and P are selected from the 4F columns. The illustrated assembly includes valves; K, M and W are reference callouts in that assembled view and are not an independent bare-manifold envelope or a promise that valves are included. Values are in mm except the Q connection. Drawing callout Selected value A 57.5 B 43 C 20 E 4.5 F 15 G 20 H 5 I 12.5 J 32 K 121 M 132 Q G1/4 R 40 S 36 V 9 X 22 Y 45 Z 53.5 L 82 P 72 W 55 (06 threaded); 62.5 (J04); 64 (J06); 65.5 (J08) Catalog dimension differences requiring confirmation: H is 5 mm in the 2022 Chinese catalog and the July 2025 Chinese catalog (printed page 96). The linked English PDF prints 8 mm; the July 2025 Spanish catalog prints 8 mm. No source reviewed assigns these different H values to a distinguishable ordering-code revision. Confirm the exact manifold drawing and supplied version before using these values for installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Reference Parameter Details Manifold families 7V0500M, 7V100M, 7V200M, 7V300M each match the same-numbered 7V valve family Stations 1F, 2F, 3F … 20F Thread choices Omitted = PT; G = G thread; T = NPT R2 cover P- followed by the matching manifold family, then -R2 Weight No independent manifold weight is listed in the dedicated manifold page or in the 2022 printed-page-300 table. Station count alone does not establish manifold mass, and complete-valve weights are not substituted. Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. Reference Weight Estimated reference weight: 280.07 g. Calculated from this component’s documented envelope with an assumed aluminum density of 2.70 g/cm³. Internal passages and recesses are not subtracted, and seals, screws, installed valves and packaging are not separately added. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $11.65

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V32010F200

  Specifications: 7V32010F200 is a 7V300 pilot-operated solenoid valve: 5/2-way, double solenoid; PT3/8; DC12V; plug-in electrical terminal with a 2.0 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 3 7V300 series Valve action 20 5/2-way, double solenoid Connection code Omitted = threaded type Port code 10 PT3/8 Voltage code F DC12V Lead-length code 200 2.0 m Thread position Omitted = PT Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, double solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 265 g; catalog reference, actual product prevails Supply / working ports P, A, B PT3/8 Exhaust ports R, S PT1/4 Catalog effective-area / Cv reference 7V31010: 38.4 mm²; Cv 2.26. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC12V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 2.0 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position double-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 167 B 46 BA — BB — BC 46 C 23.5 P PT3/8 PA 83.5 PB 0.5 Q PT1/4 QA 50 QB 58.5 T PT3/8 TA 67 TB 33.5 R 3.2 RA 64 RB 51.5 RC 18.4 S Ø4.3 through hole SA 25 SB 71 SC 8 The additional 7V300-series front view labels a 6.5 mm local vertical offset. Refer to that view for the exact hole-center location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V300M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V300M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The supplied bracket ordering table lists only 7V0500, 7V100 and 7V200 brackets. It does not provide a 7V300 bracket ordering code. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V310-10 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 4000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $74.53

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V0510M5F050

  Specifications: 7V0510M5F050 is a 7V0500 pilot-operated solenoid valve: 5/2-way, single solenoid; M5 × 0.8; DC12V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 05 7V0500 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code M5 M5 × 0.8 Voltage code F DC12V Lead-length code 050 0.5 m Thread position Not used for M5 Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 30 g; catalog reference, actual product prevails Supply / working ports P, A, B M5 × 0.8 Exhaust ports R, S M5 × 0.8 Catalog effective-area / Cv reference 7V0510M5: 3.4 mm²; Cv 0.2. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC12V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 73 B 30.5 BA 18.5 BB 23 BC 23.5 C 10 P M5 × 0.8 PA 22.5 PB 1 Q M5 × 0.8 QA 19 QB 13 T M5 × 0.8 TA 17.5 TB 10.5 R 2.1 RA 21.4 RB 12 RC 8.6 S M3 × 0.5, depth 3 SA 9.5 SB 17.8 SC 4 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V0500M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V0500M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V0500LB for side mounting and F-7V0500LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V0510-M5 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 350 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $32.88

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V0510M5F200

  Specifications: 7V0510M5F200 is a 7V0500 pilot-operated solenoid valve: 5/2-way, single solenoid; M5 × 0.8; DC12V; plug-in electrical terminal with a 2.0 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 05 7V0500 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code M5 M5 × 0.8 Voltage code F DC12V Lead-length code 200 2.0 m Thread position Not used for M5 Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 30 g; catalog reference, actual product prevails Supply / working ports P, A, B M5 × 0.8 Exhaust ports R, S M5 × 0.8 Catalog effective-area / Cv reference 7V0510M5: 3.4 mm²; Cv 0.2. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC12V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 2.0 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 73 B 30.5 BA 18.5 BB 23 BC 23.5 C 10 P M5 × 0.8 PA 22.5 PB 1 Q M5 × 0.8 QA 19 QB 13 T M5 × 0.8 TA 17.5 TB 10.5 R 2.1 RA 21.4 RB 12 RC 8.6 S M3 × 0.5, depth 3 SA 9.5 SB 17.8 SC 4 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V0500M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V0500M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V0500LB for side mounting and F-7V0500LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V0510-M5 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 350 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $34.52

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V0530CM5B050

  Specifications: 7V0530CM5B050 is a 7V0500 pilot-operated solenoid valve: 5/3-way, double solenoid, closed center; M5 × 0.8; DC24V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 05 7V0500 series Valve action 30C 5/3-way, double solenoid, closed center Connection code Omitted = threaded type Port code M5 M5 × 0.8 Voltage code B DC24V Lead-length code 050 0.5 m Thread position Not used for M5 Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/3-way, double solenoid, closed center Working pressure 0.2–0.8 MPa (29–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 3 cycles/s, no-load condition Reference valve weight 50 g; catalog reference, actual product prevails Supply / working ports P, A, B M5 × 0.8 Exhaust ports R, S M5 × 0.8 Catalog effective-area / Cv reference 7V0530CM5: 2.2 mm²; Cv 0.13. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is closed center. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected three-position drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 110 B 30.5 BA 18.5 BB 23 BC 23.5 C 10 P M5 × 0.8 PA 50.5 PB 1 Q M5 × 0.8 QA 19 QB 41 T M5 × 0.8 TA 45.5 TB 10.5 R 2.1 RA 21.4 RB 12 RC 8.6 S M3 × 0.5, depth 3 SA 9.5 SB 45.8 SC 4 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V0500M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V0500M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V0500LB for side mounting and F-7V0500LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V0510-M5 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 350 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $59.18

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V0530CM5F050

  Specifications: 7V0530CM5F050 is a 7V0500 pilot-operated solenoid valve: 5/3-way, double solenoid, closed center; M5 × 0.8; DC12V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 05 7V0500 series Valve action 30C 5/3-way, double solenoid, closed center Connection code Omitted = threaded type Port code M5 M5 × 0.8 Voltage code F DC12V Lead-length code 050 0.5 m Thread position Not used for M5 Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/3-way, double solenoid, closed center Working pressure 0.2–0.8 MPa (29–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 3 cycles/s, no-load condition Reference valve weight 50 g; catalog reference, actual product prevails Supply / working ports P, A, B M5 × 0.8 Exhaust ports R, S M5 × 0.8 Catalog effective-area / Cv reference 7V0530CM5: 2.2 mm²; Cv 0.13. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC12V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is closed center. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected three-position drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 110 B 30.5 BA 18.5 BB 23 BC 23.5 C 10 P M5 × 0.8 PA 50.5 PB 1 Q M5 × 0.8 QA 19 QB 41 T M5 × 0.8 TA 45.5 TB 10.5 R 2.1 RA 21.4 RB 12 RC 8.6 S M3 × 0.5, depth 3 SA 9.5 SB 45.8 SC 4 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V0500M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V0500M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V0500LB for side mounting and F-7V0500LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V0510-M5 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 350 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $59.18

  View options

•

  View options

  Airtac 7V0500M series: pneumatic valve manifold base - 7V0500M13FG

  Specifications: 7V0500M13FG is a 13-station manifold for the 7V0500 valve series. 7V0500M identifies the matching manifold family; 13F is the number of valve stations; G selects G threads. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Applicable Valve Series and Assembly Scope Parameter Details Manifold order 7V0500M13FG Applicable valve family 7V0500 only Applicable action groups 7V0510, 7V0520, 7V0530C, 7V0530E, 7V0530P Number of valve stations 13 Thread standard G Supply/exhaust connection Q G1/8 Matching blank-plate order P-7V0500M-R2 This ordering code identifies the manifold, not a complete set of solenoid valves. Select valves from the matching size family and their own complete voltage, action and connection codes. The catalog lists threaded and push-in valves where offered; a J push-in valve uses the matching manifold because its bottom passages are oval. Different size families are not made compatible merely by choosing the same station count. Technical Specifications and Function Parameter Details Working medium Air filtered to 40 μm or finer Working temperature — 2025 Chinese catalog −10 to 50°C Function Integrates direction-control valves of the same series; provides common air intake/exhaust and an organized wiring arrangement Combination range 1F through 20F, selected by ordering code The catalog describes flexible grouping and expansion, with faults easier to locate through the unified air supply, exhaust and wiring layout. It does not assign a coil voltage, valve switching function or independent valve flow rating to this manifold. Included Components and Unused Stations Component / item Catalog scope Manifold kit Manifold body, manifold seals and screws Seal and screw quantities Not quantified on the supplied page; do not infer a per-station count Blank-plate kit P-7V0500M-R2 Blank plate and screws; separately identified ordering item Valve inclusion The manifold code does not select or identify supplied valve models Use the matching R2 blank-plate kit to cover a station left without a valve. R2 is the accessory code, not a statement that two blank plates are supplied. The required number of covers depends on the number of unused stations. Dimensions for This Station Count The values below follow the 2022 catalog, printed page 67. L and P are selected from the 13F columns. The illustrated assembly includes valves; K, M and W are reference callouts in that assembled view and are not an independent bare-manifold envelope or a promise that valves are included. Values are in mm except the Q connection. Drawing callout Selected value A 46 B 32 C 16 E 4.5 F 10 G 17.5 H 5 I 12.5 J 22.5 K 102 M 110 Q G1/8 R 32 S 26 V 7 X 17 Y 35.5 Z 47.5 L 156 P 146 W 36.2 (M5 valve); 50.5 (J04 valve) Catalog dimension differences requiring confirmation: H is 5 mm in the 2022 Chinese catalog and the July 2025 Chinese catalog (printed page 96). The linked English PDF prints 7.5 mm; the July 2025 Spanish catalog prints 7.5 mm. No source reviewed assigns these different H values to a distinguishable ordering-code revision. W for the M5 threaded valve assembly is 36.2 mm in the 2022 Chinese catalog, the linked English PDF and the July 2025 Spanish catalog, but 41.5 mm in the July 2025 Chinese catalog. The main table retains the 2022 value. W is an assembled valve/manifold reference, not a bare-manifold width. The separately listed J push-in W values are unchanged between these reviewed tables. Confirm the exact manifold drawing and supplied version before using these values for installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Reference Parameter Details Manifold families 7V0500M, 7V100M, 7V200M, 7V300M each match the same-numbered 7V valve family Stations 1F, 2F, 3F … 20F Thread choices Omitted = PT; G = G thread; T = NPT R2 cover P- followed by the matching manifold family, then -R2 Weight No independent manifold weight is listed in the dedicated manifold page or in the 2022 printed-page-300 table. Station count alone does not establish manifold mass, and complete-valve weights are not substituted. Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. Reference Weight Estimated reference weight: 329.38 g. Calculated from this component’s documented envelope with an assumed aluminum density of 2.70 g/cm³. Internal passages and recesses are not subtracted, and seals, screws, installed valves and packaging are not separately added. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $24.66

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V11006B200

  Specifications: 7V11006B200 is a 7V100 pilot-operated solenoid valve: 5/2-way, single solenoid; PT1/8; DC24V; plug-in electrical terminal with a 2.0 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 1 7V100 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code 06 PT1/8 Voltage code B DC24V Lead-length code 200 2.0 m Thread position Omitted = PT Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 80 g; catalog reference, actual product prevails Supply / working ports P, A, B PT1/8 Exhaust ports R, S PT1/8 Catalog effective-area / Cv reference 7V11006: 8 mm²; Cv 0.47. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 2.0 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 92.5 B 32 BA 23 BB 29 BC 32.5 C 15 P PT1/8 PA 32.5 PB 1.6 Q PT1/8 QA 27.2 QB 18.5 T PT1/8 TA 24 TB 16.2 R 3.2 RA 36 RB 14.5 RC 11.6 S M3 × 0.5, depth 3 SA 23.5 SB 20.5 SC 16.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V100M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V100M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V100LB for side mounting and F-7V100LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V110-06 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $34.52

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V11006B200G

  Specifications: 7V11006B200G is a 7V100 pilot-operated solenoid valve: 5/2-way, single solenoid; G1/8; DC24V; plug-in electrical terminal with a 2.0 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 1 7V100 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code 06 G1/8 Voltage code B DC24V Lead-length code 200 2.0 m Thread position G = G thread Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 80 g; catalog reference, actual product prevails Supply / working ports P, A, B G1/8 Exhaust ports R, S G1/8 Catalog effective-area / Cv reference 7V11006: 8 mm²; Cv 0.47. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 2.0 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 92.5 B 32 BA 23 BB 29 BC 32.5 C 15 P G1/8 PA 32.5 PB 1.6 Q G1/8 QA 27.2 QB 18.5 T G1/8 TA 24 TB 16.2 R 3.2 RA 36 RB 14.5 RC 11.6 S M3 × 0.5, depth 3 SA 23.5 SB 20.5 SC 16.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V100M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V100M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V100LB for side mounting and F-7V100LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V110-06 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $34.52

  View options

•

  View options

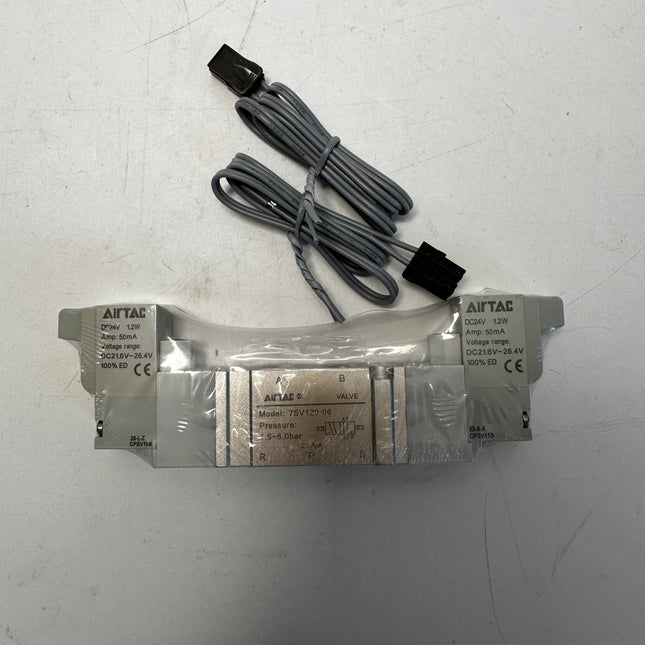

  Airtac 7V series: pneumatic solenoid valve - 7V12006B050G

  Specifications: 7V12006B050G is a 7V100 pilot-operated solenoid valve: 5/2-way, double solenoid; G1/8; DC24V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 1 7V100 series Valve action 20 5/2-way, double solenoid Connection code Omitted = threaded type Port code 06 G1/8 Voltage code B DC24V Lead-length code 050 0.5 m Thread position G = G thread Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, double solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 90 g; catalog reference, actual product prevails Supply / working ports P, A, B G1/8 Exhaust ports R, S G1/8 Catalog effective-area / Cv reference 7V11006: 8 mm²; Cv 0.47. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position double-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 120.5 B 32 BA 23 BB 29 BC 32.5 C 15 P G1/8 PA 60.5 PB 1.6 Q G1/8 QA 27.2 QB 46.5 T G1/8 TA 52 TB 16.2 R 3.2 RA 36 RB 14.5 RC 11.6 S M3 × 0.5, depth 3 SA 23.5 SB 48.5 SC 16.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V100M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V100M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V100LB for side mounting and F-7V100LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V110-06 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $49.87

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V130E06A050

  Specifications: 7V130E06A050 is a 7V100 pilot-operated solenoid valve: 5/3-way, double solenoid, exhaust center; PT1/8; AC220V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 1 7V100 series Valve action 30E 5/3-way, double solenoid, exhaust center Connection code Omitted = threaded type Port code 06 PT1/8 Voltage code A AC220V Lead-length code 050 0.5 m Thread position Omitted = PT Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/3-way, double solenoid, exhaust center Working pressure 0.2–0.8 MPa (29–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 3 cycles/s, no-load condition Reference valve weight 100 g; catalog reference, actual product prevails Supply / working ports P, A, B PT1/8 Exhaust ports R, S PT1/8 Catalog effective-area / Cv reference 7V130C06: 7 mm²; Cv 0.41. These values are calculated from catalog flow measurements. The effective-area/Cv entry above is the catalog's named 7V130C06 reference. A separate value for this full push-in or center-function configuration is not printed; it is not presented as an independently measured value for 7V130E06A050. Electrical Specifications Parameter Details Ordered voltage AC220V Permitted supply variation +15% / −10% Power consumption 1.1 VA Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is exhaust center. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected three-position drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 132 B 32 BA 23 BB 29 BC 32.5 C 15 P PT1/8 PA 60.5 PB 1.6 Q PT1/8 QA 27.2 QB 46.5 T PT1/8 TA 52 TB 16.2 R 3.2 RA 36 RB 14.5 RC 11.6 S M3 × 0.5, depth 3 SA 23.5 SB 48.5 SC 16.5 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V100M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V100M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V100LB for side mounting and F-7V100LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V110-06 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition.

  Read more less

  $59.87

  View options

•

  View options

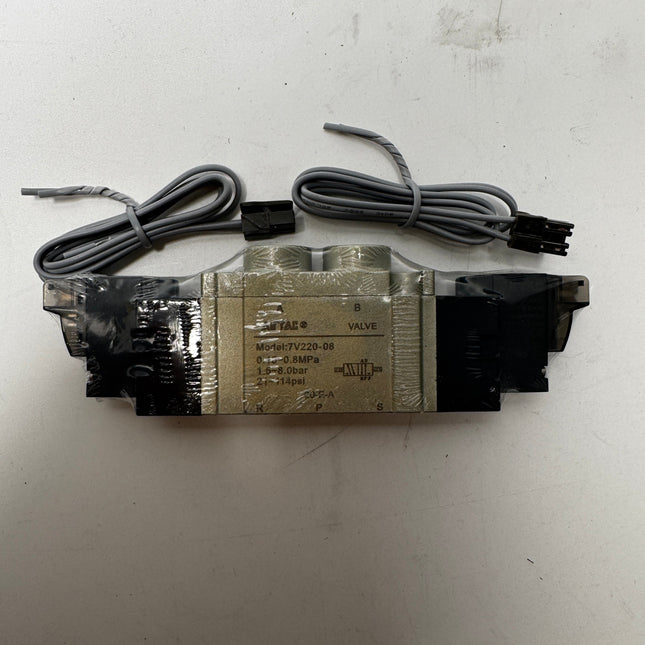

  Airtac 7V series: pneumatic solenoid valve - 7V22008B050

  Specifications: 7V22008B050 is a 7V200 pilot-operated solenoid valve: 5/2-way, double solenoid; PT1/4; DC24V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 2 7V200 series Valve action 20 5/2-way, double solenoid Connection code Omitted = threaded type Port code 08 PT1/4 Voltage code B DC24V Lead-length code 050 0.5 m Thread position Omitted = PT Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, double solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 135 g; catalog reference, actual product prevails Supply / working ports P, A, B PT1/4 Exhaust ports R, S PT1/8 Catalog effective-area / Cv reference 7V21008: 14.7 mm²; Cv 0.87. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position double-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 134 B 33.5 BA 28 BB 34 BC 40.5 C 18 P PT1/4 PA 67 PB 3 Q PT1/8 QA 36 QB 49 T PT1/4 TA 57 TB 20 R 4.3 RA 42 RB 18 RC 13.6 S M4 × 0.7, depth 5 SA 20 SB 57 SC 7 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V200M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V200M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V200LB for side mounting and F-7V200LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V210-08 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1600 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $49.87

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V22008C050

  Specifications: 7V22008C050 is a 7V200 pilot-operated solenoid valve: 5/2-way, double solenoid; PT1/4; AC110V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 2 7V200 series Valve action 20 5/2-way, double solenoid Connection code Omitted = threaded type Port code 08 PT1/4 Voltage code C AC110V Lead-length code 050 0.5 m Thread position Omitted = PT Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, double solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 135 g; catalog reference, actual product prevails Supply / working ports P, A, B PT1/4 Exhaust ports R, S PT1/8 Catalog effective-area / Cv reference 7V21008: 14.7 mm²; Cv 0.87. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage AC110V Permitted supply variation +15% / −10% Power consumption 1.1 VA Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position double-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 134 B 33.5 BA 28 BB 34 BC 40.5 C 18 P PT1/4 PA 67 PB 3 Q PT1/8 QA 36 QB 49 T PT1/4 TA 57 TB 20 R 4.3 RA 42 RB 18 RC 13.6 S M4 × 0.7, depth 5 SA 20 SB 57 SC 7 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V200M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V200M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V200LB for side mounting and F-7V200LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V210-08 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1600 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition.

  Read more less

  $49.87

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V0510J04B200

  Specifications: 7V0510J04B200 is a 7V0500 pilot-operated solenoid valve: 5/2-way, single solenoid; Ø4 mm push-in tube ports A/B; DC24V; plug-in electrical terminal with a 2.0 m terminal lead. The J connection code selects the manifold-only push-in version with oval bottom passages. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 05 7V0500 series Valve action 10 5/2-way, single solenoid Connection code J = push-in tube type Port code 04 Ø4 mm push-in tube ports A/B Voltage code B DC24V Lead-length code 200 2.0 m Thread position Not used: bottom passages are oval Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 30 g; catalog reference, actual product prevails Working ports A and B Ø4 mm tube Bottom supply and exhaust passages Oval, without a separate thread option; use the matching 7V0500 manifold Catalog effective-area / Cv reference 7V0510M5: 3.4 mm²; Cv 0.2. These values are calculated from catalog flow measurements. The effective-area/Cv entry above is the catalog's named 7V0510M5 reference. A separate value for this full push-in or center-function configuration is not printed; it is not presented as an independently measured value for 7V0510J04B200. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 2.0 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 73 B 30.5 BA 18.5 BB 23 BC 32.5 C 10 P Oval bottom passage PA 22.5 PB 1 Q Oval bottom passage QA 19 QB 13 T Ø4 mm tube connection TA 17.5 TB 10.5 R 2.1 RA 21.4 RB 12 RC 8.6 S Not provided for push-in version (no side installation hole S) SA Not provided for push-in version (no side installation hole S) SB Not provided for push-in version (no side installation hole S) SC Not provided for push-in version (no side installation hole S) The push-in version has oval bottom ports and no side installation hole S. It is installed only with a matching manifold; do not apply the threaded-valve side-bracket drawing to it. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V0500M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V0500M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V0500LB for side mounting and F-7V0500LBD for bottom mounting. Each bracket is supplied with four mounting screws. This push-in valve requires manifold installation; the bracket listing does not establish standalone bracket use for this J version. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V0510-M5 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 350 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $34.52

  View options

•

  View options

  Airtac 7V0500M series: pneumatic valve manifold base - 7V0500M4FG

  Specifications: 7V0500M4FG is a 4-station manifold for the 7V0500 valve series. 7V0500M identifies the matching manifold family; 4F is the number of valve stations; G selects G threads. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Applicable Valve Series and Assembly Scope Parameter Details Manifold order 7V0500M4FG Applicable valve family 7V0500 only Applicable action groups 7V0510, 7V0520, 7V0530C, 7V0530E, 7V0530P Number of valve stations 4 Thread standard G Supply/exhaust connection Q G1/8 Matching blank-plate order P-7V0500M-R2 This ordering code identifies the manifold, not a complete set of solenoid valves. Select valves from the matching size family and their own complete voltage, action and connection codes. The catalog lists threaded and push-in valves where offered; a J push-in valve uses the matching manifold because its bottom passages are oval. Different size families are not made compatible merely by choosing the same station count. Technical Specifications and Function Parameter Details Working medium Air filtered to 40 μm or finer Working temperature — 2025 Chinese catalog −10 to 50°C Function Integrates direction-control valves of the same series; provides common air intake/exhaust and an organized wiring arrangement Combination range 1F through 20F, selected by ordering code The catalog describes flexible grouping and expansion, with faults easier to locate through the unified air supply, exhaust and wiring layout. It does not assign a coil voltage, valve switching function or independent valve flow rating to this manifold. Included Components and Unused Stations Component / item Catalog scope Manifold kit Manifold body, manifold seals and screws Seal and screw quantities Not quantified on the supplied page; do not infer a per-station count Blank-plate kit P-7V0500M-R2 Blank plate and screws; separately identified ordering item Valve inclusion The manifold code does not select or identify supplied valve models Use the matching R2 blank-plate kit to cover a station left without a valve. R2 is the accessory code, not a statement that two blank plates are supplied. The required number of covers depends on the number of unused stations. Dimensions for This Station Count The values below follow the 2022 catalog, printed page 67. L and P are selected from the 4F columns. The illustrated assembly includes valves; K, M and W are reference callouts in that assembled view and are not an independent bare-manifold envelope or a promise that valves are included. Values are in mm except the Q connection. Drawing callout Selected value A 46 B 32 C 16 E 4.5 F 10 G 17.5 H 5 I 12.5 J 22.5 K 102 M 110 Q G1/8 R 32 S 26 V 7 X 17 Y 35.5 Z 47.5 L 61.5 P 51.5 W 36.2 (M5 valve); 50.5 (J04 valve) Catalog dimension differences requiring confirmation: H is 5 mm in the 2022 Chinese catalog and the July 2025 Chinese catalog (printed page 96). The linked English PDF prints 7.5 mm; the July 2025 Spanish catalog prints 7.5 mm. No source reviewed assigns these different H values to a distinguishable ordering-code revision. W for the M5 threaded valve assembly is 36.2 mm in the 2022 Chinese catalog, the linked English PDF and the July 2025 Spanish catalog, but 41.5 mm in the July 2025 Chinese catalog. The main table retains the 2022 value. W is an assembled valve/manifold reference, not a bare-manifold width. The separately listed J push-in W values are unchanged between these reviewed tables. Confirm the exact manifold drawing and supplied version before using these values for installation. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Series Ordering Reference Parameter Details Manifold families 7V0500M, 7V100M, 7V200M, 7V300M each match the same-numbered 7V valve family Stations 1F, 2F, 3F … 20F Thread choices Omitted = PT; G = G thread; T = NPT R2 cover P- followed by the matching manifold family, then -R2 Weight No independent manifold weight is listed in the dedicated manifold page or in the 2022 printed-page-300 table. Station count alone does not establish manifold mass, and complete-valve weights are not substituted. Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. Reference Weight Estimated reference weight: 129.85 g. Calculated from this component’s documented envelope with an assumed aluminum density of 2.70 g/cm³. Internal passages and recesses are not subtracted, and seals, screws, installed valves and packaging are not separately added. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $10.55

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V21008B050

  Specifications: 7V21008B050 is a 7V200 pilot-operated solenoid valve: 5/2-way, single solenoid; PT1/4; DC24V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 2 7V200 series Valve action 10 5/2-way, single solenoid Connection code Omitted = threaded type Port code 08 PT1/4 Voltage code B DC24V Lead-length code 050 0.5 m Thread position Omitted = PT Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, single solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 120 g; catalog reference, actual product prevails Supply / working ports P, A, B PT1/4 Exhaust ports R, S PT1/8 Catalog effective-area / Cv reference 7V21008: 14.7 mm²; Cv 0.87. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage DC24V Permitted supply variation ±10% DC power — 2022 / linked legacy catalog 0.9 W DC power — 2024 update / 2025 Chinese catalog 0.7 W Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position single-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 106 B 33.5 BA 28 BB 34 BC 40.5 C 18 P PT1/4 PA 39 PB 3 Q PT1/8 QA 36 QB 21 T PT1/4 TA 29 TB 20 R 4.3 RA 42 RB 18 RC 13.6 S M4 × 0.7, depth 5 SA 20 SB 29 SC 7 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V200M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V200M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The bracket ordering table lists F-7V200LB for side mounting and F-7V200LBD for bottom mounting. Each bracket is supplied with four mounting screws. Match the selected bracket drawing to this threaded valve and its mounting holes. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V210-08 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 1600 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition. For this DC voltage option, the 2024 product-catalogue update explicitly changes the 7V DC power from 0.9 W in the 2023 edition to 0.7 W in the 2024 edition; the July 2025 Chinese specification also lists 0.7 W. Check the coil marking and supplied revision when calculating electrical load; the legacy value is not a claim that every current coil consumes 0.9 W.

  Read more less

  $32.88

  View options

•

  View options

  Airtac 7V series: pneumatic solenoid valve - 7V32010C050G

  Specifications: 7V32010C050G is a 7V300 pilot-operated solenoid valve: 5/2-way, double solenoid; G3/8; AC110V; plug-in electrical terminal with a 0.5 m terminal lead. The connection-type position is blank, selecting threaded ports. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Parameter Details 7V Five-port, two- or three-position solenoid valve Series code 3 7V300 series Valve action 20 5/2-way, double solenoid Connection code Omitted = threaded type Port code 10 G3/8 Voltage code C AC110V Lead-length code 050 0.5 m Thread position G = G thread Technical Specifications Parameter Details Working medium Air filtered to 40 μm or finer Operation Pilot operated Valve function 5/2-way, double solenoid Working pressure 0.15–0.8 MPa (21–114 psi) Proof pressure 1.2 MPa (175 psi) Working temperature — 2025 Chinese catalog −10 to 50°C Valve-body material Aluminum alloy Lubrication Not required; if lubricated air is used, continue lubrication. ISO VG32 or equivalent is recommended. Pilot exhaust Main and pilot valves use centralized exhaust through the R/S exhaust system Maximum actuation frequency 5 cycles/s, no-load condition Reference valve weight 265 g; catalog reference, actual product prevails Supply / working ports P, A, B G3/8 Exhaust ports R, S G1/4 Catalog effective-area / Cv reference 7V31010: 38.4 mm²; Cv 2.26. These values are calculated from catalog flow measurements. Electrical Specifications Parameter Details Ordered voltage AC110V Permitted supply variation +15% / −10% Power consumption 1.1 VA Insulation Class F Protection description Dustproof; the source does not assign an IP number Electrical connection Plug-in terminal; horizontal and vertical insertion use the same terminal design Terminal lead length 0.5 m Activating time 0.05 s or less Features and Operation The die-cast aluminum-alloy body uses shaped internal passages to increase flow area. Pilot air is collected internally and discharged centrally through R/S. Threaded and push-in connection variants are offered as separate ordering options, and matching valves can be integrated on a manifold to reduce installation space. Port symbols identify P as supply, A/B as working ports and R/S as exhaust ports. The selected center function is not applicable to this two-position valve. Use the source pneumatic symbol to verify the complete flow path and port connections. External and Mounting Dimensions All numerical drawing callouts below are in mm unless a thread or tube connection is stated. They follow the selected two-position double-solenoid drawing; the lettered values must not be combined into an invented length × width × height. Drawing callout Value / connection A 167 B 46 BA — BB — BC 46 C 23.5 P G3/8 PA 83.5 PB 0.5 Q G1/4 QA 50 QB 58.5 T G3/8 TA 67 TB 33.5 R 3.2 RA 64 RB 51.5 RC 18.4 S Ø4.3 through hole SA 25 SB 71 SC 8 The additional 7V300-series front view labels a 6.5 mm local vertical offset. Refer to that view for the exact hole-center location. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Manifold and Accessory Selection The matching manifold family is 7V300M, offered in 1F through 20F station counts, with blank/PT, G or NPT thread choices as ordered. The matching unused-station cover is P-7V300M-R2. Manifold kits contain the manifold, seals and screws; blank-plate kits contain the blank plate and screws. These are separate ordering items, and screw/seal quantities are not specified on that page. The supplied bracket ordering table lists only 7V0500, 7V100 and 7V200 brackets. It does not provide a 7V300 bracket ordering code. Installation and Manual Override Do not drop the valve or strike its precision pilot assembly. Avoid unnecessary disassembly. If a pilot screw M1.6 × 14 becomes loose, the catalog specifies tightening it to 0.10–0.12 N·m. Before using the manual override, confirm that the connected machine can move safely. The non-locking override operates by pushing in the indicated direction. The slotted locking type is pushed and turned in the illustrated direction; without turning, it operates as a non-locking push override. Use a suitable screwdriver and the stated 0.1 N·m operating torque. Follow the source illustrations for the lock and release positions. Vertical and horizontal electrical insertion use the same terminal design. Insert the terminal lead in the orientation needed for the installation, following the connection drawings. Flow-Chart Reference The series chart for 7V310-10 plots operating pressure from 0 to 0.7 MPa on the vertical axis and flow from 0 to 4000 L/min on the horizontal axis. AirTAC identifies these as laboratory flow measurements. The graph is a reference for the named valve; its axis maximum is not this product's rated flow and no separate full-SKU curve is supplied. Use the PDF curves rather than estimated readings. Internal Construction Reference The catalog illustrates 7V110, 7V120 and 7V130C sections. The following numbers identify parts in those reference views; they are not independent spare-part order codes or kit quantities. Diagram number Named component 1 Pilot valve 2 Manual override 3 Pilot kit 4 Large piston 5 Body 6 Spool 7 Connecting block 8 Small piston 9 Gasket 10 Bottom cover 11 Screw / bolt 12 Steel ball 13 Spring 14 Return holder 15 Side cover Series Ordering Options Parameter Details Series 05 = 0500; 1 = 100; 2 = 200; 3 = 300 Control 10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C/E/P = double-solenoid 5/3 closed/exhaust/pressure center Threaded ports 0500: M5; 100: 1/8; 200: 1/4; 300: 3/8. These are series choices, not additional ports on this order. Push-in options 0500: Ø4 mm; 100: Ø4/6/8 mm; 200: Ø8/10 mm. No push-in choice is listed for 300. Voltage A = AC220V; B = DC24V; C = AC110V; F = DC12V Terminal lead 050 = 0.5 m; 200 = 2.0 m Thread suffix Blank = PT; G = G; T = NPT. Not used for M5 or the oval-bottom push-in version Catalog Edition and Supplied-Unit Ratings The working-temperature range for this product is −10 to 50°C, as specified in the Chinese 7V catalog published in July 2025. The linked PDF is an earlier catalog edition.

  Read more less

  $71.51

  View options

•

  View options

  Airtac P-7V300M series: manifold blanking plate kit - P-7V300M-R2

  Specifications: P-7V300M-R2 is the R2 blank-plate kit for the 7V300M manifold. The 7V300M portion identifies the matching manifold family; R2 identifies a manifold blank plate, not the number of plates in a package. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Applicable Manifold and Valve Series Parameter Details Applicable manifold 7V300M, matching 1F–20F manifold family Associated valve series 7V300 Associated valve action groups 7V310, 7V320, 7V330C, 7V330E, 7V330P Purpose Covers an unused valve station on the matching manifold Fit boundary Match the exact manifold size. No cross-fit with another 7V size or another valve series is established. Kit Contents and Quantity Basis Parameter Details Blank plate Included in this R2 blank-plate kit Screws Included; the page does not provide a screw count or independent screw order code Manifold and valves Separately identified products; not listed as contents of this R2 kit The general manifold-kit note lists manifold seals and screws for the manifold itself. The separate R2 note lists a blank plate and screws. Do not copy the manifold seal inclusion or infer that R2 means two covers. Select the cover quantity from the actual unused-station arrangement. Dimensions and Installation Reference The PDF shows the blank plate installed in a manifold station. It does not supply a separate dimensioned drawing or hole-pitch table for the loose R2 plate. Full manifold/valve-assembly dimensions are not the plate dimensions. Confirm the 7V300M mating surface and the source assembly view before fitting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight and Ordering Order P-7V300M-R2 for the corresponding 7V300M manifold. Neither the supplied dedicated page nor the 2022 printed-page-300 table lists an independent blank-plate weight. No valve or manifold mass is copied to this accessory.

  Read more less

  $1.64

  View options

•

  View options

  Airtac P-7V0500M series: manifold blanking plate kit - P-7V0500M-R2

  Specifications: P-7V0500M-R2 is the R2 blank-plate kit for the 7V0500M manifold. The 7V0500M portion identifies the matching manifold family; R2 identifies a manifold blank plate, not the number of plates in a package. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Applicable Manifold and Valve Series Parameter Details Applicable manifold 7V0500M, matching 1F–20F manifold family Associated valve series 7V0500 Associated valve action groups 7V0510, 7V0520, 7V0530C, 7V0530E, 7V0530P Purpose Covers an unused valve station on the matching manifold Fit boundary Match the exact manifold size. No cross-fit with another 7V size or another valve series is established. Kit Contents and Quantity Basis Parameter Details Blank plate Included in this R2 blank-plate kit Screws Included; the page does not provide a screw count or independent screw order code Manifold and valves Separately identified products; not listed as contents of this R2 kit The general manifold-kit note lists manifold seals and screws for the manifold itself. The separate R2 note lists a blank plate and screws. Do not copy the manifold seal inclusion or infer that R2 means two covers. Select the cover quantity from the actual unused-station arrangement. Dimensions and Installation Reference The PDF shows the blank plate installed in a manifold station. It does not supply a separate dimensioned drawing or hole-pitch table for the loose R2 plate. Full manifold/valve-assembly dimensions are not the plate dimensions. Confirm the 7V0500M mating surface and the source assembly view before fitting. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight and Ordering Order P-7V0500M-R2 for the corresponding 7V0500M manifold. Neither the supplied dedicated page nor the 2022 printed-page-300 table lists an independent blank-plate weight. No valve or manifold mass is copied to this accessory. Reference Weight Estimated reference weight: 10 g. The mass reference is the DOLD listing for P-7V0500M-R2, which lists an item weight of 10 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The mass reference is for the independently listed accessory, not for its valve or manifold. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  Read more less

  $1.10

  View options
