Filter Regulator Product Information

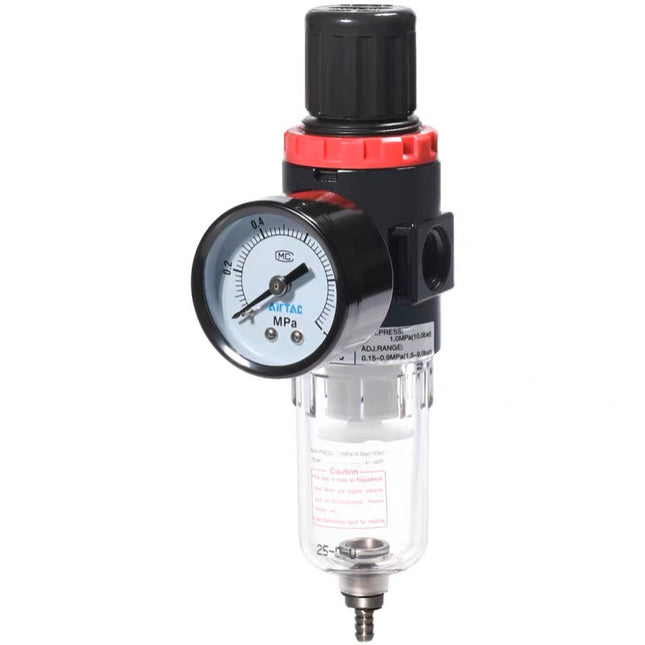

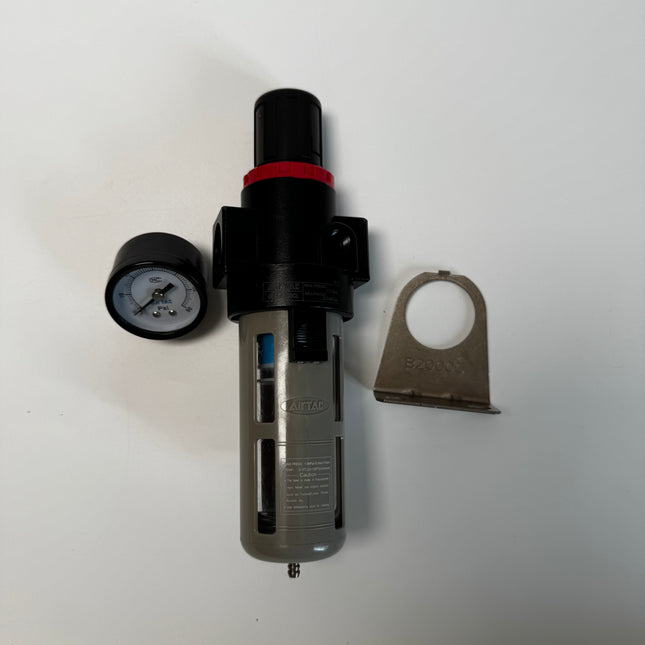

Filter Regulator

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  1. Compact structure, easy to install and use.
  2. Self-locking pressure adjustment mechanism prevents pressure changes due to external interference.
  3. Low pressure loss, high water separation efficiency.
  4. In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).

Specifications

Model AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Working Medium Air
Port Size [Note 1] PT1/8 PT1/4 PT1/4 PT3/8 PT1/2
Filter Precision 40μm or 5μm
Pressure Regulation Range Automatic & Semi-automatic Drain: 0.15–0.9MPa (20–130Psi) / Manual Drain: 0.05–0.9MPa (7–130Psi)
Max Operating Pressure 1.0MPa (145Psi)
Proof Pressure 1.5MPa (215Psi)
Operating Temperature Range -5–70°C (No freezing)
Water Bowl Capacity 15CC 60CC
Note 1: G and NPT thread types are available.

Product Ordering Code

Position Description Options & Values
1 Series Code
  • AFR: A Series Filter Regulator
  • BFR: B Series Filter Regulator
2 Port Size
  • 1500: 1/8"
  • 2000: 1/4"
  • 3000: 3/8"
  • 4000: 1/2"
3 Drain Type
  • Blank: Semi-automatic Drain
  • M: Manual Drain
  • A: Automatic Drain
4 Model Type Code
  • Blank: Standard Type (0.9MPa)
  • L: Low Pressure Type (0.4MPa)
5 Bracket Code
  • Blank: With Bracket
  • J: Without Bracket
6 Pressure Gauge Code
  • Blank: With Pressure Gauge
  • N: Without Pressure Gauge
7 Pressure Unit
  • 1: MPa
  • 2: psi
  • 3: bar
  • 4: kgf/cm² & psi
8 Filter Precision
  • Blank: 40μm
  • W: 5μm
9 Thread Code [Note 1]
  • Blank: PT thread
  • G: G thread
  • T: NPT thread
Note 1: For special requirements, please contact our company's business department for confirmation.
  • Airtac BFR: Air Filter Regulator - BFR20002T Airtac BFR: Air Filter Regulator - BFR20002T - 2

    Airtac BFR series: air filter regulator - BFR20002T

    Specifications: BFR20002T is an AirTAC BFR filter-regulator with NPT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 2 Pressure gauge included; scale: psi Blank filter code 40 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR20002T Working medium Air Main ports NPT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Included; psi scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/4 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: gauge option 2; thread option T; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

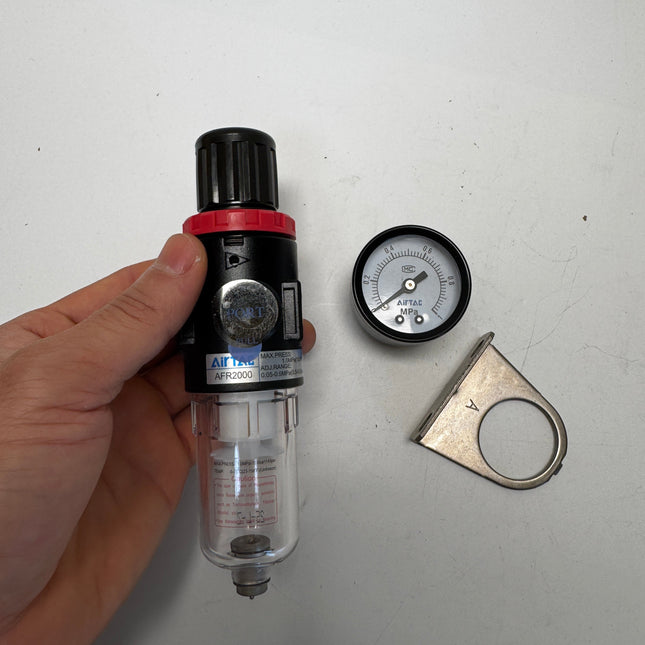

  • Airtac AFR: Air Filter Regulator - AFR2000MJ1 Airtac AFR: Air Filter Regulator - AFR2000MJ1 - 2

    Airtac AFR series: air filter regulator - AFR2000MJ1

    Specifications: AFR2000MJ1 is an AirTAC AFR filter-regulator with PT 1/4 ports, a 40 µm filter and manual drain, the 0.9 MPa standard regulating option, and a MPa pressure gauge, supplied without a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFR A Series filter-regulator 2000 1/4-inch nominal port size M manual drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa J No mounting bracket 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model AFR2000MJ1 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 15 cc Pressure gauge Included; MPa scale Gauge connection 1/8-inch catalog gauge port Mounting bracket Not included: J option Catalog reference weight 260 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit Steel 15. Return spring Stainless steel 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 26. Clip Spring steel Drain and Service Notes The selected drain is manual drain. Performance Curves Parameter Details Flow-characteristic plot The AFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Top/front width callouts 50; 40; 34 mm Mounting local callouts 2; 4; 6.5 mm Front height callouts 38; 24; 60.5; 151.4 mm Drain local callout 3.5 mm Side width / parenthesized depth 34 / (53) mm Regulator mounting thread M30 × 1.5 Adjustment-knob diameter Ø39 mm Bracket thickness 2 mm Side vertical local callout 7 mm Gauge outside diameter Ø42 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Reference geometry only for this J version; bracket is not included. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 220 g. The 2022 comprehensive catalog, printed page 300, lists AFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain M. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 260 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

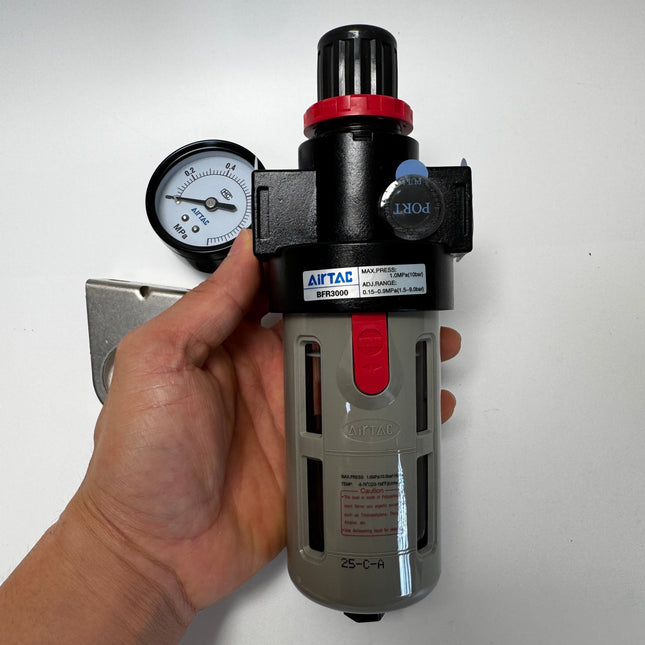

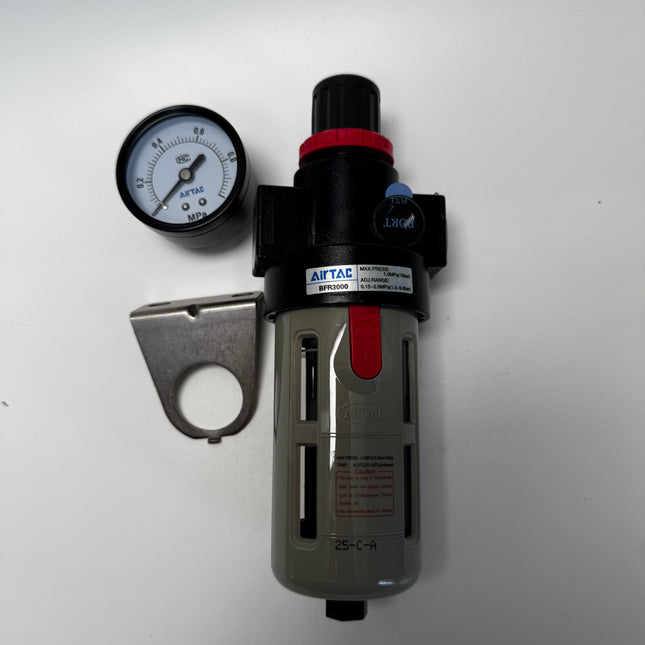

  • Airtac BFR: Air Filter Regulator - BFR3000A1 Airtac BFR: Air Filter Regulator - BFR3000A1 - 2

    Airtac BFR series: air filter regulator - BFR3000A1

    Specifications: BFR3000A1 is an AirTAC BFR filter-regulator with PT 3/8 ports, a 40 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a MPa pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 3000 3/8-inch nominal port size A automatic drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR3000A1 Working medium Air Main ports PT 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 3/8 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; selected drain A; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

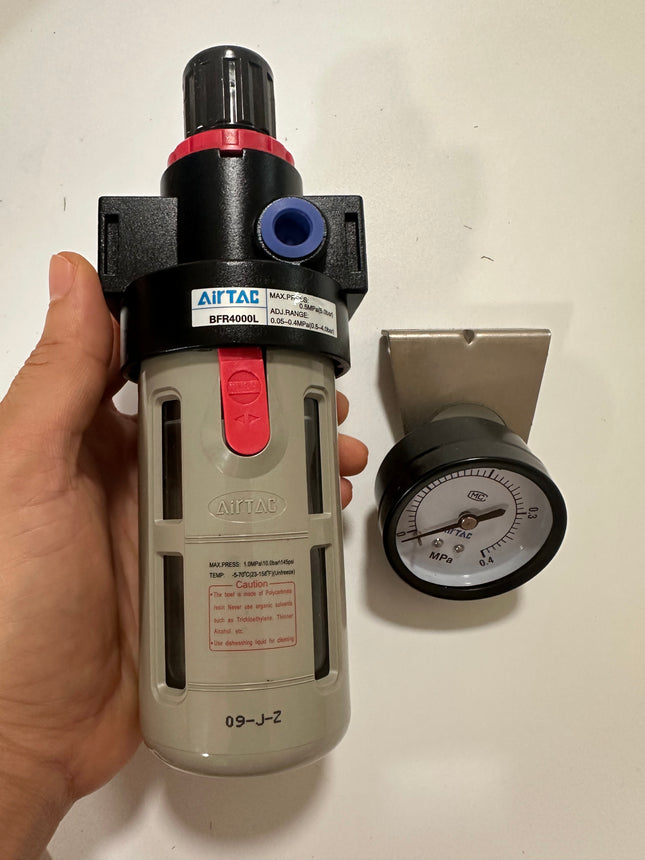

  • Airtac BFR: Air Filter Regulator - BFR4000ML4 Airtac BFR: Air Filter Regulator - BFR4000ML4 - 2

    Airtac BFR series: air filter regulator - BFR4000ML4

    Specifications: BFR4000ML4 is an AirTAC BFR filter-regulator with PT 1/2 ports, a 40 µm filter and manual drain, the 0.4 MPa lower-pressure regulating option, and a kgf/cm² and psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 4000 1/2-inch nominal port size M manual drain L Lower-pressure type: maximum adjustable pressure 0.4 MPa Blank bracket code Mounting bracket included 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR4000ML4 Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 60 cc Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; selected drain M; low-pressure option L; gauge option 4; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

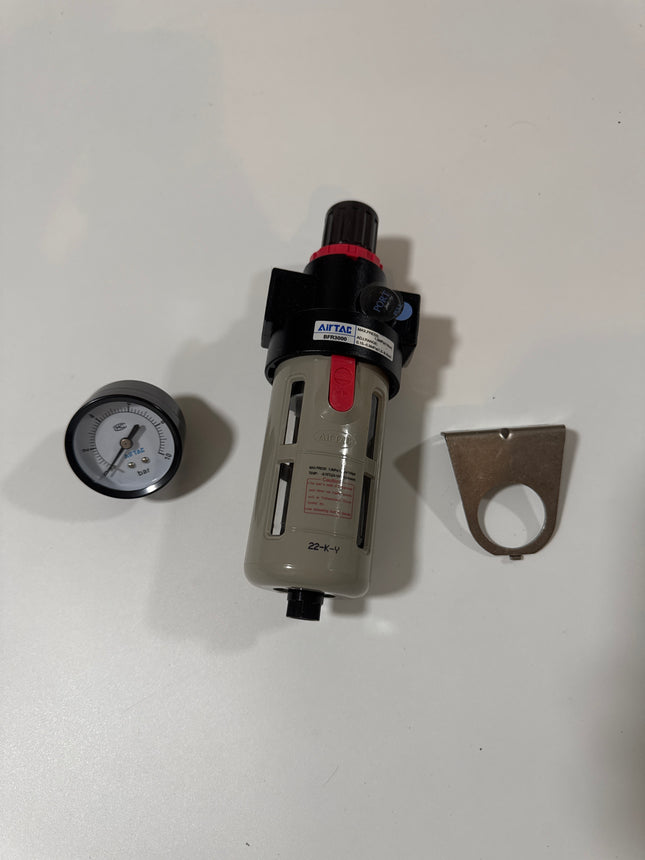

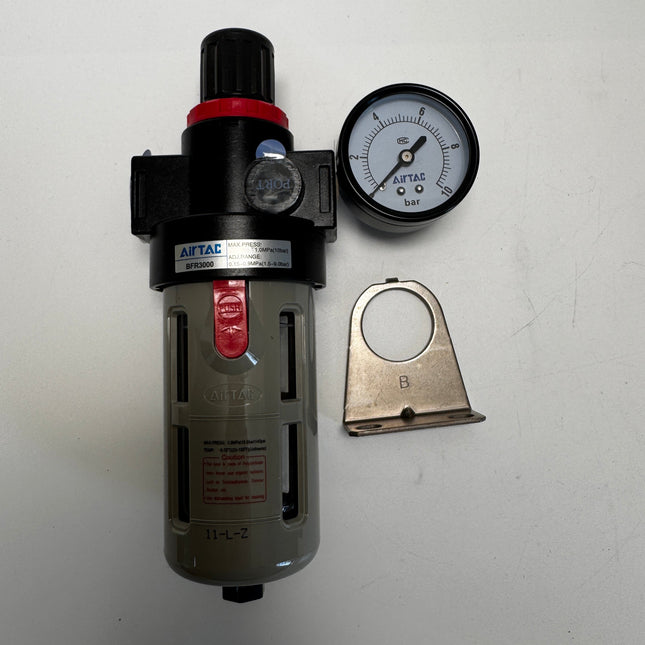

  • Airtac BFR: Air Filter Regulator - BFR30003G Airtac BFR: Air Filter Regulator - BFR30003G - 2

    Airtac BFR series: air filter regulator - BFR30003G

    Specifications: BFR30003G is an AirTAC BFR filter-regulator with G 3/8 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a bar pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 3000 3/8-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 3 Pressure gauge included; scale: bar Blank filter code 40 µm filter element G G connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR30003G Working medium Air Main ports G 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Included; bar scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection G 3/8 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; gauge option 3; thread option G; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

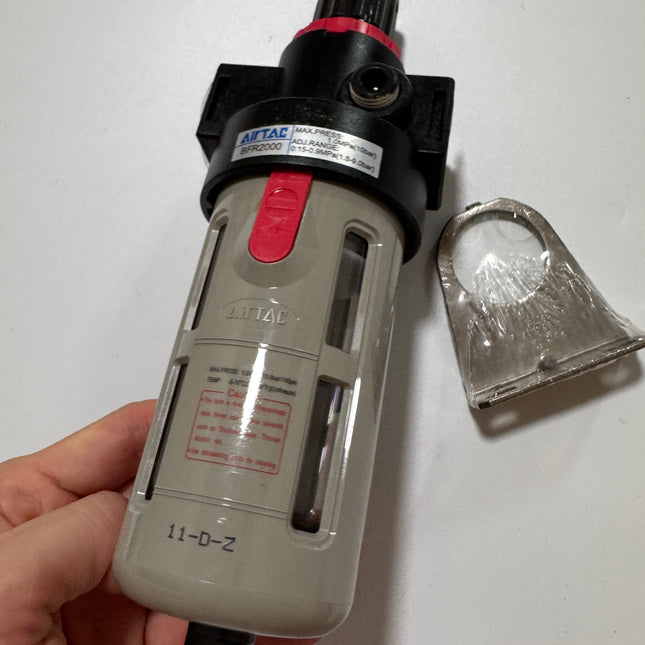

  • Airtac BFR: Air Filter Regulator - BFR2000N Airtac BFR: Air Filter Regulator - BFR2000N - 2

    Airtac BFR series: air filter regulator - BFR2000N

    Specifications: BFR2000N is an AirTAC BFR filter-regulator with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and no pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included N No pressure gauge Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR2000N Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Not included Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: gauge option N; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

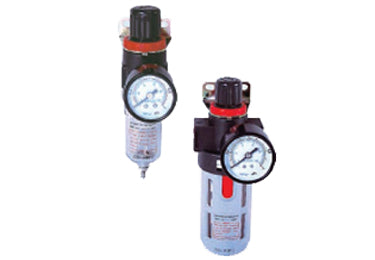

  • Airtac BFR: Air Filter Regulator - BFR40001 Airtac BFR: Air Filter Regulator - BFR40001 - 2

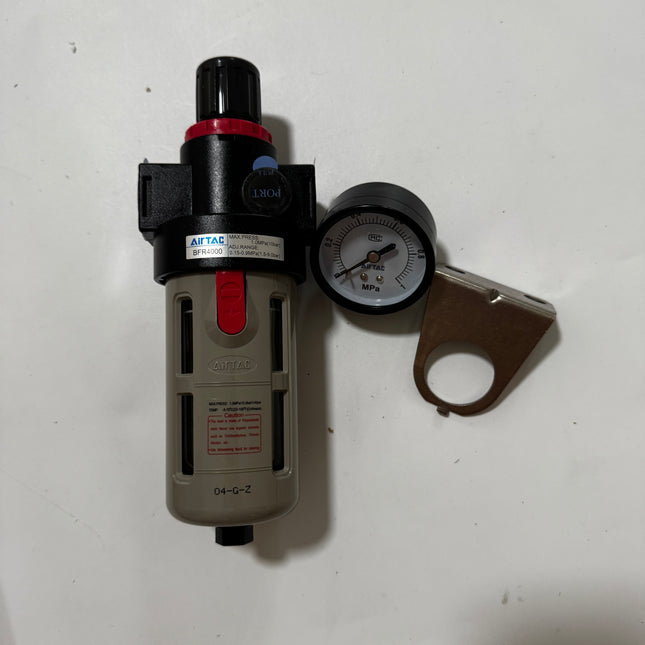

    Airtac BFR series: air filter regulator - BFR40001

    Specifications: BFR40001 is an AirTAC BFR filter-regulator with PT 1/2 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a MPa pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 4000 1/2-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR40001 Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

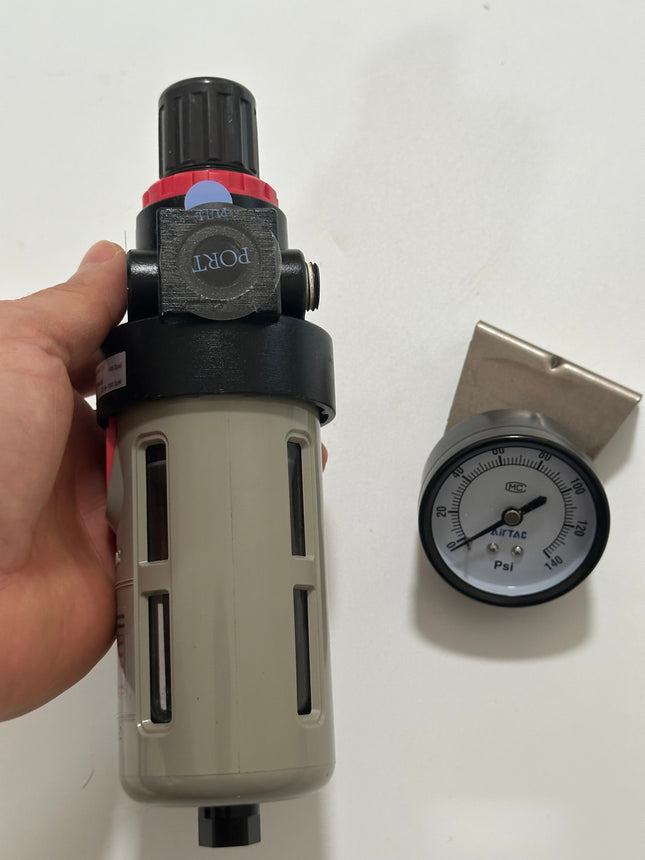

  • Airtac BFR: Air Filter Regulator - BFR2000A2T Airtac BFR: Air Filter Regulator - BFR2000A2T - 2

    Airtac BFR series: air filter regulator - BFR2000A2T

    Specifications: BFR2000A2T is an AirTAC BFR filter-regulator with NPT 1/4 ports, a 40 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 2000 1/4-inch nominal port size A automatic drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 2 Pressure gauge included; scale: psi Blank filter code 40 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR2000A2T Working medium Air Main ports NPT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Pressure gauge Included; psi scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/4 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain A; gauge option 2; thread option T; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

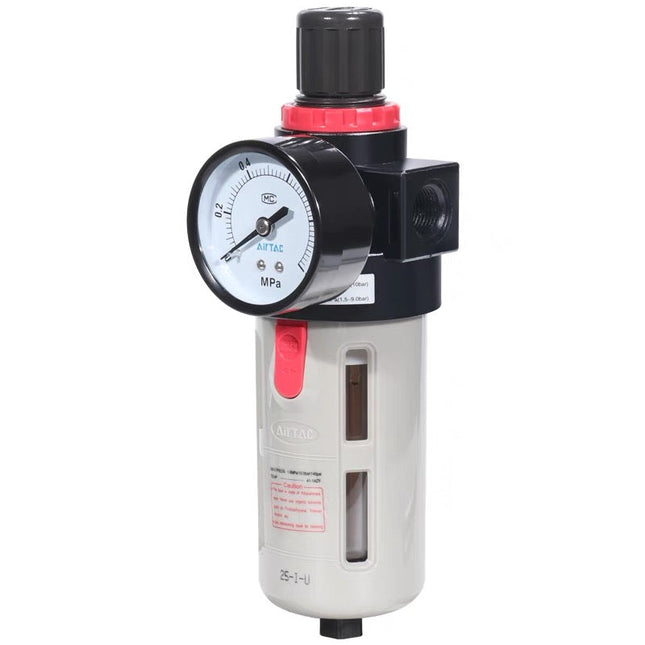

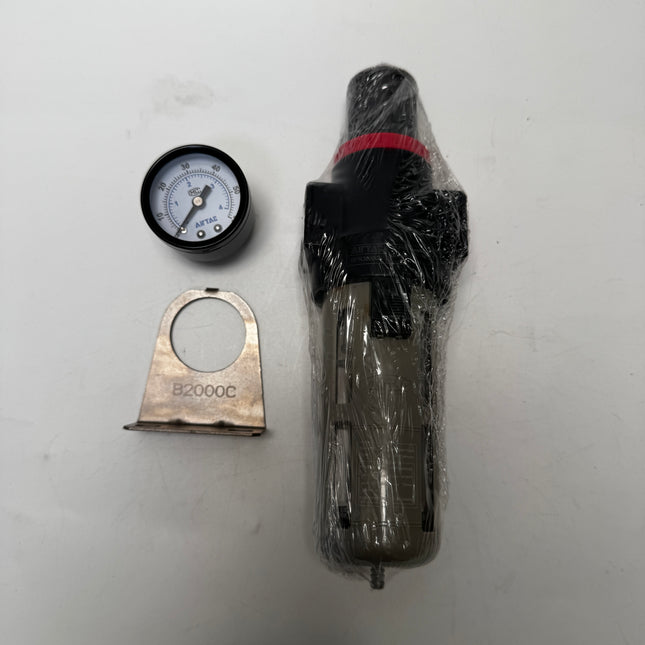

  • Airtac BFR: Air Filter Regulator - BFR3000ML4 Airtac BFR: Air Filter Regulator - BFR3000ML4 - 2

    Airtac BFR series: air filter regulator - BFR3000ML4

    Specifications: BFR3000ML4 is an AirTAC BFR filter-regulator with PT 3/8 ports, a 40 µm filter and manual drain, the 0.4 MPa lower-pressure regulating option, and a kgf/cm² and psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 3000 3/8-inch nominal port size M manual drain L Lower-pressure type: maximum adjustable pressure 0.4 MPa Blank bracket code Mounting bracket included 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR3000ML4 Working medium Air Main ports PT 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 60 cc Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 3/8 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; selected drain M; low-pressure option L; gauge option 4; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFR: Air Filter Regulator - BFR3000MNWG Airtac BFR: Air Filter Regulator - BFR3000MNWG - 2

    Airtac BFR series: air filter regulator - BFR3000MNWG

    Specifications: BFR3000MNWG is an AirTAC BFR filter-regulator with G 3/8 ports, a 5 µm filter and manual drain, the 0.9 MPa standard regulating option, and no pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 3000 3/8-inch nominal port size M manual drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included N No pressure gauge W 5 µm filter element G G connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR3000MNWG Working medium Air Main ports G 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type manual drain Drain bowl capacity 60 cc Pressure gauge Not included Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 5 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection G 3/8 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; selected drain M; gauge option N; filter option W; thread option G; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

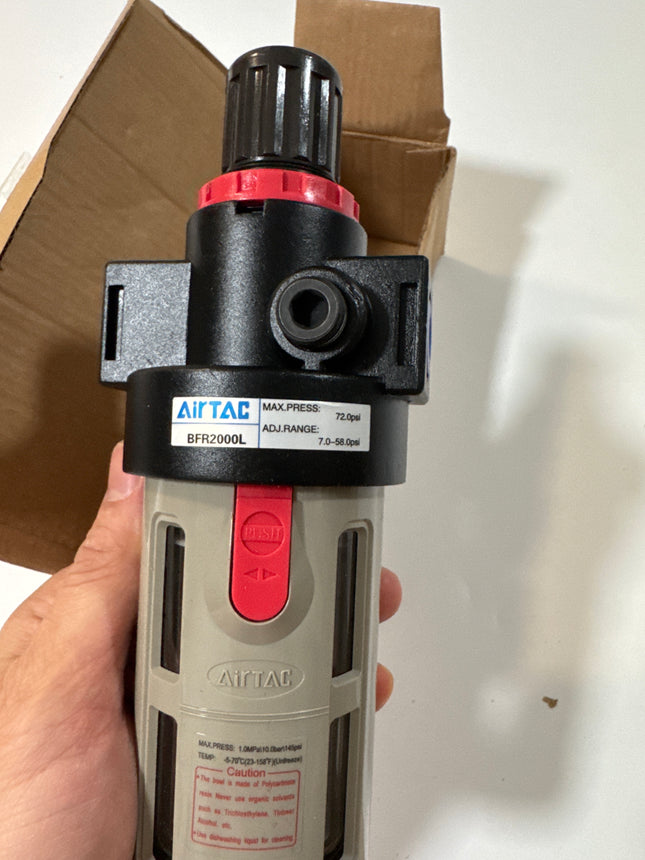

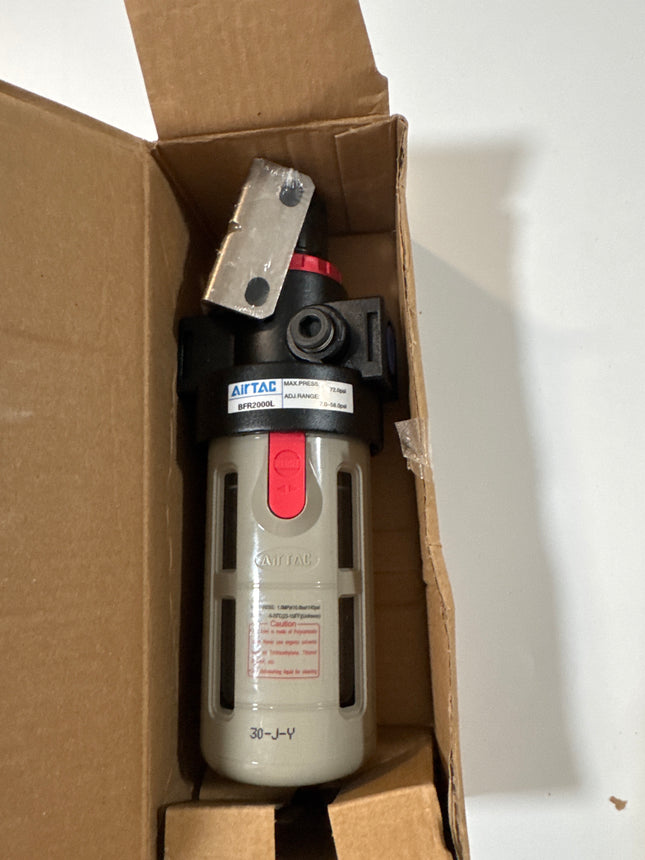

  • Airtac BFR: Air Filter Regulator - BFR2000MLNT Airtac BFR: Air Filter Regulator - BFR2000MLNT - 2

    Airtac BFR series: air filter regulator - BFR2000MLNT

    Specifications: BFR2000MLNT is an AirTAC BFR filter-regulator with NPT 1/4 ports, a 40 µm filter and manual drain, the 0.4 MPa lower-pressure regulating option, and no pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 2000 1/4-inch nominal port size M manual drain L Lower-pressure type: maximum adjustable pressure 0.4 MPa Blank bracket code Mounting bracket included N No pressure gauge Blank filter code 40 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR2000MLNT Working medium Air Main ports NPT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 60 cc Pressure gauge Not included Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/4 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain M; low-pressure option L; gauge option N; thread option T; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

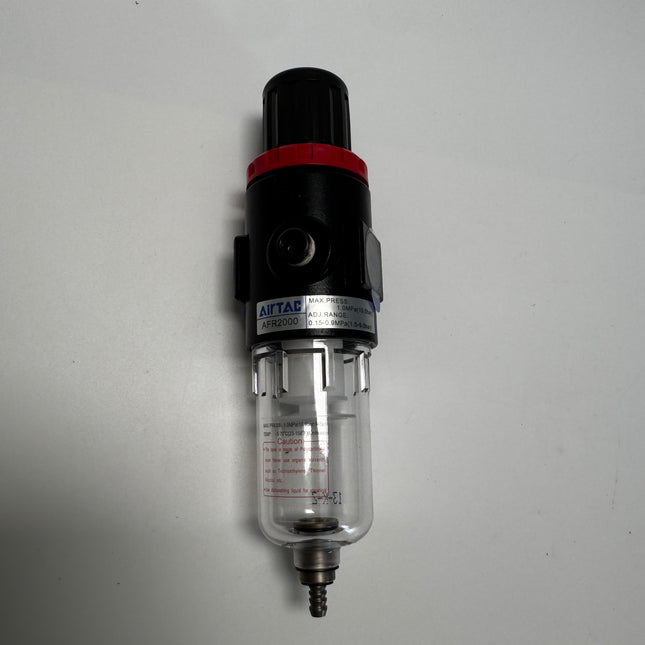

  • Airtac AFR: Air Filter Regulator - AFR2000N Airtac AFR: Air Filter Regulator - AFR2000N - 2

    Airtac AFR series: air filter regulator - AFR2000N

    Specifications: AFR2000N is an AirTAC AFR filter-regulator with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and no pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFR A Series filter-regulator 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included N No pressure gauge Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model AFR2000N Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 15 cc Pressure gauge Not included Gauge connection 1/8-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 260 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit Steel 15. Return spring Stainless steel 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 26. Clip Spring steel Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter. Performance Curves Parameter Details Flow-characteristic plot The AFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Top/front width callouts 50; 40; 34 mm Mounting local callouts 2; 4; 6.5 mm Front height callouts 38; 24; 60.5; 151.4 mm Drain local callout 3.5 mm Side width / parenthesized depth 34 / (53) mm Regulator mounting thread M30 × 1.5 Adjustment-knob diameter Ø39 mm Bracket thickness 2 mm Side vertical local callout 7 mm Gauge outside diameter Ø42 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 220 g. The 2022 comprehensive catalog, printed page 300, lists AFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: gauge option N; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 260 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

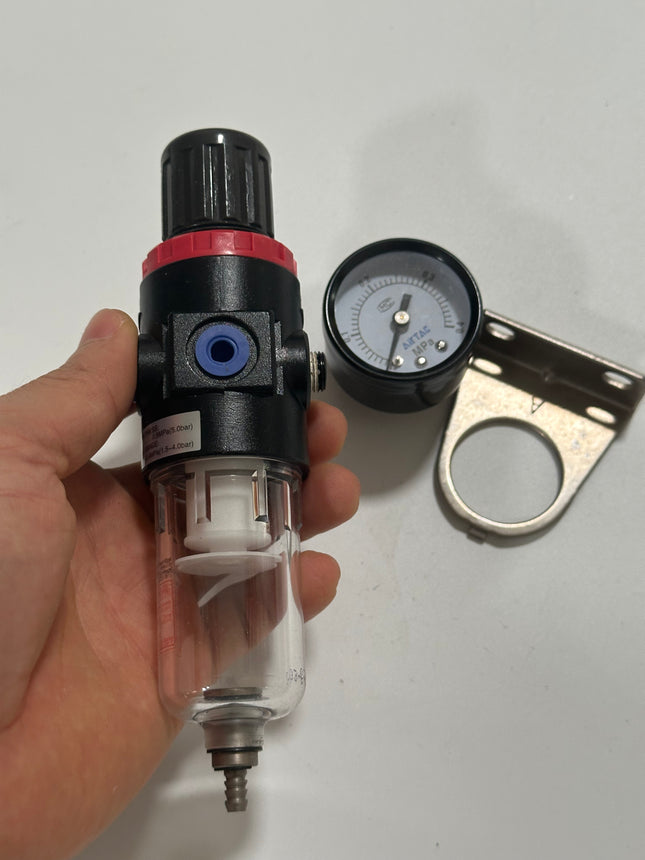

  • Airtac AFR: Air Filter Regulator - AFR1500L1 Airtac AFR: Air Filter Regulator - AFR1500L1 - 2

    Airtac AFR series: air filter regulator - AFR1500L1

    Specifications: AFR1500L1 is an AirTAC AFR filter-regulator with PT 1/8 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.4 MPa lower-pressure regulating option, and a MPa pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFR A Series filter-regulator 1500 1/8-inch nominal port size Blank drain code semi-automatic drain with manual drainage L Lower-pressure type: maximum adjustable pressure 0.4 MPa Blank bracket code Mounting bracket included 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model AFR1500L1 Working medium Air Main ports PT 1/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 15 cc Pressure gauge Included; MPa scale Gauge connection 1/8-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 260 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit Steel 15. Return spring Stainless steel 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 26. Clip Spring steel Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter. Performance Curves Parameter Details Flow-characteristic plot The AFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/8 at both flow ports Top/front width callouts 50; 40; 34 mm Mounting local callouts 2; 4; 6.5 mm Front height callouts 38; 24; 60.5; 151.4 mm Drain local callout 3.5 mm Side width / parenthesized depth 34 / (53) mm Regulator mounting thread M30 × 1.5 Adjustment-knob diameter Ø39 mm Bracket thickness 2 mm Side vertical local callout 7 mm Gauge outside diameter Ø42 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 220 g. The 2022 comprehensive catalog, printed page 300, lists AFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 1500 differs from the reference; low-pressure option L; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 260 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

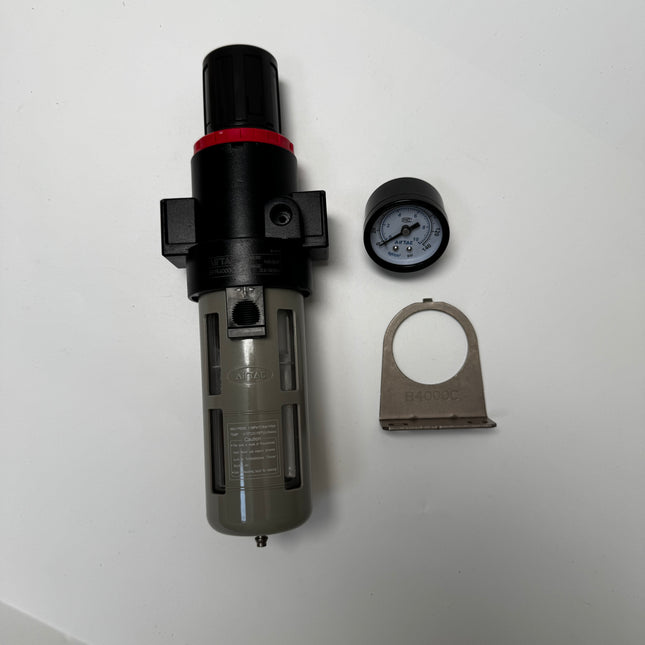

  • Airtac BFR: Air Filter Regulator - BFR40004 Airtac BFR: Air Filter Regulator - BFR40004 - 2

    Airtac BFR series: air filter regulator - BFR40004

    Specifications: BFR40004 is an AirTAC BFR filter-regulator with PT 1/2 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a kgf/cm² and psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 4000 1/2-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR40004 Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; gauge option 4; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

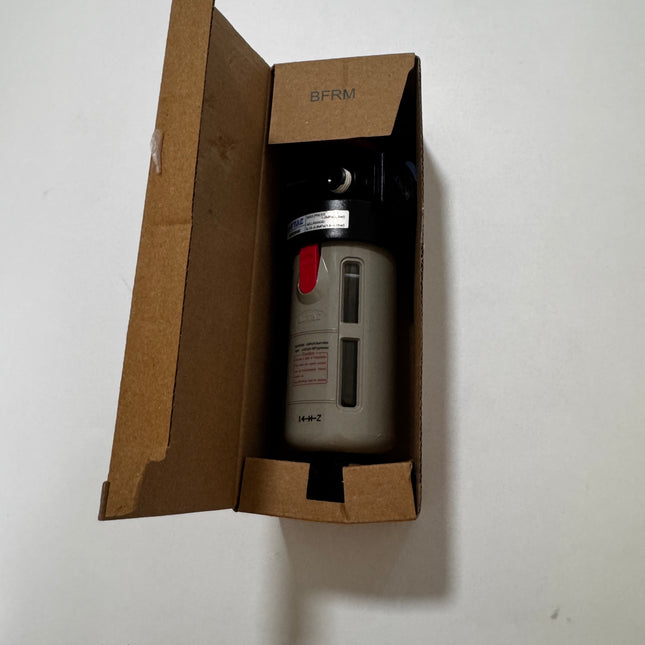

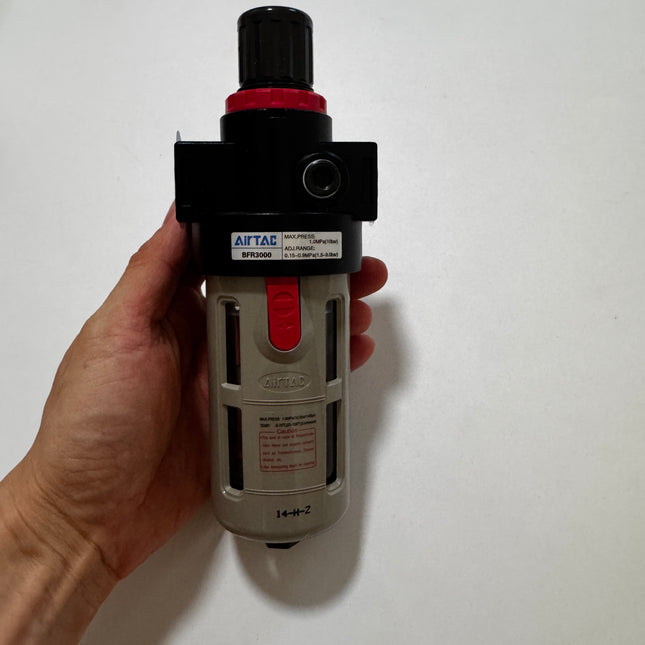

  • Airtac BFR: Air Filter Regulator - BFR3000JNG Airtac BFR: Air Filter Regulator - BFR3000JNG - 2

    Airtac BFR series: air filter regulator - BFR3000JNG

    Specifications: BFR3000JNG is an AirTAC BFR filter-regulator with G 3/8 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and no pressure gauge, supplied without a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 3000 3/8-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa J No mounting bracket N No pressure gauge Blank filter code 40 µm filter element G G connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR3000JNG Working medium Air Main ports G 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Not included Gauge connection 1/4-inch catalog gauge port Mounting bracket Not included: J option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection G 3/8 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. Bracket dimensions Reference geometry only for this J version; bracket is not included. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; gauge option N; thread option G. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

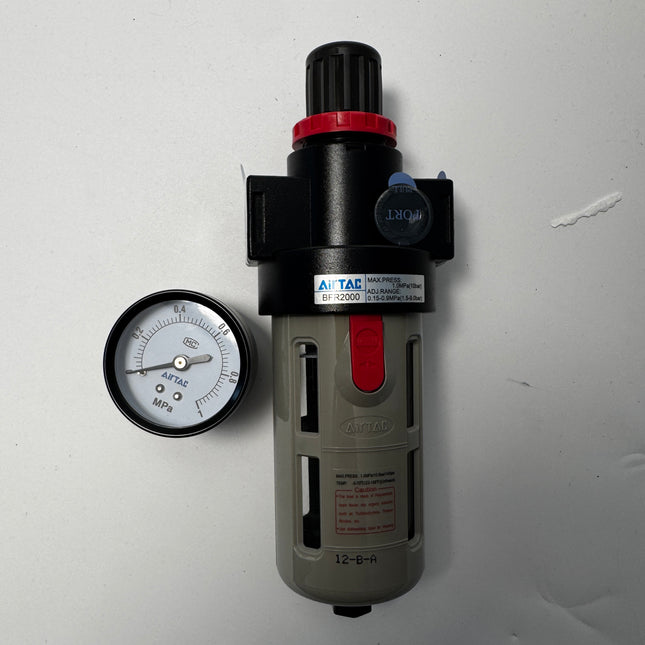

  • Airtac BFR: Air Filter Regulator - BFR2000J1 Airtac BFR: Air Filter Regulator - BFR2000J1 - 2

    Airtac BFR series: air filter regulator - BFR2000J1

    Specifications: BFR2000J1 is an AirTAC BFR filter-regulator with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a MPa pressure gauge, supplied without a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa J No mounting bracket 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR2000J1 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Not included: J option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Reference geometry only for this J version; bracket is not included. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Catalog reference: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. It is used for the matching standard configuration and is not an individually measured or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

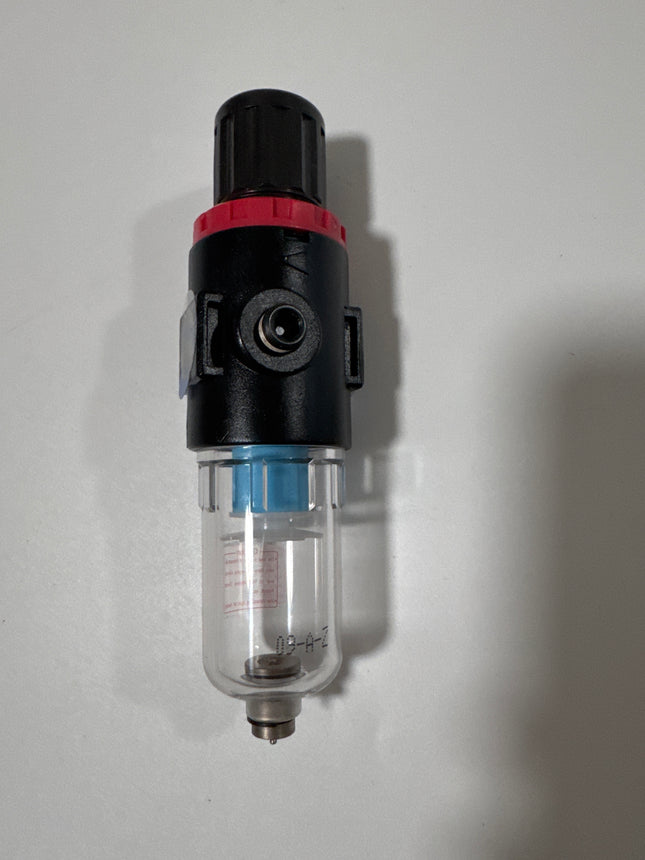

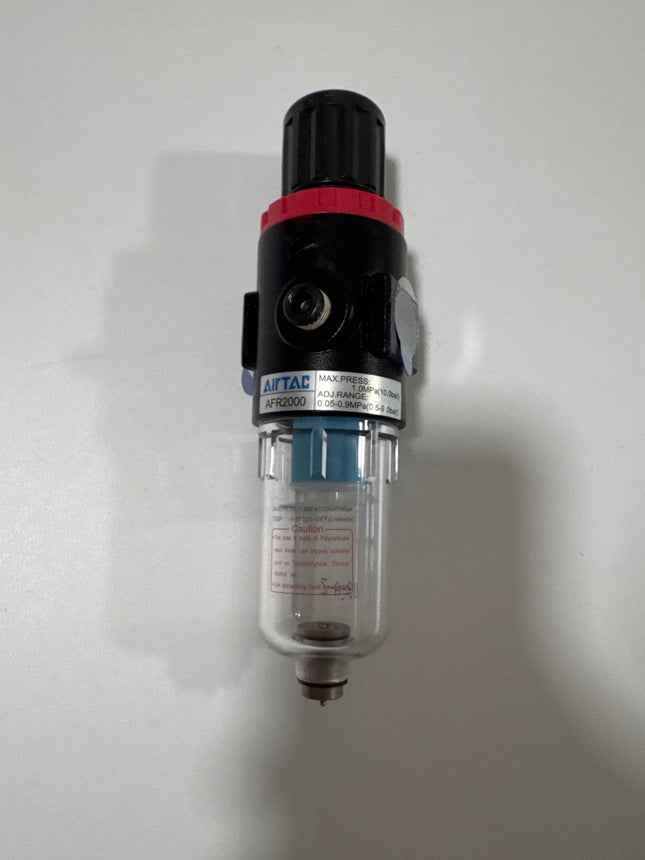

  • Airtac AFR: Air Filter Regulator - AFR2000MJNWG Airtac AFR: Air Filter Regulator - AFR2000MJNWG - 2

    Airtac AFR series: air filter regulator - AFR2000MJNWG

    Specifications: AFR2000MJNWG is an AirTAC AFR filter-regulator with G 1/4 ports, a 5 µm filter and manual drain, the 0.9 MPa standard regulating option, and no pressure gauge, supplied without a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFR A Series filter-regulator 2000 1/4-inch nominal port size M manual drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa J No mounting bracket N No pressure gauge W 5 µm filter element G G connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model AFR2000MJNWG Working medium Air Main ports G 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type manual drain Drain bowl capacity 15 cc Pressure gauge Not included Gauge connection 1/8-inch catalog gauge port Mounting bracket Not included: J option Catalog reference weight 260 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit Steel 15. Return spring Stainless steel 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 5 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 26. Clip Spring steel Drain and Service Notes The selected drain is manual drain. Performance Curves Parameter Details Flow-characteristic plot The AFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection G 1/4 at both flow ports Top/front width callouts 50; 40; 34 mm Mounting local callouts 2; 4; 6.5 mm Front height callouts 38; 24; 60.5; 151.4 mm Drain local callout 3.5 mm Side width / parenthesized depth 34 / (53) mm Regulator mounting thread M30 × 1.5 Adjustment-knob diameter Ø39 mm Bracket thickness 2 mm Side vertical local callout 7 mm Gauge outside diameter Ø42 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. Bracket dimensions Reference geometry only for this J version; bracket is not included. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 220 g. The 2022 comprehensive catalog, printed page 300, lists AFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain M; gauge option N; filter option W; thread option G. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 260 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFR: Air Filter Regulator - BFR4000L4W Airtac BFR: Air Filter Regulator - BFR4000L4W - 2

    Airtac BFR series: air filter regulator - BFR4000L4W

    Specifications: BFR4000L4W is an AirTAC BFR filter-regulator with PT 1/2 ports, a 5 µm filter and semi-automatic drain with manual drainage, the 0.4 MPa lower-pressure regulating option, and a kgf/cm² and psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 4000 1/2-inch nominal port size Blank drain code semi-automatic drain with manual drainage L Lower-pressure type: maximum adjustable pressure 0.4 MPa Blank bracket code Mounting bracket included 4 Pressure gauge included; scale: kgf/cm² and psi W 5 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR4000L4W Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 5 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; low-pressure option L; gauge option 4; filter option W; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

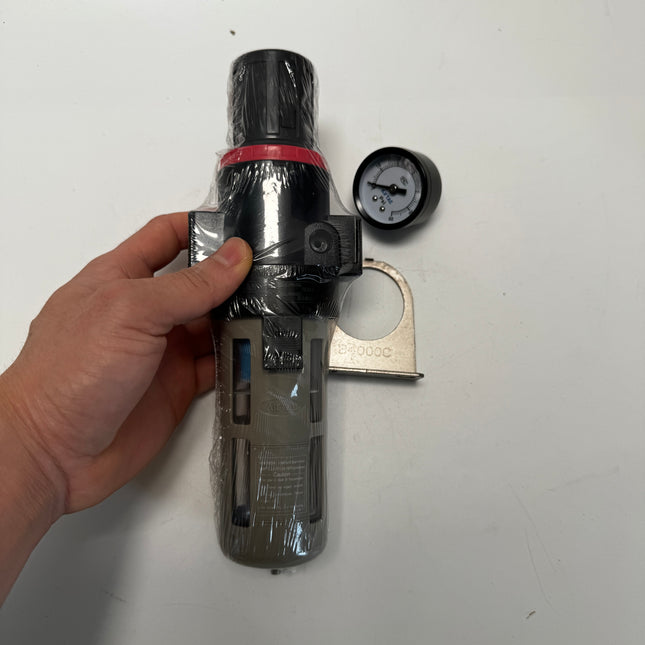

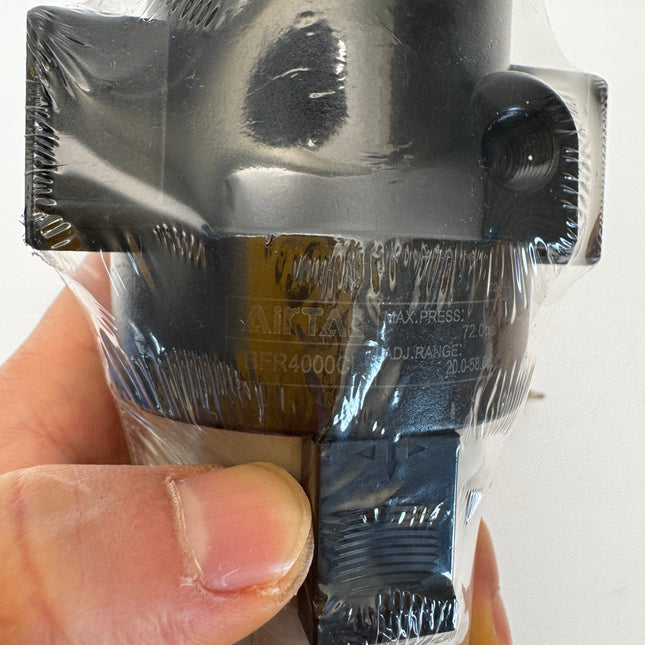

  • Airtac BFR: Air Filter Regulator - BFR4000L2WT Airtac BFR: Air Filter Regulator - BFR4000L2WT - 2

    Airtac BFR series: air filter regulator - BFR4000L2WT

    Specifications: BFR4000L2WT is an AirTAC BFR filter-regulator with NPT 1/2 ports, a 5 µm filter and semi-automatic drain with manual drainage, the 0.4 MPa lower-pressure regulating option, and a psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 4000 1/2-inch nominal port size Blank drain code semi-automatic drain with manual drainage L Lower-pressure type: maximum adjustable pressure 0.4 MPa Blank bracket code Mounting bracket included 2 Pressure gauge included; scale: psi W 5 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR4000L2WT Working medium Air Main ports NPT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Included; psi scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 5 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/2 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; low-pressure option L; gauge option 2; filter option W; thread option T; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFR: Air Filter Regulator - BFR3000N Airtac BFR: Air Filter Regulator - BFR3000N - 2

    Airtac BFR series: air filter regulator - BFR3000N

    Specifications: BFR3000N is an AirTAC BFR filter-regulator with PT 3/8 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and no pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 3000 3/8-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included N No pressure gauge Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR3000N Working medium Air Main ports PT 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Pressure gauge Not included Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 3/8 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; gauge option N; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFR: Air Filter Regulator - BFR2000AL1

    Airtac BFR series: air filter regulator - BFR2000AL1

    Specifications: BFR2000AL1 is an AirTAC BFR filter-regulator with PT 1/4 ports, a 40 µm filter and automatic drain, the 0.4 MPa lower-pressure regulating option, and a MPa pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFR B Series filter-regulator 2000 1/4-inch nominal port size A automatic drain L Lower-pressure type: maximum adjustable pressure 0.4 MPa Blank bracket code Mounting bracket included 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model BFR2000AL1 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 400 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit POM 15. Return spring Stainless steel 16. Drain seat POM 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 23. Bowl guard switch POM 24. Gasket POM 25. Bowl guard PA66 Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Top/front width callouts 72; 54; 37 mm Mounting local callouts 3; 15 mm Front height callouts 41; 7; 25; 48; 201.5 mm Side width / depth / local width 40 / 63 / 46 mm Regulator mounting thread M30 × 1.5 Bracket thickness 2.3 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 429 g. The 2022 comprehensive catalog, printed page 300, lists BFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain A; low-pressure option L; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 400 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

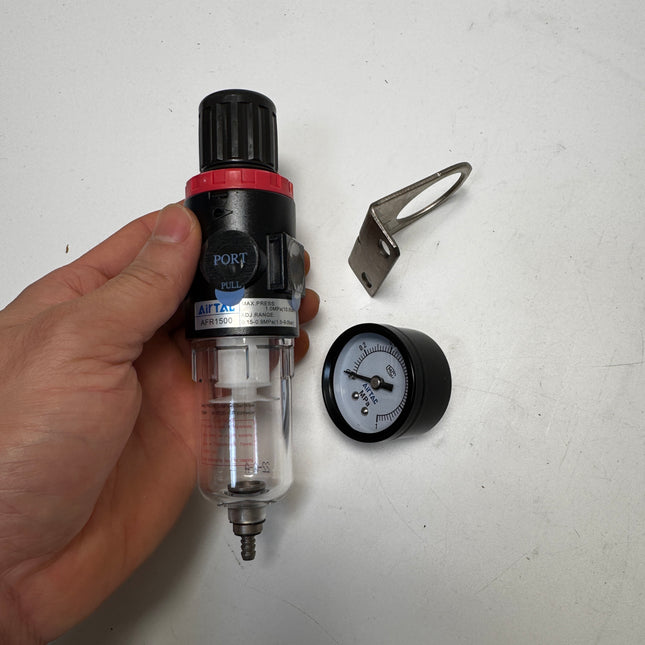

  • Airtac AFR: Air Filter Regulator - AFR15001 Airtac AFR: Air Filter Regulator - AFR15001 - 2

    Airtac AFR series: air filter regulator - AFR15001

    Specifications: AFR15001 is an AirTAC AFR filter-regulator with PT 1/8 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a MPa pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFR A Series filter-regulator 1500 1/8-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model AFR15001 Working medium Air Main ports PT 1/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 15 cc Pressure gauge Included; MPa scale Gauge connection 1/8-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 260 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit Steel 15. Return spring Stainless steel 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 26. Clip Spring steel Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter. Performance Curves Parameter Details Flow-characteristic plot The AFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/8 at both flow ports Top/front width callouts 50; 40; 34 mm Mounting local callouts 2; 4; 6.5 mm Front height callouts 38; 24; 60.5; 151.4 mm Drain local callout 3.5 mm Side width / parenthesized depth 34 / (53) mm Regulator mounting thread M30 × 1.5 Adjustment-knob diameter Ø39 mm Bracket thickness 2 mm Side vertical local callout 7 mm Gauge outside diameter Ø42 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 220 g. The 2022 comprehensive catalog, printed page 300, lists AFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 1500 differs from the reference; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 260 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac AFR: Air Filter Regulator - AFR20004

    Airtac AFR series: air filter regulator - AFR20004

    Specifications: AFR20004 is an AirTAC AFR filter-regulator with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a kgf/cm² and psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFR A Series filter-regulator 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model AFR20004 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 15 cc Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/8-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 260 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit Steel 15. Return spring Stainless steel 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 40 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 26. Clip Spring steel Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter. Performance Curves Parameter Details Flow-characteristic plot The AFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Top/front width callouts 50; 40; 34 mm Mounting local callouts 2; 4; 6.5 mm Front height callouts 38; 24; 60.5; 151.4 mm Drain local callout 3.5 mm Side width / parenthesized depth 34 / (53) mm Regulator mounting thread M30 × 1.5 Adjustment-knob diameter Ø39 mm Bracket thickness 2 mm Side vertical local callout 7 mm Gauge outside diameter Ø42 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 220 g. The 2022 comprehensive catalog, printed page 300, lists AFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: gauge option 4; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 260 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac AFR: Air Filter Regulator - AFR20004W

    Airtac AFR series: air filter regulator - AFR20004W

    Specifications: AFR20004W is an AirTAC AFR filter-regulator with PT 1/4 ports, a 5 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a kgf/cm² and psi pressure gauge, supplied with a mounting bracket. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFR A Series filter-regulator 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa Blank bracket code Mounting bracket included 4 Pressure gauge included; scale: kgf/cm² and psi W 5 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. Technical Specifications Parameter Details Current model AFR20004W Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 15 cc Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/8-inch catalog gauge port Mounting bracket Included: blank bracket option Catalog reference weight 260 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Bracket choices Blank: bracket included; J: no bracket Internal Construction The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above. Drawing Item Material / Details 1. Push button POM 2. Adjusting button POM 3. Adjusting nut Steel 4. Adjusting seat POM 5. Adjusting spring SWC 6. Fixed ring POM 7. Body Aluminum alloy 8. Diaphragm Stainless steel and rubber 9. Balance needle POM 10. Needle gasket Aluminum alloy and rubber 11. Air guider POM 12. Umbrella baffle POM 13. Drain bowl PC 14. Drain kit Steel 15. Return spring Stainless steel 17. Drain pillar POM 18. Drain O-ring NBR 19. Filter element HDPE; 5 µm in this model 20. Return spring Stainless steel 21. Drain bowl O-ring NBR 22. Needle O-ring NBR 26. Clip Spring steel Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter. Performance Curves Parameter Details Flow-characteristic plot The AFR family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Top/front width callouts 50; 40; 34 mm Mounting local callouts 2; 4; 6.5 mm Front height callouts 38; 24; 60.5; 151.4 mm Drain local callout 3.5 mm Side width / parenthesized depth 34 / (53) mm Regulator mounting thread M30 × 1.5 Adjustment-knob diameter Ø39 mm Bracket thickness 2 mm Side vertical local callout 7 mm Gauge outside diameter Ø42 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. Bracket dimensions Bracket is included under the blank option. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 220 g. The 2022 comprehensive catalog, printed page 300, lists AFR2000J at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: gauge option 4; filter option W; the current mounting bracket is included, whereas the reference J code omits it. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 260 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.
