Valve Product Information

Valve

  • Product Features
  • Specifications
  • Product Ordering Code

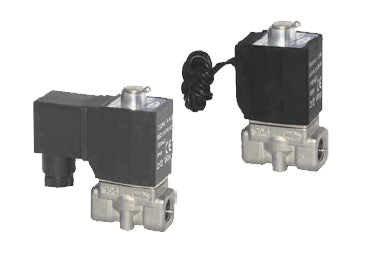

Product Features

  • Direct-acting, normally open type; starts at zero pressure difference with fast and sensitive action.
  • Wide operating pressure range, with high-pressure (H) and standard types available for selection.
  • The valve body is made of SUS304 stainless steel, which is lightweight and has an elegant appearance.
  • Seal material options include FEP/PTFE (Teflon), suitable for a variety of working media, especially for high-temperature water and saturated steam.
  • The coil has a protection class of IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No. Port Size [Note 1] Orifice Dia. (mm) Cv Value Effective Area (mm²) Weight (g) [Note 2] Max. Operating Pressure Max. Proof Pressure
MPa psi MPa psi
2KLH030 -06 PT1/8 2.0 0.18 3.0 305 1.5 220 3.0 450
-08 PT1/4 295
2KL030 -06 PT1/8 3.0 0.33 6.0 305 0.7 100
-08 PT1/4 295
2KLH050 -10 PT3/8 4.0 0.55 10.0 610 1.5 220
-15 PT1/2 600
2KL050 -10 PT3/8 5.0 0.83 15.0 610 0.7 100
-15 PT1/2 600
Note 1: H-type models have similar dimensions to the 030/050 series.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KL030 series is 10g lighter, and for the 2KL050 series, it is 20g lighter.

Product Ordering Code

Position Description Options & Values
1 Model Code
  • 2KL: Direct-acting normally open solenoid valve
2 Pressure Type
  • H: High-pressure type
  • Blank: Standard type
3 Series Code
  • 030: 030 Series
  • 050: 050 Series
4 Port Size
  • 06: 1/8"
  • 08: 1/4"
  • 10: 3/8"
  • 15: 1/2"
5 Coil Voltage
  • A: AC220V
  • B: AC110V
  • C: AC24V
  • D: DC24V
  • E: DC12V
6 Connection Type
  • Blank: DIN connector type
  • I: Lead wire type [Note 1]
7 Thread Code
  • Blank: PT thread
  • G: G thread
  • T: NPT thread
Note 1: The standard length for the lead wire type is 0.5m.

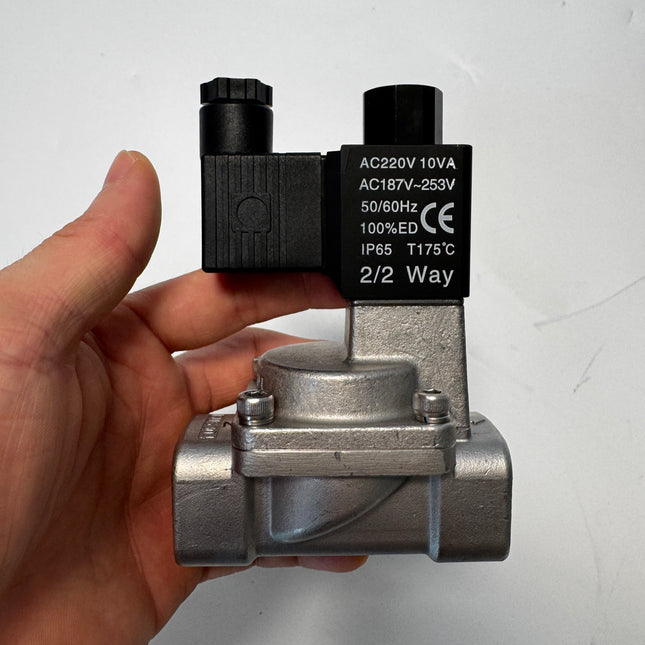

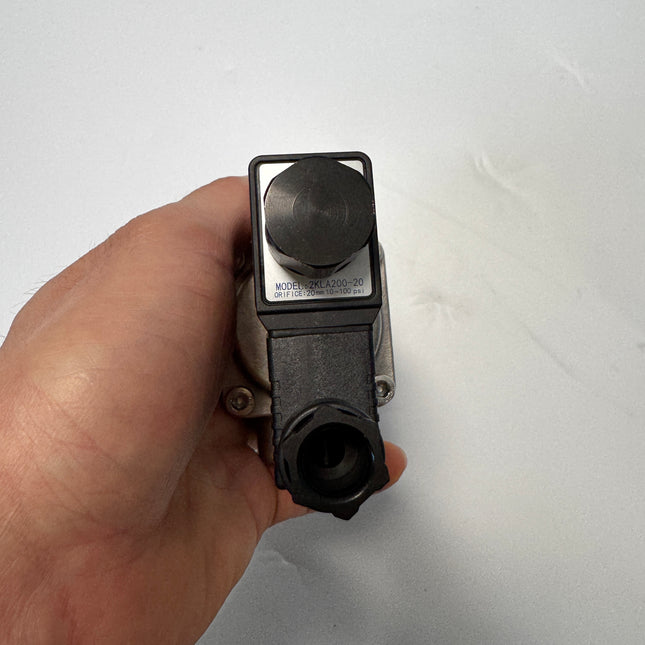

  • Airtac 2KL200-20: 2 Way Solenoid Valve - 2KL20020AT Airtac 2KL200-20: 2 Way Solenoid Valve - 2KL20020AT - 2

    Airtac 2KL series: two-way fluid solenoid valve - 2KL20020AT

    Specifications: 2KL20020AT is an AirTAC 2KL 2/2-way internally piloted, normally open solenoid valve. 200 identifies the orifice-size branch; port code 20 selects NPT3/4; voltage code A selects AC220V; electrical entry is terminal connector. Thread suffix T selects NPT threads. Product Catalogs and Comparison Guide Download Airtac 2KL Product Catalog (PDF) Download Airtac 2KLA Product Catalog (PDF) Legacy coil and mounting-accessory selection: catalog page 205 (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide Ordering and Delivery Orders for 2KL20020AT will be supplied as 2KLA20020AT (2KLA). This is our ordering and delivery policy. It does not mean that the old and new dimensions, mounting details or electrical data are identical. The technical information below describes 2KL20020AT in the 2KL catalog. For the supplied replacement, check the new catalog and comparison guide before installation. Operation and Construction This two-port, two-position valve is normally open in its unenergized state. The valve uses internal pilot operation and requires the stated pressure differential to operate. The catalog specifies a SUS304 stainless-steel body, a PTFE (Teflon) standard seal, Class H coil insulation and IP65 coil protection. The compact construction is intended to make installation and removal convenient. Model Code Explained Code position Meaning for this model Family 2KL — 2/2-way internally piloted, normally open Size code 200 — 20 mm orifice Port-size code 20 — NPT3/4 Voltage code A — AC220V Electrical-entry code Omitted — terminal Thread code T — NPT Technical Specifications Parameter Details Actuation and normal state Internally piloted; normally open Suitable fluids Steam, high-temperature water and oil Orifice diameter 20 mm Flow coefficient Cv 9.50 Effective flow area 170 mm² Operating pressure differential 0.05–0.7 MPa differential (inlet pressure minus outlet pressure). Proof pressure 1.5 MPa Body material SUS304 stainless steel Standard seal PTFE (Teflon) Viscosity limit Under 20 cSt in the general specification; see the separate low-oil-temperature footnote below. Oil temperature −10 to 150°C; the −10°C entry carries a footnote stating 50 cSt or less. Water temperature 1 to 150°C Steam temperature Maximum 183°C; the minimum is not stated. Ambient temperature −20 to 100°C Catalog reference weight 880 g; terminal version. Operating differential is the pressure difference across the valve, not an independent flow rating. The general viscosity limit and the oil-temperature footnote are both retained from the source; they must be checked together for the intended fluid. Catalog weight is a reference value; the actual product prevails. Electrical Specifications Parameter Details Rated voltage AC220V Electrical entry terminal connector Coil family listed for this valve CDA116 Supply tolerance ±15% Supply frequency 50 or 60 Hz; consumption differs with frequency. Power consumption 15 VA at 50 Hz; 11 VA at 60 Hz Catalog temperature rise 50°C at 50 Hz; 40°C at 60 Hz Coil insulation Class H Coil protection IP65 External and Mounting Dimensions The following values are from the 2KL terminal drawing, PDF page 4 (printed page 217). Each letter refers to its own dimension line. Values are in millimetres except threads; “—” means that the source does not list a value. Drawing reference Current configuration A — drawing length A 78.5 mm AB — body span AB 82 mm B — drawing width B 53 mm BA — port-side span BA 33.5 mm C — drawing height C 121 mm D — drawing dimension D 90 mm E — drawing dimension E 6.4 mm EA — drawing dimension EA 8 mm EB — drawing dimension EB 75 mm EC — drawing dimension EC 40 mm F — drawing dimension F 34 mm P — fluid port thread P NPT3/4 The drawing labels the mounting bracket as optional. D, E, EA, EB, EC and F are separate installation references; do not combine dimension lines into an invented overall measurement. Drawing check required: the source table lists A=78.5 mm and AB=82 mm for this terminal version. These values are reproduced exactly, although the drawing makes their relationship unclear. Confirm the approved drawing before using this combination for installation or interchangeability. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Charts This configuration has a 20 mm orifice, Cv 9.50 and 170 mm² effective area. The catalog provides a chart labelled “Fluid: Vacuum” showing P2, upstream-pressure curves P1, a minimum-working-pressure boundary, subsonic/sonic regions and a critical-pressure boundary. Its Q axis is labelled L/min (ANR), with separate scales for Ø15, Ø20, Ø25, Ø35, Ø40 and Ø50 mm. The P2 chart reaches 0.7 MPa. The water chart plots Q in L/min against ΔP=P1−P2 in MPa; marked scales run from 0.02 to 0.5 MPa and 30 to 900 L/min. Its large intermediate curve is labelled Ø32, while the 320 ordering/specification table states a Ø35 mm orifice; retain this source distinction when reading the graph. Read the actual curve for the operating condition in the PDF. Axis maxima, plotted endpoints and other bore-size curves are not guaranteed flow ratings for this model; no interpolated flow claim is added here. Internal Structure Reference The catalog cross-section is labelled 2KL150 (grommet). The numbered names below identify that reference drawing; they are not a packing list, individual ordering codes, quantities or a claim that every branch has an identical construction. Drawing item Component name 1 Gasket 2 Piston 3 Body 4 Gasket 5 Screw 6 Wear ring 7 Spring 8 Cover 9 Spring 10 Screw 11 Fixed cap 12 Spring washer 13 Coil assembly 14 Positioning ring 15 E clip 16 Mandrel 17 Electromagnet 18 Spring 19 Airtight bush 20 Fixed plate 21 O-ring 22 Fixed ring 23 Airtight ring 24 Plug 25 Spring 26 O-ring 27 Spacer 28 O-ring 29 Fixed ring Mounting Accessories and Selection The catalog accessory selection identifies F-2S200LB as the optional LB mounting bracket for this size branch. The valve drawing shows an optional bracket; the catalog does not identify it as included with the valve or list its packing quantity. Order the bracket separately when required, after confirming the mounting arrangement. Match the full voltage, electrical entry, thread and normal-state configuration. A valve series update does not establish that its old coil, connector or mounting bracket fits the new generation. Follow the flow direction shown on the body and check the exact catalog drawing before installation. Series Ordering Options The following are available choices within 2KL. The current model uses only the configuration decoded above; H applies to the direct-acting 030/050 branches. Ordering position Permitted catalog choices Direct-acting branches 030: port codes 06 (1/8) or 08 (1/4); 050: 10 (3/8) or 15 (1/2). Pressure code omitted = standard; H = high pressure. Internally piloted branches 150/15 = Ø15 mm, 1/2; 200/20 = Ø20 mm, 3/4; 250/25 = Ø25 mm, 1; 320/32 = Ø35 mm, 1 1/4; 400/40 = Ø40 mm, 1 1/2; 500/50 = Ø50 mm, 2. Voltage codes A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical-entry choices Omitted = terminal; I = grommet / flying lead, length 0.5 m. Thread choices Omitted = PT; G = G thread; T = NPT. These are alternatives, not simultaneous features.

    $140.84

  • Airtac Mounting Accessory - F-2KL250LB

    Airtac F-2KL series: valve mounting bracket - F-2KL250LB

    Specifications: F-2KL250LB is the existing listing identifier for an LB-type mounting accessory associated with the 250 body-size branch. It is a mounting component, not an electrically operated valve. The supplied manufacturer catalog lists F-2S250LB for the corresponding legacy valve group; it does not list F-2KL250LB as an official ordering code. Product Catalogs and Comparison Guide Download Airtac Coil and Accessories Catalog (PDF) Download Airtac 2KL Product Catalog (PDF) Download Airtac 2KLA Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide The valve catalogs and comparison guide provide series background. They do not turn this separately ordered component into a complete valve or establish an automatic component replacement. Ordering-Code Verification Confirm the exact bracket before ordering. The existing listing code is retained, but its correspondence to the catalog bracket requires confirmation. The valve series update does not prove that this legacy bracket is replaced by an A-suffixed version. Parameter Details Existing listing identifier F-2KL250LB Catalog legacy bracket code F-2S250LB Legacy chart application 2W / 2KW, 2S / 2KS and 2L / 2KL, corresponding 250 size branch New-generation chart code F-2WA250LB New chart application Corresponding 2LA / 2KLA 250 branch, as shown on the new accessory selection page Current status Listing-code match and supplied component require confirmation; no SKU has been renamed Function and Catalog Scope The LB accessory mounts the valve body using the optional bracket arrangement illustrated in the valve catalog. Bracket-related dimensions in those illustrations refer to the assembled installation and must not be relabelled as a fully dimensioned loose-part drawing. The source selection table lists brackets for the 030, 050, 150, 200 and 250 branches. The 320, 400 and 500 branches are shown without mounting accessories. Packing, Dimensions and Weight Parameter Details Packing components and quantity Not specified in the supplied bracket selection table Standalone bracket dimensions Not provided; confirm the matching bracket drawing Bracket material Not stated in the supplied selection table Bracket weight Not stated; no valve weight is substituted Electrical and fluid specifications Not applicable to this mounting component For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Estimated reference weight: 60 g. The mass reference is the DOLD listing for F-2WA250LB, which lists an item weight of 60 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. A later 2WA mounting bracket for the same nominal valve size is used only as a mass analogy; old/new bracket dimensions and interchangeability are not asserted. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  • Airtac Mounting Accessory - F-2KL200LB

    Airtac F-2KL series: valve mounting bracket - F-2KL200LB

    Specifications: F-2KL200LB is the existing listing identifier for an LB-type mounting accessory associated with the 200 body-size branch. It is a mounting component, not an electrically operated valve. The supplied manufacturer catalog lists F-2S200LB for the corresponding legacy valve group; it does not list F-2KL200LB as an official ordering code. Product Catalogs and Comparison Guide Download Airtac Coil and Accessories Catalog (PDF) Download Airtac 2KL Product Catalog (PDF) Download Airtac 2KLA Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide The valve catalogs and comparison guide provide series background. They do not turn this separately ordered component into a complete valve or establish an automatic component replacement. Ordering-Code Verification Confirm the exact bracket before ordering. The existing listing code is retained, but its correspondence to the catalog bracket requires confirmation. The valve series update does not prove that this legacy bracket is replaced by an A-suffixed version. Parameter Details Existing listing identifier F-2KL200LB Catalog legacy bracket code F-2S200LB Legacy chart application 2W / 2KW, 2S / 2KS and 2L / 2KL, corresponding 200 size branch New-generation chart code F-2WA200LB New chart application Corresponding 2LA / 2KLA 200 branch, as shown on the new accessory selection page Current status Listing-code match and supplied component require confirmation; no SKU has been renamed Function and Catalog Scope The LB accessory mounts the valve body using the optional bracket arrangement illustrated in the valve catalog. Bracket-related dimensions in those illustrations refer to the assembled installation and must not be relabelled as a fully dimensioned loose-part drawing. The source selection table lists brackets for the 030, 050, 150, 200 and 250 branches. The 320, 400 and 500 branches are shown without mounting accessories. Packing, Dimensions and Weight Parameter Details Packing components and quantity Not specified in the supplied bracket selection table Standalone bracket dimensions Not provided; confirm the matching bracket drawing Bracket material Not stated in the supplied selection table Bracket weight Not stated; no valve weight is substituted Electrical and fluid specifications Not applicable to this mounting component For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Estimated reference weight: 60 g. The mass reference is the DOLD listing for F-2S200LB, which lists an item weight of 60 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  • Airtac Mounting Accessory - F-2KL150LB

    Airtac F-2KL series: valve mounting bracket - F-2KL150LB

    Specifications: F-2KL150LB is the existing listing identifier for an LB-type mounting accessory associated with the 150 body-size branch. It is a mounting component, not an electrically operated valve. The supplied manufacturer catalog lists F-2S150LB for the corresponding legacy valve group; it does not list F-2KL150LB as an official ordering code. Product Catalogs and Comparison Guide Download Airtac Coil and Accessories Catalog (PDF) Download Airtac 2KL Product Catalog (PDF) Download Airtac 2KLA Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide The valve catalogs and comparison guide provide series background. They do not turn this separately ordered component into a complete valve or establish an automatic component replacement. Ordering-Code Verification Confirm the exact bracket before ordering. The existing listing code is retained, but its correspondence to the catalog bracket requires confirmation. The valve series update does not prove that this legacy bracket is replaced by an A-suffixed version. Parameter Details Existing listing identifier F-2KL150LB Catalog legacy bracket code F-2S150LB Legacy chart application 2W / 2KW, 2S / 2KS and 2L / 2KL, corresponding 150 size branch New-generation chart code F-2WA150LB New chart application Corresponding 2LA / 2KLA 150 branch, as shown on the new accessory selection page Current status Listing-code match and supplied component require confirmation; no SKU has been renamed Function and Catalog Scope The LB accessory mounts the valve body using the optional bracket arrangement illustrated in the valve catalog. Bracket-related dimensions in those illustrations refer to the assembled installation and must not be relabelled as a fully dimensioned loose-part drawing. The source selection table lists brackets for the 030, 050, 150, 200 and 250 branches. The 320, 400 and 500 branches are shown without mounting accessories. Packing, Dimensions and Weight Parameter Details Packing components and quantity Not specified in the supplied bracket selection table Standalone bracket dimensions Not provided; confirm the matching bracket drawing Bracket material Not stated in the supplied selection table Bracket weight Not stated; no valve weight is substituted Electrical and fluid specifications Not applicable to this mounting component For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Estimated reference weight: 50 g. The mass reference is the DOLD listing for F-2S150LB, which lists an item weight of 50 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  • Airtac Mounting Accessory - F-2KL050LB

    Airtac F-2KL series: valve mounting bracket - F-2KL050LB

    Specifications: F-2KL050LB is the existing listing identifier for an LB-type mounting accessory associated with the 050 body-size branch. It is a mounting component, not an electrically operated valve. The supplied manufacturer catalog lists F-2S050LB for the corresponding legacy valve group; it does not list F-2KL050LB as an official ordering code. Product Catalogs and Comparison Guide Download Airtac Coil and Accessories Catalog (PDF) Download Airtac 2KL Product Catalog (PDF) Download Airtac 2KLA Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide The valve catalogs and comparison guide provide series background. They do not turn this separately ordered component into a complete valve or establish an automatic component replacement. Ordering-Code Verification Confirm the exact bracket before ordering. The existing listing code is retained, but its correspondence to the catalog bracket requires confirmation. The valve series update does not prove that this legacy bracket is replaced by an A-suffixed version. Parameter Details Existing listing identifier F-2KL050LB Catalog legacy bracket code F-2S050LB Legacy chart application 2W / 2KW, 2S / 2KS and 2L / 2KL, corresponding 050 size branch New-generation chart code F-2WA050LB New chart application Corresponding 2LA / 2KLA 050 branch, as shown on the new accessory selection page Current status Listing-code match and supplied component require confirmation; no SKU has been renamed Function and Catalog Scope The LB accessory mounts the valve body using the optional bracket arrangement illustrated in the valve catalog. Bracket-related dimensions in those illustrations refer to the assembled installation and must not be relabelled as a fully dimensioned loose-part drawing. The source selection table lists brackets for the 030, 050, 150, 200 and 250 branches. The 320, 400 and 500 branches are shown without mounting accessories. Packing, Dimensions and Weight Parameter Details Packing components and quantity Not specified in the supplied bracket selection table Standalone bracket dimensions Not provided; confirm the matching bracket drawing Bracket material Not stated in the supplied selection table Bracket weight Not stated; no valve weight is substituted Electrical and fluid specifications Not applicable to this mounting component For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Estimated reference weight: 20 g. The mass reference is the DOLD listing for F-2S050LB, which lists an item weight of 20 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  • Airtac Mounting Accessory - F-2KL030LB

    Airtac F-2KL series: valve mounting bracket - F-2KL030LB

    Specifications: F-2KL030LB is the existing listing identifier for an LB-type mounting accessory associated with the 030 body-size branch. It is a mounting component, not an electrically operated valve. The supplied manufacturer catalog lists F-2S030LB for the corresponding legacy valve group; it does not list F-2KL030LB as an official ordering code. Product Catalogs and Comparison Guide Download Airtac Coil and Accessories Catalog (PDF) Download Airtac 2KL Product Catalog (PDF) Download Airtac 2KLA Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide The valve catalogs and comparison guide provide series background. They do not turn this separately ordered component into a complete valve or establish an automatic component replacement. Ordering-Code Verification Confirm the exact bracket before ordering. The existing listing code is retained, but its correspondence to the catalog bracket requires confirmation. The valve series update does not prove that this legacy bracket is replaced by an A-suffixed version. Parameter Details Existing listing identifier F-2KL030LB Catalog legacy bracket code F-2S030LB Legacy chart application 2W / 2KW, 2S / 2KS and 2L / 2KL, corresponding 030 size branch New-generation chart code F-2WA030LB New chart application Corresponding 2LA / 2KLA 030 branch, as shown on the new accessory selection page Current status Listing-code match and supplied component require confirmation; no SKU has been renamed Function and Catalog Scope The LB accessory mounts the valve body using the optional bracket arrangement illustrated in the valve catalog. Bracket-related dimensions in those illustrations refer to the assembled installation and must not be relabelled as a fully dimensioned loose-part drawing. The source selection table lists brackets for the 030, 050, 150, 200 and 250 branches. The 320, 400 and 500 branches are shown without mounting accessories. Packing, Dimensions and Weight Parameter Details Packing components and quantity Not specified in the supplied bracket selection table Standalone bracket dimensions Not provided; confirm the matching bracket drawing Bracket material Not stated in the supplied selection table Bracket weight Not stated; no valve weight is substituted Electrical and fluid specifications Not applicable to this mounting component For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Reference Weight Estimated reference weight: 20 g. The mass reference is the DOLD listing for F-2S030LB, which lists an item weight of 20 g. This is a supplier listing reference, not an AirTAC catalog net-weight specification. The catalog-shared mounting-bracket family and nominal valve size identify the mass reference. The current listing code is preserved; this mass reference does not certify an unlisted accessory code or broaden catalog fitment. This is a reference estimate, not a manufacturer-published weight for this exact configuration or an individually measured or packaged shipping weight. Actual supplied mass can differ.

  • Airtac 2KL250-25: 2 Way Solenoid Valve - 2KL25025AIG

    Airtac 2KL series: two-way fluid solenoid valve - 2KL25025AIG

    Specifications: 2KL25025AIG is an AirTAC 2KL 2/2-way internally piloted, normally open solenoid valve. 250 identifies the orifice-size branch; port code 25 selects G1; voltage code A selects AC220V; electrical entry is grommet / flying lead with a 0.5 m lead. Thread suffix G selects G threads. Product Catalogs and Comparison Guide Download Airtac 2KL Product Catalog (PDF) Download Airtac 2KLA Product Catalog (PDF) Legacy coil and mounting-accessory selection: catalog page 205 (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide Ordering and Delivery Orders for 2KL25025AIG will be supplied as 2KLA25025AIG (2KLA). This is our ordering and delivery policy. It does not mean that the old and new dimensions, mounting details or electrical data are identical. The technical information below describes 2KL25025AIG in the 2KL catalog. For the supplied replacement, check the new catalog and comparison guide before installation. Operation and Construction This two-port, two-position valve is normally open in its unenergized state. The valve uses internal pilot operation and requires the stated pressure differential to operate. The catalog specifies a SUS304 stainless-steel body, a PTFE (Teflon) standard seal, Class H coil insulation and IP65 coil protection. The compact construction is intended to make installation and removal convenient. Model Code Explained Code position Meaning for this model Family 2KL — 2/2-way internally piloted, normally open Size code 250 — 25 mm orifice Port-size code 25 — G1 Voltage code A — AC220V Electrical-entry code I — grommet / flying lead, 0.5 m Thread code G — G Technical Specifications Parameter Details Actuation and normal state Internally piloted; normally open Suitable fluids Steam, high-temperature water and oil Orifice diameter 25 mm Flow coefficient Cv 12.50 Effective flow area 220 mm² Operating pressure differential 0.05–0.7 MPa differential (inlet pressure minus outlet pressure). Proof pressure 1.5 MPa Body material SUS304 stainless steel Standard seal PTFE (Teflon) Viscosity limit Under 20 cSt in the general specification; see the separate low-oil-temperature footnote below. Oil temperature −10 to 150°C; the −10°C entry carries a footnote stating 50 cSt or less. Water temperature 1 to 150°C Steam temperature Maximum 183°C; the minimum is not stated. Ambient temperature −20 to 100°C Catalog reference weight 1115 g = 1125 g terminal value − 10 g grommet reduction. Operating differential is the pressure difference across the valve, not an independent flow rating. The general viscosity limit and the oil-temperature footnote are both retained from the source; they must be checked together for the intended fluid. Catalog weight is a reference value; the actual product prevails. Electrical Specifications Parameter Details Rated voltage AC220V Electrical entry grommet / flying lead with a 0.5 m lead Coil family listed for this valve CLA116 Supply tolerance ±15% Supply frequency 50 or 60 Hz; consumption differs with frequency. Power consumption 15 VA at 50 Hz; 11 VA at 60 Hz Catalog temperature rise 50°C at 50 Hz; 40°C at 60 Hz Coil insulation Class H Coil protection IP65 External and Mounting Dimensions The following values are from the 2KL grommet / flying-lead drawing, PDF page 4 (printed page 217). Each letter refers to its own dimension line. Values are in millimetres except threads; “—” means that the source does not list a value. Drawing reference Current configuration A — drawing length A 92 mm B — drawing width B 59 mm BA — port-side span BA 40.5 mm C — drawing height C 129.5 mm D — drawing dimension D 95 mm E — drawing dimension E 6.4 mm EA — drawing dimension EA 8 mm EB — drawing dimension EB 80 mm EC — drawing dimension EC 44.5 mm F — drawing dimension F 36 mm P — fluid port thread P G1 The drawing labels the mounting bracket as optional. D, E, EA, EB, EC and F are separate installation references; do not combine dimension lines into an invented overall measurement. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Charts This configuration has a 25 mm orifice, Cv 12.50 and 220 mm² effective area. The catalog provides a chart labelled “Fluid: Vacuum” showing P2, upstream-pressure curves P1, a minimum-working-pressure boundary, subsonic/sonic regions and a critical-pressure boundary. Its Q axis is labelled L/min (ANR), with separate scales for Ø15, Ø20, Ø25, Ø35, Ø40 and Ø50 mm. The P2 chart reaches 0.7 MPa. The water chart plots Q in L/min against ΔP=P1−P2 in MPa; marked scales run from 0.02 to 0.5 MPa and 30 to 900 L/min. Its large intermediate curve is labelled Ø32, while the 320 ordering/specification table states a Ø35 mm orifice; retain this source distinction when reading the graph. Read the actual curve for the operating condition in the PDF. Axis maxima, plotted endpoints and other bore-size curves are not guaranteed flow ratings for this model; no interpolated flow claim is added here. Internal Structure Reference The catalog cross-section is labelled 2KL150 (grommet). The numbered names below identify that reference drawing; they are not a packing list, individual ordering codes, quantities or a claim that every branch has an identical construction. Drawing item Component name 1 Gasket 2 Piston 3 Body 4 Gasket 5 Screw 6 Wear ring 7 Spring 8 Cover 9 Spring 10 Screw 11 Fixed cap 12 Spring washer 13 Coil assembly 14 Positioning ring 15 E clip 16 Mandrel 17 Electromagnet 18 Spring 19 Airtight bush 20 Fixed plate 21 O-ring 22 Fixed ring 23 Airtight ring 24 Plug 25 Spring 26 O-ring 27 Spacer 28 O-ring 29 Fixed ring Mounting Accessories and Selection The catalog accessory selection identifies F-2S250LB as the optional LB mounting bracket for this size branch. The valve drawing shows an optional bracket; the catalog does not identify it as included with the valve or list its packing quantity. Order the bracket separately when required, after confirming the mounting arrangement. Match the full voltage, electrical entry, thread and normal-state configuration. A valve series update does not establish that its old coil, connector or mounting bracket fits the new generation. Follow the flow direction shown on the body and check the exact catalog drawing before installation. Series Ordering Options The following are available choices within 2KL. The current model uses only the configuration decoded above; H applies to the direct-acting 030/050 branches. Ordering position Permitted catalog choices Direct-acting branches 030: port codes 06 (1/8) or 08 (1/4); 050: 10 (3/8) or 15 (1/2). Pressure code omitted = standard; H = high pressure. Internally piloted branches 150/15 = Ø15 mm, 1/2; 200/20 = Ø20 mm, 3/4; 250/25 = Ø25 mm, 1; 320/32 = Ø35 mm, 1 1/4; 400/40 = Ø40 mm, 1 1/2; 500/50 = Ø50 mm, 2. Voltage codes A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V. Electrical-entry choices Omitted = terminal; I = grommet / flying lead, length 0.5 m. Thread choices Omitted = PT; G = G thread; T = NPT. These are alternatives, not simultaneous features.

    $171.94

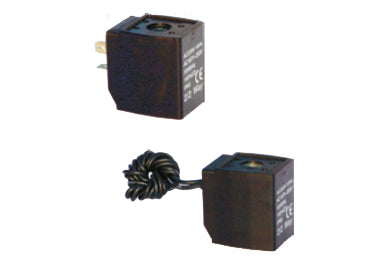

  • Airtac CDA: Solenoid Valve Coil - CDA116A
