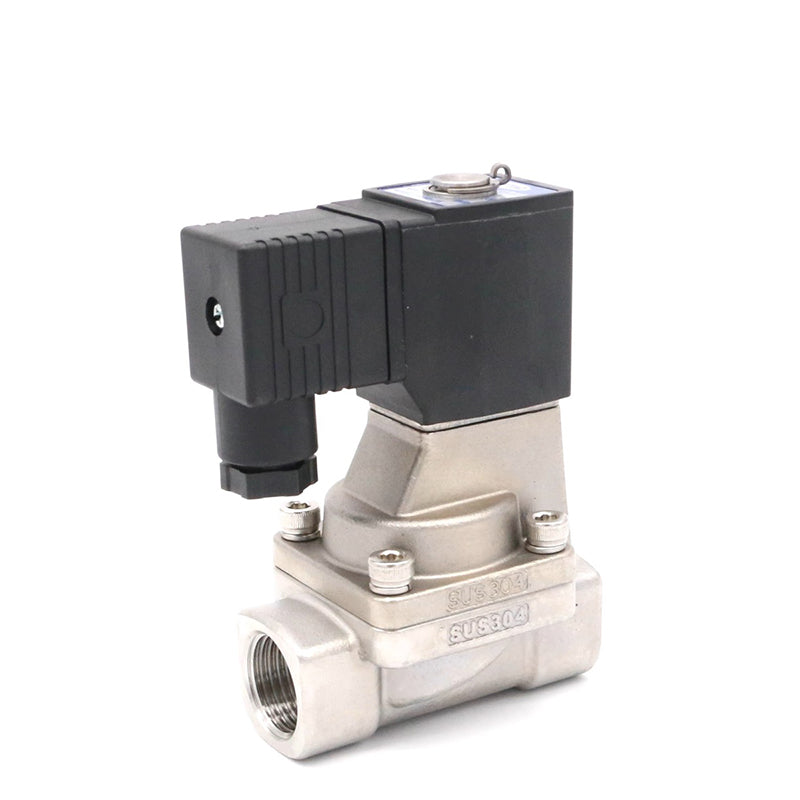

Airtac 2KL series: two-way fluid solenoid valve - 2KL25025AIG

Photos are for reference only. Not all models have pictures.

Description

Specifications: 2KL25025AIG is an AirTAC 2KL 2/2-way internally piloted, normally open solenoid valve. 250 identifies the orifice-size branch; port code 25 selects G1; voltage code A selects AC220V; electrical entry is grommet / flying lead with a 0.5 m lead. Thread suffix G selects G threads.

Product Catalogs and Comparison Guide

Download Airtac 2KL Product Catalog (PDF)

Download Airtac 2KLA Product Catalog (PDF)

Legacy coil and mounting-accessory selection: catalog page 205 (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide

Ordering and Delivery

Orders for 2KL25025AIG will be supplied as 2KLA25025AIG (2KLA). This is our ordering and delivery policy. It does not mean that the old and new dimensions, mounting details or electrical data are identical. The technical information below describes 2KL25025AIG in the 2KL catalog. For the supplied replacement, check the new catalog and comparison guide before installation.

Operation and Construction

This two-port, two-position valve is normally open in its unenergized state. The valve uses internal pilot operation and requires the stated pressure differential to operate. The catalog specifies a SUS304 stainless-steel body, a PTFE (Teflon) standard seal, Class H coil insulation and IP65 coil protection. The compact construction is intended to make installation and removal convenient.

Model Code Explained

Code position Meaning for this model
Family 2KL — 2/2-way internally piloted, normally open
Size code 250 — 25 mm orifice
Port-size code 25 — G1
Voltage code A — AC220V
Electrical-entry code I — grommet / flying lead, 0.5 m
Thread code G — G

Technical Specifications

Parameter Details
Actuation and normal state Internally piloted; normally open
Suitable fluids Steam, high-temperature water and oil
Orifice diameter 25 mm
Flow coefficient Cv 12.50
Effective flow area 220 mm²
Operating pressure differential 0.05–0.7 MPa differential (inlet pressure minus outlet pressure).
Proof pressure 1.5 MPa
Body material SUS304 stainless steel
Standard seal PTFE (Teflon)
Viscosity limit Under 20 cSt in the general specification; see the separate low-oil-temperature footnote below.
Oil temperature −10 to 150°C; the −10°C entry carries a footnote stating 50 cSt or less.
Water temperature 1 to 150°C
Steam temperature Maximum 183°C; the minimum is not stated.
Ambient temperature −20 to 100°C
Catalog reference weight 1115 g = 1125 g terminal value − 10 g grommet reduction.

Operating differential is the pressure difference across the valve, not an independent flow rating. The general viscosity limit and the oil-temperature footnote are both retained from the source; they must be checked together for the intended fluid. Catalog weight is a reference value; the actual product prevails.

Electrical Specifications

Parameter Details
Rated voltage AC220V
Electrical entry grommet / flying lead with a 0.5 m lead
Coil family listed for this valve CLA116
Supply tolerance ±15%
Supply frequency 50 or 60 Hz; consumption differs with frequency.
Power consumption 15 VA at 50 Hz; 11 VA at 60 Hz
Catalog temperature rise 50°C at 50 Hz; 40°C at 60 Hz
Coil insulation Class H
Coil protection IP65

External and Mounting Dimensions

The following values are from the 2KL grommet / flying-lead drawing, PDF page 4 (printed page 217). Each letter refers to its own dimension line. Values are in millimetres except threads; “—” means that the source does not list a value.

Drawing reference Current configuration
A — drawing length A 92 mm
B — drawing width B 59 mm
BA — port-side span BA 40.5 mm
C — drawing height C 129.5 mm
D — drawing dimension D 95 mm
E — drawing dimension E 6.4 mm
EA — drawing dimension EA 8 mm
EB — drawing dimension EB 80 mm
EC — drawing dimension EC 44.5 mm
F — drawing dimension F 36 mm
P — fluid port thread P G1

The drawing labels the mounting bracket as optional. D, E, EA, EB, EC and F are separate installation references; do not combine dimension lines into an invented overall measurement.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Flow and Performance Charts

This configuration has a 25 mm orifice, Cv 12.50 and 220 mm² effective area.

The catalog provides a chart labelled “Fluid: Vacuum” showing P2, upstream-pressure curves P1, a minimum-working-pressure boundary, subsonic/sonic regions and a critical-pressure boundary. Its Q axis is labelled L/min (ANR), with separate scales for Ø15, Ø20, Ø25, Ø35, Ø40 and Ø50 mm. The P2 chart reaches 0.7 MPa. The water chart plots Q in L/min against ΔP=P1−P2 in MPa; marked scales run from 0.02 to 0.5 MPa and 30 to 900 L/min. Its large intermediate curve is labelled Ø32, while the 320 ordering/specification table states a Ø35 mm orifice; retain this source distinction when reading the graph.

Read the actual curve for the operating condition in the PDF. Axis maxima, plotted endpoints and other bore-size curves are not guaranteed flow ratings for this model; no interpolated flow claim is added here.

Internal Structure Reference

The catalog cross-section is labelled 2KL150 (grommet). The numbered names below identify that reference drawing; they are not a packing list, individual ordering codes, quantities or a claim that every branch has an identical construction.

Drawing item Component name
1 Gasket
2 Piston
3 Body
4 Gasket
5 Screw
6 Wear ring
7 Spring
8 Cover
9 Spring
10 Screw
11 Fixed cap
12 Spring washer
13 Coil assembly
14 Positioning ring
15 E clip
16 Mandrel
17 Electromagnet
18 Spring
19 Airtight bush
20 Fixed plate
21 O-ring
22 Fixed ring
23 Airtight ring
24 Plug
25 Spring
26 O-ring
27 Spacer
28 O-ring
29 Fixed ring

Mounting Accessories and Selection

The catalog accessory selection identifies F-2S250LB as the optional LB mounting bracket for this size branch. The valve drawing shows an optional bracket; the catalog does not identify it as included with the valve or list its packing quantity. Order the bracket separately when required, after confirming the mounting arrangement.

Match the full voltage, electrical entry, thread and normal-state configuration. A valve series update does not establish that its old coil, connector or mounting bracket fits the new generation. Follow the flow direction shown on the body and check the exact catalog drawing before installation.

Series Ordering Options

The following are available choices within 2KL. The current model uses only the configuration decoded above; H applies to the direct-acting 030/050 branches.

Ordering position Permitted catalog choices
Direct-acting branches 030: port codes 06 (1/8) or 08 (1/4); 050: 10 (3/8) or 15 (1/2). Pressure code omitted = standard; H = high pressure.
Internally piloted branches 150/15 = Ø15 mm, 1/2; 200/20 = Ø20 mm, 3/4; 250/25 = Ø25 mm, 1; 320/32 = Ø35 mm, 1 1/4; 400/40 = Ø40 mm, 1 1/2; 500/50 = Ø50 mm, 2.
Voltage codes A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V.
Electrical-entry choices Omitted = terminal; I = grommet / flying lead, length 0.5 m.
Thread choices Omitted = PT; G = G thread; T = NPT. These are alternatives, not simultaneous features.
Product form

Specifications: 2KL25025AIG is an AirTAC 2KL 2/2-way internally piloted, normally open solenoid valve. 250 identifies the orifice-size branch; port code... Read more

SKU: 2KL25025AIG

$171.94 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 2KL25025AIG is an AirTAC 2KL 2/2-way internally piloted, normally open solenoid valve. 250 identifies the orifice-size branch; port code 25 selects G1; voltage code A selects AC220V; electrical entry is grommet / flying lead with a 0.5 m lead. Thread suffix G selects G threads.

    Product Catalogs and Comparison Guide

    Download Airtac 2KL Product Catalog (PDF)

    Download Airtac 2KLA Product Catalog (PDF)

    Legacy coil and mounting-accessory selection: catalog page 205 (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    AirTAC 2KL vs 2KLA: Dimensions and Replacement Guide

    Ordering and Delivery

    Orders for 2KL25025AIG will be supplied as 2KLA25025AIG (2KLA). This is our ordering and delivery policy. It does not mean that the old and new dimensions, mounting details or electrical data are identical. The technical information below describes 2KL25025AIG in the 2KL catalog. For the supplied replacement, check the new catalog and comparison guide before installation.

    Operation and Construction

    This two-port, two-position valve is normally open in its unenergized state. The valve uses internal pilot operation and requires the stated pressure differential to operate. The catalog specifies a SUS304 stainless-steel body, a PTFE (Teflon) standard seal, Class H coil insulation and IP65 coil protection. The compact construction is intended to make installation and removal convenient.

    Model Code Explained

    Code position Meaning for this model
    Family 2KL — 2/2-way internally piloted, normally open
    Size code 250 — 25 mm orifice
    Port-size code 25 — G1
    Voltage code A — AC220V
    Electrical-entry code I — grommet / flying lead, 0.5 m
    Thread code G — G

    Technical Specifications

    Parameter Details
    Actuation and normal state Internally piloted; normally open
    Suitable fluids Steam, high-temperature water and oil
    Orifice diameter 25 mm
    Flow coefficient Cv 12.50
    Effective flow area 220 mm²
    Operating pressure differential 0.05–0.7 MPa differential (inlet pressure minus outlet pressure).
    Proof pressure 1.5 MPa
    Body material SUS304 stainless steel
    Standard seal PTFE (Teflon)
    Viscosity limit Under 20 cSt in the general specification; see the separate low-oil-temperature footnote below.
    Oil temperature −10 to 150°C; the −10°C entry carries a footnote stating 50 cSt or less.
    Water temperature 1 to 150°C
    Steam temperature Maximum 183°C; the minimum is not stated.
    Ambient temperature −20 to 100°C
    Catalog reference weight 1115 g = 1125 g terminal value − 10 g grommet reduction.

    Operating differential is the pressure difference across the valve, not an independent flow rating. The general viscosity limit and the oil-temperature footnote are both retained from the source; they must be checked together for the intended fluid. Catalog weight is a reference value; the actual product prevails.

    Electrical Specifications

    Parameter Details
    Rated voltage AC220V
    Electrical entry grommet / flying lead with a 0.5 m lead
    Coil family listed for this valve CLA116
    Supply tolerance ±15%
    Supply frequency 50 or 60 Hz; consumption differs with frequency.
    Power consumption 15 VA at 50 Hz; 11 VA at 60 Hz
    Catalog temperature rise 50°C at 50 Hz; 40°C at 60 Hz
    Coil insulation Class H
    Coil protection IP65

    External and Mounting Dimensions

    The following values are from the 2KL grommet / flying-lead drawing, PDF page 4 (printed page 217). Each letter refers to its own dimension line. Values are in millimetres except threads; “—” means that the source does not list a value.

    Drawing reference Current configuration
    A — drawing length A 92 mm
    B — drawing width B 59 mm
    BA — port-side span BA 40.5 mm
    C — drawing height C 129.5 mm
    D — drawing dimension D 95 mm
    E — drawing dimension E 6.4 mm
    EA — drawing dimension EA 8 mm
    EB — drawing dimension EB 80 mm
    EC — drawing dimension EC 44.5 mm
    F — drawing dimension F 36 mm
    P — fluid port thread P G1

    The drawing labels the mounting bracket as optional. D, E, EA, EB, EC and F are separate installation references; do not combine dimension lines into an invented overall measurement.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Flow and Performance Charts

    This configuration has a 25 mm orifice, Cv 12.50 and 220 mm² effective area.

    The catalog provides a chart labelled “Fluid: Vacuum” showing P2, upstream-pressure curves P1, a minimum-working-pressure boundary, subsonic/sonic regions and a critical-pressure boundary. Its Q axis is labelled L/min (ANR), with separate scales for Ø15, Ø20, Ø25, Ø35, Ø40 and Ø50 mm. The P2 chart reaches 0.7 MPa. The water chart plots Q in L/min against ΔP=P1−P2 in MPa; marked scales run from 0.02 to 0.5 MPa and 30 to 900 L/min. Its large intermediate curve is labelled Ø32, while the 320 ordering/specification table states a Ø35 mm orifice; retain this source distinction when reading the graph.

    Read the actual curve for the operating condition in the PDF. Axis maxima, plotted endpoints and other bore-size curves are not guaranteed flow ratings for this model; no interpolated flow claim is added here.

    Internal Structure Reference

    The catalog cross-section is labelled 2KL150 (grommet). The numbered names below identify that reference drawing; they are not a packing list, individual ordering codes, quantities or a claim that every branch has an identical construction.

    Drawing item Component name
    1 Gasket
    2 Piston
    3 Body
    4 Gasket
    5 Screw
    6 Wear ring
    7 Spring
    8 Cover
    9 Spring
    10 Screw
    11 Fixed cap
    12 Spring washer
    13 Coil assembly
    14 Positioning ring
    15 E clip
    16 Mandrel
    17 Electromagnet
    18 Spring
    19 Airtight bush
    20 Fixed plate
    21 O-ring
    22 Fixed ring
    23 Airtight ring
    24 Plug
    25 Spring
    26 O-ring
    27 Spacer
    28 O-ring
    29 Fixed ring

    Mounting Accessories and Selection

    The catalog accessory selection identifies F-2S250LB as the optional LB mounting bracket for this size branch. The valve drawing shows an optional bracket; the catalog does not identify it as included with the valve or list its packing quantity. Order the bracket separately when required, after confirming the mounting arrangement.

    Match the full voltage, electrical entry, thread and normal-state configuration. A valve series update does not establish that its old coil, connector or mounting bracket fits the new generation. Follow the flow direction shown on the body and check the exact catalog drawing before installation.

    Series Ordering Options

    The following are available choices within 2KL. The current model uses only the configuration decoded above; H applies to the direct-acting 030/050 branches.

    Ordering position Permitted catalog choices
    Direct-acting branches 030: port codes 06 (1/8) or 08 (1/4); 050: 10 (3/8) or 15 (1/2). Pressure code omitted = standard; H = high pressure.
    Internally piloted branches 150/15 = Ø15 mm, 1/2; 200/20 = Ø20 mm, 3/4; 250/25 = Ø25 mm, 1; 320/32 = Ø35 mm, 1 1/4; 400/40 = Ø40 mm, 1 1/2; 500/50 = Ø50 mm, 2.
    Voltage codes A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V.
    Electrical-entry choices Omitted = terminal; I = grommet / flying lead, length 0.5 m.
    Thread choices Omitted = PT; G = G thread; T = NPT. These are alternatives, not simultaneous features.
