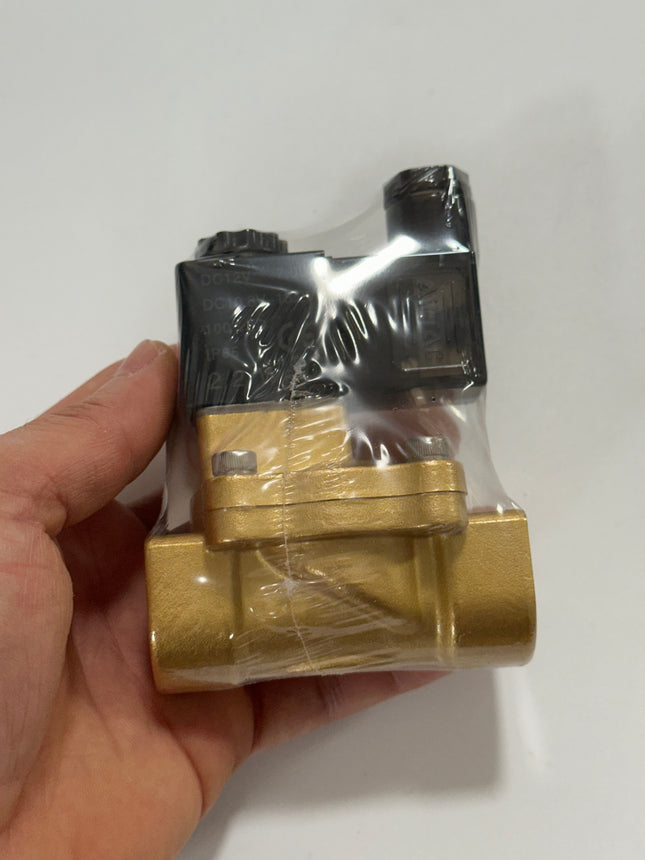

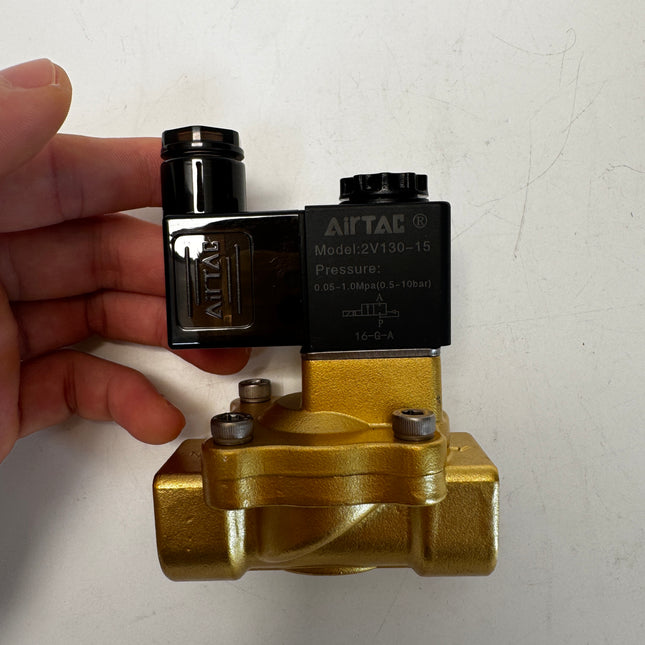

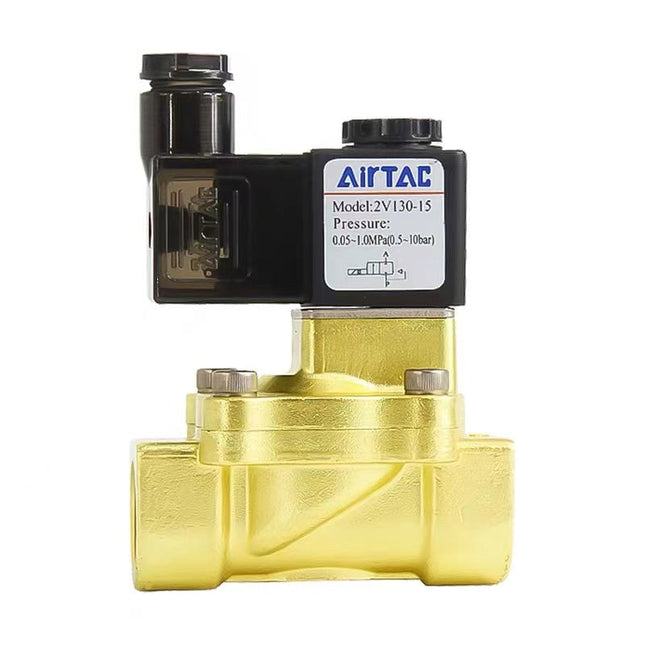

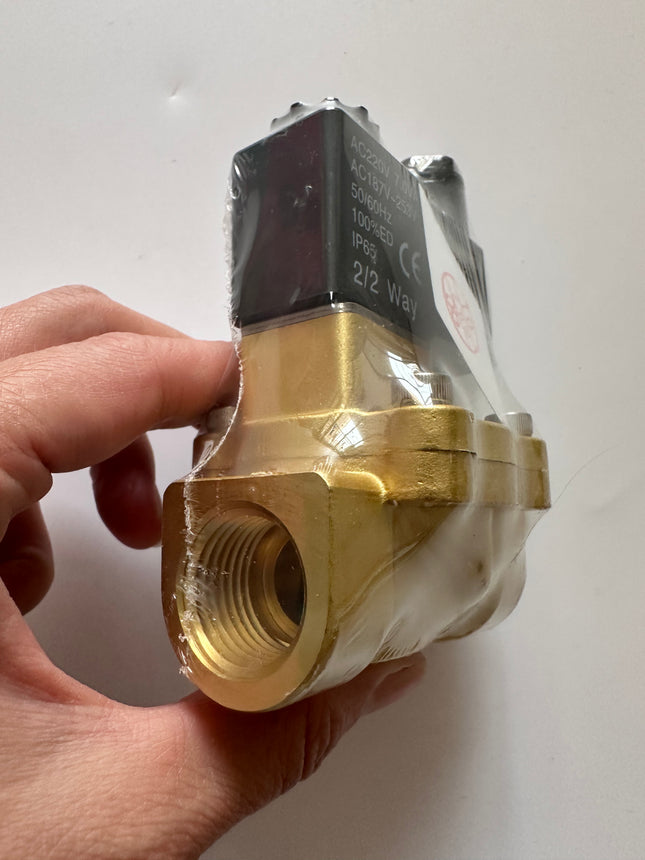

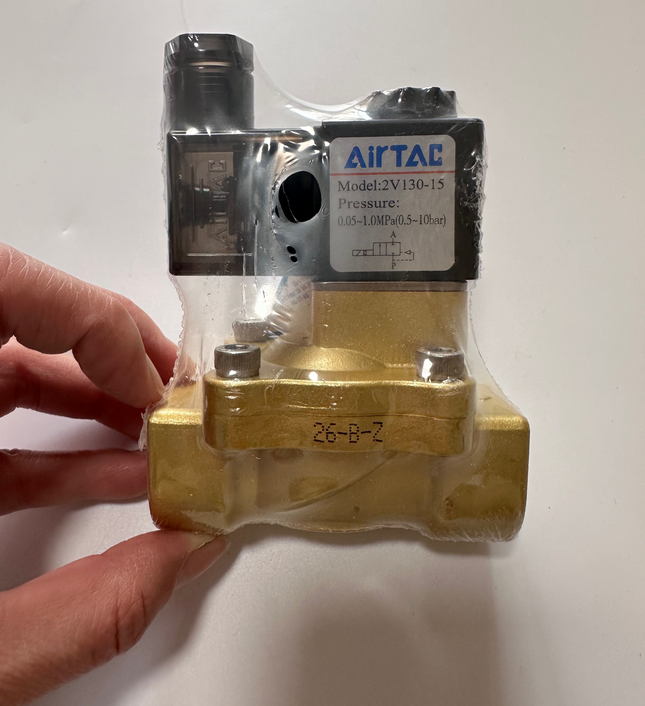

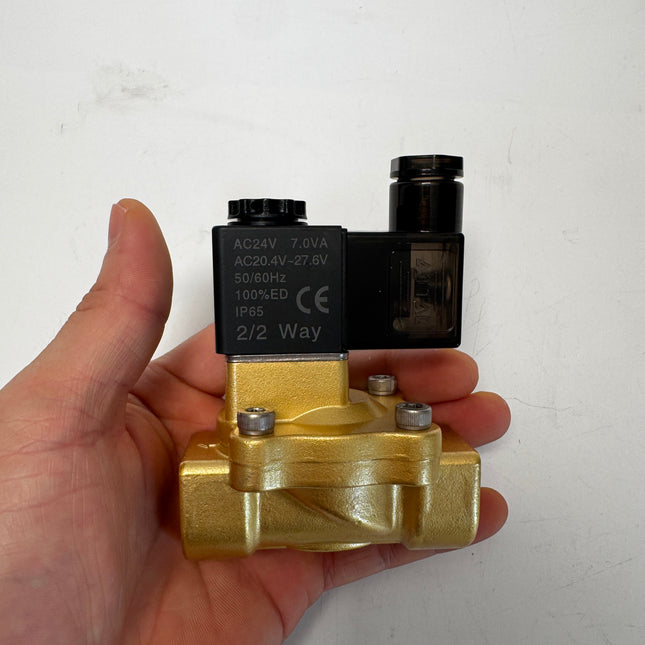

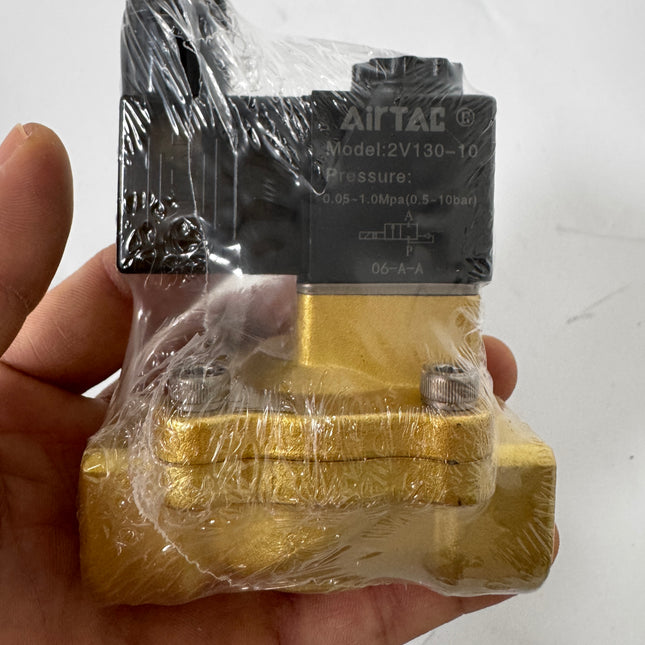

Specifications: 2V13015F is an AirTAC 2V130 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 13 mm orifice, PT 1/2 in ports, a DC 12 V coil and DIN connector / terminal entry. The valve is internally piloted, diaphragm type, with a brass body and NBR seals.
Product Catalog
Download Airtac Product Catalog (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Original Product Statement
Airtac 2V series valves are functional alternatives to SMC VXP series valves.
Model Code Explained
Code
Meaning for this model
2V
2-port, 2-position fluid-control solenoid valve
130
13 mm orifice
15
1/2 in
F
DC 12 V
(blank electrical-entry code)
DIN connector / terminal entry
(blank thread code)
PT thread
Technical Specifications
Parameter
Details
Working medium
Air, water and oil; check seal compatibility for the actual medium
Actuation
internally piloted, diaphragm type
Normal state
Normally closed
Orifice diameter
13 mm
Cv
6.2
Port size
PT 1/2 in
Fluid viscosity
Below 20 cSt
Operating pressure
0.05–1.0 MPa (catalog: 7–145 psi)
Proof pressure
1.5 MPa (catalog: 215 psi)
Body material
Brass
Seal material
NBR
Activating time
0.05 s or less
Catalog reference weight
618 g
Weight reference: 2022 catalog, printed page 300, 2V130. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2V pages do not specify an operating-temperature range.
Electrical Specifications
Parameter
Details
Selected coil voltage
DC 12 V
Supply type
DC
Supply frequency
Not applicable to DC
Permitted voltage variation
±10%
Power consumption
7.0 W
Insulation class
Class B
Catalog coil temperature rise
45 °C
Electrical entry
DIN connector / terminal entry
The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit.
Features and Operation
This is a normally closed diaphragm valve with internal pilot operation.
The catalog describes low power consumption and large flow capacity. A minimum operating differential pressure of 0.05 MPa is required.
The body is brass, the coil has Class B insulation and the seals are NBR. These larger 2V models do not use the direct-acting construction or VITON specification of 2V025.

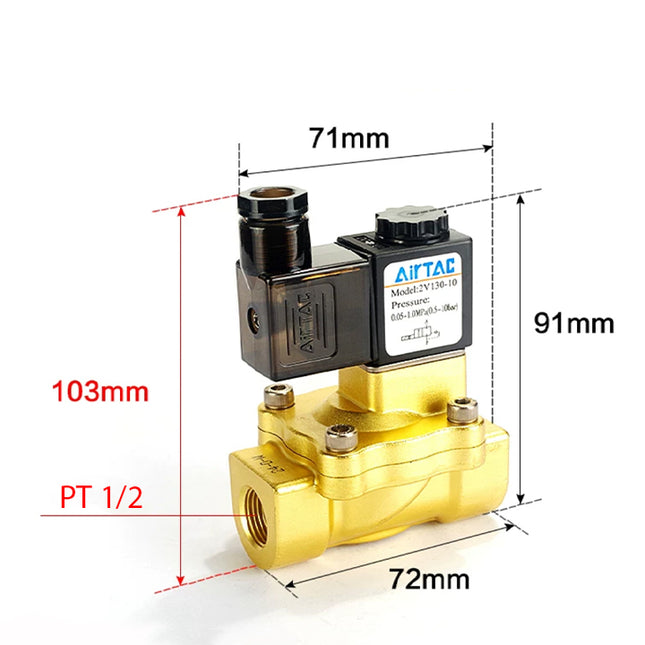

External and Mounting Dimensions
The following values follow the applicable DIN connector / terminal entry drawing in 2022 printed page 189; linked PDF page 2. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model.
Parameter
Details
A
72 mm
AB
18.5 mm
AC
71 mm
B
49 mm
C
91 mm
CA
103 mm
D
32 mm
PA
15 mm
P (process port)
PT 1/2 in
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Flow Characteristics
Separate air and water plots cover 2V130-10 / -15 and 2V250-20 / -25. The air chart plots operating pressure in MPa against flow in L/min, with a labeled pressure scale of 0.2–1.0 MPa. The 13 mm-orifice flow scale is labeled from 2,000 to 10,000 L/min, and the 25 mm-orifice scale from 5,500 to 27,000 L/min. The water chart plots pressure difference from 0.03 to 1.0 MPa against flow, with labeled ticks at 200, 500, 1,000 and 2,000 L/min. These chart labels are reference axes, not constant or rated flow claims. Use the exact orifice curve for circuit selection.
NBR Fluid Compatibility Reference
Fluid
Catalog rating
Water
Good
Dry air
Excellent
Acetone*
Not usable
ISO VG32 turbine oil
Excellent
Ethylene glycol*
Good
Nitrogen
Excellent
Heavy oil
Good
JIS No. 1 oil
Excellent
JIS No. 3 oil
Good
Vegetable oil
Excellent
Inorganic oil
Excellent
Diester lubricant
Good
Silicone oil
Excellent
Carbon dioxide
Excellent
Argon
Excellent
Excellent means little or no effect; Good means some effect may occur but use is possible under suitable conditions; Not usable means a major effect. The catalog marks acetone and ethylene glycol with an asterisk and requires a suitably rated explosion-proof coil for the marked hazardous fluids. A standard coil is not thereby certified for those applications. Consult the manufacturer for unlisted media. This NBR table belongs to 2V130 / 2V250 and is not a VITON compatibility table.
Internal Components
The catalog section view is the 2V250 DIN-connector illustration. It provides the internal-structure reference; connector callouts 1 and 2 belong to the DIN version and do not describe supplied connectors on an I flying-lead model. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities.
Drawing callout
Component
1
Connector
2
Connector gasket
3
Coil nut
4
Coil
5
Armature assembly
6
Body cover
7
Diaphragm assembly
8
Body
Accessory and Service-Part Identification
This listing is a complete 2V130 valve. The reviewed pages identify the diaphragm construction used by 2V130 but do not provide a separately orderable service-kit code, kit contents or cross-series interchangeability. A component name in a cutaway is not a complete spare-part ordering code.
Series Ordering Options
The 2V series offers 025 = 2.5 mm with 06 / 08 ports, 130 = 13 mm with 10 / 15 ports, and 250 = 25 mm with 20 / 25 ports. Blank electrical-entry code means DIN connector; I means flying leads of 0.5 m. Thread choices are blank = PT, G = G and T = NPT. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.
