Airtac 2V series: two-way fluid solenoid valve - 2V13015B

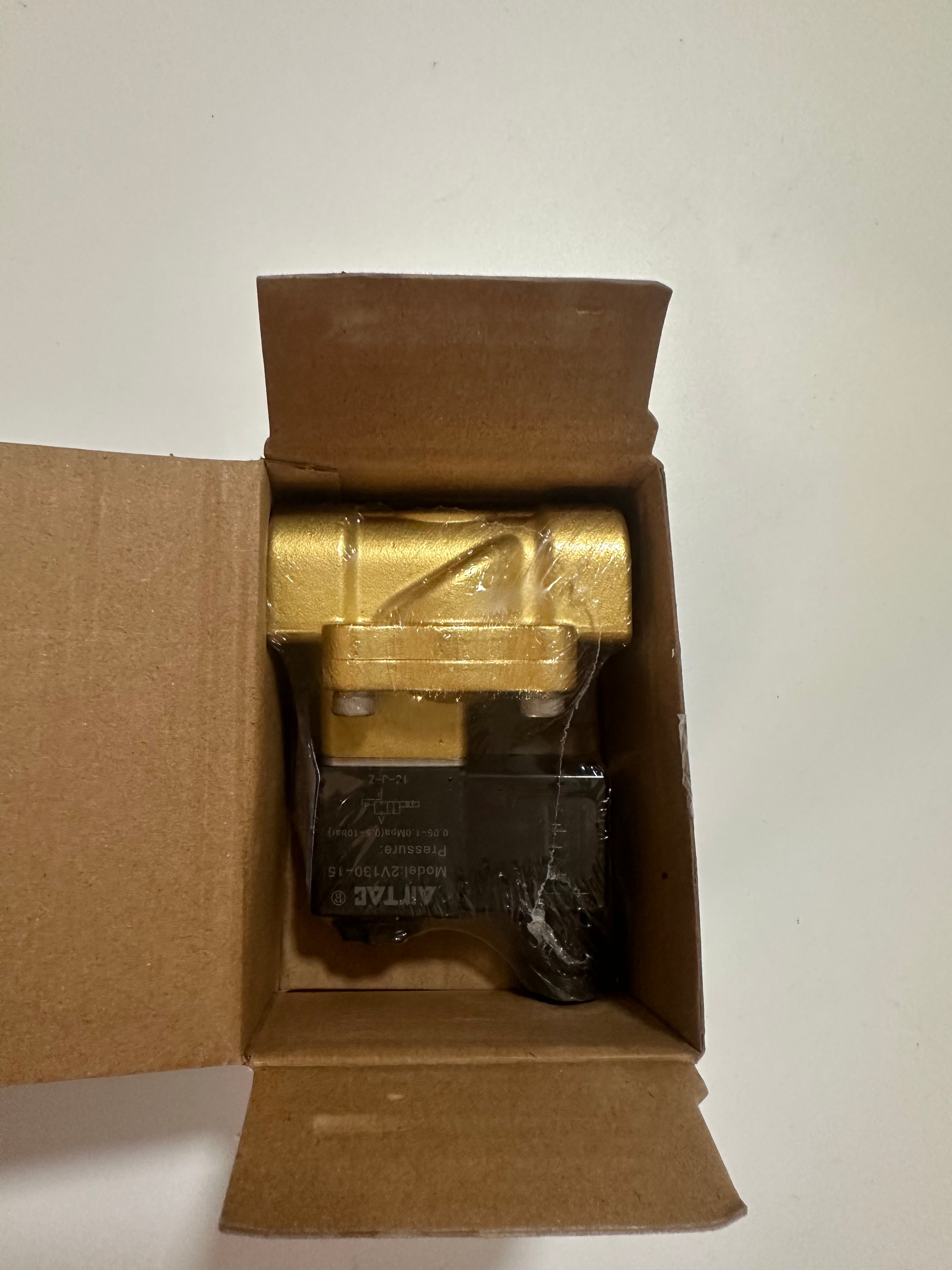

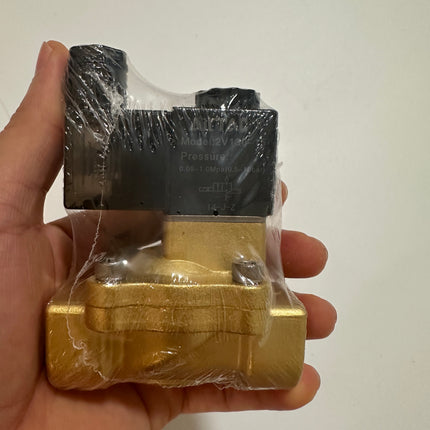

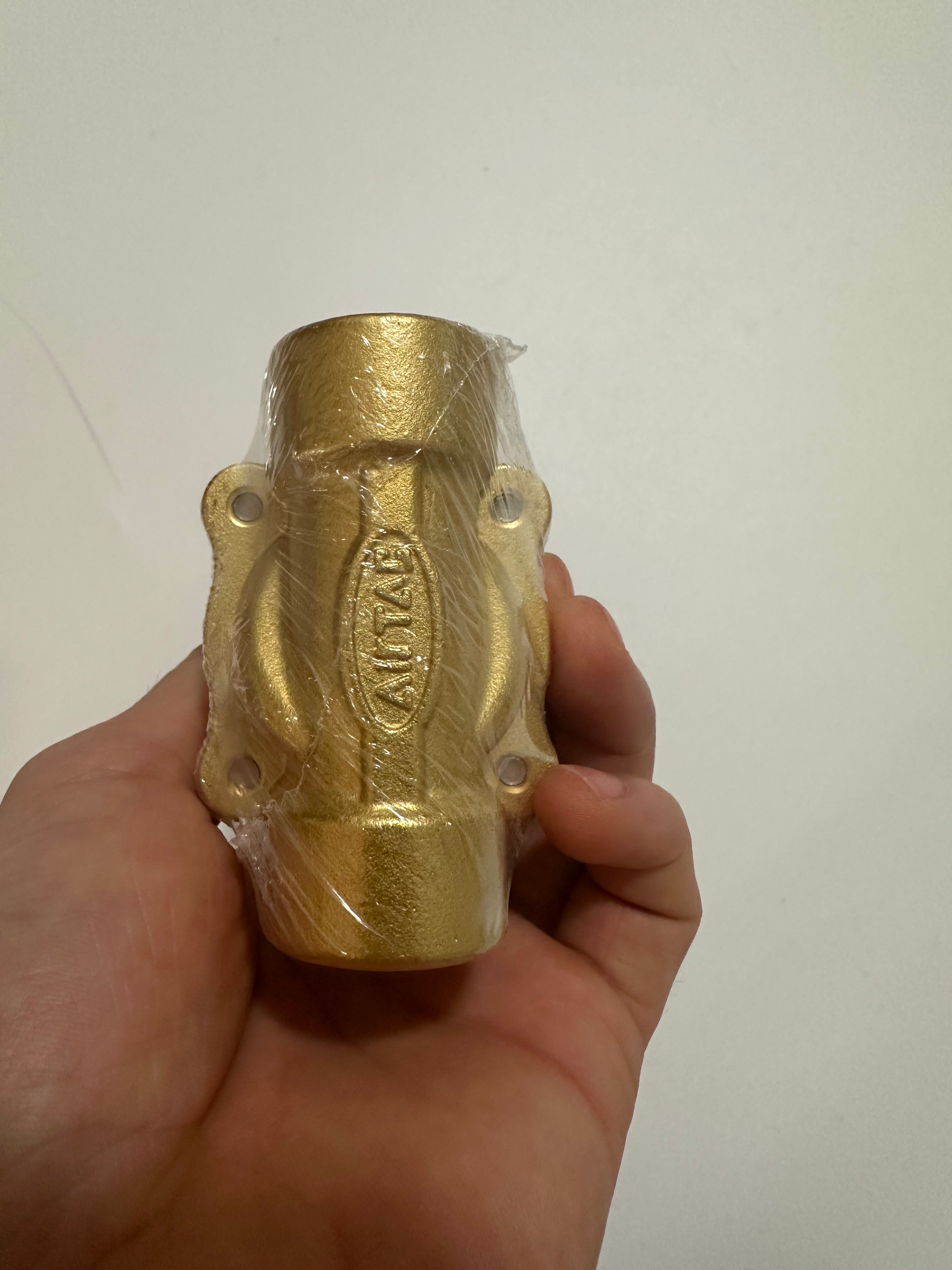

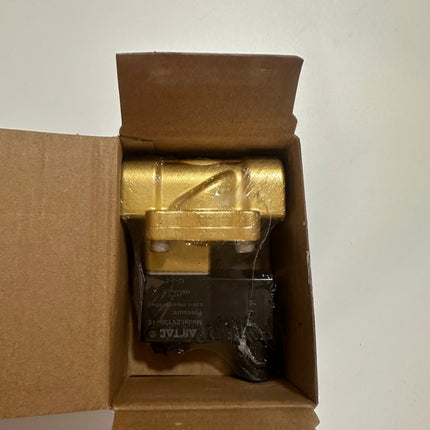

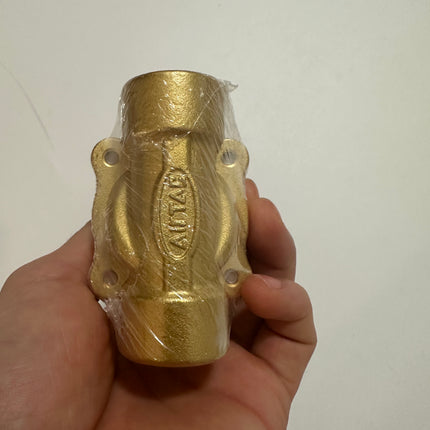

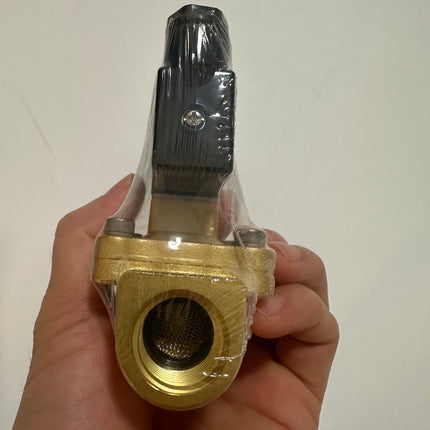

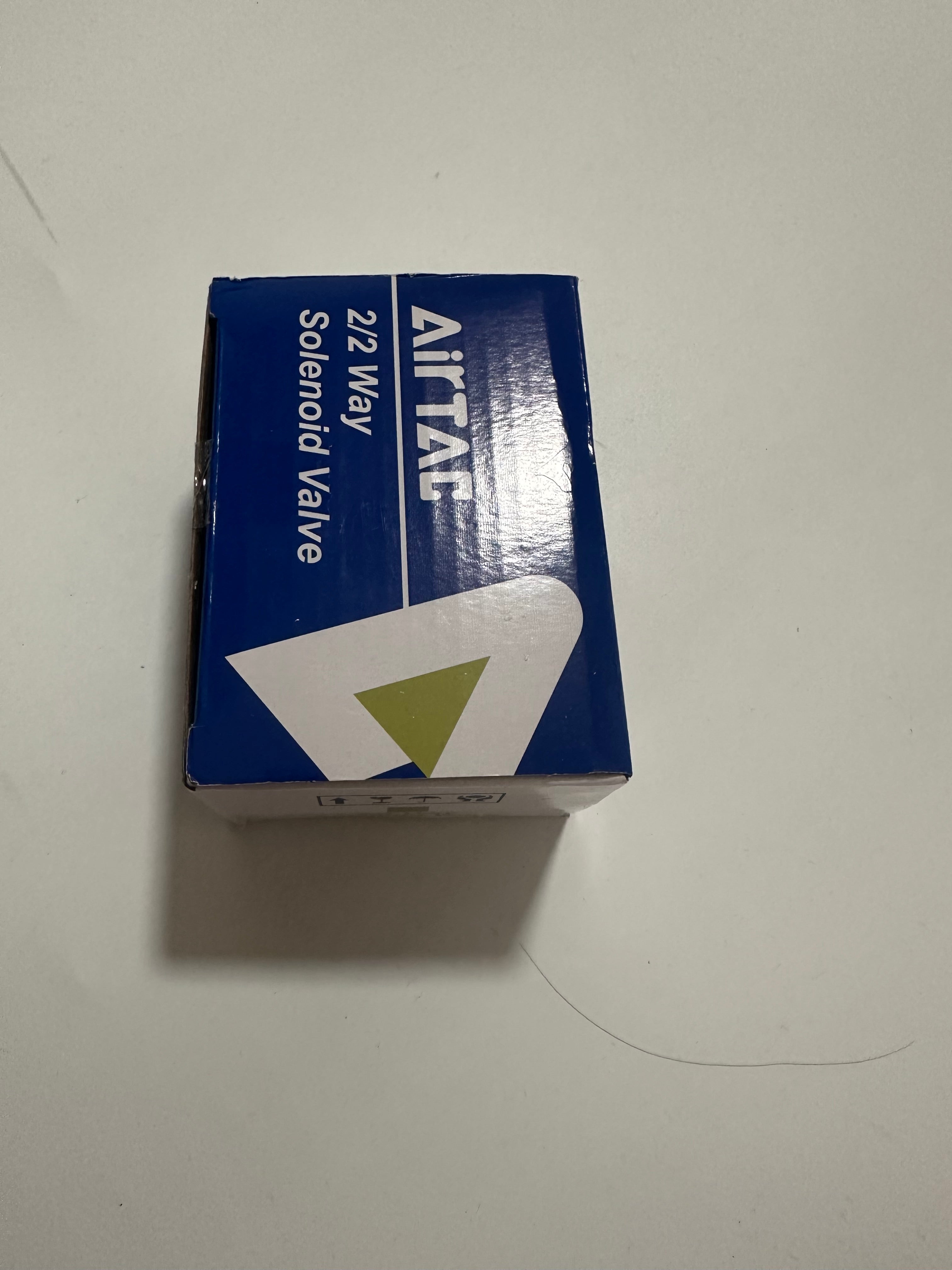

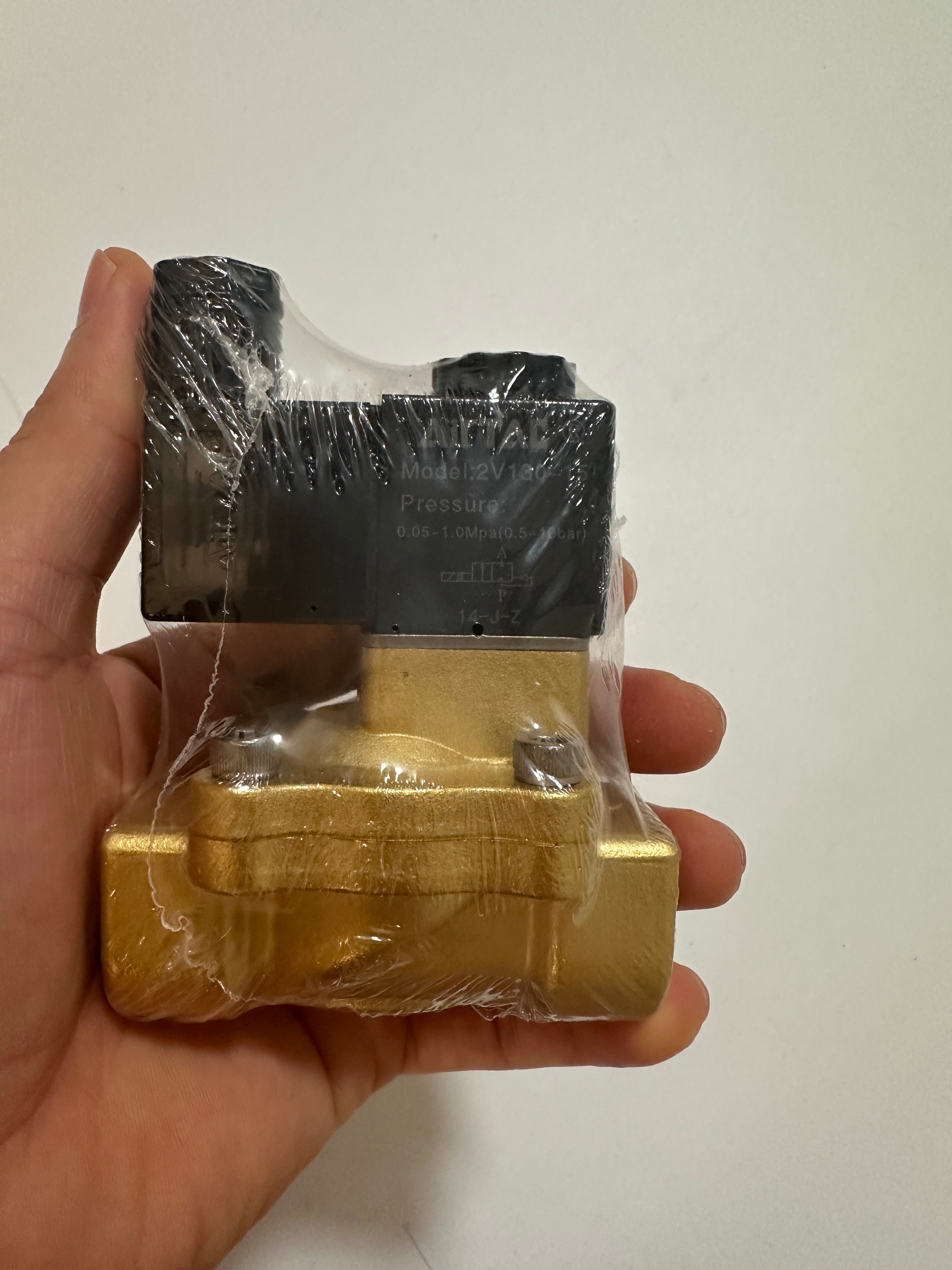

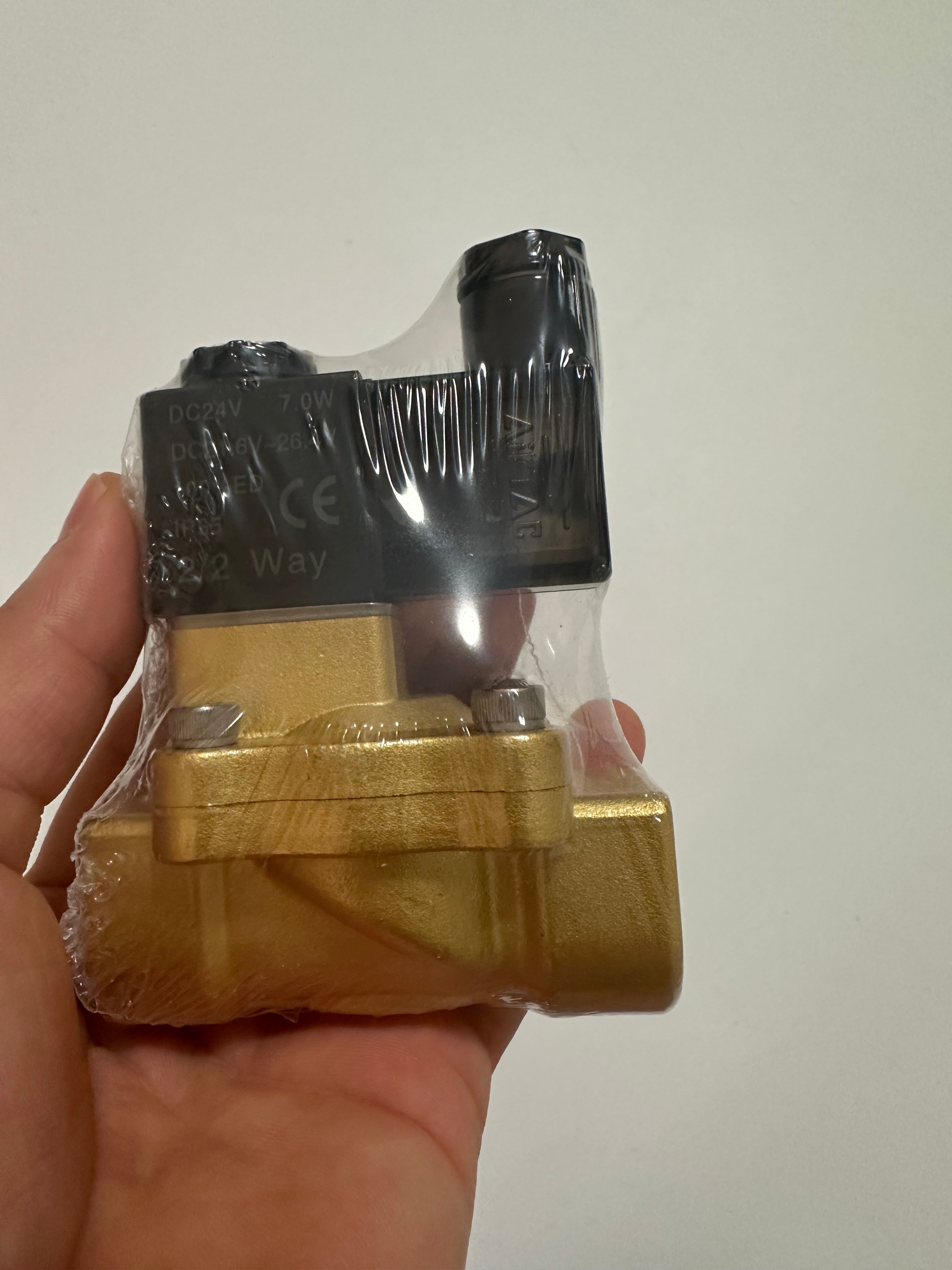

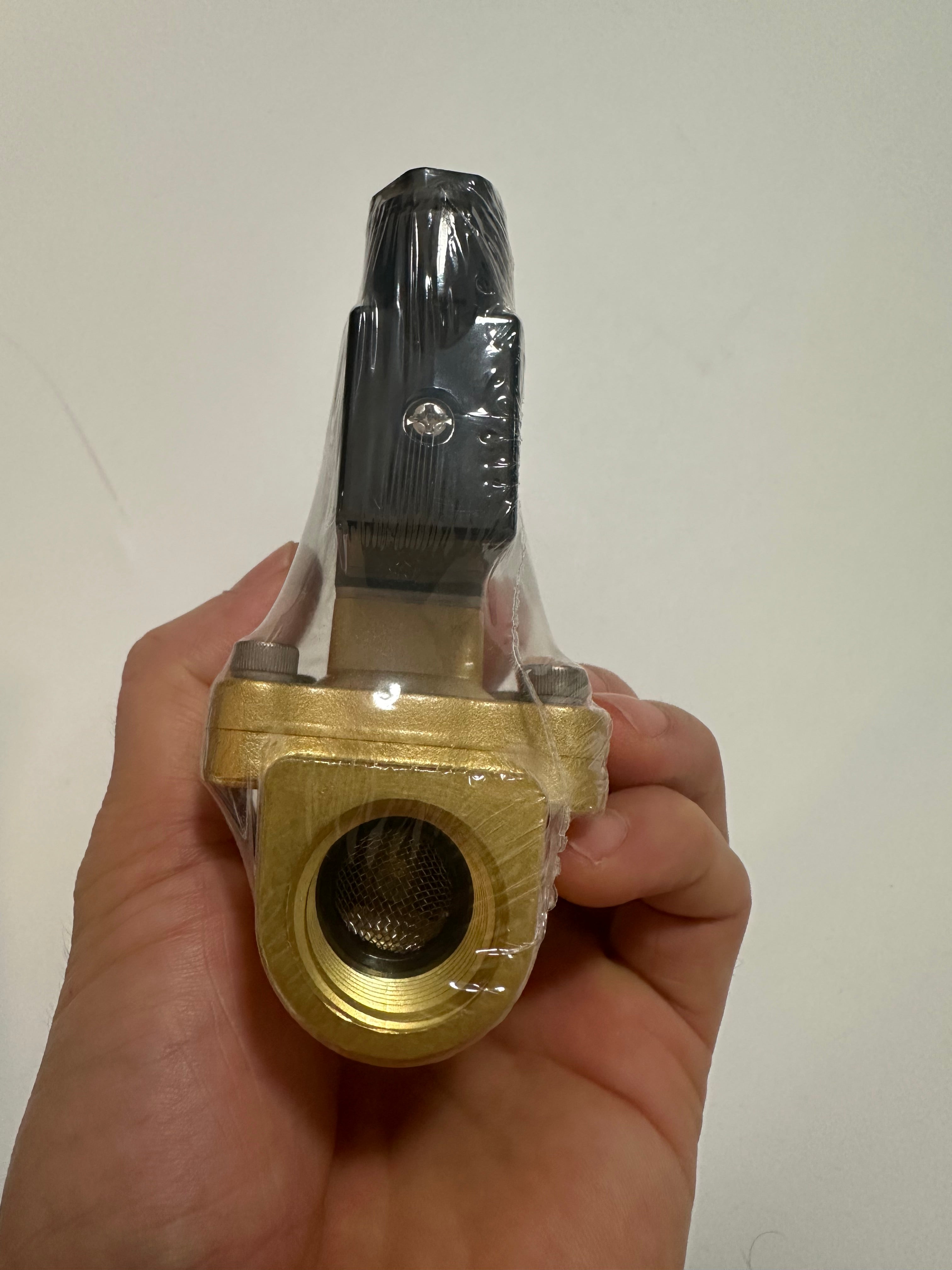

Photos are for reference only. Not all models have pictures.

Description

Specifications: 2V13015B is an AirTAC 2V130 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 13 mm orifice, PT 1/2 in ports, a DC 24 V coil and DIN connector / terminal entry. The valve is internally piloted, diaphragm type, with a brass body and NBR seals.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Original Product Statement

Airtac 2V series valves are functional alternatives to SMC VXP series valves.

Model Code Explained

Code Meaning for this model
2V 2-port, 2-position fluid-control solenoid valve
130 13 mm orifice
15 1/2 in
B DC 24 V
(blank electrical-entry code) DIN connector / terminal entry
(blank thread code) PT thread

Technical Specifications

Parameter Details
Working medium Air, water and oil; check seal compatibility for the actual medium
Actuation internally piloted, diaphragm type
Normal state Normally closed
Orifice diameter 13 mm
Cv 6.2
Port size PT 1/2 in
Fluid viscosity Below 20 cSt
Operating pressure 0.05–1.0 MPa (catalog: 7–145 psi)
Proof pressure 1.5 MPa (catalog: 215 psi)
Body material Brass
Seal material NBR
Activating time 0.05 s or less
Catalog reference weight 618 g

Weight reference: 2022 catalog, printed page 300, 2V130. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2V pages do not specify an operating-temperature range.

Electrical Specifications

Parameter Details
Selected coil voltage DC 24 V
Supply type DC
Supply frequency Not applicable to DC
Permitted voltage variation ±10%
Power consumption 7.0 W
Insulation class Class B
Catalog coil temperature rise 45 °C
Electrical entry DIN connector / terminal entry

The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit.

Features and Operation

  • This is a normally closed diaphragm valve with internal pilot operation.
  • The catalog describes low power consumption and large flow capacity. A minimum operating differential pressure of 0.05 MPa is required.
  • The body is brass, the coil has Class B insulation and the seals are NBR. These larger 2V models do not use the direct-acting construction or VITON specification of 2V025.

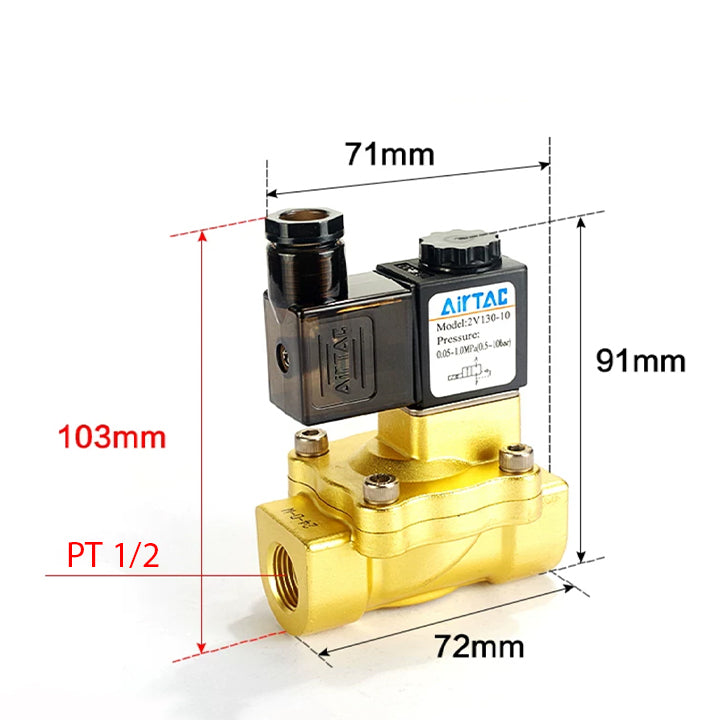

External and Mounting Dimensions

The following values follow the applicable DIN connector / terminal entry drawing in 2022 printed page 189; linked PDF page 2. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model.

Parameter Details
A 72 mm
AB 18.5 mm
AC 71 mm
B 49 mm
C 91 mm
CA 103 mm
D 32 mm
PA 15 mm
P (process port) PT 1/2 in

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Flow Characteristics

Separate air and water plots cover 2V130-10 / -15 and 2V250-20 / -25. The air chart plots operating pressure in MPa against flow in L/min, with a labeled pressure scale of 0.2–1.0 MPa. The 13 mm-orifice flow scale is labeled from 2,000 to 10,000 L/min, and the 25 mm-orifice scale from 5,500 to 27,000 L/min. The water chart plots pressure difference from 0.03 to 1.0 MPa against flow, with labeled ticks at 200, 500, 1,000 and 2,000 L/min. These chart labels are reference axes, not constant or rated flow claims. Use the exact orifice curve for circuit selection.

NBR Fluid Compatibility Reference

Fluid Catalog rating
Water Good
Dry air Excellent
Acetone* Not usable
ISO VG32 turbine oil Excellent
Ethylene glycol* Good
Nitrogen Excellent
Heavy oil Good
JIS No. 1 oil Excellent
JIS No. 3 oil Good
Vegetable oil Excellent
Inorganic oil Excellent
Diester lubricant Good
Silicone oil Excellent
Carbon dioxide Excellent
Argon Excellent

Excellent means little or no effect; Good means some effect may occur but use is possible under suitable conditions; Not usable means a major effect. The catalog marks acetone and ethylene glycol with an asterisk and requires a suitably rated explosion-proof coil for the marked hazardous fluids. A standard coil is not thereby certified for those applications. Consult the manufacturer for unlisted media. This NBR table belongs to 2V130 / 2V250 and is not a VITON compatibility table.

Internal Components

The catalog section view is the 2V250 DIN-connector illustration. It provides the internal-structure reference; connector callouts 1 and 2 belong to the DIN version and do not describe supplied connectors on an I flying-lead model. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities.

Drawing callout Component
1 Connector
2 Connector gasket
3 Coil nut
4 Coil
5 Armature assembly
6 Body cover
7 Diaphragm assembly
8 Body

Accessory and Service-Part Identification

This listing is a complete 2V130 valve. The reviewed pages identify the diaphragm construction used by 2V130 but do not provide a separately orderable service-kit code, kit contents or cross-series interchangeability. A component name in a cutaway is not a complete spare-part ordering code.

Series Ordering Options

The 2V series offers 025 = 2.5 mm with 06 / 08 ports, 130 = 13 mm with 10 / 15 ports, and 250 = 25 mm with 20 / 25 ports. Blank electrical-entry code means DIN connector; I means flying leads of 0.5 m. Thread choices are blank = PT, G = G and T = NPT. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Product form

Specifications: 2V13015B is an AirTAC 2V130 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 13 mm orifice,... Read more

SKU: 2V13015B

$79.19 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 2V13015B is an AirTAC 2V130 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 13 mm orifice, PT 1/2 in ports, a DC 24 V coil and DIN connector / terminal entry. The valve is internally piloted, diaphragm type, with a brass body and NBR seals.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Original Product Statement

    Airtac 2V series valves are functional alternatives to SMC VXP series valves.

    Model Code Explained

    Code Meaning for this model
    2V 2-port, 2-position fluid-control solenoid valve
    130 13 mm orifice
    15 1/2 in
    B DC 24 V
    (blank electrical-entry code) DIN connector / terminal entry
    (blank thread code) PT thread

    Technical Specifications

    Parameter Details
    Working medium Air, water and oil; check seal compatibility for the actual medium
    Actuation internally piloted, diaphragm type
    Normal state Normally closed
    Orifice diameter 13 mm
    Cv 6.2
    Port size PT 1/2 in
    Fluid viscosity Below 20 cSt
    Operating pressure 0.05–1.0 MPa (catalog: 7–145 psi)
    Proof pressure 1.5 MPa (catalog: 215 psi)
    Body material Brass
    Seal material NBR
    Activating time 0.05 s or less
    Catalog reference weight 618 g

    Weight reference: 2022 catalog, printed page 300, 2V130. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2V pages do not specify an operating-temperature range.

    Electrical Specifications

    Parameter Details
    Selected coil voltage DC 24 V
    Supply type DC
    Supply frequency Not applicable to DC
    Permitted voltage variation ±10%
    Power consumption 7.0 W
    Insulation class Class B
    Catalog coil temperature rise 45 °C
    Electrical entry DIN connector / terminal entry

    The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit.

    Features and Operation

    • This is a normally closed diaphragm valve with internal pilot operation.
    • The catalog describes low power consumption and large flow capacity. A minimum operating differential pressure of 0.05 MPa is required.
    • The body is brass, the coil has Class B insulation and the seals are NBR. These larger 2V models do not use the direct-acting construction or VITON specification of 2V025.

    External and Mounting Dimensions

    The following values follow the applicable DIN connector / terminal entry drawing in 2022 printed page 189; linked PDF page 2. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model.

    Parameter Details
    A 72 mm
    AB 18.5 mm
    AC 71 mm
    B 49 mm
    C 91 mm
    CA 103 mm
    D 32 mm
    PA 15 mm
    P (process port) PT 1/2 in

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Flow Characteristics

    Separate air and water plots cover 2V130-10 / -15 and 2V250-20 / -25. The air chart plots operating pressure in MPa against flow in L/min, with a labeled pressure scale of 0.2–1.0 MPa. The 13 mm-orifice flow scale is labeled from 2,000 to 10,000 L/min, and the 25 mm-orifice scale from 5,500 to 27,000 L/min. The water chart plots pressure difference from 0.03 to 1.0 MPa against flow, with labeled ticks at 200, 500, 1,000 and 2,000 L/min. These chart labels are reference axes, not constant or rated flow claims. Use the exact orifice curve for circuit selection.

    NBR Fluid Compatibility Reference

    Fluid Catalog rating
    Water Good
    Dry air Excellent
    Acetone* Not usable
    ISO VG32 turbine oil Excellent
    Ethylene glycol* Good
    Nitrogen Excellent
    Heavy oil Good
    JIS No. 1 oil Excellent
    JIS No. 3 oil Good
    Vegetable oil Excellent
    Inorganic oil Excellent
    Diester lubricant Good
    Silicone oil Excellent
    Carbon dioxide Excellent
    Argon Excellent

    Excellent means little or no effect; Good means some effect may occur but use is possible under suitable conditions; Not usable means a major effect. The catalog marks acetone and ethylene glycol with an asterisk and requires a suitably rated explosion-proof coil for the marked hazardous fluids. A standard coil is not thereby certified for those applications. Consult the manufacturer for unlisted media. This NBR table belongs to 2V130 / 2V250 and is not a VITON compatibility table.

    Internal Components

    The catalog section view is the 2V250 DIN-connector illustration. It provides the internal-structure reference; connector callouts 1 and 2 belong to the DIN version and do not describe supplied connectors on an I flying-lead model. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities.

    Drawing callout Component
    1 Connector
    2 Connector gasket
    3 Coil nut
    4 Coil
    5 Armature assembly
    6 Body cover
    7 Diaphragm assembly
    8 Body

    Accessory and Service-Part Identification

    This listing is a complete 2V130 valve. The reviewed pages identify the diaphragm construction used by 2V130 but do not provide a separately orderable service-kit code, kit contents or cross-series interchangeability. A component name in a cutaway is not a complete spare-part ordering code.

    Series Ordering Options

    The 2V series offers 025 = 2.5 mm with 06 / 08 ports, 130 = 13 mm with 10 / 15 ports, and 250 = 25 mm with 20 / 25 ports. Blank electrical-entry code means DIN connector; I means flying leads of 0.5 m. Thread choices are blank = PT, G = G and T = NPT. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.
