Valve
Product Features

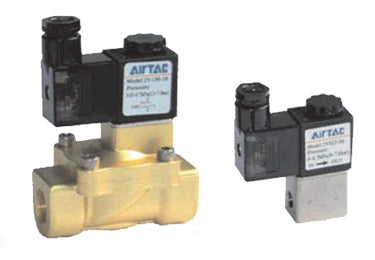

- Direct-acting two-position, two-way solenoid valve with sensitive and fast direction change.
- Compact, small, lightweight, and easy to assemble and disassemble.
- The valve body is made of brass; the coil has a heat resistance classification of Grade B. The standard seal material is VITON, which is suitable for various working media.
- The valve body is made of brass; the coil has a heat resistance classification of Grade B. The seal material is NBR, featuring low cost and a wide application range. The maximum operating pressure is 0.05MPa.
Specifications
| Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
|---|---|---|---|---|---|---|
| Working Medium | Air, Water, Oil | |||||
| Action Type | Direct Acting | Pilot Operated | ||||
| Initial State | Normally Closed | |||||
| Orifice Diameter (Φmm) | 2.5 | 2.5 | 13.0 | 13.0 | 25.0 | 25.0 |
| Cv Value | 0.23 | 0.25 | 6.20 | 6.20 | 13.00 | 13.00 |

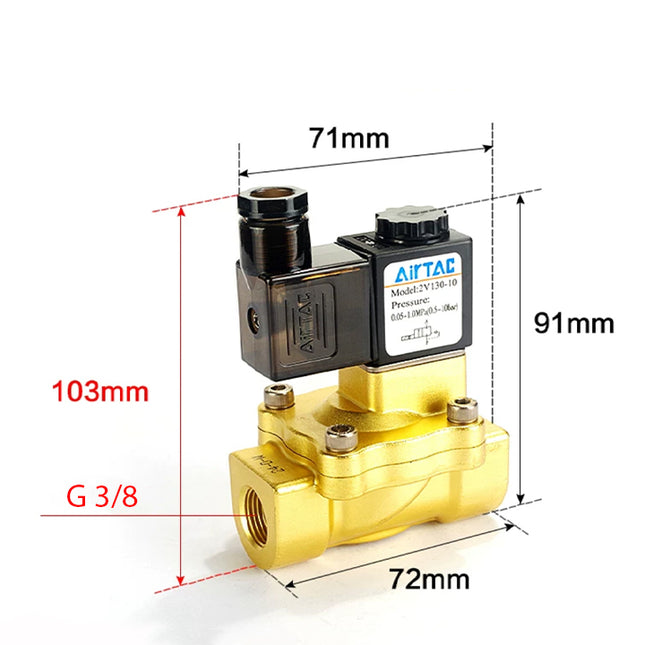

| Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | PT1 |
| Operating Fluid Viscosity | 20CST or less | |||||
| Operating Pressure Range | 0–1.0MPa (0–145psi) | 0.05–1.0MPa (7–145psi) | ||||
| Proof Pressure | 1.5MPa (215psi) | |||||
| Body Material | Brass (Surface Pickling) | Brass | ||||
| Seal Material | VITON | NBR | ||||
| Break Time | 0.05s or less | |||||
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Nominal Diameter |
|
| 3 | Port Size |
|
| 4 | Coil Voltage |
|
| 5 | Connection Type |
|
| 6 | Thread Code |
|
Note 1: The standard length for the lead wire type is 0.5m.
