ABA Series Air-Hydro Booster Cylinder

Specifications: ABA-1210 — air-fluid pressure booster, 125 mm bore and 10:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 12 125 mm bore 10 10:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 125 mm Multiplication ratio 10:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Overall length 708 End view width 140 End view height 187 Cylinder axis height 85 End fixing dimensions 90 and 110 End fitting offsets 22 and 40 Front fixing holes 4 × M12 Base mounting openings 4 × 17 Connection callouts 2 × PT3/8; PT3/8; PT1/4 Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 12511 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-1210 catalog envelope 708 × 140 × 187 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

Specifications: ABA-1010 — air-fluid pressure booster, 100 mm bore and 10:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 10 100 mm bore 10 10:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 100 mm Multiplication ratio 10:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Model-specific drawing The supplied page illustrates ABA-1005 for this bore; it does not provide an installation drawing for ABA-1010. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 7374 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-1005 catalog envelope 675 × 112 × 144.5 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

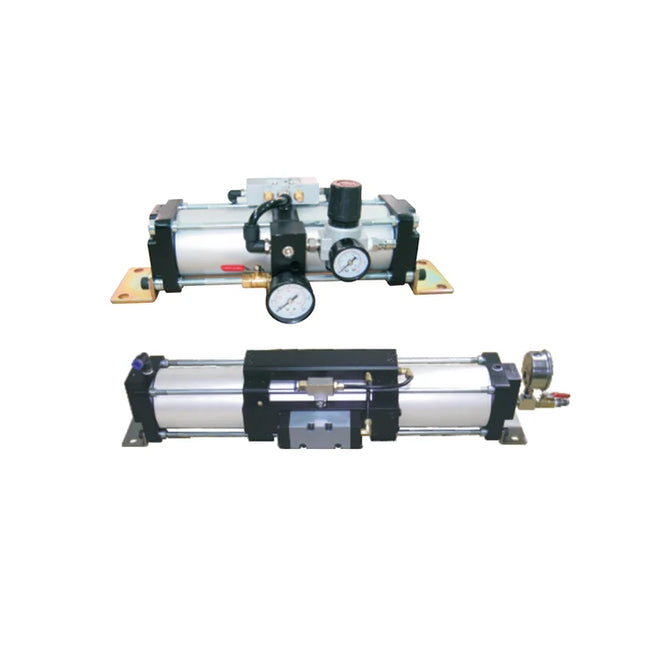

Specifications: ABA-0810 — air-fluid pressure booster, 80 mm bore and 10:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 08 80 mm bore 10 10:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 80 mm Multiplication ratio 10:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Model-specific drawing The supplied page illustrates ABA-0802 for this bore; it does not provide an installation drawing for ABA-0810. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 3727 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-0802 catalog envelope 442 × 95 × 131.5 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

Specifications: ABA-1205 — air-fluid pressure booster, 125 mm bore and 5:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 12 125 mm bore 05 5:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 125 mm Multiplication ratio 5:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Model-specific drawing The supplied page illustrates ABA-1210 for this bore; it does not provide an installation drawing for ABA-1205. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 12511 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-1210 catalog envelope 708 × 140 × 187 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

Specifications: ABA-1005 — air-fluid pressure booster, 100 mm bore and 5:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 10 100 mm bore 05 5:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 100 mm Multiplication ratio 5:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Overall length 675 End view width 112 End view height 144.5 Cylinder axis height 84.5 End fixing dimensions 84 and 90 End fitting offsets 22 and 40 Front fixing holes 4 × M10 Base mounting openings 4 × 14 Connection callouts 2 × PT3/8; PT3/8; PT1/4 Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 7374 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-1005 catalog envelope 675 × 112 × 144.5 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

Specifications: ABA-0805 — air-fluid pressure booster, 80 mm bore and 5:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 08 80 mm bore 05 5:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 80 mm Multiplication ratio 5:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Model-specific drawing The supplied page illustrates ABA-0802 for this bore; it does not provide an installation drawing for ABA-0805. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 3727 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-0802 catalog envelope 442 × 95 × 131.5 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

Specifications: ABA-1202 — air-fluid pressure booster, 125 mm bore and 2:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 12 125 mm bore 02 2:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 125 mm Multiplication ratio 2:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Model-specific drawing The supplied page illustrates ABA-1210 for this bore; it does not provide an installation drawing for ABA-1202. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 12511 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-1210 catalog envelope 708 × 140 × 187 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

Specifications: ABA-1002 — air-fluid pressure booster, 100 mm bore and 2:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 10 100 mm bore 02 2:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 100 mm Multiplication ratio 2:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Model-specific drawing The supplied page illustrates ABA-1005 for this bore; it does not provide an installation drawing for ABA-1002. Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 7374 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-1005 catalog envelope 675 × 112 × 144.5 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Read more less

Specifications: ABA-0802 — air-fluid pressure booster, 80 mm bore and 2:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. This Ordering Code Code Meaning ABA Air-fluid booster 08 80 mm bore 02 2:1 pressure multiplication ratio Technical Specifications Parameter Details Bore 80 mm Multiplication ratio 2:1 Selection purpose Increase available pressure / output for a compatible application Features and Application Helps stabilise output when the supply pressure falls, particularly in clamping service. Can increase available output where equipment pressure is insufficient. Supports increased production-line pressure. Where the required output is maintained, a smaller-bore cylinder can be considered in the system design. Dimensions and Installation Parameter Details Overall length 442 Body length reference 322 End offsets 60 and 60 Overall plan height 170 End view height 131.5 End body width 95 Mounting pitch 409 Base hole pitch 75 Front hole pitch 72 Front mounting holes 4 × M10 × 1.5 Base mounting openings 4 × 13 Connection callouts 3 × PT1/4; 2 × PT3/8; 2 × PT1/8 Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product. The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Estimated Weight 3727 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-0802 catalog envelope 442 × 95 × 131.5 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.
