Airtac ABA series: air-fluid pressure booster - ABA-1002

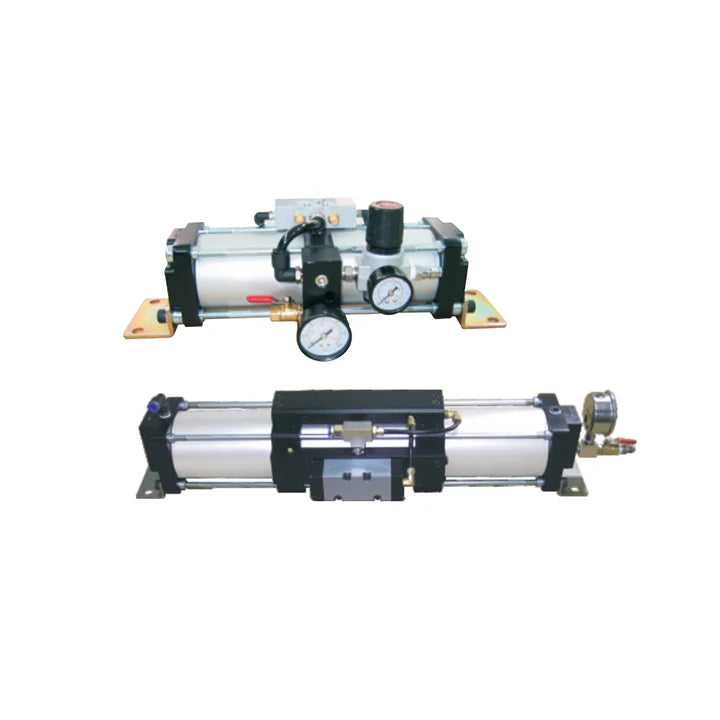

Photos are for reference only. Not all models have pictures.

Description

Specifications: ABA-1002 — air-fluid pressure booster, 100 mm bore and 2:1 pressure multiplication ratio.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

This Ordering Code

Code Meaning
ABA Air-fluid booster
10 100 mm bore
02 2:1 pressure multiplication ratio

Technical Specifications

Parameter Details
Bore 100 mm
Multiplication ratio 2:1
Selection purpose Increase available pressure / output for a compatible application

Features and Application

  • Helps stabilise output when the supply pressure falls, particularly in clamping service.
  • Can increase available output where equipment pressure is insufficient.
  • Supports increased production-line pressure.
  • Where the required output is maintained, a smaller-bore cylinder can be considered in the system design.

Dimensions and Installation

Parameter Details
Model-specific drawing The supplied page illustrates ABA-1005 for this bore; it does not provide an installation drawing for ABA-1002.

Dimensions are in millimetres unless a different unit is shown. Lettered dimensions refer to the matching drawing in the catalog; check that drawing before machining or installing the product.

The pressure multiplication ratio identifies the selected booster arrangement; it does not by itself specify an allowable inlet or outlet pressure. This page does not publish a working-pressure range, oil grade, temperature rating or complete dimensions for every ratio. Match the application to a confirmed drawing and pressure rating for the exact model.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Estimated Weight

7374 g. This is a calculated reference estimate for this product, not a manufacturer-published or measured product weight. Packaging is excluded. Same-bore ABA-1005 catalog envelope 675 × 112 × 144.5 mm × assumed aluminium-equivalent density 2.7 g/cm³ × 25% solid fill. Different ratio variants use this as a size-based mass estimate only; installation interchangeability is not implied.

Product form

Specifications: ABA-1002 — air-fluid pressure booster, 100 mm bore and 2:1 pressure multiplication ratio. Product Catalog Download Airtac Product Catalog... Read more

SKU: ABA-1002

$920.23 Incl. VAT
