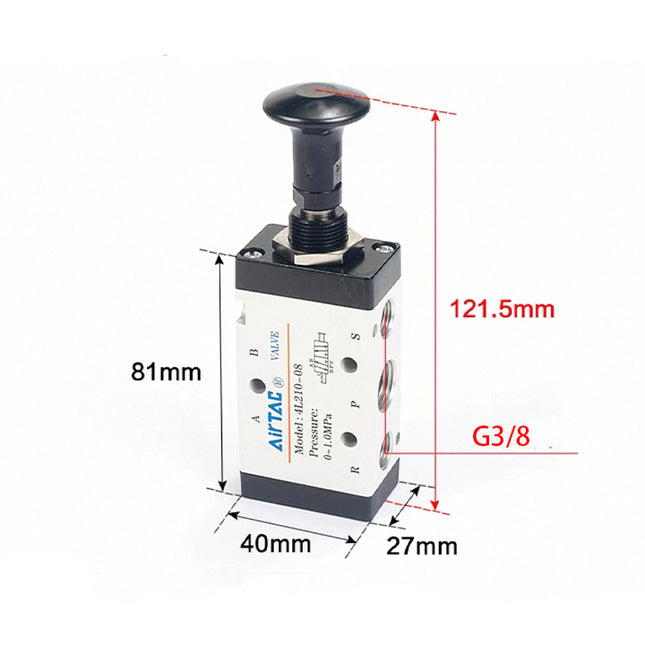

3L & 4L Series Hand-Pull Valve

•

  View options

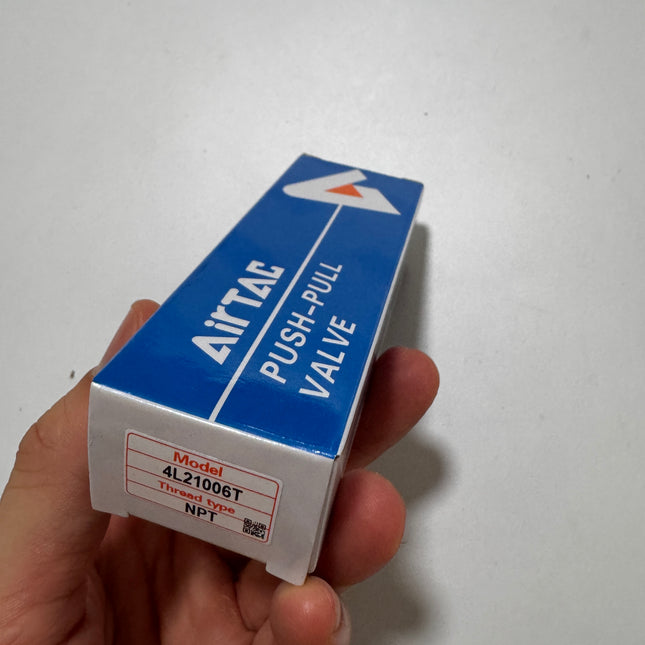

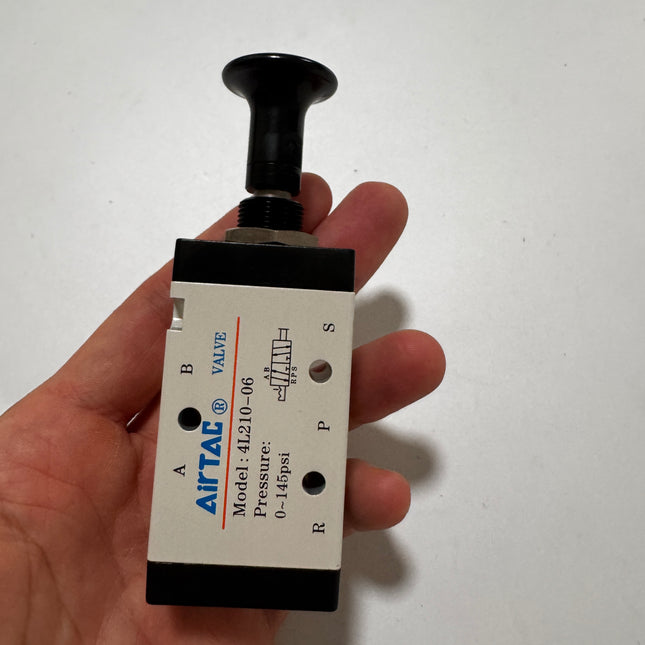

  Airtac 4L series: push-pull directional valve - 4L21006T

  Specifications: 4L21006T is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 2 200 size 10 Two-position operation 06 Supply and outlet connection NPT 1/8 T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 1/8 Exhaust connection NPT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 139 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106 mm AB 65.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 20 mm KB 22.5 mm KC 23.5 mm L 3.3 mm LA 38 mm LB 17 mm LC 13.5 mm P NPT 1/8 PA 18 mm PB 0 mm PC 23.5 mm PD 32.5 mm Q NPT 1/8 QA 36 mm QB 0 mm QC 14.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $22.88

  View options

•

  View options

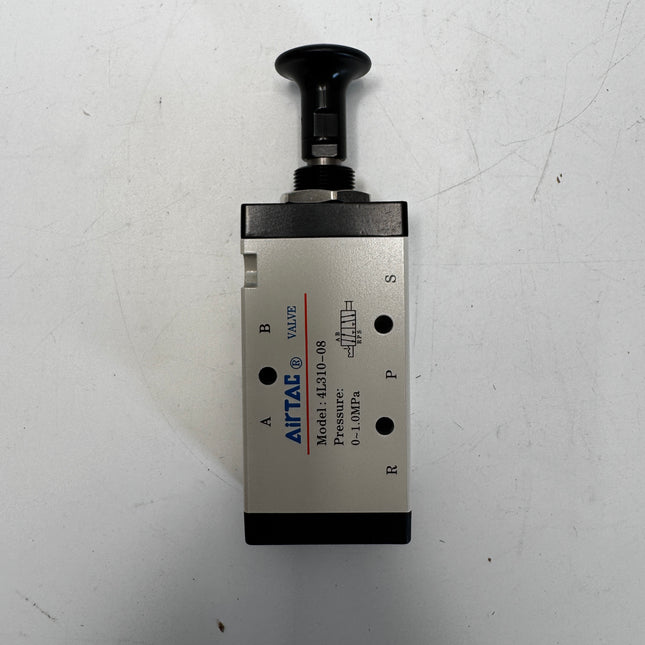

  Airtac 4L series: push-pull directional valve - 4L31008

  Specifications: 4L31008 is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 3 300 size 10 Two-position operation 08 Supply and outlet connection PT 1/4 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/4 Exhaust connection PT 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 247 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 121.5 mm AB 81 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 24 mm KB 28.5 mm KC 27.5 mm L 4.3 mm LA 50 mm LB 20 mm LC 15.5 mm P PT 1/4 PA 22 mm PB 0 mm PC 29.5 mm PD 40.5 mm Q PT 1/4 QA 45 mm QB 0 mm QC 18 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. The E mounting thread is M16 × 1.0, as specified in the 2022 Chinese catalog (printed page 136). For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $32.20

  View options

•

  View options

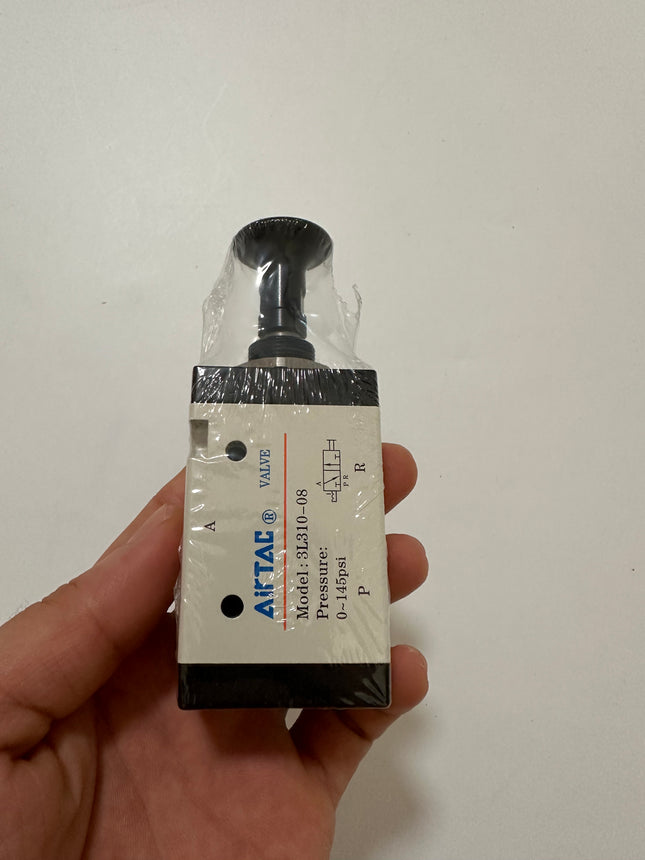

  Airtac 3L series: push-pull directional valve - 3L31008T

  Specifications: 3L31008T is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 3 300 size 10 Two-position operation 08 Supply and outlet connection NPT 1/4 T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 1/4 Exhaust connection NPT 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 214 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106.5 mm AB 66.5 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 30 mm KB 18 mm KC 10 mm L 4.3 mm LA 35 mm LB 20 mm LC 15.5 mm P NPT 1/4 PA 24 mm PB 0 mm PC 21 mm PD 33 mm PE 0 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $29.32

  View options

•

  View options

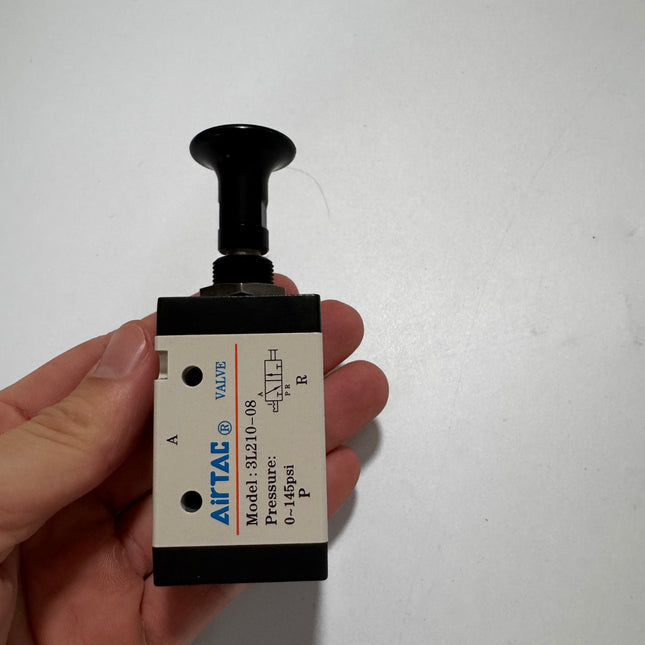

  Airtac 3L series: push-pull directional valve - 3L21008T

  Specifications: 3L21008T is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 2 200 size 10 Two-position operation 08 Supply and outlet connection NPT 1/4 T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 1/4 Exhaust connection NPT 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 126 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 98 mm AB 57.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 25 mm KB 16 mm KC 8 mm L 3.3 mm LA 30 mm LB 17 mm LC 13.5 mm P NPT 1/4 PA 22.5 mm PB 0 mm PC 17.5 mm PD 28.5 mm PE 1.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $21.10

  View options

•

  View options

  Airtac 4L series: push-pull directional valve - 4L21008

  Specifications: 4L21008 is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 2 200 size 10 Two-position operation 08 Supply and outlet connection PT 1/4 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/4 Exhaust connection PT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 139 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106 mm AB 65.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 20 mm KB 22.5 mm KC 23.5 mm L 3.3 mm LA 38 mm LB 17 mm LC 13.5 mm P PT 1/4 PA 21 mm PB 3 mm PC 22 mm PD 32.5 mm Q PT 1/8 QA 36 mm QB 0 mm QC 14.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $22.88

  View options

•

  View options

  Airtac 4L series: push-pull directional valve - 4L11006T

  Specifications: 4L11006T is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 1 selects the 100 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 1 100 size 10 Two-position operation 06 Supply and outlet connection NPT 1/8 T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 1/8 Exhaust connection NPT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 152 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 98 mm AB 58.8 mm AC 10 mm B 18 mm C 27 mm D 25 mm E M12 × 0.75 K 3.3 mm KA 14 mm KB 22 mm KC 19 mm L 3.3 mm LA 30 mm LB 13 mm LC 14 mm P NPT 1/8 PA 16 mm PB 3 mm PC 21 mm PD 29 mm Q NPT 1/8 QA 28 mm QB 2 mm QC 15 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L11006 Effective area for the printed reference 10.2 mm² Cv for the printed reference 0.6 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–1200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $19.32

  View options

•

  View options

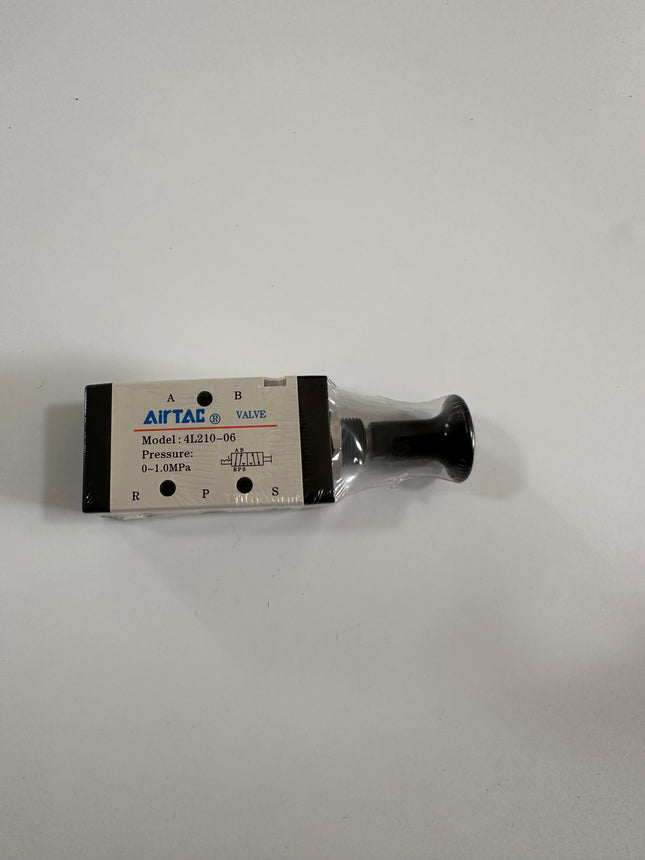

  Airtac 4L series: push-pull directional valve - 4L21006

  Specifications: 4L21006 is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 2 200 size 10 Two-position operation 06 Supply and outlet connection PT 1/8 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/8 Exhaust connection PT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 139 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106 mm AB 65.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 20 mm KB 22.5 mm KC 23.5 mm L 3.3 mm LA 38 mm LB 17 mm LC 13.5 mm P PT 1/8 PA 18 mm PB 0 mm PC 23.5 mm PD 32.5 mm Q PT 1/8 QA 36 mm QB 0 mm QC 14.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $22.88

  View options

•

  View options

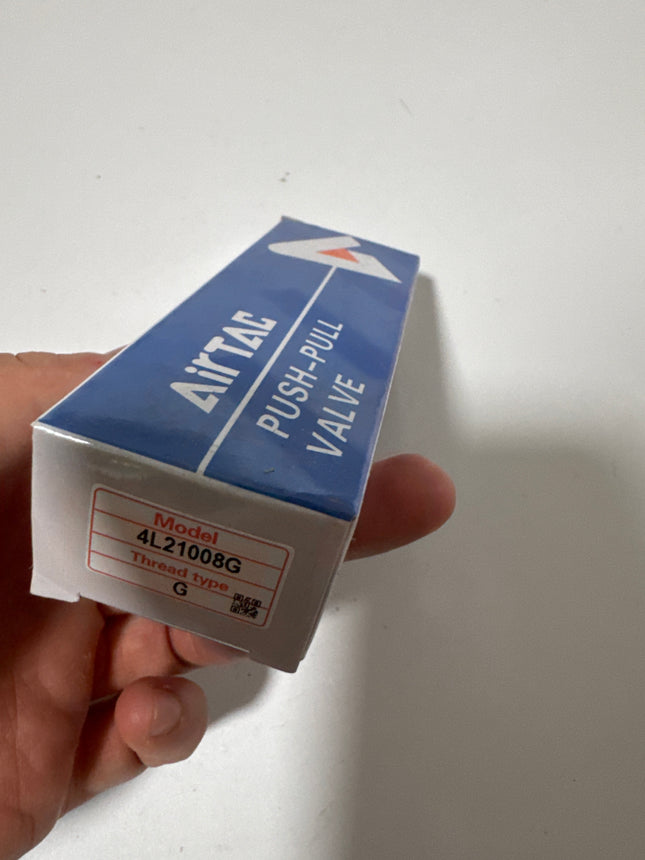

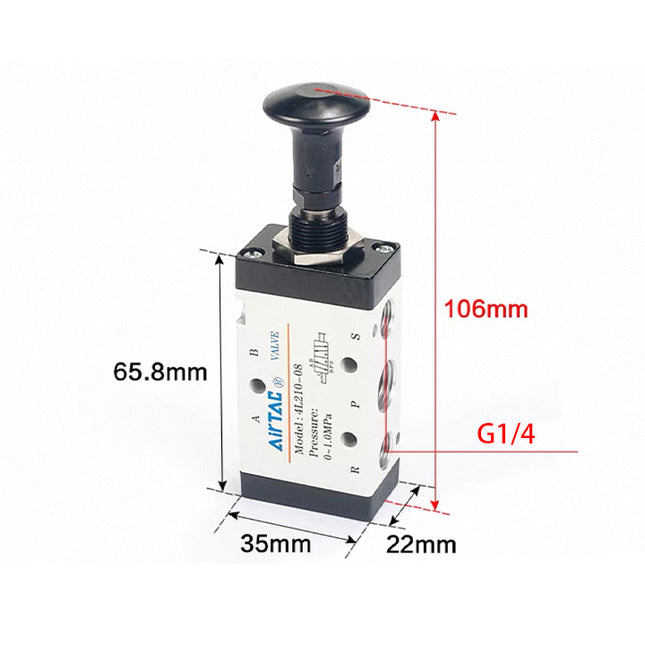

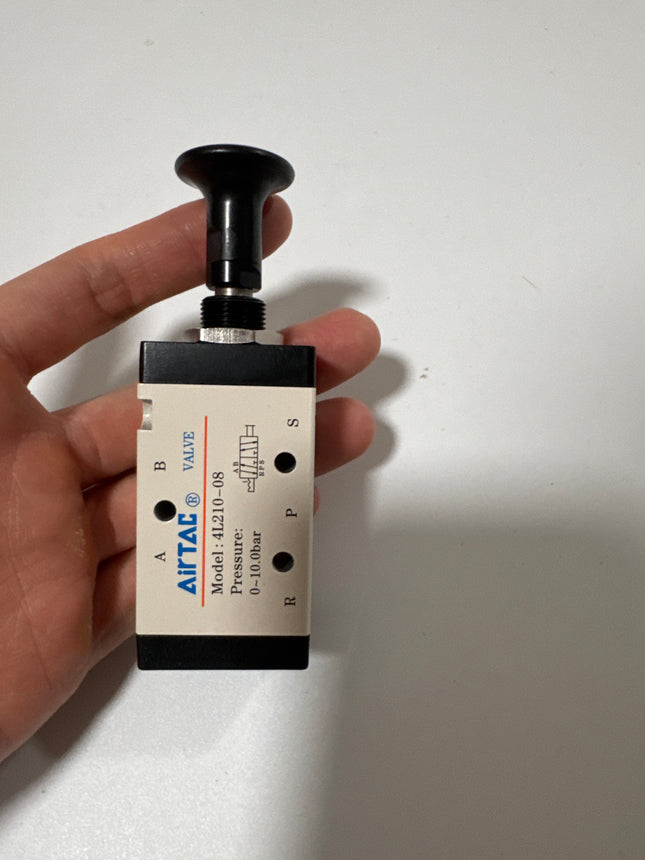

  Airtac 4L series: push-pull directional valve - 4L21008G

  Specifications: 4L21008G is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the G thread suffix selects G thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 2 200 size 10 Two-position operation 08 Supply and outlet connection G 1/4 G G thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection G 1/4 Exhaust connection G 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 139 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106 mm AB 65.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 20 mm KB 22.5 mm KC 23.5 mm L 3.3 mm LA 38 mm LB 17 mm LC 13.5 mm P G 1/4 PA 21 mm PB 3 mm PC 22 mm PD 32.5 mm Q G 1/8 QA 36 mm QB 0 mm QC 14.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $22.88

  View options

•

  View options

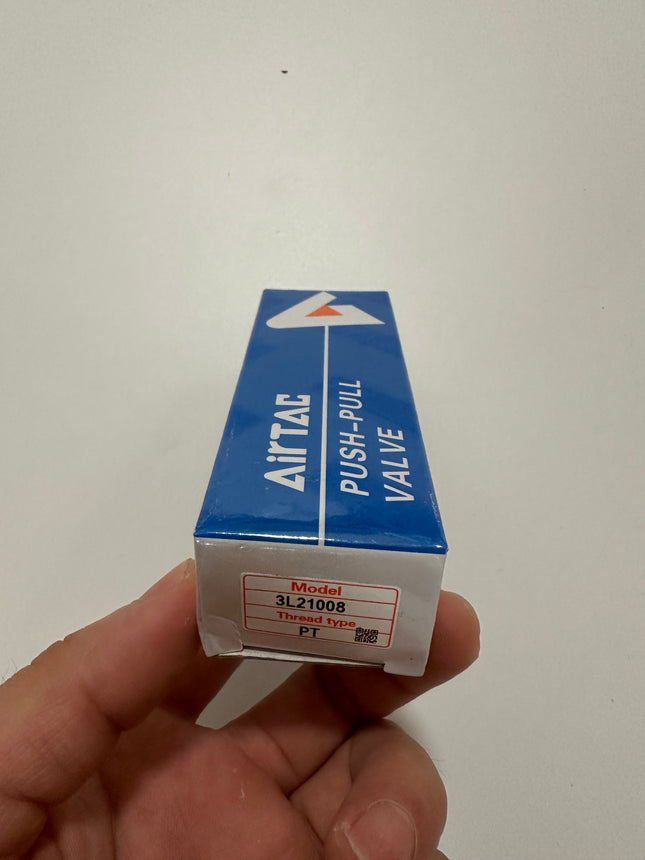

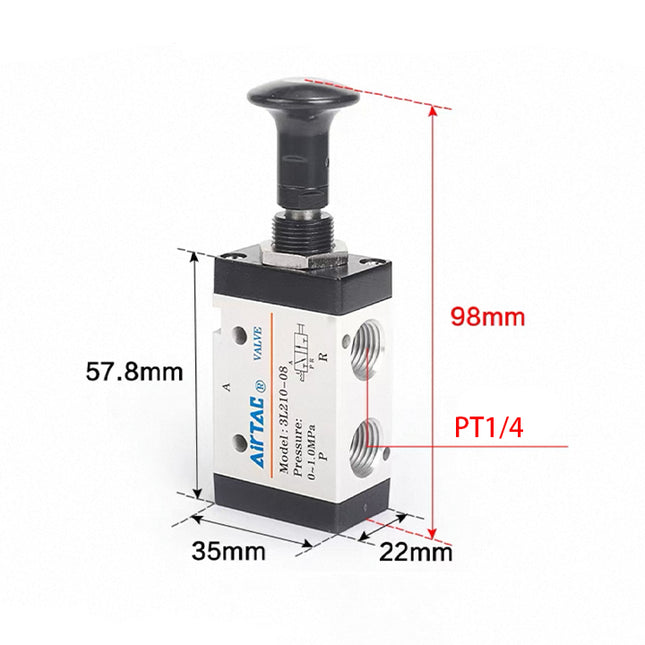

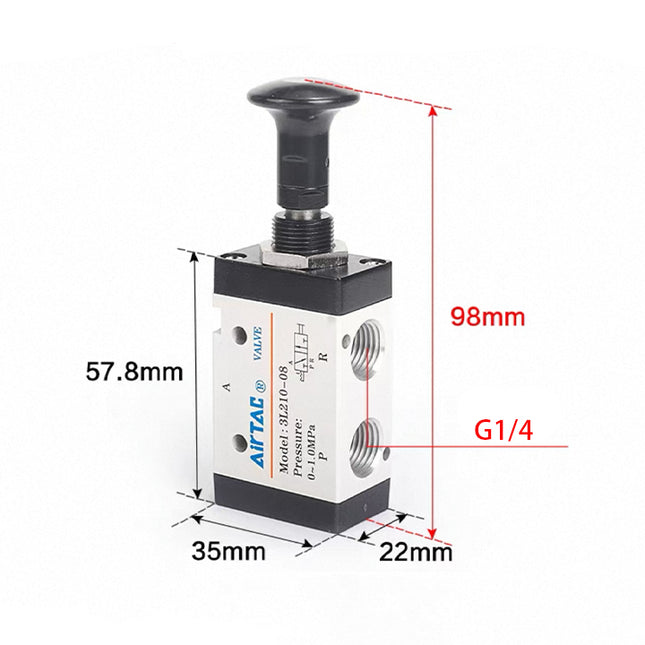

  Airtac 3L series: push-pull directional valve - 3L21008

  Specifications: 3L21008 is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 2 200 size 10 Two-position operation 08 Supply and outlet connection PT 1/4 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/4 Exhaust connection PT 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 126 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 98 mm AB 57.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 25 mm KB 16 mm KC 8 mm L 3.3 mm LA 30 mm LB 17 mm LC 13.5 mm P PT 1/4 PA 22.5 mm PB 0 mm PC 17.5 mm PD 28.5 mm PE 1.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $21.10

  View options

•

  View options

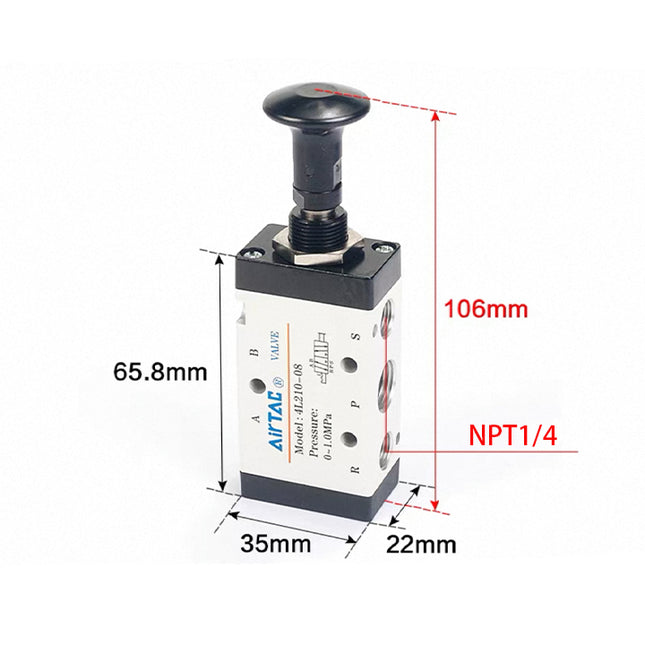

  Airtac 4L series: push-pull directional valve - 4L21008T

  Specifications: 4L21008T is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 2 200 size 10 Two-position operation 08 Supply and outlet connection NPT 1/4 T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 1/4 Exhaust connection NPT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 139 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106 mm AB 65.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 20 mm KB 22.5 mm KC 23.5 mm L 3.3 mm LA 38 mm LB 17 mm LC 13.5 mm P NPT 1/4 PA 21 mm PB 3 mm PC 22 mm PD 32.5 mm Q NPT 1/8 QA 36 mm QB 0 mm QC 14.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $22.88

  View options

•

  View options

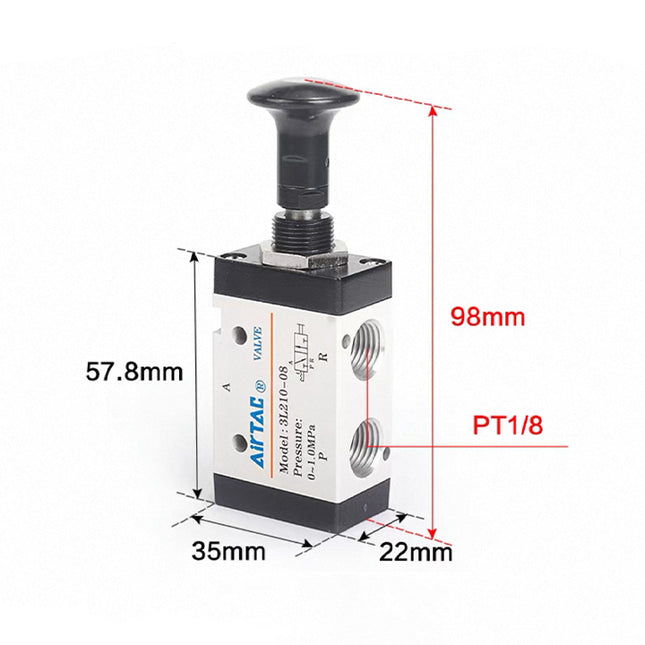

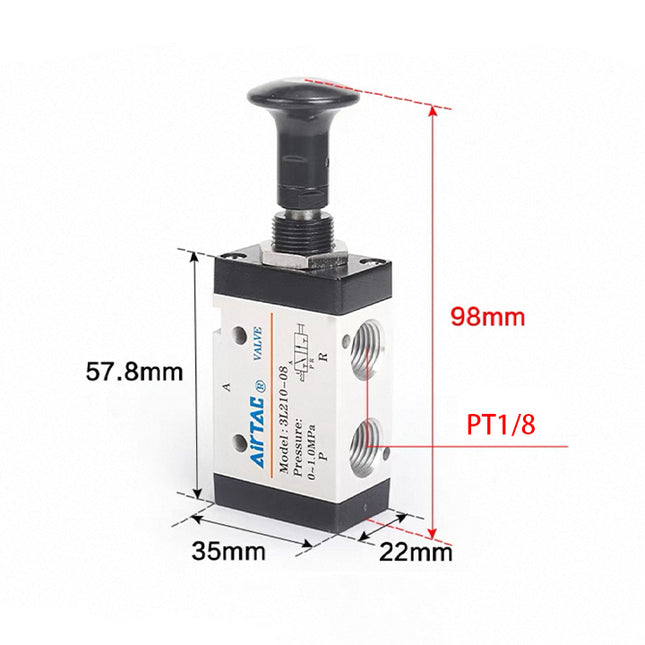

  Airtac 3L series: push-pull directional valve - 3L21006

  Specifications: 3L21006 is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 2 200 size 10 Two-position operation 06 Supply and outlet connection PT 1/8 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/8 Exhaust connection PT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 126 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 98 mm AB 57.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 25 mm KB 16 mm KC 8 mm L 3.3 mm LA 30 mm LB 17 mm LC 13.5 mm P PT 1/8 PA 22.5 mm PB 0 mm PC 17.5 mm PD 28.5 mm PE 0 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $21.10

  View options

•

  View options

  Airtac 3L series: push-pull directional valve - 3L31010T

  Specifications: 3L31010T is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 10 selects the 3/8-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 3 300 size 10 Two-position operation 10 Supply and outlet connection NPT 3/8 T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 3/8 Exhaust connection NPT 3/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 214 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106.5 mm AB 66.5 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 30 mm KB 18 mm KC 10 mm L 4.3 mm LA 35 mm LB 20 mm LC 15.5 mm P NPT 3/8 PA 24 mm PB 0 mm PC 21 mm PD 33 mm PE 2 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $29.32

  View options

•

  View options

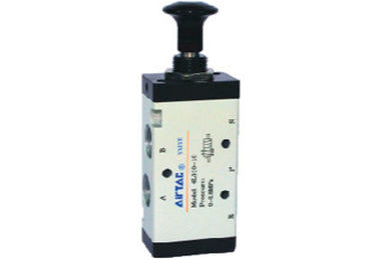

  Airtac 4L series: push-pull directional valve - 4L11006

  Specifications: 4L11006 is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 1 selects the 100 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 1 100 size 10 Two-position operation 06 Supply and outlet connection PT 1/8 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/8 Exhaust connection PT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 152 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 98 mm AB 58.8 mm AC 10 mm B 18 mm C 27 mm D 25 mm E M12 × 0.75 K 3.3 mm KA 14 mm KB 22 mm KC 19 mm L 3.3 mm LA 30 mm LB 13 mm LC 14 mm P PT 1/8 PA 16 mm PB 3 mm PC 21 mm PD 29 mm Q PT 1/8 QA 28 mm QB 2 mm QC 15 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L11006 Effective area for the printed reference 10.2 mm² Cv for the printed reference 0.6 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–1200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $19.32

  View options

•

  View options

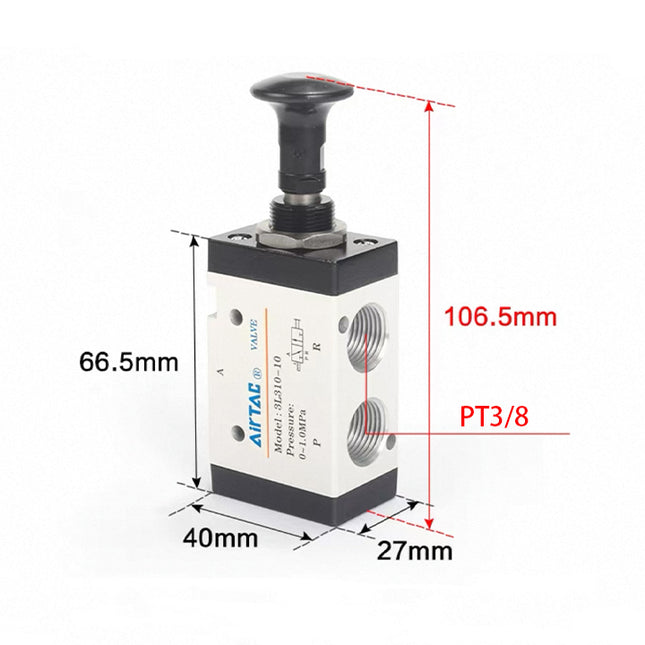

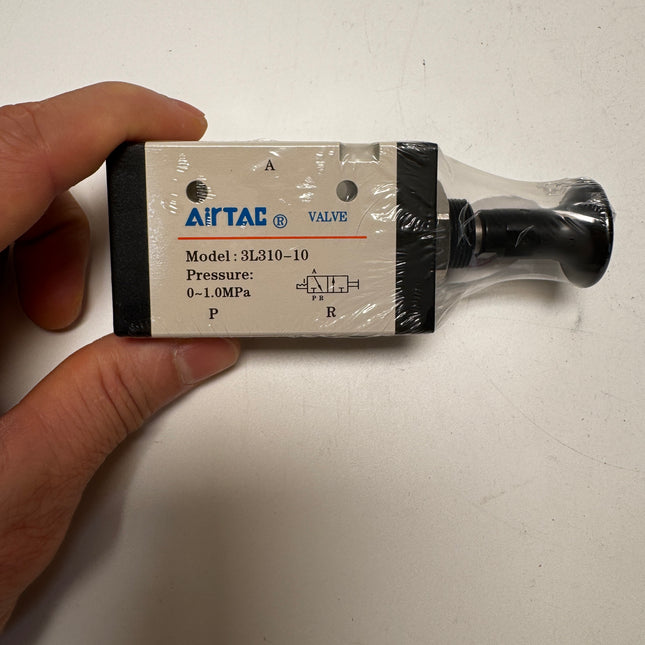

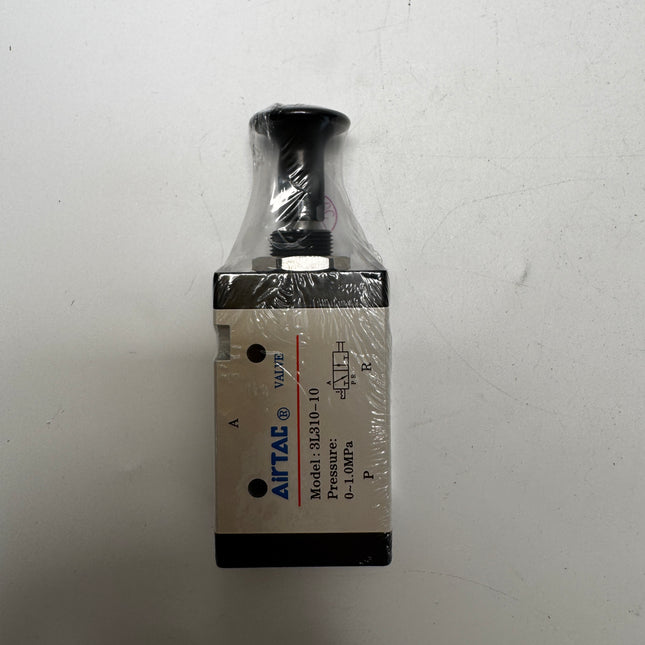

  Airtac 3L series: push-pull directional valve - 3L31010

  Specifications: 3L31010 is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 10 selects the 3/8-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 3 300 size 10 Two-position operation 10 Supply and outlet connection PT 3/8 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 3/8 Exhaust connection PT 3/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 214 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106.5 mm AB 66.5 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 30 mm KB 18 mm KC 10 mm L 4.3 mm LA 35 mm LB 20 mm LC 15.5 mm P PT 3/8 PA 24 mm PB 0 mm PC 21 mm PD 33 mm PE 2 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $29.32

  View options

•

  View options

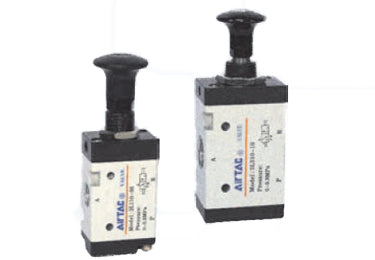

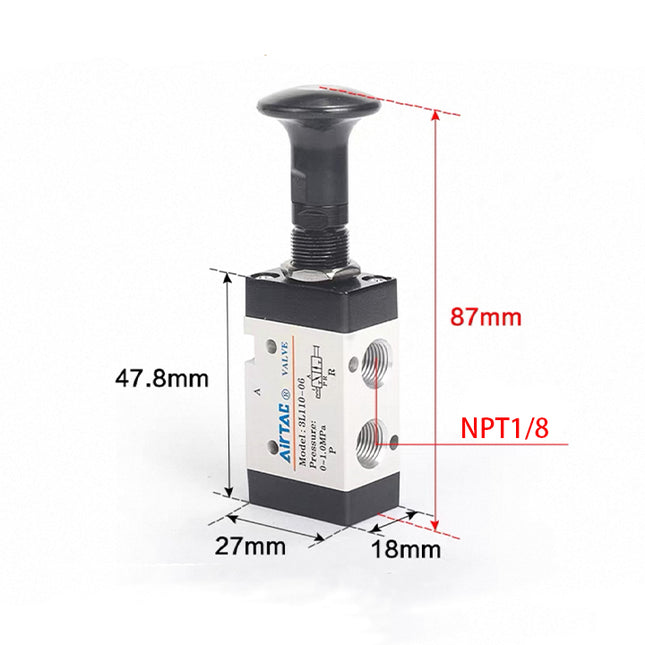

  Airtac 3L series: push-pull directional valve - 3L11006T

  Specifications: 3L11006T is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 1 selects the 100 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 1 100 size 10 Two-position operation 06 Supply and outlet connection NPT 1/8 T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 1/8 Exhaust connection NPT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 67 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 87 mm AB 47.8 mm AC 10 mm B 18 mm C 27 mm D 25 mm E M12 × 0.75 K 3.1 mm KA 21 mm KB 13 mm KC 7.7 mm L 3.3 mm LA 19 mm LB 13 mm LC 14 mm P NPT 1/8 PA 16 mm PB 2 mm PC 15.5 mm PD 24.5 mm PE 1 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L11006 Effective area for the printed reference 10.2 mm² Cv for the printed reference 0.6 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–1200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $18.08

  View options

•

  View options

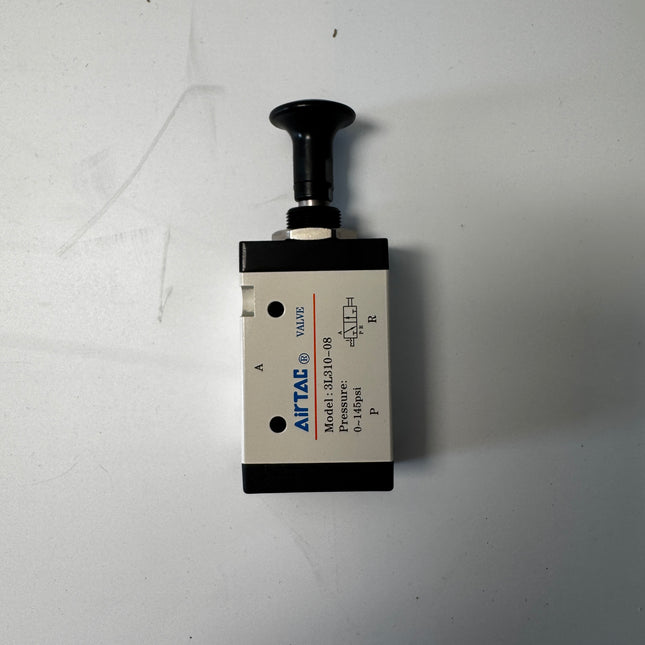

  Airtac 3L series: push-pull directional valve - 3L31008

  Specifications: 3L31008 is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 3 300 size 10 Two-position operation 08 Supply and outlet connection PT 1/4 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/4 Exhaust connection PT 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 214 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106.5 mm AB 66.5 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 30 mm KB 18 mm KC 10 mm L 4.3 mm LA 35 mm LB 20 mm LC 15.5 mm P PT 1/4 PA 24 mm PB 0 mm PC 21 mm PD 33 mm PE 0 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $29.32

  View options

•

  View options

  Airtac 4L series: push-pull directional valve - 4L31010T

  Specifications: 4L31010T is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 10 selects the 3/8-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 3 300 size 10 Two-position operation 10 Supply and outlet connection NPT 3/8 T NPT thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 3/8 Exhaust connection NPT 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 247 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 121.5 mm AB 81 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 24 mm KB 28.5 mm KC 27.5 mm L 4.3 mm LA 50 mm LB 20 mm LC 15.5 mm P NPT 3/8 PA 24 mm PB 4 mm PC 28.5 mm PD 40.5 mm Q NPT 1/4 QA 45 mm QB 0 mm QC 18 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $32.20

  View options

•

  View options

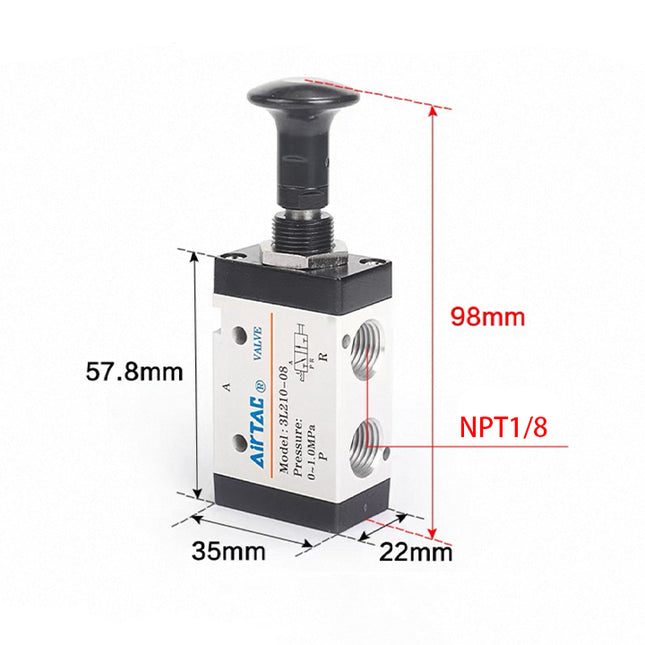

  Airtac 3L series: push-pull directional valve - 3L21006T

  Specifications: 3L21006T is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the T thread suffix selects NPT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 2 200 size 10 Two-position operation 06 Supply and outlet connection NPT 1/8 T NPT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection NPT 1/8 Exhaust connection NPT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 126 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 98 mm AB 57.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 25 mm KB 16 mm KC 8 mm L 3.3 mm LA 30 mm LB 17 mm LC 13.5 mm P NPT 1/8 PA 22.5 mm PB 0 mm PC 17.5 mm PD 28.5 mm PE 0 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $21.10

  View options

•

  View options

  Airtac 3L series: push-pull directional valve - 3L11006G

  Specifications: 3L11006G is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 1 selects the 100 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the G thread suffix selects G thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 1 100 size 10 Two-position operation 06 Supply and outlet connection G 1/8 G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection G 1/8 Exhaust connection G 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 67 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 87 mm AB 47.8 mm AC 10 mm B 18 mm C 27 mm D 25 mm E M12 × 0.75 K 3.1 mm KA 21 mm KB 13 mm KC 7.7 mm L 3.3 mm LA 19 mm LB 13 mm LC 14 mm P G 1/8 PA 16 mm PB 2 mm PC 15.5 mm PD 24.5 mm PE 1 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L11006 Effective area for the printed reference 10.2 mm² Cv for the printed reference 0.6 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–1200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $18.08

  View options

•

  View options

  Airtac 3L series: push-pull directional valve - 3L31008G

  Specifications: 3L31008G is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the G thread suffix selects G thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 3 300 size 10 Two-position operation 08 Supply and outlet connection G 1/4 G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection G 1/4 Exhaust connection G 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 214 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106.5 mm AB 66.5 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 30 mm KB 18 mm KC 10 mm L 4.3 mm LA 35 mm LB 20 mm LC 15.5 mm P G 1/4 PA 24 mm PB 0 mm PC 21 mm PD 33 mm PE 0 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $29.32

  View options

•

  View options

  Airtac 3L series: push-pull directional valve - 3L31010G

  Specifications: 3L31010G is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 10 selects the 3/8-inch connection, and the G thread suffix selects G thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 3 300 size 10 Two-position operation 10 Supply and outlet connection G 3/8 G G thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection G 3/8 Exhaust connection G 3/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 214 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106.5 mm AB 66.5 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 30 mm KB 18 mm KC 10 mm L 4.3 mm LA 35 mm LB 20 mm LC 15.5 mm P G 3/8 PA 24 mm PB 0 mm PC 21 mm PD 33 mm PE 2 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $29.32

  View options

•

  View options

  Airtac 4L series: push-pull directional valve - 4L21006G

  Specifications: 4L21006G is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 2 selects the 200 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the G thread suffix selects G thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 2 200 size 10 Two-position operation 06 Supply and outlet connection G 1/8 G G thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection G 1/8 Exhaust connection G 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 139 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 106 mm AB 65.8 mm AC 10 mm B 22 mm C 35 mm D 25 mm E M14 × 1.0 K 4.3 mm KA 20 mm KB 22.5 mm KC 23.5 mm L 3.3 mm LA 38 mm LB 17 mm LC 13.5 mm P G 1/8 PA 18 mm PB 0 mm PC 23.5 mm PD 32.5 mm Q G 1/8 QA 36 mm QB 0 mm QC 14.5 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L21008 Effective area for the printed reference 17 mm² Cv for the printed reference 1 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–2000 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $22.88

  View options

•

  View options

  Airtac 4L series: push-pull directional valve - 4L31008G

  Specifications: 4L31008G is a 5-port, 2-position manually operated push-pull valve. 4L identifies the valve family, 3 selects the 300 size, 10 denotes two positions, 08 selects the 1/4-inch connection, and the G thread suffix selects G thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 4L push-pull air control valves are functional alternatives to the SMC VZM500 series. Model Code Explained Code Meaning for this model 4L 5-port, 2-position push-pull valve 3 300 size 10 Two-position operation 08 Supply and outlet connection G 1/4 G G thread Technical Specifications Parameter Details Valve function 5-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection G 1/4 Exhaust connection G 1/4 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 247 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 121.5 mm AB 81 mm AC 10 mm B 27 mm C 40 mm D 25 mm E M16 × 1.0 K 4.3 mm KA 24 mm KB 28.5 mm KC 27.5 mm L 4.3 mm LA 50 mm LB 20 mm LC 15.5 mm P G 1/4 PA 22 mm PB 0 mm PC 29.5 mm PD 40.5 mm Q G 1/4 QA 45 mm QB 0 mm QC 18 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies three K-diameter holes, two L-diameter holes, three P connections and two Q exhaust connections. The E mounting thread is M16 × 1.0, as specified in the 2022 Chinese catalog (printed page 136). For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 4L31010 Effective area for the printed reference 28 mm² Cv for the printed reference 1.65 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–3200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 Spool 5 O-ring 6 Spring 7 Stop screw 8 Spring holder 9 Steel ball 10 Hexagon nut 11 Top cover 12 Lock nut 13 Hand grip Series Ordering Options 4L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $32.20

  View options

•

  View options

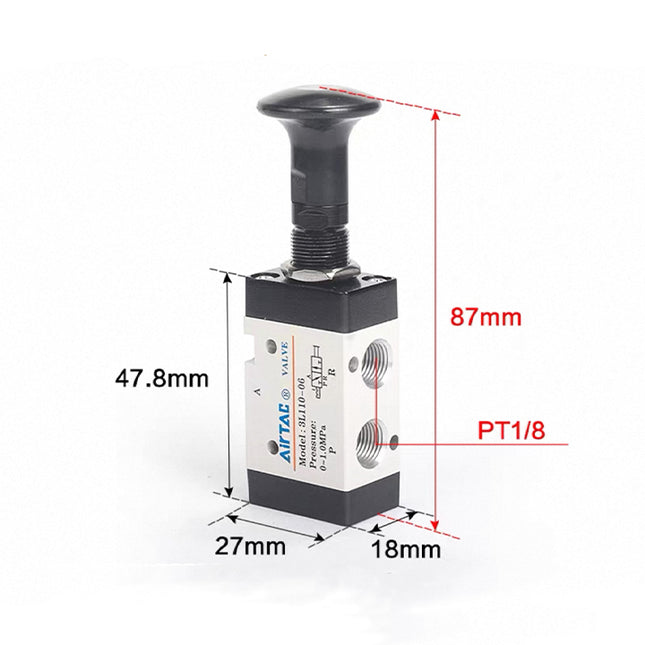

  Airtac 3L series: push-pull directional valve - 3L11006

  Specifications: 3L11006 is a 3-port, 2-position manually operated push-pull valve. 3L identifies the valve family, 1 selects the 100 size, 10 denotes two positions, 06 selects the 1/8-inch connection, and the omitted thread suffix selects PT thread. The valve is arranged for panel mounting. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Existing Product Statement Airtac 3L push-pull air control valves are functional alternatives to the SMC VM200 series. Model Code Explained Code Meaning for this model 3L 3-port, 2-position push-pull valve 1 100 size 10 Two-position operation 06 Supply and outlet connection PT 1/8 Thread suffix omitted PT thread Technical Specifications Parameter Details Valve function 3-port, 2-position Actuation Direct acting; manual push-pull control Supply and outlet connection PT 1/8 Exhaust connection PT 1/8 Body material Aluminum alloy Mounting Panel mounting Working medium Air, filtered through a 40 µm filter element Working pressure 0–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to 70 °C Air lubrication Not required Reference weight 67 g Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails Features and Operation Manual push-pull operation provides position selection. The sliding-spool structure is compact and designed for sealing performance and convenient installation or removal. The internal bore is specially processed to reduce friction and wear. Air lubrication is not required. If lubricating oil is introduced, continue lubrication consistently; the catalog specifies ISO VG32 or equivalent oil. External and Mounting Dimensions Drawing label Value for this model A 87 mm AB 47.8 mm AC 10 mm B 18 mm C 27 mm D 25 mm E M12 × 0.75 K 3.1 mm KA 21 mm KB 13 mm KC 7.7 mm L 3.3 mm LA 19 mm LB 13 mm LC 14 mm P PT 1/8 PA 16 mm PB 2 mm PC 15.5 mm PD 24.5 mm PE 1 mm D, K and L are diameter references; E is the metric panel-mounting thread. The mounting detail shows a maximum panel thickness of 6 mm. Use the associated section views to distinguish body holes from the panel opening. The drawing identifies two K-diameter holes, two L-diameter holes and three P connections. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Flow and Performance Reference Parameter Details Printed flow-reference model 3L11006 Effective area for the printed reference 10.2 mm² Cv for the printed reference 0.6 Chart vertical axis Operating pressure, MPa; labeled range 0–0.7 MPa Chart horizontal axis Air flow, L/min; labeled range 0–1200 Curve conditions Curves plotted across the shown operating-pressure range; individual curves have no separate printed labels The flow figure is a series reference for the explicitly named model. A different port size or order configuration is not assigned an unprinted flow rating. Data are from AirTAC laboratory tests; effective area and Cv are calculated from flow data. Axis limits are chart scales, not guaranteed rated flow. Internal Components The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. Catalog item number Component name 1 Round-head screw 2 Bottom cover 3 Body 4 O-ring 5 Spool 6 Round-head screw 7 Spring 8 Stop screw 9 Spring holder 10 Steel ball 11 Hexagon nut 12 Top cover 13 Lock nut 14 Hand grip Series Ordering Options 3L offers 100, 200 and 300 sizes. Size 100 has a 1/8 connection; size 200 offers 1/8 or 1/4; size 300 offers 1/4 or 3/8. The omitted thread suffix is PT; G and T select G and NPT. These are series choices, not additional connections supplied with the current valve. The internal part list does not define a separate accessory kit or its quantity.

  Read more less

  $18.08

  View options

Show more products
