F.R.L. Unit Product Information

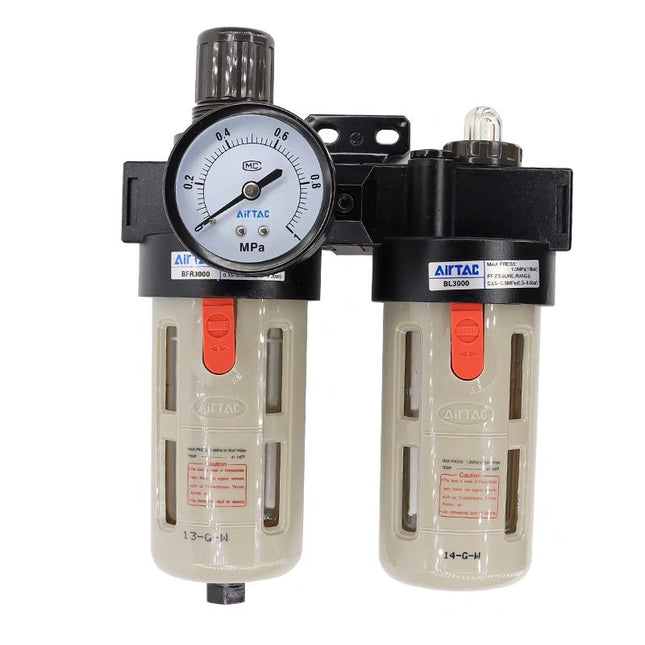

Filter Regulator Combination

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  1. Compact structure, easy installation and use.
  2. Self-locking pressure adjustment mechanism prevents pressure changes due to external interference.
  3. Low pressure loss, high water separation efficiency.
  4. Transparent observation cover allows for direct monitoring of oil drip levels.
  5. In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).

Specifications

Model AFC1500 AFC2000 BFC2000 BFC3000 BFC4000
Working Medium Air
Port Size [Note 1] PT1/8 PT1/4 PT1/4 PT3/8 PT1/2
Filter Precision 40μm or 5μm
Pressure Regulation Range Automatic & Semi-automatic Drain: 0.15–0.9MPa (20–130Psi) / Manual Drain: 0.05–0.9MPa (7–130Psi)
Max Operating Pressure 1.0MPa (145Psi)
Proof Pressure 1.5MPa (215Psi)
Operating Temperature Range -5–70°C (No freezing)
Water Bowl Capacity 15CC 60CC
Oil Bowl Capacity 25CC 90CC
Recommended Lubricating Oil ISO VG-32 or equivalent oil
Component Structure Regulator: AFR1500 Regulator: AFR2000 Regulator: BFR2000 Regulator: BFR3000 Regulator: BFR4000
Filter: AL1500 Filter: AL2000 Filter: BL2000 Filter: BL3000 Filter: BL4000
Note 1: G and NPT thread types are available.

Product Ordering Code

Position Description Options & Values
1 Series Code
  • AFC: A Series 2-Unit Combo
  • BFC: B Series 2-Unit Combo
2 Port Size
  • 1500: 1/8"
  • 2000: 1/4"
  • 3000: 3/8"
  • 4000: 1/2"
3 Drain Type [Note 1]
  • Blank: Semi-automatic Drain
  • M: Manual Drain
  • A: Automatic Drain
4 Model Type Code
  • Blank: Standard Type (0.9MPa)
  • L: Low Pressure Type (0.4MPa)
5 Pressure Gauge Code
  • Blank: With Pressure Gauge
  • N: Without Pressure Gauge
6 Pressure Unit
  • 1: MPa
  • 2: Psi
  • 3: bar
  • 4: Kgf/cm² & psi
7 Filter Precision
  • Blank: 40μm
  • W: 5μm
8 Thread Code
  • Blank: PT thread
  • G: G thread
  • T: NPT thread
Note 1: Certain special drain types may have different related requirements. Please consult our company's business department for details.

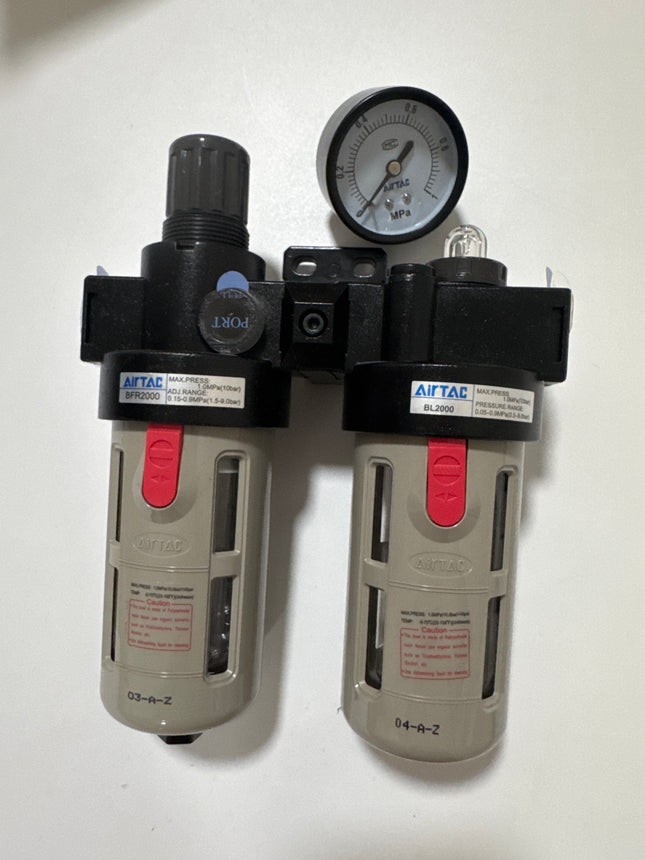

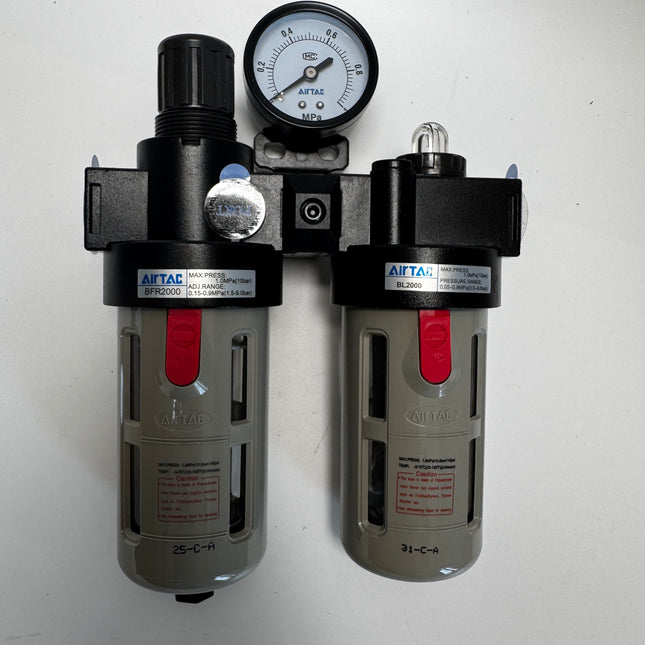

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC20001 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC20001 - 2

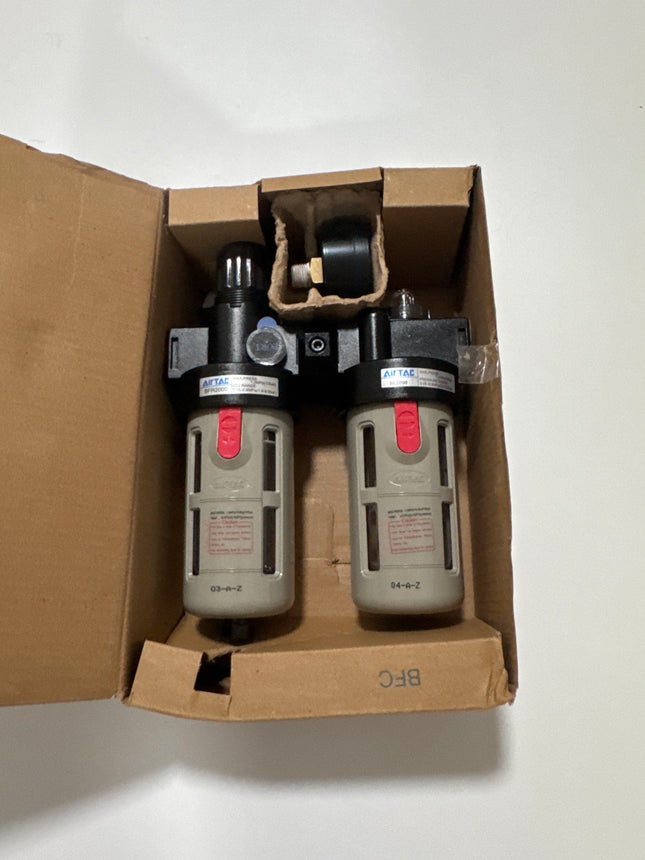

    Airtac BFC series: filter regulator and lubricator unit - BFC20001

    Specifications: BFC20001 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC20001 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR2000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL2000 lubricator Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Catalog reference: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. It is used for the matching standard configuration and is not an individually measured or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

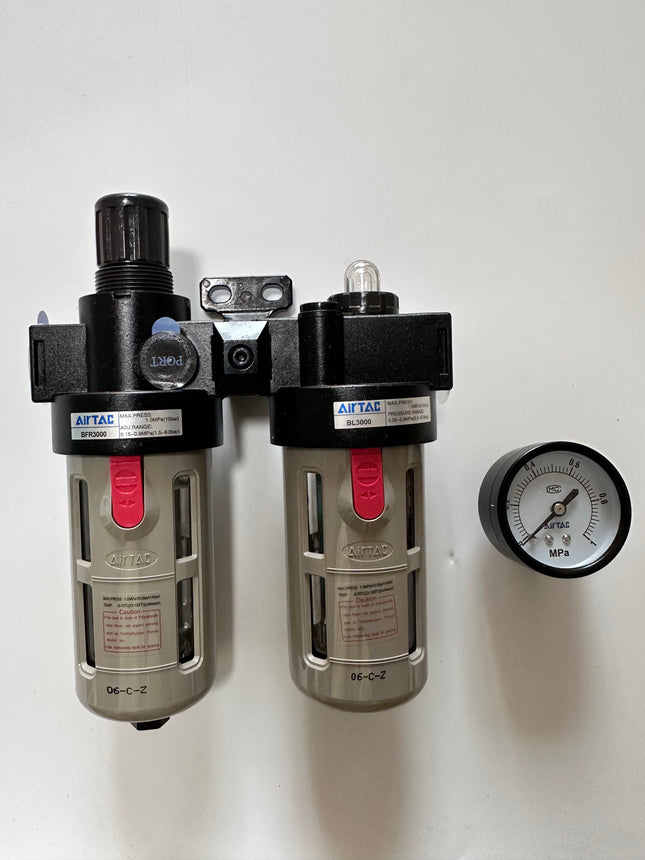

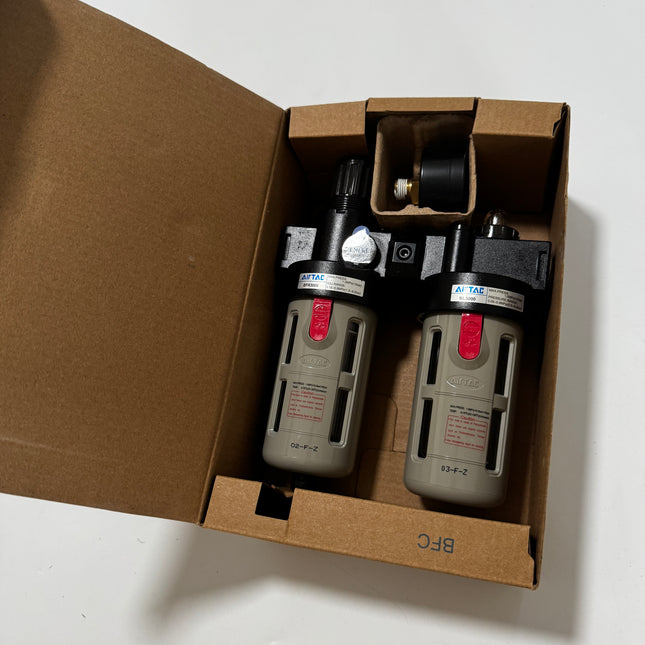

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC30001 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC30001 - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC30001

    Specifications: BFC30001 is an AirTAC BFC filter-regulator and lubricator combination with PT 3/8 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 3000 3/8-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC30001 Working medium Air Main ports PT 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR3000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL3000 lubricator Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 3/8 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

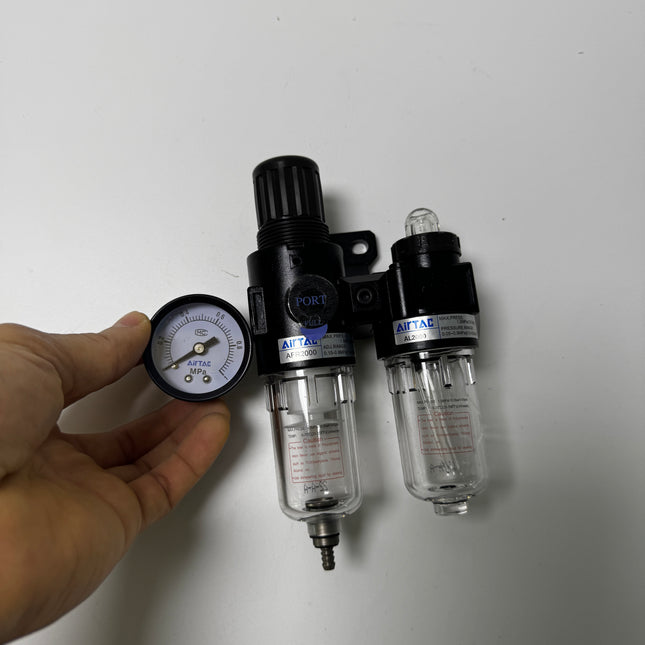

  • Airtac AFC: series F.R.L Pneumatic Air Filter - AFC20001 Airtac AFC: series F.R.L Pneumatic Air Filter - AFC20001 - 2

    Airtac AFC series: filter regulator and lubricator unit - AFC20001

    Specifications: AFC20001 is an AirTAC AFC filter-regulator and lubricator combination with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFC A Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model AFC20001 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 15 cc Oil bowl capacity 25 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/8-inch catalog gauge port Catalog reference weight 500 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 AFR2000 filter-regulator Drawing item 2 A Series bracket Drawing item 3 A Series gasket Drawing item 4 A Series fixing kit Drawing item 5 Screw Drawing item 6 AL2000 lubricator Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter. Performance Curves Parameter Details Flow-characteristic plot The AFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Front overall span 88 mm Front local callouts 12; 8; 31; 37 mm Overall height in illustrated configuration 151.5 mm Lubricator-side height callout 125 mm Side width / parenthesized depth 32 / (53) mm Bowl diameter Ø40 mm Gauge outside diameter Ø42 mm Side local callout 6 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Catalog reference: 362 g. The 2022 comprehensive catalog, printed page 300, lists AFC2000 at this value. It is used for the matching standard configuration and is not an individually measured or packaged shipping weight. The linked family catalog separately gives 500 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC40001 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC40001 - 2

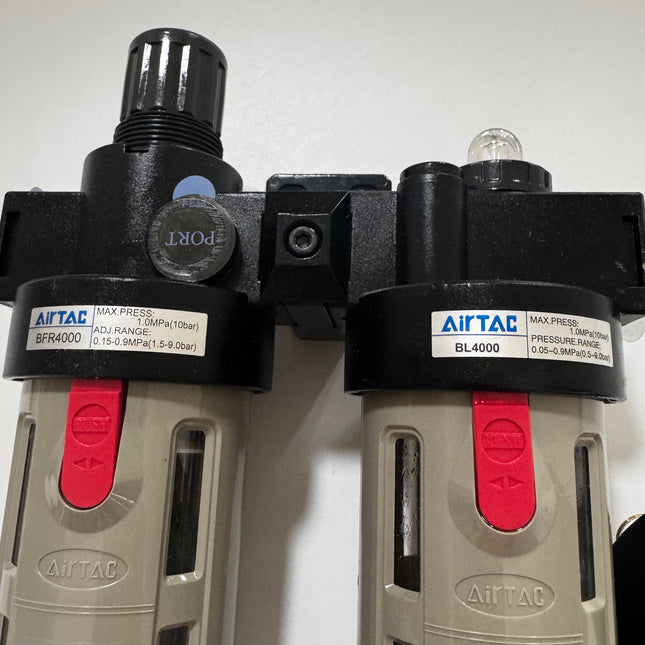

    Airtac BFC series: filter regulator and lubricator unit - BFC40001

    Specifications: BFC40001 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/2 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 4000 1/2-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC40001 Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR4000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL4000 lubricator Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC3000A1 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC3000A1 - 2

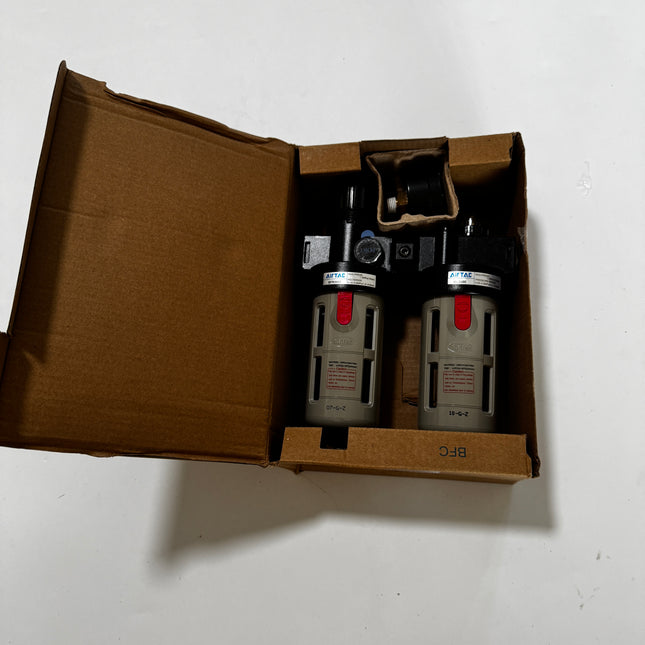

    Airtac BFC series: filter regulator and lubricator unit - BFC3000A1

    Specifications: BFC3000A1 is an AirTAC BFC filter-regulator and lubricator combination with PT 3/8 ports, a 40 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 3000 3/8-inch nominal port size A automatic drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC3000A1 Working medium Air Main ports PT 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR3000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL3000 lubricator Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 3/8 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; selected drain A. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

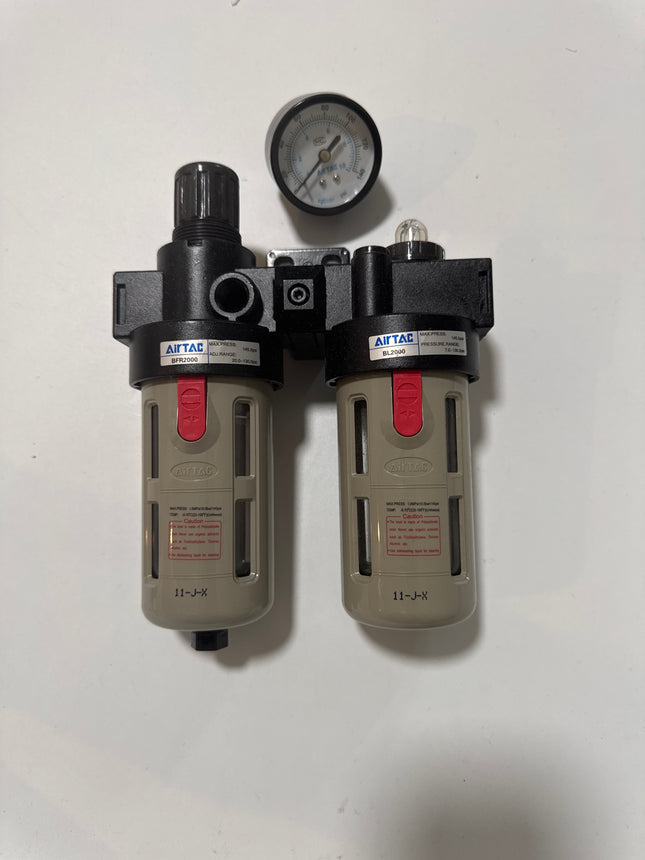

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC20004 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC20004 - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC20004

    Specifications: BFC20004 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a kgf/cm² and psi pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC20004 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR2000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL2000 lubricator Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: gauge option 4. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

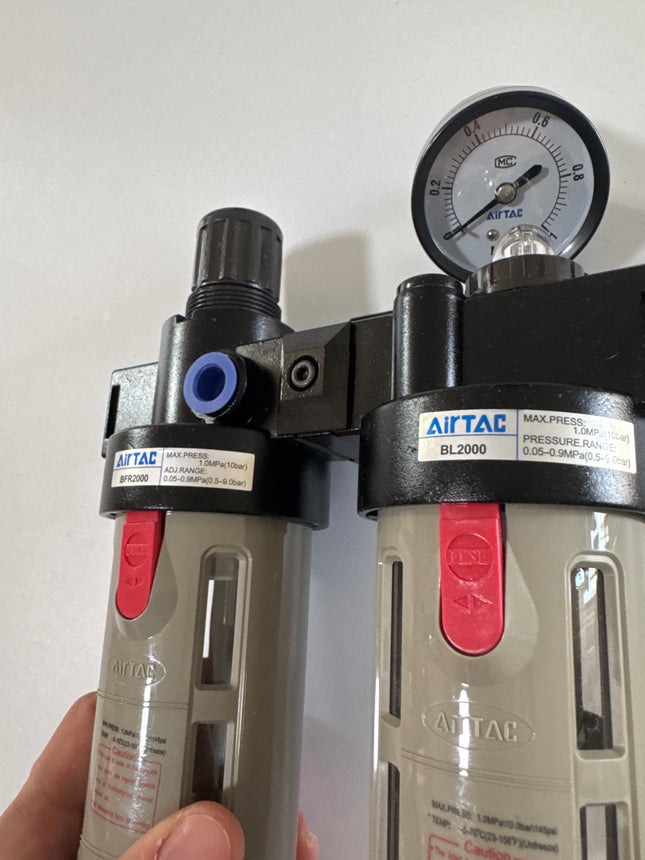

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC2000M1 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC2000M1 - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC2000M1

    Specifications: BFC2000M1 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/4 ports, a 40 µm filter and manual drain, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size M manual drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC2000M1 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR2000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL2000 lubricator Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain M. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC4000M1

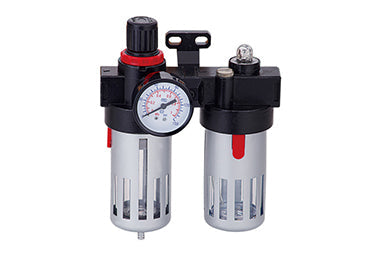

    Airtac BFC series: filter regulator and lubricator unit - BFC4000M1

    Specifications: BFC4000M1 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/2 ports, a 40 µm filter and manual drain, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 4000 1/2-inch nominal port size M manual drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC4000M1 Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR4000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL4000 lubricator Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; selected drain M. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

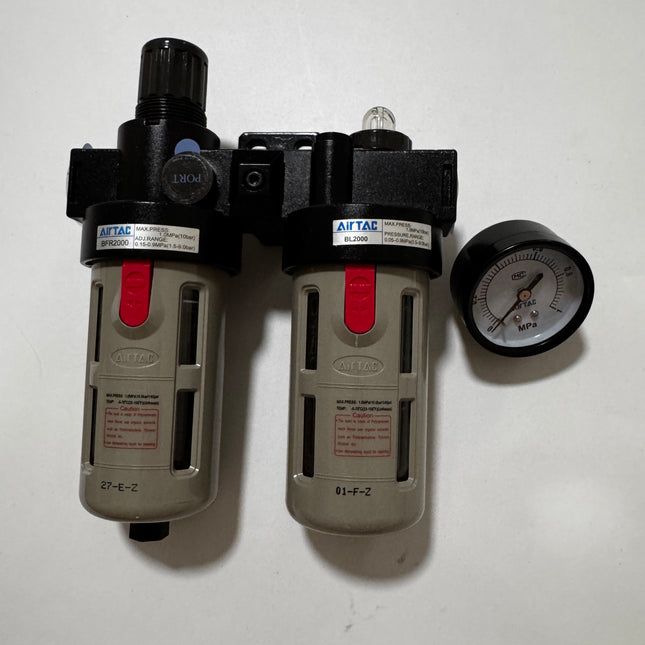

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC2000A1 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC2000A1 - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC2000A1

    Specifications: BFC2000A1 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/4 ports, a 40 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size A automatic drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC2000A1 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR2000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL2000 lubricator Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain A. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC3000MLNG

    Airtac BFC series: filter regulator and lubricator unit - BFC3000MLNG

    Specifications: BFC3000MLNG is an AirTAC BFC filter-regulator and lubricator combination with G 3/8 ports, a 40 µm filter and manual drain, the 0.4 MPa lower-pressure regulating option, and no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 3000 3/8-inch nominal port size M manual drain L Lower-pressure type: maximum adjustable pressure 0.4 MPa N No pressure gauge Blank filter code 40 µm filter element G G connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC3000MLNG Working medium Air Main ports G 3/8; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Not included Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR3000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL3000 lubricator Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection G 3/8 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 3000 differs from the reference; selected drain M; low-pressure option L; gauge option N; thread option G. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

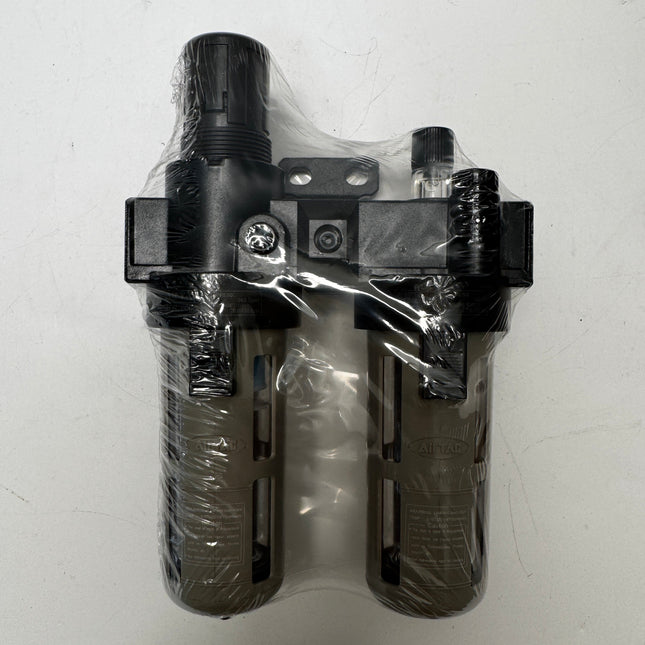

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC2000MNWT Airtac BFC: series F.R.L Pneumatic Air Filter - BFC2000MNWT - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC2000MNWT

    Specifications: BFC2000MNWT is an AirTAC BFC filter-regulator and lubricator combination with NPT 1/4 ports, a 5 µm filter and manual drain, the 0.9 MPa standard regulating option, and no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size M manual drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa N No pressure gauge W 5 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC2000MNWT Working medium Air Main ports NPT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type manual drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Not included Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR2000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL2000 lubricator Drain and Service Notes The selected drain is manual drain. The B Series manual-drain drawing identifies a 2.5 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/4 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain M; gauge option N; filter option W; thread option T. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac AFC: series F.R.L Pneumatic Air Filter - AFC2000MNT Airtac AFC: series F.R.L Pneumatic Air Filter - AFC2000MNT - 2

    Airtac AFC series: filter regulator and lubricator unit - AFC2000MNT

    Specifications: AFC2000MNT is an AirTAC AFC filter-regulator and lubricator combination with NPT 1/4 ports, a 40 µm filter and manual drain, the 0.9 MPa standard regulating option, and no pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFC A Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size M manual drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa N No pressure gauge Blank filter code 40 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model AFC2000MNT Working medium Air Main ports NPT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.05–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type manual drain Drain bowl capacity 15 cc Oil bowl capacity 25 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Not included Gauge connection 1/8-inch catalog gauge port Catalog reference weight 500 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 AFR2000 filter-regulator Drawing item 2 A Series bracket Drawing item 3 A Series gasket Drawing item 4 A Series fixing kit Drawing item 5 Screw Drawing item 6 AL2000 lubricator Drain and Service Notes The selected drain is manual drain. Performance Curves Parameter Details Flow-characteristic plot The AFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/4 at both flow ports Front overall span 88 mm Front local callouts 12; 8; 31; 37 mm Overall height in illustrated configuration 151.5 mm Lubricator-side height callout 125 mm Side width / parenthesized depth 32 / (53) mm Bowl diameter Ø40 mm Gauge outside diameter Ø42 mm Side local callout 6 mm Gauge shown in dimension drawing Gauge dimensions are reference only; this N version is supplied without a gauge. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 362 g. The 2022 comprehensive catalog, printed page 300, lists AFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain M; gauge option N; thread option T. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 500 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC4000AL4 Airtac BFC: series F.R.L Pneumatic Air Filter - BFC4000AL4 - 2

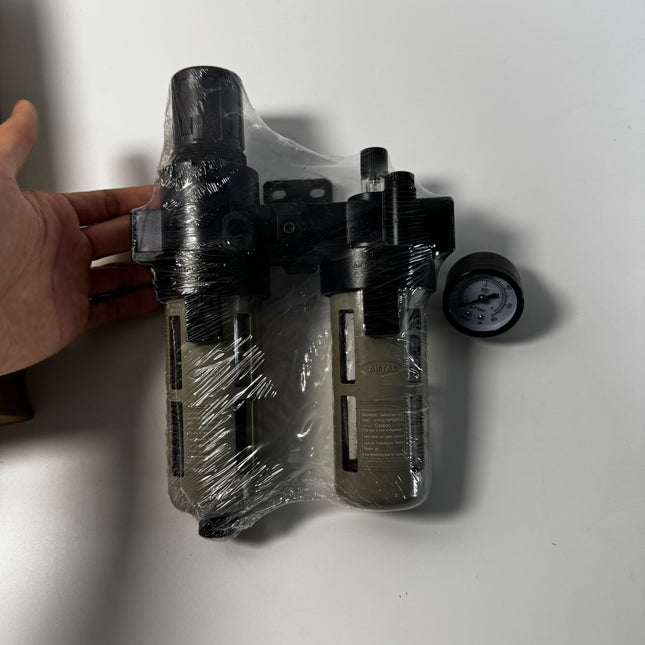

    Airtac BFC series: filter regulator and lubricator unit - BFC4000AL4

    Specifications: BFC4000AL4 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/2 ports, a 40 µm filter and automatic drain, the 0.4 MPa lower-pressure regulating option, and a kgf/cm² and psi pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 4000 1/2-inch nominal port size A automatic drain L Lower-pressure type: maximum adjustable pressure 0.4 MPa 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC4000AL4 Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.4 MPa; the selected lower-pressure type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR4000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL4000 lubricator Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; selected drain A; low-pressure option L; gauge option 4. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

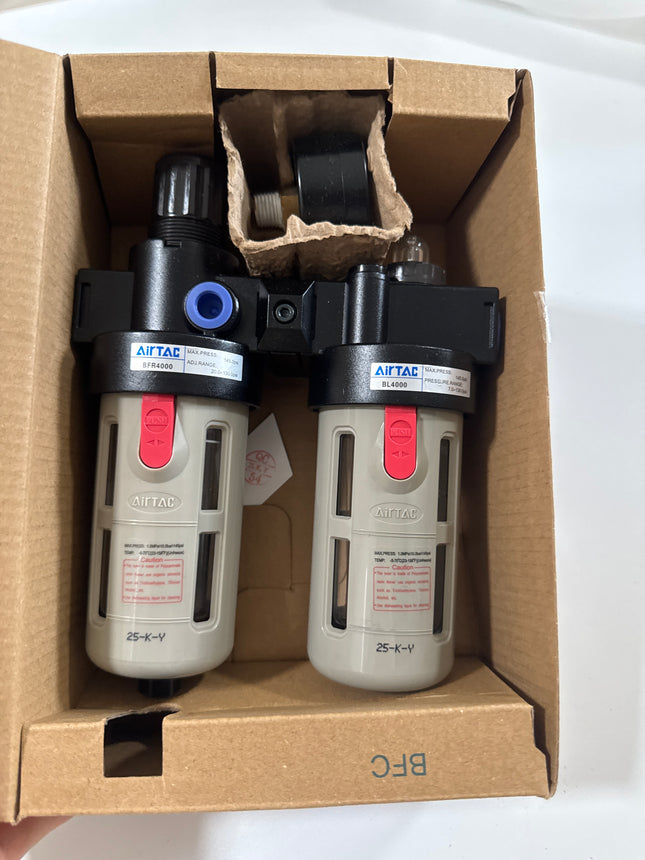

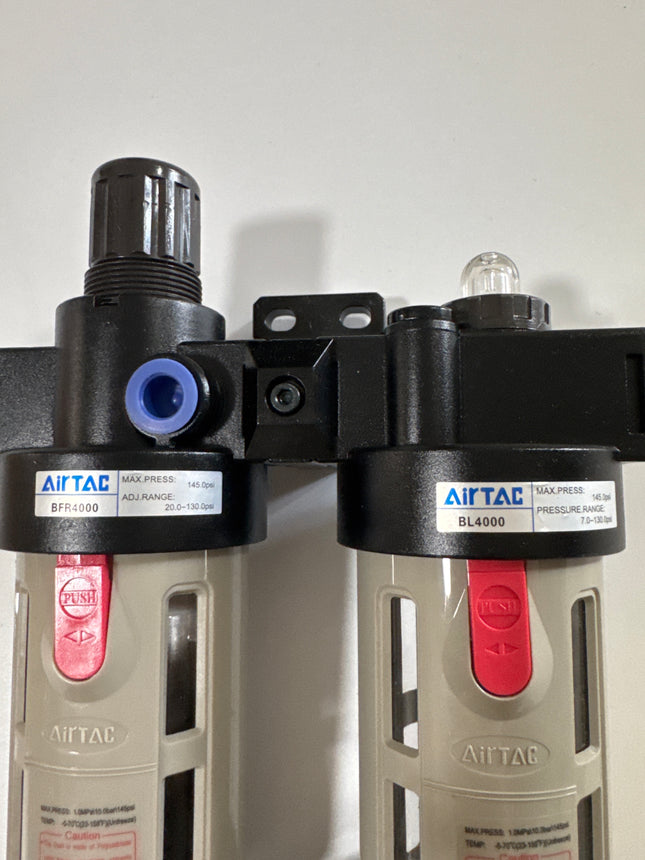

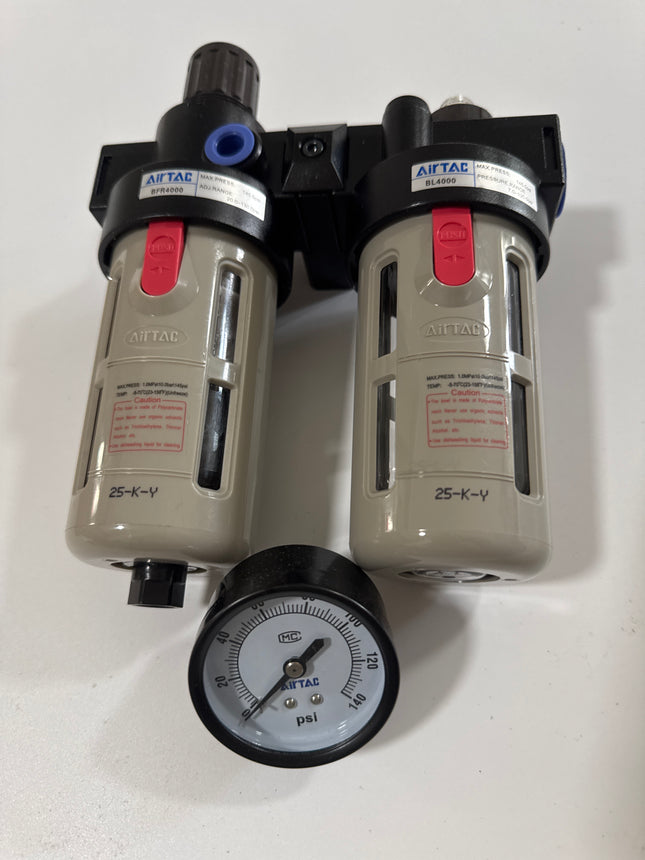

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC4000A2T Airtac BFC: series F.R.L Pneumatic Air Filter - BFC4000A2T - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC4000A2T

    Specifications: BFC4000A2T is an AirTAC BFC filter-regulator and lubricator combination with NPT 1/2 ports, a 40 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a psi pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 4000 1/2-inch nominal port size A automatic drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa 2 Pressure gauge included; scale: psi Blank filter code 40 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC4000A2T Working medium Air Main ports NPT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; psi scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR4000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL4000 lubricator Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/2 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; selected drain A; gauge option 2; thread option T. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

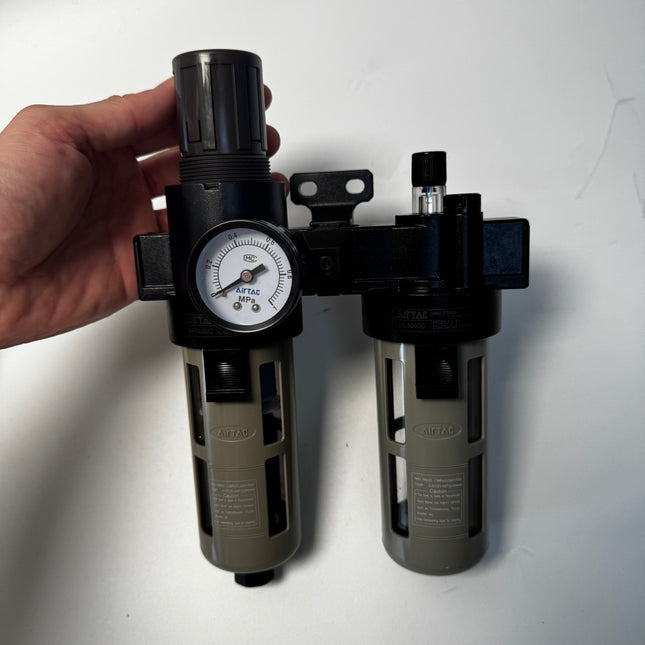

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC4000A1W Airtac BFC: series F.R.L Pneumatic Air Filter - BFC4000A1W - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC4000A1W

    Specifications: BFC4000A1W is an AirTAC BFC filter-regulator and lubricator combination with PT 1/2 ports, a 5 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a MPa pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 4000 1/2-inch nominal port size A automatic drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa 1 Pressure gauge included; scale: MPa W 5 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC4000A1W Working medium Air Main ports PT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type automatic drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; MPa scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR4000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL4000 lubricator Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/2 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; selected drain A; filter option W. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

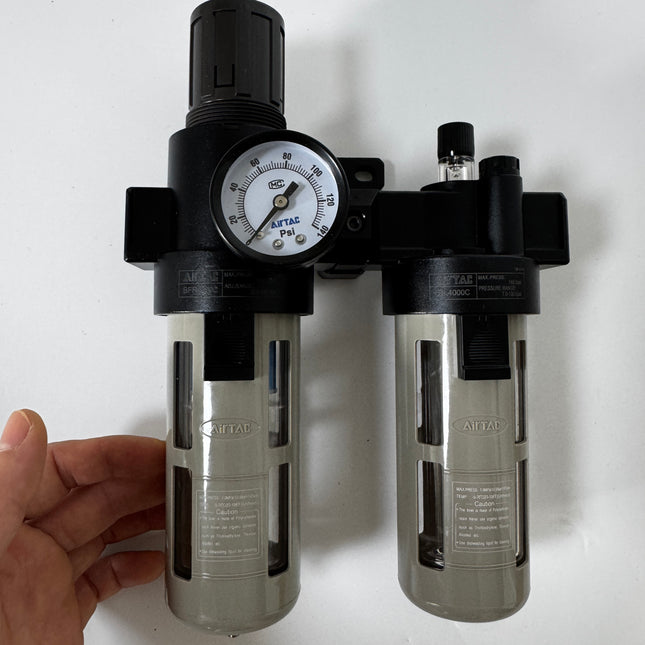

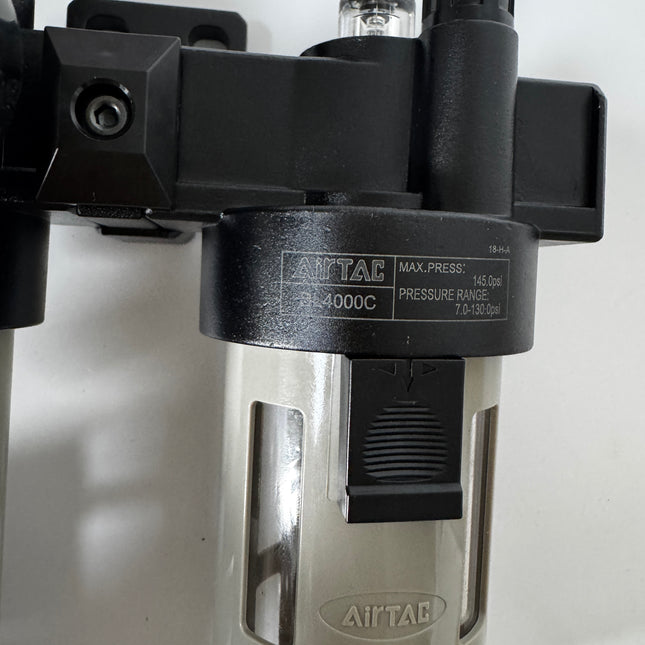

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC40002WT Airtac BFC: series F.R.L Pneumatic Air Filter - BFC40002WT - 2

    Airtac BFC series: filter regulator and lubricator unit - BFC40002WT

    Specifications: BFC40002WT is an AirTAC BFC filter-regulator and lubricator combination with NPT 1/2 ports, a 5 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a psi pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 4000 1/2-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa 2 Pressure gauge included; scale: psi W 5 µm filter element T NPT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC40002WT Working medium Air Main ports NPT 1/2; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 5 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; psi scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR4000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL4000 lubricator Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection NPT 1/2 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; gauge option 2; filter option W; thread option T. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

  • Airtac BFC: series F.R.L Pneumatic Air Filter - BFC2000A4

    Airtac BFC series: filter regulator and lubricator unit - BFC2000A4

    Specifications: BFC2000A4 is an AirTAC BFC filter-regulator and lubricator combination with PT 1/4 ports, a 40 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a kgf/cm² and psi pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product BFC B Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size A automatic drain Blank type code Standard type: maximum adjustable pressure 0.9 MPa 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model BFC2000A4 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type automatic drain Drain bowl capacity 60 cc Oil bowl capacity 90 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/4-inch catalog gauge port Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual; A: automatic Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 BFR2000 filter-regulator Drawing item 2 B Series bracket Drawing item 3 B Series gasket Drawing item 4 B Series fixing kit Drawing item 5 Screw Drawing item 6 BL2000 lubricator Drain and Service Notes The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection. Performance Curves Parameter Details Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Front overall span 154 mm Front local callouts 15; 23; 11; 31; 37 mm Overall height in illustrated configuration 201.5 mm Front vertical callouts 176; 139 mm Side width / depth 40 / 63 mm Bowl diameter Ø64 mm Gauge outside diameter Ø52 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: selected drain A; gauge option 4. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

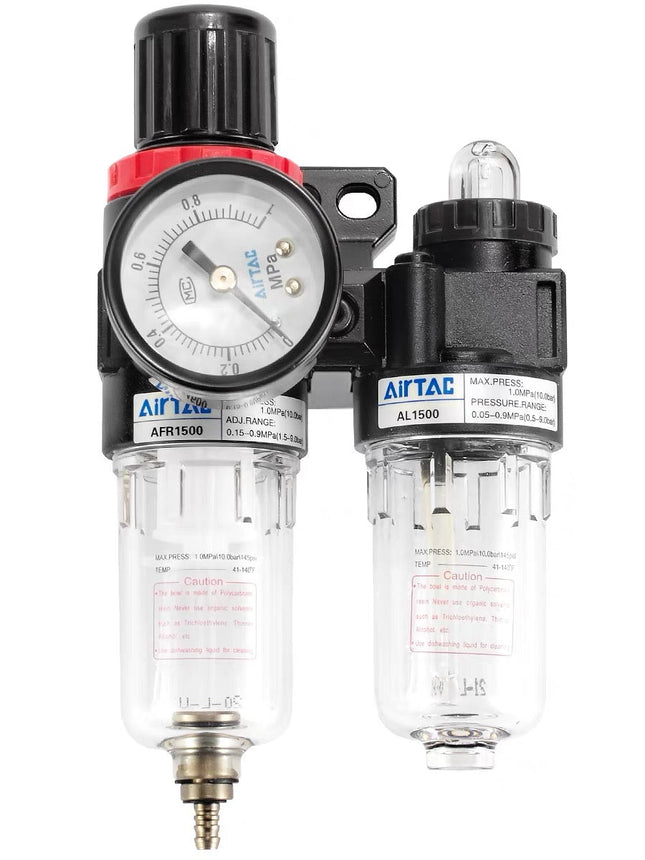

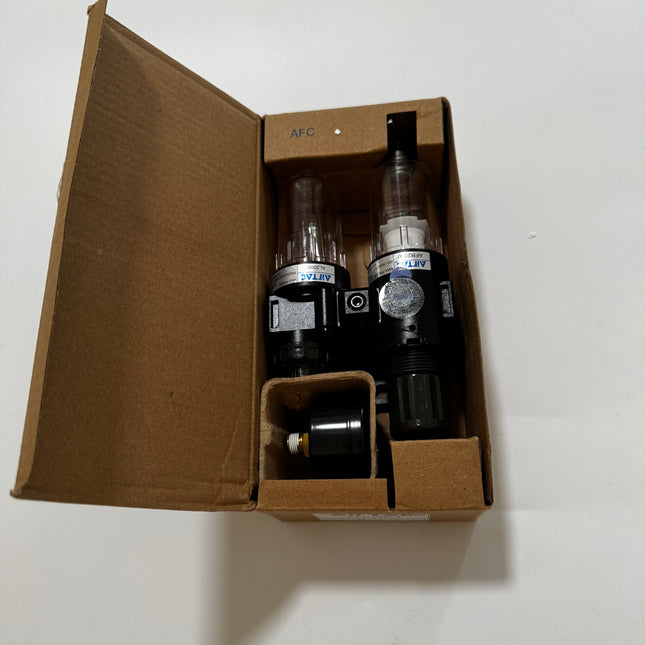

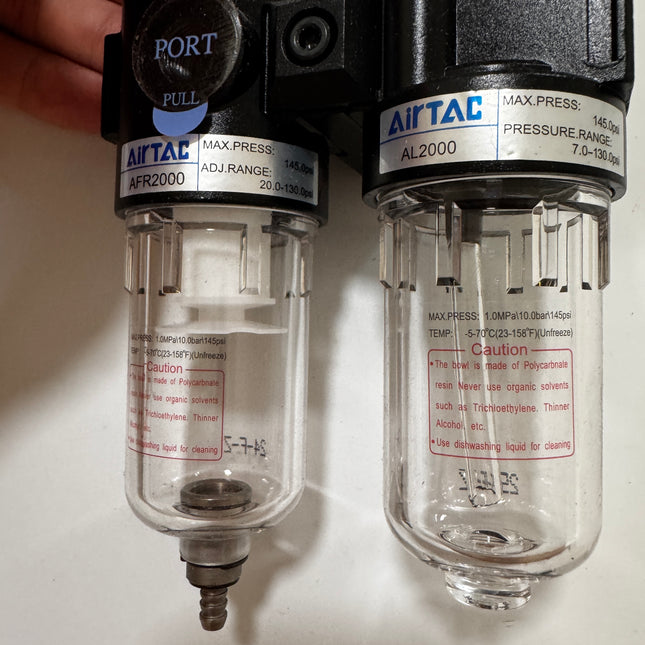

  • Airtac AFC: series F.R.L Pneumatic Air Filter - AFC20004 Airtac AFC: series F.R.L Pneumatic Air Filter - AFC20004 - 2

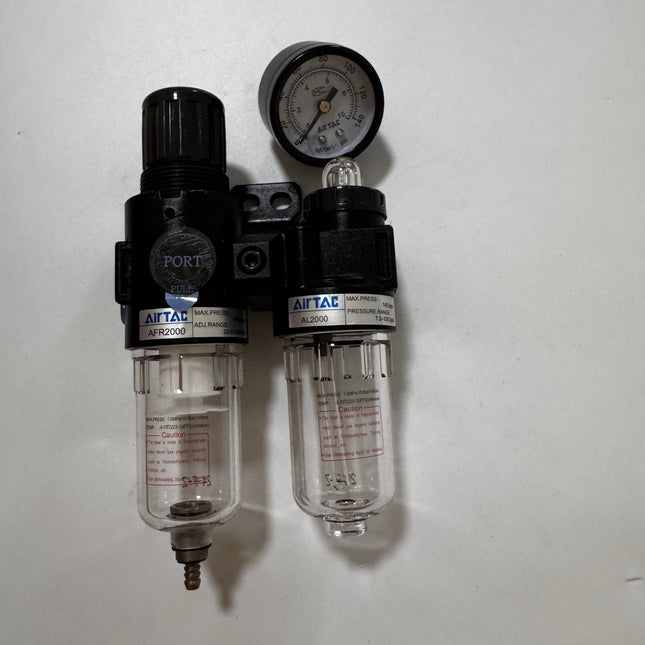

    Airtac AFC series: filter regulator and lubricator unit - AFC20004

    Specifications: AFC20004 is an AirTAC AFC filter-regulator and lubricator combination with PT 1/4 ports, a 40 µm filter and semi-automatic drain with manual drainage, the 0.9 MPa standard regulating option, and a kgf/cm² and psi pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product AFC A Series filter-regulator and lubricator combination 2000 1/4-inch nominal port size Blank drain code semi-automatic drain with manual drainage Blank type code Standard type: maximum adjustable pressure 0.9 MPa 4 Pressure gauge included; scale: kgf/cm² and psi Blank filter code 40 µm filter element Blank thread code PT connection thread Product Features The compact construction is designed for pneumatic air preparation. The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting. The filter separates condensed water and solid particles with low pressure loss and efficient water separation. The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment. Technical Specifications Parameter Details Current model AFC20004 Working medium Air Main ports PT 1/4; inlet and outlet as indicated by the flow direction Proof pressure 1.5 MPa (215 psi) Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code Maximum inlet pressure 1.0 MPa (145 psi) Temperature range −5 to 70 °C, non-freezing Filtration 40 µm Drain type semi-automatic drain with manual drainage Drain bowl capacity 15 cc Oil bowl capacity 25 cc Recommended lubricant ISO VG 32 or equivalent Pressure gauge Included; kgf/cm² and psi scale Gauge connection 1/8-inch catalog gauge port Catalog reference weight 500 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight. Series Ordering Options The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product. Parameter Details Port-size choices in this family 1500: 1/8; 2000: 1/4 Thread choices Blank: PT; G: G; T: NPT Drain choices Blank: semi-automatic; M: manual Filter choices Blank: 40 µm; W: 5 µm Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2. Assembly and Catalog Callouts This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities. Drawing Reference Component Drawing item 1 AFR2000 filter-regulator Drawing item 2 A Series bracket Drawing item 3 A Series gasket Drawing item 4 A Series fixing kit Drawing item 5 Screw Drawing item 6 AL2000 lubricator Drain and Service Notes The selected drain is semi-automatic drain with manual drainage. The semi-automatic drain also allows manual drainage. The A Series semi-automatic outlet is drawn with a Ø5 mm spigot and a 13 mm local length; the drain note recommends PU tubing with a 4 mm inside diameter. Performance Curves Parameter Details Flow-characteristic plot The AFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–700 L/min and the outlet-pressure axis 0–0.6 MPa. How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure. Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range. Dimensions and Mounting Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline. Parameter Details Main connection PT 1/4 at both flow ports Front overall span 88 mm Front local callouts 12; 8; 31; 37 mm Overall height in illustrated configuration 151.5 mm Lubricator-side height callout 125 mm Side width / parenthesized depth 32 / (53) mm Bowl diameter Ø40 mm Gauge outside diameter Ø42 mm Side local callout 6 mm Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Weight Reference and Catalog Edition Approximate reference weight: 362 g. The 2022 comprehensive catalog, printed page 300, lists AFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: gauge option 4. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 500 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.

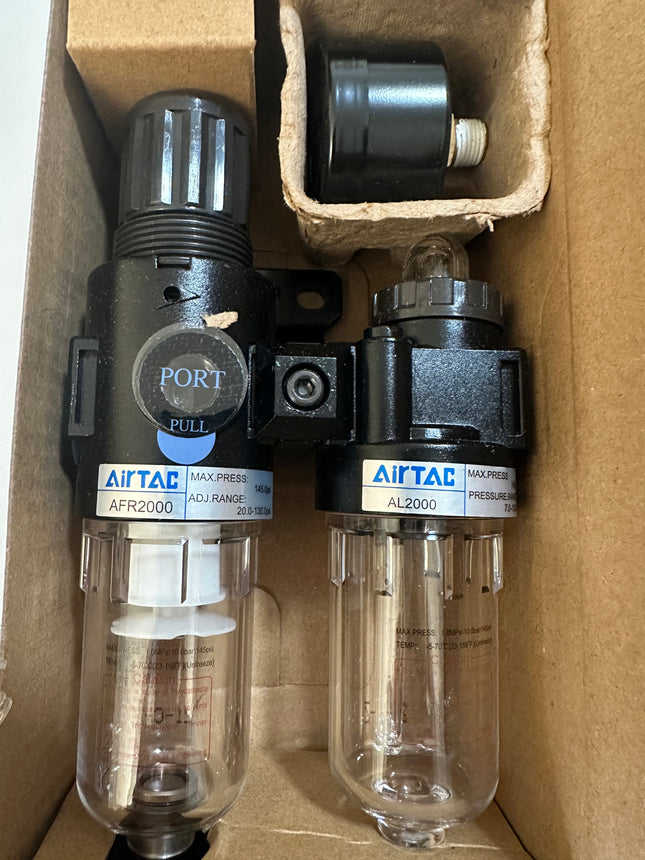

  • Airtac AFC: series F.R.L Pneumatic Air Filter - AFC20002T Airtac AFC: series F.R.L Pneumatic Air Filter - AFC20002T - 2

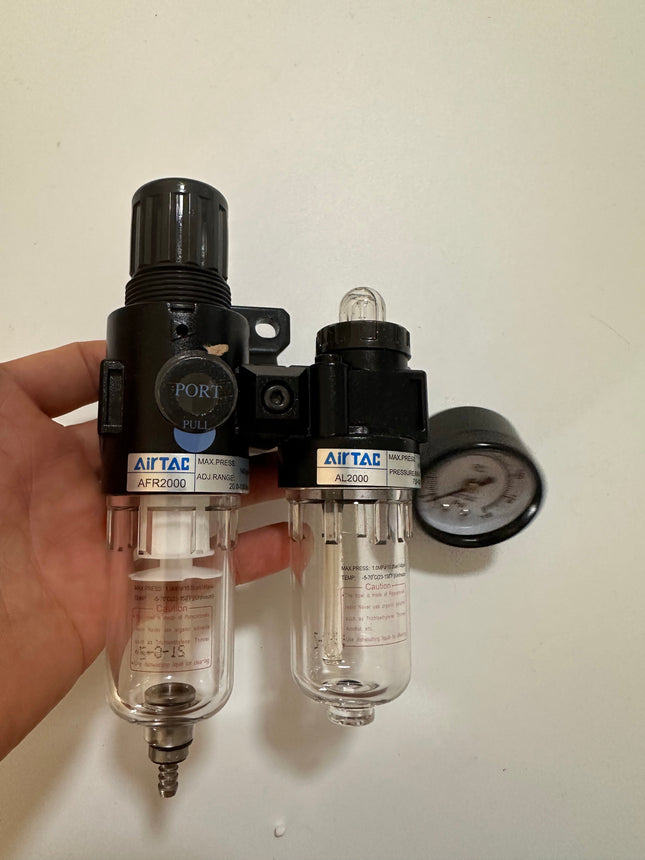

    Airtac AFC series: filter regulator and lubricator unit - AFC20002T
