Description

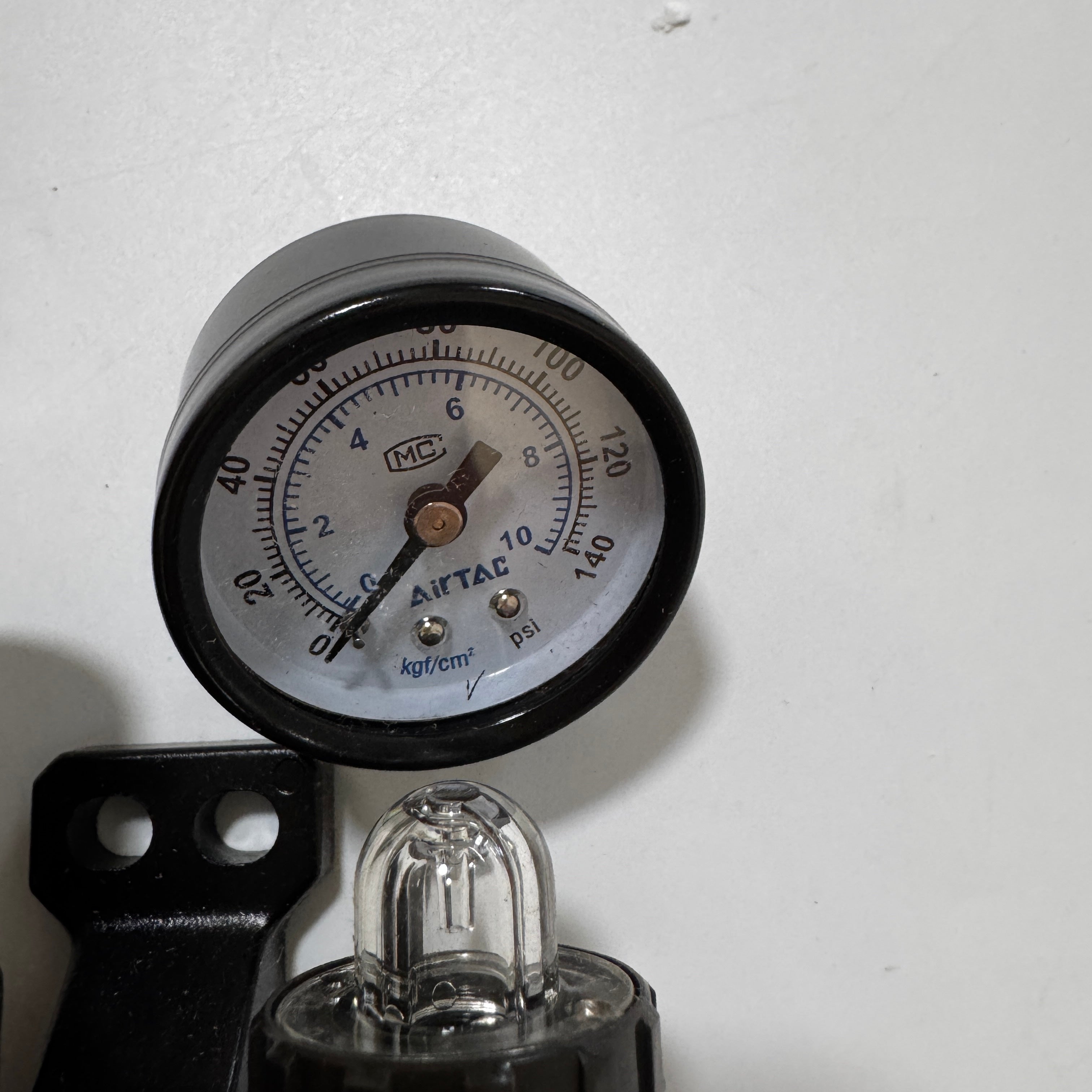

Series: A series of two pieces Nozzle caliber: 1/4" Drainage mode: differential pressure drainage type Type: Standard type (0.9MPa) Pressure gauge: schedule Scale unit: kgf/cm² & psi Filtration accuracy: 40μm level Tooth type: PT tooth
Specifications
1. Model: AFC20004
2. Working medium: air, nozzle diameter: PT1/4, filter element accuracy: 40μm or 5μm, pressure regulating range: 0.15~0.9MPa(20 ~ 130psi)
3. Maximum operating pressure: 1.0MPa(145psi), guaranteed pressure resistance: 1.5MPa(215psi), operating temperature range:-5~70 ℃ (not frozen)
4. Filter cup capacity: 15CC, oil cup capacity: 25CC, recommended lubricating oil: ISO VG32 or equivalent oil

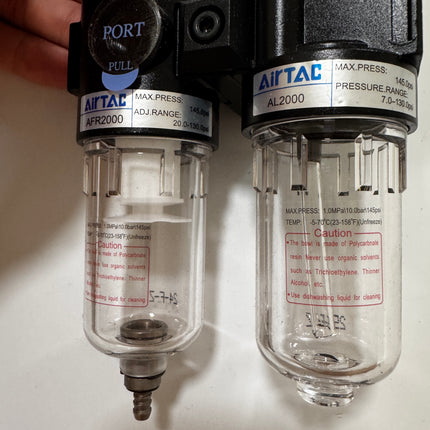

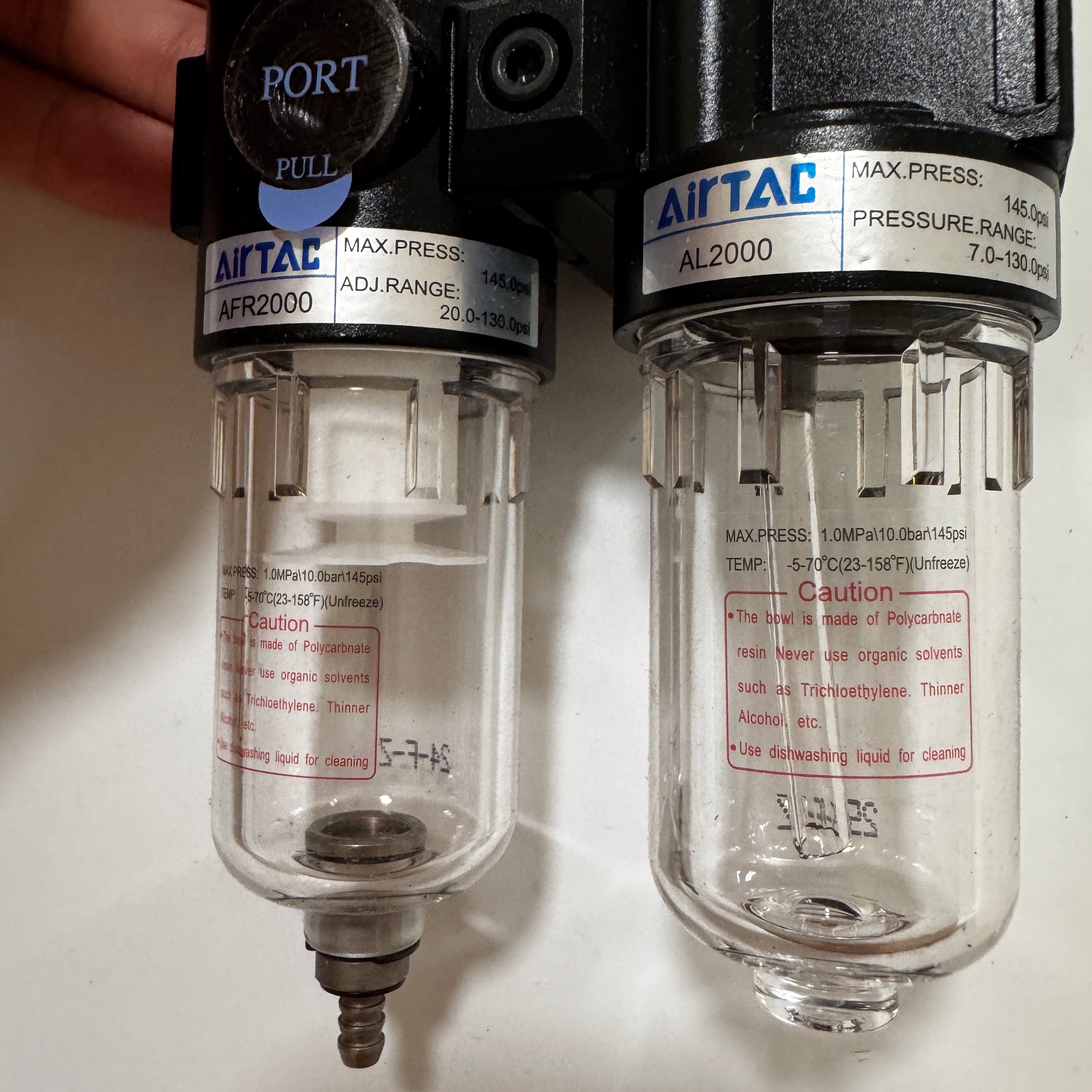

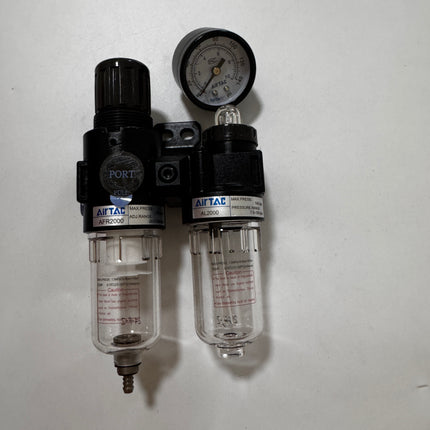

5. Components: pressure regulating filter: AFR2000, oil feeder: AL2000, nozzle type with G teeth and NPT teeth optional

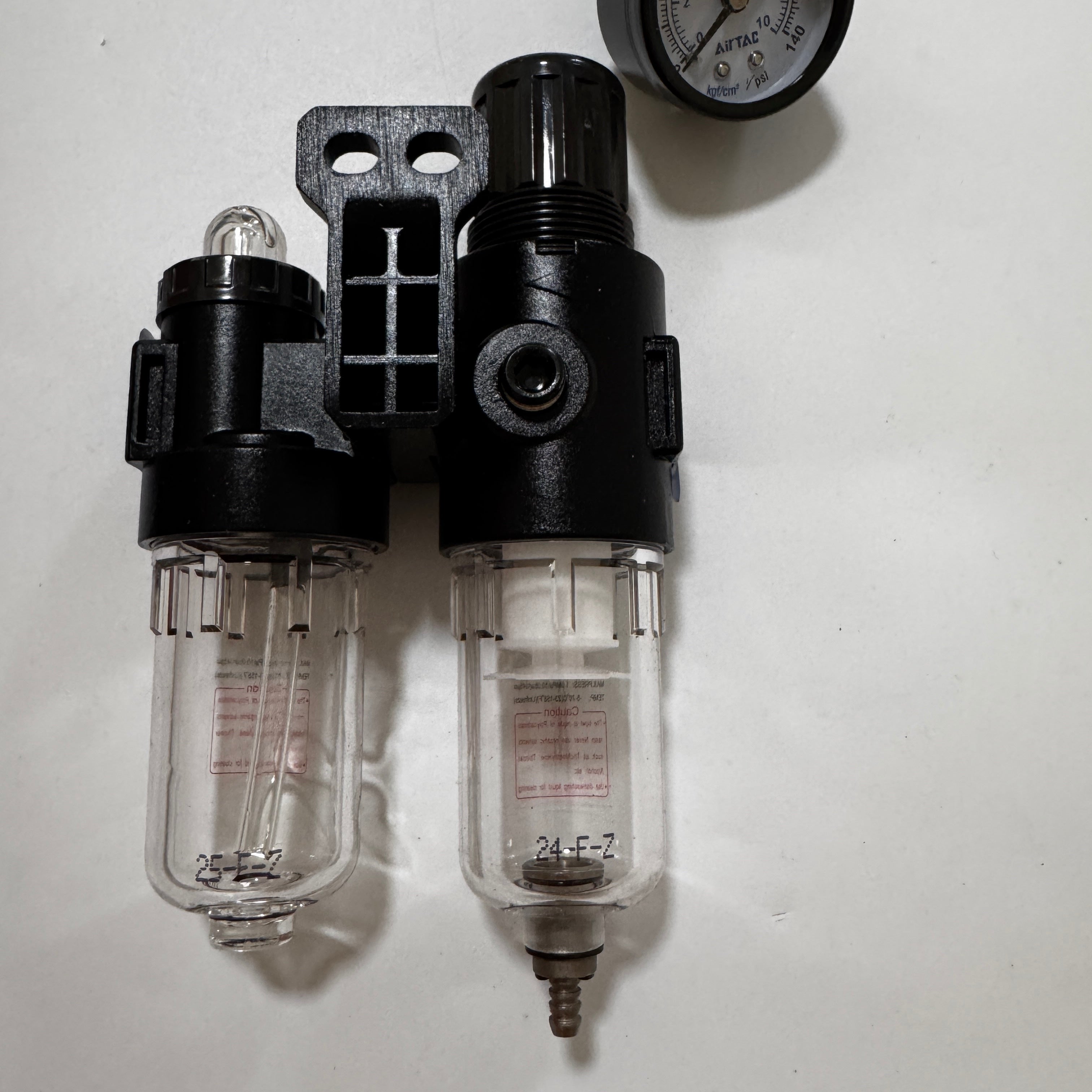

Internal structure: 1.AFR, BFR series pressure regulating filter/2.A, B series fixing bracket/3.A, B series connecting piece/4.A, B series bracket fixing piece/5. Hexagon socket bolt/6.AL, BL series oil feeder
Filter cartridge :AFC-40 With white 40μm filter element AFC-5 With blue 5μm filter element
Click to download Airtac product catalog
Product Features
1. compact structure, easy to install and use.
2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference.
3. Low pressure loss, high water efficiency.
4. The amount of oil dripping can be directly observed through the transparent inspection cover.
5. In addition to the standard type, and low pressure type optional (maximum adjustable pressure 0.4MPa).
