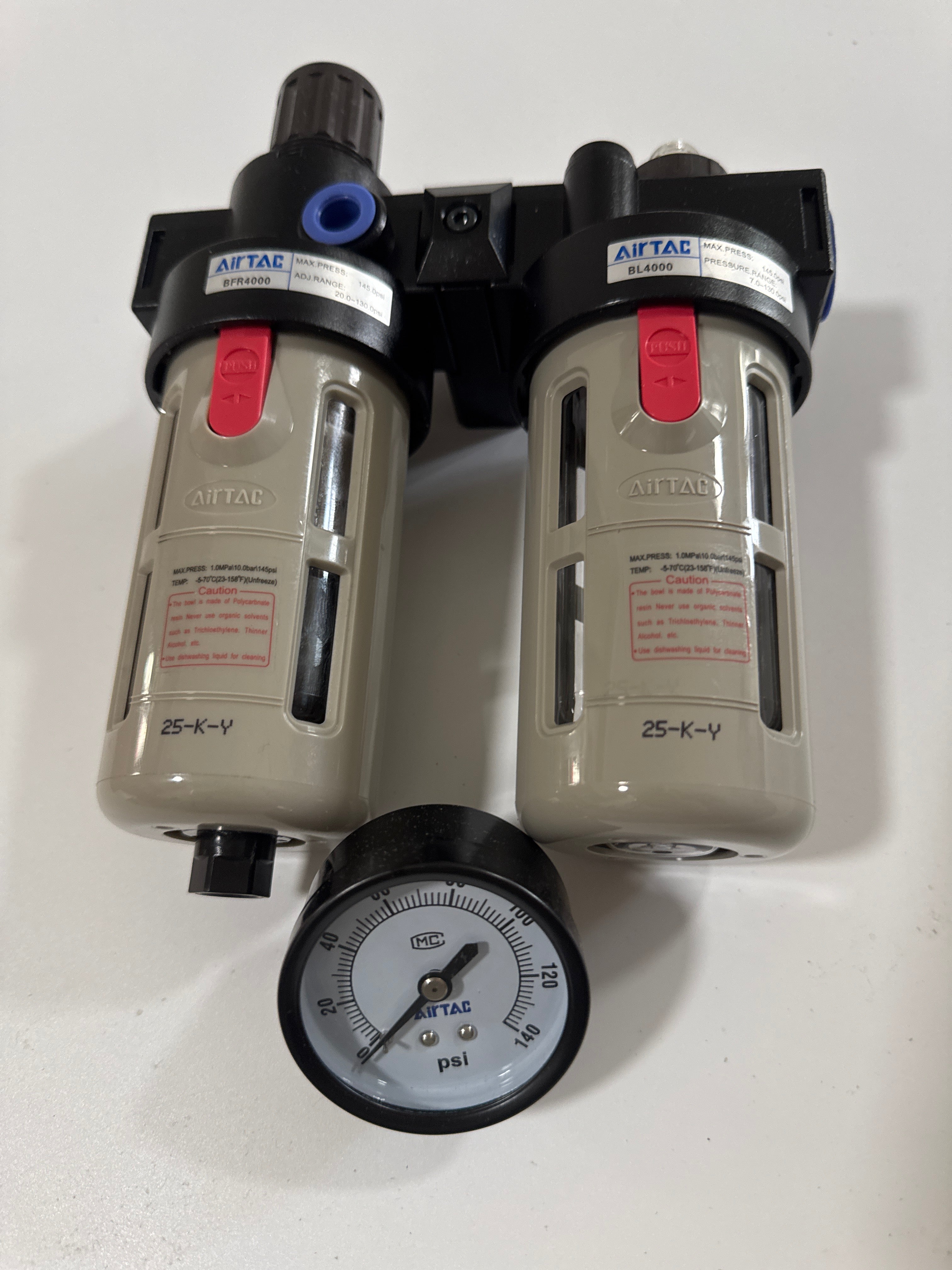

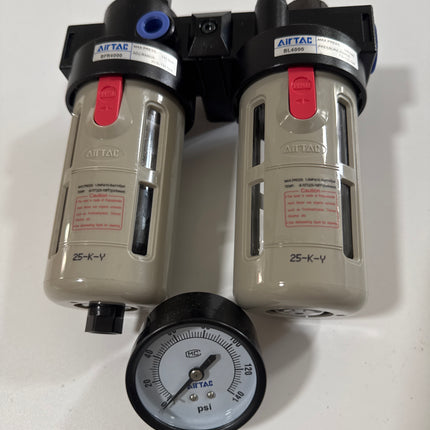

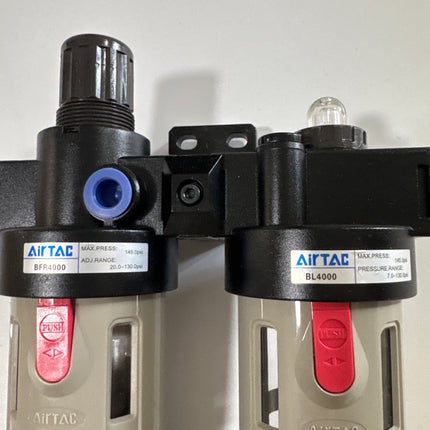

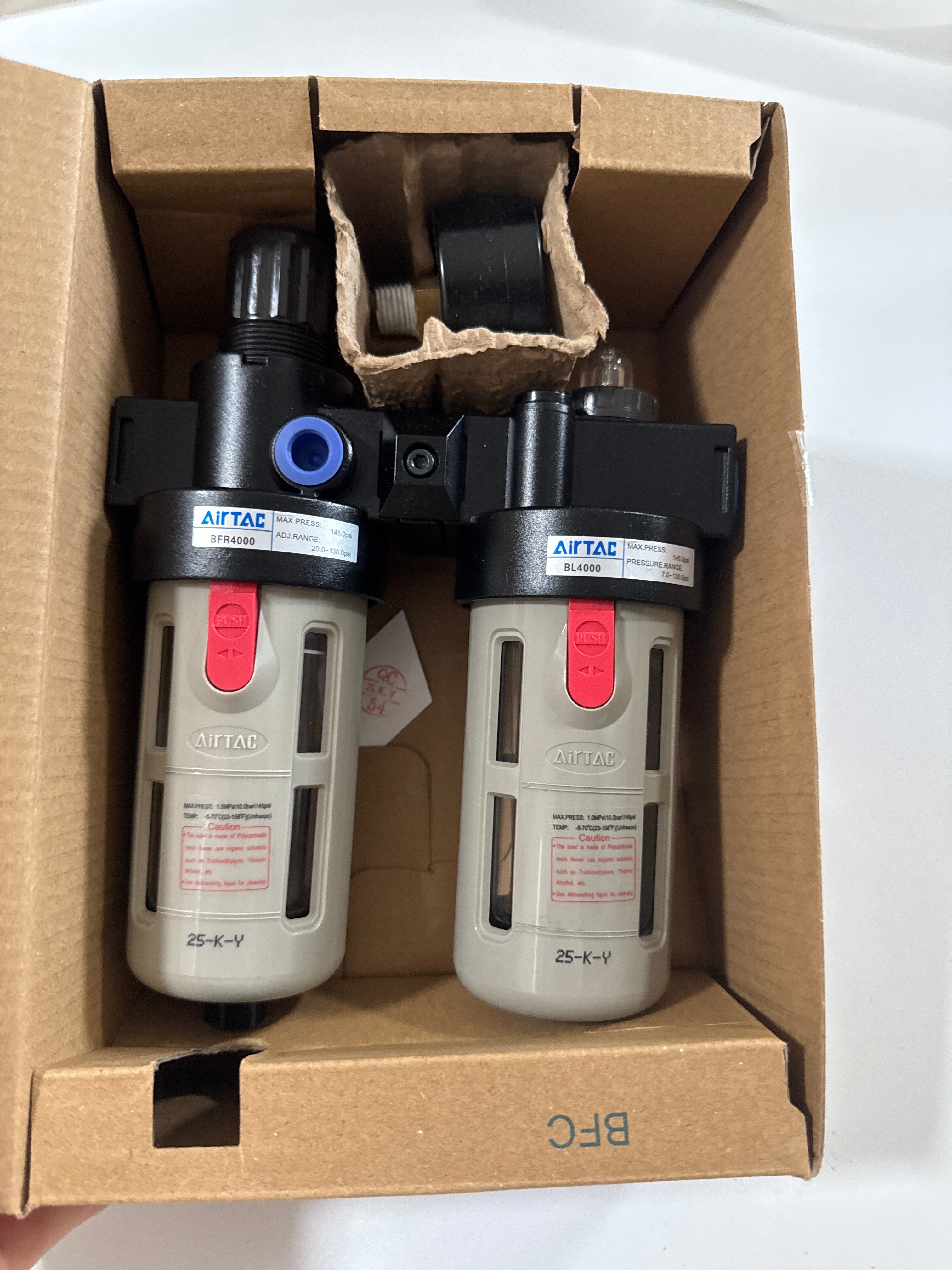

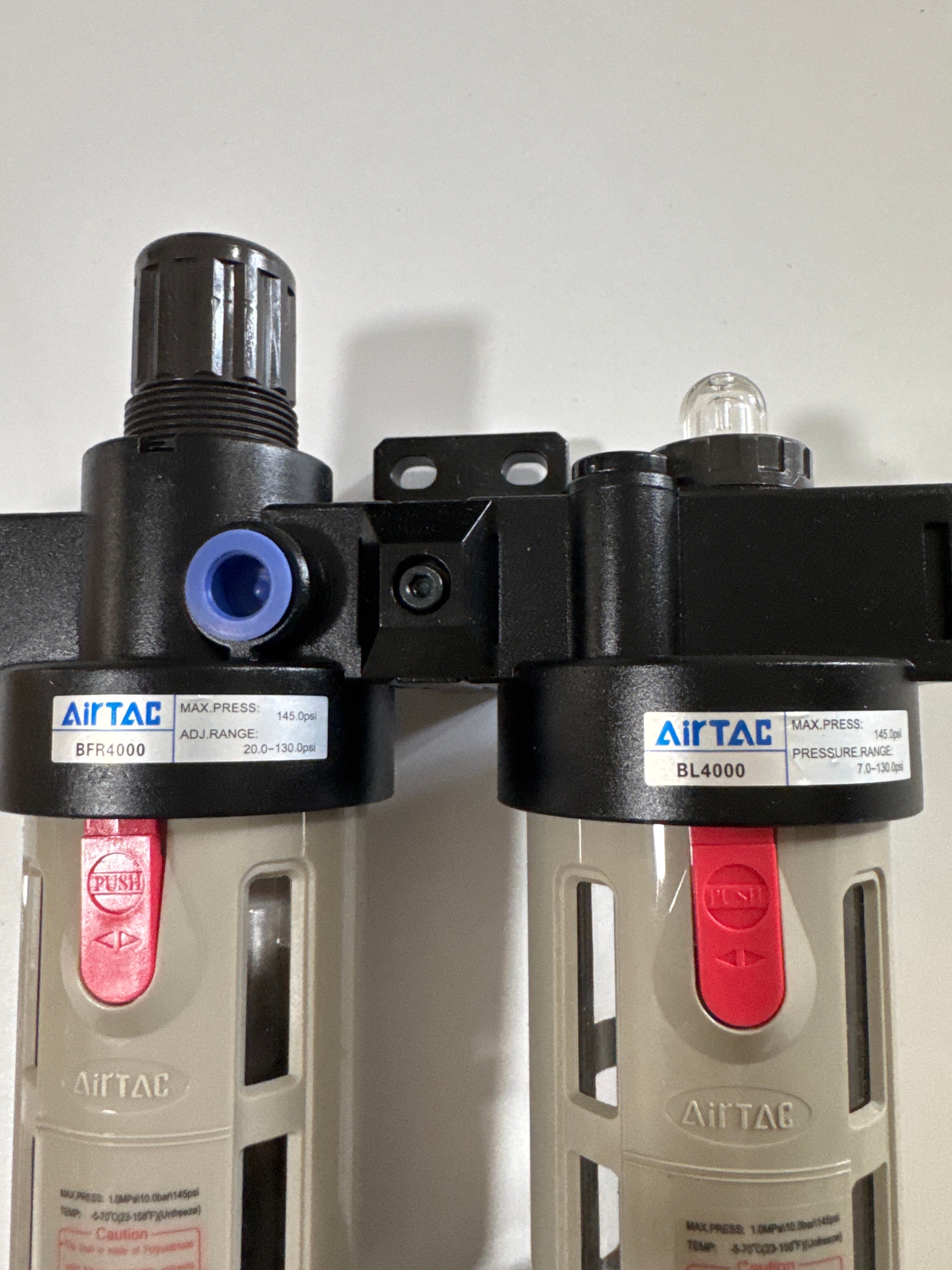

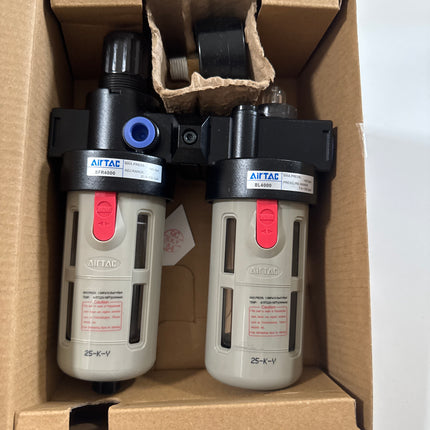

Airtac BFC series: filter regulator and lubricator unit - BFC4000A2T

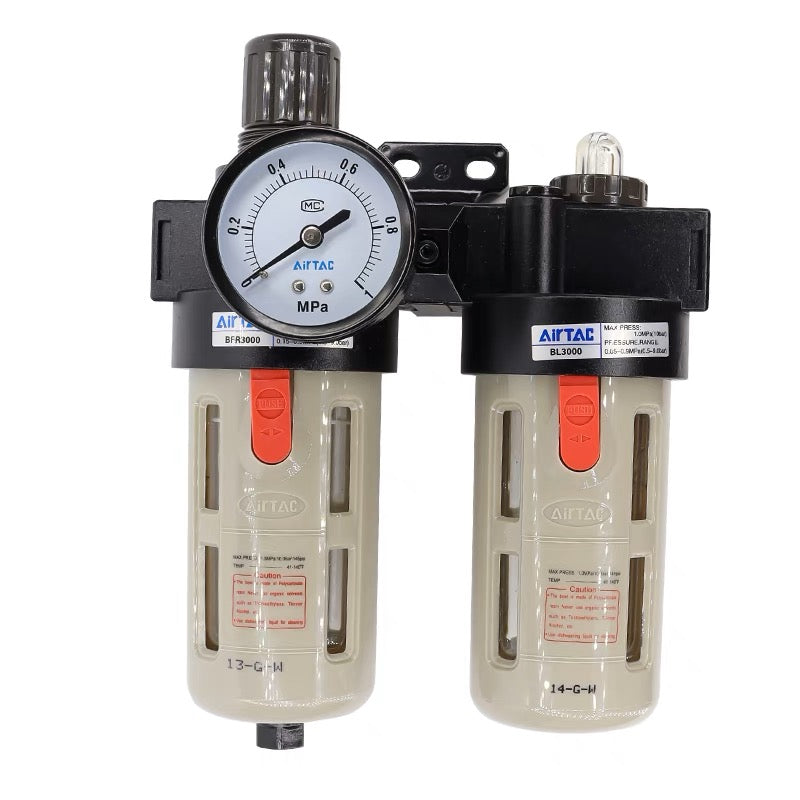

Photos are for reference only. Not all models have pictures.

Description

Specifications: BFC4000A2T is an AirTAC BFC filter-regulator and lubricator combination with NPT 1/2 ports, a 40 µm filter and automatic drain, the 0.9 MPa standard regulating option, and a psi pressure gauge.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for This Product
BFC B Series filter-regulator and lubricator combination
4000 1/2-inch nominal port size
A automatic drain
Blank type code Standard type: maximum adjustable pressure 0.9 MPa
2 Pressure gauge included; scale: psi
Blank filter code 40 µm filter element
T NPT connection thread

Product Features

  • The compact construction is designed for pneumatic air preparation.
  • The pressure adjustment mechanism has a push-in self-locking feature to prevent accidental changes to the setting.
  • The filter separates condensed water and solid particles with low pressure loss and efficient water separation.
  • The lubricator has a transparent oil-drop viewing dome, allowing the oil supply to be observed during adjustment.

Technical Specifications

Parameter Details
Current model BFC4000A2T
Working medium Air
Main ports NPT 1/2; inlet and outlet as indicated by the flow direction
Proof pressure 1.5 MPa (215 psi)
Adjustable pressure range 0.15–0.9 MPa; the selected standard type is determined by the ordering code
Maximum inlet pressure 1.0 MPa (145 psi)
Temperature range −5 to 70 °C, non-freezing
Filtration 40 µm
Drain type automatic drain
Drain bowl capacity 60 cc
Oil bowl capacity 90 cc
Recommended lubricant ISO VG 32 or equivalent
Pressure gauge Included; psi scale
Gauge connection 1/4-inch catalog gauge port
Catalog reference weight 700 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight.

Series Ordering Options

The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product.

Parameter Details
Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2
Thread choices Blank: PT; G: G; T: NPT
Drain choices Blank: semi-automatic; M: manual; A: automatic
Filter choices Blank: 40 µm; W: 5 µm
Regulating choices Blank: 0.9 MPa standard; L: 0.4 MPa lower-pressure
Gauge choices Blank gauge option supplies a gauge; N omits the gauge. Scale codes are 1: MPa, 2: psi, 3: bar, 4: kgf/cm² and psi. PT uses scale 1 or 4, G uses scale 3, and NPT uses scale 2.

Assembly and Catalog Callouts

This is a complete air-preparation combination. Its filter/regulator and lubricator functions are included; the following numbered items identify the assembly drawing, not a separately priced repair kit or a declaration of spare-part quantities.

Drawing Reference Component
Drawing item 1 BFR4000 filter-regulator
Drawing item 2 B Series bracket
Drawing item 3 B Series gasket
Drawing item 4 B Series fixing kit
Drawing item 5 Screw
Drawing item 6 BL4000 lubricator

Drain and Service Notes

The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection.

Performance Curves

Parameter Details
Flow-characteristic plot The BFC family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa.
How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure.
Flow-plot inlet pressure 0.7 MPa, as stated beside the linked catalog plot
Pressure-regulation plot Inlet-pressure axis: 0–0.9 MPa. Outlet-pressure axis: 0.18–0.22 MPa. The illustrated setpoint is around 0.20 MPa; this is a test curve, not the entire adjustable range.

Dimensions and Mounting

Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline.

Parameter Details
Main connection NPT 1/2 at both flow ports
Front overall span 154 mm
Front local callouts 15; 23; 11; 31; 37 mm
Overall height in illustrated configuration 201.5 mm
Front vertical callouts 176; 139 mm
Side width / depth 40 / 63 mm
Bowl diameter Ø64 mm
Gauge outside diameter Ø52 mm
Gauge shown in dimension drawing The illustrated gauge is included under the selected gauge code.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Weight Reference and Catalog Edition

Approximate reference weight: 789 g. The 2022 comprehensive catalog, printed page 300, lists BFC2000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 4000 differs from the reference; selected drain A; gauge option 2; thread option T. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 700 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.
