Airtac 2V series: two-way fluid solenoid valve - 2V02506A

Photos are for reference only. Not all models have pictures.

Description

Specifications: 2V02506A is an AirTAC 2V025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, PT 1/8 in ports, a AC 220 V coil and DIN connector / terminal entry. The valve is direct acting, with a nickel-plated brass body and VITON (fluoroelastomer) seals.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Original Product Statement

Airtac 2V series valves are functional alternatives to SMC VXP series valves.

Model Code Explained

Code Meaning for this model
2V 2-port, 2-position fluid-control solenoid valve
025 2.5 mm orifice
06 1/8 in
A AC 220 V
(blank electrical-entry code) DIN connector / terminal entry
(blank thread code) PT thread

Technical Specifications

Parameter Details
Working medium Air, water and oil; check seal compatibility for the actual medium
Actuation direct acting
Normal state Normally closed
Orifice diameter 2.5 mm
Cv 0.23
Port size PT 1/8 in
Fluid viscosity Below 20 cSt
Operating pressure 0–1.0 MPa (catalog: 0–145 psi)
Proof pressure 1.5 MPa (catalog: 215 psi)
Body material Nickel-plated brass
Seal material VITON (fluoroelastomer)
Activating time 0.05 s or less
Catalog reference weight 228 g

Weight reference: 2022 catalog, printed page 300, 2V025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2V pages do not specify an operating-temperature range.

Electrical Specifications

Parameter Details
Selected coil voltage AC 220 V
Supply type AC
Supply frequency 50 / 60 Hz
Permitted voltage variation ±15%
Power consumption 7.0 VA
Insulation class Class B
Catalog coil temperature rise 35 °C
Electrical entry DIN connector / terminal entry

The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit.

Features and Operation

  • The direct-acting, normally closed construction supports rapid switching.
  • The body is compact; its nickel-plated brass construction and VITON seals follow the specification table.
  • The normally closed symbol identifies the closed flow path when the coil is not energized.

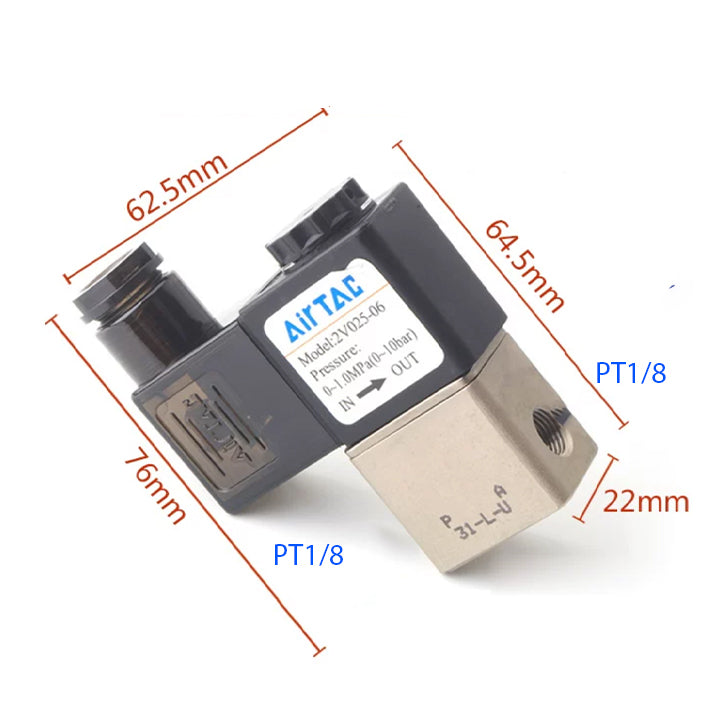

External and Mounting Dimensions

The following values follow the applicable DIN connector / terminal entry drawing in 2022 printed page 189; linked PDF page 2. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model.

Parameter Details
Side-view horizontal dimension 62.5 mm
Side-view body-and-coil height 64.5 mm
Overall height including DIN connector 76 mm
Front body width 22 mm
Port-center height above base 9.5 mm
Bottom mounting holes 2 × M4 × 0.7
Mounting-hole center distance 15 mm
Bottom drawing offset 5 mm
Process connections 2 × PT 1/8 in

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Flow Characteristics

The 2V catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit.

Internal Components

The catalog section view is the 2V025 DIN-connector illustration. It provides the internal-structure reference; connector callouts 1 and 2 belong to the DIN version and do not describe supplied connectors on an I flying-lead model. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities.

Drawing callout Component
1 Connector
2 Connector gasket
3 Coil nut
4 Coil
5 Armature assembly
8 Body

Accessory and Service-Part Identification

This listing is a complete 2V025 valve. The reviewed pages identify the armature assembly for 2V025 but do not provide a separately orderable service-kit code, kit contents or cross-series interchangeability. A component name in a cutaway is not a complete spare-part ordering code.

Series Ordering Options

The 2V series offers 025 = 2.5 mm with 06 / 08 ports, 130 = 13 mm with 10 / 15 ports, and 250 = 25 mm with 20 / 25 ports. Blank electrical-entry code means DIN connector; I means flying leads of 0.5 m. Thread choices are blank = PT, G = G and T = NPT. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.

Product form

Specifications: 2V02506A is an AirTAC 2V025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice,... Read more

SKU: 2V02506A

$29.32 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 2V02506A is an AirTAC 2V025 2-port, 2-position, normally closed fluid-control solenoid valve. This model has a 2.5 mm orifice, PT 1/8 in ports, a AC 220 V coil and DIN connector / terminal entry. The valve is direct acting, with a nickel-plated brass body and VITON (fluoroelastomer) seals.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Original Product Statement

    Airtac 2V series valves are functional alternatives to SMC VXP series valves.

    Model Code Explained

    Code Meaning for this model
    2V 2-port, 2-position fluid-control solenoid valve
    025 2.5 mm orifice
    06 1/8 in
    A AC 220 V
    (blank electrical-entry code) DIN connector / terminal entry
    (blank thread code) PT thread

    Technical Specifications

    Parameter Details
    Working medium Air, water and oil; check seal compatibility for the actual medium
    Actuation direct acting
    Normal state Normally closed
    Orifice diameter 2.5 mm
    Cv 0.23
    Port size PT 1/8 in
    Fluid viscosity Below 20 cSt
    Operating pressure 0–1.0 MPa (catalog: 0–145 psi)
    Proof pressure 1.5 MPa (catalog: 215 psi)
    Body material Nickel-plated brass
    Seal material VITON (fluoroelastomer)
    Activating time 0.05 s or less
    Catalog reference weight 228 g

    Weight reference: 2022 catalog, printed page 300, 2V025. The summary gives the valve-family reference, without separate weights for each voltage, port or connector option; it is not a measured packed shipping weight. The reviewed 2V pages do not specify an operating-temperature range.

    Electrical Specifications

    Parameter Details
    Selected coil voltage AC 220 V
    Supply type AC
    Supply frequency 50 / 60 Hz
    Permitted voltage variation ±15%
    Power consumption 7.0 VA
    Insulation class Class B
    Catalog coil temperature rise 35 °C
    Electrical entry DIN connector / terminal entry

    The coil temperature-rise figure describes heating above the reference condition; it is not the valve operating-temperature limit.

    Features and Operation

    • The direct-acting, normally closed construction supports rapid switching.
    • The body is compact; its nickel-plated brass construction and VITON seals follow the specification table.
    • The normally closed symbol identifies the closed flow path when the coil is not energized.

    External and Mounting Dimensions

    The following values follow the applicable DIN connector / terminal entry drawing in 2022 printed page 189; linked PDF page 2. Lettered dimensions refer to the original view and must not be combined into an invented overall envelope. The port thread follows this ordered model.

    Parameter Details
    Side-view horizontal dimension 62.5 mm
    Side-view body-and-coil height 64.5 mm
    Overall height including DIN connector 76 mm
    Front body width 22 mm
    Port-center height above base 9.5 mm
    Bottom mounting holes 2 × M4 × 0.7
    Mounting-hole center distance 15 mm
    Bottom drawing offset 5 mm
    Process connections 2 × PT 1/8 in

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Flow Characteristics

    The 2V catalog gives separate air and water curves for the 2.5 mm orifice and both connection sizes. The air chart plots flow in L/min against operating pressure in MPa; its pressure scale reaches 1.0 MPa and its labeled flow ticks run from 75 to 525 L/min. The water chart plots flow in L/min against pressure difference in MPa on logarithmic axes; the labeled flow scale runs from 0.1 to 30 L/min. The plotted curves are catalog performance references, not fixed flow rates at every operating condition. Use the actual operating-pressure limit in the technical table; chart-axis limits do not extend that limit.

    Internal Components

    The catalog section view is the 2V025 DIN-connector illustration. It provides the internal-structure reference; connector callouts 1 and 2 belong to the DIN version and do not describe supplied connectors on an I flying-lead model. Callout numbers identify parts in the drawing, not separately supplied spare-part quantities.

    Drawing callout Component
    1 Connector
    2 Connector gasket
    3 Coil nut
    4 Coil
    5 Armature assembly
    8 Body

    Accessory and Service-Part Identification

    This listing is a complete 2V025 valve. The reviewed pages identify the armature assembly for 2V025 but do not provide a separately orderable service-kit code, kit contents or cross-series interchangeability. A component name in a cutaway is not a complete spare-part ordering code.

    Series Ordering Options

    The 2V series offers 025 = 2.5 mm with 06 / 08 ports, 130 = 13 mm with 10 / 15 ports, and 250 = 25 mm with 20 / 25 ports. Blank electrical-entry code means DIN connector; I means flying leads of 0.5 m. Thread choices are blank = PT, G = G and T = NPT. Voltage codes are A = AC 220 V, B = DC 24 V, C = AC 110 V, E = AC 24 V and F = DC 12 V. These are separate ordering choices; the actual ordered configuration is decoded above.
