Airtac 6V series: pneumatic solenoid valve - 6V21008B050

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

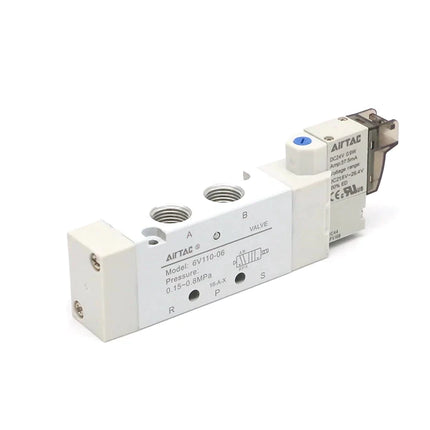

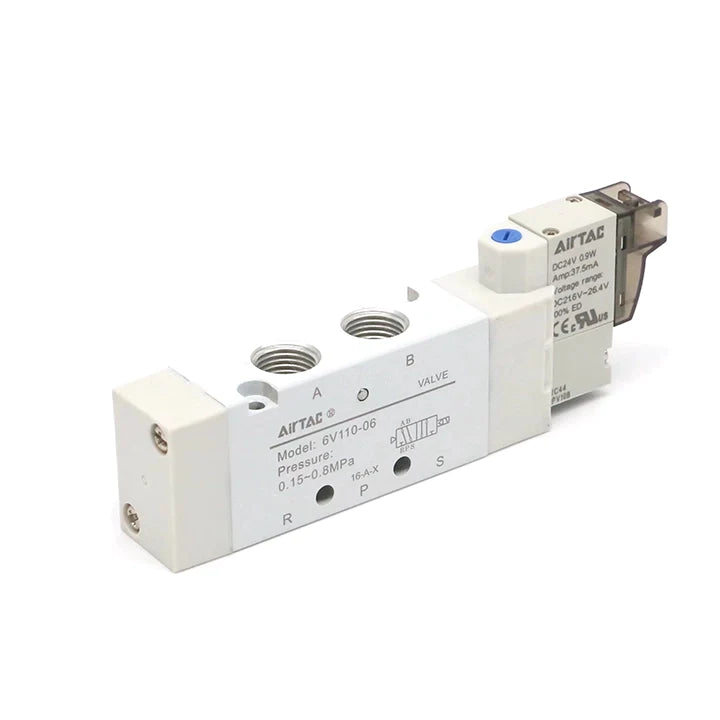

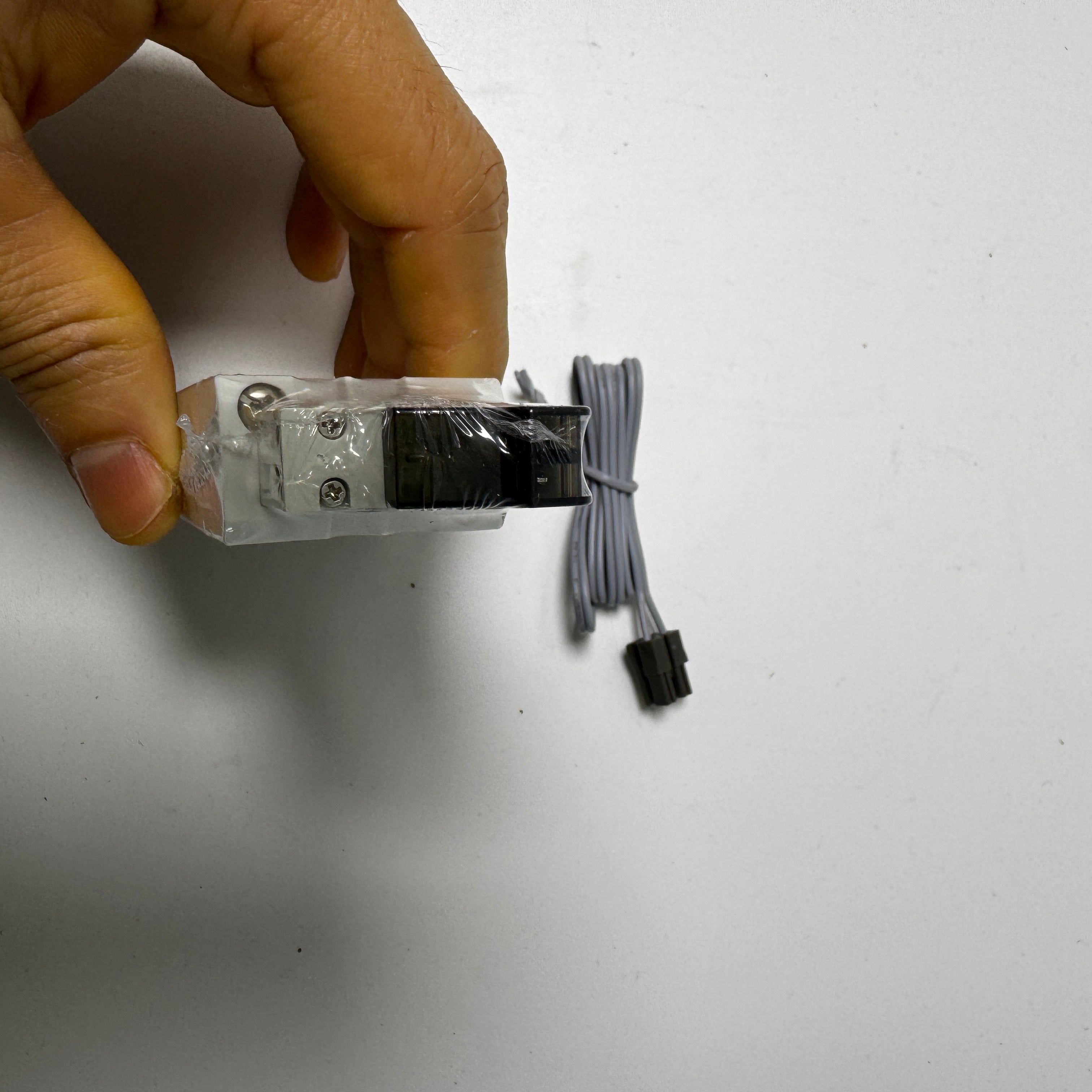

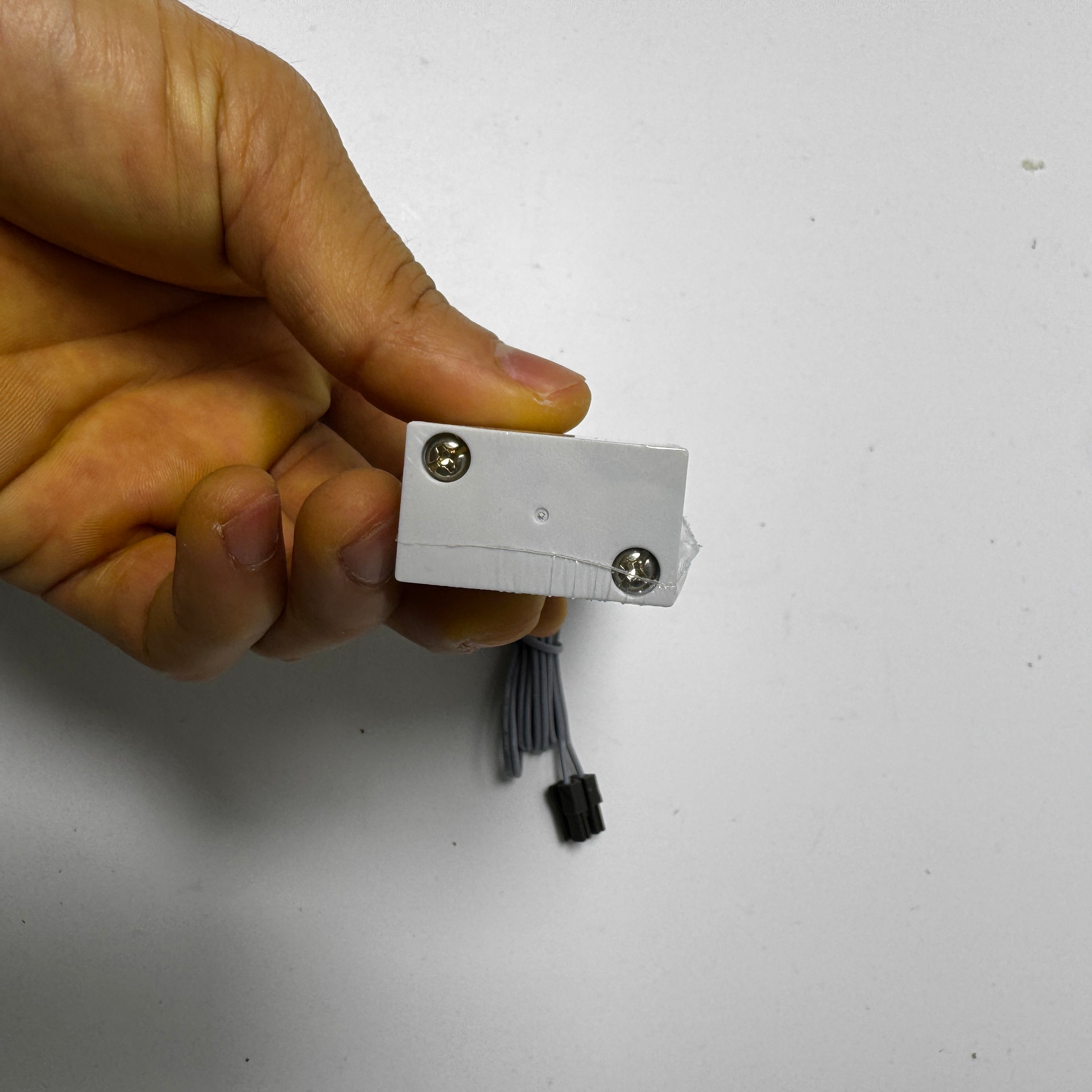

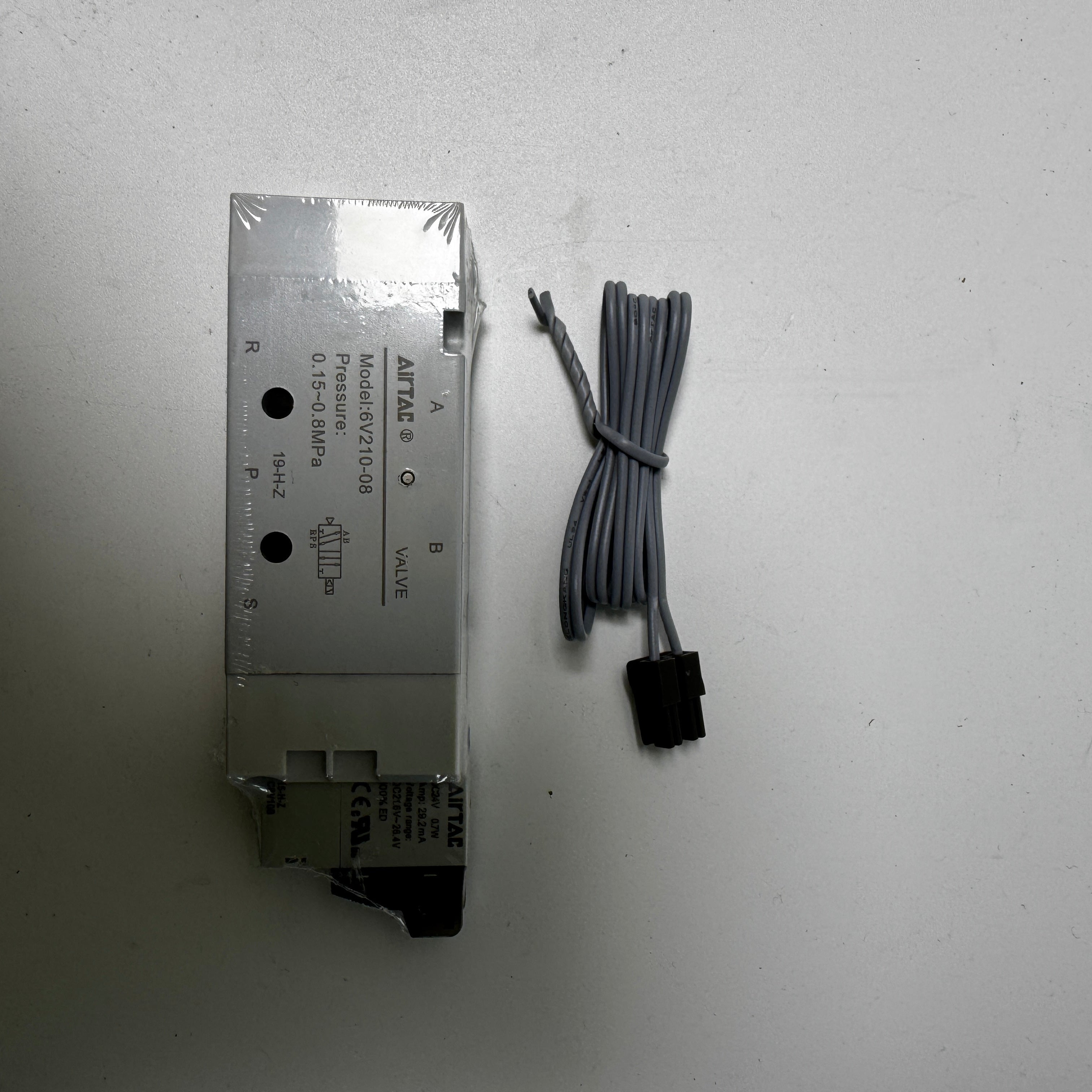

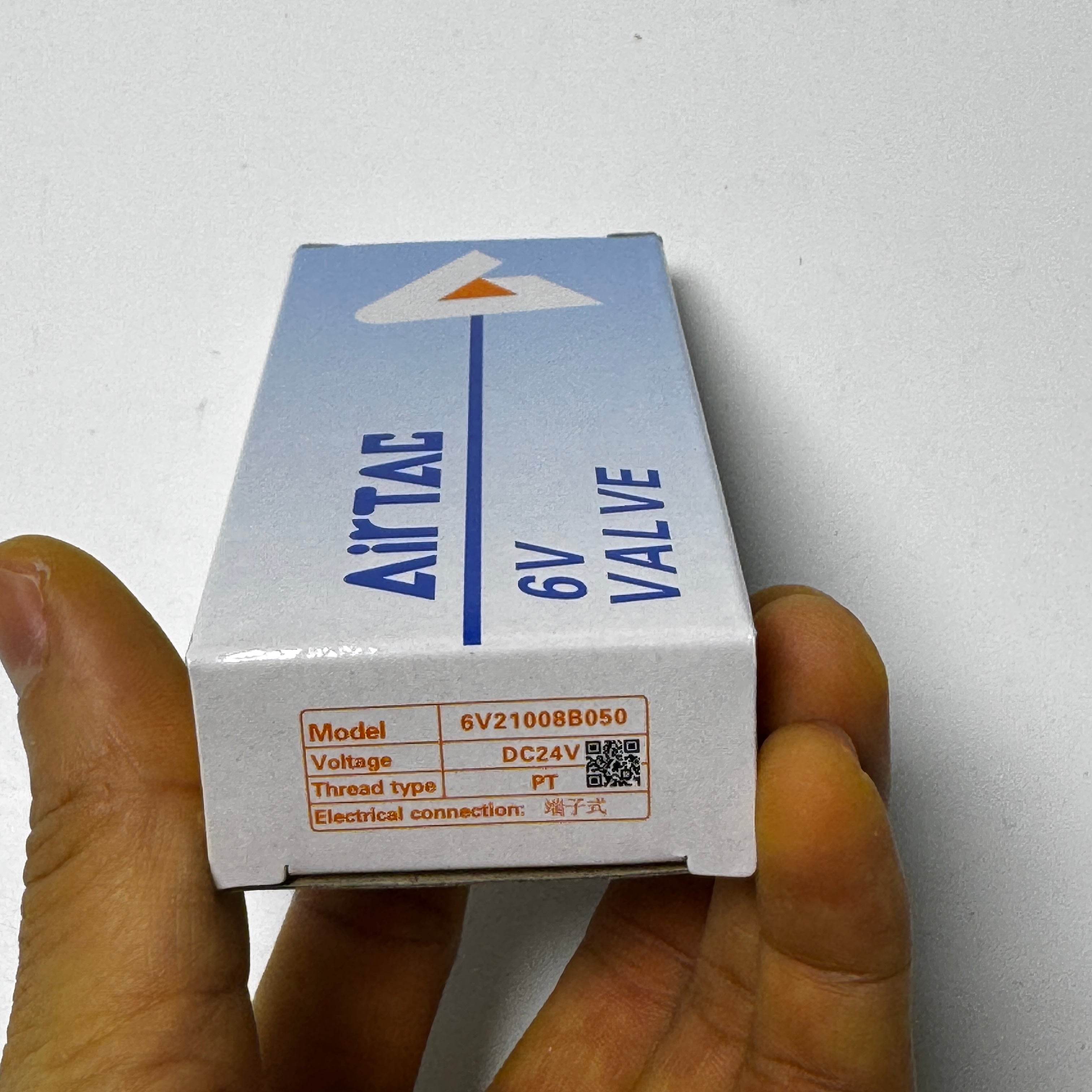

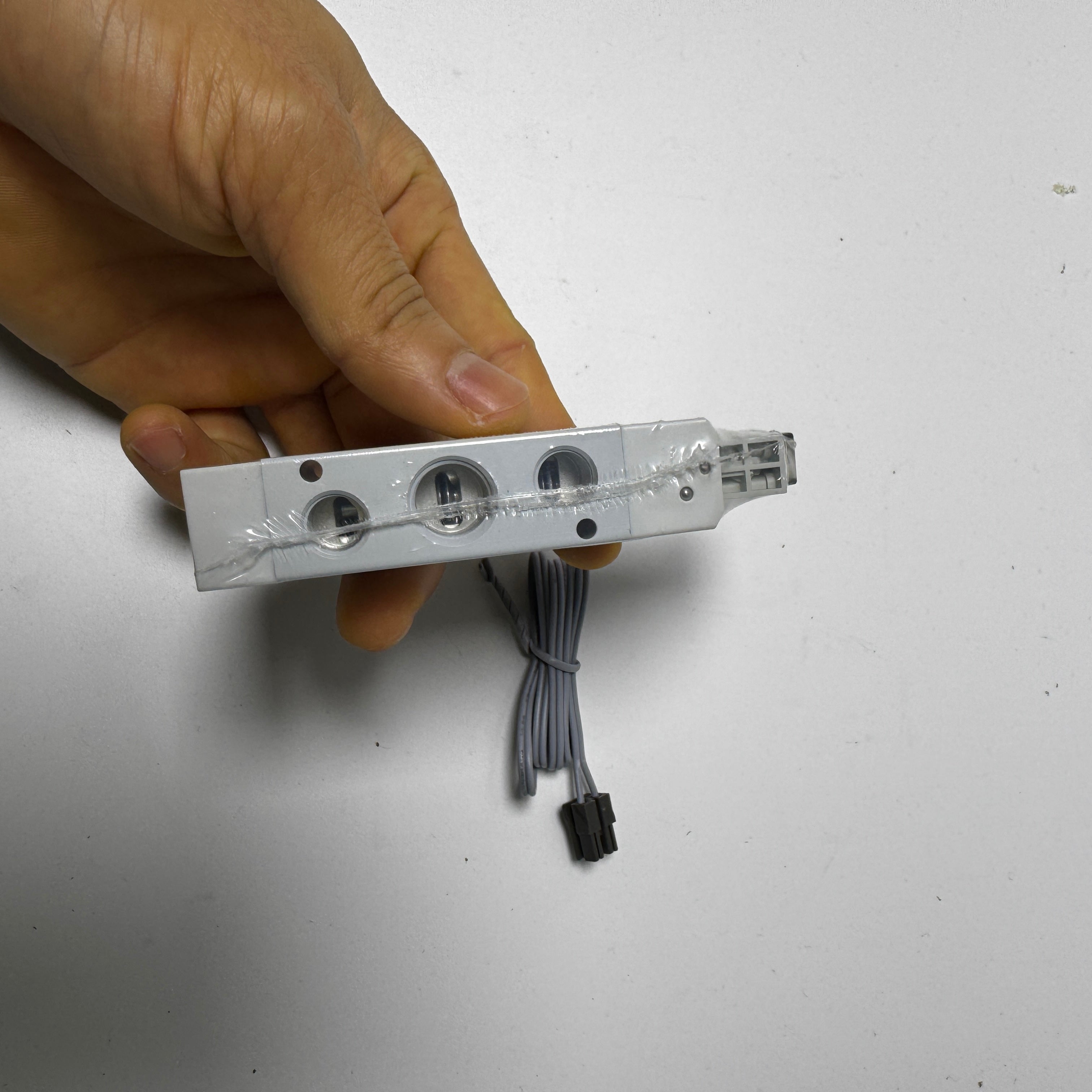

Photos are for reference only. Not all models have pictures.

Description

Specifications: 6V21008B050 is an AirTAC 200-size, 5/2-way, single-solenoid pneumatic solenoid valve in the 6V series. This configuration uses PT1/4 threaded working ports and a 24 V DC coil supply. The plug-in terminal connection has a 0.5 m terminal cable. The selected thread standard is PT.

Product Catalog

Download Old 6V Catalog (PDF)

New 6SV Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Ordering and Delivery

Orders for 6V21008B050 will be supplied as 6SV21008B (new 6SV). Data below: old 6V; use the new PDF for the supplied model. Compare PDF dimensions, mounting and electrical data.

6V vs 6SV: Dimensions and Replacement Guide

Model Code Explained

The following entries decode the actual order code 6V21008B050. Optional configurations for the series are listed separately at the end of this description.

Code	Meaning for this model
6V	6V series five-port pneumatic solenoid valve.
2	200 body-size series.
10	5/2-way, single-solenoid. Five ports and two switching positions.
08	Working-port size: PT1/4.
B	Rated coil supply: 24 V DC.
050	0.5 m terminal cable.
(no thread suffix)	PT pipe-thread selection.

Technical Specifications (6V)

These are the legacy 6V specifications for the order code shown above. Where the delivery statement specifies a new 6SV model, use the new 6SV catalog to check the supplied model.

Parameter	Details
Series and body size	6V / 200
Valve function	5/2-way, single-solenoid
Actuation	Internally piloted pneumatic solenoid valve.
Working medium	Air filtered to 40 μm.
Working pressure	0.15–0.8 MPa
Proof pressure	1.2 MPa
Operating temperature	−20 to 70°C
Body material	Aluminum alloy
Lubrication	Not required. If lubricated air is used, use ISO VG32 or an equivalent lubricant and continue lubrication without interruption.
Maximum operating frequency	5 cycles/s, tested without load.
Reference mass	100 g; series catalog reference mass.
Supply port P	PT1/4
Working ports A and B	PT1/4 threaded working ports
Exhaust ports R and S	PT1/8
Pilot exhaust	Collected through exhaust ports R and S.

Electrical Specifications

Parameter	Details
Rated voltage	24 V DC (code B)
Electrical connection	Plug-in terminal (standard connection)
Cable length	0.5 m terminal cable
Power consumption	0.9 W per coil
Voltage tolerance	±10% of the DC rating
Protection	Dustproof, as stated in the legacy 6V catalog.
Insulation class	Class F
Activating time	≤0.05 s

Power consumption is stated per coil. The rated voltage and connection above describe this order code; other voltages and connectors are separate ordering options.

Features and Operation

This single-solenoid valve controls airflow through five ports in two switching positions. Refer to the catalog circuit symbol for the port connections in each position.
The aluminum-alloy body is extruded and machined. The catalog identifies low friction, low starting pressure and long service life as series features.
Manifold mounting groups compatible valves together to reduce installation space. Valve, manifold and blanking-plate orders are separate.

External and Mounting Dimensions

The dimensions below follow the 6V21008 drawing in the old 6V PDF, page 4. Each drawing letter is listed separately. Linear dimensions are in millimeters; port threads retain their thread designation. Drawing references B, BC and C are separate spans, not a combined overall length × width × height.

Drawing reference	Dimension / specification
A	106 mm
B	33.5 mm
BC	32.5 mm
C	18.5 mm
P	PT1/4
PA	39 mm
PB	3.2 mm
Q	PT1/8
QA	36 mm
QB	21 mm
T	PT1/4
TA	29 mm
TB	20 mm
R	3.2 mm
RA	41 mm
RB	18.5 mm
RC	13.5 mm
RD	2 mm
S	4.3 mm
SA	20 mm
SB	29 mm
SC	7 mm

Drawing note	How to read it
A	Axial dimension shown in the drawing.
P	Supply-port thread. Do not confuse dimension P with the manifold length-table reference P.
Q	Two exhaust ports; each port uses the thread listed under Q.
T	Two working outlets; the listed thread or tube size applies to each.
R holes	2 × Ø3.2 mm, at the positions shown in the catalog drawing.
S holes	2 × Ø4.3 mm, at the positions shown in the catalog drawing.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Installation and Manual Operation

Avoid dropping the valve or striking the precision pilot assembly. Do not dismantle it casually.
If the pilot mounting screws become loose, the catalog specifies M1.6×14 screws tightened to 0.1–0.12 N·m.
Before using the manual override, confirm that any resulting actuator movement can occur safely.
Pressing the manual override without rotation gives non-locking operation. For the locking position, press and rotate in the direction shown in the catalog; use the drawing to identify the correct positions.
Use a precision screwdriver for the manual operation described in the catalog; the stated torque is 0.1 N·m.
The same plug-in terminal connector can be inserted horizontally or vertically, as illustrated in the catalog.

Accessory Kit Contents

Parameter	Details
Matching manifold family	6V200M
Manifold station range	1F–20F; 20 is the maximum station count in the applicable ordering range.
Manifold order examples	6V200M1F; 6V200M20F. Add G or T only when selecting that manifold thread standard.
Manifold thread selection	Blank suffix = PT; G = G thread; T = NPT.
Matching blanking plate	P-6V200M-R2
Manifold kit contents	Base, base seals and screws. The source does not specify the individual component quantities.
Blanking-plate kit contents	Blanking plate and screws. The source does not specify the individual component quantities.
Included with this valve	The manifold and blanking plate are separate accessories and are not included with this valve order.

Select accessories for the 6V family. A replacement relationship between 6V and 6SV valves does not establish dimensional or mounting interchangeability between their manifolds. Use the old 6V manifold dimensions and the separate legacy accessory descriptions.

Flow / Performance Characteristics

Current configuration:

Parameter	Details
Effective area	15.4 mm²
Flow coefficient Cv	0.91
Applicability	Catalog flow reference for this valve-function and port-size configuration.

Series reference data: The following configurations are those identified in the catalog flow table. They are provided to explain the series data and do not add options to the current order code.

Catalog configuration	Published reference
6V210-08 / 6V220-08	15.4 mm² effective area; Cv 0.91
6V230C-08	14.2 mm² effective area; Cv 0.84

Performance graph	Reference information
Reference curve	6V210-08
Pressure axis	0–0.7 MPa, marked in 0.1 MPa increments.
Flow axis	0–1800 L/min, marked in 300 L/min increments.
Test basis	Laboratory flow curve; effective area and Cv are derived from measured flow.
Reading the graph	Axis limits are graph scales, not a guaranteed rated flow. Use the original PDF to read curve positions and test conditions.

Internal Components

The 6V catalog provides an internal-structure key for the 6V110 / 6V120 / 6V130C illustrations. The numbered list below follows those illustrations; it is not a package-quantity list or a set of separately orderable part numbers, and it does not prove that every illustrated part is present in every configuration.

Drawing item	Component name
1	Pilot valve
2	Manual override
3	Pilot kit
4	Big piston
5	Body
6	Spool
7	Connecting block
8	Little piston
9	Gasket
10	Bottom cover
11	Bolt
12	Steel ball
13	Spring
14	Return holder
15	Side cover

Series Ordering Options

These are series ordering choices, not additional features supplied with 6V21008B050. Use the model-code table above for the selected configuration.

Ordering category	Series options and restrictions
Body-size / port combinations	0500: M5, J04; 100: M5, 06, J04, J06, J08; 200: 06, 08, J06, J08, J10; 300: 10
Control codes	10 = single-solenoid 5/2; 20 = double-solenoid 5/2; 30C = closed-center 5/3; 30E = exhaust-center 5/3; 30P = pressure-center 5/3.
Voltage codes	A = 220 V AC; B = 24 V DC; C = 110 V AC; F = 12 V DC.
Threaded port codes	M5 = M5×0.8; 06 = 1/8 in; 08 = 1/4 in; 10 = 3/8 in.
Pipe-thread suffixes	Blank = PT; G = G thread; T = NPT. These suffixes are not used with M5 or J quick-connect ports.
J quick-connect ports	J04 / J06 / J08 / J10 identify 4 / 6 / 8 / 10 mm tube outside diameters, where listed for the body size. J-type valves require a matching manifold.
Electrical connection	Plug-in terminal connection.
Cable-length codes	050 = 0.5 m; 200 = 2 m.

Matching Accessory Codes

Item	Complete codes and use
Legacy 6V PT1/4 manifold	6V200M2F,6V200M3F,6V200M4F,6V200M5F,6V200M6F,6V200M7F,6V200M8F,6V200M9F,6V200M10F,6V200M11F,6V200M12F,6V200M13F,6V200M14F,6V200M15F,6V200M16F,6V200M17F,6V200M18F,6V200M19F
Legacy 6V G1/4 manifold	6V200M1FG,6V200M2FG,6V200M3FG,6V200M4FG,6V200M5FG,6V200M6FG,6V200M7FG,6V200M8FG,6V200M9FG,6V200M10FG,6V200M11FG,6V200M12FG,6V200M13FG,6V200M14FG,6V200M15FG,6V200M16FG,6V200M17FG,6V200M18FG,6V200M19FG,6V200M20FG
Legacy 6V NPT1/4 manifold	6V200M1FT,6V200M2FT,6V200M3FT,6V200M4FT,6V200M5FT,6V200M6FT,6V200M7FT,6V200M8FT,6V200M9FT,6V200M10FT,6V200M11FT,6V200M12FT,6V200M13FT,6V200M14FT,6V200M15FT,6V200M16FT,6V200M17FT,6V200M18FT,6V200M19FT,6V200M20FT
6SV PT1/4 manifold	6SV200M1F,6SV200M2F,6SV200M3F,6SV200M4F,6SV200M5F,6SV200M6F,6SV200M7F,6SV200M8F,6SV200M9F,6SV200M10F,6SV200M11F,6SV200M12F,6SV200M13F,6SV200M14F,6SV200M15F,6SV200M16F,6SV200M17F,6SV200M18F,6SV200M19F,6SV200M20F,6SV200M21F,6SV200M22F,6SV200M23F,6SV200M24F,6SV200M25F,6SV200M26F,6SV200M27F,6SV200M28F,6SV200M29F,6SV200M30F
6SV G1/4 manifold	6SV200M1FG,6SV200M2FG,6SV200M3FG,6SV200M4FG,6SV200M5FG,6SV200M6FG,6SV200M7FG,6SV200M8FG,6SV200M9FG,6SV200M10FG,6SV200M11FG,6SV200M12FG,6SV200M13FG,6SV200M14FG,6SV200M15FG,6SV200M16FG,6SV200M17FG,6SV200M18FG,6SV200M19FG,6SV200M20FG,6SV200M21FG,6SV200M22FG,6SV200M23FG,6SV200M24FG,6SV200M25FG,6SV200M26FG,6SV200M27FG,6SV200M28FG,6SV200M29FG,6SV200M30FG
6SV NPT1/4 manifold	6SV200M1FT,6SV200M2FT,6SV200M3FT,6SV200M4FT,6SV200M5FT,6SV200M6FT,6SV200M7FT,6SV200M8FT,6SV200M9FT,6SV200M10FT,6SV200M11FT,6SV200M12FT,6SV200M13FT,6SV200M14FT,6SV200M15FT,6SV200M16FT,6SV200M17FT,6SV200M18FT,6SV200M19FT,6SV200M20FT,6SV200M21FT,6SV200M22FT,6SV200M23FT,6SV200M24FT,6SV200M25FT,6SV200M26FT,6SV200M27FT,6SV200M28FT,6SV200M29FT,6SV200M30FT
6SV unused-station blanking kit	P-6SV200M-R2

Optional Connections and Air Preparation

P = PT1/4 supply; E = PT1/8 R/S exhaust; W = PT1/4 A/B work ports; MP = PT1/4, MG = G1/4, MN = NPT1/4. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are ordered separately. MP/MG/MN identify the selected manifold common ports; each family’s stated supply/exhaust use still applies.

Code-prefix uses (match the longest listed family prefix): GPC/NPC/PC straight; POC round straight; GPL/NPL/PL elbow; GPLL/NPLL/PLL extended elbow; GPEB/NPEB/PEB branch tee; GPED/NPED/PED run tee; GPYB/NPYB/PYB Y; GPH/NPH/PH banjo elbow; GPHF/NPHF/PHF female branch banjo; GPHW/NPHW/PHW twin banjo; GPZB/NPZB/PZB cross; GPKD/NPKD/PKD reducing distribution fitting; BPC/GBPC/NBPC metal straight; BPOC metal straight; BKC/GBKC/NBKC compression fitting; BB/GBB/NBB male–male; BD/GBD/NBD male–female; PSL elbow flow control; GPSS/NPSS/PSS flow control; GPTL/NPTL/PTL push-lock flow control; GPSA/NPSA/PSA inline flow control; ASC inline threaded flow control; GAFR upstream filter-regulator; US PU tube; UE PU tube; BSL/GBSL/NBSL silencer; BSLM/GBSLM/NBSLM miniature silencer; BESL/GBESL/NBESL adjustable silencer; PAL plastic silencer; PALM miniature plastic silencer; PPA plug-in silencer.

Port use	Tube / connection size and complete codes
MP,P,W	4: PC402,PC402D,POC402,POC402D,PL402,PL402D,PLL402,PLL402D,PEB402,PEB402D,PED402,PED402D,PYB402,PYB402D,PC402-S,PC402D-S,POC402-S,POC402D-S,PL402-S,PL402D-S,PLL402-S,PLL402D-S,PEB402-S,PEB402D-S,PED402-S,PED402D-S,PYB402-S,PYB402D-S,BPC402 6: PC602,PC602D,POC602,POC602D,PL602,PL602D,PLL602,PLL602D,PEB602,PEB602D,PED602,PED602D,PYB602,PYB602D,PH602,PH602D,PHF602,PHF602D,PHW602,PHW602D,PZB602,PZB602D,PC602-S,PC602D-S,POC602-S,POC602D-S,PL602-S,PL602D-S,PLL602-S,PLL602D-S,PEB602-S,PEB602D-S,PED602-S,PED602D-S,PYB602-S,PYB602D-S,PH602-S,PH602D-S,PHF602-S,PHF602D-S,PHW602-S,PHW602D-S,PZB602-S,PZB602D-S,BPC602,BPOC602,PSL602A,PSL602AD,PSL602B,PSL602BD,PSL602A-S,PSL602AD-S,PSL602B-S,PSL602BD-S,PSS602A,PSS602AD,PSS602B,PSS602BD,PSS602A-S,PSS602AD-S,PSS602B-S,PSS602BD-S,PTL602A,PTL602AD,PTL602B,PTL602BD 8: PC802,PC802D,POC802,POC802D,PL802,PL802D,PLL802,PLL802D,PEB802,PEB802D,PED802,PED802D,PYB802,PYB802D,PH802,PH802D,PHF802,PHF802D,PHW802,PHW802D,PZB802,PZB802D,PC802-S,PC802D-S,POC802-S,POC802D-S,PL802-S,PL802D-S,PLL802-S,PLL802D-S,PEB802-S,PEB802D-S,PED802-S,PED802D-S,PYB802-S,PYB802D-S,PH802-S,PH802D-S,PHF802-S,PHF802D-S,PHW802-S,PHW802D-S,PZB802-S,PZB802D-S,BPC802,BPOC802,PSL802A,PSL802AD,PSL802B,PSL802BD,PSL802A-S,PSL802AD-S,PSL802B-S,PSL802BD-S,PSS802A,PSS802AD,PSS802B,PSS802BD,PSS802A-S,PSS802AD-S,PSS802B-S,PSS802BD-S,PTL802A,PTL802AD,PTL802B,PTL802BD 10: PC1002,PC1002D,POC1002,POC1002D,PL1002,PL1002D,PLL1002,PLL1002D,PEB1002,PEB1002D,PED1002,PED1002D,PYB1002,PYB1002D,PH1002,PH1002D,PHF1002,PHF1002D,PHW1002,PHW1002D,PZB1002,PZB1002D,PC1002-S,PC1002D-S,POC1002-S,POC1002D-S,PL1002-S,PL1002D-S,PLL1002-S,PLL1002D-S,PEB1002-S,PEB1002D-S,PED1002-S,PED1002D-S,PYB1002-S,PYB1002D-S,PH1002-S,PH1002D-S,PHF1002-S,PHF1002D-S,PHW1002-S,PHW1002D-S,PZB1002-S,PZB1002D-S,BPC1002,BPOC1002,PSL1002A,PSL1002AD,PSL1002B,PSL1002BD,PSL1002A-S,PSL1002AD-S,PSL1002B-S,PSL1002BD-S,PSS1002A,PSS1002AD,PSS1002B,PSS1002BD,PSS1002A-S,PSS1002AD-S,PSS1002B-S,PSS1002BD-S,PTL1002A,PTL1002AD,PTL1002B,PTL1002BD 12: PC1202,PC1202D,POC1202,POC1202D,PL1202,PL1202D,PLL1202,PLL1202D,PEB1202,PEB1202D,PED1202,PED1202D,PYB1202,PYB1202D,PC1202-S,PC1202D-S,POC1202-S,POC1202D-S,PL1202-S,PL1202D-S,PLL1202-S,PLL1202D-S,PEB1202-S,PEB1202D-S,PED1202-S,PED1202D-S,PYB1202-S,PYB1202D-S,BPC1202 main 8 / branch 6: PKD8-602,PKD8-602D,PKD8-602-S,PKD8-602D-S 6 × 4: BKC0604-02,BKC0604-02-S 8 × 5: BKC0805-02,BKC0805-02-S 8 × 5.5 or 6: BKC0806-02,BKC0806-02-S 10 × 6.5: BKC1065-02,BKC1065-02-S 10 × 7.5 or 8: BKC1075-02,BKC1075-02-S 12 × 8: BKC1208-02,BKC1208-02-S 12 × 9 or 10: BKC1209-02,BKC1209-02-S male PT1/4 ↔ male PT1/4: BB0202,BB0202-S male PT3/8 ↔ male PT1/4: BB0203,BB0203-S male PT1/2 ↔ male PT1/4: BB0204,BB0204-S male PT1/4 ↔ female PT1/8: BD0102,BD0102-S
E,MP,P,W	male PT1/4 ↔ male PT1/8: BB0102,BB0102-S
E,MG,MP,P,W	4: PSA4,PSA4D,PSA4-S,PSA4D-S,GPSA4,GPSA4D 6: PSA6,PSA6D,PSA6-S,PSA6D-S,GPSA6,GPSA6D 8: PSA8,PSA8D,PSA8-S,PSA8D-S,GPSA8,GPSA8D 10: PSA10,PSA10D,PSA10-S,PSA10D-S,GPSA10,GPSA10D 12: PSA12,PSA12D,PSA12-S,PSA12D-S,GPSA12,GPSA12D 4 × 2.5: US98A040025100MBU,UE95A040025100MBU 6 × 4: US98A060040100MBU,UE95A060040100MBU 8 × 5: US98A080050100MBU,UE95A080050100MBU 10 × 6.5: US98A100065100MBU,UE95A100065100MBU 12 × 8: US98A120080100MBU,UE95A120080100MBU
MP,P	ASC20008,GAFR20008S,GAFR30008S
E	4: PC401,PC401D,PC401-M,PC401D-M,PC401-S,PC401D-S,POC401,POC401D,POC401-S,POC401D-S,PL401,PL401D,PL401-M,PL401D-M,PL401-S,PL401D-S,PLL401,PLL401D,PLL401-S,PLL401D-S,PH401,PH401D,PH401-S,PH401D-S,PHF401,PHF401D,PHF401-S,PHF401D-S,PHW401,PHW401D,PHW401-S,PHW401D-S,PEB401,PEB401D,PEB401-S,PEB401D-S,PED401,PED401D,PED401-S,PED401D-S,PYB401,PYB401D,PYB401-S,PYB401D-S,BPC401,BPOC401,PSL401A,PSL401AD,PSL401B,PSL401BD,PSL401A-S,PSL401AD-S,PSL401B-S,PSL401BD-S,PTL401A-M,PTL401AD-M,PTL401B-M,PTL401BD-M 6: PC601,PC601D,PC601-M,PC601D-M,PC601-S,PC601D-S,POC601,POC601D,POC601-S,POC601D-S,PL601,PL601D,PL601-M,PL601D-M,PL601-S,PL601D-S,PLL601,PLL601D,PLL601-S,PLL601D-S,PH601,PH601D,PH601-S,PH601D-S,PHF601,PHF601D,PHF601-S,PHF601D-S,PHW601,PHW601D,PHW601-S,PHW601D-S,PEB601,PEB601D,PEB601-S,PEB601D-S,PED601,PED601D,PED601-S,PED601D-S,PYB601,PYB601D,PYB601-S,PYB601D-S,PZB601,PZB601D,PZB601-S,PZB601D-S,BPC601,BPOC601,PSL601A,PSL601AD,PSL601B,PSL601BD,PSL601A-S,PSL601AD-S,PSL601B-S,PSL601BD-S,PSS601A,PSS601AD,PSS601B,PSS601BD,PSS601A-S,PSS601AD-S,PSS601B-S,PSS601BD-S,PTL601A,PTL601AD,PTL601B,PTL601BD,PTL601A-M,PTL601AD-M,PTL601B-M,PTL601BD-M 8: PC801,PC801D,PC801-S,PC801D-S,POC801,POC801D,POC801-S,POC801D-S,PL801,PL801D,PL801-S,PL801D-S,PLL801,PLL801D,PLL801-S,PLL801D-S,PH801,PH801D,PH801-S,PH801D-S,PHF801,PHF801D,PHF801-S,PHF801D-S,PHW801,PHW801D,PHW801-S,PHW801D-S,PEB801,PEB801D,PEB801-S,PEB801D-S,PED801,PED801D,PED801-S,PED801D-S,PYB801,PYB801D,PYB801-S,PYB801D-S,PZB801,PZB801D,PZB801-S,PZB801D-S,BPC801,BPOC801,PSL801A,PSL801AD,PSL801B,PSL801BD,PSL801A-S,PSL801AD-S,PSL801B-S,PSL801BD-S,PSS801A,PSS801AD,PSS801B,PSS801BD,PSS801A-S,PSS801AD-S,PSS801B-S,PSS801BD-S,PTL801A,PTL801AD,PTL801B,PTL801BD 10: PC1001,PC1001D,PC1001-S,PC1001D-S,POC1001,POC1001D,POC1001-S,POC1001D-S,PL1001,PL1001D,PL1001-S,PL1001D-S,PLL1001,PLL1001D,PLL1001-S,PLL1001D-S,PEB1001,PEB1001D,PEB1001-S,PEB1001D-S,PED1001,PED1001D,PED1001-S,PED1001D-S,PYB1001,PYB1001D,PYB1001-S,PYB1001D-S,BPC1001 12: PC1201,PC1201D,PC1201-S,PC1201D-S,PL1201,PL1201D,PL1201-S,PL1201D-S main 6 / branch 4: PKD6-401,PKD6-401D,PKD6-401-S,PKD6-401D-S 4 × 2.5: BKC0425-01,BKC0425-01-S 6 × 4: BKC0604-01,BKC0604-01-S 8 × 5: BKC0805-01,BKC0805-01-S 8 × 5.5 or 6: BKC0806-01,BKC0806-01-S male PT1/8 ↔ male PT1/8: BB0101,BB0101-S male PT3/8 ↔ male PT1/8: BB0103,BB0103-S BSL01,BSLM01,BESL01,PAL01,PAL01D,PALM01,PALM01D,BSL01-S,BSLM01-S,BESL01-S
E,MG,MP	6: PPA6 8: PPA8 10: PPA10 12: PPA12
MP	BSL02,BSLM02,BESL02,PAL02,PAL02D,PALM02,PALM02D,BSL02-S,BSLM02-S,BESL02-S
MG	6: GPC602,GPC602D,GPL602,GPL602D,GPLL602,GPLL602D,GPEB602,GPEB602D,GPED602,GPED602D,GPYB602,GPYB602D,GPH602,GPH602D,GPHF602,GPHF602D,GPHW602,GPHW602D,GPZB602,GPZB602D,GBPC602,GPSS602A,GPSS602AD,GPSS602B,GPSS602BD,GPTL602A,GPTL602AD,GPTL602B,GPTL602BD 8: GPC802,GPC802D,GPL802,GPL802D,GPLL802,GPLL802D,GPEB802,GPEB802D,GPED802,GPED802D,GPYB802,GPYB802D,GPH802,GPH802D,GPHF802,GPHF802D,GPHW802,GPHW802D,GPZB802,GPZB802D,GBPC802,GPSS802A,GPSS802AD,GPSS802B,GPSS802BD,GPTL802A,GPTL802AD,GPTL802B,GPTL802BD 10: GPC1002,GPC1002D,GPL1002,GPL1002D,GPLL1002,GPLL1002D,GPEB1002,GPEB1002D,GPED1002,GPED1002D,GPYB1002,GPYB1002D,GPH1002,GPH1002D,GPHF1002,GPHF1002D,GPHW1002,GPHW1002D,GPZB1002,GPZB1002D,GBPC1002,GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD,GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD 12: GPC1202,GPC1202D,GPL1202,GPL1202D,GPLL1202,GPLL1202D,GPEB1202,GPEB1202D,GPED1202,GPED1202D,GPYB1202,GPYB1202D,GBPC1202 4: GPC402-M,GPC402D-M,GPL402-M,GPL402D-M,GPLL402,GPLL402D,GPEB402,GPEB402D,GPED402,GPED402D,GPYB402,GPYB402D,GBPC402 main 8 / branch 6: GPKD8-602,GPKD8-602D 6 × 4: GBKC0604-02 8 × 5: GBKC0805-02 8 × 5.5 or 6: GBKC0806-02 10 × 6.5: GBKC1065-02 10 × 7.5 or 8: GBKC1075-02 12 × 8: GBKC1208-02 12 × 9 or 10: GBKC1209-02 male G1/4 ↔ male G1/8: GBB0102 male G1/4 ↔ male G1/4: GBB0202 male G3/8 ↔ male G1/4: GBB0203 male G1/2 ↔ male G1/4: GBB0204 male G1/4 ↔ female G1/8: GBD0102 GBSL02,GBSLM02,GBESL02,ASC20008G,GAFR20008SG,GAFR30008SG
MN	1/4 in: NPC1/4-1/4,NPL1/4-1/4,NPEB1/4-1/4,NPED1/4-1/4,NPYB1/4-1/4,NPTL1/4-1/4A,NPTL1/4-1/4B,NPSA1/4 5/16 in: NPC5/16-1/4,NPL5/16-1/4,NPEB5/16-1/4,NPED5/16-1/4,NPYB5/16-1/4,NPTL5/16-1/4A,NPTL5/16-1/4B,NPSA5/16 3/8 in: NPC3/8-1/4,NPL3/8-1/4,NPEB3/8-1/4,NPED3/8-1/4,NPYB3/8-1/4,NPTL3/8-1/4A,NPTL3/8-1/4B,NPSA3/8 1/2 in: NPC1/2-1/4,NPL1/2-1/4,NPEB1/2-1/4,NPED1/2-1/4,NPYB1/2-1/4,NPSA1/2 NBSL1/4,NBSLM1/4,ASC20008T,GAFR20008ST,GAFR30008ST
MN (discontinued)	1/4 in: NPLL1/4-1/4,NPH1/4-1/4,NPHF1/4-1/4,NPHW1/4-1/4,NPZB1/4-1/4,NBPC1/4-1/4,NPSS1/4-1/4A,NPSS1/4-1/4B 5/16 in: NPLL5/16-1/4,NPH5/16-1/4,NPHF5/16-1/4,NPHW5/16-1/4,NPZB5/16-1/4,NBPC5/16-1/4,NPSS5/16-1/4A,NPSS5/16-1/4B 3/8 in: NPLL3/8-1/4,NPH3/8-1/4,NPHF3/8-1/4,NPHW3/8-1/4,NPZB3/8-1/4,NBPC3/8-1/4,NPSS3/8-1/4A,NPSS3/8-1/4B 1/2 in: NPLL1/2-1/4,NBPC1/2-1/4 main 5/16 / branch 1/4 in: NPKD5/16-1/4-1/4 1/4 × 5/32 in: NBKC1/4-5/32-1/4 5/16 × 1/5 in: NBKC5/16-1/5-1/4 3/8 × 1/4 in: NBKC3/8-1/4-1/4 1/2 × 1/3 in: NBKC1/2-1/3-1/4 male NPT1/8 ↔ male NPT1/4: NBB1/8-1/4 male NPT1/4 ↔ male NPT1/4: NBB1/4-1/4 male NPT3/8 ↔ male NPT1/4: NBB1/4-3/8 male NPT1/2 ↔ male NPT1/4: NBB1/4-1/2 male NPT1/4 ↔ female NPT1/8: NBD1/8-1/4 NBESL1/4

Match PT/G/NPT exactly. Use the specified thread seal/face gasket. Match tube OD and compression OD/ID; metric and inch differ. Use suitable soft nylon/PU tube; check insertion, clearance and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D=black, blank=grey, -M=miniature; -S denotes the specified 304 stainless parts only.

Tube unions need matching connections. PPA silencers need metric push-in exhaust sockets; they are not threaded plugs or vacuum filters. ASC/GAFR female ports need separate male connections. Branches share a circuit. PHF/GPHF/NPHF female RB matches the stated male RA thread: connect or seal as permitted, not as a tube socket.

Push-in/tube-union/flow parts: ≤1 MPa, −20–70°C. Metal BPC/BPOC/GBPC: ≤0.9 MPa; NBPC/compression/adapters: ≤1 MPa. Both metal groups: 0–150°C, restricting the valve path to 0–70°C or narrower. Observe every lower component limit; no system vacuum rating is established.

PU examples: separate blue 100 m coils, 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C, within valve/component limits and temperature derating; 0.8 MPa is not assured throughout. Match OD/ID; order inch tube separately. Discontinued parts are historical service references: confirm availability or a manufacturer-approved replacement.

Maintain 0.15–0.8 MPa and lower component limits, including minimum pilot supply. MP/MG/MN must match the selected manifold common-port thread; they do not change A/B working connections.

Flow-control suffix A restricts thread-to-tube, free in reverse; B reverses it. Supply normally flows tube-to-thread; exhaust normally flows thread-to-tube. At a threaded valve work port, A restricts flow to the actuator and B the return; cylinder-mounted control orientation differs. Follow flow symbols and circuit direction. Closed controls do not isolate. Adjust gently without forcing stops; depressurize before tube removal.

Use silencers only at the stated R/S exhaust. Check total flow/back pressure for all active stations. Adjustable silencers and remote exhaust affect the circuit. Never cap active P/A/B/R/S.

Connect ASC separately in supply, following P/A markings: 0.05–0.95 MPa, −20–70°C. Put GAFR upstream of P: inlet ≤1 MPa, regulation 0.15–0.9 MPa, −5–70°C nonfreezing. Either requires 0.15–0.8 MPa valve supply and all lower limits. GAFR S: 40 µm, PC bowl, differential/manual drain, bracket and gauge; no reverse-flow valve.

The reviewed pages establish no complete separate coil/cable/connector/pilot-assembly code. Obtain the manufacturer-confirmed code for the actual generation, revision and voltage.

PTL/GPTL recommended cap adjustment; NPTL maximum: 1/8: 0.08 N·m, 1/4: 0.16 N·m. These are not thread-installation torques.

The listed 6SV parts apply only to the exact supplied 6SV model identified above, not the legacy 6V assembly. 6SV manifolds support 1–30 stations, but published dimensions cover 1F–20F only. Obtain installation drawings for 21F–30F.
