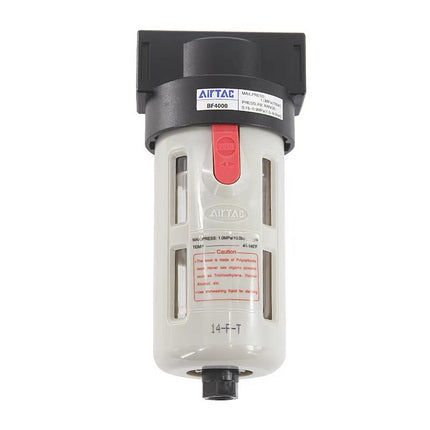

Airtac BF series: air filter - BF2000AT

Photos are for reference only. Not all models have pictures.

Description

Specifications: BF2000AT is an AirTAC BF air filter with NPT 1/4 ports, a 40 µm filter and automatic drain.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for This Product
BF B Series air filter
2000 1/4-inch nominal port size
A automatic drain
Blank filter code 40 µm filter element
T NPT connection thread

Product Features

  • The compact construction is designed for pneumatic air preparation.
  • The filter separates condensed water and solid particles with low pressure loss and efficient water separation.
  • The B Series bowl is protected by a strong plastic bowl guard.

Technical Specifications

Parameter Details
Current model BF2000AT
Working medium Air
Main ports NPT 1/4; inlet and outlet as indicated by the flow direction
Proof pressure 1.5 MPa (215 psi)
Operating pressure 0.15–1.0 MPa (20–145 psi)
Temperature range −5 to 70 °C, non-freezing
Filtration 40 µm
Drain type automatic drain
Drain bowl capacity 60 cc
Catalog reference weight 330 g for the standard family model in this linked catalog. This is a catalog reference, not a measured weight of this individual option combination or a shipping weight.

Series Ordering Options

The code table above identifies the selected configuration. These are the other choices published for this same family; they are not additional items included with this product.

Parameter Details
Port-size choices in this family 2000: 1/4; 3000: 3/8; 4000: 1/2
Thread choices Blank: PT; G: G; T: NPT
Drain choices Blank: semi-automatic; M: manual; A: automatic
Filter choices Blank: 40 µm; W: 5 µm

Internal Construction

The numbered parts below follow the current family’s section drawing. These callouts identify construction; they are not standalone ordering codes or stated package quantities. Drain mechanism details in the drawing are a reference for the illustrated version; the selected drain option is identified above.

Drawing Item Material / Details
1. Drain bowl O-ring NBR
2. Body Aluminum alloy
3. Filter element HDPE; 40 µm in this model
4. Umbrella baffle POM
5. Drain bowl PC
6. Drain kit Steel/POM
7. Drain seat Steel/POM
8. Drain pillar POM
9. Return spring Stainless steel
10. Gasket POM
11. Air guider POM
12. Bowl guard switch POM
13. Bowl guard PA66
14. Drain seat O-ring NBR

Drain and Service Notes

The selected drain is automatic drain. The B Series semi-automatic/automatic drain detail shows a G1/8 outlet and an 11 mm local projection.

Performance Curves

Parameter Details
Flow-characteristic plot The BF family plot uses flow in L/min on the horizontal axis and outlet pressure in MPa on the vertical axis. The shown flow axis spans 0–1600 L/min and the outlet-pressure axis 0–0.6 MPa.
How to use the curves Select a curve for the required operating condition and read it in the PDF. An axis endpoint is not a rated flow or a guarantee at every pressure.

Dimensions and Mounting

Dimensions are in millimeters unless stated otherwise. The catalog shows the standard family outline and separate drain details. Local callouts remain grouped by the original view; do not add them to create an unpublished overall size. Options can change the gauge, bracket or drain outline.

Parameter Details
Main connection NPT 1/4 at both flow ports
Front width 72 mm
Height in main illustration 154 mm
Front local callout 14 mm
Side diameter callouts Ø64; Ø44 mm
Side linear callouts 30; 22; 42; 47; 11 mm

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Weight Reference and Catalog Edition

Approximate reference weight: 273 g. The 2022 comprehensive catalog, printed page 300, lists BF4000 at this value. This same-family / same-size reference is used for the current listing; it is not a published weight for the complete current option code. Differences not individually mass-adjusted: the current port-size code 2000 differs from the reference; selected drain A; thread option T. This is a reference estimate, not an individual measurement or packaged shipping weight. The linked family catalog separately gives 330 g as its general family reference. The two source values have different published scopes; the selected weight-field reference follows the 2022 table.
