Description

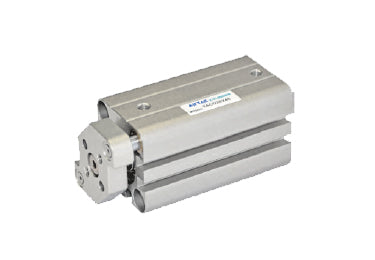

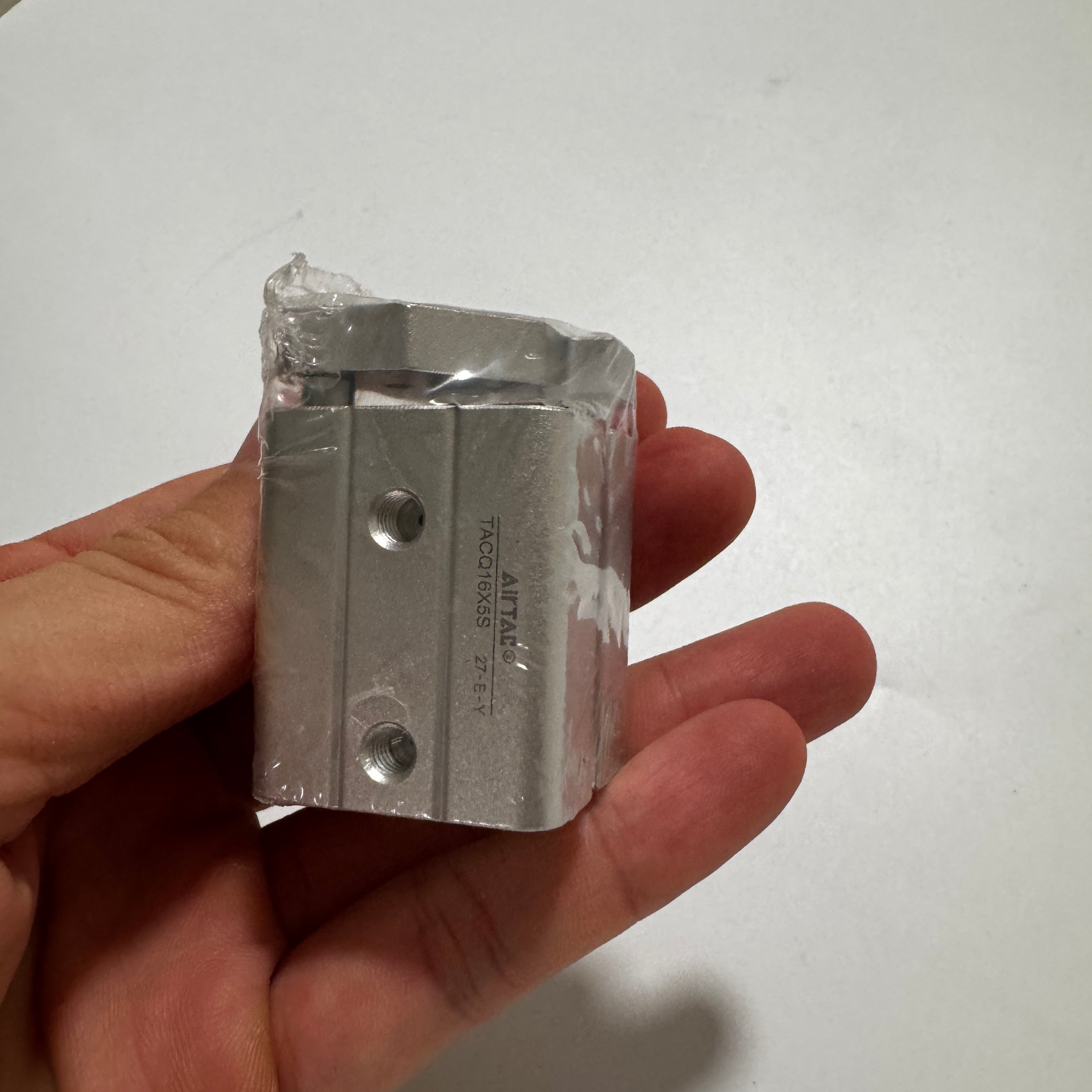

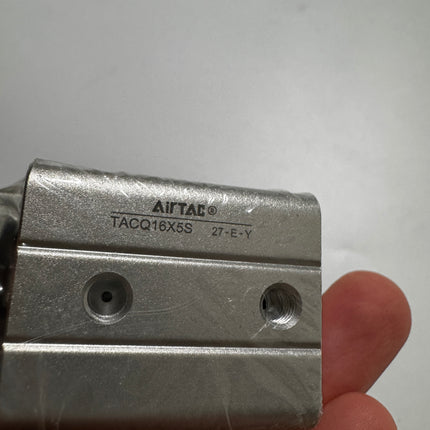

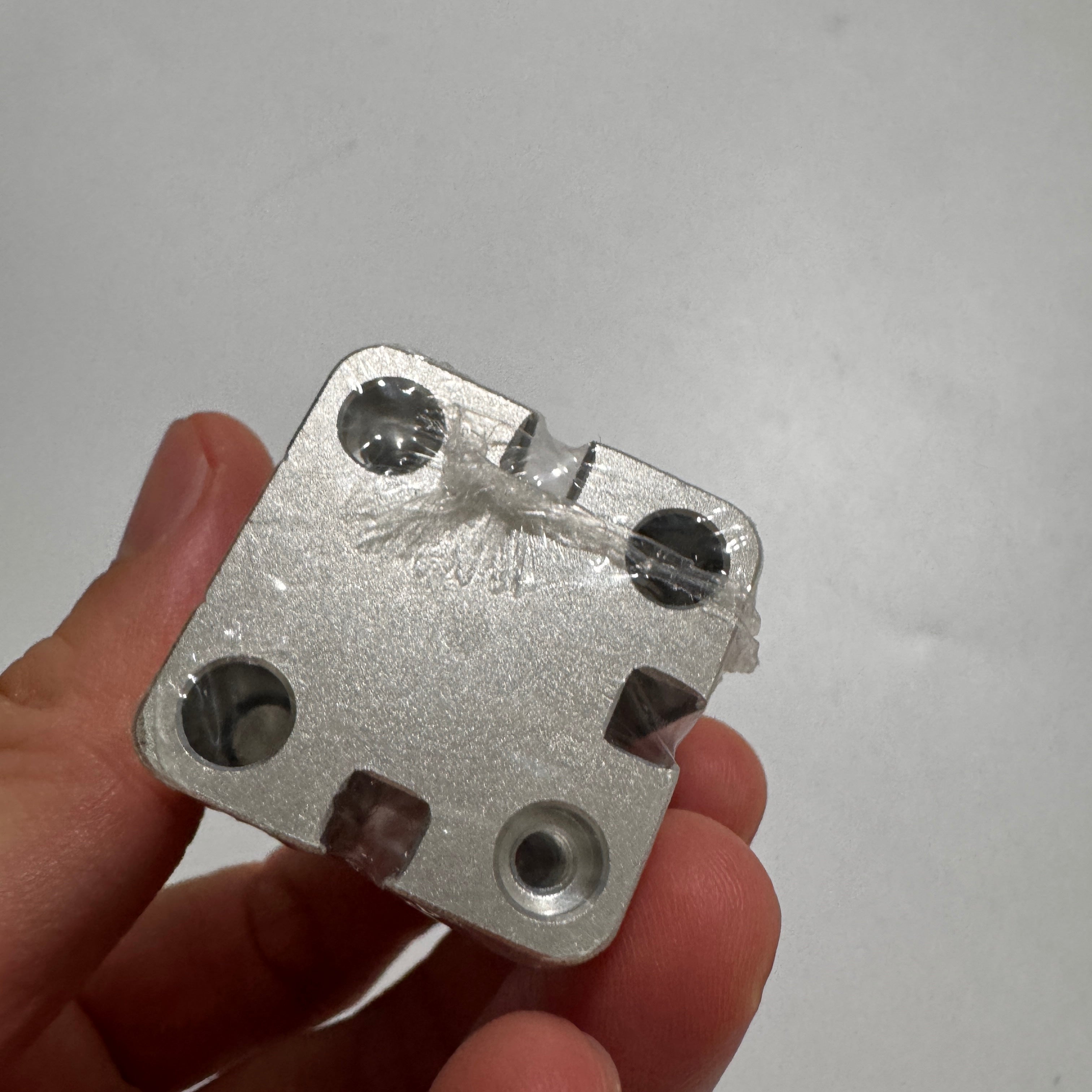

Specifications: ultra-thin cylinder (compound with guide rod type) Cylinder diameter: 16mm Stroke: 5mm Magnet: with magnet Tooth type: M5X0.8
Click to download Airtac product catalog
Product Features
1. Execute JIS standard, with double guide bar type structure.
2. The cylinder body and the front and rear cover are fixed by C- shaped buckle ring, and the piston and piston rod are riveted structure, which is compact and reliable.
3. The inner diameter of the cylinder body is honed, with good wear resistance and durability.
4. The guiding distance of the front cover is lengthened, and the guiding performance is good.
5. Compact structure, can effectively save installation space.
6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.
7. Double guide rod anti-rotation structure, with good anti-bending and anti-torsion performance, can withstand large motion load and lateral load.
