Airtac 2W series: two-way fluid solenoid valve - 2WX05015B

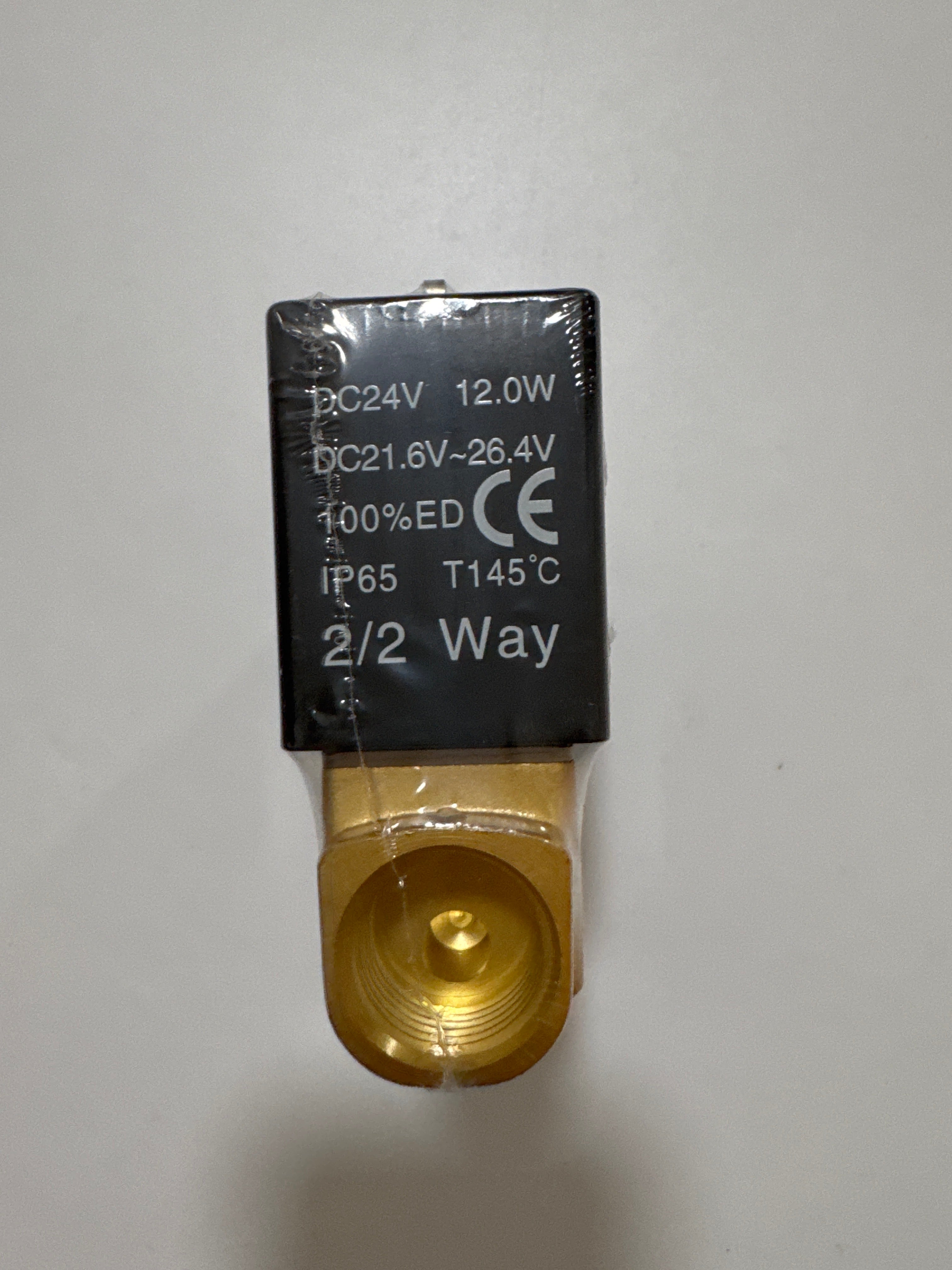

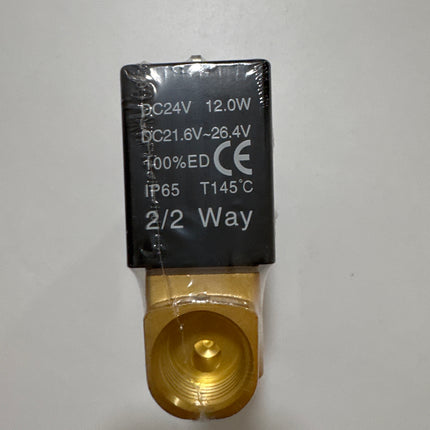

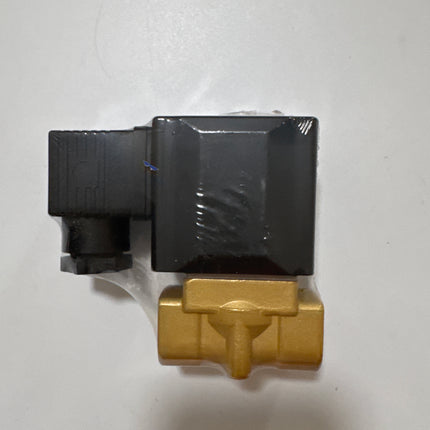

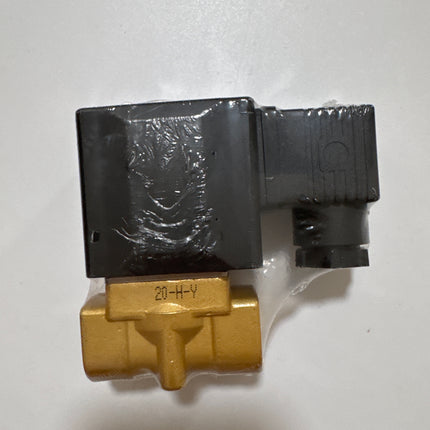

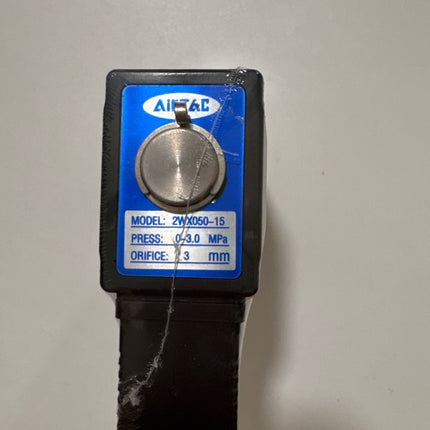

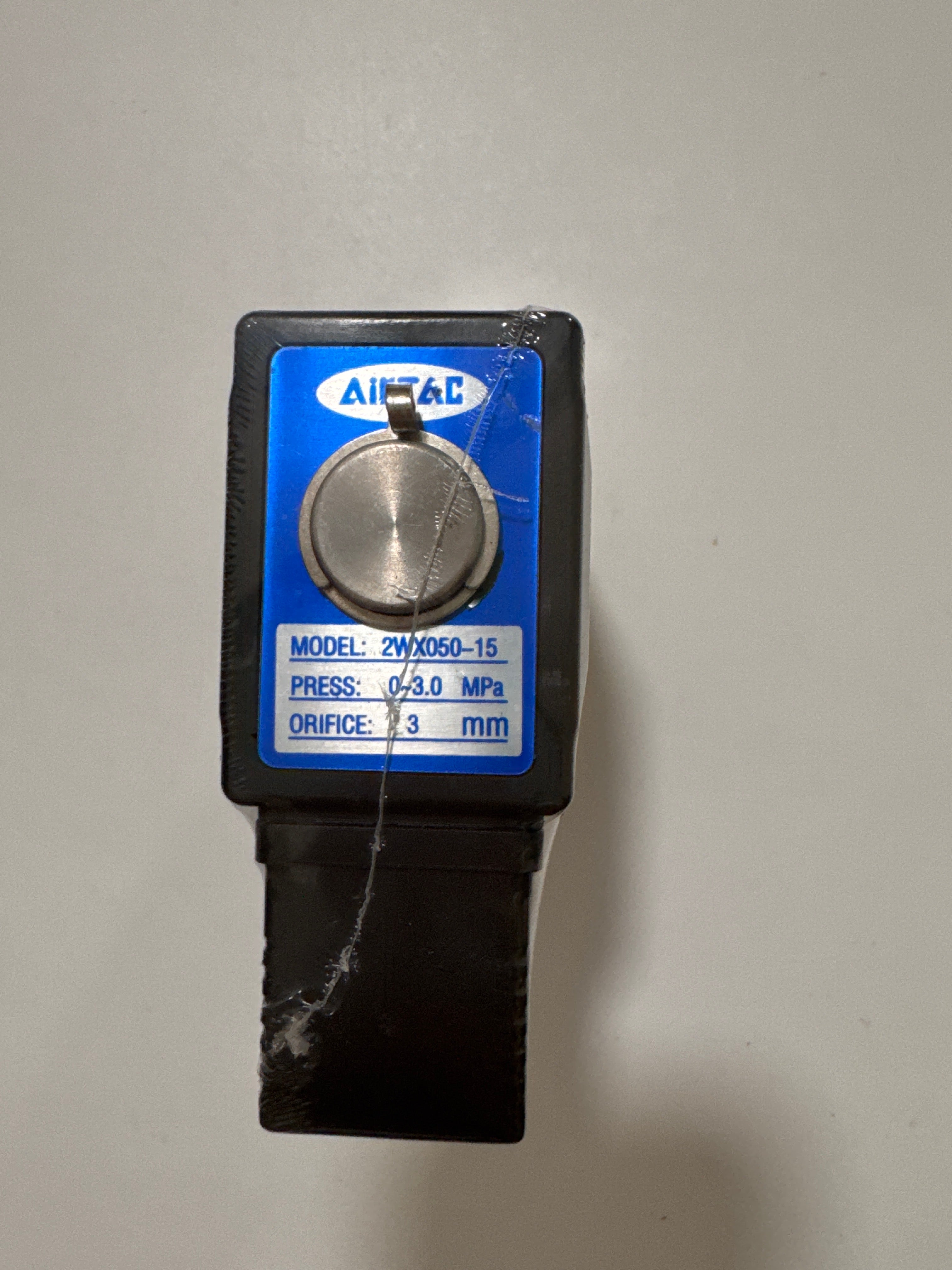

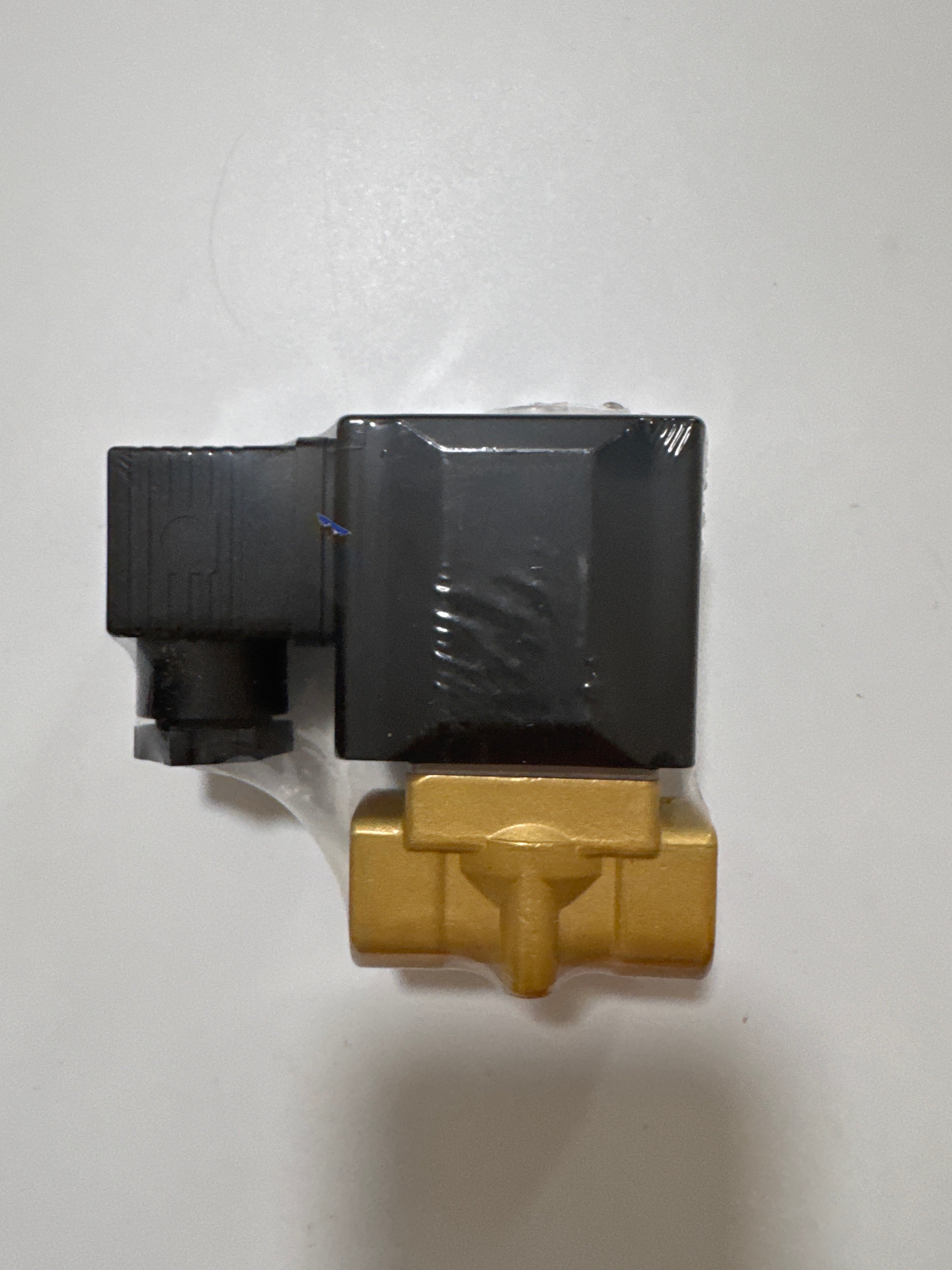

Photos are for reference only. Not all models have pictures.

Description

Specifications: 2WX05015B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the extra-high-pressure configuration. The blank electrical-entry code selects the terminal version.

Product Catalogs

Download Legacy 2W Catalog (PDF)

Download New 2WA Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Legacy-to-New Model and Ordering Information

Orders placed for legacy 2WX05015B will be supplied as 2WAX05015B under our store's replacement policy. The technical information below documents the legacy 2WX05015B; use the new 2WA catalog for the supplied 2WAX05015B.

Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils.

2W vs 2WA: Length, Dimensions and Replacement Guide

Model Code Explained

Code Meaning for this model
2W 2W series 2/2-way fluid-control valve; normally closed.
X Extra-high-pressure option.
050 050 size series; the pressure-condition code determines its orifice and flow data.
15 1/2 in port size; selected thread: PT1/2.
B Coil supply: 24 V DC.
(blank entry code) Terminal electrical entry.
(blank thread suffix) PT thread standard.

Technical Specifications - 2W

The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value.

Parameter Details
Valve function 2/2-way: two ports and two operating positions
Actuation Direct acting
Initial state Normally closed
Media Air, water and oil
Body material Brass
Standard seal material FPM-F; contact the supplier if another seal material is required
Viscosity limit Below 20 cSt
Port thread PT1/2
Orifice diameter 3 mm
Flow coefficient Cv 0.34
Effective area / section 6.1 mm²
Pressure differential 3 MPa maximum operating pressure differential
Proof pressure 5.0 MPa
Catalog reference weight 600 g
Water temperature 1 to 80°C
Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower
Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition
Ambient temperature -20 to 70°C

The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item.

The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection.

Electrical Specifications

Parameter Details
Coil designation for this entry CDA170
Rated voltage 24 V DC
Voltage tolerance ±10% for DC
Electrical entry Terminal
Protection class IP65
DC power consumption 12 W
Temperature rise on DC 40°C
Supply frequency Not applicable to DC
Insulation class Class B

Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply.

Features and Operation

  • This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction.
  • The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling.
  • Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire.
  • The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing.

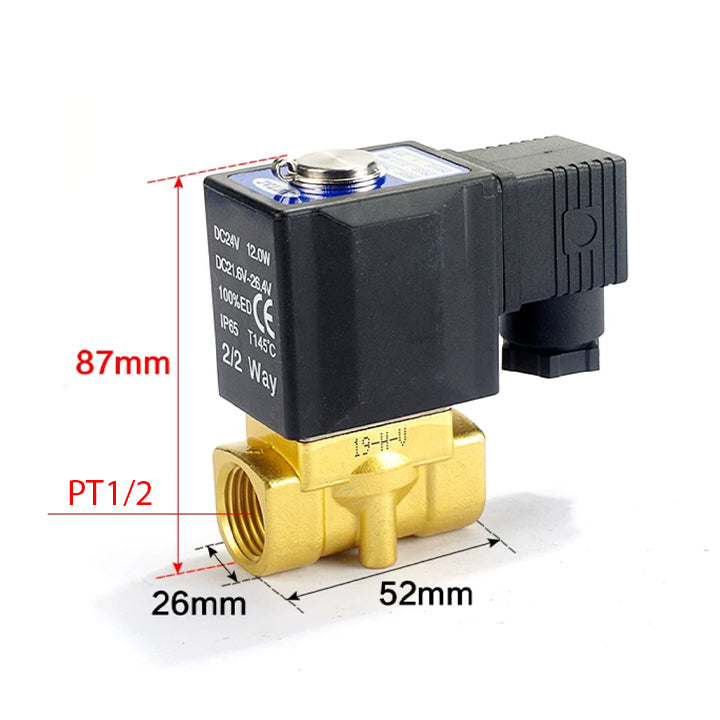

External and Mounting Dimensions

These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height.

Drawing letter Dimension / specification
A 89.5 mm
AB 52 mm
B 39 mm
C 87 mm
D 26 mm
E 56 mm
F 51 mm
G 10 mm
K 5.3 mm
KA 48 mm
P PT1/2
PA 13 mm
Q M5
QA 23 mm

The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Flow and Performance Reference

Parameter Details
Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions
Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100
Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50
Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6

The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area.

Internal Components - Catalog Reference

The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly.

Drawing number Component
1 Body
2 Airtight ring
3 Spring
4 Fixed cap
5 O-ring
6 Fixed plate
7 Movable core
8 Coil assembly
9 E-clip
10 Gasket
11 Connector
12 Washer
13 Screw
14 Filter

Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration.

Mounting Accessory Reference

The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size.

The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name.

Series Ordering Options

These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection.

Ordering category Available catalog options
Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in)
Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow
Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC
Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire
Thread suffix Blank = PT; G = G thread; T = NPT

Matching Accessory Codes and Conditions

The following are separately ordered service parts or optional mounting accessories, not additional items promised with the complete valve. Keep the original voltage, electrical entry, normal state, insulation class and generation checks.

Legacy service references apply only when maintaining an existing 2W valve. Parts for the supplied 2WA valve are identified separately; the delivery policy does not make the two generations interchangeable.

Item Complete codes and use
Existing legacy 2W valve — service coil Separately ordered service coil for an existing 2WX05015B: DC24V, terminal / DIN entry, 17.0 mm bore and default Class B insulation. Use the normally-closed application rating and verify the installed coil nameplate. This legacy coil is not a substitute for the supplied 2WA valve's coil.
CDA170B
Existing legacy terminal coil — connector Separately ordered terminal connector for the legacy CDA170 coil used on 2WX05015B; use the hookup drawing and confirm the terminal interface. It is not assigned to CLA flying-lead coils or the new 110/160 coil family. The drawing does not define a supplied kit or component quantities.
PL3030
Supplied 2WA valve — service coil Separately ordered replacement coil for the supplied 2WAX05015B: DC24V, terminal / DIN entry, 16.0 mm bore, normally-closed application (no K state code), with default Class F insulation (no H suffix). Verify the exact coil nameplate and the appropriate direct-acting or internally-piloted valve data. Do not substitute the legacy 116/170 family or assume its terminal connectors fit this coil.
CDA160B
Supplied 2WA valve — mounting bracket Optional mounting bracket for the supplied 2WAX05015B, corresponding to the 2WA 050 selection. Check the new-generation mounting drawing and order separately; inclusion and packing quantity are not specified. This does not establish interchangeability with the legacy bracket.
F-2WA050LB

Optional Piping Accessories

M groups the supplied 2WA valve’s two separate PT1/2 female process connections for the compressed-air-only application described here. Connect each port independently; M does not define flow direction. Do not join or bypass the two ports. U identifies an optional upstream compressed-air supply filter/regulator with PT1/2 female IN and OUT ports; it is an installation role, not a fixed valve-port label. Follow the actual valve flow markings and the correct generation’s drawing, and connect through separately specified matching male pipework. No external pilot, atmospheric exhaust or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

Code-prefix uses (match the longest listed family prefix): BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; GAFR upstream filter-regulator; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube.

Use Size / complete codes
M male PT1/2 ↔ male PT1/4: BB0204,BB0204-S
male PT1/2 ↔ male PT3/8: BB0304,BB0304-S
male PT1/2 ↔ male PT1/2: BB0404,BB0404-S
male PT1/2 ↔ female PT1/8: BD0104,BD0104-S
male PT1/2 ↔ female PT1/4: BD0204,BD0204-S
male PT1/2 ↔ female PT3/8: BD0304,BD0304-S
10 × 6.5: BKC1065-04,BKC1065-04-S,UE95A100065100MBU,US98A100065100MBU
10 × 7.5 or 8: BKC1075-04,BKC1075-04-S
12 × 8: BKC1208-04,BKC1208-04-S,UE95A120080100MBU,US98A120080100MBU
12 × 9 or 10: BKC1209-04,BKC1209-04-S
10: BPC1004,PC1004,PC1004-S,PC1004D,PC1004D-S,PEB1004,PEB1004-S,PEB1004D,PEB1004D-S,PED1004,PED1004-S,PED1004D,PED1004D-S,PH1004,PH1004-S,PH1004D,PH1004D-S,PHW1004,PHW1004-S,PHW1004D,PHW1004D-S,PL1004,PL1004-S,PL1004D,PL1004D-S,PLL1004,PLL1004-S,PLL1004D,PLL1004D-S,POC1004,POC1004-S,POC1004D,POC1004D-S,PYB1004,PYB1004-S,PYB1004D,PYB1004D-S,PZB1004,PZB1004-S,PZB1004D,PZB1004D-S
12: BPC1204,BPOC1204,PC1204,PC1204-S,PC1204D,PC1204D-S,PEB1204,PEB1204-S,PEB1204D,PEB1204D-S,PED1204,PED1204-S,PED1204D,PED1204D-S,PH1204,PH1204-S,PH1204D,PH1204D-S,PHW1204,PHW1204-S,PHW1204D,PHW1204D-S,PL1204,PL1204-S,PL1204D,PL1204D-S,PLL1204,PLL1204-S,PLL1204D,PLL1204D-S,POC1204,POC1204-S,POC1204D,POC1204D-S,PYB1204,PYB1204-S,PYB1204D,PYB1204D-S,PZB1204,PZB1204-S,PZB1204D,PZB1204D-S
6: PC604,PC604-S,PC604D,PC604D-S,PL604,PL604-S,PL604D,PL604D-S
8: PC804,PC804-S,PC804D,PC804D-S,PEB804,PEB804-S,PEB804D,PEB804D-S,PED804,PED804-S,PED804D,PED804D-S,PH804,PH804-S,PH804D,PH804D-S,PHW804,PHW804-S,PHW804D,PHW804D-S,PL804,PL804-S,PL804D,PL804D-S,PYB804,PYB804-S,PYB804D,PYB804D-S,PZB804,PZB804-S,PZB804D,PZB804D-S
10; male RA PT1/2 / female RB PT1/2: PHF1004,PHF1004-S,PHF1004D,PHF1004D-S
12; male RA PT1/2 / female RB PT1/2: PHF1204,PHF1204-S,PHF1204D,PHF1204D-S
8; male RA PT1/2 / female RB PT1/2: PHF804,PHF804-S,PHF804D,PHF804D-S
6 × 4: UE95A060040100MBU,US98A060040100MBU
8 × 5: UE95A080050100MBU,US98A080050100MBU
U GAFR30015S,GAFR40015S

These options are ordered separately for clean, positive-pressure compressed air only; they do not cover the valve’s water or oil service. Match the supplied 2WA generation and its exact PT/G/NPT thread. Use the specified thread seal or face gasket, and verify installation clearance and required flow. PT, G and NPT threads are not interchangeable.

Each female main port needs its own matching male connection. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

PHF fittings use male RA at the selected main port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Branch fittings stay within the intended side of the circuit; do not connect or bypass the valve’s two main ports.

This direct-acting configuration has a maximum operating differential of 3 MPa; its catalog does not state a separate minimum. Differential pressure is inlet pressure minus outlet pressure, not an independent line-pressure rating. Proof pressure is not a continuous working rating. Keep the actual valve differential within its limits and the pressure at each fitting or tube within that component’s rating.

The valve’s air range is −20–90°C and ambient range −20–70°C; air dew point must be −20°C or lower. Apply every stricter accessory temperature and pressure limit. Neither the valve’s 90°C air limit nor a component’s higher temperature limit extends another component’s rating. These combinations do not establish vacuum, water or oil service capability.

Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range. Their use in this assembly is limited to 0–70°C or narrower by the valve’s ambient limit and every connected component; pressure at each fitting or tube must stay within its own rating.

GAFR serves U only as an optional upstream compressed-air supply filter/regulator. Its female IN and OUT ports require separately specified matching male pipework of the same thread standard and size. Follow IN → OUT and the valve’s actual flow direction; U does not make a particular valve port the inlet. Keep the two valve ports separate. These standard configurations have no reverse-flow valve: do not use them where reverse flow is required, in an exhaust path or for water/oil service.

GAFR maximum inlet pressure is 1 MPa; standard regulation is 0.15–0.9 MPa; proof pressure is 1.5 MPa, not a working rating. It does not provide 1 MPa regulated output. Operating temperature is −5–70°C without freezing. Select a setting that satisfies the actual valve inlet/outlet differential and every component’s local pressure limits; the valve’s differential limit is not the regulator’s inlet limit. Check required flow and bowl/environment suitability. A 40 µm filter does not establish the required −20°C air dew point; suitable air drying must be provided independently.

The complete GAFR codes select standard S regulation, differential/manual drain, a bracket, round snap-in pressure gauge, 40 µm filtration and no reverse-flow valve. The listed GAFR200/300/400 configurations use the default PC bowl. Gauge units for this thread option are MPa/psi. Other published options change the complete code; do not omit a mandatory C or infer an unlisted size/configuration.

US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within all valve, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.

Product form

Specifications: 2WX05015B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 3 mm... Read more

SKU: 2WX05015B

$70.97 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 2WX05015B is an AirTAC 2W series direct-acting, normally closed 2/2-way fluid-control valve. It has PT1/2 ports, a 3 mm orifice and a 24 V DC coil. The pressure-condition code selects the extra-high-pressure configuration. The blank electrical-entry code selects the terminal version.

    Product Catalogs

    Download Legacy 2W Catalog (PDF)

    Download New 2WA Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Legacy-to-New Model and Ordering Information

    Orders placed for legacy 2WX05015B will be supplied as 2WAX05015B under our store's replacement policy. The technical information below documents the legacy 2WX05015B; use the new 2WA catalog for the supplied 2WAX05015B.

    Compare the correct terminal or grommet drawing before installation. The replacement policy does not establish identical dimensions, mounting geometry or interchangeable coils.

    2W vs 2WA: Length, Dimensions and Replacement Guide

    Model Code Explained

    Code Meaning for this model
    2W 2W series 2/2-way fluid-control valve; normally closed.
    X Extra-high-pressure option.
    050 050 size series; the pressure-condition code determines its orifice and flow data.
    15 1/2 in port size; selected thread: PT1/2.
    B Coil supply: 24 V DC.
    (blank entry code) Terminal electrical entry.
    (blank thread suffix) PT thread standard.

    Technical Specifications - 2W

    The following values are from 2W PDF page 1 and describe the listed configuration. Pressure differential is the inlet-to-outlet pressure difference; proof pressure is a separate test value.

    Parameter Details
    Valve function 2/2-way: two ports and two operating positions
    Actuation Direct acting
    Initial state Normally closed
    Media Air, water and oil
    Body material Brass
    Standard seal material FPM-F; contact the supplier if another seal material is required
    Viscosity limit Below 20 cSt
    Port thread PT1/2
    Orifice diameter 3 mm
    Flow coefficient Cv 0.34
    Effective area / section 6.1 mm²
    Pressure differential 3 MPa maximum operating pressure differential
    Proof pressure 5.0 MPa
    Catalog reference weight 600 g
    Water temperature 1 to 80°C
    Air temperature -20 to 90°C; the catalog specifies an air dew point of -20°C or lower
    Oil temperature -10 to 80°C; the catalog footnote states 50 cSt or less at the lower-temperature condition
    Ambient temperature -20 to 70°C

    The catalog weight is the terminal-entry reference. It is a reference value, not a recorded weighing of this individual item.

    The general viscosity limit and the lower-temperature oil footnote are retained as separate catalog statements. Check the actual medium and temperature against both before selection.

    Electrical Specifications

    Parameter Details
    Coil designation for this entry CDA170
    Rated voltage 24 V DC
    Voltage tolerance ±10% for DC
    Electrical entry Terminal
    Protection class IP65
    DC power consumption 12 W
    Temperature rise on DC 40°C
    Supply frequency Not applicable to DC
    Insulation class Class B

    Coil temperature rise is distinct from the ambient and fluid-temperature limits. The power figures are the values tabulated for the selected AC or DC supply.

    Features and Operation

    • This 2/2-way valve is normally closed when not energized. The 030 and 050 branches use direct-acting construction.
    • The compact brass body is intended for air, water and oil within the catalog limits. The catalog describes rapid response, easy installation and dismantling.
    • Terminal and grommet electrical entries are separate order-code choices. The grommet option includes the catalog-specified 0.5 m wire.
    • The illustrated mounting bracket is optional. It is not included merely because it appears in a dimensional drawing.

    External and Mounting Dimensions

    These are the terminal-entry drawing values in the 2W PDF, page 2. Each letter below refers to its own dimension line; do not combine unrelated spans into an assumed overall length × width × height.

    Drawing letter Dimension / specification
    A 89.5 mm
    AB 52 mm
    B 39 mm
    C 87 mm
    D 26 mm
    E 56 mm
    F 51 mm
    G 10 mm
    K 5.3 mm
    KA 48 mm
    P PT1/2
    PA 13 mm
    Q M5
    QA 23 mm

    The drawing marks two holes as 2-ØK (K = 5.3 mm), two threaded locations as 2-Q (Q = M5), and the bracket as optional. P is the valve port thread. Use the original views to locate QA, KA and the bracket outline; a listed hole diameter alone does not prove interchangeability.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Flow and Performance Reference

    Parameter Details
    Air chart vertical axis Downstream pressure P2, 0-1.0 MPa; curves identify upstream pressure P1 and sonic / subsonic regions
    Air chart flow axis Orifice Ø3 mm: Q in L/min (ANR); marked values 100-600, in steps of 100
    Water chart vertical axis Flow Q in L/min, logarithmic scale; visible reference labels from 0.1 to 50
    Water chart horizontal axis Pressure differential ΔP = P1 - P2, in MPa; visible labels 0.001-0.6

    The original flow charts are on 2W PDF page 2. Chart axes are reading scales, not guaranteed flow ratings. Use the curve for the correct orifice and medium; do not substitute a value estimated from a graph for a tabulated Cv or effective area.

    Internal Components - Catalog Reference

    The following numbered key is the catalog illustration for 2W030 (terminal), on PDF page 1. It is a drawing reference, not an included-parts quantity list or a list of independent ordering codes. Other size and entry versions must be checked against their own assembly.

    Drawing number Component
    1 Body
    2 Airtight ring
    3 Spring
    4 Fixed cap
    5 O-ring
    6 Fixed plate
    7 Movable core
    8 Coil assembly
    9 E-clip
    10 Gasket
    11 Connector
    12 Washer
    13 Screw
    14 Filter

    Catalog note: the extra-large-flow T type has no filter element. The filter shown in the reference key must not be interpreted as included in a T configuration.

    Mounting Accessory Reference

    The 2W catalog directs accessory orders to the 2S accessory ordering information (printed page 194). That shared ordering table identifies F-2S050LB for this size.

    The bracket is optional. The supplied catalog does not tabulate a separate bracket weight or a package-component count. Select the bracket for the actual valve family and drawing; legacy and new bracket compatibility must not be inferred from a similar listing name.

    Series Ordering Options

    These are alternative series choices, not additional configurations included with this order. The Model Code Explained table above states the actual selection.

    Ordering category Available catalog options
    Size / port combinations 030: 06 (1/8 in) or 08 (1/4 in); 050: 10 (3/8 in) or 15 (1/2 in)
    Pressure-condition codes X = extra high pressure; H = high pressure; blank = standard; L = large flow; T = extra large flow
    Voltage codes A = 220 V AC; B = 24 V DC; C = 110 V AC; E = 24 V AC; F = 12 V DC
    Electrical-entry code Blank = terminal; I = grommet with a 0.5 m wire
    Thread suffix Blank = PT; G = G thread; T = NPT

    Matching Accessory Codes and Conditions

    The following are separately ordered service parts or optional mounting accessories, not additional items promised with the complete valve. Keep the original voltage, electrical entry, normal state, insulation class and generation checks.

    Legacy service references apply only when maintaining an existing 2W valve. Parts for the supplied 2WA valve are identified separately; the delivery policy does not make the two generations interchangeable.

    Item Complete codes and use
    Existing legacy 2W valve — service coil Separately ordered service coil for an existing 2WX05015B: DC24V, terminal / DIN entry, 17.0 mm bore and default Class B insulation. Use the normally-closed application rating and verify the installed coil nameplate. This legacy coil is not a substitute for the supplied 2WA valve's coil.
    CDA170B
    Existing legacy terminal coil — connector Separately ordered terminal connector for the legacy CDA170 coil used on 2WX05015B; use the hookup drawing and confirm the terminal interface. It is not assigned to CLA flying-lead coils or the new 110/160 coil family. The drawing does not define a supplied kit or component quantities.
    PL3030
    Supplied 2WA valve — service coil Separately ordered replacement coil for the supplied 2WAX05015B: DC24V, terminal / DIN entry, 16.0 mm bore, normally-closed application (no K state code), with default Class F insulation (no H suffix). Verify the exact coil nameplate and the appropriate direct-acting or internally-piloted valve data. Do not substitute the legacy 116/170 family or assume its terminal connectors fit this coil.
    CDA160B
    Supplied 2WA valve — mounting bracket Optional mounting bracket for the supplied 2WAX05015B, corresponding to the 2WA 050 selection. Check the new-generation mounting drawing and order separately; inclusion and packing quantity are not specified. This does not establish interchangeability with the legacy bracket.
    F-2WA050LB

    Optional Piping Accessories

    M groups the supplied 2WA valve’s two separate PT1/2 female process connections for the compressed-air-only application described here. Connect each port independently; M does not define flow direction. Do not join or bypass the two ports. U identifies an optional upstream compressed-air supply filter/regulator with PT1/2 female IN and OUT ports; it is an installation role, not a fixed valve-port label. Follow the actual valve flow markings and the correct generation’s drawing, and connect through separately specified matching male pipework. No external pilot, atmospheric exhaust or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

    Code-prefix uses (match the longest listed family prefix): BB male–male; BD male–female; BKC compression fitting; BPC metal straight; BPOC metal straight; GAFR upstream filter-regulator; PC straight; PEB branch tee; PED run tee; PH banjo elbow; PHF female branch banjo; PHW twin banjo; PL elbow; PLL extended elbow; POC round straight; PYB Y; PZB cross; UE PU tube; US PU tube.

    Use Size / complete codes
    M male PT1/2 ↔ male PT1/4: BB0204,BB0204-S
    male PT1/2 ↔ male PT3/8: BB0304,BB0304-S
    male PT1/2 ↔ male PT1/2: BB0404,BB0404-S
    male PT1/2 ↔ female PT1/8: BD0104,BD0104-S
    male PT1/2 ↔ female PT1/4: BD0204,BD0204-S
    male PT1/2 ↔ female PT3/8: BD0304,BD0304-S
    10 × 6.5: BKC1065-04,BKC1065-04-S,UE95A100065100MBU,US98A100065100MBU
    10 × 7.5 or 8: BKC1075-04,BKC1075-04-S
    12 × 8: BKC1208-04,BKC1208-04-S,UE95A120080100MBU,US98A120080100MBU
    12 × 9 or 10: BKC1209-04,BKC1209-04-S
    10: BPC1004,PC1004,PC1004-S,PC1004D,PC1004D-S,PEB1004,PEB1004-S,PEB1004D,PEB1004D-S,PED1004,PED1004-S,PED1004D,PED1004D-S,PH1004,PH1004-S,PH1004D,PH1004D-S,PHW1004,PHW1004-S,PHW1004D,PHW1004D-S,PL1004,PL1004-S,PL1004D,PL1004D-S,PLL1004,PLL1004-S,PLL1004D,PLL1004D-S,POC1004,POC1004-S,POC1004D,POC1004D-S,PYB1004,PYB1004-S,PYB1004D,PYB1004D-S,PZB1004,PZB1004-S,PZB1004D,PZB1004D-S
    12: BPC1204,BPOC1204,PC1204,PC1204-S,PC1204D,PC1204D-S,PEB1204,PEB1204-S,PEB1204D,PEB1204D-S,PED1204,PED1204-S,PED1204D,PED1204D-S,PH1204,PH1204-S,PH1204D,PH1204D-S,PHW1204,PHW1204-S,PHW1204D,PHW1204D-S,PL1204,PL1204-S,PL1204D,PL1204D-S,PLL1204,PLL1204-S,PLL1204D,PLL1204D-S,POC1204,POC1204-S,POC1204D,POC1204D-S,PYB1204,PYB1204-S,PYB1204D,PYB1204D-S,PZB1204,PZB1204-S,PZB1204D,PZB1204D-S
    6: PC604,PC604-S,PC604D,PC604D-S,PL604,PL604-S,PL604D,PL604D-S
    8: PC804,PC804-S,PC804D,PC804D-S,PEB804,PEB804-S,PEB804D,PEB804D-S,PED804,PED804-S,PED804D,PED804D-S,PH804,PH804-S,PH804D,PH804D-S,PHW804,PHW804-S,PHW804D,PHW804D-S,PL804,PL804-S,PL804D,PL804D-S,PYB804,PYB804-S,PYB804D,PYB804D-S,PZB804,PZB804-S,PZB804D,PZB804D-S
    10; male RA PT1/2 / female RB PT1/2: PHF1004,PHF1004-S,PHF1004D,PHF1004D-S
    12; male RA PT1/2 / female RB PT1/2: PHF1204,PHF1204-S,PHF1204D,PHF1204D-S
    8; male RA PT1/2 / female RB PT1/2: PHF804,PHF804-S,PHF804D,PHF804D-S
    6 × 4: UE95A060040100MBU,US98A060040100MBU
    8 × 5: UE95A080050100MBU,US98A080050100MBU
    U GAFR30015S,GAFR40015S

    These options are ordered separately for clean, positive-pressure compressed air only; they do not cover the valve’s water or oil service. Match the supplied 2WA generation and its exact PT/G/NPT thread. Use the specified thread seal or face gasket, and verify installation clearance and required flow. PT, G and NPT threads are not interchangeable.

    Each female main port needs its own matching male connection. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

    PHF fittings use male RA at the selected main port; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Branch fittings stay within the intended side of the circuit; do not connect or bypass the valve’s two main ports.

    This direct-acting configuration has a maximum operating differential of 3 MPa; its catalog does not state a separate minimum. Differential pressure is inlet pressure minus outlet pressure, not an independent line-pressure rating. Proof pressure is not a continuous working rating. Keep the actual valve differential within its limits and the pressure at each fitting or tube within that component’s rating.

    The valve’s air range is −20–90°C and ambient range −20–70°C; air dew point must be −20°C or lower. Apply every stricter accessory temperature and pressure limit. Neither the valve’s 90°C air limit nor a component’s higher temperature limit extends another component’s rating. These combinations do not establish vacuum, water or oil service capability.

    Standard push-in fittings: ≤1 MPa, −20–70°C. Metal BPC/BPOC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range. Their use in this assembly is limited to 0–70°C or narrower by the valve’s ambient limit and every connected component; pressure at each fitting or tube must stay within its own rating.

    GAFR serves U only as an optional upstream compressed-air supply filter/regulator. Its female IN and OUT ports require separately specified matching male pipework of the same thread standard and size. Follow IN → OUT and the valve’s actual flow direction; U does not make a particular valve port the inlet. Keep the two valve ports separate. These standard configurations have no reverse-flow valve: do not use them where reverse flow is required, in an exhaust path or for water/oil service.

    GAFR maximum inlet pressure is 1 MPa; standard regulation is 0.15–0.9 MPa; proof pressure is 1.5 MPa, not a working rating. It does not provide 1 MPa regulated output. Operating temperature is −5–70°C without freezing. Select a setting that satisfies the actual valve inlet/outlet differential and every component’s local pressure limits; the valve’s differential limit is not the regulator’s inlet limit. Check required flow and bowl/environment suitability. A 40 µm filter does not establish the required −20°C air dew point; suitable air drying must be provided independently.

    The complete GAFR codes select standard S regulation, differential/manual drain, a bracket, round snap-in pressure gauge, 40 µm filtration and no reverse-flow valve. The listed GAFR200/300/400 configurations use the default PC bowl. Gauge units for this thread option are MPa/psi. Other published options change the complete code; do not omit a mandatory C or infer an unlisted size/configuration.

    US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within all valve, fitting and tube limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

    Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery.
