Airtac 2KS series: two-way fluid solenoid valve - 2KSH03006BI

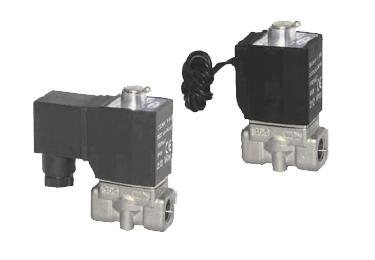

Photos are for reference only. Not all models have pictures.

Description

Specifications: 2KSH03006BI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead.

Product Catalogs

Download Old 2KS Product Catalog (PDF)

Download New 2KSA Product Catalog (PDF)

2KS vs 2KSA: Length, Dimensions and Replacement Guide

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Ordering and Delivery

Orders placed for 2KSH03006BI will be supplied as 2KSAH03006BI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions.

Model Code Explained

Code in this model Meaning
2KS 2-port, 2-position direct-acting, normally open fluid-control valve
H High pressure
030 030 size series
06 1/8 in nominal port size
B DC 24 V
I Grommet; 0.5 m lead
No thread suffix PT thread

Technical Specifications

Parameter Details
Operating principle Direct acting
Initial, de-energized state Normally open
Function 2 ports, 2 positions (2/2-way)
Main port connection PT1/8
Orifice diameter 2 mm
Cv 0.18
Effective flow area 3 mm²
Body material SUS304 stainless steel
Standard seal material FPM-F
Suitable media listed Air, water and oil
Maximum operating pressure differential 1.5 MPa (220 psi as printed)
Proof pressure 3.0 MPa (450 psi)
Water temperature 1 to 80°C
Air temperature −20 to 90°C
Oil temperature −10 to 80°C
Ambient temperature −20 to 70°C
General viscosity specification Under 20 cSt
Air dew-point note −20°C or lower
Oil footnote 50 cSt or less, as printed; see the viscosity clarification below
Catalog reference weight 295 g

The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F.

The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit.

Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item.

Electrical Specifications

Parameter Details
Rated voltage DC 24 V
Electrical entry Grommet, 0.5 m lead
Catalog coil type CLA116
Permitted voltage variation ±10%
Coil insulation class Class B
Coil protection class IP65
Power consumption 6.5 W
Frequency DC; no AC frequency applies
Catalog temperature rise 30°C

Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version.

Features and Operation

  • The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports.
  • The direct-acting design operates the sealing element by the solenoid mechanism.
  • The catalog describes a compact, lightweight construction that is convenient to install and dismantle.
  • The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation.
  • IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code.

External and Mounting Dimensions

These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them.

Drawing letter Value for this configuration
A — drawing dimension 41 mm
AB — drawing dimension 40 mm
B — drawing dimension 29.5 mm
C — drawing dimension 76 mm
D — drawing dimension 20 mm
E — drawing dimension 49 mm
G — drawing dimension 10 mm
ØK — two holes 5.3 mm
KA — drawing dimension 40 mm
P — two main ports PT1/8
PA — drawing dimension 10 mm
Q — two threaded holes M5
QA — drawing dimension 16 mm

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Mounting Accessories

The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system.

The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability.

Flow and Performance Characteristics

The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters.

The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow.

This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale.

Internal Components

The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly.

Reference number Component in the illustrated structure
1 Body
2 Airtight ring
3 Spring
4 Bead flange
5 Fixed plate
6 O-ring
7 Fixed cap
8 Electromagnet
9 Mandril
10 Coil assembly
11 Position ring
12 E clip
13 Connector
14 Washer
15 Screw
16 Spring
17 Airtight bush

Series Ordering Options

These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described.

Parameter Details
030 port options 06: 1/8 in; 08: 1/4 in
050 port options 10: 3/8 in; 15: 1/2 in
Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume
Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V
Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead
Thread options No suffix: PT; G: G; T: NPT
Product form

Specifications: 2KSH03006BI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is... Read more

SKU: 2KSH03006BI

$60.97 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 2KSH03006BI is a 2KS 2/2-way, direct-acting, normally open fluid-control valve. High pressure condition; 030 size series. The port is PT1/8, the coil is rated DC 24 V, and the electrical entry is a grommet with a 0.5 m lead.

    Product Catalogs

    Download Old 2KS Product Catalog (PDF)

    Download New 2KSA Product Catalog (PDF)

    2KS vs 2KSA: Length, Dimensions and Replacement Guide

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Ordering and Delivery

    Orders placed for 2KSH03006BI will be supplied as 2KSAH03006BI from the new 2KSA series. The technical information below describes 2KS. For the model supplied against a legacy order, use the new-series PDF. Compare the two catalogs for dimensions, connections and electrical details before installation; this supply policy is not a claim of identical dimensions.

    Model Code Explained

    Code in this model Meaning
    2KS 2-port, 2-position direct-acting, normally open fluid-control valve
    H High pressure
    030 030 size series
    06 1/8 in nominal port size
    B DC 24 V
    I Grommet; 0.5 m lead
    No thread suffix PT thread

    Technical Specifications

    Parameter Details
    Operating principle Direct acting
    Initial, de-energized state Normally open
    Function 2 ports, 2 positions (2/2-way)
    Main port connection PT1/8
    Orifice diameter 2 mm
    Cv 0.18
    Effective flow area 3 mm²
    Body material SUS304 stainless steel
    Standard seal material FPM-F
    Suitable media listed Air, water and oil
    Maximum operating pressure differential 1.5 MPa (220 psi as printed)
    Proof pressure 3.0 MPa (450 psi)
    Water temperature 1 to 80°C
    Air temperature −20 to 90°C
    Oil temperature −10 to 80°C
    Ambient temperature −20 to 70°C
    General viscosity specification Under 20 cSt
    Air dew-point note −20°C or lower
    Oil footnote 50 cSt or less, as printed; see the viscosity clarification below
    Catalog reference weight 295 g

    The table gives operating pressure differential, not proof pressure as a continuous working rating. The direct-acting specification lists a maximum differential; it does not tabulate a separate minimum. Select the medium and temperature within the listed limits and check compatibility with SUS304 and FPM-F.

    The general viscosity line states under 20 cSt, while the oil-temperature footnote states 50 cSt or less. Both source statements are retained; oil above 20 cSt requires application confirmation rather than assuming that the broader footnote overrides the general limit.

    Weight is a catalog reference for this valve and electrical entry. Terminal value minus 10 g per grommet footnote. Use the actual product as the final reference; the mounting accessory is a separate item.

    Electrical Specifications

    Parameter Details
    Rated voltage DC 24 V
    Electrical entry Grommet, 0.5 m lead
    Catalog coil type CLA116
    Permitted voltage variation ±10%
    Coil insulation class Class B
    Coil protection class IP65
    Power consumption 6.5 W
    Frequency DC; no AC frequency applies
    Catalog temperature rise 30°C

    Temperature rise is the coil-table value, not the allowable ambient temperature. The terminal and grommet versions use the corresponding CDA and CLA coil families. The 0.5 m lead-length note applies to the grommet version.

    Features and Operation

    • The valve is normally open when de-energized. Its 2/2-way function controls the fluid path between the two main ports.
    • The direct-acting design operates the sealing element by the solenoid mechanism.
    • The catalog describes a compact, lightweight construction that is convenient to install and dismantle.
    • The SUS304 body and standard FPM-F seal are specified independently of the electrical-entry option. Other seal materials require consultation.
    • IP65 protection and the stated insulation class apply to the coil; choose the rated voltage and entry specified by the complete model code.

    External and Mounting Dimensions

    These values come from the 2KS catalog, PDF page 2, for the grommet entry and 030 size. Each drawing letter is listed separately. Linear dimensions are in millimetres; thread entries retain their thread designation. A, AB and C are distinct drawing references, not interchangeable names for the valve body. Do not combine figures from different views into an invented overall envelope. Optional-bracket dimensions are shown only where the catalog supplies them.

    Drawing letter Value for this configuration
    A — drawing dimension 41 mm
    AB — drawing dimension 40 mm
    B — drawing dimension 29.5 mm
    C — drawing dimension 76 mm
    D — drawing dimension 20 mm
    E — drawing dimension 49 mm
    G — drawing dimension 10 mm
    ØK — two holes 5.3 mm
    KA — drawing dimension 40 mm
    P — two main ports PT1/8
    PA — drawing dimension 10 mm
    Q — two threaded holes M5
    QA — drawing dimension 16 mm

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Mounting Accessories

    The catalog identifies an optional LB mounting accessory for this size. The shared accessory-ordering reference uses F-2S030LB. The 2S accessory-ordering pages are printed pages 194 and 196; the 2KS catalog refers to that shared ordering system.

    The bracket is optional and is not described as included with the valve. Component quantities, a separate accessory weight and a standalone bracket dimension table are not specified in these pages. Confirm the actual accessory code and mounting arrangement before ordering; a matching size label alone does not establish old/new bracket interchangeability.

    Flow and Performance Characteristics

    The air chart plots downstream pressure P2 against flow Q in L/min (ANR), with curves for upstream pressure P1. Its pressure axis is labeled from 0 to 1.0 MPa. The diagram separates subsonic flow, critical pressure and sonic flow, and supplies different flow scales for the illustrated orifice diameters.

    The water chart plots flow in L/min against pressure differential ΔP = P1 − P2 in MPa. The printed horizontal labels run from 0.001 to 0.6 MPa and the principal vertical labels from 0.1 to 50 L/min. These axes are chart ranges, not a guarantee that every model reaches the highest plotted flow.

    This model has a 2 mm orifice, Cv 0.18 and effective area 3 mm². The original PDF is required to read the curve intersections and graphical conditions; no flow has been estimated from image scale.

    Internal Components

    The catalog illustrates 2KS030 (Terminal). The numbered key below describes that reference drawing; it is not a list of independently orderable parts or quantities, and it does not prove that every series size has an identical internal assembly.

    Reference number Component in the illustrated structure
    1 Body
    2 Airtight ring
    3 Spring
    4 Bead flange
    5 Fixed plate
    6 O-ring
    7 Fixed cap
    8 Electromagnet
    9 Mandril
    10 Coil assembly
    11 Position ring
    12 E clip
    13 Connector
    14 Washer
    15 Screw
    16 Spring
    17 Airtight bush

    Series Ordering Options

    These are series options, not additional features included with the current model. The Model Code Explained section above identifies the configuration being described.

    Parameter Details
    030 port options 06: 1/8 in; 08: 1/4 in
    050 port options 10: 3/8 in; 15: 1/2 in
    Pressure-condition options X: extra high pressure; H: high pressure; no code: standard; L: large volume
    Voltage options A: AC220V; B: DC24V; C: AC110V; E: AC24V; F: DC12V
    Electrical-entry options No suffix: terminal; I: grommet with 0.5 m lead
    Thread options No suffix: PT; G: G; T: NPT
