Airtac 3V100 series: pneumatic solenoid valve - 3V11006NCBT

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

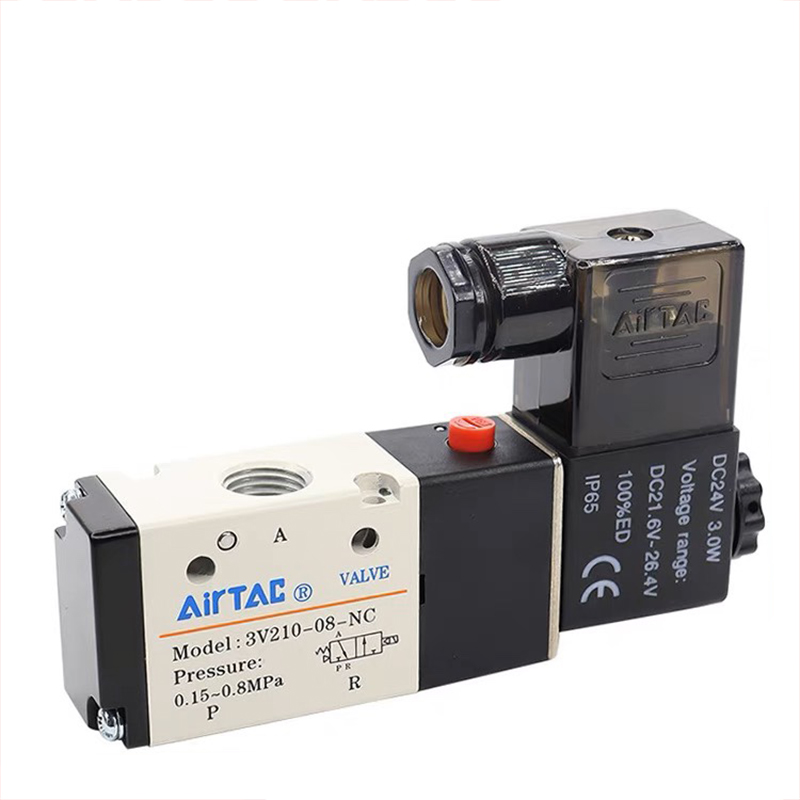

Photos are for reference only. Not all models have pictures.

Description

Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; NPT1/8 ports; normally closed; DC24V; DIN connector; internal pilot.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves.

Model Code Explained

Code / field	Meaning for this model
Model	3V11006NCBT
3V	Three-port, two-position solenoid valve
1	100 series
10	Two-position, single solenoid
06	1/8-inch nominal ports
NC	normally closed
B	DC24V
Blank electrical code	DIN connector
T	NPT1/8
No -W suffix	internal pilot

Technical Specifications

Parameter	Specification
Model / construction	3V11006NCBT; sliding-spool, pilot-operated valve
Ports / positions	3 ports, 2 positions (3/2-way)
Control / pilot	normally closed; internal pilot
Main connections	3 × NPT1/8
Working medium	Air filtered through a 40 μm filter element
Operating pressure	0.15–0.8 MPa (21–114 psi), catalog working-pressure range
Proof pressure	1.2 MPa (175 psi)
Operating temperature	−20 to 70°C
Body material	Aluminum alloy
Effective area / Cv	10.2 mm²; Cv=0.6.
Lubrication	Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent.
Reference weight	110 g (0.11 kg), catalog reference for 3V110; actual product weight governs.

Electrical Specifications

Parameter	Specification
Rated voltage	DC24V
Voltage tolerance	DC ±10%
Power consumption	2.8 W per coil
Electrical connection	DIN connector
Protection / insulation	IP65 (DIN40050); class B
Energizing time	≤0.05 s
Maximum frequency	5 cycles/s at no load

Features and Operation

Sliding-spool structure provides sealing and responsive switching. Special bore processing reduces friction and starting pressure and supports long service life. Manual override assists installation and commissioning; added lubrication is not required. Matching manifolds allow compact valve groups. NC: de-energized P blocked and A connected to R; energized P connected to A and R blocked. P=supply, A=outlet, R=exhaust; refer to the pneumatic symbol.

External and Mounting Dimensions

All dimensions below are in mm for 3V110, DIN configuration. Linked PDF: third page, printed p.44. The 2022 catalog also identifies the optional external-pilot port. Use each dimension with its own view and origin; do not combine the callouts into an overall length × width × height.

View / feature	Applicable dimensions (mm)
Side-view main dimensions	Overall axial span 88.4; body width 27; upper horizontal spans 55 and 34.
Side fixing / manual pin	2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5.
Two-port face	Port spacing 16; lower offset 14.7; lateral offset 2.
Opposite face	Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1.
Main port callouts	3 × NPT1/8; these are valve ports, not manifold supply/exhaust port sizes.
Pilot connection	Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Assembly and Accessory Kit Contents

This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves.

Parameter	Specification
Matching manifold	3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads.
Manifold kit contents	Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified.
Blanking-plate kit	P-3V100M-R2; blanking plate and screws. Screw quantity is not specified.
Accessory conditions	40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions.
Assembly features	Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded.

Optional Manifold Dimensions

Series reference only: 3V100M, 2022 catalog printed p.81. The diagram shows assembled valves; B/BA and connector projections are not bare-base dimensions. Lettered callouts refer to that drawing; dimensions are in mm.

Parameter	Specification
Drawing symbols	B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK.
P: manifold port	PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code.
A, stations 1F to 16F	38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323
KA, stations 1F to 16F	28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313

Flow Characteristics

Series reference: the plotted test model is 3V110-06-NO. The 2022 chart has pressure 0–0.7 MPa in 0.1 MPa steps and flow 0–1200 L/min in 200 L/min steps. These axes are not rated flow limits. The linked English chart uses psi. Curves are AirTAC laboratory test data; use the graph and actual pressure conditions, not an axis maximum, for selection.

The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model.

Internal Components

Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction.

No.	Part name
1	Fixed plate
2	Manual override pin
3	Spring
4	Shaped O-ring
5	Pilot body
6	Shaped O-ring
7	Spool
8	O-ring
9	Body
10	Spring
11	Sealing gasket
12	Bottom cover
13	Round-head screw
14	Wear ring
15	Piston
16	Countersunk screw
17	O-ring
18	Movable armature
19	Coil
20	Retaining nut
21	Terminal

Series Ordering Options

The following are series choices, not simultaneous features of this product.

Selection	Available codes
Control	10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code
Port codes	M5=M5, 06=1/8 inch
Voltage codes	A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V
Electrical entry	Blank=DIN connector; I=lead wire, 0.5 m
Thread codes	M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT.
Pilot option	Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.

Product form

Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; NPT1/8 ports; normally closed; DC24V; DIN connector; internal pilot. Product Catalog... Read more

SKU: 3V11006NCBT

$26.30 Incl. VAT

Guaranteed secure & safe checkout.

Bank transfer also available. Payment options may vary by location and device.

Shipping, returns & order help

Free shipping on orders US$30+ under 2 kg

Import duties & taxes included on all orders

Download: 3D model selection.

Shipping & delivery times

In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

Read our shipping policy

Shipping costs & import taxes

Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

Shipping charges and tax details

Model selection & custom orders

Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

Read the refund policy before ordering

Tracking & delivery support

Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

Delivery issue policy

Returns & product issues

Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

Read the full refund policy

Bank transfers & invoices

Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

For payment or invoice questions, email airtacs@airtacs.com with your order number.

Description

Specifications: Three-port, two-position solenoid valve; 100 series; single solenoid; NPT1/8 ports; normally closed; DC24V; DIN connector; internal pilot.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Airtac 3V100 series valves are functional alternatives to SMC SYJ300 series valves.

Model Code Explained

Code / field	Meaning for this model
Model	3V11006NCBT
3V	Three-port, two-position solenoid valve
1	100 series
10	Two-position, single solenoid
06	1/8-inch nominal ports
NC	normally closed
B	DC24V
Blank electrical code	DIN connector
T	NPT1/8
No -W suffix	internal pilot

Technical Specifications

Parameter	Specification
Model / construction	3V11006NCBT; sliding-spool, pilot-operated valve
Ports / positions	3 ports, 2 positions (3/2-way)
Control / pilot	normally closed; internal pilot
Main connections	3 × NPT1/8
Working medium	Air filtered through a 40 μm filter element
Operating pressure	0.15–0.8 MPa (21–114 psi), catalog working-pressure range
Proof pressure	1.2 MPa (175 psi)
Operating temperature	−20 to 70°C
Body material	Aluminum alloy
Effective area / Cv	10.2 mm²; Cv=0.6.
Lubrication	Not required. If lubrication is started, do not discontinue it; use ISO VG32 or equivalent.
Reference weight	110 g (0.11 kg), catalog reference for 3V110; actual product weight governs.

Electrical Specifications

Parameter	Specification
Rated voltage	DC24V
Voltage tolerance	DC ±10%
Power consumption	2.8 W per coil
Electrical connection	DIN connector
Protection / insulation	IP65 (DIN40050); class B
Energizing time	≤0.05 s
Maximum frequency	5 cycles/s at no load

Features and Operation

External and Mounting Dimensions

View / feature	Applicable dimensions (mm)
Side-view main dimensions	Overall axial span 88.4; body width 27; upper horizontal spans 55 and 34.
Side fixing / manual pin	2 × Ø3.1 holes; pitch 21; horizontal offset 7.7; lower offset 12.2; manual pin projection 2.5.
Two-port face	Port spacing 16; lower offset 14.7; lateral offset 2.
Opposite face	Width 18; fixing centres across width 13; 2 × Ø3.3 holes, vertical pitch 19; lower fixing offset 13.2; port height 23.7; lateral port offset 1.
Main port callouts	3 × NPT1/8; these are valve ports, not manifold supply/exhaust port sizes.
Pilot connection	Internal pilot; the optional M5 × 0.8 external-pilot hole shown in the series drawing is not selected by this code.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Assembly and Accessory Kit Contents

This product code identifies one valve. A manifold and blanking plates are separate accessories; the double-solenoid valve is still one valve, not two valves.

Parameter	Specification
Matching manifold	3V100M, for the 3V100 series; 1F–16F selects 1–16 stations. Blank/G/T selects PT/G/NPT manifold threads.
Manifold kit contents	Manifold base, base gaskets and screws. Individual gasket/screw quantities are not specified.
Blanking-plate kit	P-3V100M-R2; blanking plate and screws. Screw quantity is not specified.
Accessory conditions	40 μm filtered air; −20 to 70°C. Manifold port sizes and dimensions are separate from valve-body ports and dimensions.
Assembly features	Integrates valves of the same series to save space and cost; common inlet/exhaust and organized wiring aid fault finding; station count can be expanded.

Optional Manifold Dimensions

Parameter	Specification
Drawing symbols	B=131.5; BA=88.5; BC=22.7; C=81; CA=26; CB=27; D=39; E=32; F=19; G=19; H=30; K=4.5; KB=5; PA=11.5; PB=22. Mounting holes are marked ØK.
P: manifold port	PT1/4 in the PT drawing; G/NPT versions follow their own manifold ordering code.
A, stations 1F to 16F	38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323
KA, stations 1F to 16F	28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313

Flow Characteristics

The catalog states 10.2 mm² (Cv=0.6) for 3V110-06 and 3V120-06; these values are calculated from flow-test data. This is the listed port-size group for the current model.

Internal Components

Series diagram key for 3V110 / 3V120; numbers identify parts, not kit quantities. Parts shown vary with single- or double-solenoid construction.

No.	Part name
1	Fixed plate
2	Manual override pin
3	Spring
4	Shaped O-ring
5	Pilot body
6	Shaped O-ring
7	Spool
8	O-ring
9	Body
10	Spring
11	Sealing gasket
12	Bottom cover
13	Round-head screw
14	Wear ring
15	Piston
16	Countersunk screw
17	O-ring
18	Movable armature
19	Coil
20	Retaining nut
21	Terminal

Series Ordering Options

The following are series choices, not simultaneous features of this product.

Selection	Available codes
Control	10=single solenoid, with NC/NO; 20=double solenoid, no NC/NO code
Port codes	M5=M5, 06=1/8 inch
Voltage codes	A=AC220V; B=DC24V; C=AC110V; E=AC24V; F=DC12V
Electrical entry	Blank=DIN connector; I=lead wire, 0.5 m
Thread codes	M5 uses no PT/G/NPT suffix. For inch ports: blank=PT, G=G, T=NPT.
Pilot option	Blank=internal pilot; -W=external pilot, with M5 × 0.8 pilot port.
