Airtac 3V2M series: solenoid valve manifold assembly - 3V2MNOF-18FT

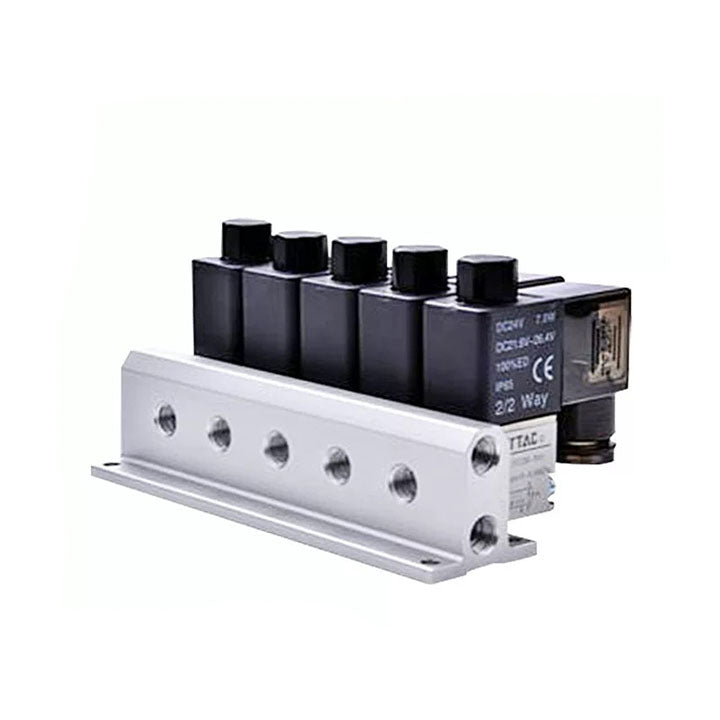

Photos are for reference only. Not all models have pictures.

Description

Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 18-station valve/manifold assembly; common exhaust; NPT1/8.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves.

Model Code Explained

3V2MNOF-18FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 18F=18 stations; blank exhaust code=common exhaust; T=NPT1/8.

Technical Specifications

Parameter This model
Valve 3/2-way, direct acting; normally open
Air / ports 40 μm filtered air; NPT1/8
Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi)
Temperature / body −20 to 70°C; aluminum alloy
Flow area 1.7 mm²; Cv=0.1
Reference weight 2700 g (2.7 kg); 18 × 150 g, valves only; base/accessories excluded. Actual weight governs.

Electrical Specifications

DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load.

Features and Operation

Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols.

External and Mounting Dimensions

mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=18 stations: L1=24n+19=451; L2=24n+9=441. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Assembly and Accessories

Includes 18 × 3V2MNOF valve bodies and 1 × 3V2M18FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated.

Flow Characteristics

3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection.

Internal Components

Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities.

Series Ordering Options

Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).

Product form

Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 18-station valve/manifold assembly; common exhaust; NPT1/8. Product Catalog Download... Read more

SKU: 3V2MNOF-18FT

$1,035.72 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 3V2M base-mounted 3/2-way solenoid valve; normally open; DC12V; DIN connector. 18-station valve/manifold assembly; common exhaust; NPT1/8.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Airtac 3V2M series valves are functional alternatives to SMC VV307 series valves.

    Model Code Explained

    3V2MNOF-18FT: 3V2M=base-mounted three-port, two-position valve; NO=normally open; F=DC12V; blank electrical code=DIN connector. 18F=18 stations; blank exhaust code=common exhaust; T=NPT1/8.

    Technical Specifications

    Parameter This model
    Valve 3/2-way, direct acting; normally open
    Air / ports 40 μm filtered air; NPT1/8
    Pressure 0–0.8 MPa (0–114 psi); proof 1.2 MPa (175 psi)
    Temperature / body −20 to 70°C; aluminum alloy
    Flow area 1.7 mm²; Cv=0.1
    Reference weight 2700 g (2.7 kg); 18 × 150 g, valves only; base/accessories excluded. Actual weight governs.

    Electrical Specifications

    DC12V; voltage tolerance ±10%; 7.0 W per coil; DIN connector. IP65 (DIN40050); insulation class B; energizing time ≤0.05 s; maximum 10 cycles/s at no load.

    Features and Operation

    Direct-acting coaxial poppet: good sealing and flow, no added lubrication. Manual override aids setup. Compact, expandable manifolds support different valve quantities/types. Common supply and organized wiring aid diagnosis. Reversing the base gasket cannot convert NC to NO or vice versa. De-energized: P→A, R blocked; energized: P blocked, A→R. P=supply, A=outlet, R=exhaust; see PDF symbols.

    External and Mounting Dimensions

    mm; linked catalog pp.32–33, matching view. Valve body: side length 62, body length 30, height 67; front width 23; 2 × Ø4.2 fixing holes, centres 16, height 6; lower-body height 24. For n=18 stations: L1=24n+19=451; L2=24n+9=441. Base width 38; mounting centres across width 29; 4 × Ø4.5 through holes; end offset 5. Assembled side: depth 89, height 73. Base side: height 36.5, flange 4.5. Valve-station pitch 24; end offset 21.5. Common exhaust: side port height 9.5 and spacing 20; front port height 19.5, pitch 24, end offset 21.5.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Assembly and Accessories

    Includes 18 × 3V2MNOF valve bodies and 1 × 3V2M18FT base kit. Base, gaskets and screws are included; gasket/screw counts are not specified. P-3V2M-R2 is a separate blanking-plate kit containing plate and screws; screw count is not stated.

    Flow Characteristics

    3V2M curve axes: pressure 0–0.7 MPa (0.1 steps), flow 0–175 L/min (25 steps). Plot scales are not rated flow. Flow depends on pressure; use the PDF curves for selection.

    Internal Components

    Diagram key: 1 spring; 2 body; 3 spool assembly; 4 spacer sleeve; 5 washer; 6 electromagnet assembly; 7 push rod; 8 coil; 9 movable armature; 10 retaining washer; 11 retaining nut; 12 manual button; 13 terminal washer; 14 terminal; 15 countersunk screw. See PDF for locations; labels are not kit quantities.

    Series Ordering Options

    Series options only: NC/NO; A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=lead wire (0.5 m); 1F–20F=1–20 stations; blank exhaust code=common, D=individual; blank thread code=PT, G=G, T=NPT (all 1/8 inch).
