Airtac 3F series: foot pedal valve - 3F21008G

Photos are for reference only. Not all models have pictures.

Description

Specifications: 3F21008G is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/4 connection. The 3F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the G thread suffix selects G thread. This configuration is without a locking mechanism.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Existing Product Statement

Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series.

Model Code Explained

Code Meaning for this model
3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal
08 Connection G 1/4
Lock suffix omitted Without lock
G G thread

Technical Specifications

Parameter Details
Valve function 3-port, 2-position, normally closed
Actuation Direct acting; foot controlled
Connection G 1/4
Body material Aluminum alloy
Working medium Air, filtered through a 40 µm filter element
Working pressure 0–1.0 MPa
Proof pressure 1.5 MPa
Operating temperature −20 to 70 °C
Air lubrication Not required
Reference weight 395 g
Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails

Features and Operation

  • The horizontally arranged direct-acting mechanism has a compact structure.
  • The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts.

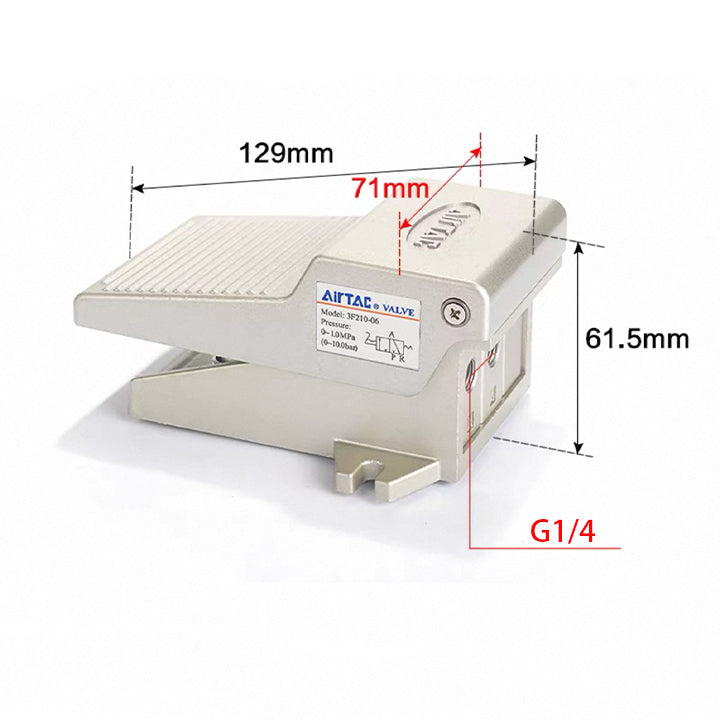

External and Mounting Dimensions

Drawing reference Value for this model
Side-view overall length 129 mm
Side-view height 61.5 mm
Side-view inner height 54.5 mm
Front-view pedal width 71 mm
Base width callout 83 mm
Overall base width 97 mm
Port spacing 18 mm
Port-center height 26.5 mm
Port callout 2 × G 1/4

Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Internal Components

The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration.

Catalog item number Component name
1 Pin
2 Countersunk screw
3 Retaining plate
4 Spool
5 Pedal
6 O-ring
7 Body
8 Spring
9 E-clip
10 Spring holder
11 Override spring
12 Round-head screw
13 Base
14 Base pad
15 Round-head screw
16 Retaining clip

Series Ordering Options

The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply.

Product form

Specifications: 3F21008G is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/4 connection. The 3F210 code... Read more

SKU: 3F21008G

$29.87 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 3F21008G is a 3-port, 2-position, normally closed direct-acting foot pedal valve with a G 1/4 connection. The 3F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the G thread suffix selects G thread. This configuration is without a locking mechanism.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Existing Product Statement

    Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series.

    Model Code Explained

    Code Meaning for this model
    3F210 3-port, 2-position, normally closed foot pedal valve; aluminum foot pedal
    08 Connection G 1/4
    Lock suffix omitted Without lock
    G G thread

    Technical Specifications

    Parameter Details
    Valve function 3-port, 2-position, normally closed
    Actuation Direct acting; foot controlled
    Connection G 1/4
    Body material Aluminum alloy
    Working medium Air, filtered through a 40 µm filter element
    Working pressure 0–1.0 MPa
    Proof pressure 1.5 MPa
    Operating temperature −20 to 70 °C
    Air lubrication Not required
    Reference weight 395 g
    Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails

    Features and Operation

    • The horizontally arranged direct-acting mechanism has a compact structure.
    • The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts.

    External and Mounting Dimensions

    Drawing reference Value for this model
    Side-view overall length 129 mm
    Side-view height 61.5 mm
    Side-view inner height 54.5 mm
    Front-view pedal width 71 mm
    Base width callout 83 mm
    Overall base width 97 mm
    Port spacing 18 mm
    Port-center height 26.5 mm
    Port callout 2 × G 1/4

    Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Internal Components

    The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories. The catalog provides the shared 3F/3FM series illustration.

    Catalog item number Component name
    1 Pin
    2 Countersunk screw
    3 Retaining plate
    4 Spool
    5 Pedal
    6 O-ring
    7 Body
    8 Spring
    9 E-clip
    10 Spring holder
    11 Override spring
    12 Round-head screw
    13 Base
    14 Base pad
    15 Round-head screw
    16 Retaining clip

    Series Ordering Options

    The 3F210 series offers 1/8 and 1/4 connections, an optional L locking mechanism, and PT, G or NPT thread. These are alternative order configurations; only the codes in the current SKU apply.
