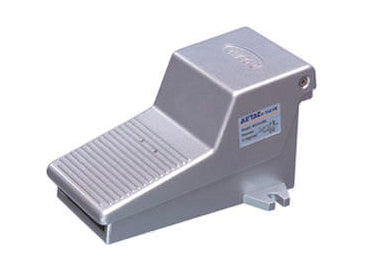

Airtac 4F series: foot pedal valve - 4F21008L

Photos are for reference only. Not all models have pictures.

Description

Specifications: 4F21008L is a 5-port, 2-position direct-acting foot pedal valve with a PT 1/4 connection. The 4F210 code identifies the aluminum foot pedal model, 08 identifies the connection size, and the omitted thread suffix selects PT thread. This configuration is with a locking mechanism.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Existing Product Statement

Airtac 3F/3FM series valves are functional alternatives to the SMC VM230-02-40 series.

Model Code Explained

Code Meaning for this model
4F210 5-port, 2-position foot pedal valve; aluminum foot pedal
08 Connection PT 1/4
L With lock; without guard
Thread suffix omitted PT thread

Technical Specifications

Parameter Details
Valve function 5-port, 2-position
Actuation Direct acting; foot controlled
Connection PT 1/4
Body material Aluminum alloy
Working medium Air, filtered through a 40 µm filter element
Working pressure 0–1.0 MPa
Proof pressure 1.5 MPa
Operating temperature −20 to 70 °C
Air lubrication Not required
Reference weight 669 g
Weight basis 2022 comprehensive catalog, printed page 300; reference value, actual product prevails

Features and Operation

  • The direct-acting aluminum foot pedal operates the 5/2 valve.
  • The lock option is intended for applications requiring a longer direction-holding duration. The catalog describes easy release but cautions that the compact clamping structure must not be subjected to frequent strong impacts.
  • Periodically grease the locking mechanism so that it can operate correctly. This maintenance instruction is distinct from the air-lubrication specification.

External and Mounting Dimensions

Drawing reference Value for this model
Side-view length 157 mm
Side-view overall height 84.4 mm
Base vertical callout 2.2 mm
Pedal-end vertical callout 30.4 mm
Front-view pedal width 73 mm
Port spacing 25 mm
Front-view upper vertical reference 42 mm
Lower port-center height 21 mm
Base width 99 mm
Threaded port callout 3 × PT 1/4

Each value follows its own dimension line in the applicable catalog view. Unlettered callouts are identified by their view; the catalog drawing is required to locate each datum and mounting feature. They are not combined into an inferred overall-size specification.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Internal Components

The numbered items below reproduce the catalog internal-structure reference. Item numbers identify parts in the illustration; they are not quantities, replacement-kit order codes or a list of separately supplied accessories.

Catalog item number Component name
1 Pin
2 Countersunk screw
3 Spring
4 E-clip
5 Pedal
6 Spool
7 O-ring
8 O-ring
9 Front cover
10 Piston
11 Bottom cover
12 C-clip
13 Silencer
14 Base
15 Pedal spring
16 Washer
17 Round-head screw
18 Small foot pad
19 Round-head screw
20 Large foot pad

Series Ordering Options

The 4F21008 family offers no option suffix (without lock or guard), L (lock), F (guard), and LF (lock and guard). PT is the default thread; G and NPT are ordering alternatives. A lock or guard selected by this SKU is part of the ordered configuration. The page does not specify a separately orderable guard/lock kit or its parts quantities.
